Многофункциональная автоматическая машина для ламинирования пленки YFMD 850
- Категория: >>>
- Поставщик: Wenzhou Feihua Printing Machinery Co. Ltd.
Сохранить в закладки 1600567587576:
Описание и отзывы
Характеристики
Product Overview
YFMD-850 Paper Film Laminating Machine
YFMD series automatic laminating machine is a compound device, it is mainly equipped with transportation system, laminating system and cutting system. The electrical device is contolled by PLC, heating roller use the circulation of heated oil to insure the accuracy of laminating temperature. The whole machine has compact structure, automatization and humanity operation. It is the good choice for the large and medium scale enterprise.
The latest design and operation idea are used in multifunctional automatic laminating machine by NEW STAR China manufacuturer. Call today to discuss your customization requirements. Sure you’ll find the best suitable product here.
FEATURES AT A GLANCE
• High Speed
• Easy to operate• Stream feeder
• Servo-controlled pump
• Electromagnetic heating
• Dust removal device
• Stable and precise
• 1 year warranty
• Stable and precise
• 1 year warranty
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | YFMD-850 |
2 | Max paper size | 850*1050mm |
3 | Min paper size | 300x300mm |
4 | Paper weight | 100-500g/m2 |
5 | Laminating speed | 0-80m/min |
6 | Voltage | 380V |
7 | Temperature | 80 -110ºC |
8 | Power | 35kw |
9 | Total weight | 7000kg |
10 | Overall dimension | 9000*2000*1900mm |
PRODUCT CONFIGURATION
· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
1：pre-loading feeder
2 ：non-stopped feeder
3：big format feeder
4：sucking flat table
5：front guild
6: Servo has high precision
7: Anti-clutter magnet safety device
2 ：non-stopped feeder
3：big format feeder
4：sucking flat table
5：front guild
6: Servo has high precision
7: Anti-clutter magnet safety device
1: Mirror iron roller
2: Heating dust removal
3: Scraper cleaning powder
4: Synchronous belt drive
2: Heating dust removal
3: Scraper cleaning powder
4: Synchronous belt drive
1：electromagnetic
heating
2 ：film straigt roller
3：temperature meteroutside
4：automatic pressure
5： paper lacking and breaking system
6：Double-sided lamination（optional）
heating
2 ：film straigt roller
3：temperature meteroutside
4：automatic pressure
5： paper lacking and breaking system
6：Double-sided lamination（optional）
1：sucking and outside air system
2：The UV part adopts 8-12KW adjustable electronic light source, which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine, which can be changed from 30% to 100%. The average energy consumption is saved by more than 30%.
2：The UV part adopts 8-12KW adjustable electronic light source, which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine, which can be changed from 30% to 100%. The average energy consumption is saved by more than 30%.

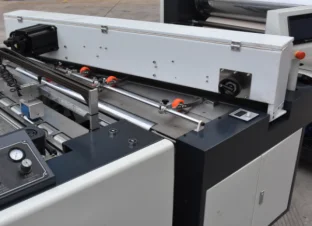

1：back perforating system
2：high speed rotation knife
3 ：anti-curvev system
4 ：pneumatic perforating cutting system
5：slot for the separating roller
2：high speed rotation knife
3 ：anti-curvev system
4 ：pneumatic perforating cutting system
5：slot for the separating roller
1：vacuum sucker flat ,belt width 10cm
2：non-stop feeding
3：850mmtheheight of the paper load
4：counter
5: Paper flap device
6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function
7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
2：non-stop feeding
3：850mmtheheight of the paper load
4：counter
5: Paper flap device
6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function
7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
Packing & Delivery
Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
Whenzhou Feihua Printing Machinery Co.,Ltd founded in 2010. We are an intelligent mechanical equipment manufacturer committed to the research and development of paper surface treatment technology, personalized customization, production, sales and service. Located in coastal city Zhejiang. There are more than 10000 square meters of processing workshops, with integrated production and a complete and scientific quality management system. The factory has a professional management and technical team, first-class manufacturing process, and all manufacturing processes are implemented in accordance with high standards. Continuous innovation, introduction of international cash production equipment, and long-term close cooperation with scientific research institutions to actively develop new products.
The company now has more than 20 invention patents and utility model patents for laminating machine and uv coating machine, and all products have independent intellectual property rights. Multi projects have been listed in key technological innovation projects in Wenzhou. The company has been rated as a technological innovation enterprise and patent demonstration enterprise in Wenzhou. All products of the company have passed the EU CE certification.
Laminating Machine
Coating Machine
Vertical Laminating Machine
Folder Gluer
Die Cutting Machine
Hot Stamping Machine
Flute Laminating Machine
Rigid Box Machine
Paper Tube Machine
OUR SERVICE
With rich and comprehesive technology and professional service, we turn your requirements into customized solutions and create higher quality products.
Pre-sale service： you’ll get best-in-class response speed in 24 hours. Then we will integrate the needs of customers and formulate the most suitable and economical solutions for customers.
In sale service：we will strictly control the production quality of products and complete debugging before delivery. Besides, we’ll provide you with comprehensive technical consultation and training.
After sale service： specially equipped with a group of professional and experienced technical masters to provice full tracking services, and help you train technical personnel. WIth 1 year free warranty unconditionally.
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
