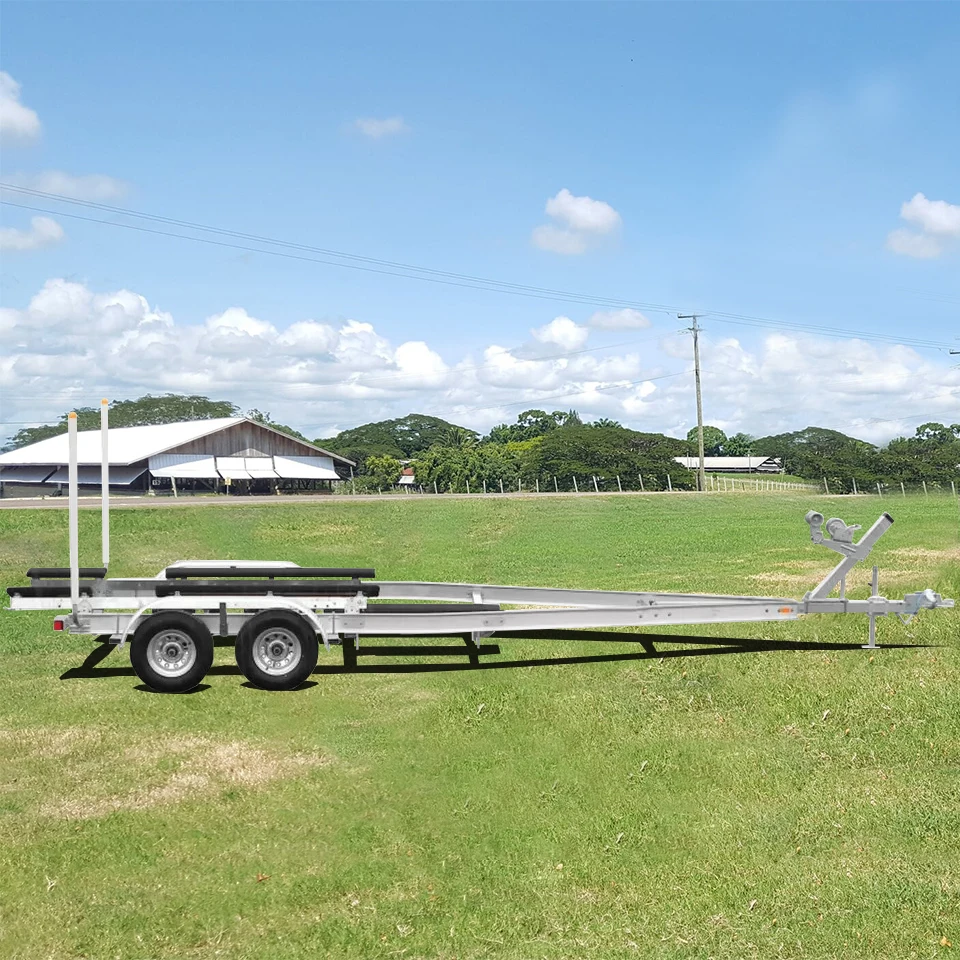

Ecocampor 23ft алюминиевый двухосный Понтонный двухъярусный прицеп для рыбалки с боковой стороны
95 883,84 ₽ - 110 211,30 ₽

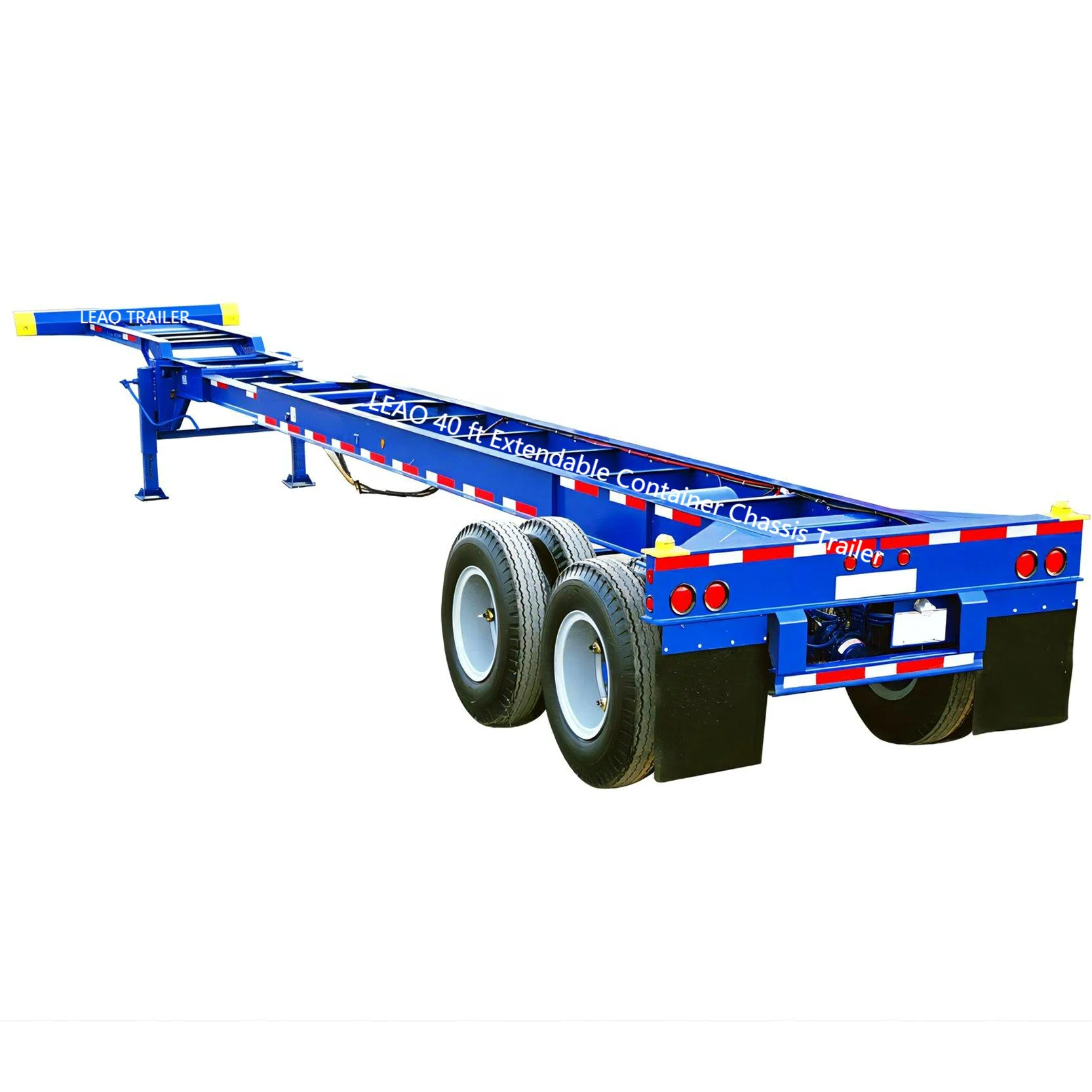

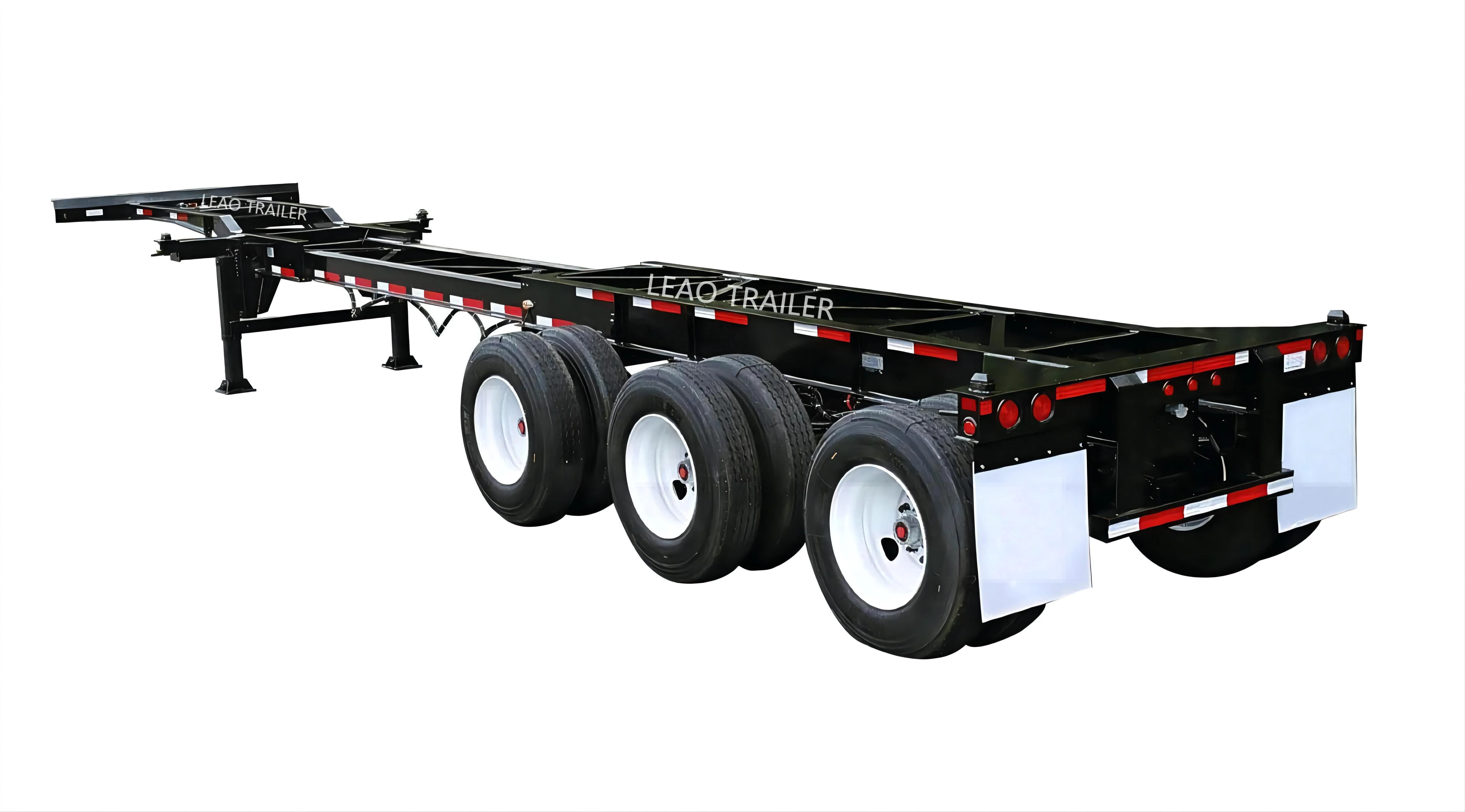

2023 самый популярный контейнер с низким шасси 20/40 футов комбо тандемный выдвижной интермодальный трейлер
- Категория: Trailers >>>
- Поставщик: Liangshan Leao Machinery Co. Ltd.
Сохранить в закладки 1600567824936:
Описание и отзывы
Характеристики
Products Description

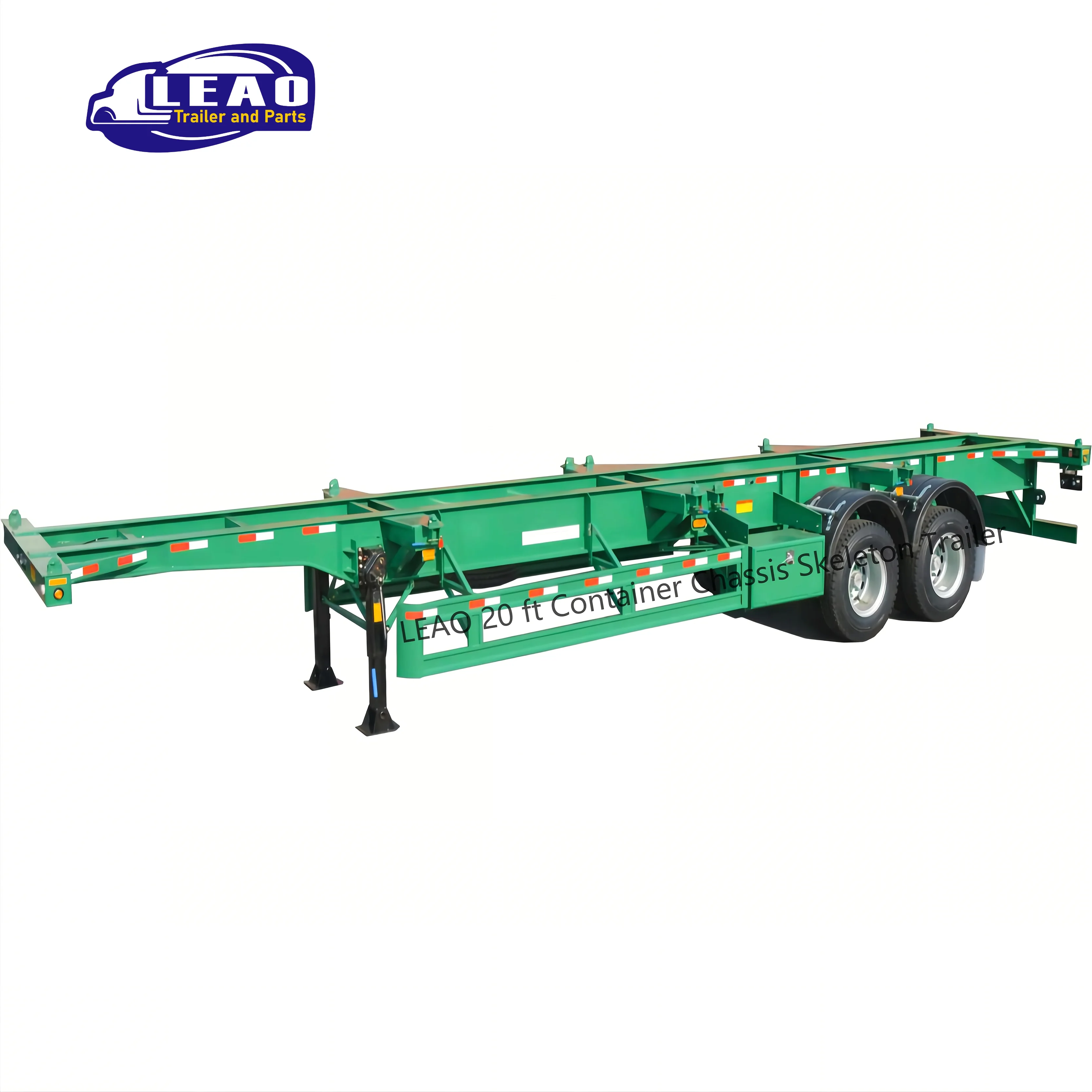

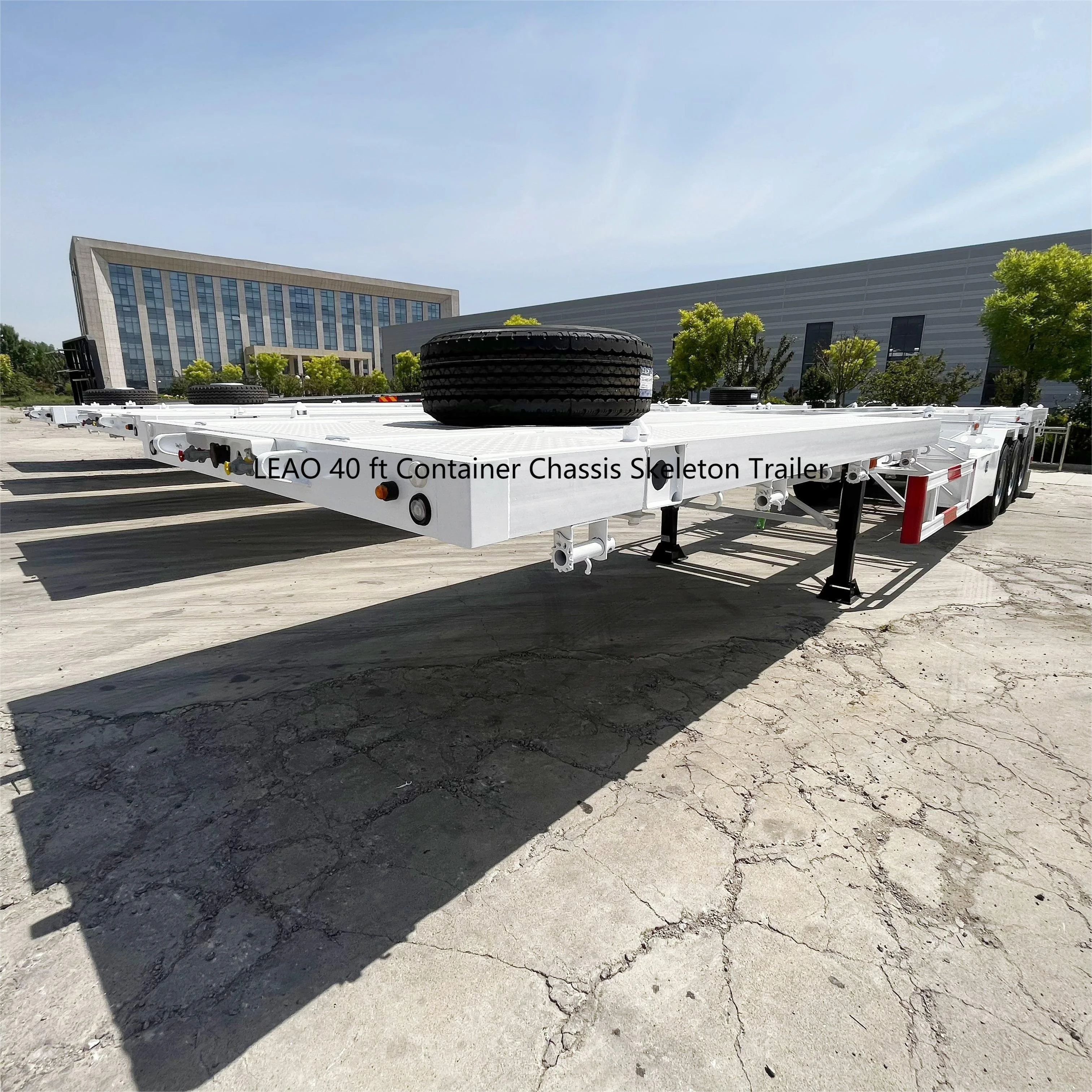

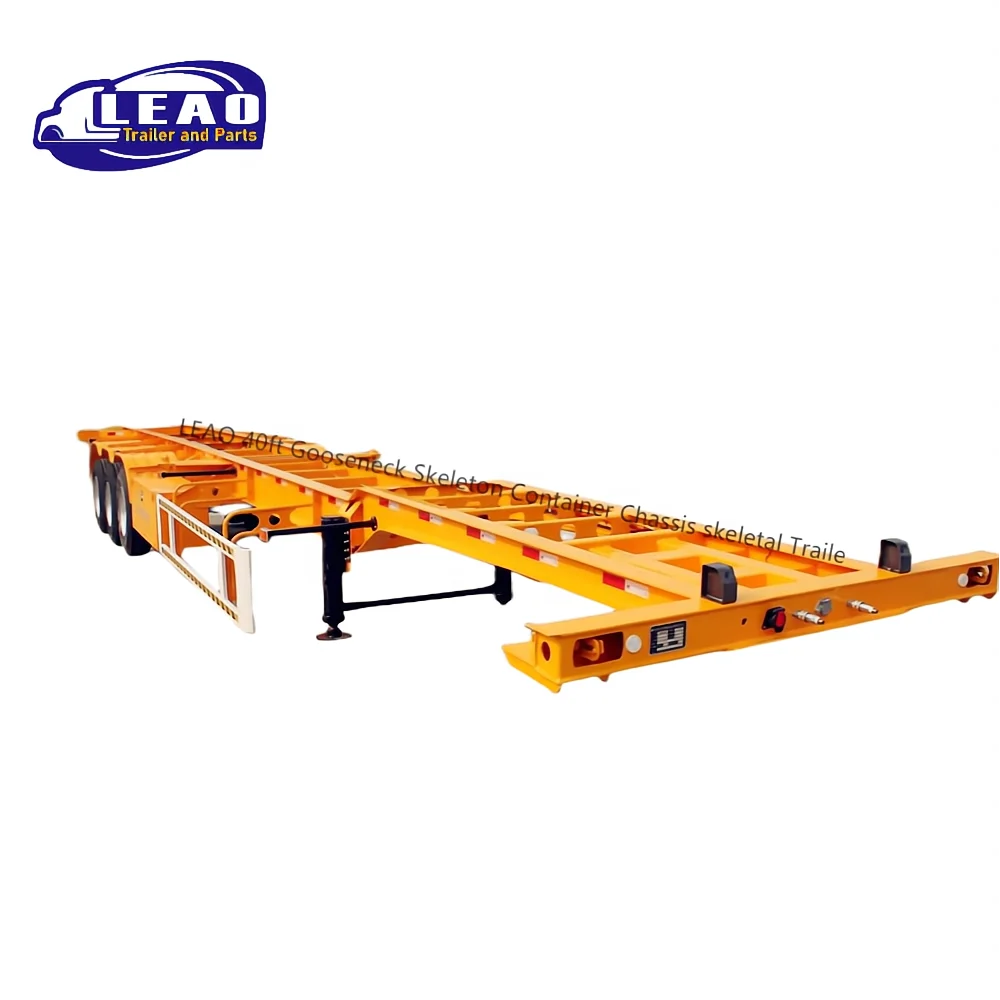

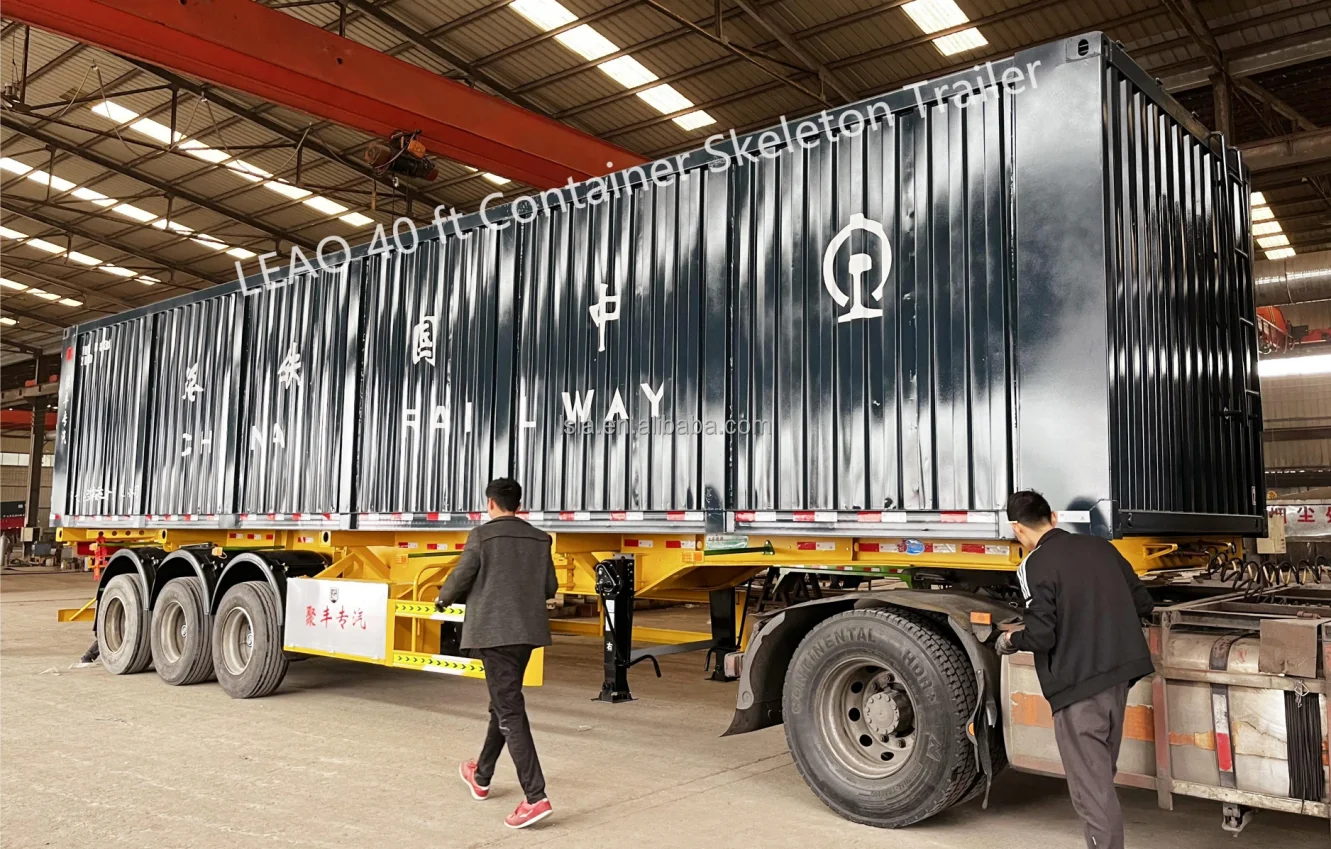

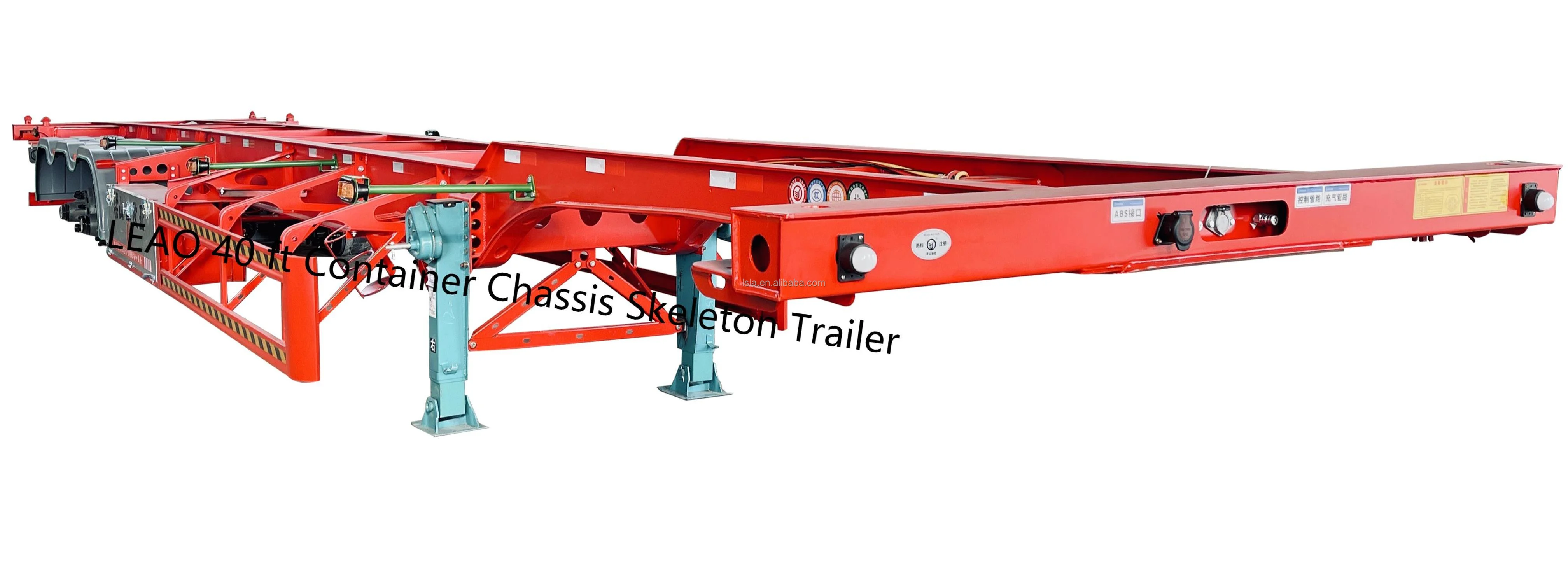

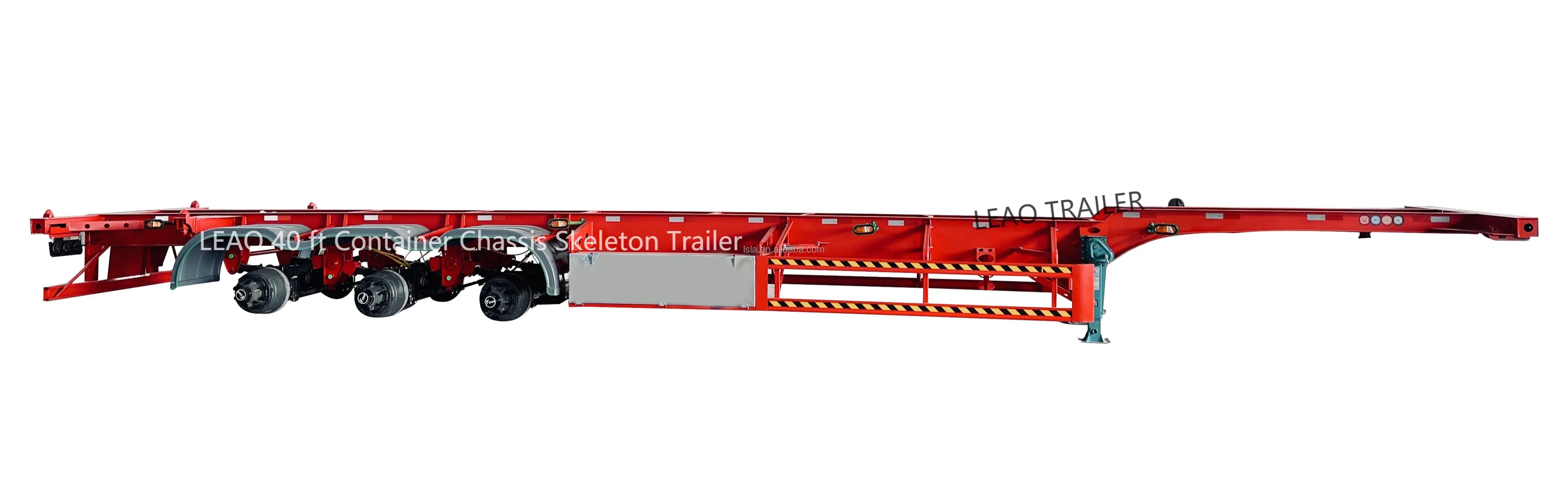

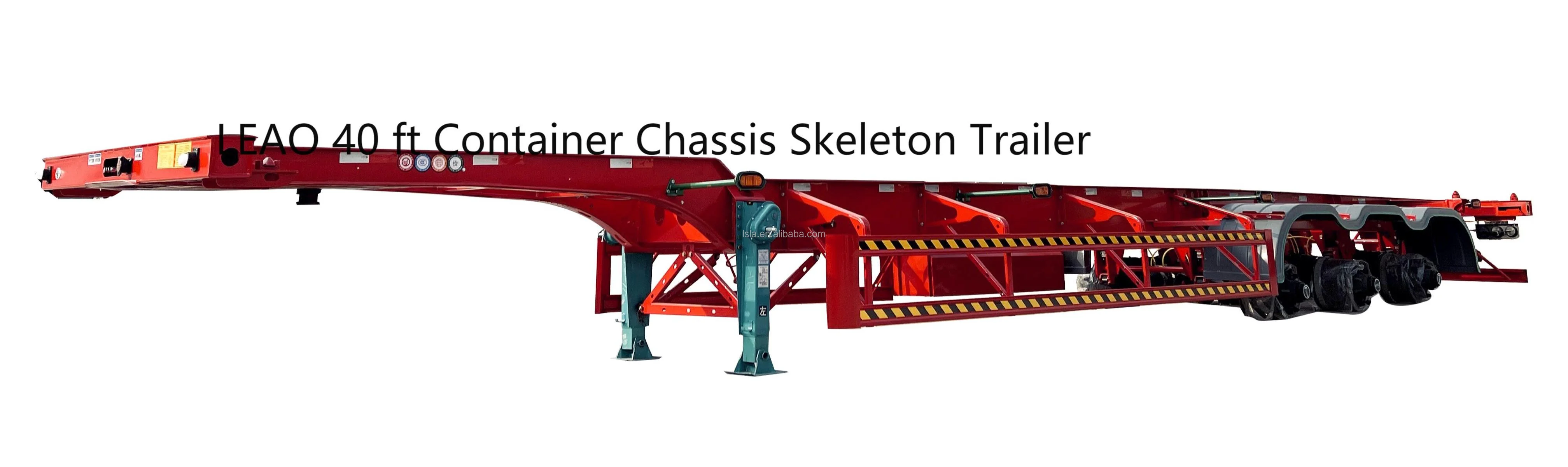

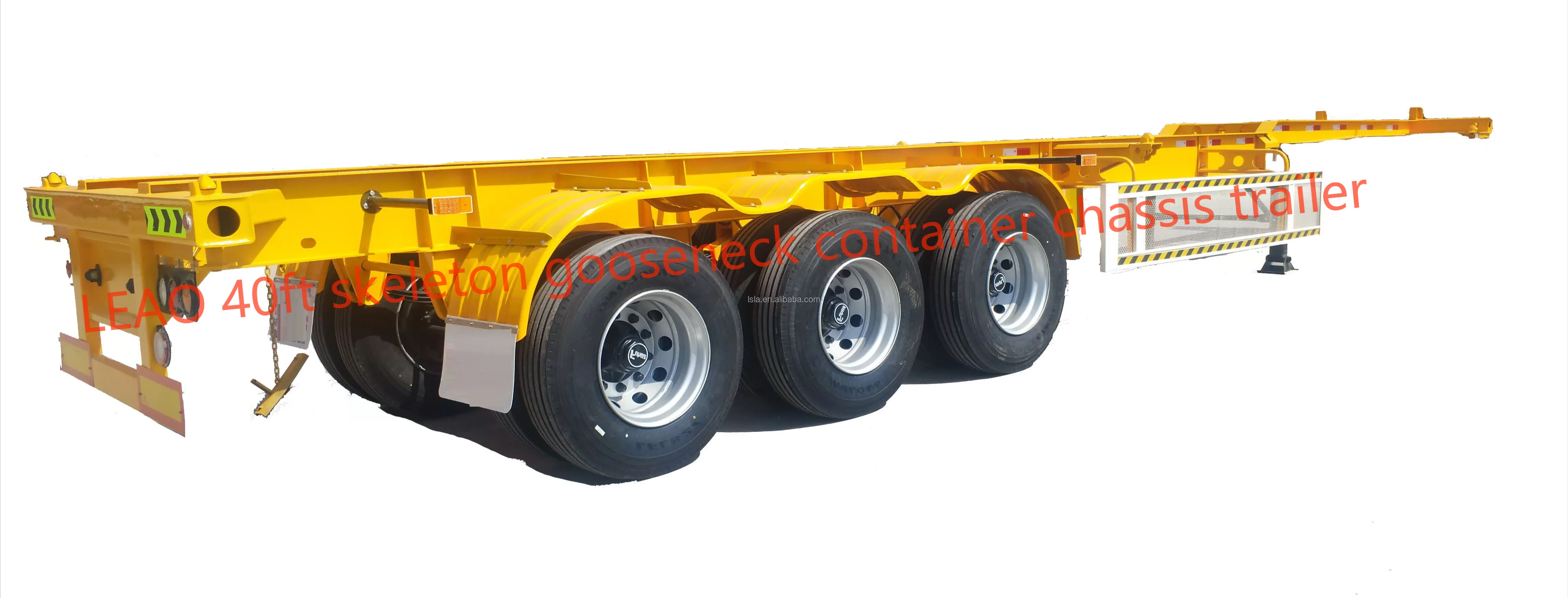

LEAO Tri-Axle 20ft 40ft Skeleton Gooseneck Container Chassis trailer
1. When using a container chassis trailer to transfer the goods, it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload it.
2. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
2. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
Product Paramenters
Product Name | 20FT Container chassis Semi Trailer | 40FT Skeletal Container chassis Trailer | |
Dimension | 7500*2500*1550mm | 12500*2500*1550mm | |
Twist Lock | 4/8 set ISO Standard | 12/14 set ISO Standard | |
Suspenssion | Mechanical / Air / Bogie | Mechanical / Air / Bogie | |
Axle | 2/3 axles BPW/FUWA/PDME | 2/3/4 axles BPW/FUWA/PDME | |
Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum | 8/12/16 pieces 9.0-22.5 Steel/Aluminum | |
Tire | 8/12 pieces 12R22.5 | 8/12/16 pieces 12R22.5 | |
Chamber | 4/6sets T30/30 | 4/6/8 sets T30/30 | |
Brake Valve | WABCO | ||
"I" Section 500mm hieght Q345/T700 matirial | |||
Upper plate | 14mm | ||
Lower plate | 16mm | ||
Mid plate | 8mm | ||
Height | 500-520mm | ||
Air Tank | 28L | ||
Brake Pipe | Nylon Wire Pipe | ||
Support Leg | 28T Lifting JOST/YAHUA | ||
Kingpin | 2"(50mm)/3.5"(90mm) JOST | ||
Lights | 12v/24v LED Waterproof | ||

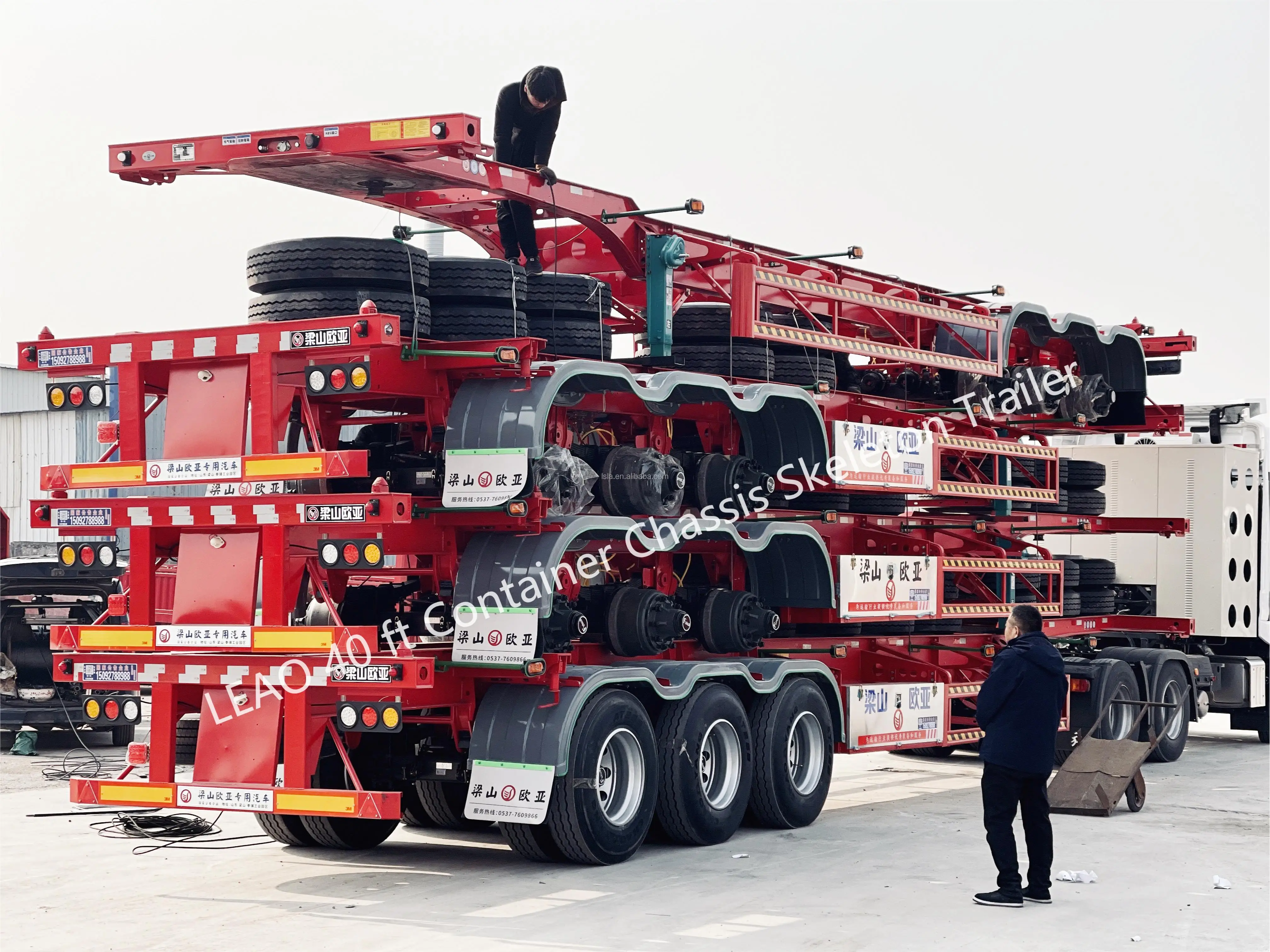

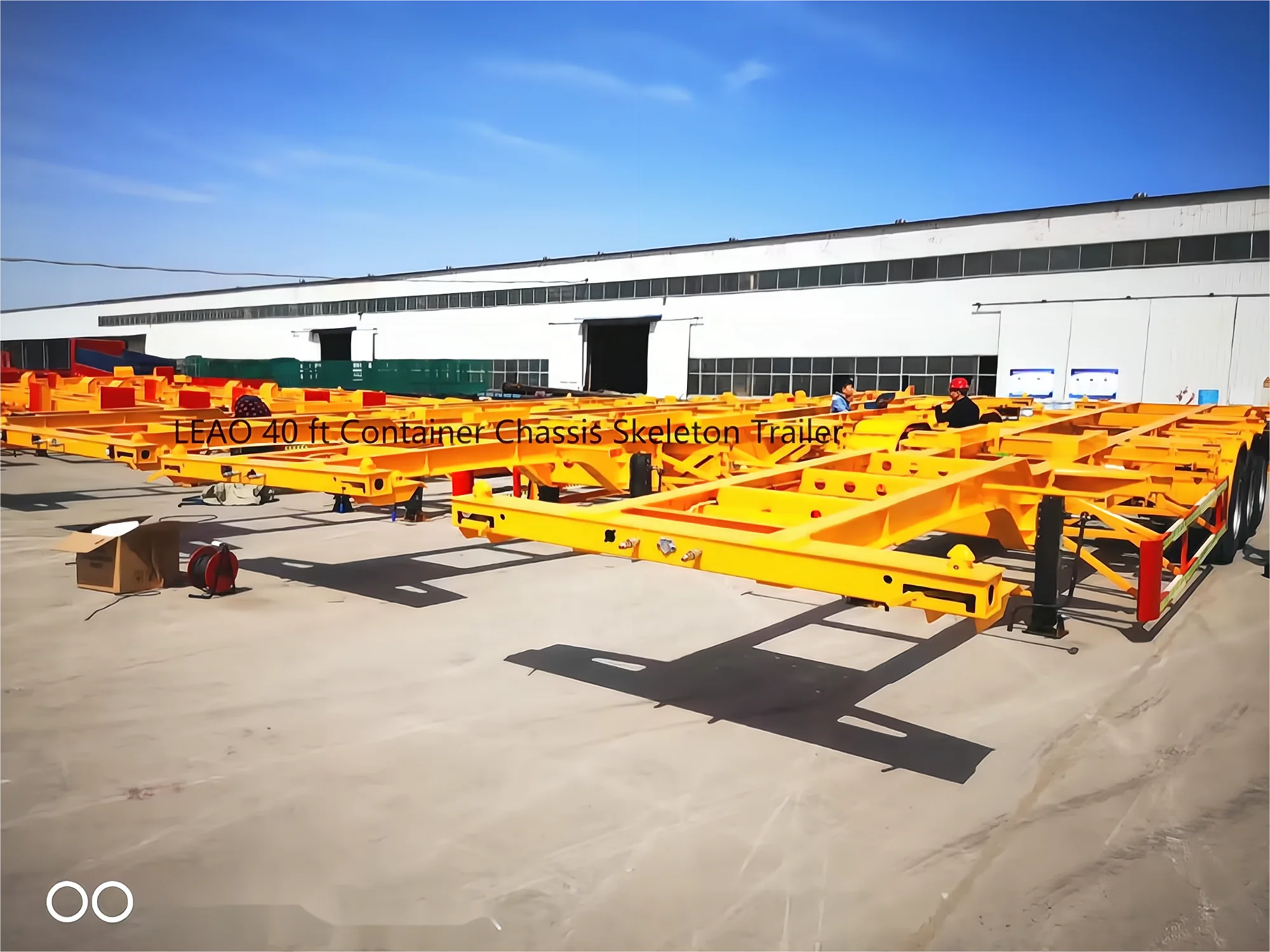

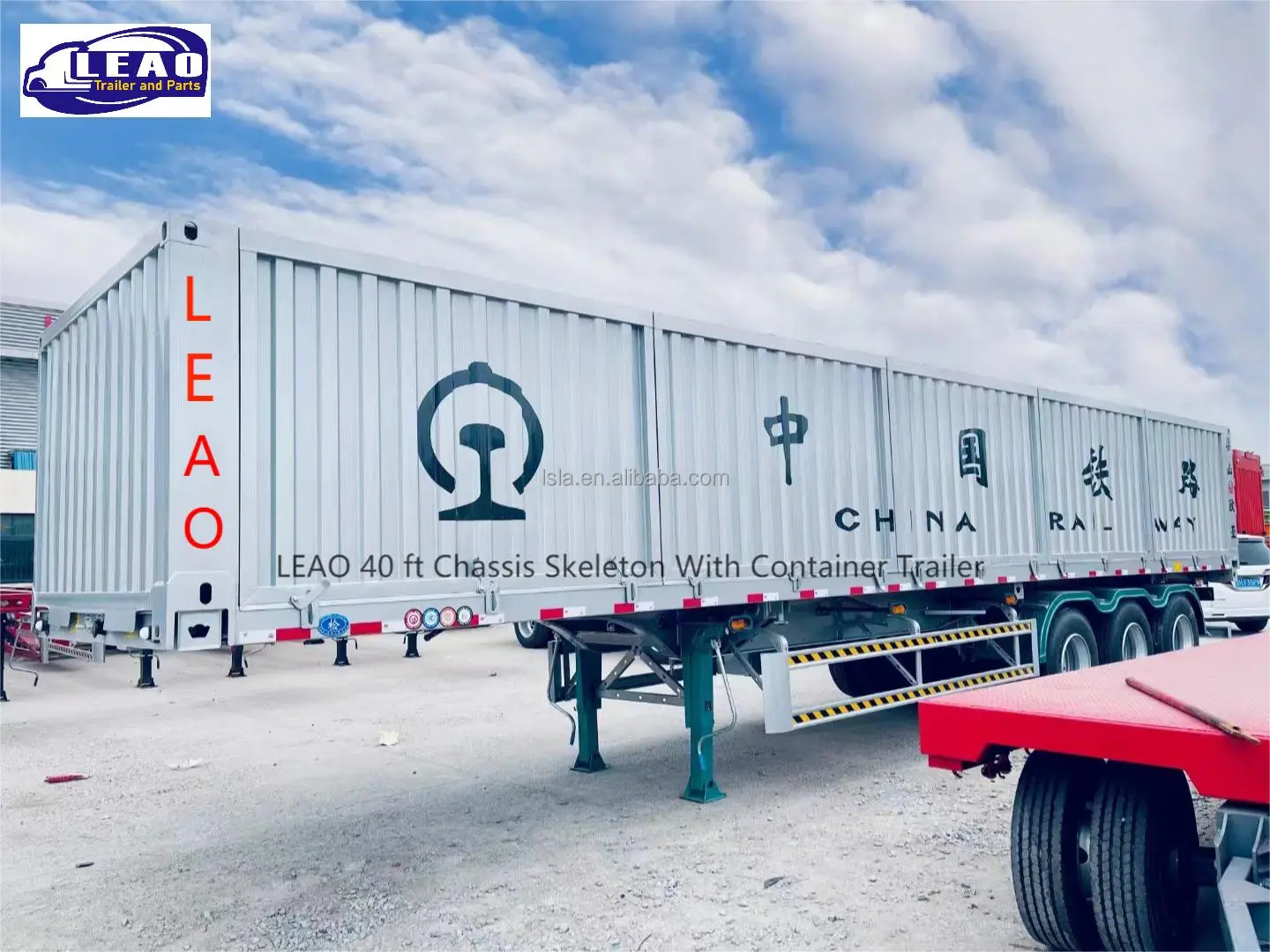

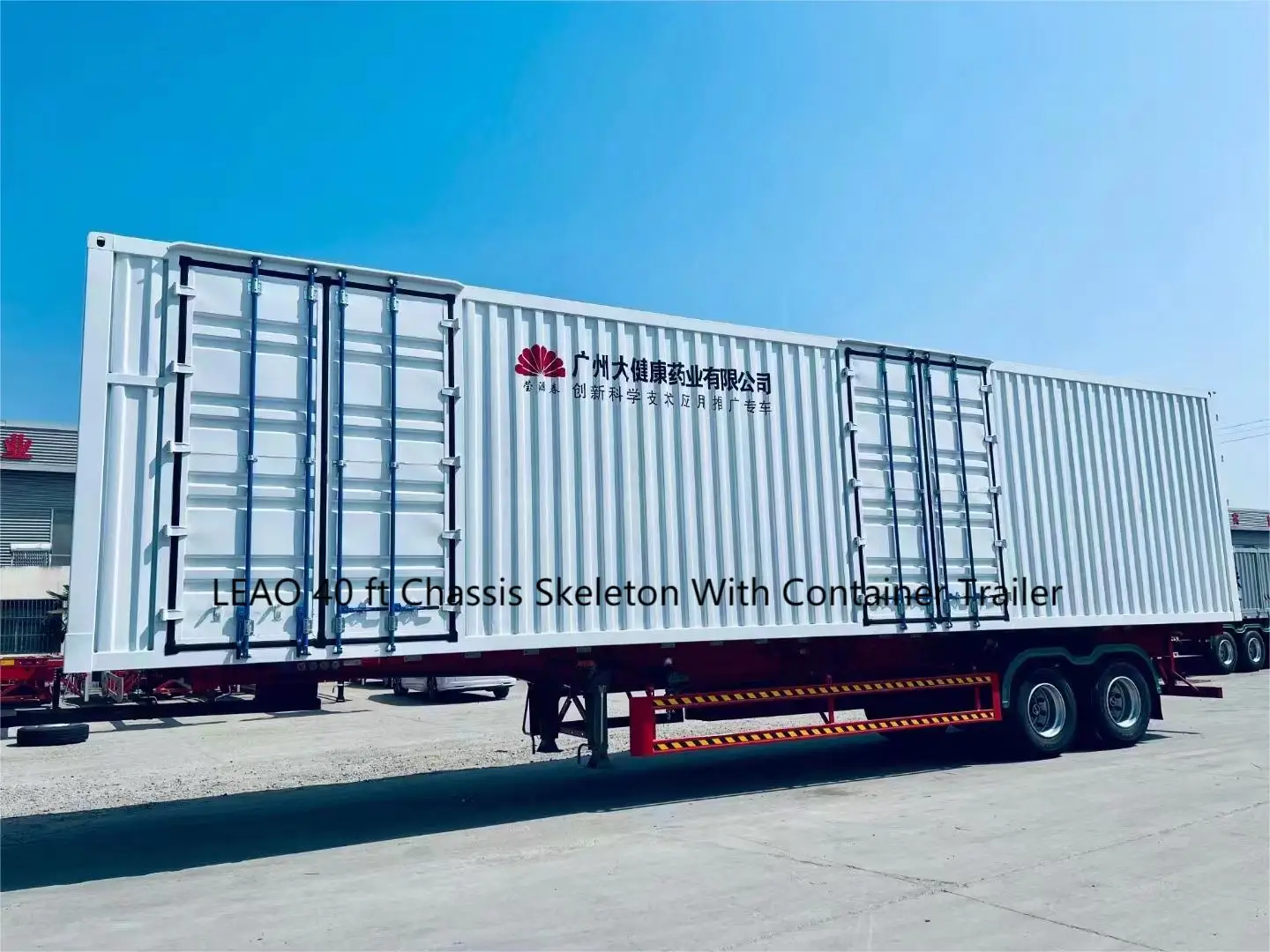

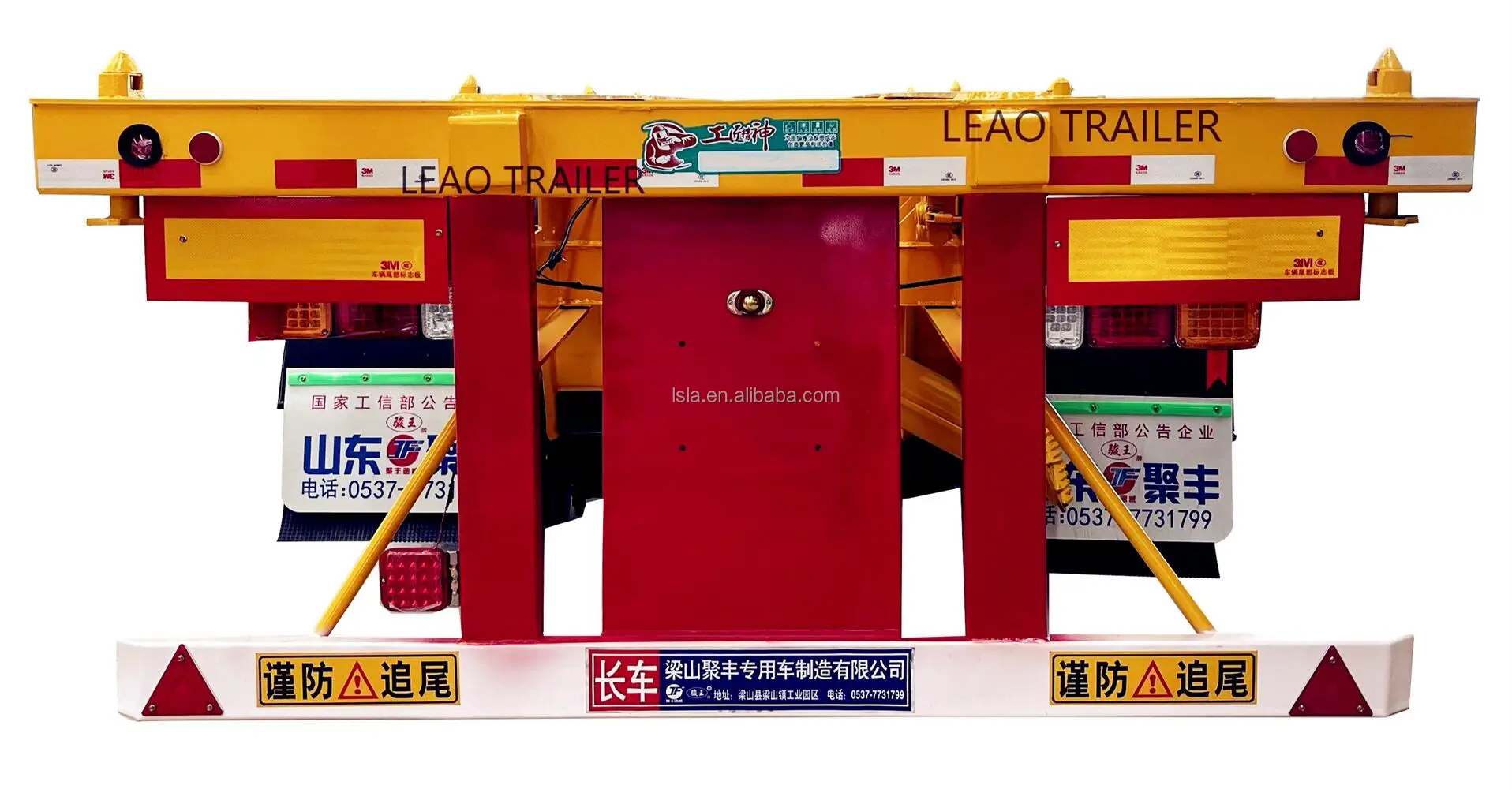

Product Display

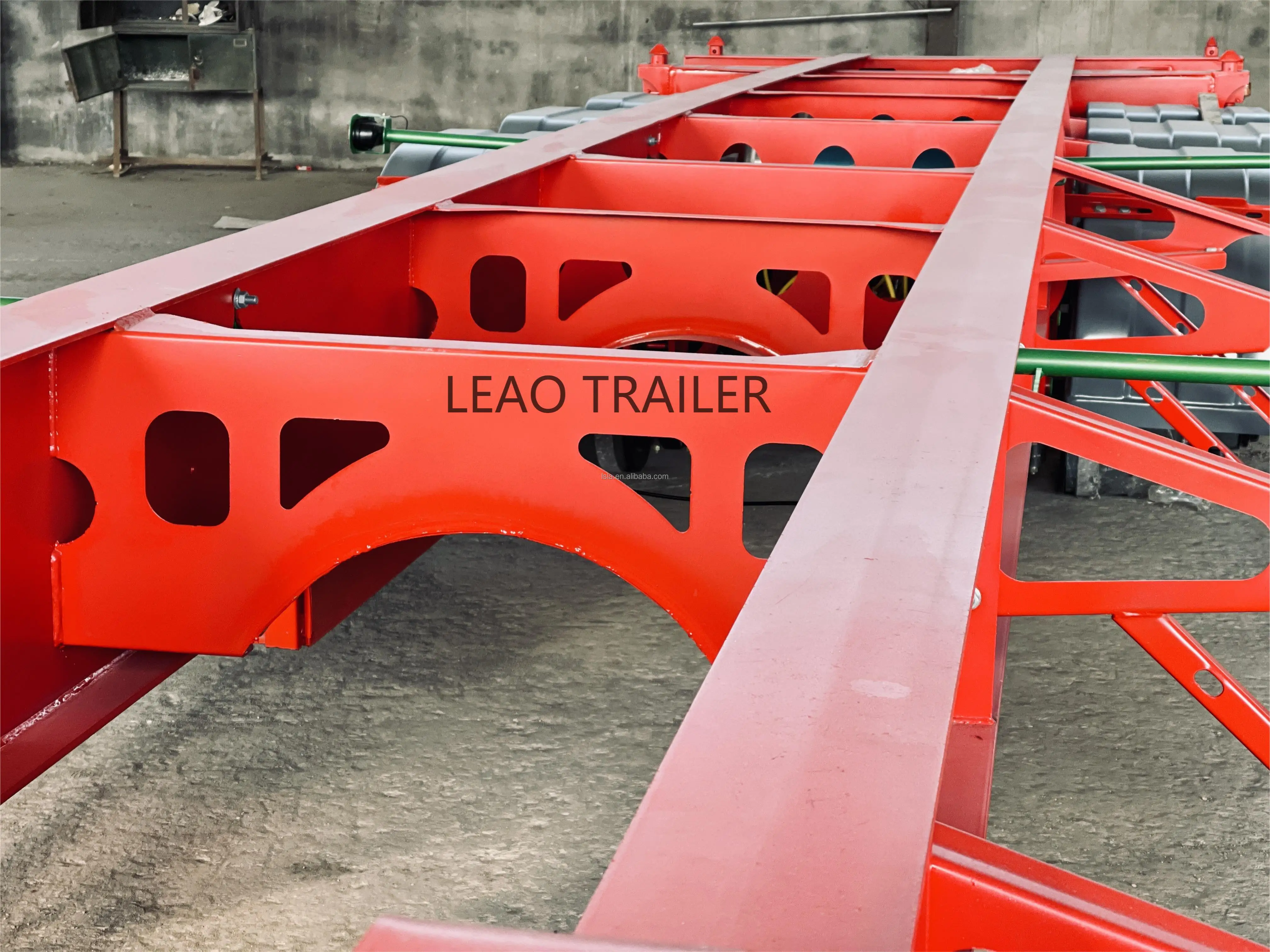

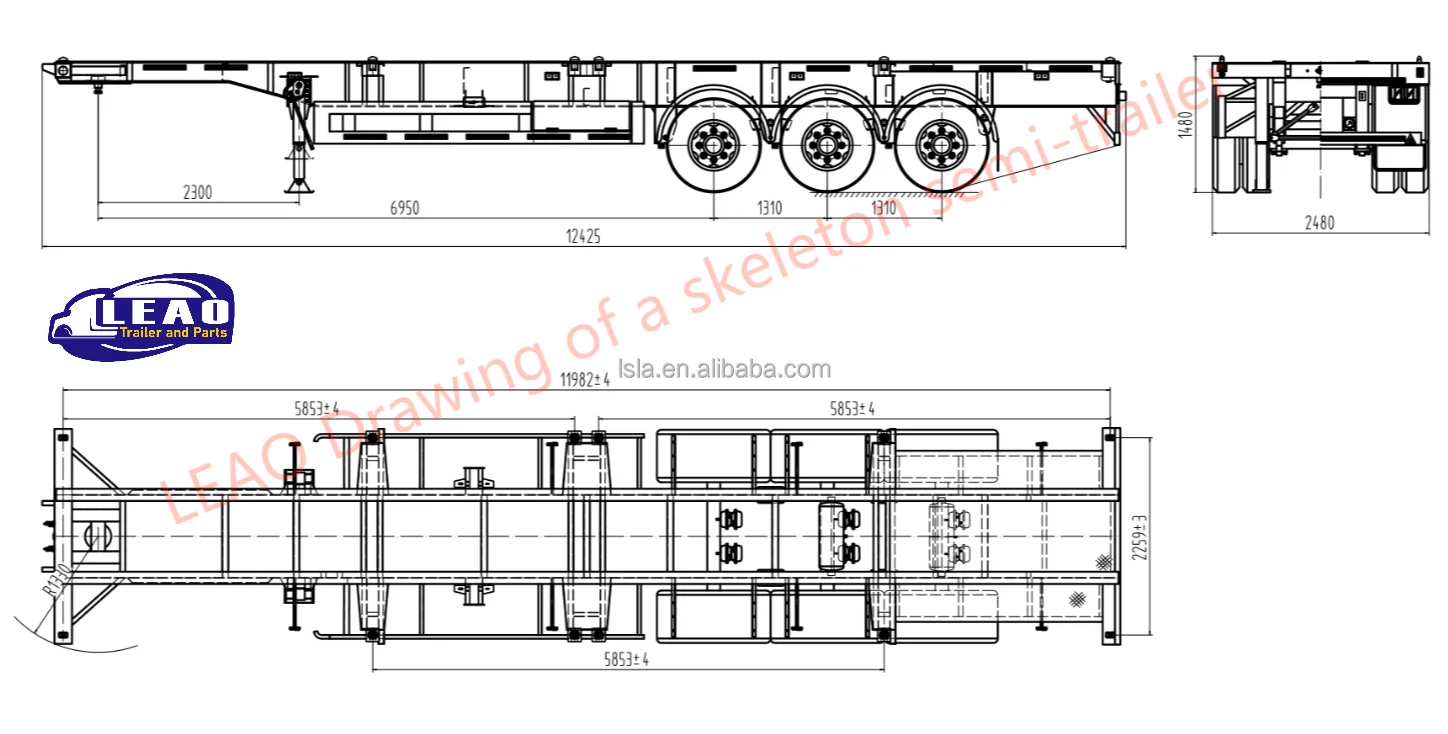

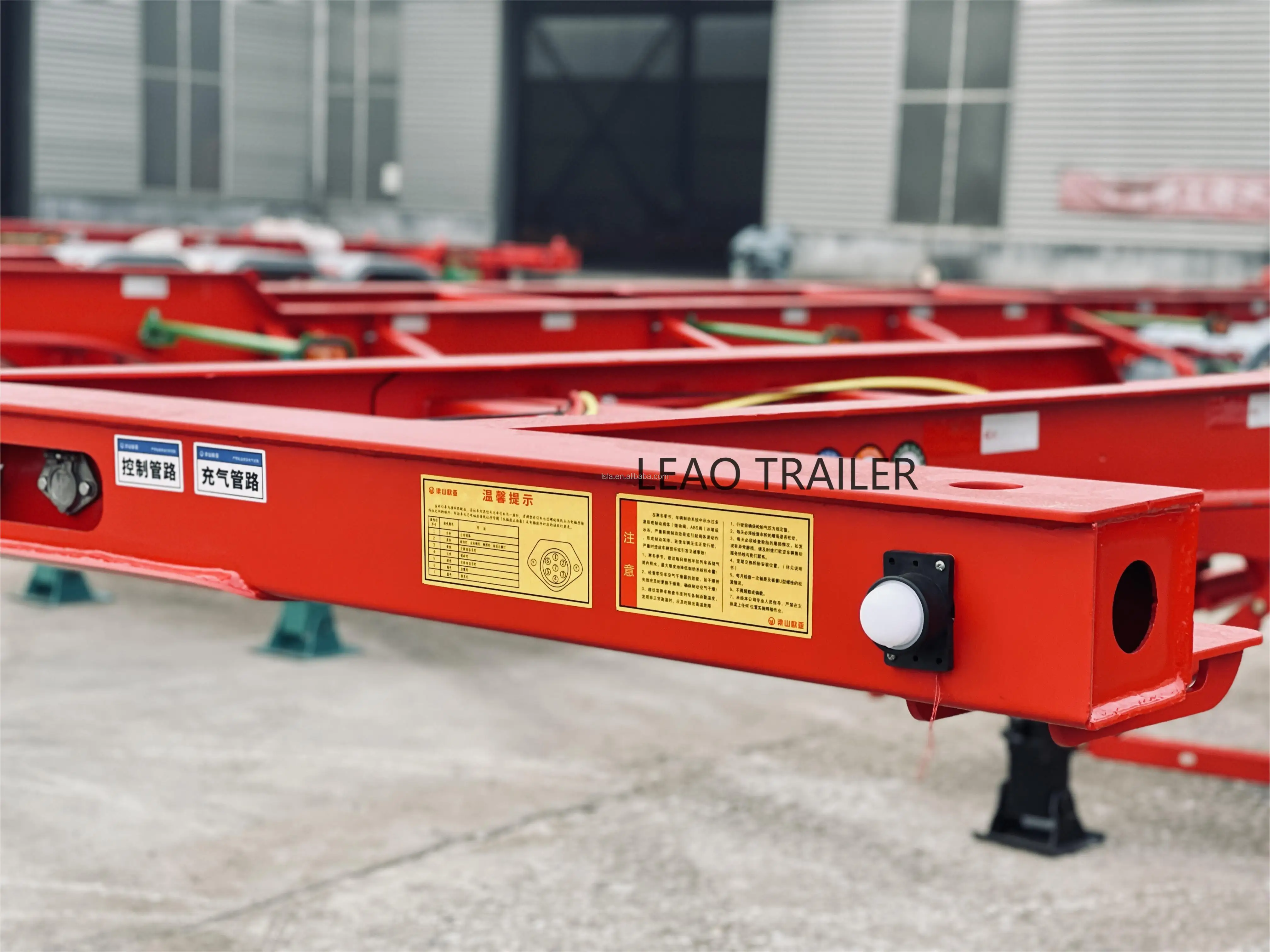

1.The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
2.The skeleton is the main product of our company, fully digesting and absorbing the characteristics of similar products at home and abroad, with strong loading capacity and high reliability.
3.Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams, and shot blasting is performed on the whole frame to effectively eliminate welding residues.
4.In the spraying process, advanced spraying powder and baking technology are used to ensure that the vehicle is not easy to rust and beautiful.
5.LEAO's raw materials ensure the quality of the products, and the procurement, inspection and use are strictly in accordance with the requirements of the quality system, which ensures the good performance of the vehicle.

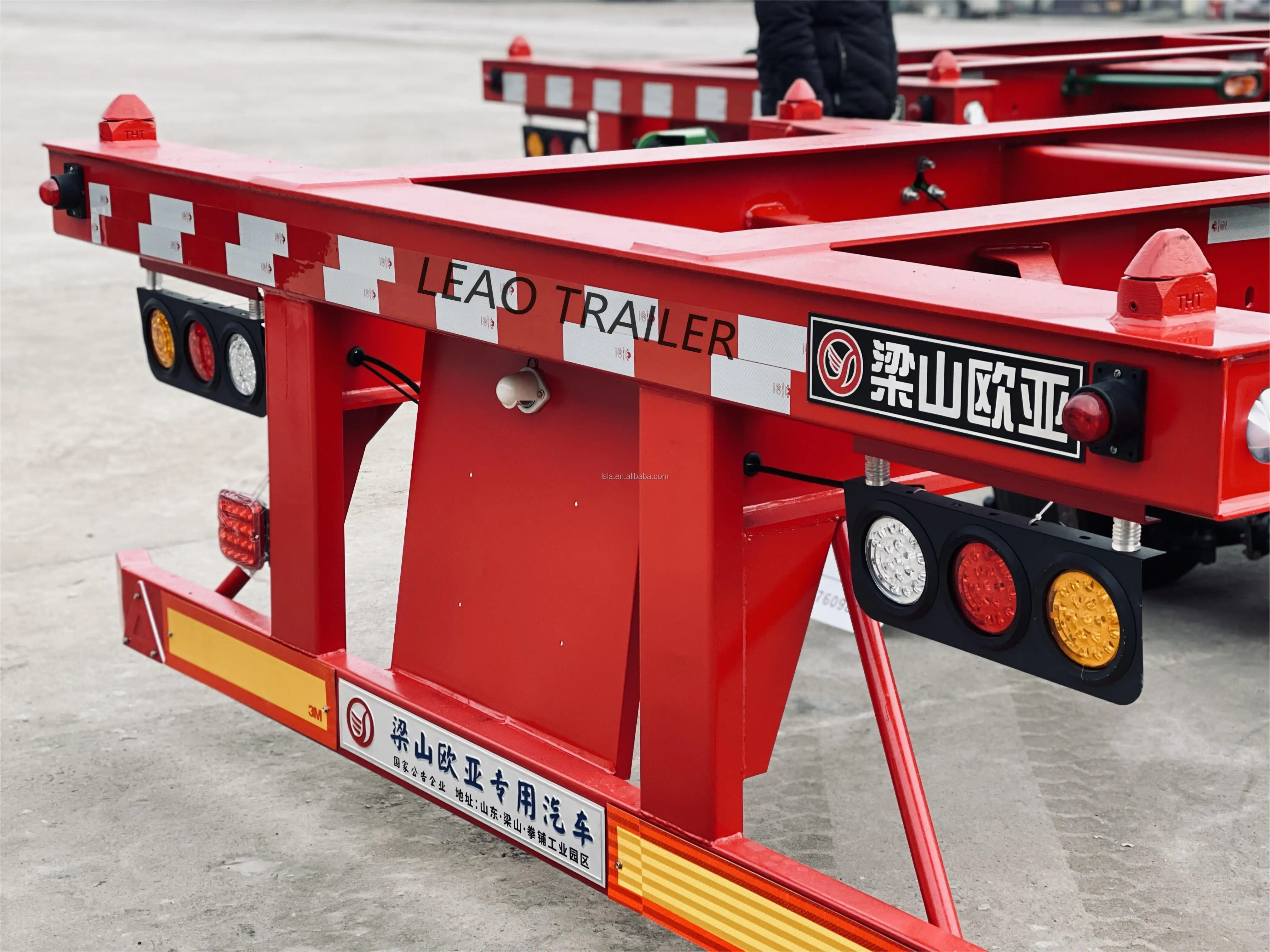

Moisture-proof LED lights
Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night
Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night
AXLE
BPW/FUWA/LEAO Axle Optional.
BPW/FUWA/LEAO Axle Optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Twist lock
ISO-16949
Fixed type and lift type with protective switch to prevent misoperation.
Fixed type and lift type with protective switch to prevent misoperation.
Unique design Firm and Durable Twist lock to ensure container stability and easy container disassembly
Suspension and break system
suspension:
Germany Type or America Type Mechanical and Air bag suspension can be choose.
Brake system:
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Germany Type or America Type Mechanical and Air bag suspension can be choose.
Brake system:
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

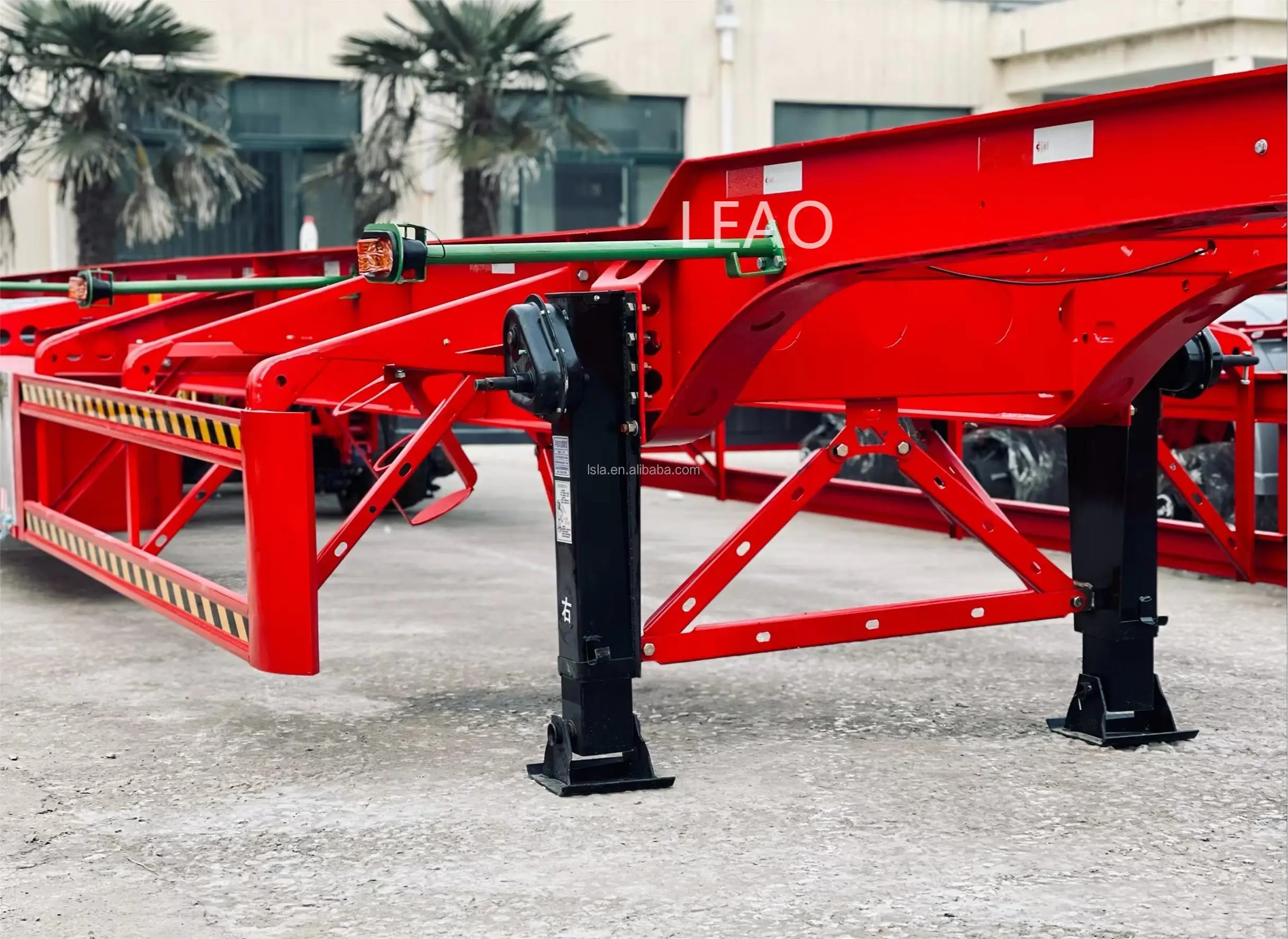

Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premlum chassis oil and is rated for service from -30°C to 120°C.
Featured Tire
Double Coin /LingLong/Michelin/Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.

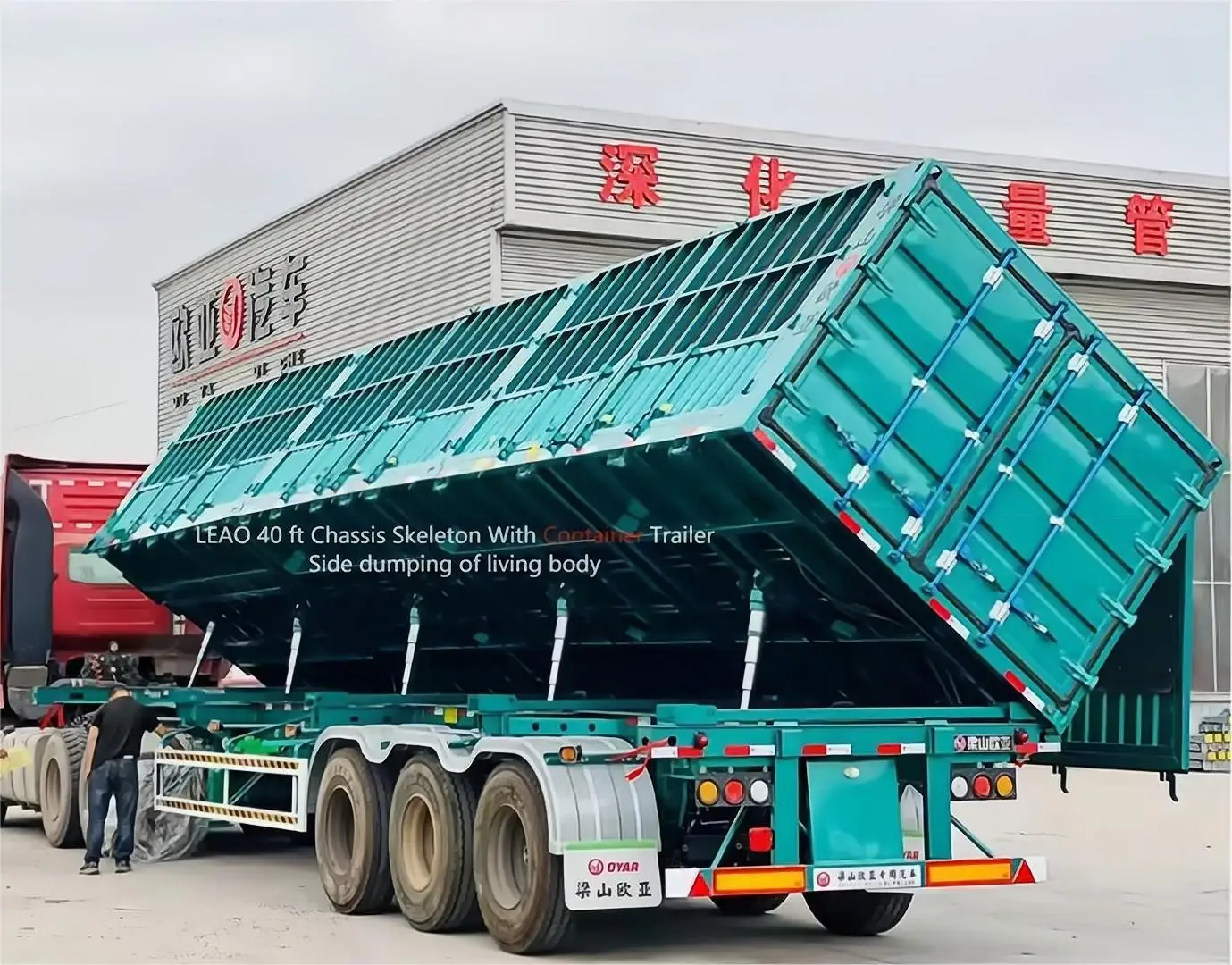

Product Application

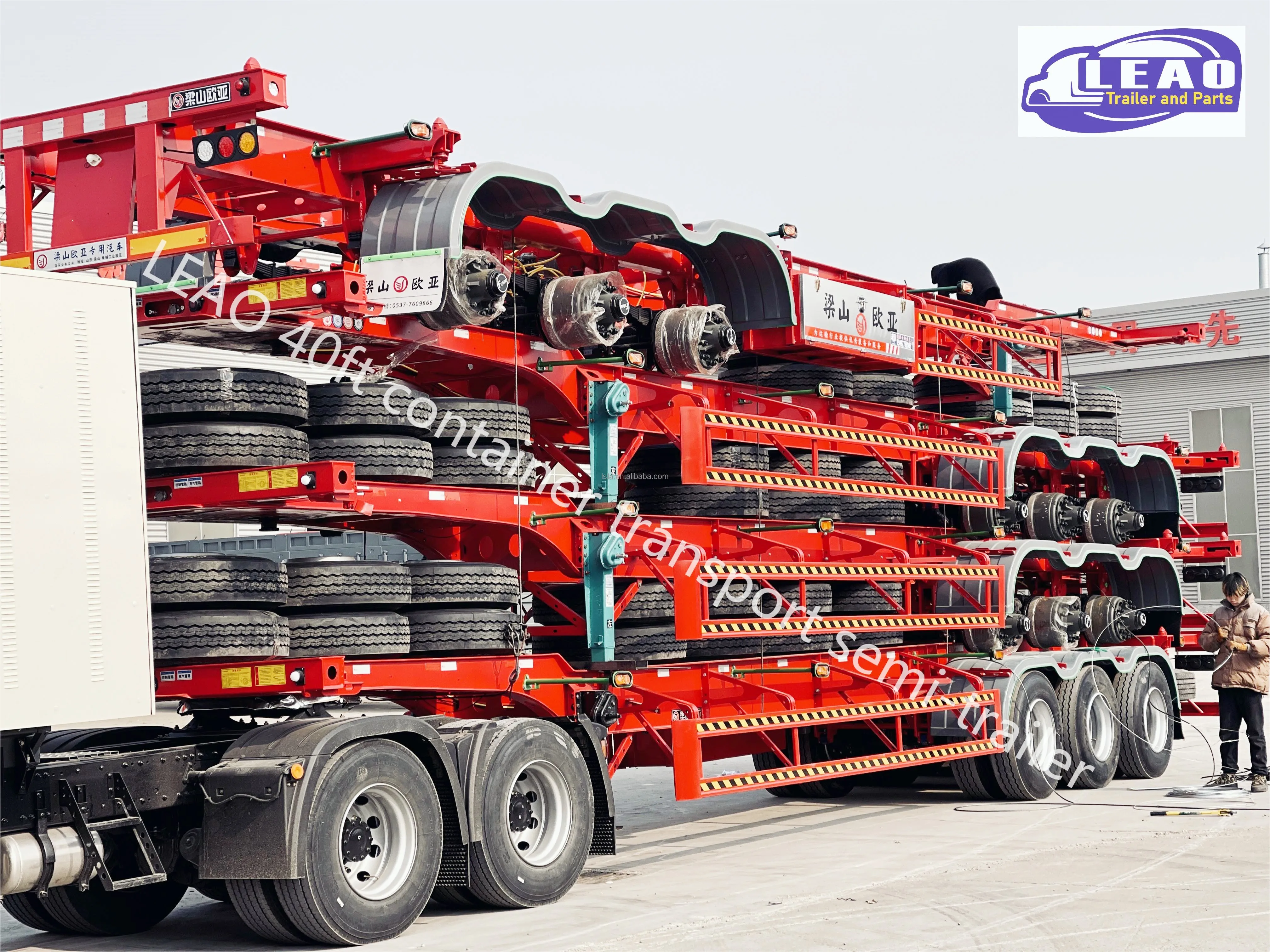

Packaging & Shipping
Company Information
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.

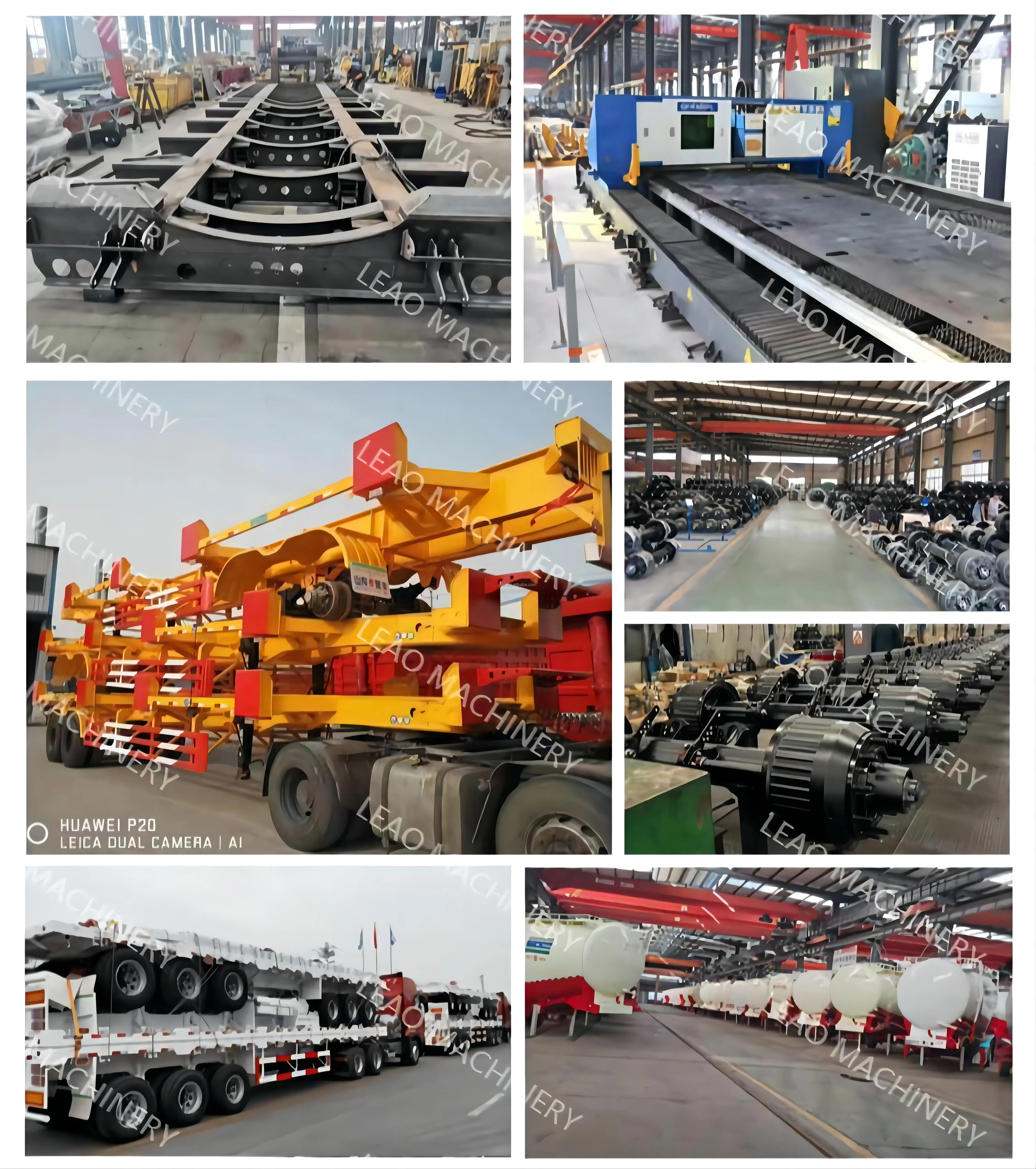

LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
