Products Description
SMART BATTERY
MONITOR LI-BM500
MONITOR LI-BM500
For different types of batteries, different voltages, new and old batteries, in order to better and easier to understand the use of the battery state and remaining capacity information, we developed this advanced battery display. Combined with complex software algorithms, we collect and calculate the voltage and current of a battery and display it with simple numbers and icons.
Application
·Solar power systems
·Off-grid power systems
·Commercial vehicles
·Marine applications
·Industrial power supply
·Camper/utility vans
·Off-grid power systems
·Commercial vehicles
·Marine applications
·Industrial power supply
·Camper/utility vans
Specification
Licitti Bm2 Lithium Batterie-Monitor Mini Lcd Battery Monitor Tester 12V 24 V Monitoring Shunt | ||
Parameter | SMART BATTERY MONITOR LI-BM500 | |
Supply voltage range | 10 - 120 VDC | |
Battery capacity range | 10 – 1000.0 Ah | |
Max measured current | 500 A | |
Power consumption | ≤ 1 W | |
Voltage accuracy | ±1 % | |
Current accuracy | ±1 % | |
Capacity accuracy | ±1 % | |
Temperature range | -20°C - +50°C | |
Communication | Bluetooths, RS485 | |
Weight (LCD screen) | 125*82*21 mm | |
Dimension (LCD screen) | 110 g | |
Protection class | IP20 | |
Standards | EN 62368-1:2014+A11:2017 EN 50663:2017 ETSI EN 301 489-1 V2.2.3(2019-11) ETSI EN 301 489-17 V3.2.4(2020-09) ETST EN 300 328 V2.2.2(2019-07) | |
Feature
Compared with other similar products on the market, LI-BM500 has the following advantages：
1.Easy to program
1.Easy to program

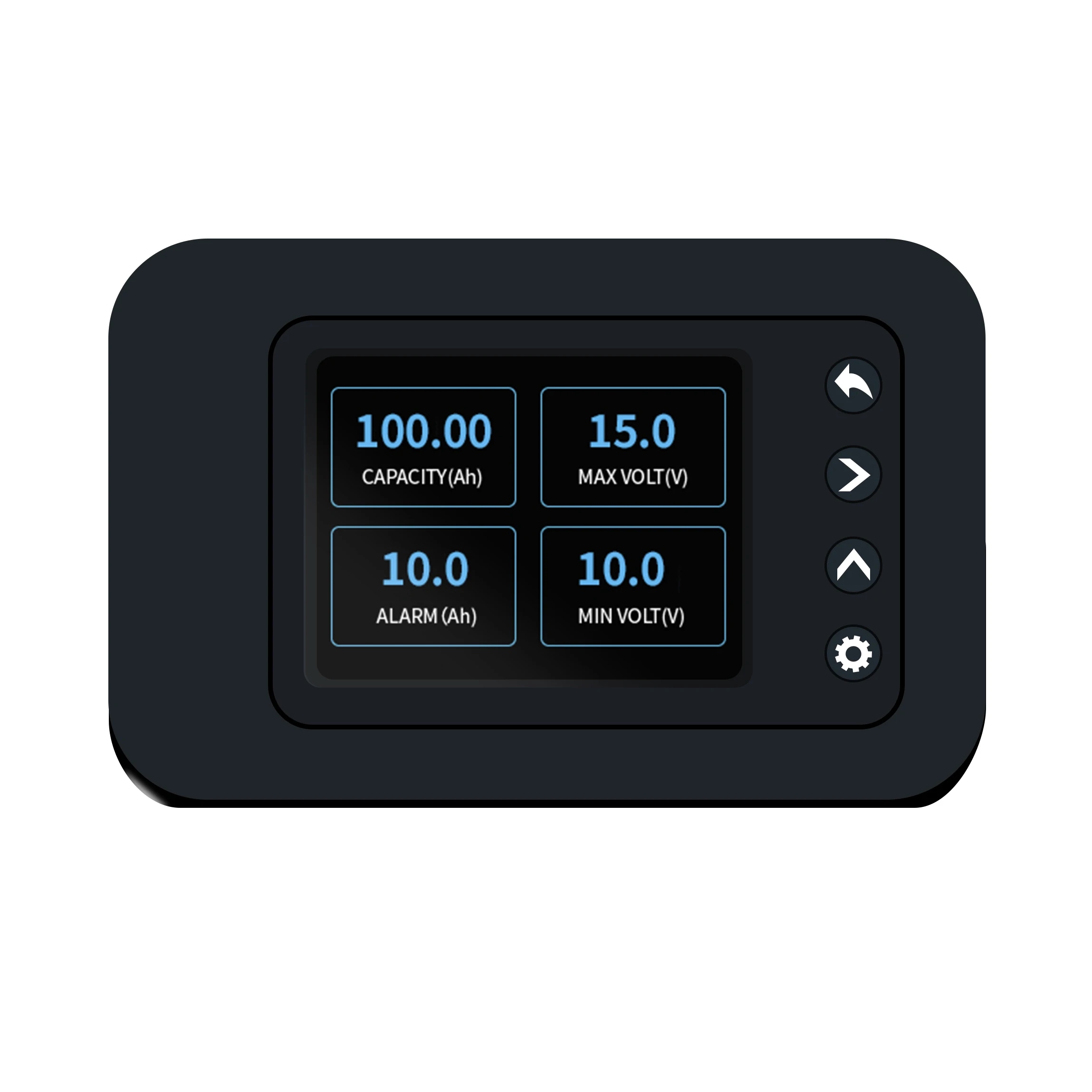

Clear display interface and operation interface, combined with four physical buttons, easily set capacity, maximum voltage, minimum voltage, capacity alert to meet different needs.
Meanwhile, download the Android or IOS APP to do fast and easy settings.
2.Easy to install
Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.
3.Wireless, smart and simple
With the Bluetooths BT connection, to monitor the battery information on Android or IOS APP.
Meanwhile, download the Android or IOS APP to do fast and easy settings.
2.Easy to install
Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.
3.Wireless, smart and simple
With the Bluetooths BT connection, to monitor the battery information on Android or IOS APP.
Features
·Suitable a wide variety of battery systems

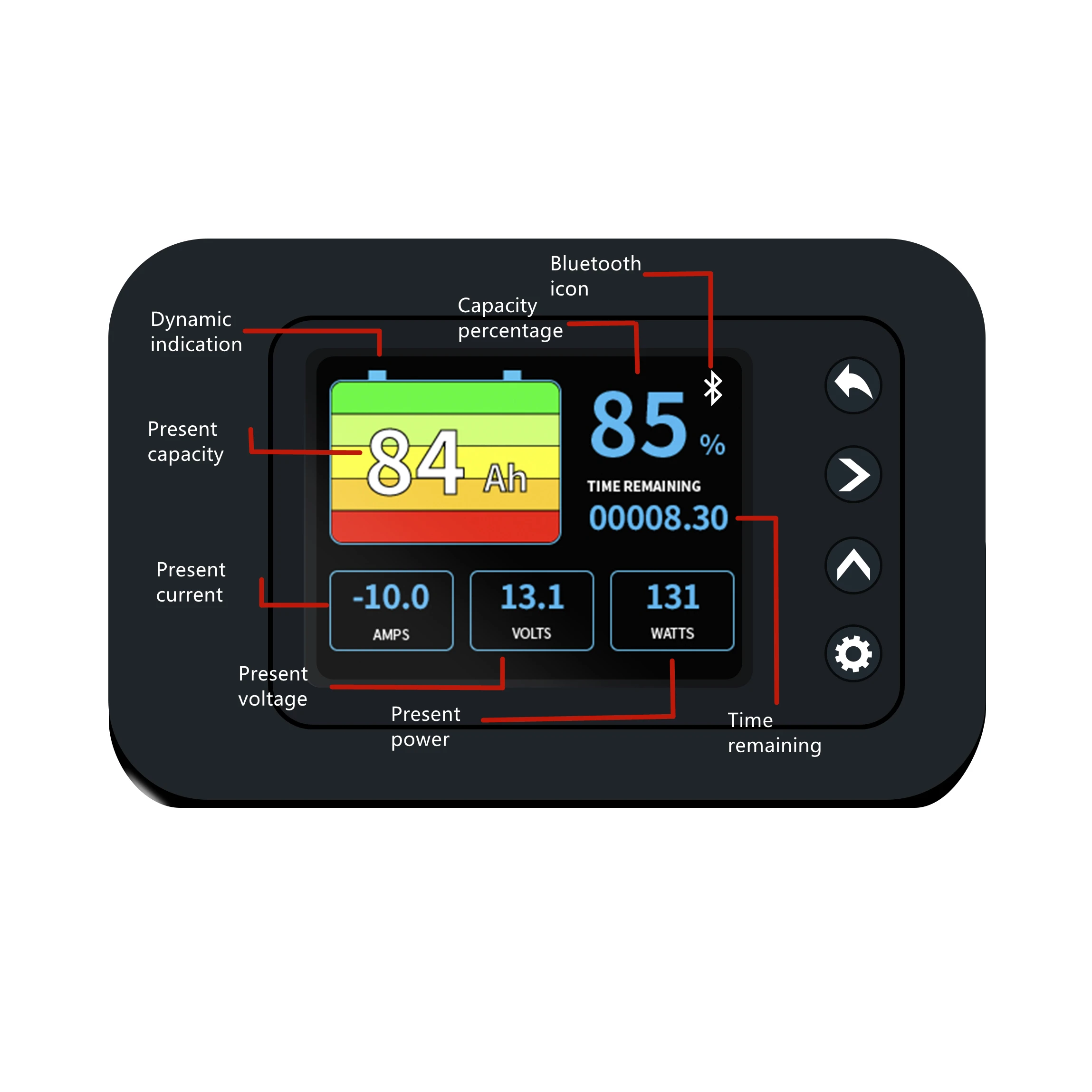

·Battery capacity, capacity percentage, voltage, current, power, time remaining
·Two screen interface, four buttons, easy to operate
·Simple installation
·Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
·500Amps quick connect shunt with PCB
·Wide voltage range: 10V – 120V, wide capacity range: 10– 1000.0Ah
·Color LCD display, clear at a glance
·Advanced APP, download from Applestore or Googlestore
·One-button clear battery capacity calibration; one-button make battery capacity full calibration
·Suitable a wide variety of battery systems
·Battery capacity, capacity percentage, voltage, current, power, time remaining
·Two screen interface, four buttons, easy to operate
·Simple installation
·Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
·500Amps quick connect shunt with PCB
·Wide voltage range: 10V – 120V, wide capacity range: 10– 1000.0Ah
·Color LCD display, clear at a glance
·Advanced APP, download from Applestore or Googlestore
·One-button clear battery capacity calibration; one-button make battery capacity full calibration
Details

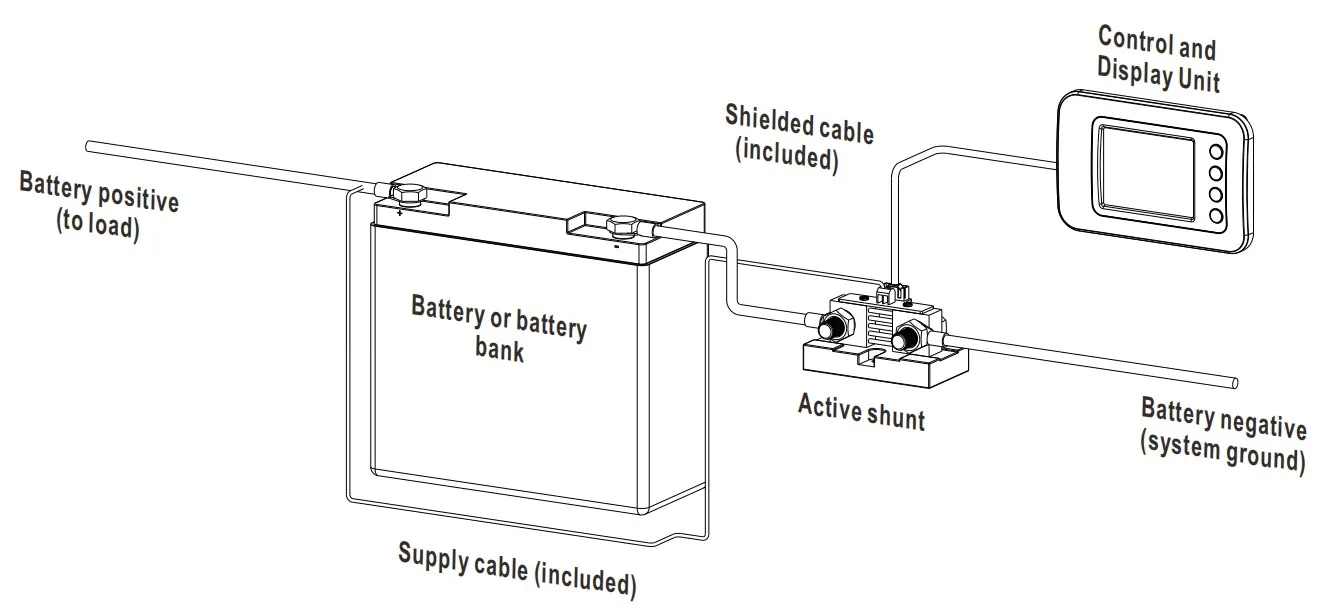

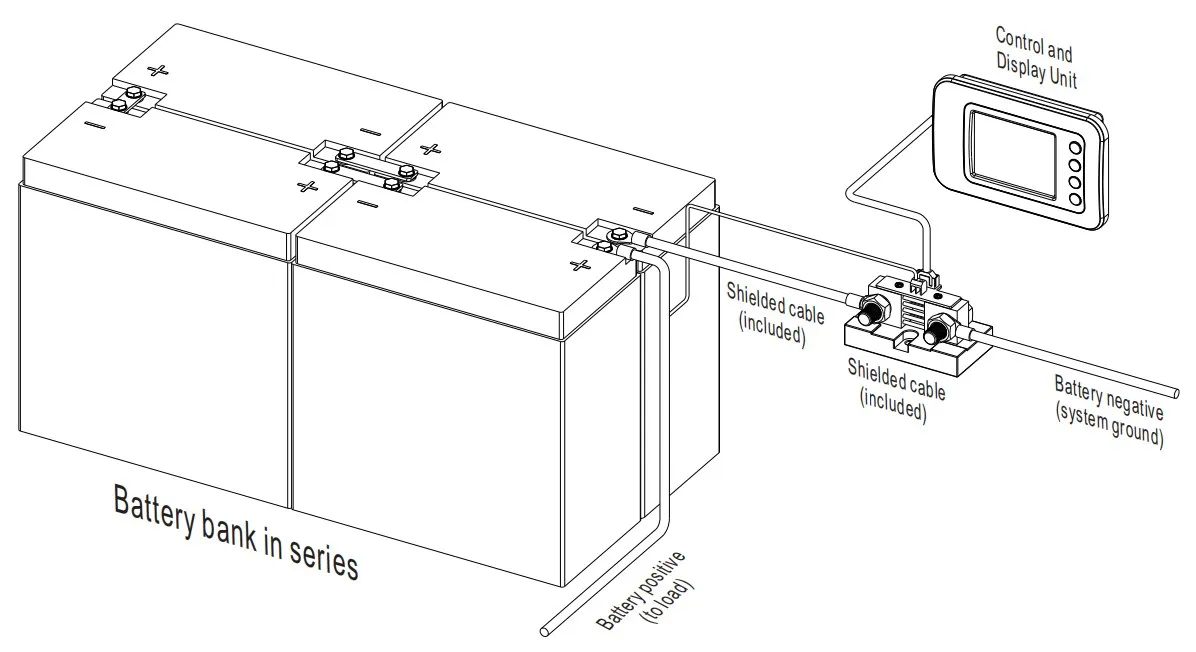

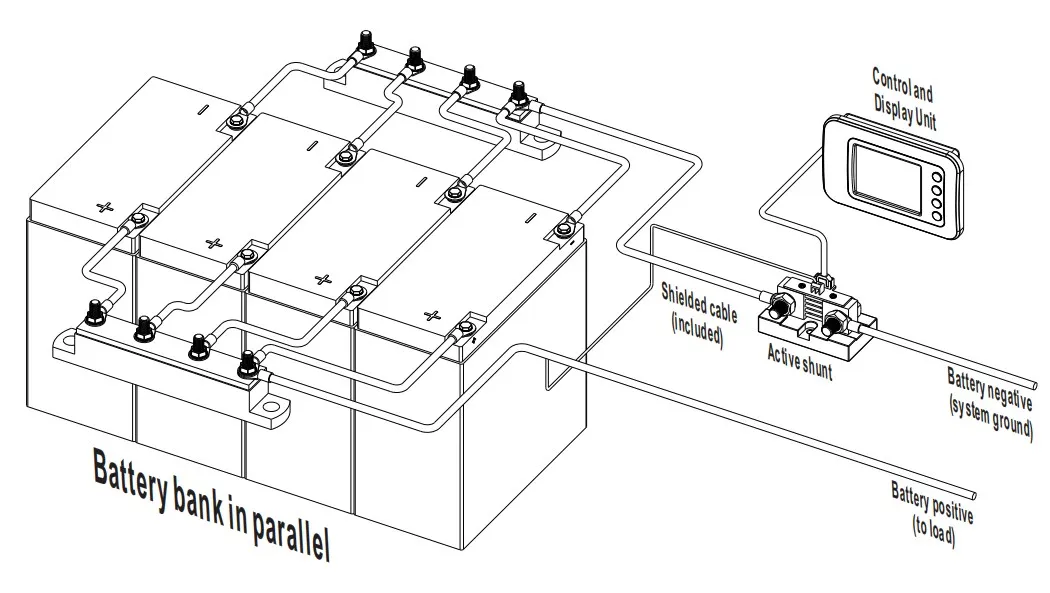

Wiring diagram
Smart Battery Monitor With BT

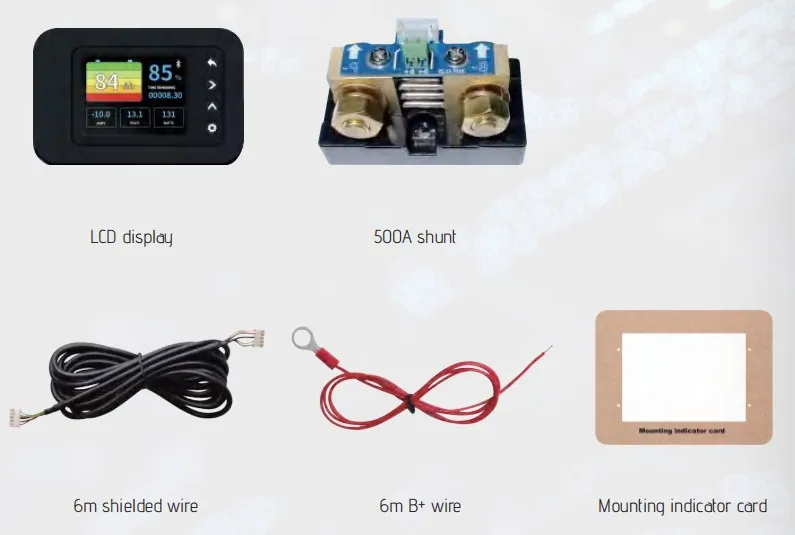

Product packaging
Shipment & Payment
Company Profile
Li power (Shenzhen) technology Co., Ltd.
Locate in Shenzhen, with more than 10 years' experience in outdoor power field.
We produce outdoor DC/AC battery box, lithium battery, foldable solar panel,
solar blanket, pure sine inverter and MPPT controller etc.
We can provide customized product solutions for customers from all over the world.
FAQ
Q: How / When /Where can I get the latest price? | ||
A: 1)Please send the inquiry to us on Alibaba | ||
2) Please leave message on the trademanager | ||
3) We will offer you the quotation in 12 hours after get the product specifications such as voltage capacity application. | ||
Q: Can I have a sample order? | ||
A: Yes, welcome sample order to test and check quality. | ||
Q: What is the lead time for mass production? | ||
A:Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. | ||
Q:Can you make customise as per our requirement? | ||
A: Of course. We have professional engineers that could give you the most suitable solutionaccording to your special requirements. | ||
