5 5 7 5g/d fdy pp многонитевая спиннинговая машина/Экструзионная линия полипропиленовой нити

Описание и отзывы

Характеристики

5.5-7.5g/d fdy pp multifilament spinning machine/ polypropylene filament extrusion line

 fdy polypropylene yarn extrusion line

FDY filament extrusion line is for sewing thread making is for spinning drawing pp multifilament thread yarn, Filament scope from 150D to 4500D.

1) low power consumption, 1-1.2kw/1kg yarn

2) Fast asscmble and trainning, professional engineer 10-15days

3)Reasonable design to make high tenacity yarn 7-7.5g/d

4) Easy operate, PLC control + touch screen

pp multifilament spinning machine,  parts

Pp chips--> automatic hopper& loader--> extrusion screw--> melting pipe--> metering pump--> spinning beam--> spinneret and loading units --> blower--> air device--> hot godets--> automatic bobbin change winder

Fdy yarn production line , model

fdy polypropylene yarn extrusion line, details

AUTOMATIC FDY/ POY WINDER

1. automatic bobbin change

2. winder mechnical speed : max 3000m/min

               operating speed: 1800-2800m/min

3. different bobbin size to meet request

4. top quality in china

5. plastic traverse type, PLC control

specification, fdy filament extrusion machine

final yarn from fdy polypropylene yarn extrusion line

 1. webbing and belt making

2. sewing thread

3. rope production

4. concrete and cement fibre

5. filter cloth

6. sofa, beach bed, beach chair, Beach hammock

7. zipper/ fastener yarn

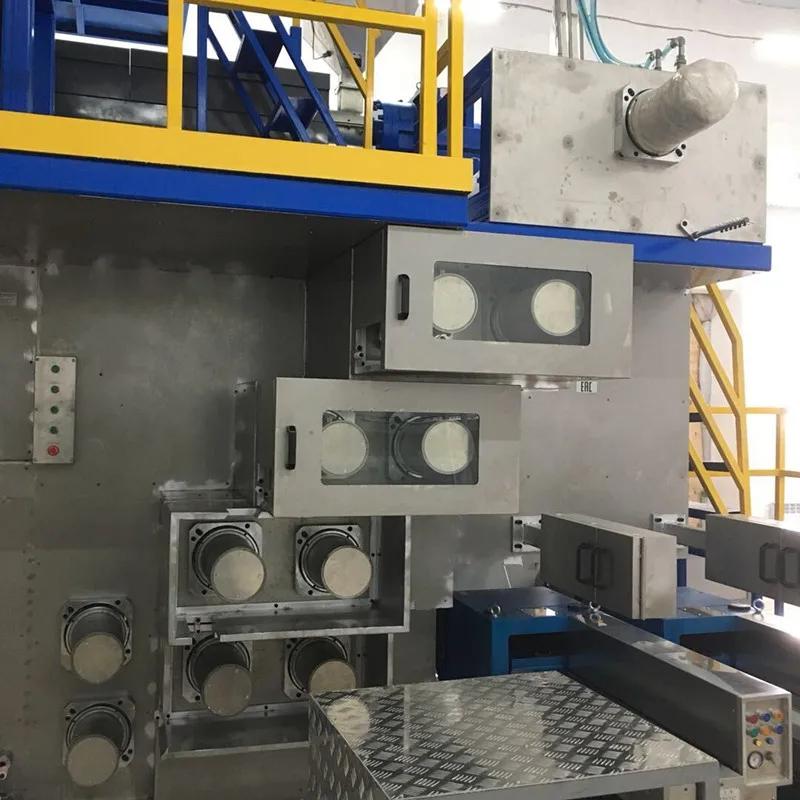

workshop for pp multifilament production line

1. Machine Manufacturing years: over 30 years

2. Workshop area: 10000square meters

3. Qty of workers: 80-100

4. We have yarn production with own machine over 15 years

 1* 40HC +1*20GP

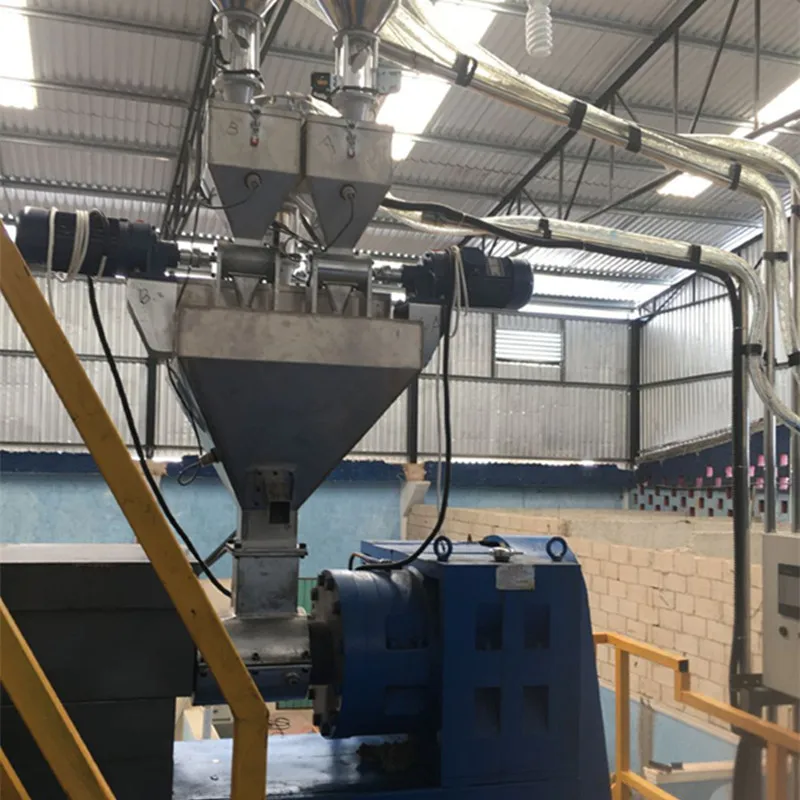

Project abroad(fdy yarn extrusion equipment)

Our spinning machine all over the world, including Romania , Spain, Russia, Ukraine, Uzbekstan, Tukumenstan, Korea, India , Bangladesh, Vietnam, Thailand, Indonesia, Taiwan etc

Fdy multifilament machine setup & trainning &testing

Come engineer help set up machine ,take 10 days for assemble and trainning .

The customer should prepare 3-5 workers for learn and operate the machne .

With online device ,our team is 24hr at your service .

related euqipment for usage

1) ring twister and two for one twister  2) rope making machine 3)spool winder  4) braiding machine 5)knitting needle loom

6)fiber cutting machine  7) net making machine
