Концентратор CB-80 для мелкой золотой чаши
97 205,58 ₽ - 205 211,78 ₽
Хорошее качество портативное горное оборудование для восстановления золота миниатюрная установка мытья небольшая шламовая коробка с резиновым ковриком
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600568413999:
Описание и отзывы
Характеристики
(100% Long Service Life) Uzbekistan Gravity Separator Equipment Gold Panning Kit Gold Mining Sluice Box For Drum Rotary Scrubber

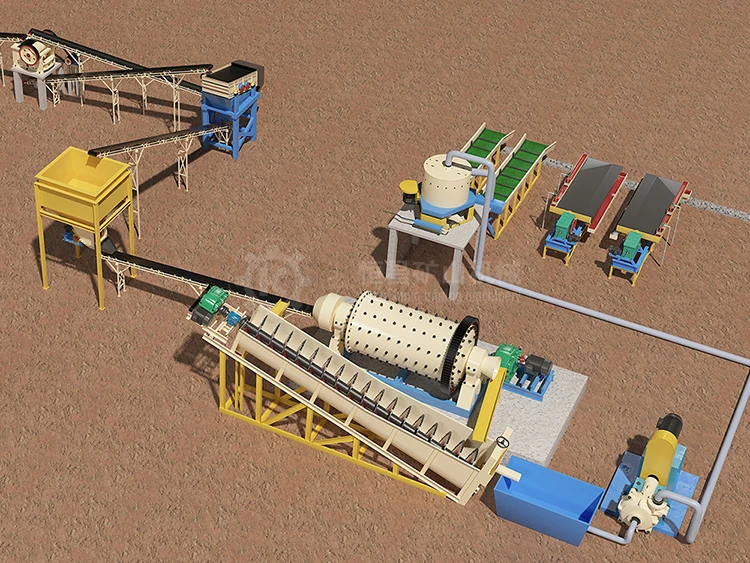

Hengchang mining machinery provide turnkey solution for mineral processing plant including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of processing plant. Be one of the best mining machinery supplier of China is the goal of Hengchang machinery, so we do our best in every step. Up to now, we have developed five major product lines; they are mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best
mining machinery manufacturer.

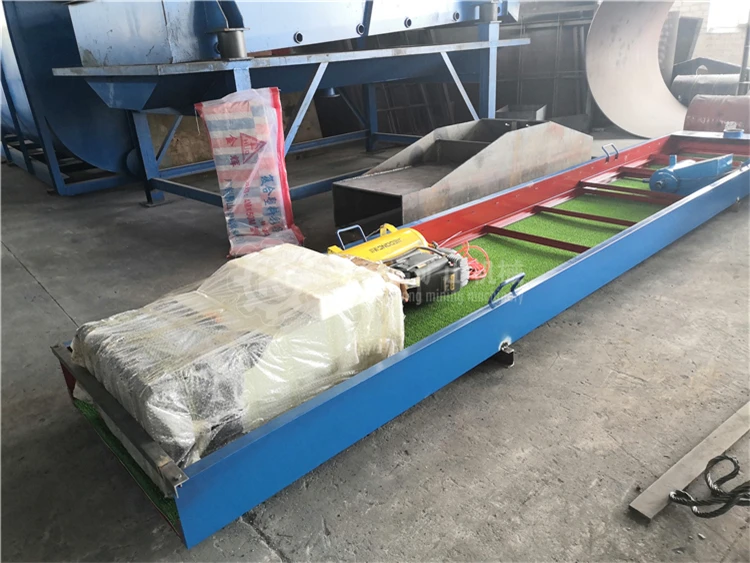

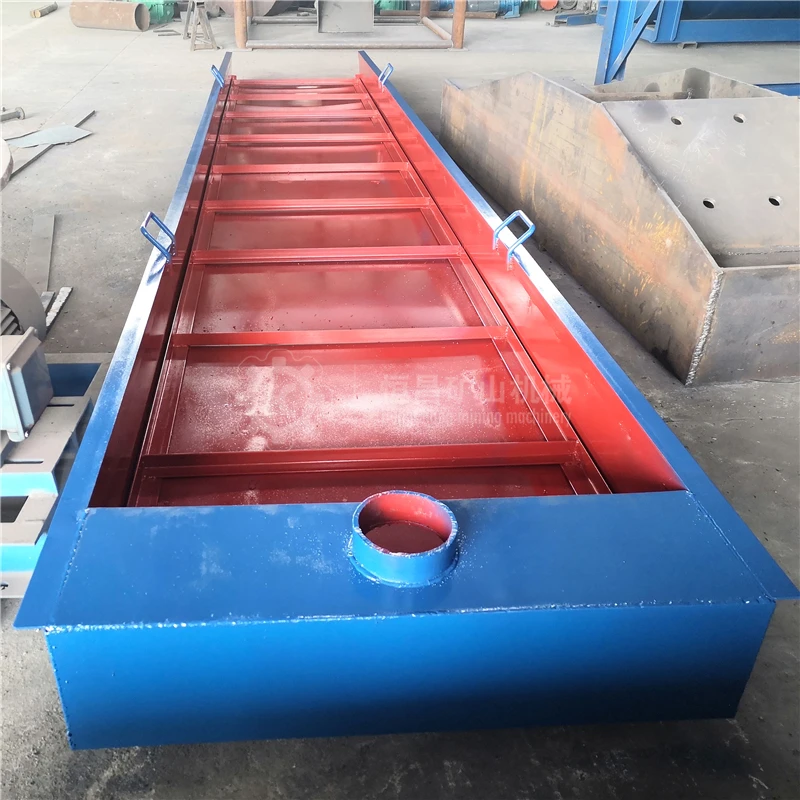

Type 1. Gold Sluice Box Introduction
Sluice box is normally used in gold washing plant for recovery the tailings, and also it's been wildly used to recovery the place gold panning sluice box, gold tailing recovery machine r gold directly together with trammel screen. Sluice box is one of the most popular equipment for gold mining, which consist the steel structure and carpet. The carpet used in our sluice box is imported from Japan to ensure the high quality and high efficiency.
Main Advantages
1. Low price: compare to other machines, the price of sluice box is very very low.

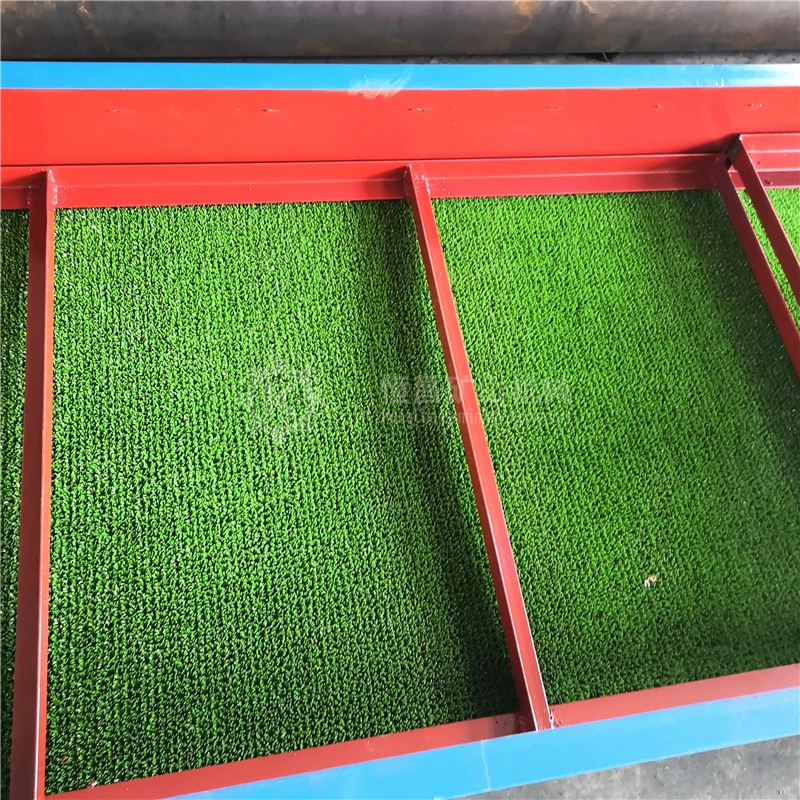

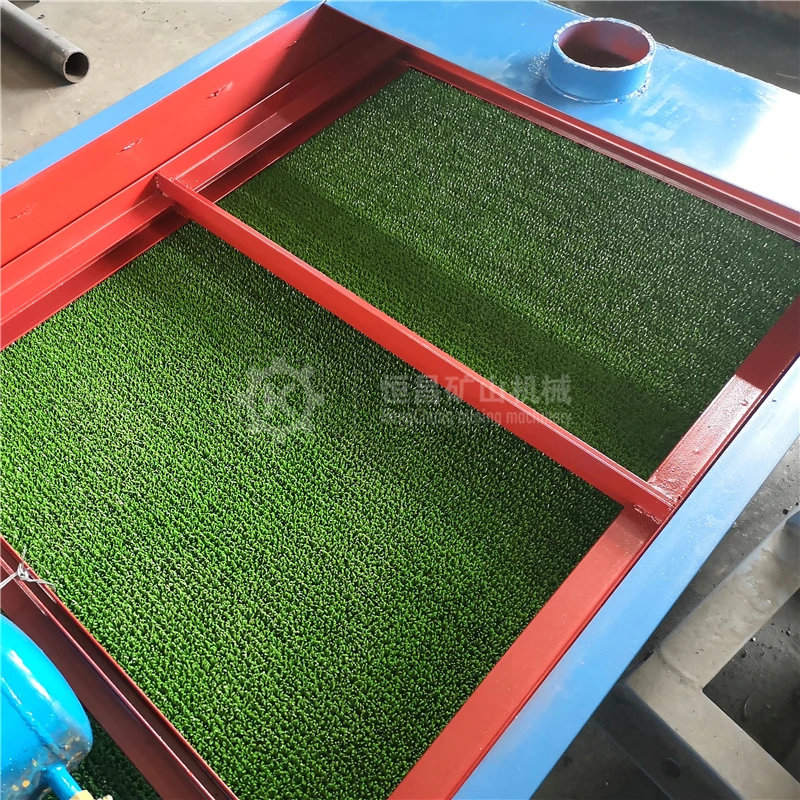

2. High efficiency: With two types of carpet, no matter the gold granule is in big size or small size, it's will be caught by the sluice box.
3.Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet back and continue the work.
4. Easy for maintenance: The only part need to service or change is the carpet, and the carpet is in a high quality, so the service and maintenance is easy.
5. Large capacity: A sluice box with 1000*6000MM could processing over 8 tons crudes for one hour. we can customized the dimension as your request.
6. No power consumption: The sluice box no needs any power, which makes the operation very convenient.
2. High efficiency: With two types of carpet, no matter the gold granule is in big size or small size, it's will be caught by the sluice box.
3.Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet back and continue the work.
4. Easy for maintenance: The only part need to service or change is the carpet, and the carpet is in a high quality, so the service and maintenance is easy.
5. Large capacity: A sluice box with 1000*6000MM could processing over 8 tons crudes for one hour. we can customized the dimension as your request.
6. No power consumption: The sluice box no needs any power, which makes the operation very convenient.
Model | Carpet Length | Carpet Width | Capacity | Power |
1*6m | 6m | 1m | 1-30 tph | No need |
1*4m | 4m | 1m | 1-20 tph | No need |
0.4*4m | 4m | 0.4m | 1-10 tph | No need |

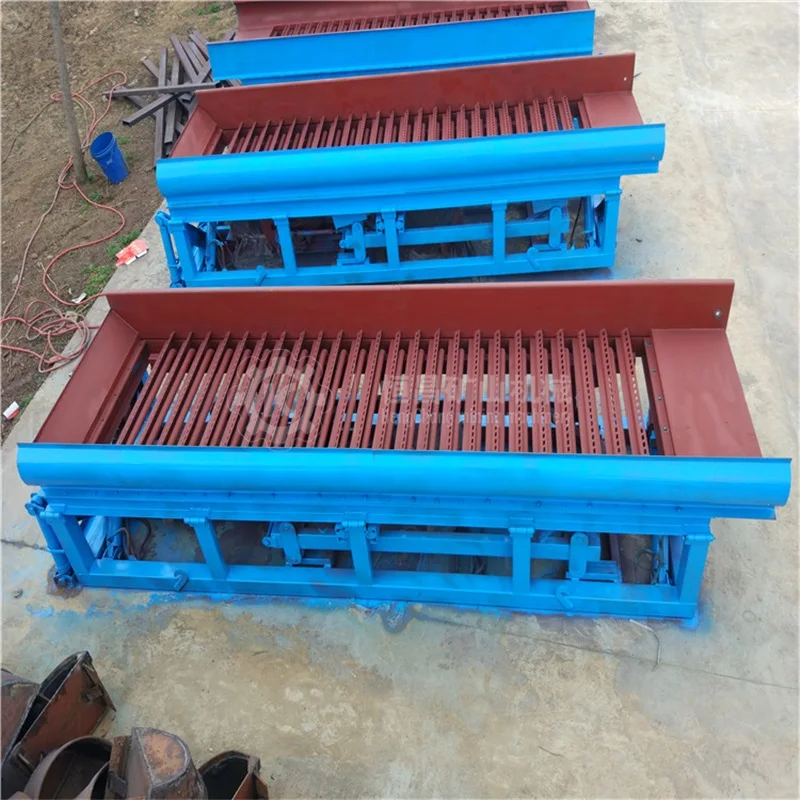

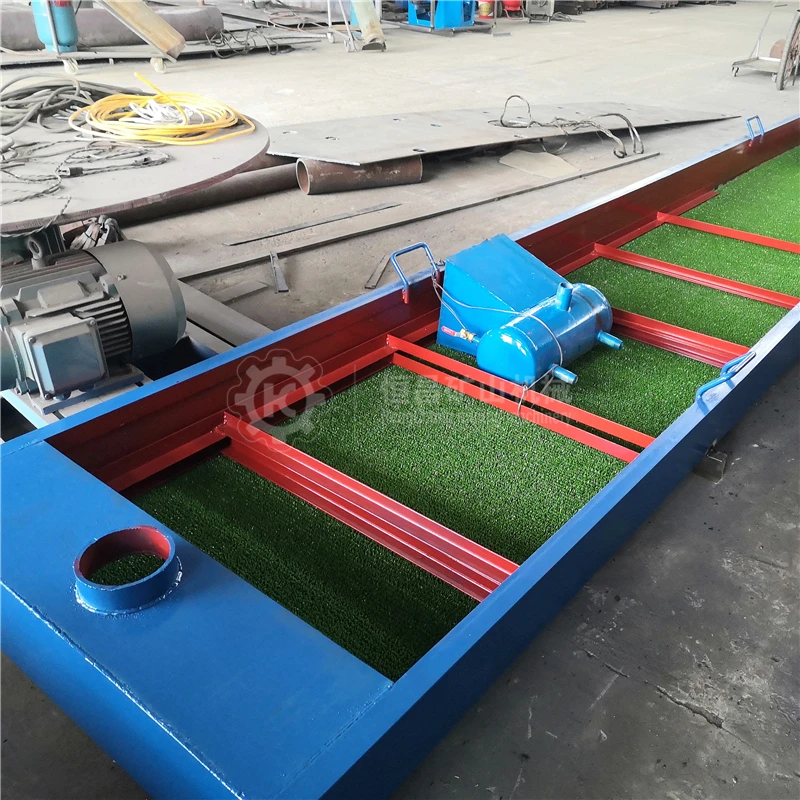

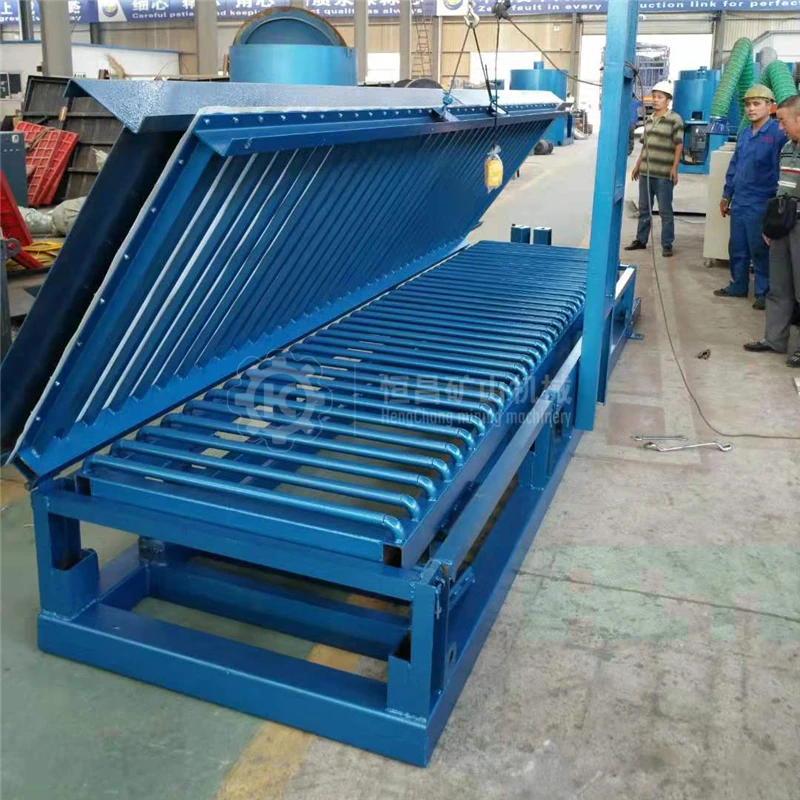

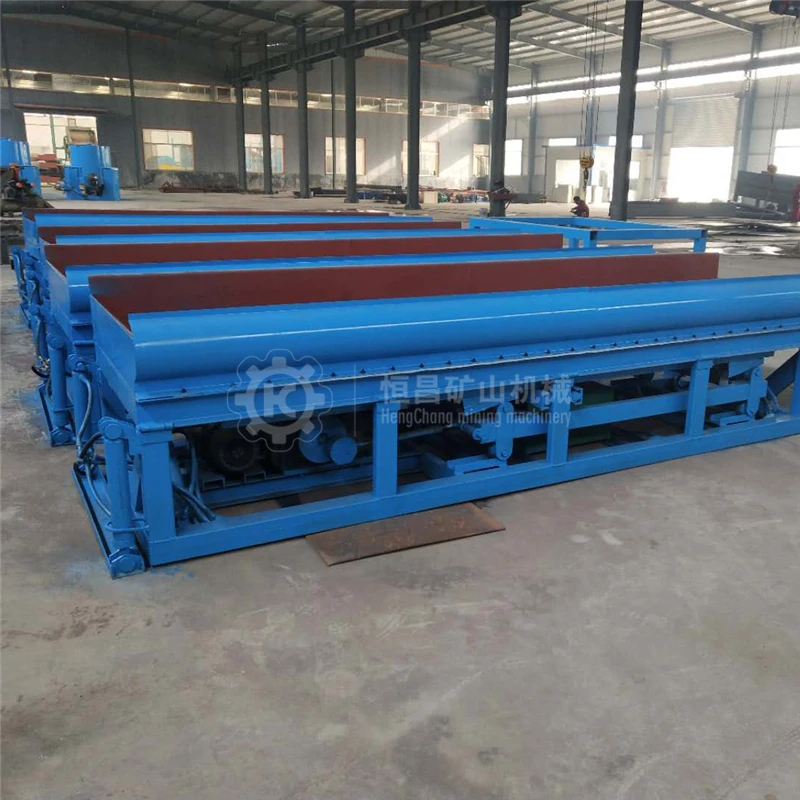

The vibrating sluice box is a new type of gold extracting especially in the fine gold and placer gold recovery. It perfectly combines the advantages of normal sluice and jig machine .
The Gold Washing Machine is composed by the mine tank, sluice box, rubber plate, push frame, lifting device, transmission and motor etc.
Most of gold exists as the micro fine gold in the nature. The fixed sluice box and gold rush grass are suitable for coarse gold,but not the micro fine gold. The fine gold is easy to floating on the water and discarded as tailings.
How to recycling the micro fine gold effectively? Vibrating sluice has motor power, vibrating frequency with 28-30 per minutes,small angle installation slope,water flow is lower, thus micro fine gold easily deposition. Grooved sluice box has new designed grid and riffles, causing lots of eddy currents increasing the gold separation time as well as polishing and washing the gravel and solids.
The Gold Washing Machine is composed by the mine tank, sluice box, rubber plate, push frame, lifting device, transmission and motor etc.
Most of gold exists as the micro fine gold in the nature. The fixed sluice box and gold rush grass are suitable for coarse gold,but not the micro fine gold. The fine gold is easy to floating on the water and discarded as tailings.
How to recycling the micro fine gold effectively? Vibrating sluice has motor power, vibrating frequency with 28-30 per minutes,small angle installation slope,water flow is lower, thus micro fine gold easily deposition. Grooved sluice box has new designed grid and riffles, causing lots of eddy currents increasing the gold separation time as well as polishing and washing the gravel and solids.
Working Principle
There is a rubber pad on the shaking chute bed, which is driven by electric motor and can move up and down .While moving the light gravity material will be flew out by the water, heavy gravity material such as gold & other metal will fall down and be kept.
Our power sluice machine is designed with the "HYDRAULIC" controller instead of the old type. it is more convenient to clean up the concentrate on the chute.and save time as well. also the slope can easily controlled by "HYDRAULIC".It's our patented product, It have been sale well all around the world.
Our power sluice machine is designed with the "HYDRAULIC" controller instead of the old type. it is more convenient to clean up the concentrate on the chute.and save time as well. also the slope can easily controlled by "HYDRAULIC".It's our patented product, It have been sale well all around the world.
Widely Application

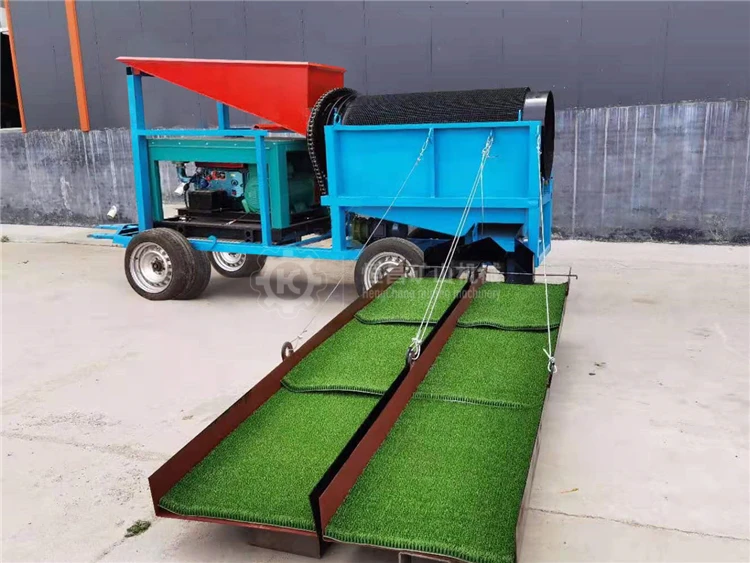

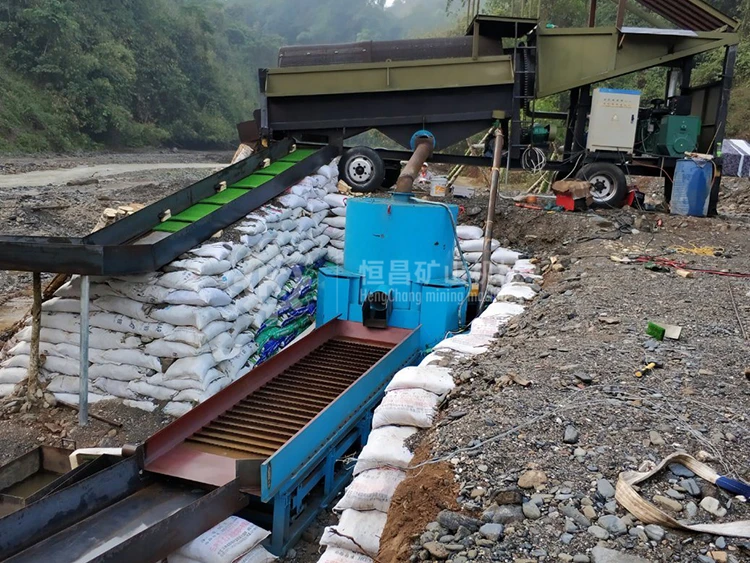

The Sluice Box works with the gold trommel screen to recover gold roughly.
1. Reasonable structural design, convenient for transporting;
2. High degree of automation, Multi-machine joint working high gold handling capacity with the daily capacity up to 2000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines; It can also
1. Reasonable structural design, convenient for transporting;
2. High degree of automation, Multi-machine joint working high gold handling capacity with the daily capacity up to 2000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines; It can also
be suitable for processing minerals that may contain gravels and boulders;
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.
Model | PSB-4.2 | PSB-6.0 | |
Capacity | 40-50m3/h | 30-40m3/h | |
Motor Power | 5.5KW 1.1KW (Hydraulic) | ||
Feeding Size | 0-15mm | 0-15mm | |
Feeding Density | 30% | 30% | |
Water Consumption | 65-80m3/h | 50-65m3/h | |
Vibration Frequency | 32/min | 32/min | |
Dimension（L*W*H) | 4200*1100*1000mm | 6000*1100*1000mm | |
Weight | 1850kg | 1850kg | |
Jaw Crusher
aw crusher is mainly used for crushing large particle stones, granite, limestone and construction waste, etc. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry etc.
Hammer Mill
Hammer mill crusher is a fine crushing machine whose purpose is to shred or crush aggregate material into smaller particulates (under 2 mm) by the repeated blows of little hammers.

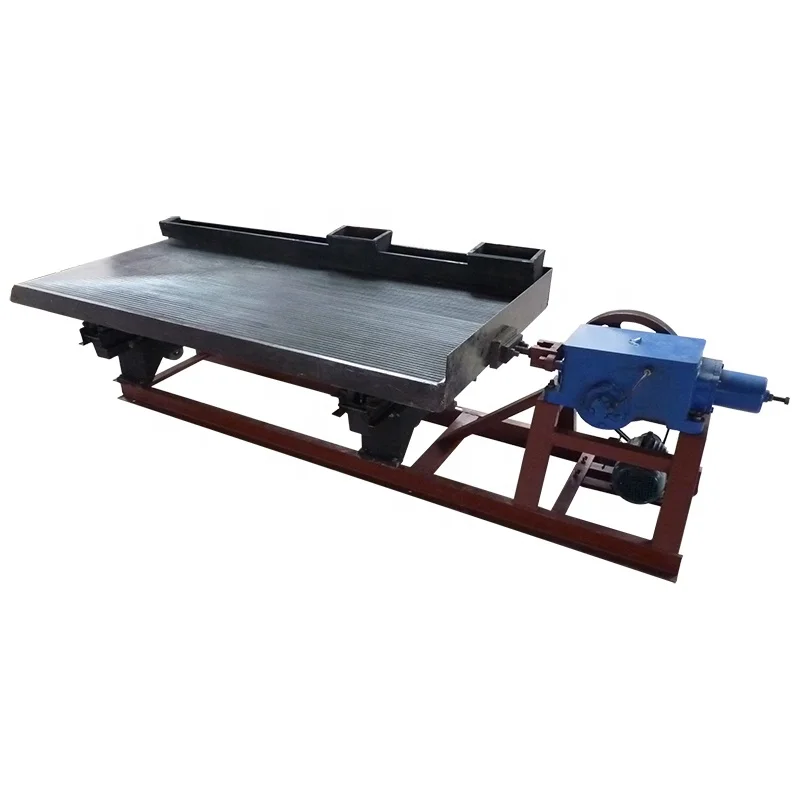

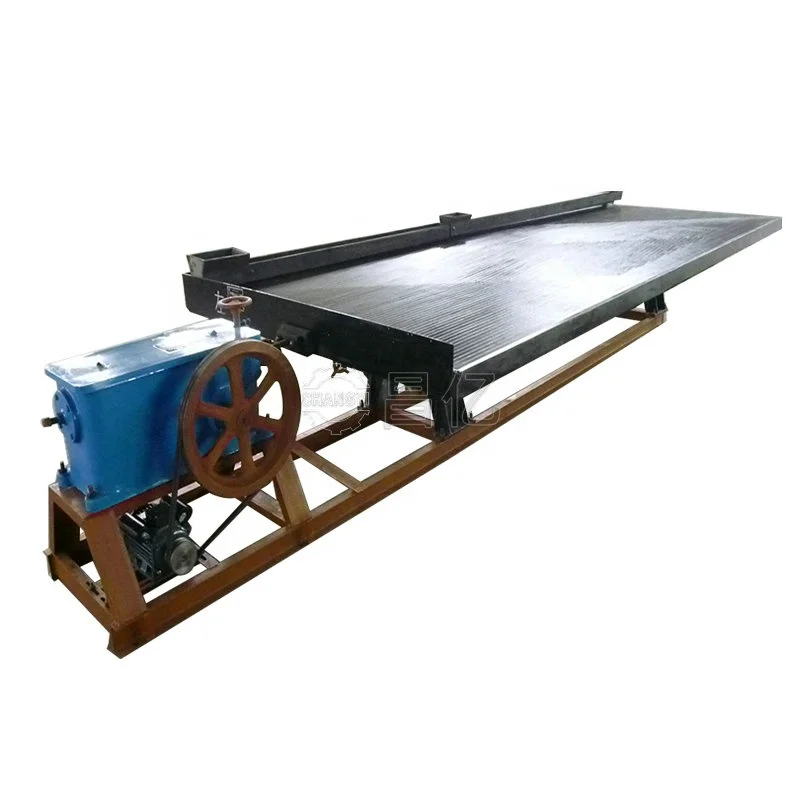

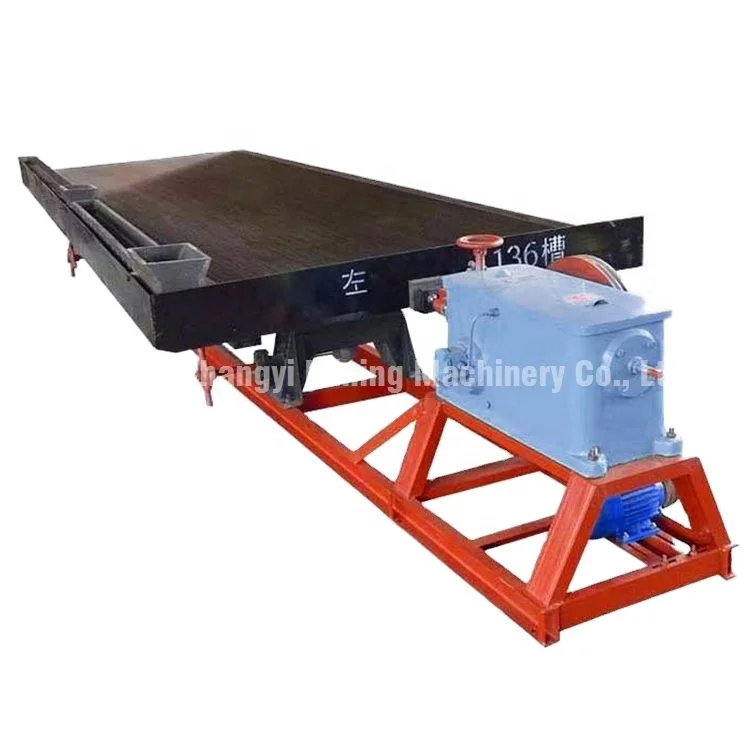

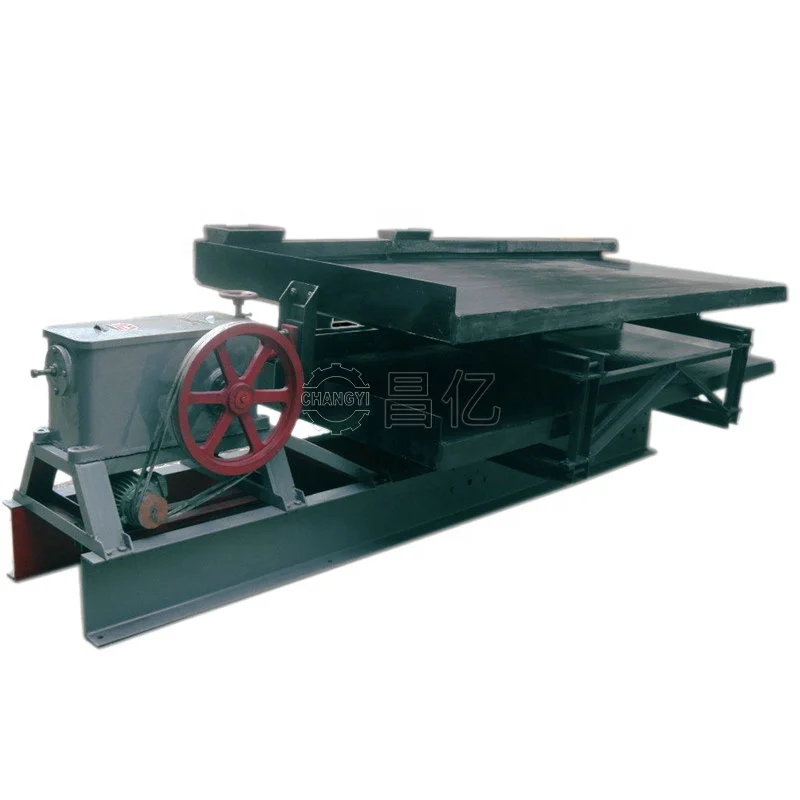

6S-Shaking Table
Shaking table is widely used for sorting tungsten ore. Its main function is sorting the rough and concentrate mixture after tungsten ore gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm.
Ball Grinding Mill
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Centrifugal Concentrator
Centrifugal concentrator is a kind of gravity concentrating machine. It will produce big centrifugal force when rotating, and strengthen gravity process, to make the superfine particle effectively recover. It can be extremely effective to sorting monomer gold of vein gold ore proved by test. In addition, it can be used for recycling the monomer gold in gold ore and other metals.
Trommel Gold Washing Machine
Trommel Scrubber is also named as gold wash plant. It consists of the hopper, the rotary scrubber, the trommel screens. And it can be mobile style and stationary style. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part.
1.What is your machine used for ?
Our Sluice box is normally used in gold washing plant for recovery the tailings, and also it's been wildly used to recovery the place gold panning sluice box, gold tailing recovery machine r gold directly together with trammel screen.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about the service of your company?
We are 24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
6.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
