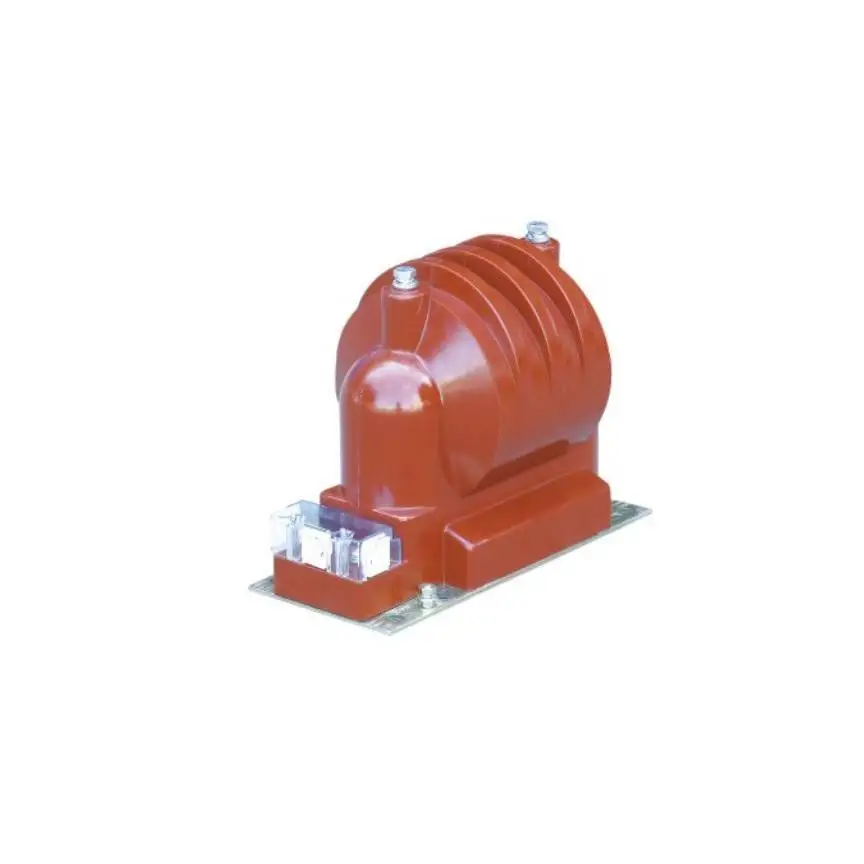

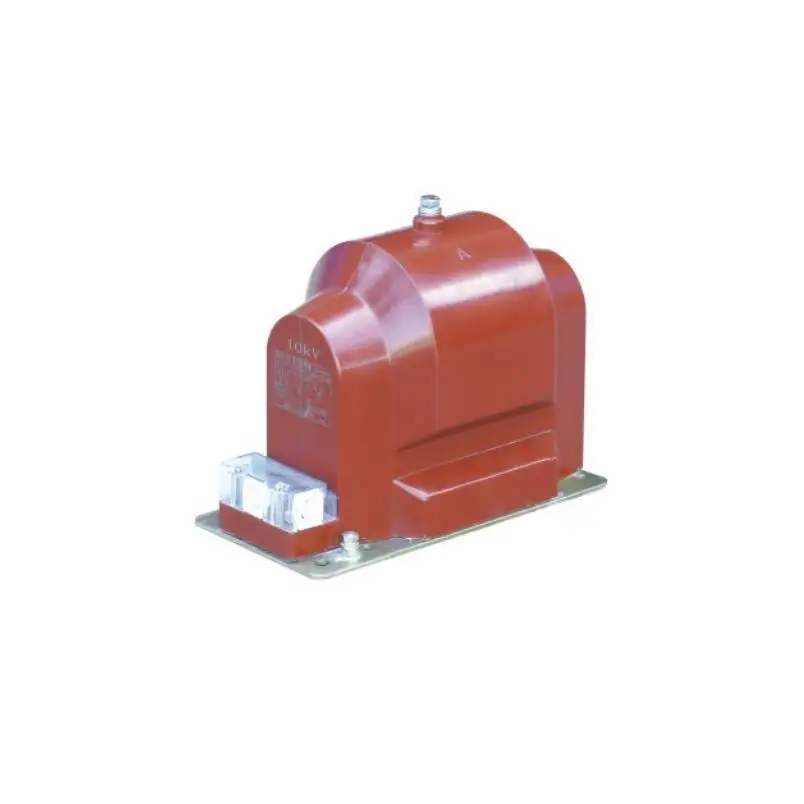

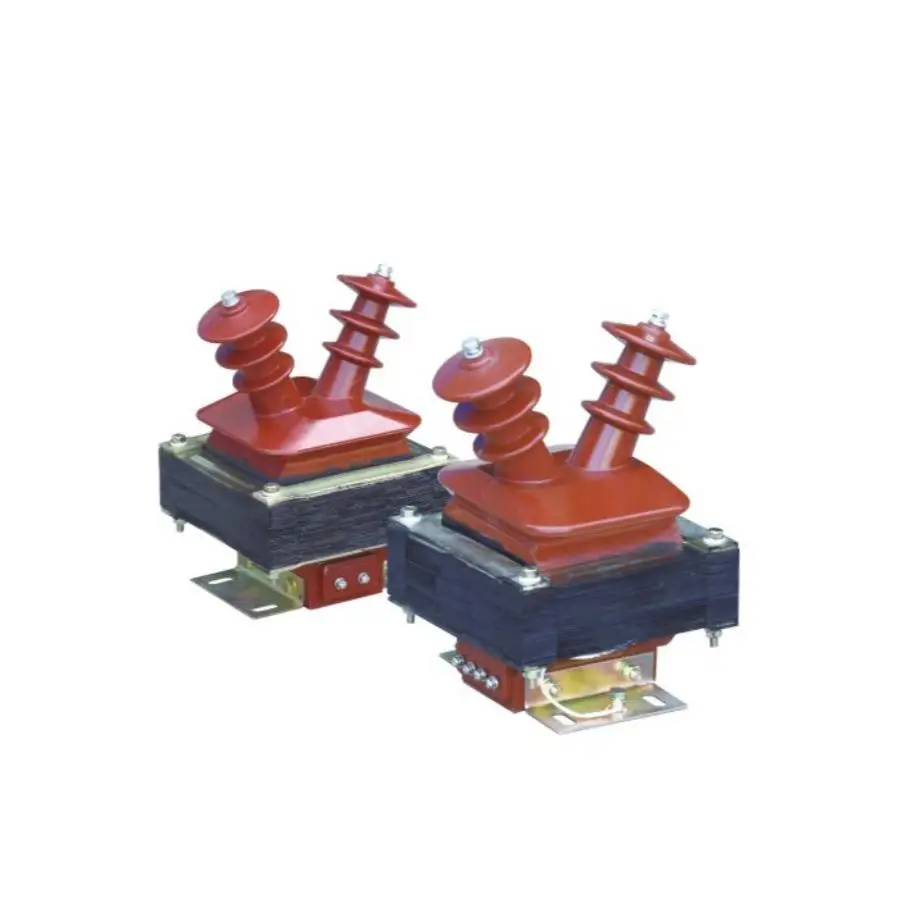

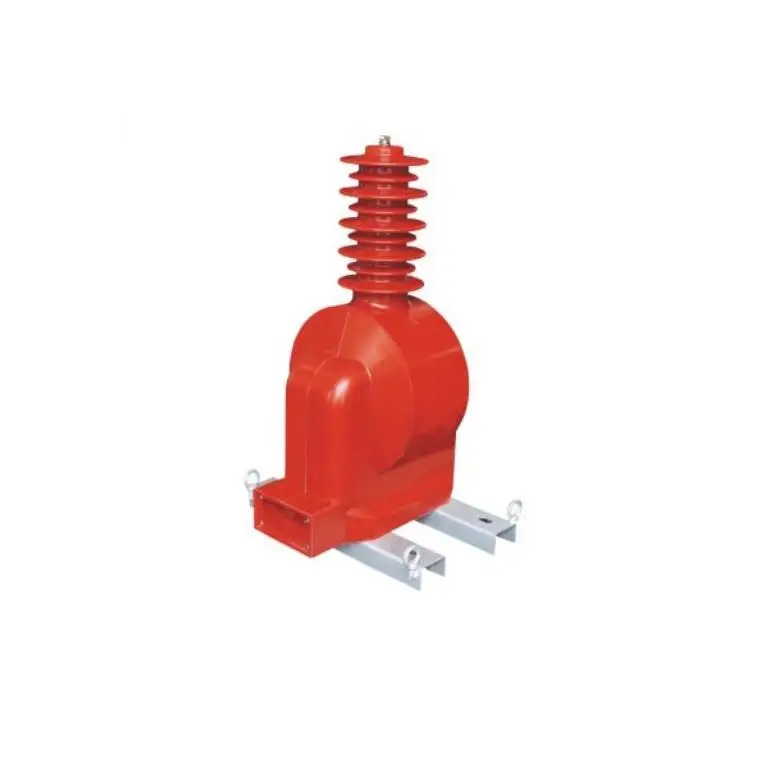

JDZXW 35/JDZXFW 35 открытый переключатель на столбы поддержки пользователей напряжения и тока
- Категория: Transformers >>>
- Поставщик: Yueqing Weisen Electric Co. Ltd.
Сохранить в закладки 1600569743236:
Описание и отзывы
Характеристики
Structural features
The transformer is one of import electrical appliances in electric system. It's similar to power transformer and also used to transformer voltage or current in the circuit. However, transforming voltage and current by power transformer aims at transferring electric energy while transforming voltage and current by transformer aims at measuring and monitoring voltage or current in the circuit. Generally, power transformer owns large capacity as well as large change difference of voltage or current. While transformer owns small capacity as well as smaller change difference of voltage or current. In measuring circuit. The transformer that transforms current and supplies electricity for current meter and relay is called current transformer. The transformer that transforms voltage and supplies electricity for voltage meter and relay is called voltage transformer.

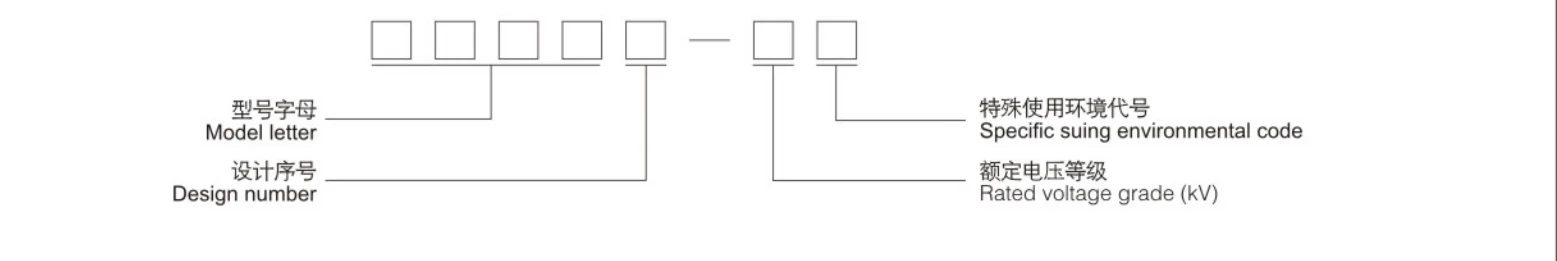

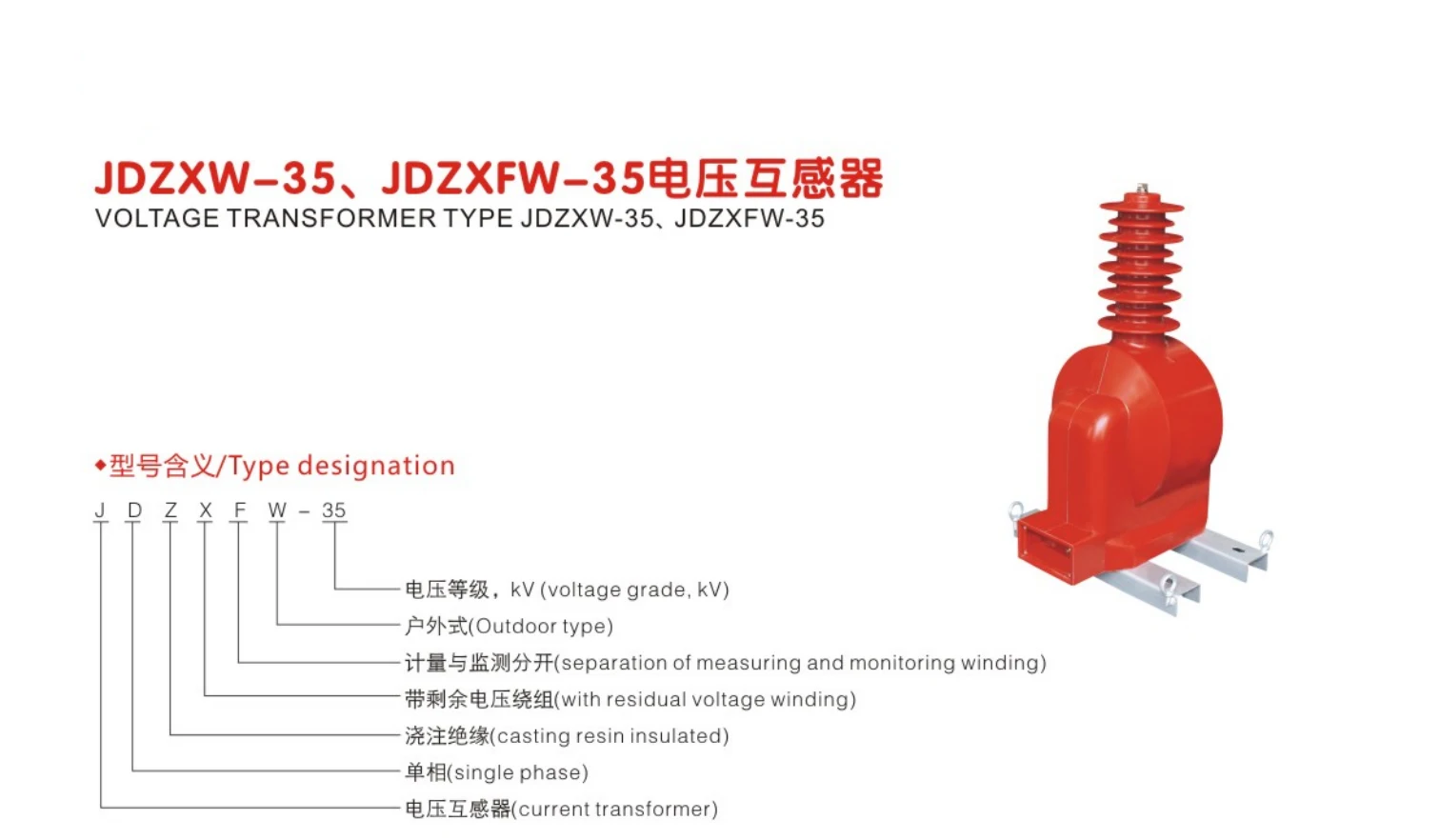

Model definition
The model composition of current transformer and voltage transformer is divided into two parts. The first part is product model letter and design number and the letter part is rated voltage grade (kV) and specific using environment code. (the definition of model letter is shown as know).
Specific suing environment code of transformer
1. Code of using in highland area: "GY"
2. See the right table for code using of using in polluted area.
3. Code of using in corrosive area: "F"
4. Code of using in dry tropic region: "TA"
5. Code of using in wet tropic region: "TH"
6. Code of using in dry-wet tropic: "T"
7. "WS" denotes the occasion that wet-rising limit value is 5K lower than standard stipulated value.
Using repressed-native symbol of polluted area | Stipulated in GB5582-85 | ||
Polluted area class | Min nominal creepage specific distance | ||
- | 0 | 14.8 | |
- | Ⅰ | 16 | |
W1 | Ⅱ | 20 | |
W2 | Ⅲ | 25 | |
W3 | Ⅳ | 31 | |

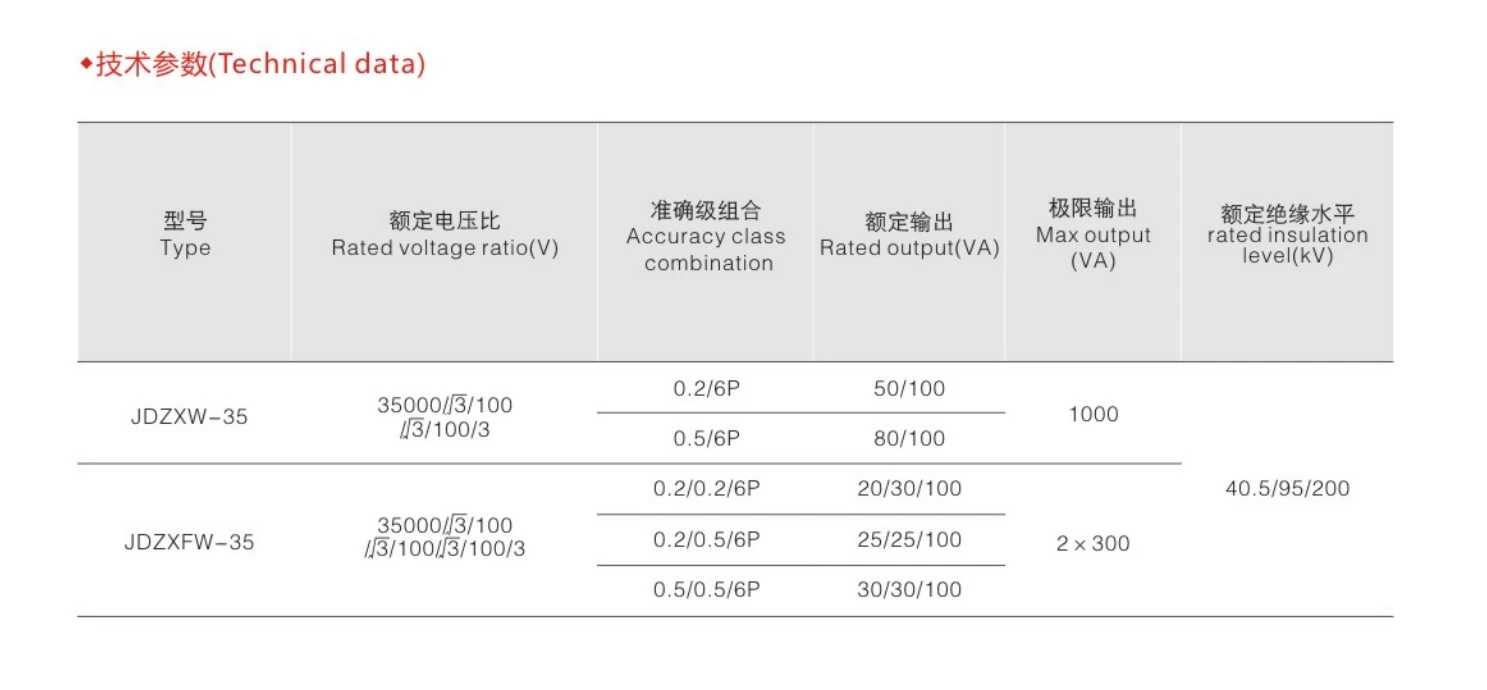

Main technical parameters
Applicable working conditions
1. The height above sea level is not above 1000m. (Please indicate height above sea level if it is used in high land area).2. Max.
change of environment temperature doesn't exceed 5℃ to 40℃. (If there is any requirement. Please indicate in the order).
3. Ordinary products can be used in the area with relative humidity not above 85%.
4.There is no gas, steam, chemical sedimentation, dust or dirt or other explosive and corrosive medium that seriously affect
transformer at installation site. There is no serious vibration or bump. Either.
change of environment temperature doesn't exceed 5℃ to 40℃. (If there is any requirement. Please indicate in the order).
3. Ordinary products can be used in the area with relative humidity not above 85%.
4.There is no gas, steam, chemical sedimentation, dust or dirt or other explosive and corrosive medium that seriously affect
transformer at installation site. There is no serious vibration or bump. Either.
Precautions
1. While the primary current goes through current transformer, the open circuit of secondary winding is not allows, other wise
high voltage will produce and affect the performance of product.2. The short circuit of secondary winding of voltage transformer
is not allowed. Otherwise the transformer will be burned.
3. The repeated power frequency withstand voltage test of primary winding shall be conducted under 80% of stipulated test voltage
value.
high voltage will produce and affect the performance of product.2. The short circuit of secondary winding of voltage transformer
is not allowed. Otherwise the transformer will be burned.
3. The repeated power frequency withstand voltage test of primary winding shall be conducted under 80% of stipulated test voltage
value.
Cited standard
GB/T20840.3-2013 《Inductive Voltage transformer》
GB/T20840.2-2014 《Current transformers》
GB/T20840.4-2015 《Combined instrument transformers》
JB/T10433-2004《Three-phase Voltage transformers》
JB/T10432-2004《Three-phase combined instrument transformers》
GB/311.1-1997 《Insulation coordination of high voltage transforming equipment》
GB/T7354-2003《Partial discharge measurements》
DL/T653-2009《Specification of discharge coils for high voltage shunt capacitor for order》
Related Products
Packing&Shipping
Packaging Details: Standard exporting packing |
Delivery Port: Shanghai or Ningbo |
Company Introduction
Located in Yueqing, Zhejiang, Yueqing Weisen Electric Co., Ltd is a professional manufacturer of low voltage and high voltage switchgear and vacuum circuit breaker insulating accessories. We have perfect organization structure and associated functional department. As we have cooperated with foreign customers for decades, our business systerm is quite perfect which based on common interest.
Yueqing Weisen Electric Co., Ltd. is a professional power equipment manufacturer integrating research, development, production and sales. Since the company's products were shown in the market, it has won the praise of the majority of users with its superior performance, advanced technology, exquisite technology, reliable quality and high-quality service. The products have been sold in 29 provinces, cities and autonomous regions.
Our Services & Strength
We can design for you according to customers' requirements.
Похожие товары
Изоляционный трансформатор EI 240 В, 50 Гц, 60 Гц, семейный аудиотрансформатор типа EI-41 * 18
Трансформатор 100 А 240 мА адаптер trafo переменный ток-в постоянный ток 9 в 14 15 16 19 24 28 30 4a UL cU CE UKCA ac dc smps источник

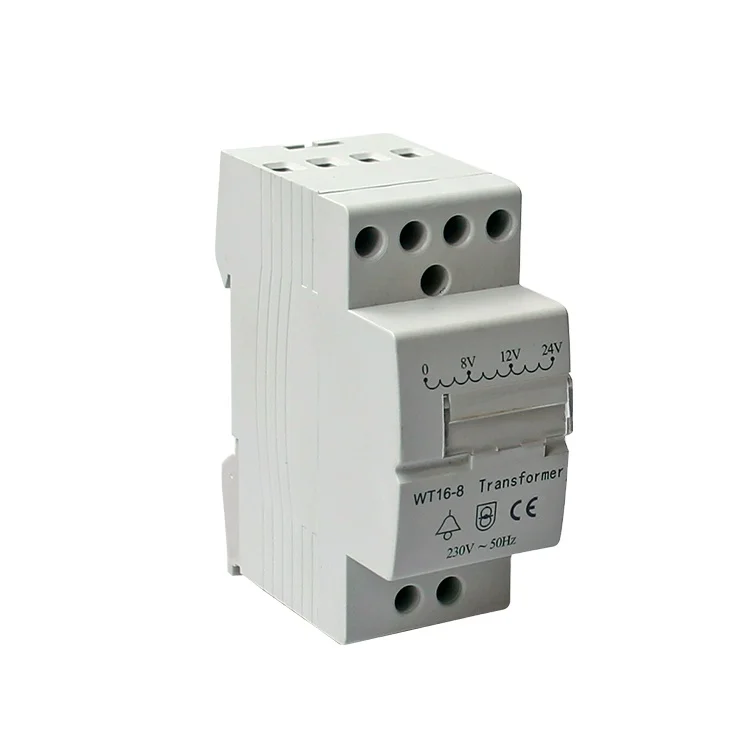

Китайский Электрический трансформатор-колокол WT16 8VA 230 В 24 В
