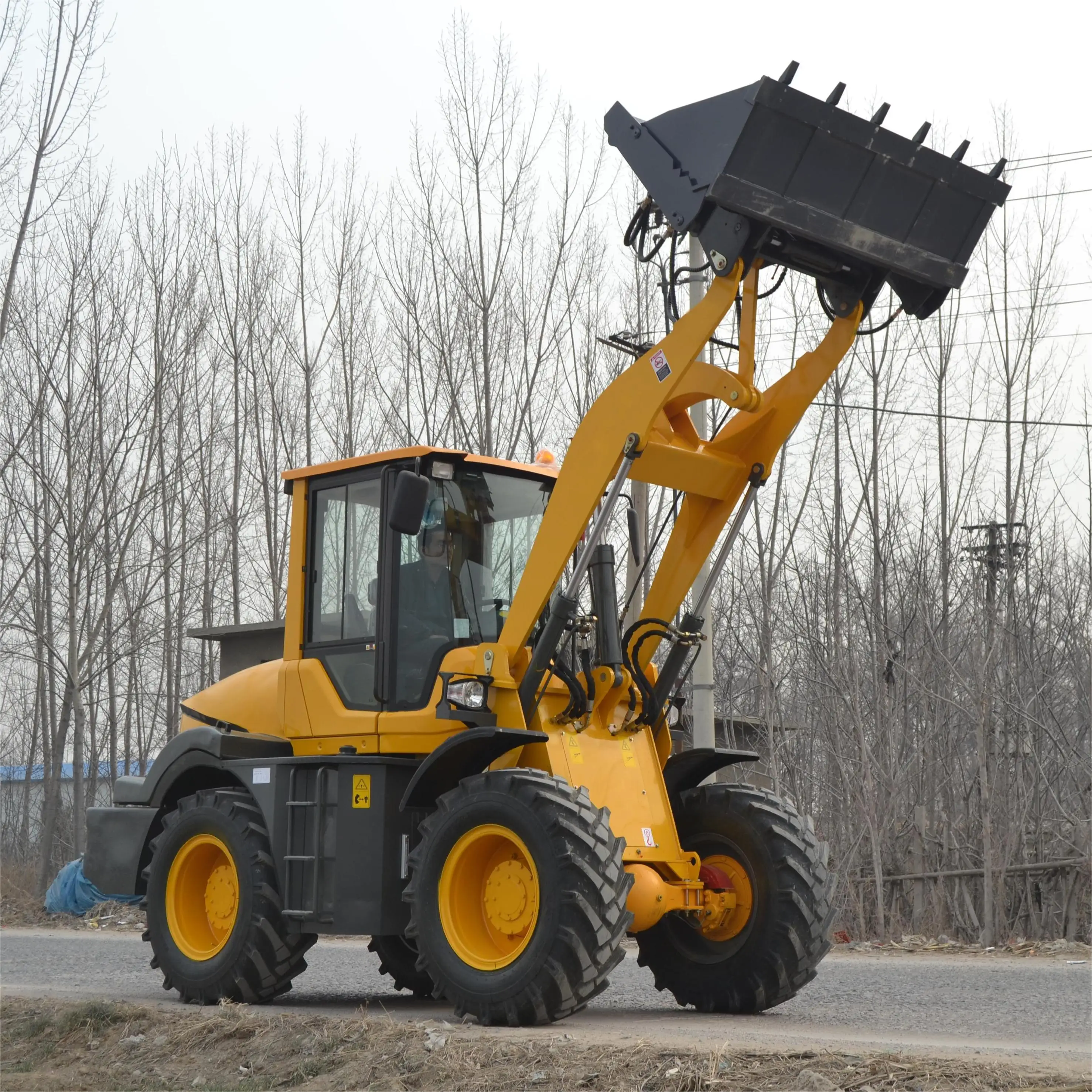

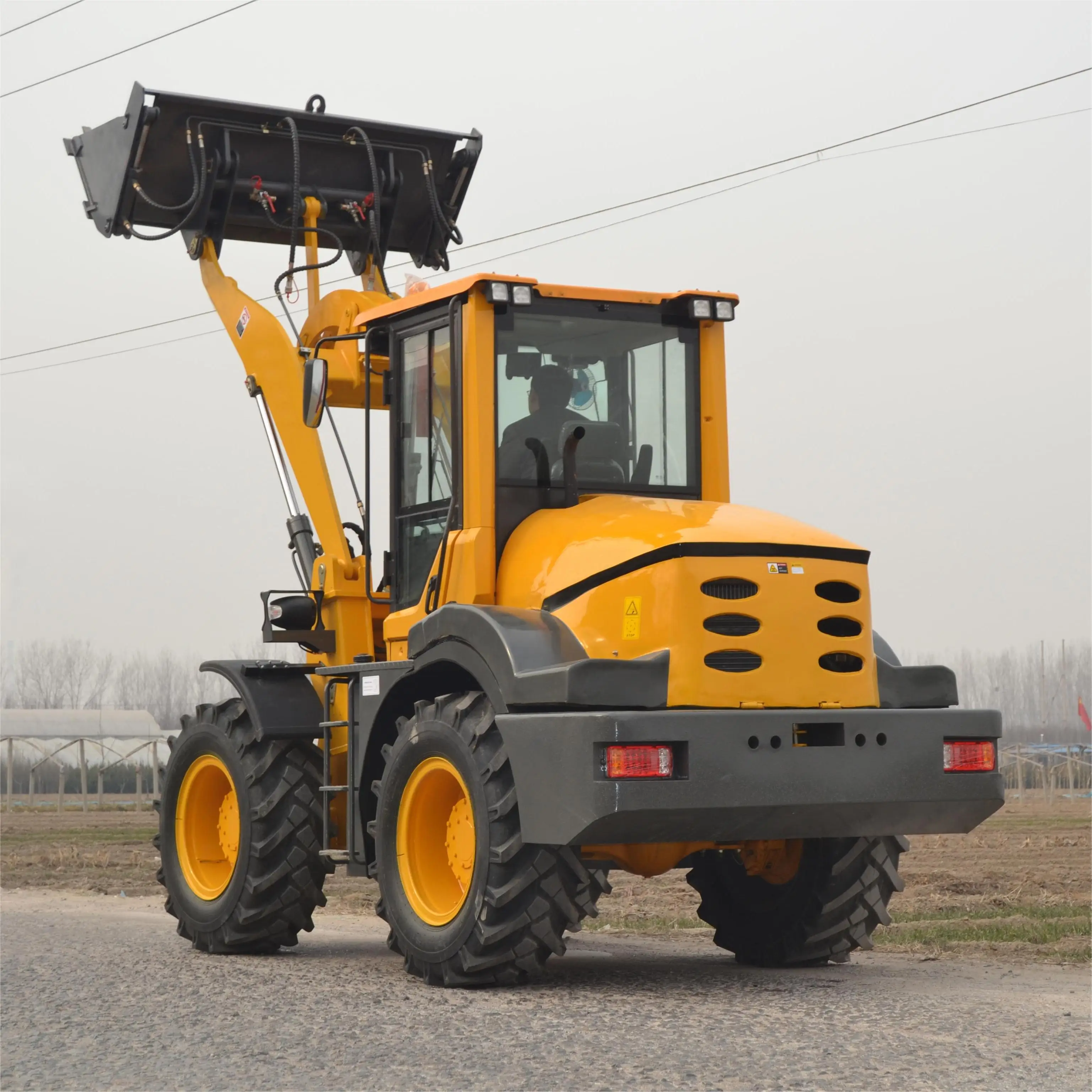

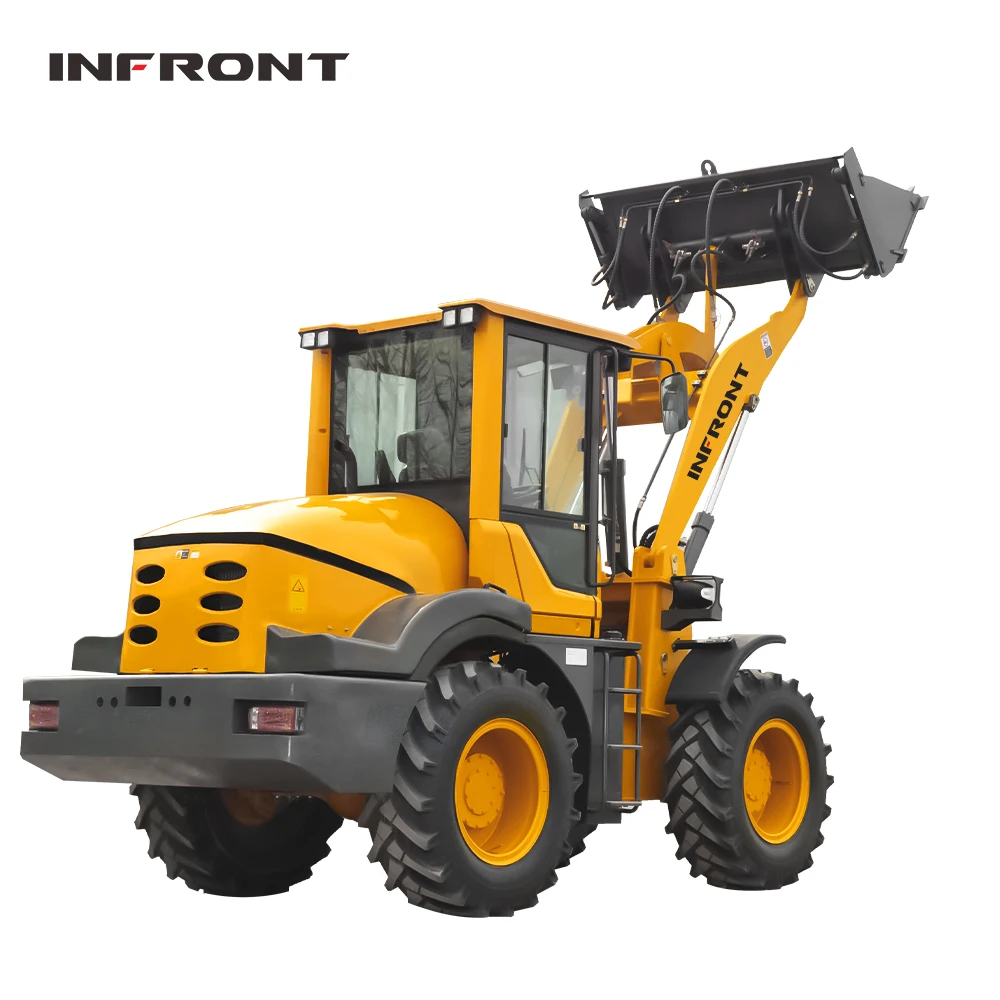

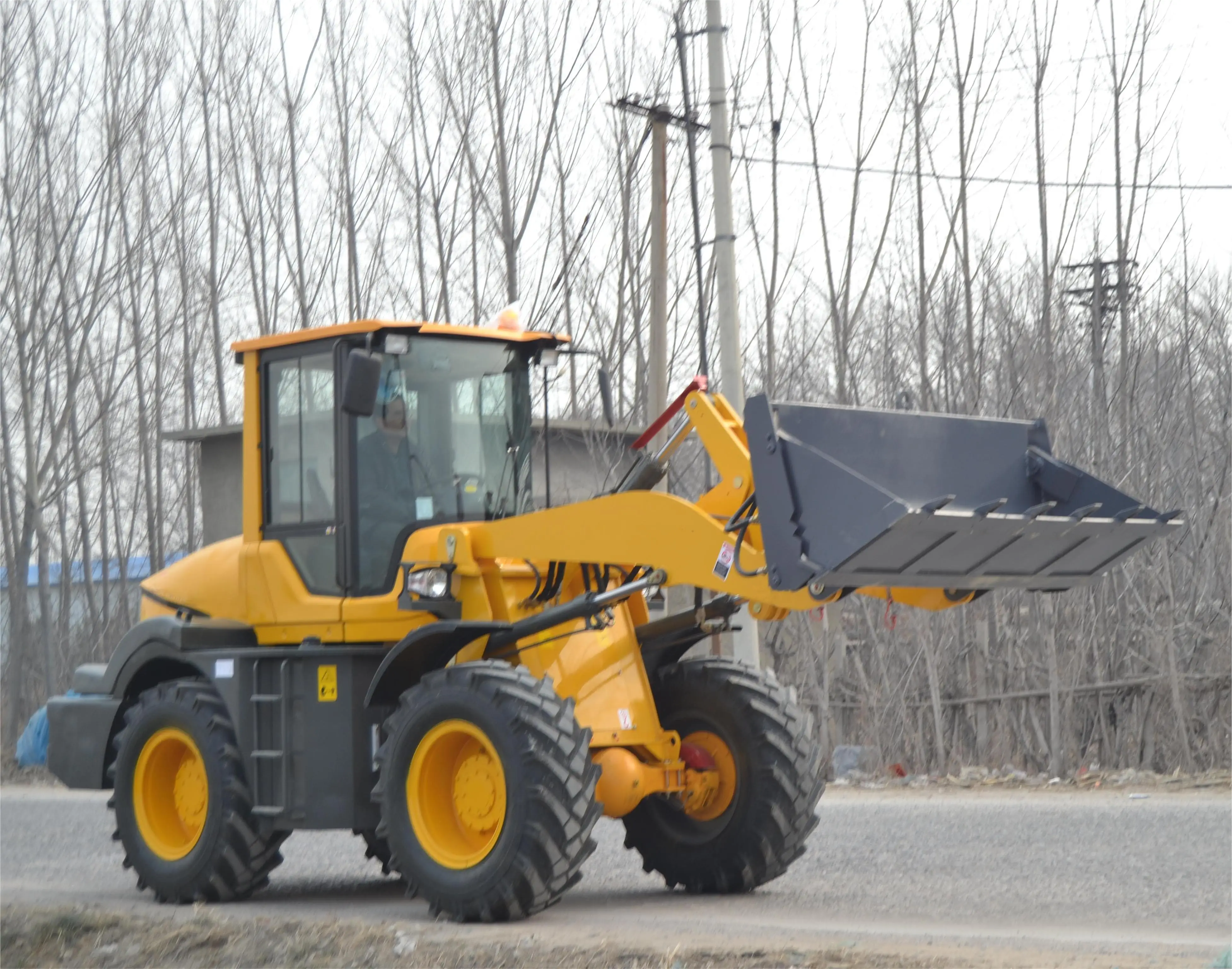

China backhoe excavator loader powerful loader backhoe for sale
Performance | Rated loading | 2600kg |
Overall weight | 5500kg | |
Rated bucket capacity | 1.3m³ | |
Maximum tractive force | ≥54KN | |
Maximum breakout force | ≥45.4KN | |
Maximum grade ability | 30° | |
Maximum dump height | 3300mm | |
Optional maximum dump height | 3500mm | |
Overall dimension (L×W×H) | 5890×2000×2850mm | |
Minimum turning radius | 5330mm | |
Engine | Model | YUNNEI turbocharged engine |
Optional model | YTO/YUCHAI/CUMMINS/YANMAR/KOHLER engine | |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
Rated power | 65KW | |
Rated speed | 2200rpm-2400rpm | |
Engine starting mode | Electric | |
Transmission system | Gearbox mode | Counter shaft power-shift |
Gear shift | 2 forward shift 2 reverse shift | |
Maximum speed | 25km/h | |
Drive axles | Main reducing spiral | Circular Arc Bevel gear, single stage |
Decelerating mode | Single stage planetary type | |
Wheel base (mm) | 2400mm | |
Wheel tread | 1640mm | |
Ground clearance | 310mm | |
Driving mode | Four-wheel full hydraulic drive | |
Tire | Tire type | 16/70-20 |
Optional tire | 16/70-24 | |
Brake | Brake mode | Air assist disc brake on 4 wheels |
Packaging | Packaging details | 1 unit packed into 20GP,2 units packed into 40HQ. |
Port | Qingdao | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) |
Jining Infront Construction machinery Co.,Ltd is a professional international trading company,which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts.
CE | EPA |
A. 24 hours service online
B. Best quality and reasonable price in the market
C. Overseas service available
D. Welcome customers to visit,meetig and communication
1.Q:Are you a manufacture?
A: Yes,we are manufacture,we have our own factory and a group of professional technicians.
2.Q:What kinds of products do you offer?
A:Jining Infront Construction Machinery Co.,Ltd specializes in producing Construction Mchinery and spare parts,such as cutting edge,bucket teeth,adapter,blade angle an so on.
3.Q:What kinds of materials are you familiar with?
A:We are familiar with carbon steel,alloy steel,wearresistant metal,pig iron,railway metallic materials and so on.
4.Q:Could we visit the factory?
A:Yes,our factory will warmly welcome you to cisit us.
5.Q:What is the warranty for the products?
A:First of all,you have to provide us photos of the problem part and also provde photos of the machine so we can see how the part was installed and gather other necessary information to define the root cause of the problem. If it is indeed a quality problem of the product itself,we would offer compensation to you and also figure outsolutions to avoid this quality problem in the future.
