КАПЕЛЬНАЯ ирригационная лента 800 кг/ч под заказ производственная линия для переработки пластмассовой мойки
- Категория: >>>
- Поставщик: Zhangjiagang Kooen Machinery Co. Ltd.
Сохранить в закладки 1600569761444:
Описание и отзывы
Характеристики
Product Description

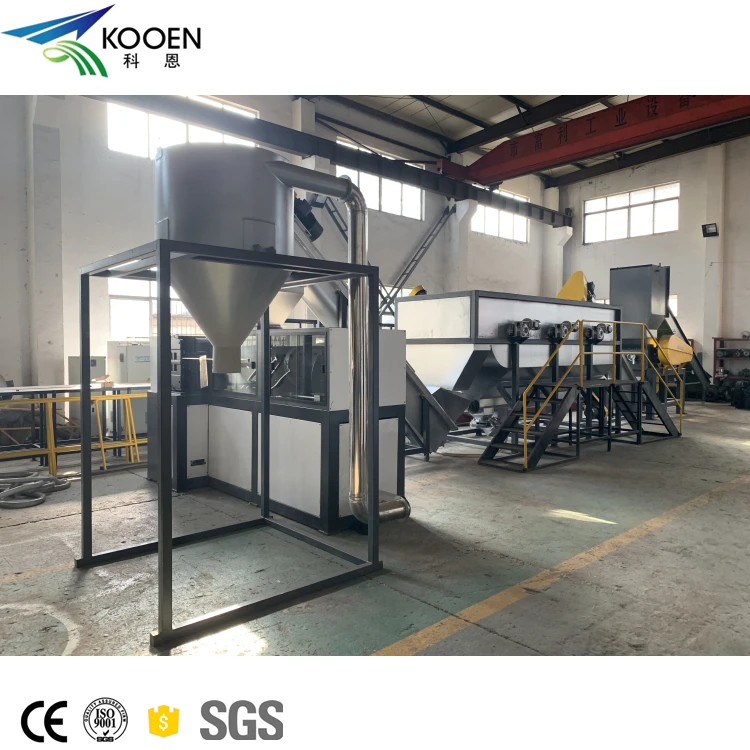

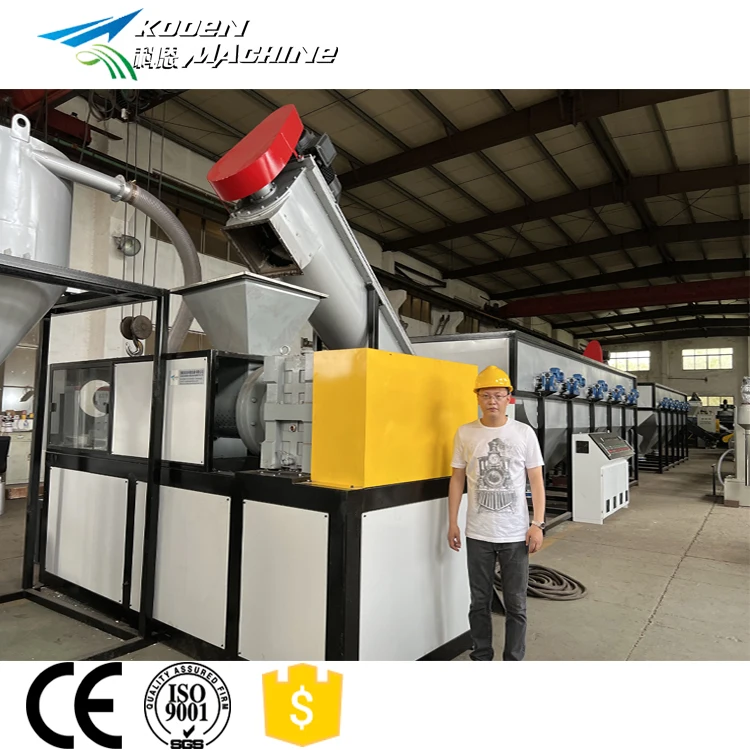

PP PE films crushing washing recycling line plastic hard PP PE LDPE RECYCLING DRYING GRANULATING production line PRICE
Estimated Plant Parameters:
Model | CAPACITY(KG/H) | POWER CONSUMPTION(KW) | WATER CONSUMPTION(TON/H) | MANPOWER | HUMIDITY CONTENT |
MPE-300 | 300kg/hour | 125kw | 3ton/h | 2-3 | ≤2% |
MPE-500 | 500kg/hour | 260kw | 4-5ton/h | 3 | ≤2% |
MPE-1000 | 1000kg/hour | 350kw | 6ton/h | 4 | ≤2% |
MPE-2000 | 1500-2000kg/hour | 480kw | 7-8ton/h | 4-5 | ≤2% |
Working Flow:

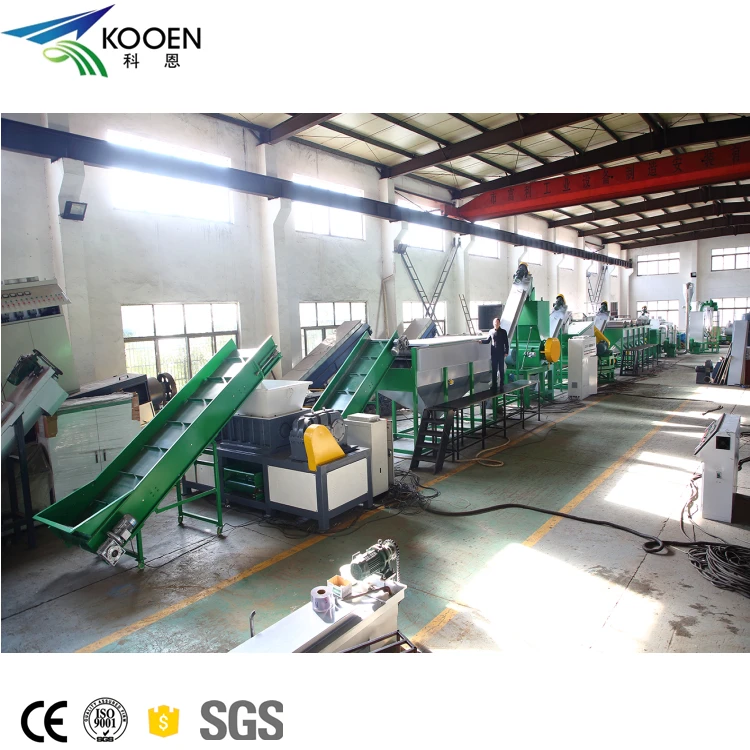

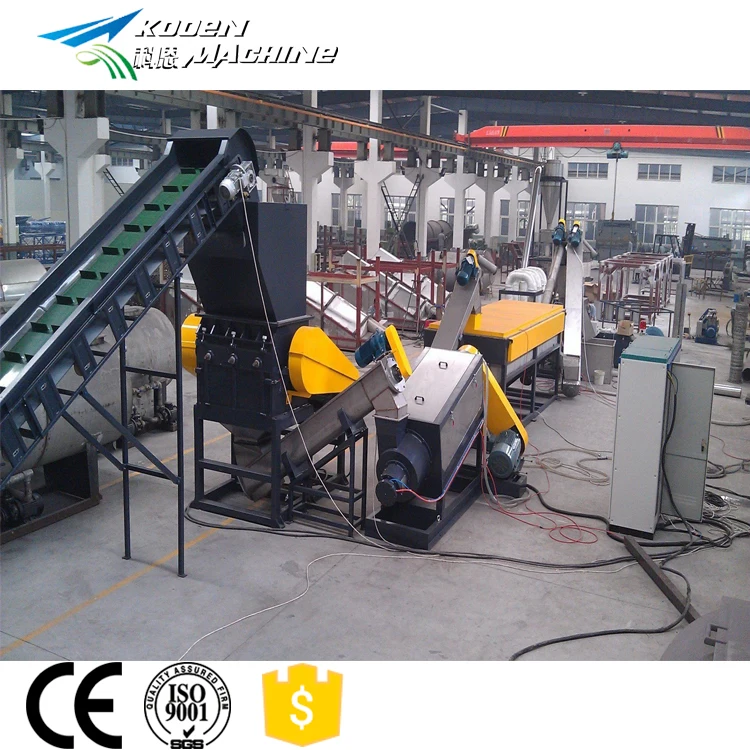

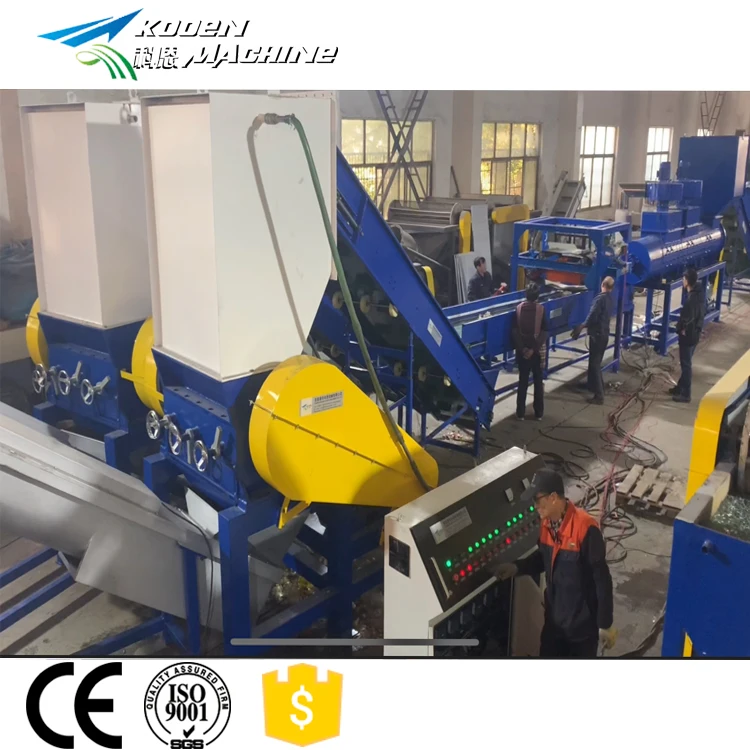

Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet
Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet
Control method: frequency control
Motor power: 37/55/90kw
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water
Motor power: 22kw
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Dimension(L*W): 6000*1800mm
Made of SUS304 stainless steel
Screw friction washer
Motor power: 22kw
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Made of SUS304 stainless steel
Dimension(L*W): 6000*1800mm
Made of SUS304 stainless steel
Motor power: 5kw
Diameter: 500mm
Made of SUS304 stainless steel
Motor power: 22/37/45KW
Rotation speed: 1200rpm
Main shaft through dynamic balance treatment
Motor power: 5kw
Diameter: 500mm
Made of SUS304 stainless steel
Motor power: 5.5 kw
Diameter: 500mm
Made of SUS304 stainless steel
Motor power: 75/90/132KW
Screw diameter: 250/300/350mm
Screw/barrel materials: 38CrMoAl Nitrified, CNC treatment
Cutting motor power: 5.5kw
Fan blower power: 7.5kw
Volume: 3.5m3, made of stainless steel
World famous brand
Advantages:
1. Final products has good quality. When process PP PE film bags, final products humidity below 2%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
1. Final products has good quality. When process PP PE film bags, final products humidity below 2%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
Related products
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/pet-bottle-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/（Video link）
//www.kooenmachine.com/squeezer-machine/ （Website link）
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/（Video link）
//www.kooenmachine.com/shredder-machine-crusher-machine/ （Website link）
//www.kooenmachine.com/shredder-machine-crusher-video/ （Video link）
Our Company
Packing&Shipping
Exhibition
Service
For choosing proper machine and saving your time, please read these bellow guides carefully:
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
Waste plastic recycling PP PE PET film bags bottle washing line plastic recycling plant cost of plastic recycling machine
More details, please log on our web: www.kooenmachine.com
More details, please log on our web: www.kooenmachine.com
