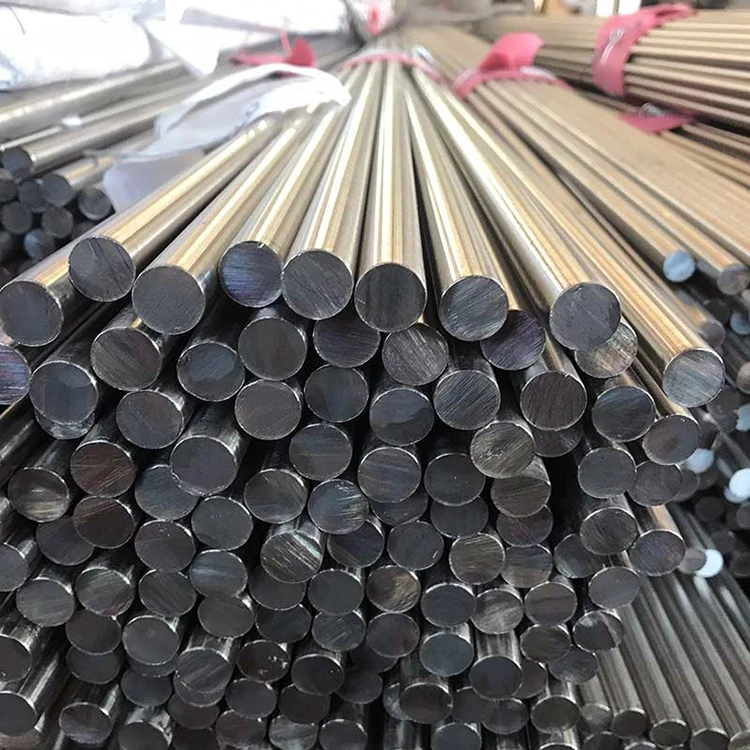

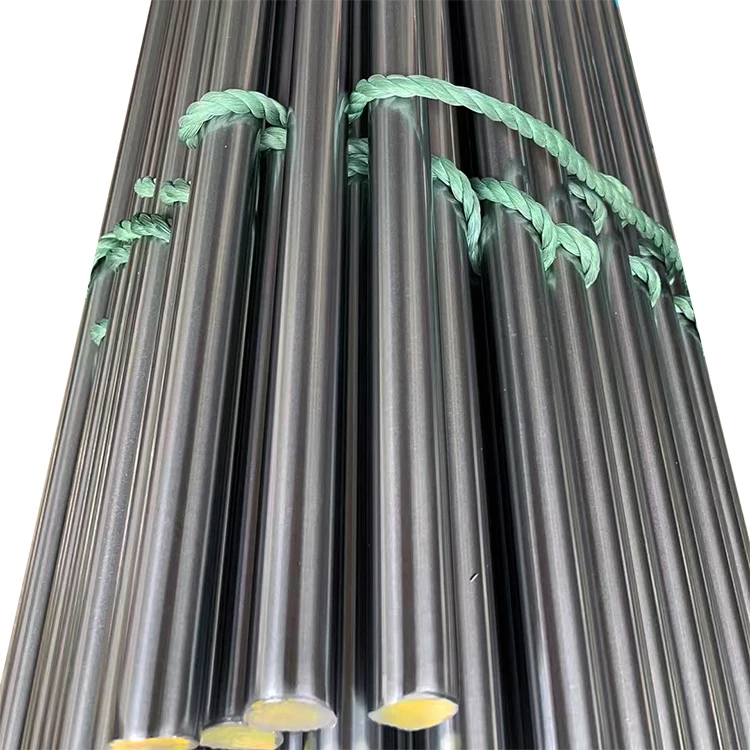

Black surface DIN 1.4028 tool steel rod and round bar SUS420J2 stainless steel
1: AISI420 steel introduction
AISI 420 stainless steel (SS420) is a straight chromium martensitic stainless steel grade with certain wear resistance, corrosion resistance and high hardness.
It offers good ductility in its annealed state and excellent corrosion resistance properties when the metal is polished, surface grounded or hardened. This grade has the highest hardness - 50HRC - among all the stainless steel grades with 12% chromium.
Stainless steel grades that are similar to grade 420 stainless steels include martensitic steels such as the other versions of grade 420, having vanadium, sulphur and molybdenum in their composition, and the grade 440 series. Non-standard grade 420C has carbon content that is little higher than that of grade 420.
2: AISI420 Steel equivalent
Country | Japan | Germany | USA | China | French |
Standard | JIS | DIN | AISI | GB/T | NFA35-572 |
Grade | SUS420J2 | X30Cr13/1.4028 | 420 | 3Cr13 | Z15CN16.02 |
3: AISI420 steel chemical composition
Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr |
SUS420J2 | 0.26-0.35 | 1.0 | 1.0 | 0.04 | 0.03 | 12-14 |
AISI420 | 0.15 Min | 1.0 | 1.0 | 0.04 | 0.03 | 12-14 |
1.4028 | 0.26-0.35 | 1.0 | 1.5 | 0.04 | 0.06 | 12-14 |
4: AISI420 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as annealed, Solid Solution. If you want to know the properties, kindly contact the salesman.
5: AISI420 steel overviews
Size | Round | Dia 0.1-500mm |
Plate/Flat/Block | Thickness 0.3mm-200mm | |
Width 1mm-2500mm | ||
Heat treatment | Annealed ; Solid Solution | |
Surface condition | Black; Peeled; Polished; Machined;Sand blast etc | |
Delivery condition | Forged; Hot rolled; Cold drawn | |
Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
Payment terms | T/T;L/C;/Money gram/ Paypal | |
Trade terms | FOB; CIF; C&F; etc.. | |
Delivery time | 30-45 days | |
Application | AISI420 stainless steels are used in Shear blades,needle valves, surgical equipment, cutlery |
6: Delivery condition

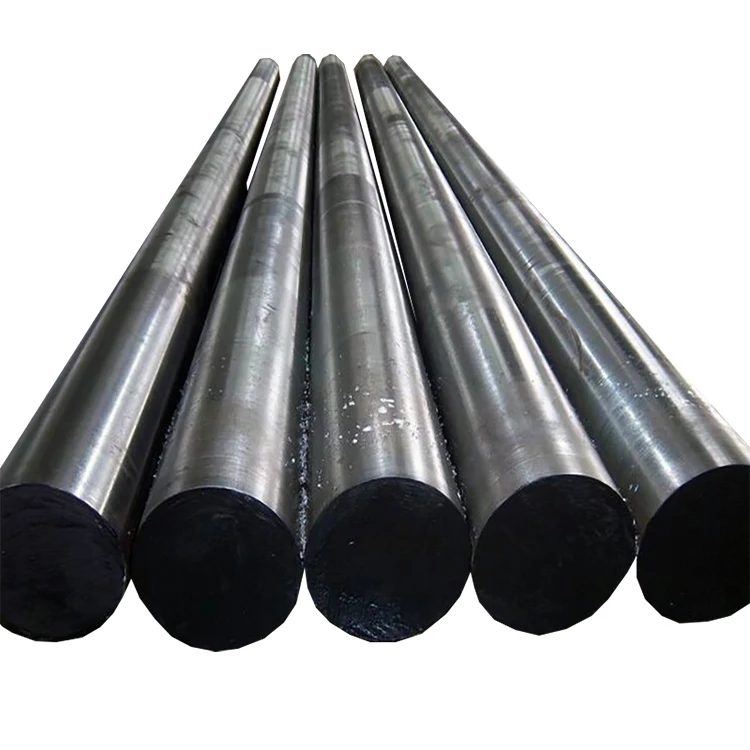

For hot forged bar, usually the delivery condition is hot forged, annealed/solid solution, rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/solid solution, Black surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed/solid solution, black surface.
For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface
Hunan Qilu Metal CO., LTD has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.
Company Main Products:(If you do not find the product you need, please contact us)
Cold Work Tool Steel | DIN 1.2080,DIN 1.2379,DIN 1.2436,DIN 1.2210,JIS SKS3,AISI O2 |
Hot Work Tool Steel | H13,DIN 1.2714,DIN 1.2767,DIN 1.2344(H13),DIN 1.2713 |
Engineering Steel | AISI 1020,AISI 1045,AISI1050,AISI 5140,AISI 4130,AISI 4140(40CrMo4),AISI 4340, DIN 1.5919,AISI 8620,S235JR,S355JR |
Plastic Mould Steel | P20,P20+S,P20+Ni,DIN 1.2083,DIN 1.2316,DIN 1.2085 |
Spring Steel | AISI 9260,AISI 5160,AISI 6150,65MN,55CrMnA |
Stainless Steel | 316L,201,301,304,316,410,420,430,431,440C,SUS630(DIN1.4542) |
High Speed Steel | DIN 1.3343(M2),DIN 1.3243(M35),DIN 1.3247,DIN 1.3265 |
Hunan Qilu Metal CO., LTD were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Metal also has their own heating treatment shop and machining shop to provide heating and cutting service.
Since 2008 year, Hunan Qilu Metal has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.
Qilu Metal is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.
The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
Q1: Are you trading company or manufacturer ?
We are professional manufacturer for many years. we can provide a wide range of steel products.
Q2: What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3: What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4: What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5: Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6: What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
Any interests in our company and products, please feel free to contact us for quotation. We warmly welcome you to our factory.
