Product Configuration

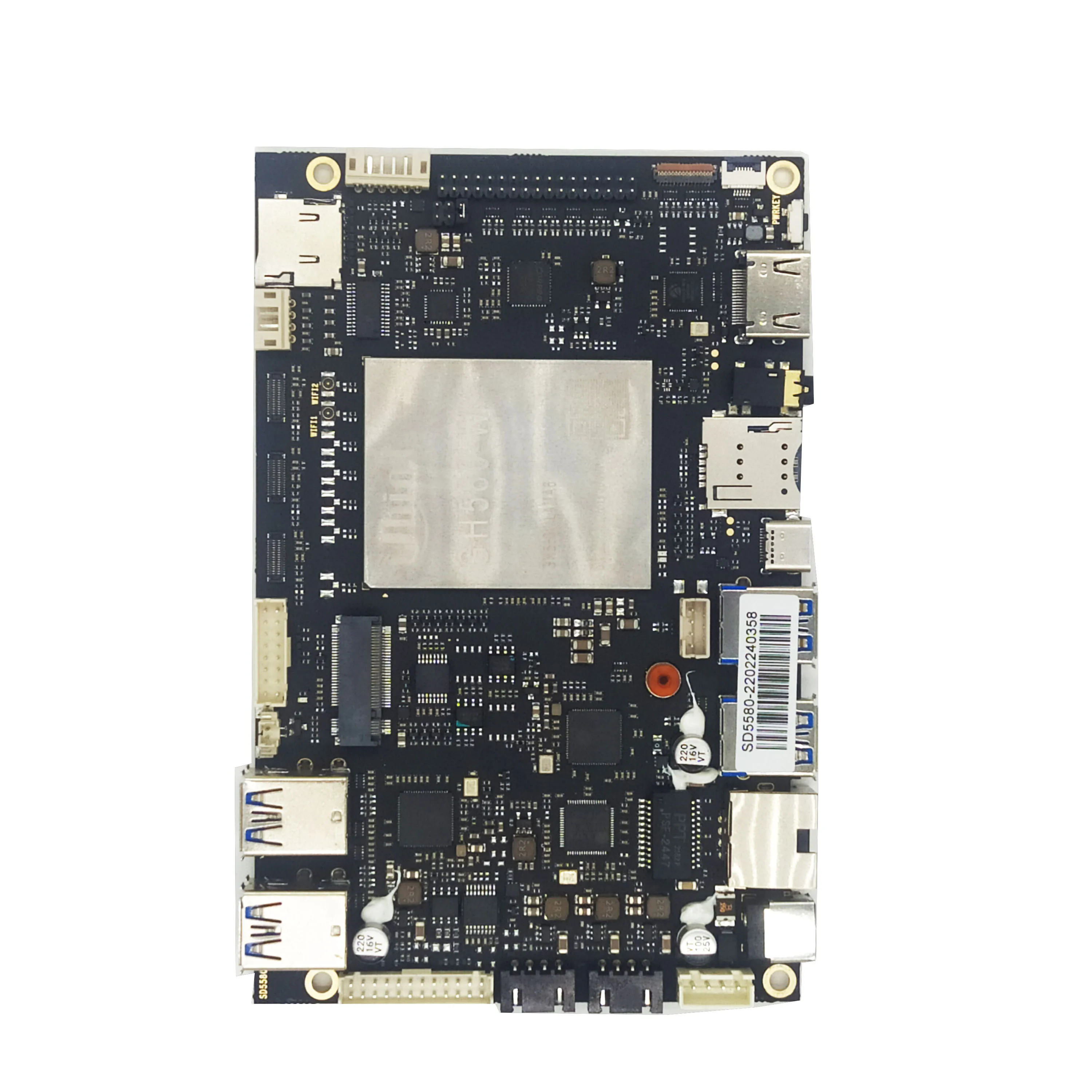

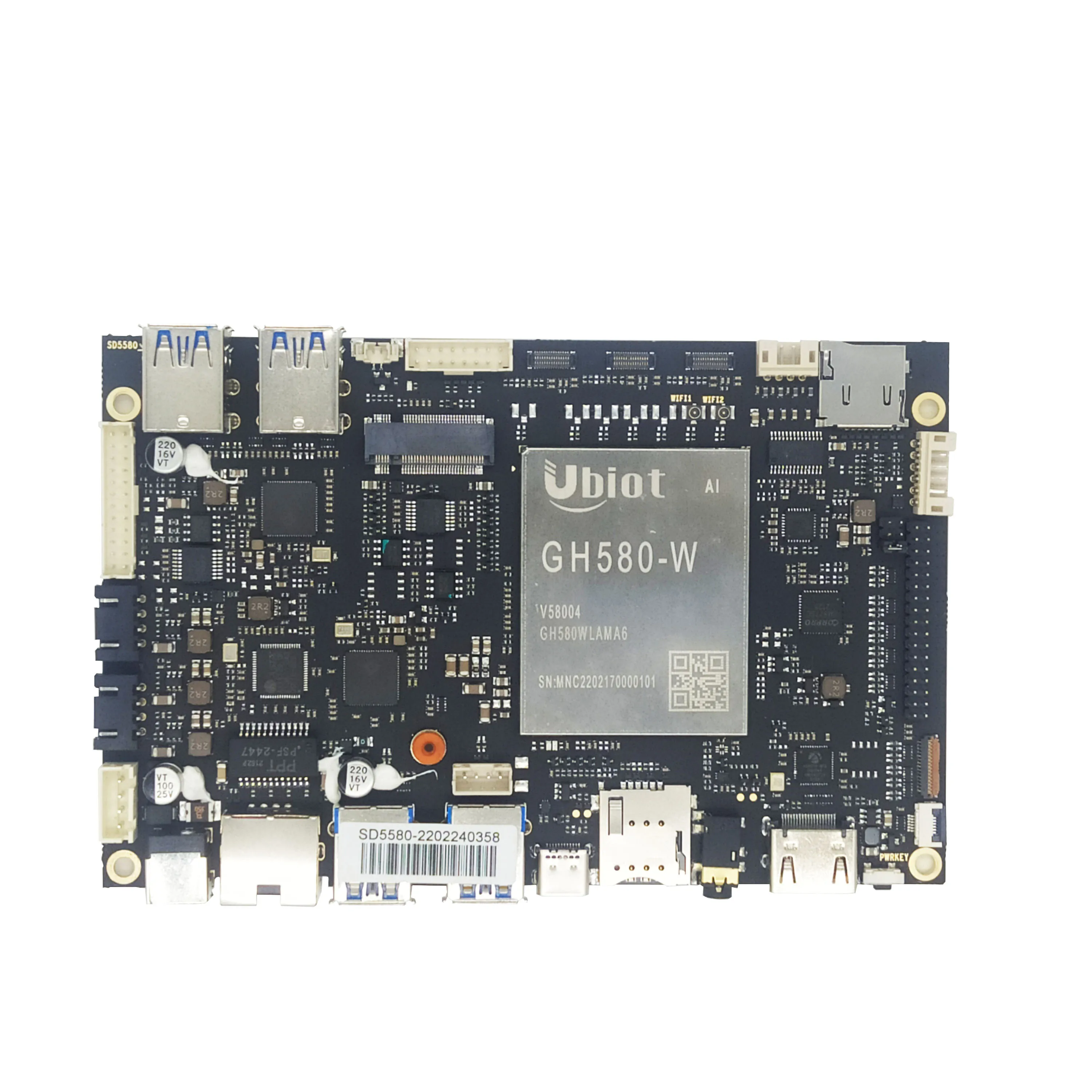

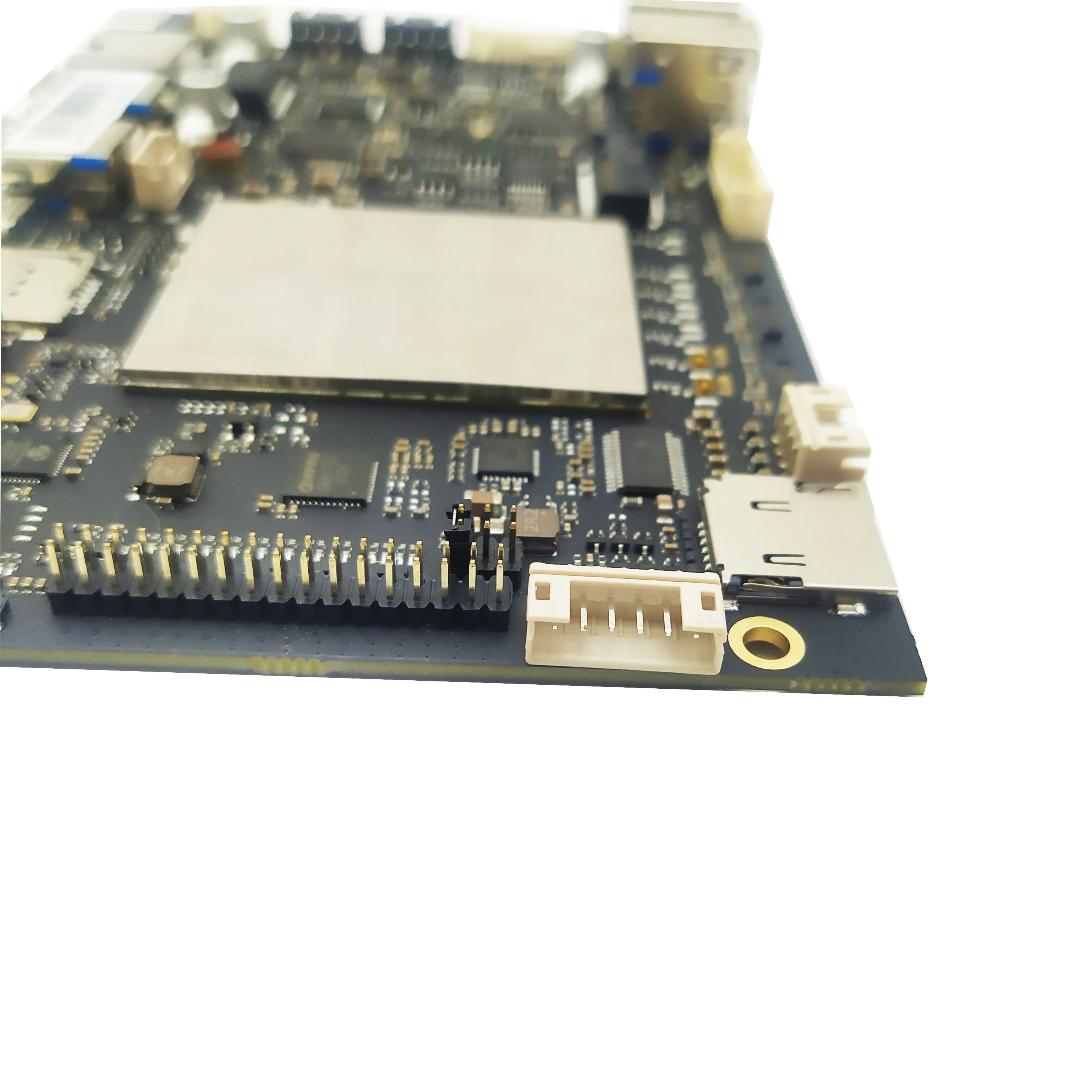

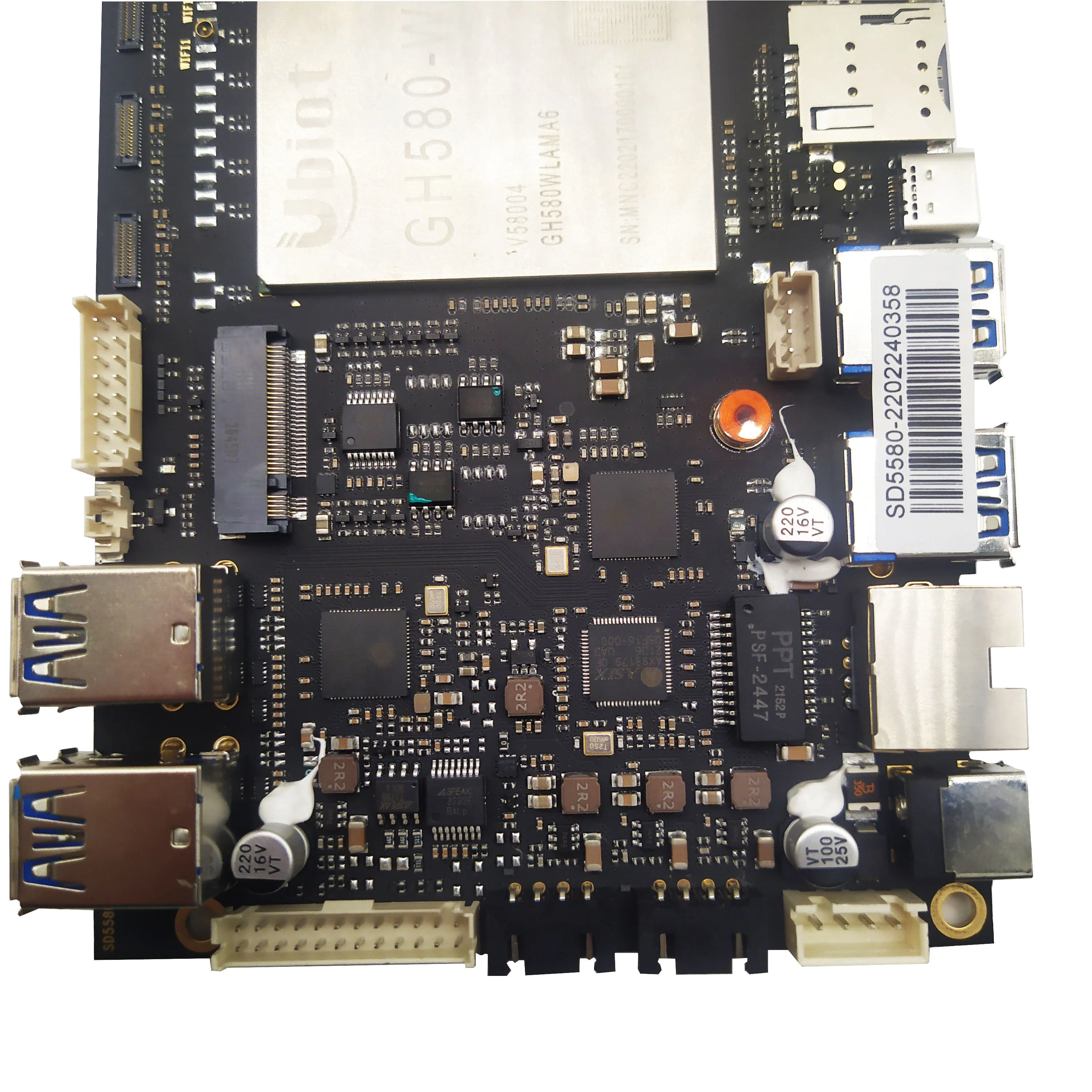

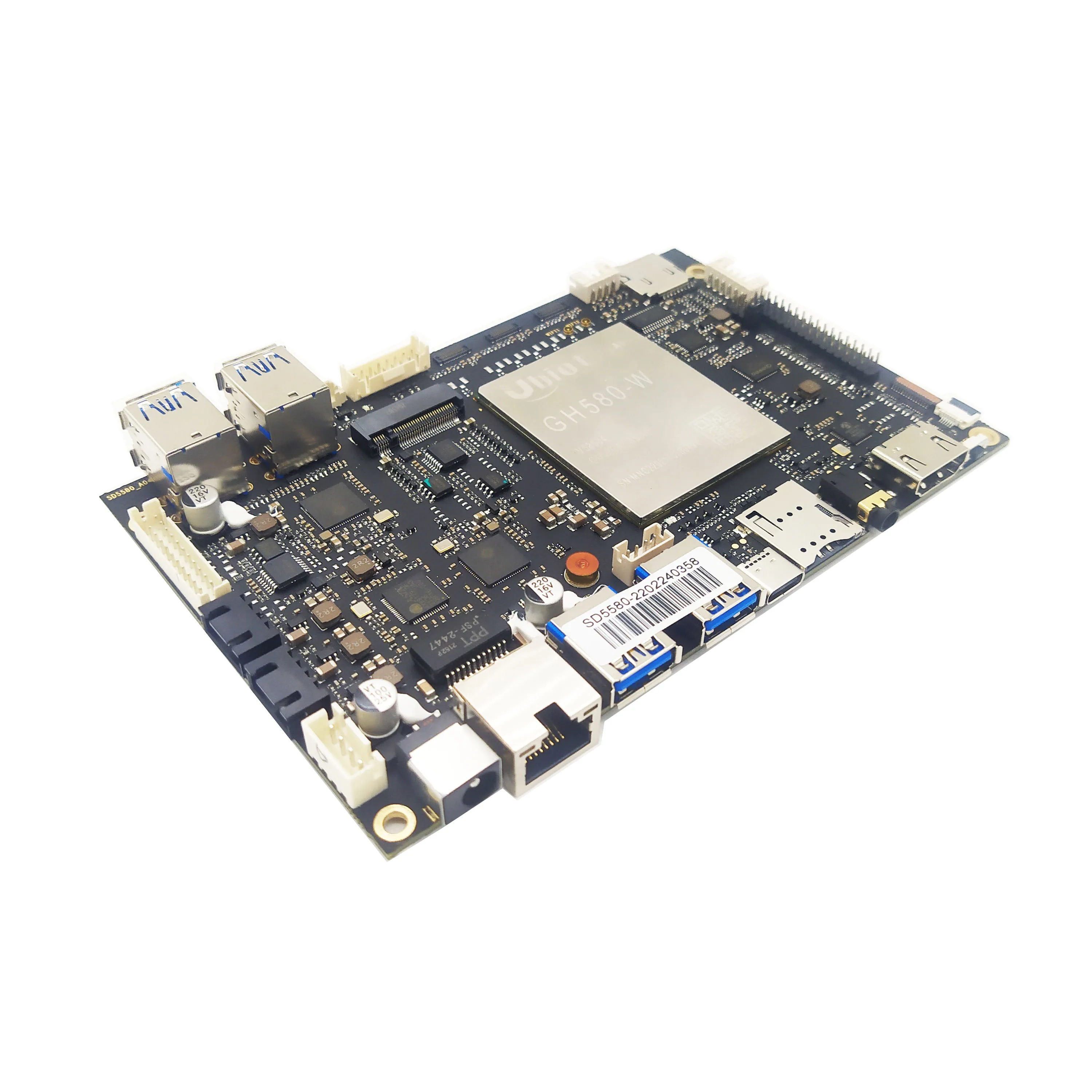

SD5580

Android&4G/5G Business display solutions

The SD5580 board adopts a self-developed hardware solution, is equipped with the android operating system, and has a wealth of android market applications. Internally integrated 4G/5G communication function, support 4G/5G full Netcom real-time communication, at the same time support USB3.0 super high-speed communication, Fast Ethernet wired communication, LVDS HDMI and 4K dual-screen different display and dual-screen simultaneous display function, can be connected externally RS232 RS485/RS422 and other standard protocol peripherals. It greatly simplifies the system design of the whole machine, provides users with a simple and smooth operating experience and can meet the individual needs of customers.

Advantages

SD5580 industrial-grade hardware design, equipped with Android system, has rich interfaces and excellent 4G/5G wireless transmission performance. It can be easily integrated in the vending machine system and extended to connect to a variety of peripherals.

1. Powerful processing capabilities: Qualcomm's 4-core A73 + 4-core A53 architecture processor SDM865, clocked at 2.2GHz, brings powerful computing and processing capabilities.

2. Flexible display configuration: The board has 2 LVDS and 1 HDMI display interfaces, supporting 1080p/LVDS+720p/LVDS, 1080p/LVDS+1080p/HDMI and other resolutions.

3. Abundant peripheral interfaces: The board has USB, RS232/485/422, RJ45, earphone, HDMI, LVDS and other interfaces, which can support the types of external devices of equipment manufacturers to the greatest extent.

4. High functional integration: the board integrates 4G/5G/LTE/WIFI wireless communication and Ethernet wired communication; supports USB master-slave communication; supports RS232/RS485/RS422 protocol standards and interface equipment; SD card can be inserted for external expansion storage Capacity; supports 1080p and 720p dual-screen simultaneous display and dual-screen different display functions.

5. Simple management and use: The board runs Android operating system, enjoys open Android development resources and rich Android application software, which is convenient for users to control files and software, and the human-computer interaction is very simple.


Hardware specifications


Hardware Specifications
CPU
Qualcomm SDM865
4-core A73 2.2GHz/1.95GHz, 4-core A53 1.8GHz
RAM
On-board LPDDR4 8GB
Built-in Memory
128GB eMMC
Operating System
Android 10
Network Support
4G/5G/LTE
GNSS
GPS/BeiDou/GLONASS/Galileo
WIFI,BT
Default 2.4G 802.11 b/g/n/ac; 4.2 BLE and earlier
Video Codec
HEVC/H.264/VP8/VP9/MP4
Image Format
BMP/JPEG/PNG/GIF
Power Input
12V DC
RJ45
1 channel 10M/100M adaptive Ethernet
USB2.0
Default allocation:
6 USB 3.0 HOST interface
USB3.0
TBD
RS485/RS422
1 RS422/RS485 adaptive interface (default is 232 interface, RS422/RS485 interface can be selected through BOM)
RS232
4 RS232 interfaces (one of which can be configured as RS485/422 interface by BOM)
HDMI
1 HDMI, 1080p output by default
LVDS
1 dual-channel LVDS, the default output resolution is 1080p
1 single channel LVDS, maximum output resolution 1366*768
4K
TBD (Extensible Support)
I2C
2 I2C, configurable as touch screen interface
IO
Default 6 3.3V IO ports (internal 3.3V pull-up)
Screen backlight
2-channel brightness adjustable backlight interface
Headset
1 way 3.5mm headphone jack
Speaker
1 dual channel 8R/5W speaker driver interface
SIM Card
1.8V/3/3V, Push-Push Micro-SIM card socket
MicroSD Card
Push-Push Micro-SD card holder
Webcam
1 channel 1600M MIPI rear camera interface
Button
Switch button
Volume plus button
Volume down/reset button
Antenna
Main antenna IPEX interface
WIFI/BT IPEX interface
GNSS IPEX interface
Indicator Light
Red power indicator
Blue network status indicator
RTC Real Time Clock
stand by
System Upgrade
Local USB upgrade


Products Description
