В наличии на складе SMD T962C небольшой настольный конвейер с обратным течением волновая паяльная печь для PCB Сварки SMT сборочный оплавления
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1600570911187:
Описание и отзывы
Характеристики
Introduction

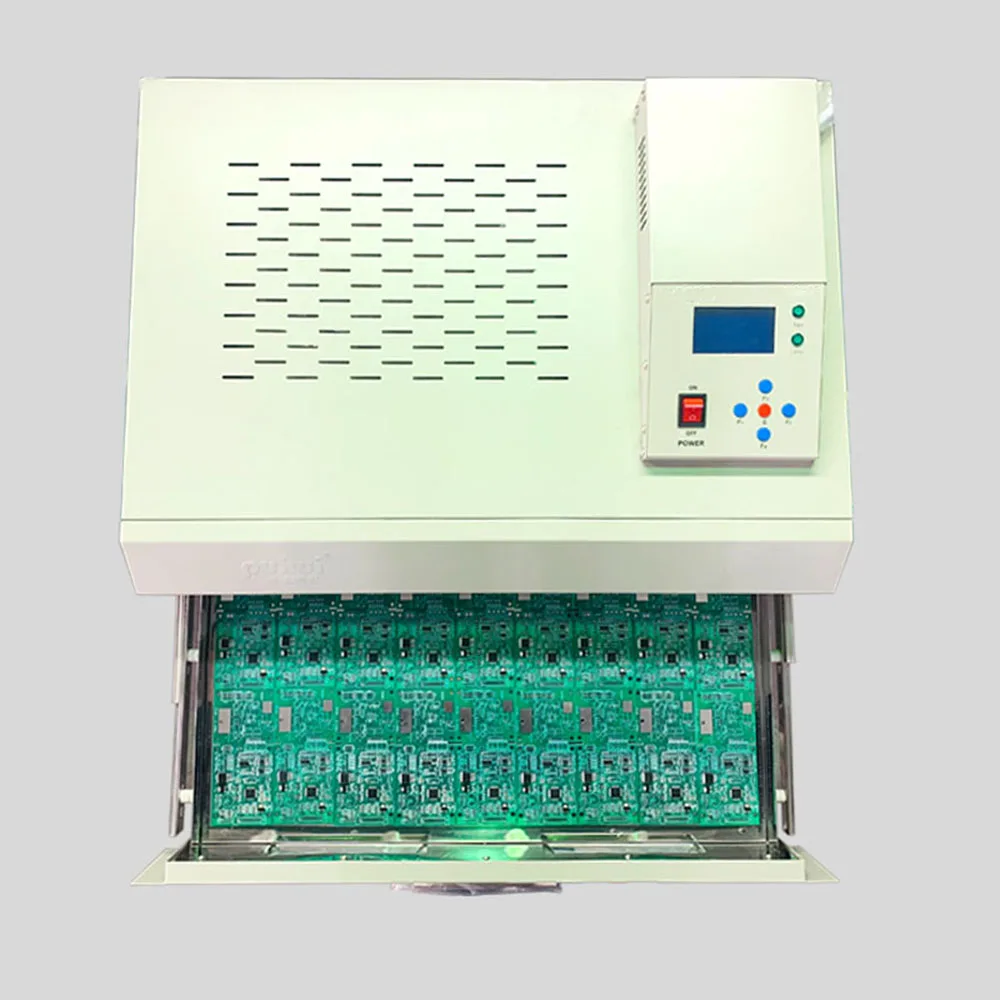

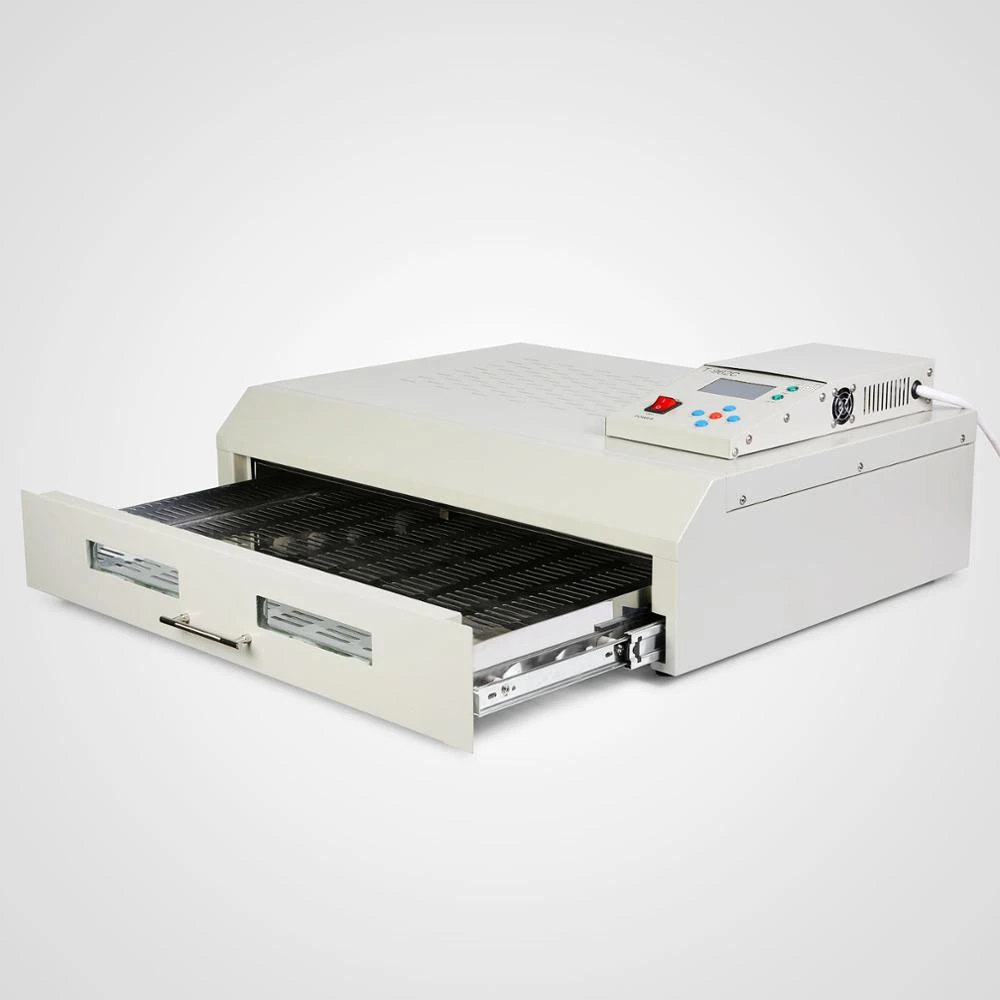

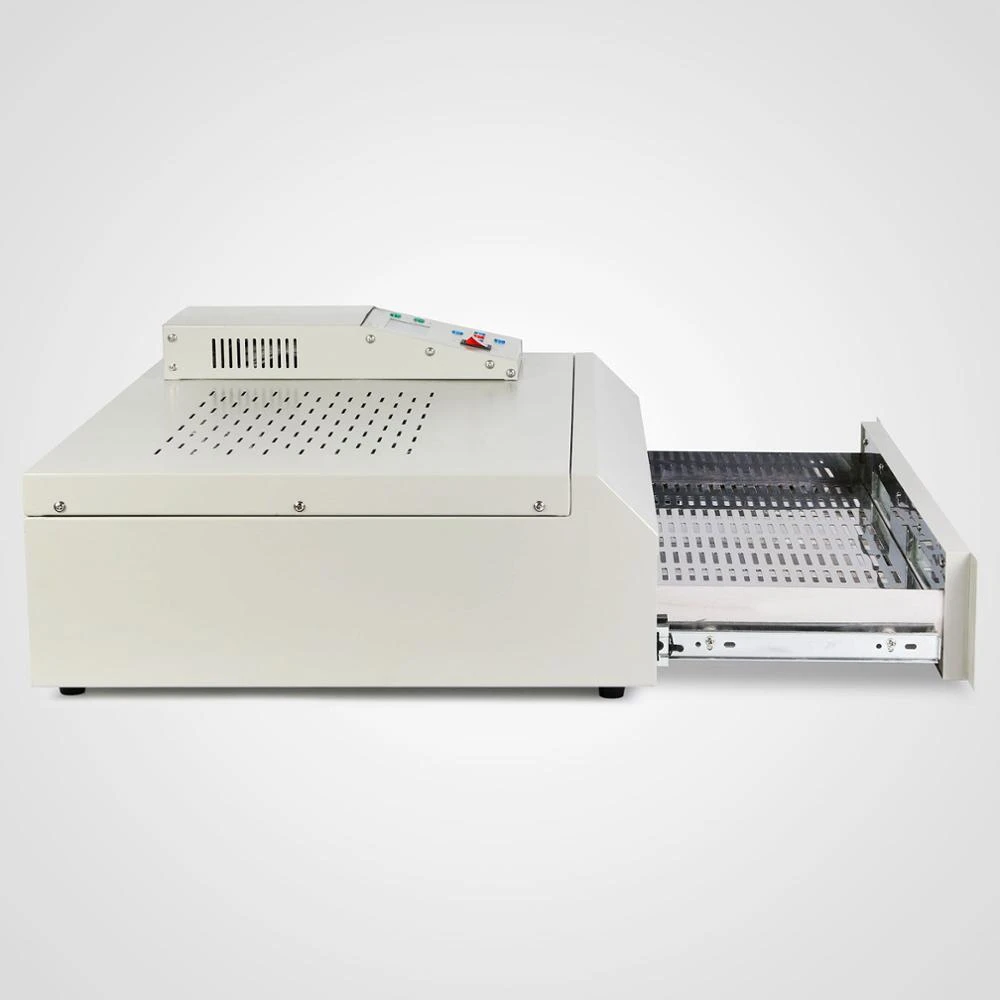

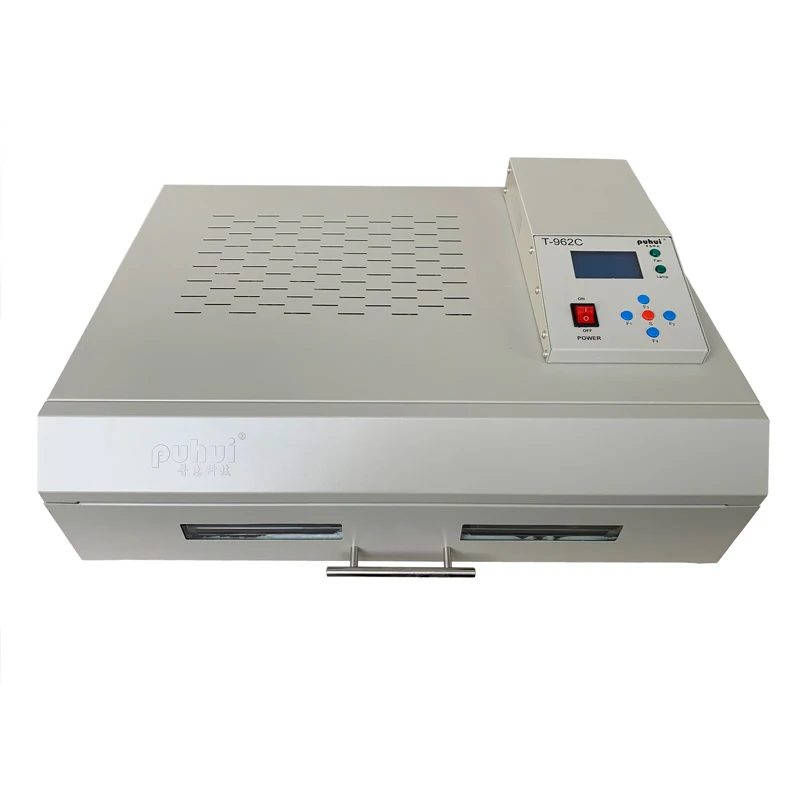

The INFRARED IC HEATER T962C is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine use a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed. A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly. The T962C may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
Features
(1)Large infrared soldering area: 400*600mm
(2)Eight soldering temperature waves
Parameters of eight soldering waves are predefined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.
(3)Special heat up and temperature equalization with all designs
Uses up to 2900 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4)Ergonomic design, practical and easily operated
(5)Large number of available functions
The T962C can solder single and double sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc.
(2)Eight soldering temperature waves
Parameters of eight soldering waves are predefined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.
(3)Special heat up and temperature equalization with all designs
Uses up to 2900 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4)Ergonomic design, practical and easily operated
(5)Large number of available functions
The T962C can solder single and double sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc.
Part List
· 1 x T-962C Reflow Oven
· 1 x Power Line
· 1 x Power Line
Paramenters
Specification | ||
Model | T-962C | |
Heating Zone | One Zone(for desktop type) | |
Soldering Max Area | 400 x 600 mm | |
Voltage | AC220V/110V,50-60Hz | |
Mode of Heating | Infrared Tubes | |
Mode of Controlling | 8 Intelligent Temperature Curves Heating | |
Rated Power | 2500W | |
Process Cycle Time | 1-8 Minutes | |
Temperature Range | 0-280℃ | |
Temperature Control Accuracy | ± 1℃ | |
Temperature Distribution Deviation | ± 2℃ | |
Dimensions | 76x60x35cm | |
Net Weight | 28KGS | |
Gross Weight | 30KGS | |
Infrared Heater
Automatic micro-computer control Infrared Heater. Adoption fast infrared radiation and circulation the wind for heat. So the temperature is very accurate and even.The non-contact output of imported high-current solid-state relays can effectively avoid damage to IC or circuit boards, making the entire welding process more scientific and safe
Eight Temperature Waves
This Reflow oven can provide eight kinds of stored temperature parameter waves as options to meet the requirements of various welding processes, and it has mobile heating and cooling functions. Besides, the entire welding process is auto-completed after you preset the wave. So you can say it is easy to use.
Wide Application
The T-962C reflow soldering machine is able to solder small parts of most PCB boards, for example, CHIP, SOP, PLCC, QFP, BGA, etc.It is the ideal rework solution from single runs to on-demand small batch production.
Packing details
Certifications
Wenzhou Yingxing Technology Co.,Ltd Specialises in SMT Production Line (PNP Machine）more than 9 years
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:Yes
