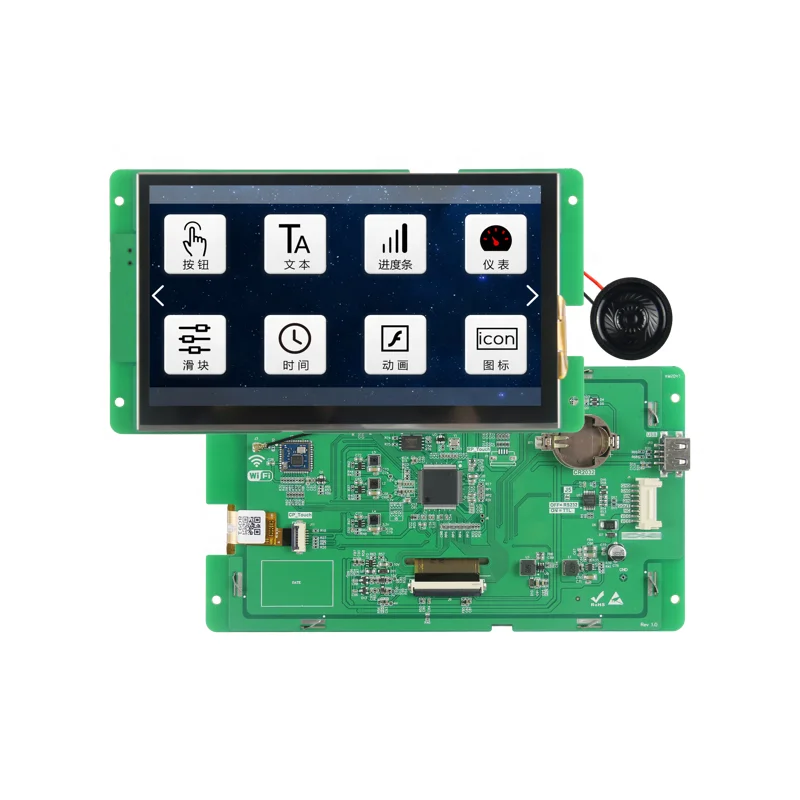

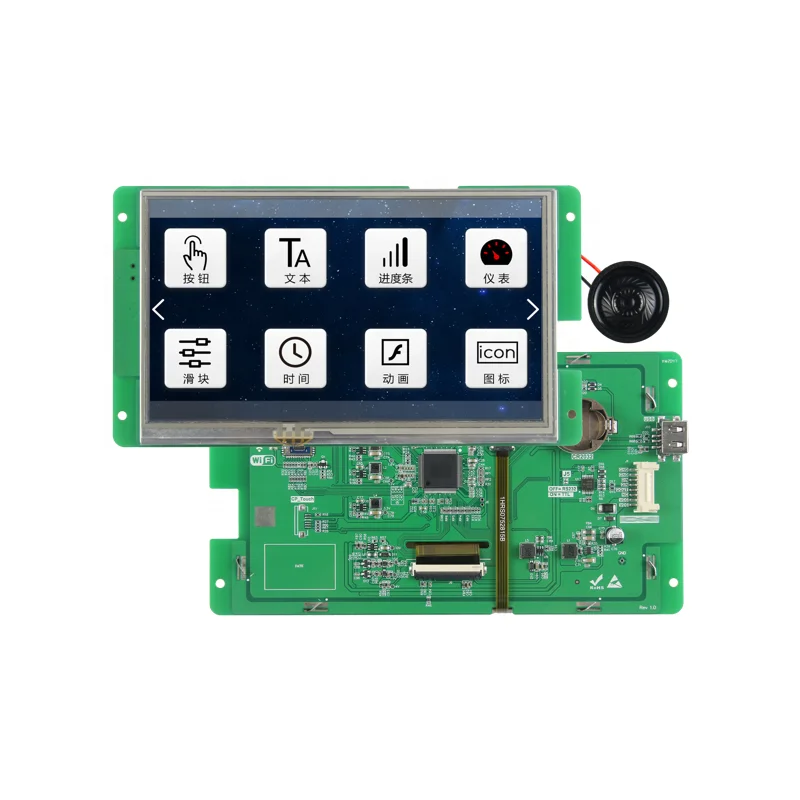

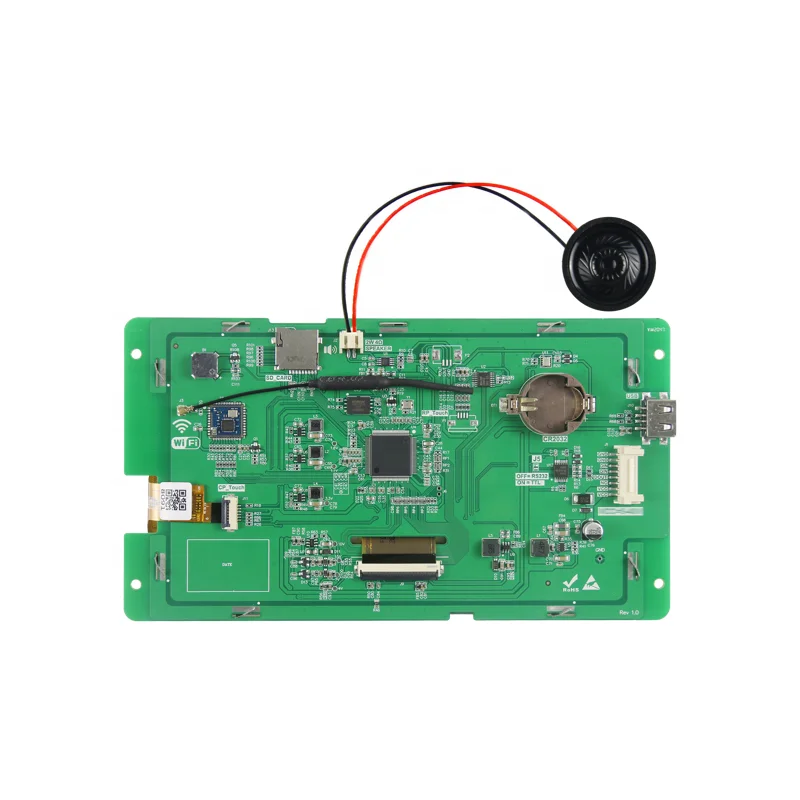

DACAI высокая яркость 500 нит ЖК сенсорный экран 7 дюймов дисплей Панель UART ЖК монитор RGB ЖК экран

Product Specification

Product Model

DC10600EW070_1V01_T_CE4 (RS485, Resistive touch)

DC10600EW070_1V01_C_CE4 (RS485, Capacitive touch)

DC80480EW070_1V01_N_CE4 (RS485, Non-touch)

Product Series

IOT Series

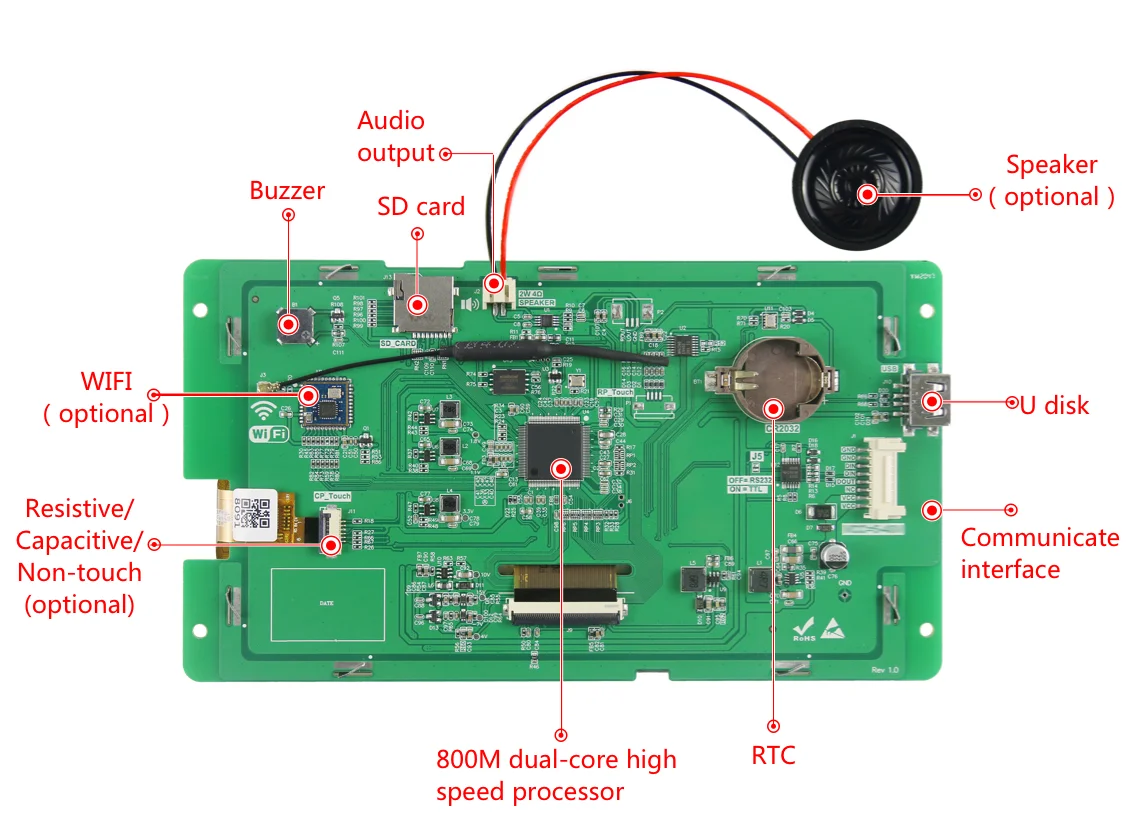

Processor

800MHz 32-bit dual-core processor

Operation  System

Embedded real-time operating system(FreeRTOS)

Protocol Type

Default Dacai configuration insruction sets,The host computer can be configured to run MODBUS RTU,XGUS protocol

Size

7.0inch

Resolution

1024*600

Installation Display

Support 0°/90°/180°/270°rotate display

Memory Space

1Gbit

Font Library

Built-in vector font, edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE libraries. Any computer font displayis customizable

Image Storage

Support JPEG,PNG (semi-transparent/full transparent)compression,support for any size image storage.Accumulate to store about 807 full-screen images(calculated by size 132KB/sheet,BMP format is not recommended).The image compression ratio is different,this value will float up and down.

Color

65K colour,16-bit RGB

Voltage

9-40V(error±0.2V)

Power Consumption

Standby:0.4W;Darkest backlight non-speaker:0.9W; Darkest backlight with speaker:4.4W;Brightest backlight non-speaker:2.6W;Brightest backlight with speaker: 6.2W

Communicate Interface

RS485

Communicate Baudrate

RS485:1200~115200bps,typical Braudrate9600 bps

Interface Specification

2EDG3.81-6P

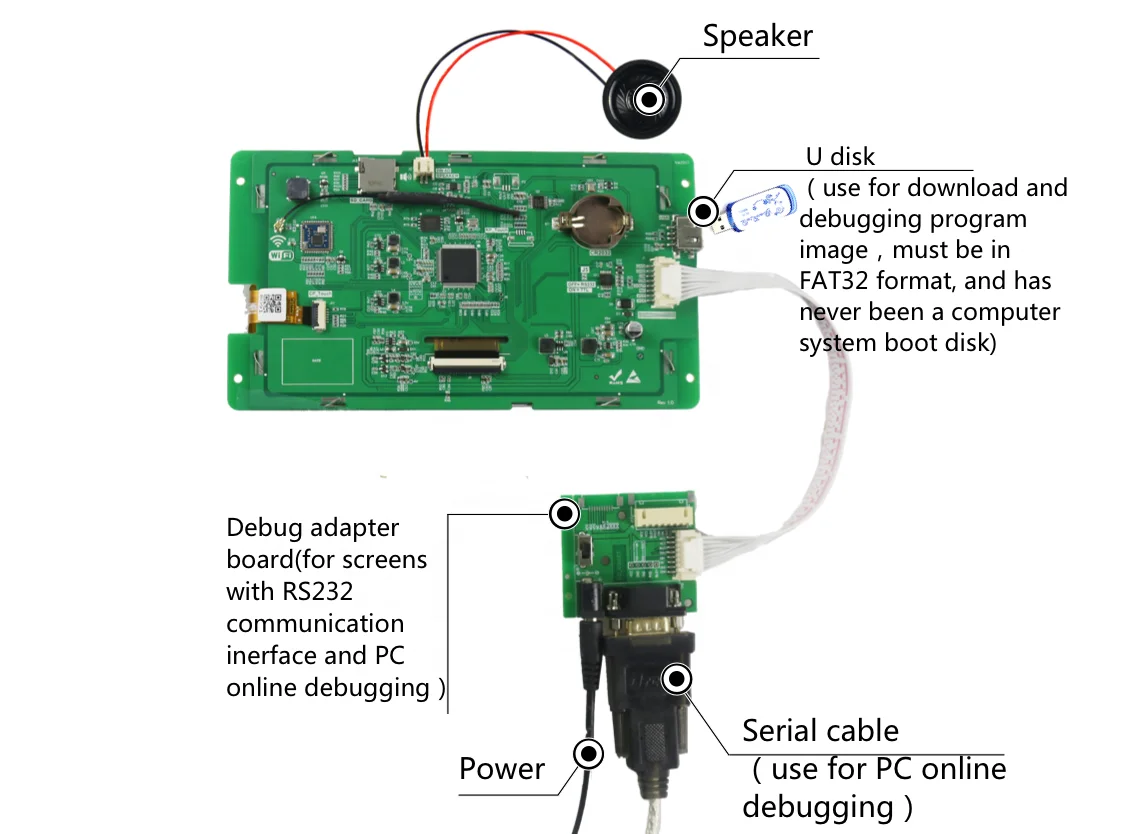

Image Download

U disk/UART/WiFi(U disk must be in FAT32 format, and has never been a computer system boot disk)

Real-time RTC

support countdown,timer,year,month,day,etc.displaying

Active Area of Displaying(AA)

L×W = 155.5mm×87.2mm

Product Dimension(L*W*H)

L×W×H = 188.9mm×105.1mm×23.9mm

Host computer software

VisualTFT®

AV Input

Not Support

Audio Playing

MP3 audio format (horn 4Ω2W, mono), sharing storage space with pictures. If the sampling rate of the WAV format is 128 kbps, it takes up 0.95 MB/min of storage space.

Specification of Audio Connector

PH2.0-2P

Video Playing

MP4 video format.If a video file with a resolution of 800*600, a video bit rate of 3000Kbps, an audio code rate of 166Kbps, and a frame rate of 25Hz,it occupies 21.9MB/min

Ethernet interface

Support Ethernet protocol

CAN interface

Support CAN bus protocol

Three Anti-paint Process

None

Core Competitiveness

Learning Circle

Familiarize development environment within 30 minutes, complete human-computer interaction design within 3 days.

Program Debugging

The host computer integrates ‘Virtual serial port screen’without hardware connection required.It is directly bound with Keil IDE for debugging.

Start-up Time

Can display once power-on

Configuration Control

With a variety of configuration controls such as buttons, text, drop-down menus, progress bars,sliders,meters,animations,QR codes,curves,data records,circular progress bars,audio and video,etc.

System Keyboard

Built-in virtual digital and figure keyboard,Chinese and English input method,user-defined keyboard.

Data Record

Support data record controls export to U disk.

Replace Boot LOGO

Support use U disk forreplacement

Remote Update

Support screen engineering pictures, firmware,user MCU firmware remote upgrade (requires WIFI model)

Information Pushing

Support cloud push video or advertisement display, mobile APP and screen communication display (requires WIFI model)

Multiple Languages

More than 10 languages can be preset upon delivery.Languages can be switched with one key without multiple UI designs required.

Logical Operation processing

The Lua script compiler is embedded in the host computer,and the user can customize various complex logic relationships in the screen to meet the 99.9% product function requirements of the customer.

Reliability

All products have passed the test of high and low temperature,ESD, group pulse and radiation in the industrial standards.

Life Cycle

Traditional brand processors are adopted without supply shortage for years.

 LCD Display

Display Type

TFT LCD

Backlight Tube

LED

Brightness(cd/m²)

220

Backlight Life(H)

>20,000

Contrast Ratio

200:1

Viewing(L/R/T/B)

55/55/30/55
