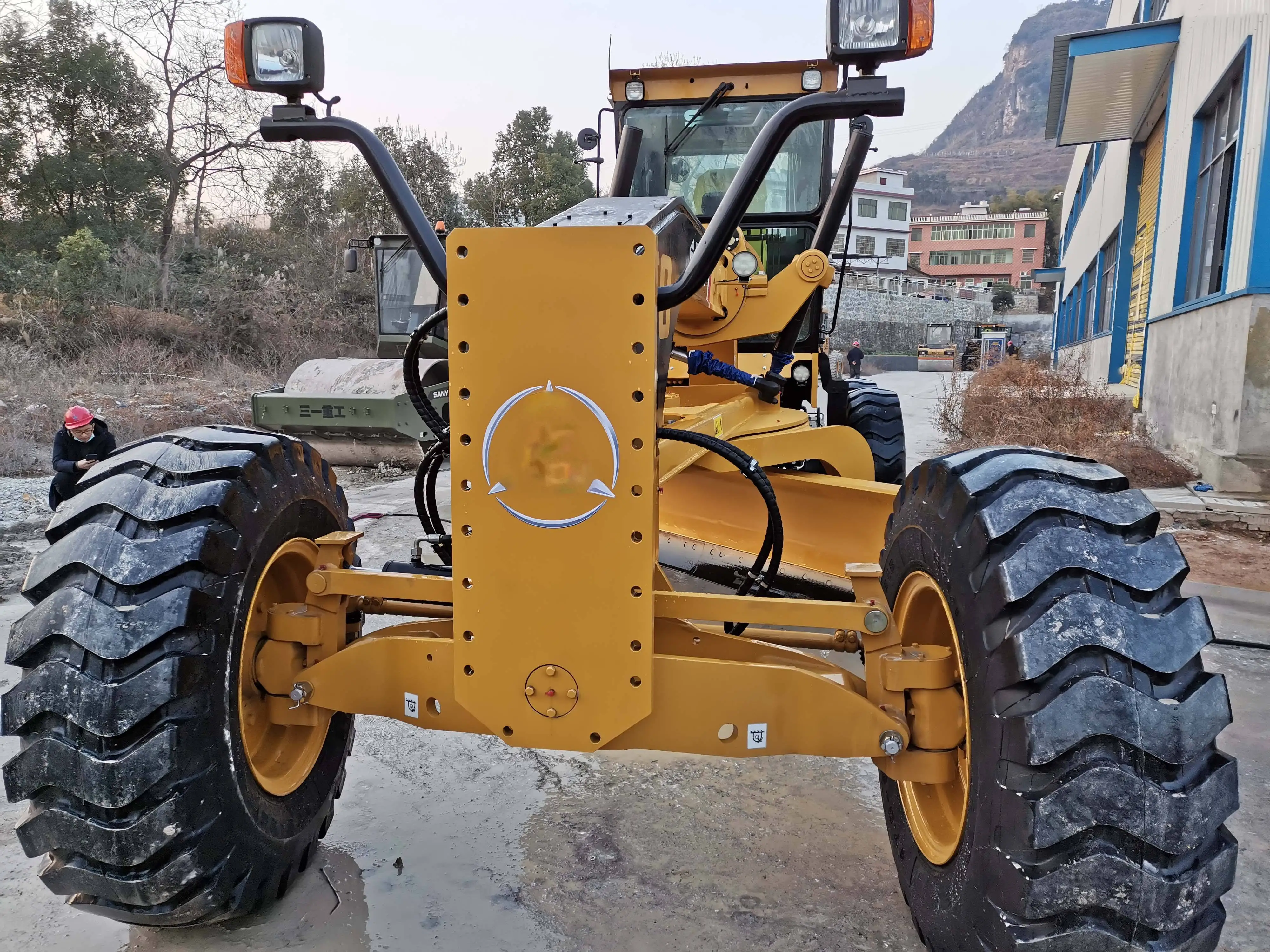

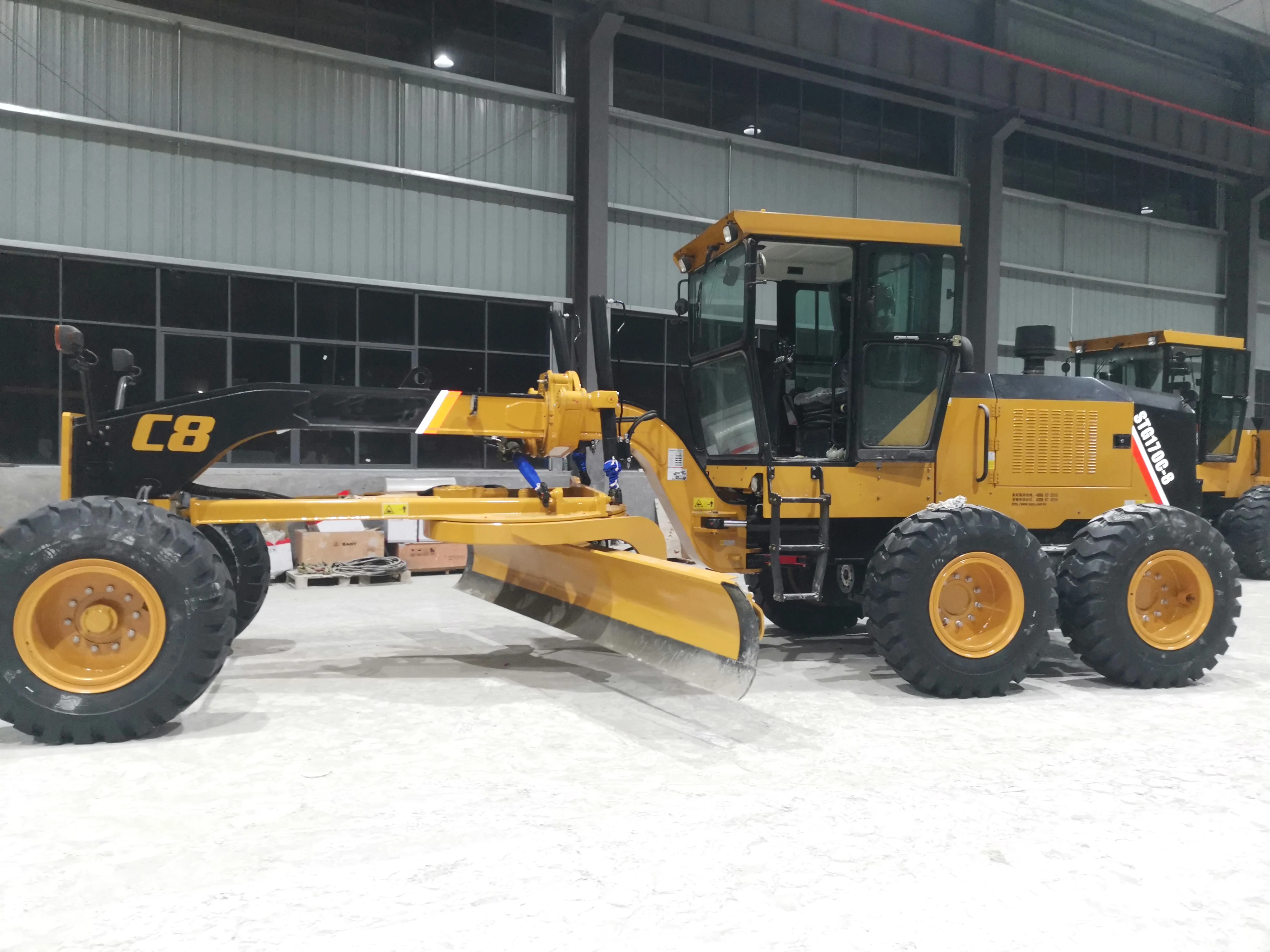

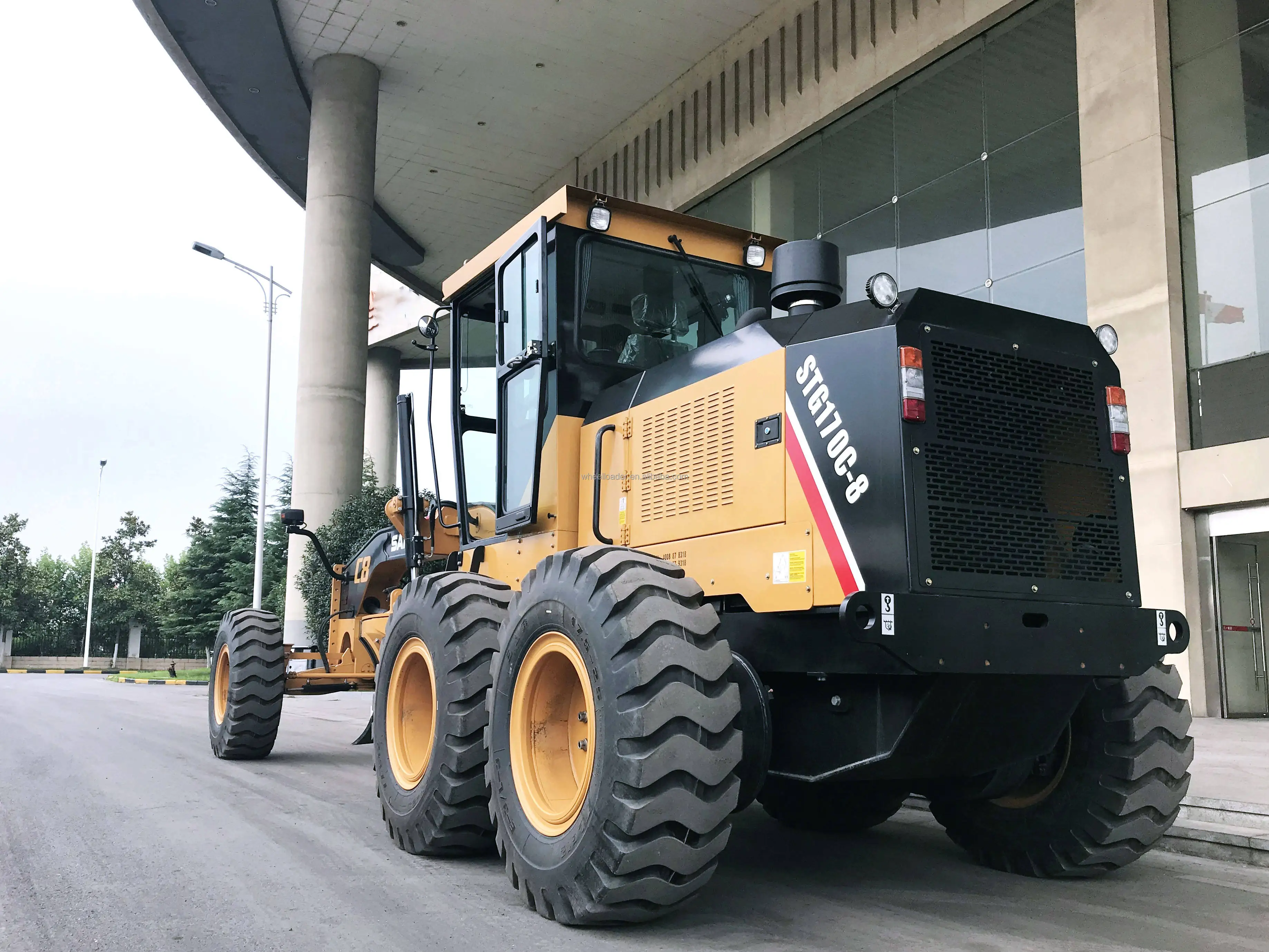

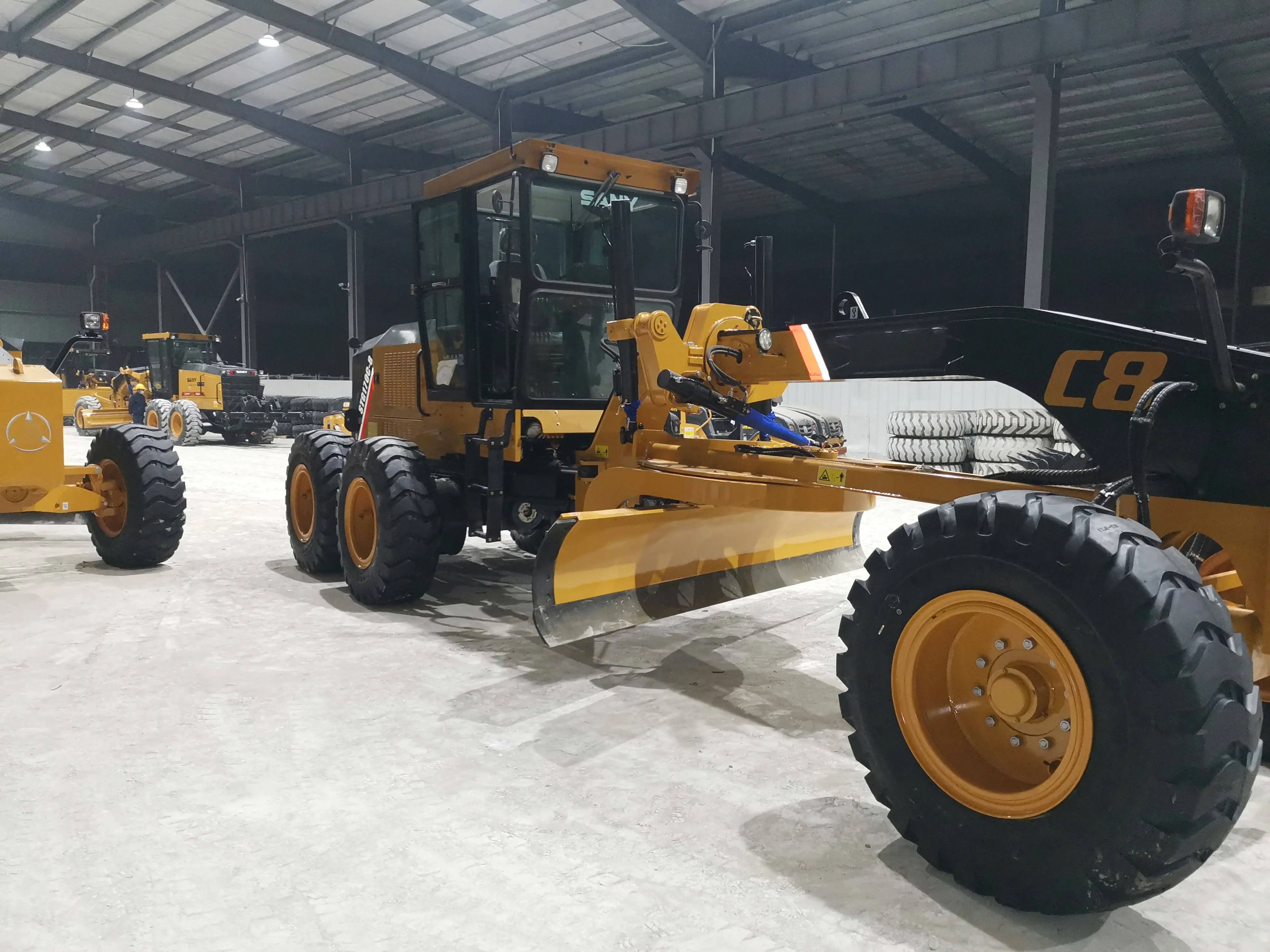

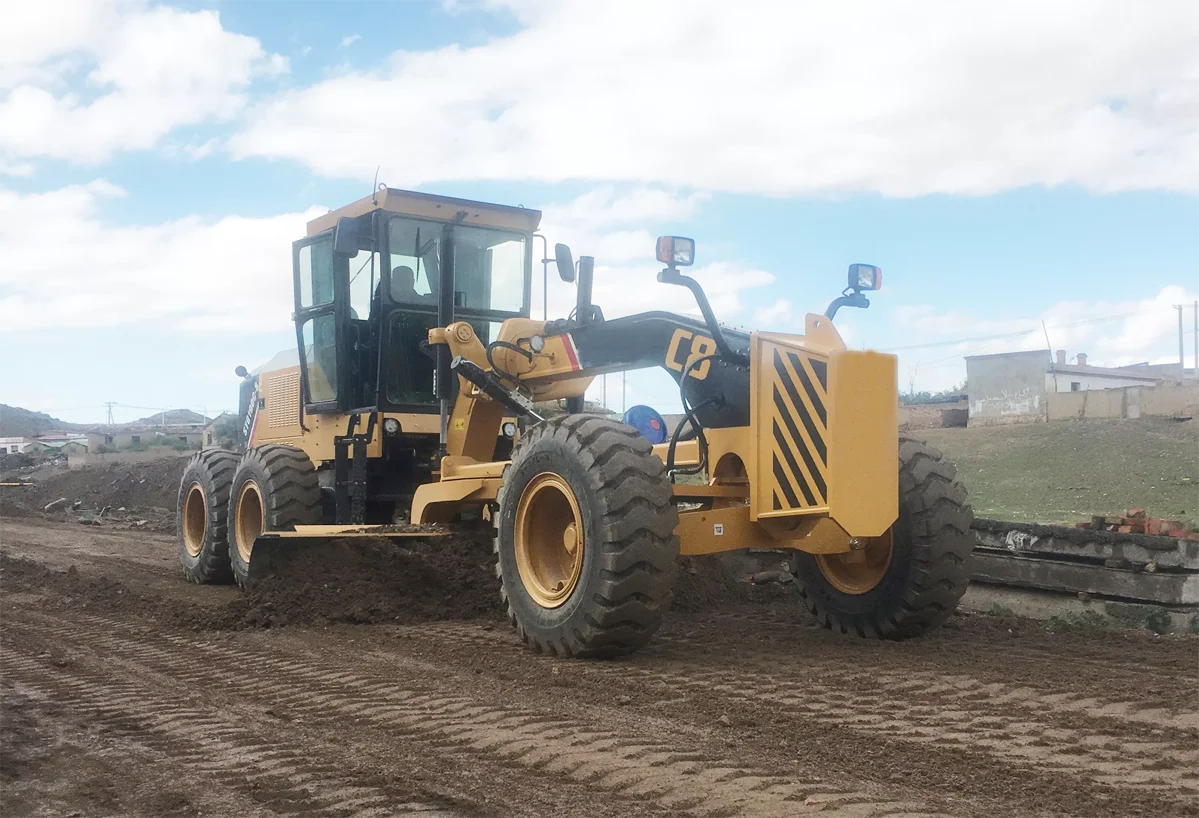

Абсолютно Новый 170HP 190hp автогрейдер STG170C 8 Stg190C 8 с передним лезвия и задний
- Категория: Road Machinery >>>
- Поставщик: Maxizm Construction Machinery (Qingdao) Co. Ltd.
Сохранить в закладки 1600570950728:
Описание и отзывы
Характеристики
MAXIZM Construction Machinery is a one-stop machinery supplier, leading in China. Including engineering, mining, warehousing, logistics, and various parts. Cooperate directly with the brand, and the official warranty for all machines is one year. We have shipped machines to over 148 countries in the past 13 years. Any machine, please feel free to consult.
Product Overview

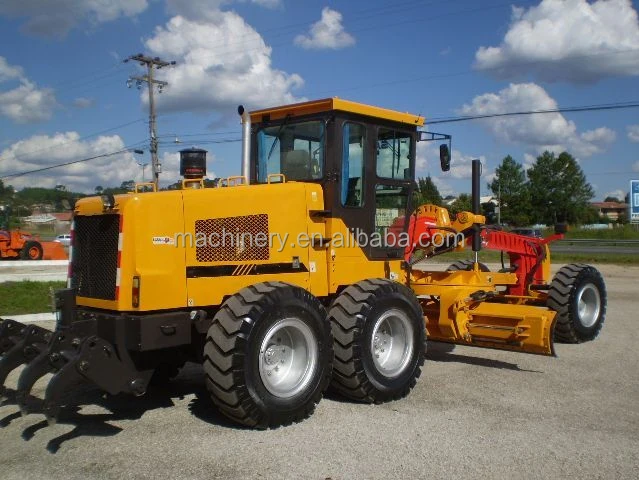

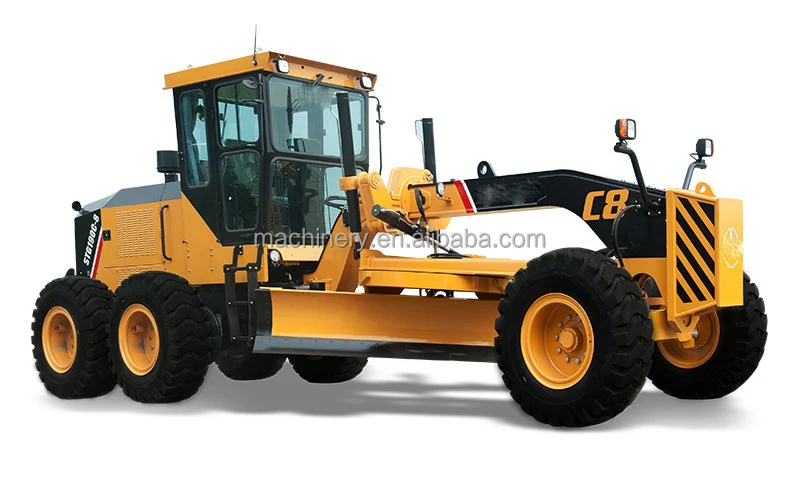

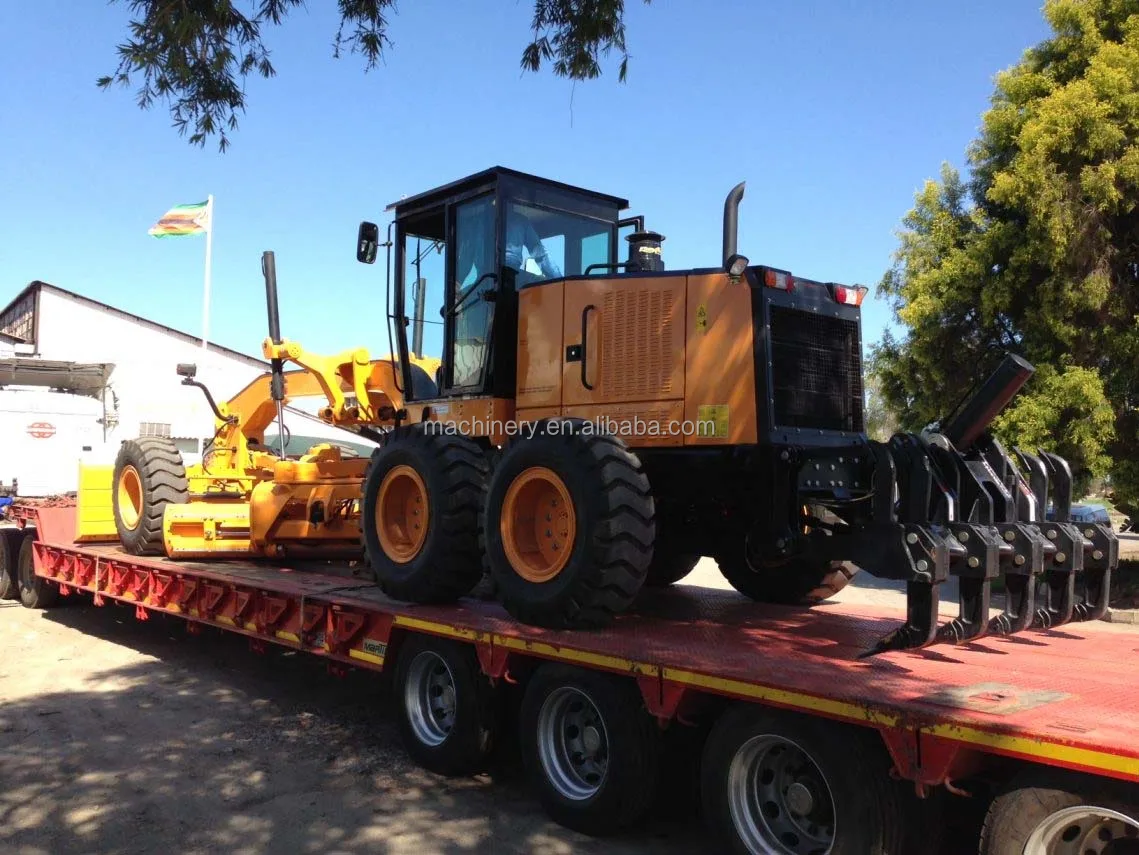

147KW Motor Grader STG190C-8 with front bulldozer + rear three-tooth ripper
Powerful Engine With High Efficiency
01. High-power and heavy-load engine is strong and powerful.
02. VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements Of Rotary Bearing Structure
01. Work implements adopt fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low cost, and service life longer than 10000h.
02. Rear axle adopts rotary bearing structure instead of conventional copper sleeve structure, which provides easy maintenance, high operation accuracy and service life longer than 10000h.
03. 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Easy and Convenient Maintenance
01. High-end SYCD liquid crystal display has operation instructions in multiple languages.
02. Engine hood with wide opening provides large maintenance space and is easy to access for daily maintenance.
03. Centralized arrangement of common electrical elements is more convenient for inspection and maintenance.
04. Automatic fault diagnosis and maintenance tips, automatic monitoring of work conditions of engine and transmission.
05. Fuel tank of super-large capacity is lo ed at the rear of frame, which is convenient for fuel filling.
06. Various filter elements and wearing parts, as well as 27 high-quality maintenance tools are provided along with the machine.
Safe and Comfortable Ride & Operation Experience
01. ROPS/FOPS safe cab is equipped with high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in car).
02. It also has horizontal sliding window, sun visors, curtains, radio, double rear view mirrors, and mechanical suspension seat with head rest.
03. With LED lamps arranged at multiple positions, the operator has better vision at night.
01. High-power and heavy-load engine is strong and powerful.
02. VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
Reliable Rear Axle & Work Implements Of Rotary Bearing Structure
01. Work implements adopt fully-sealed rotary bearing structure, which provides easy maintenance, high operation accuracy, low cost, and service life longer than 10000h.
02. Rear axle adopts rotary bearing structure instead of conventional copper sleeve structure, which provides easy maintenance, high operation accuracy and service life longer than 10000h.
03. 4-front and 2-rear disc-type brake is safer than drum brake with less braking distance and maintenance cost.
Easy and Convenient Maintenance
01. High-end SYCD liquid crystal display has operation instructions in multiple languages.
02. Engine hood with wide opening provides large maintenance space and is easy to access for daily maintenance.
03. Centralized arrangement of common electrical elements is more convenient for inspection and maintenance.
04. Automatic fault diagnosis and maintenance tips, automatic monitoring of work conditions of engine and transmission.
05. Fuel tank of super-large capacity is lo ed at the rear of frame, which is convenient for fuel filling.
06. Various filter elements and wearing parts, as well as 27 high-quality maintenance tools are provided along with the machine.
Safe and Comfortable Ride & Operation Experience
01. ROPS/FOPS safe cab is equipped with high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in car).
02. It also has horizontal sliding window, sun visors, curtains, radio, double rear view mirrors, and mechanical suspension seat with head rest.
03. With LED lamps arranged at multiple positions, the operator has better vision at night.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | STG170C-8W3(IN) | STG190C-8 | STG210C-8(DFC) |
Engine Model | WP6G175E301 | WP6G200E330 | 6CTAA8.3-C215 |
Forward Speed | 5/7/12/18/26/36km/h | 6/10/13/21/27/42km/h | 6/10/13/21/27/42km/h |
Height of Blade | 620mm | 620mm | 620mm |
Length of Blade | 3660mm | 3660mm | 3660mm |
Max. Depth of Cut | 630mm | 630mm | 630mm |
Max. Lift Above Ground | 450mm | 450mm | 450mm |
Min. Turning Radius | 7.3m | 7.3m | 7.3m |
Operating Weight (Standard) | 14.5ton | 15.8ton | 16.2ton |
Overall Dimensions | 8580*2740*3310 | 9080*2740*3310 | 9080*2740*3310 |
Peak Torque | 760NM | 900NM | 980NM |
Rated Power | 129kW | 147kW | 160kW |
Reverse Speed | 5/12/26km/h | 6/13/27km/h | 6/13/27km/h |
Our Services & Strength
Our business range is very large as below:
01. Hosting equipment (truck cranes, crawler crane, towe crane, truck mounted crane, etc.)
02. Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)
03. Road equipment ( road roller, motor grader, asphalt paver, cold milling machine, etc.)
04. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)
05. Special trucks (dump truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)
06. Concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)
07. Drilling equipment (rotary drilling rig, horizontial direction drill rig, etc.)
08. Agricultural machine( tractor, harvester, etc.)
09. Spare parts all available.
Our business range is very large as below:
01. Hosting equipment (truck cranes, crawler crane, towe crane, truck mounted crane, etc.)
02. Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)
03. Road equipment ( road roller, motor grader, asphalt paver, cold milling machine, etc.)
04. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)
05. Special trucks (dump truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)
06. Concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)
07. Drilling equipment (rotary drilling rig, horizontial direction drill rig, etc.)
08. Agricultural machine( tractor, harvester, etc.)
09. Spare parts all available.
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
