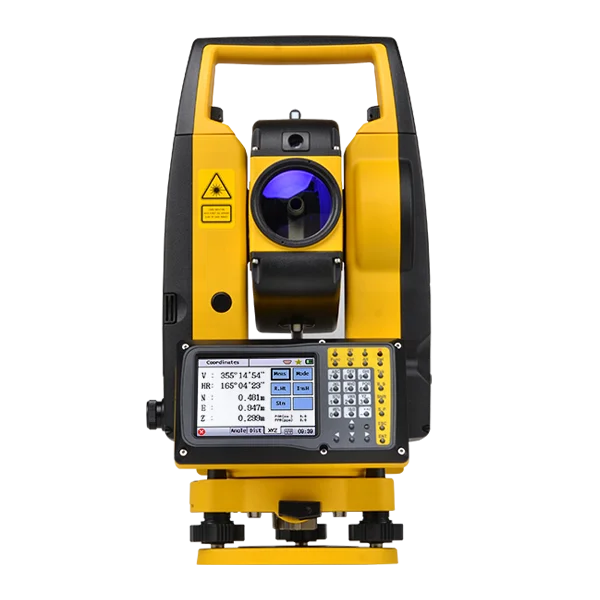

Топографическая станция точность N4 2 дюйма оптический графический дисплей общая
- Категория: >>>
- Поставщик: Guangzhou Geodex Instrument Co. Ltd
Сохранить в закладки 1600570992342:
Описание и отзывы
Характеристики
Features & Functions
Features
*Adapt new axis and four-encoder system
*One Key Fast Measurement
*Dual Side LCD Display
*Angular Accuracy: 2"
*Distance Accuracy: 1mm+1ppm
*Reflectorless: 1000m
*Reflectorless: 1000m
Big LCD Display
8 Lines Display
Abundant Function Keys
Easy-to-Operate
User Friendly Operation System
Graphic Display,
Abundant Survey Program,
Easy-to-operate
Trigger Key
Trigger Key & One Button Quick Measurement
Multiple Data Transfer Ways
SD Card Slot, USB port, 232 Series Port, Bluetooth (Optional)
Main Survey Program onboard
Multiple on board Survey Programs competent to finish the surveying job easily
Tunnel System
With the characteristics of simple operation, graphical display, rapid and accurate calculation, it can easily realize the section data acquisition, analysis, construction stake-out, random detection in real-time. This software is convenient for operator tofinish the tunnel project, also meet all the requirement of saving money and time.
With the characteristics of simple operation, graphical display, rapid and accurate calculation, it can easily realize the section data acquisition, analysis, construction stake-out, random detection in real-time. This software is convenient for operator tofinish the tunnel project, also meet all the requirement of saving money and time.
· Real-time graphic display for data collection.
· Reliable analysis of section measurement result, fast calculation for tunnel overbreak and underbreak.
· Auto-match and calculation among designed flat curve, designed vertical curve, theoretical section and actual measuring data.
· 3D coordinate of blast hole profile, can stake-out directly in tunnel.
Standard Packing Componments
Main Unit | 1x |
Rechargeable Battery | 2x |
Charger | 1x |
Lens Cap | 1x |
Tool Kit | 1x |
Rain Cover | 1x |
Dryer | 1x |
USB Cable | 1x |
SD Card | 1x |
Reflector Sheet | 1x |
Shoulder Belt | 2x |
User Manual | 1x |
Technical Specifications
Telescope | ||||
Magnification/Resolving power | 30× / 3.5" | |||
Others | Objective aperture: 45mm (1.8in.) | |||
Image: Erect, Field of view: 1°30', Minimum focus: 1m | ||||
Angle Measurement | ||||
Measuring method | Absolute encode | |||
Minimum reading | 0.1''/1" Optional | |||
Detection method | Horizontal: Dual Vertical: Dual | |||
Angular Accuracy | 2" | |||
Distance Measurement | ||||
Measuring Range | 5km (3 prism); 1000m (reflectorless) | |||
Distance Accuracy | Reflectorless: ± (2mm + 2ppm·D) | |||
Reflective Sheet: ± (3mm + 2ppm·D) | ||||
Measuring time | Fine mode: <0.9S; Tracking mode: <0.4s | |||
Display | Max: 99999999.9999m Min: 1mm | |||
Uint | m/ft | |||
Atmospheric correction | Auto correction, manual input | |||
Atmosphericrefraction | Auto correction, manual input | |||
Prism constant correction | manual input | |||
Vial | ||||
Plate vial | 30"/2mm | |||
Circular vial | 10'/2mm | |||
Auto Vertical Compensator | ||||
Type | Dual axis liquid-electric | |||
Compensation range | ± 4' | |||
Accuracy | 1" | |||
Laser Plumment | ||||
Accuracy | ± 1.5mm in 1.5m | |||
Laser class | Class II | |||
Laser wavelength | 635nm | |||
Interface and Data management | ||||
Display/Keyboard/control paner location | 3.5-inch Touch LCD Graphic Display, 320*240dpi backlight/Alphanumeric keyboard with backlight/On both face | |||
Control paner location | on both face | |||
Data storage-Internal memory | 833000 points | |||
Data storage-plug-in memory | SD card, USB flash disk (max.16G) | |||
Data Communication | RS-232C, SD Card, USB, MINI USB, Bluetooth | |||
Power supply | ||||
Type | Li-ion, Rechargeable | |||
Voltage | DC 7.4V | |||
Continuous operation time | 8hrs | |||
General | ||||
Dust and water protection | IP65 | |||
Operating temperature | -20ºC to 50ºC | |||
Size and handle | 206 × 200 × 353mm | |||
Weight with battery & tribrach | 6kg | |||
Optional Accessories
Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System,handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect. Welcome to contact us.
Similar Products
More Products
Company Profile
We have 15 years experience in production
What we can provide?
1. 12 months after-sales service, but also professional surveying solutions and strong technical supports including maintenance & parts service
2. Fast delivery in seven days
3. The product is well-made, tightly packaged, and has amanual
4. 24-hour response, providing professional, efficient and friendly communication services
About Us
With 15-year exporting experience in the geodetic industry, Geodex is one reliable expert & world-wide provider of Geographic Surveying & Mapping solutions. We have established a lot of good & long term partnerships in many different countries. Further more, we have received good reputation not only because of the high quality products, but also because of the professional technical supports & excellent customer-service.
Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System, handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect.
Our products are widely used for high precision measurement, surveying & mapping works, such as land & housing management, building, road, railway & city infrastructure construction, Topographic, Cadastral, monitoring and mining, hydro & marine surveying projects.
We sincerely welcome your cooperation!
Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System, handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect.
Our products are widely used for high precision measurement, surveying & mapping works, such as land & housing management, building, road, railway & city infrastructure construction, Topographic, Cadastral, monitoring and mining, hydro & marine surveying projects.
We sincerely welcome your cooperation!
About Technical Supports
1. We provide not only high cost-efficiency surveying instruments.
2. but also professional surveying solutions and strong technical supports including maintenance & parts service.
2. but also professional surveying solutions and strong technical supports including maintenance & parts service.
3. Make sure Quality Verified & recalibrated before each shipment.
4. Fast Delivery, stocked in Guangzhou.
5. Professional Export & Import Service.
6. One-year warranty period of surveying equipments.
Contact Information
Guangzhou Geodex Instrument Co., Ltd.
Phone: 0086-139-2957-9611 (WhatsApp/Wechat)
Tel: +86 (0)20-8251 6799
E-mail: sale@geodexdata.com & export@geoland.cn
Website: //www.geoland.cn //www.geodexinstrument.com
Add: 410, No. 7 Minxing Street, Huangpu District, Guangzhou, 510530, Guangdong, China
Phone: 0086-139-2957-9611 (WhatsApp/Wechat)
Tel: +86 (0)20-8251 6799
E-mail: sale@geodexdata.com & export@geoland.cn
Website: //www.geoland.cn //www.geodexinstrument.com
Add: 410, No. 7 Minxing Street, Huangpu District, Guangzhou, 510530, Guangdong, China
FAQ
Part 1) Company & Products
Q1：What are your advantages in providing the geographic surveying equipments to the world market ?
1. Work Team with 15 years experience in providing geographic surveying equipments
2. Excellent consultant service on International Logistics solution & Customs Affair
3. Professional technical support on instruments after-sale service
Q2：How can I get the products catalogue?
1. Customer can download products catalogue from our website at geoland.cnor www.geodexinstrument.com
2. Contact us by sending e-mail or leaving message from website.
Q3：Can I get products which is not available from your website?
If you don’t find the product information from our website, you can contact our sales team and send the specific requirements，we will follow it up and contact you immediately.
Q4：Do you support Customization Order for the surveying products?
Yes, for most of the products, we can provide OEM or ODM service. For details, please contact our sales team for further
communication.
Q5：How can I get a products certificate?
Some of our products have already obtained Testing Report or Certificates like RoHS, CE, FCC. For more request, please contact our sales team.
Part 2) Order & Shipment
Q6：How to place an order?
1. Start a Trade Assurance PO directly from our shop on Alibaba.com
2. Contact with Geodex Team to assist creating an order link
3. Send us your ordering list for issuing a Proforma Invoice
Q7: What transportation modes can I have the ordering items to be ship?
1. Door to door delivery service Air Express Courier like DHL, FedEx, UPS, TNT, as well as some local regional specialized courier
2. General Air flight Cargo Service from airport to airport, Consignee make the Customs Clearance by themselves
3. Ocean transportation by sea boat to the nearest port of the destination, customers make the Customs Clearance by themselves
4. International Multi-modal transport, by boat & truck, by flight & truck...
5. Customers can appoint their own forwarder agent who has warehouse in China, we can deliver the goods to shipping warehouse as your shipping instructions.
Q8: How to calculate the shipping cost?
The shipping freight rate is changing from time to time due to the oil price ups and downs, as well as the Epidemic control. Please contact our sales team for getting best shipping solution & freight rate.
Q9：How long will be the shipment days?
Most of the items are ready to ship. If it is not available from current stocks, shall be within 15 days.
For bigger order quantity, it depends on the production orders. Please enquire with our sales.
Q10：What kind payment methods do you accept?
1. By Trade Assurance Order from Alibaba.com, customer can make payment directly to the order link by using visacard, mastercard, T/T, PAYPAL, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER
2. Ask the Sales Manager to send a Proforma Invoice with our banking details, accepting T/T, L/C, Western Union, Money Gram.
Q11: How can I make the Customs Clearance and pay tax for the purchasing goods?
1. Generally, if shipping by Air Express like DHL, FedEx, UPS, TNT, the courier company will provide Customs Clearance Service and door-to-door delivery service, however, customer still need to pay the import customs tax according to the local legal regulations.
2. Ship by General Air Flight Service or Ocean Boat, consignee needs to do the Customs Clearance and pay tax by themselves or can appoint an agent.
3. For some countries, we have some specialized shipping line which offer freight package can cover Customs Clearance Service and Import Tax.
4. Please contact our Sales for further information.
Q12: How can I track my shipping package?
1. For the Trade Assurance PO on alibaba.com, you can track the order shipping information from your order link. As soon as the goods is shipping out, we will upload the Shipping Way Bill to the order link.
2. For non Trade Assurance Order, we will provide Airway Bill, Bill of Lading for following up as soon as the goods is shipping out, customers can track the shipment transportation records from the shipping compay’s website.
Part 3) Technical Support
Q13: How can I get technical support to operate the instruments?
A. The instruments comes with Operation Manual (User Manual) either in hard copy or digital copy. Please check inside the package you received, or contact us by e-mail.
B. If there is specific problem during using the device, you can get technical support by contacting us. We will provide Video, Documents of How to operate, and even on-line presentation.
Q14: How can you ensure the product quality and instrument performance?
A. Firstly, we build a solid product strategy and standard at the factory production and examination.
B. Secondly, we carry out a double-check system to make sure every instrument is well calibrated before shipment.
Q15: How long will be the warranty of the goods?
A. For non-human factors fault, we provide 12-month warranty for instrument main unit, and 6 months for consumable items like batteries.
B. And also provide long-term technical support and repair service.
Q1：What are your advantages in providing the geographic surveying equipments to the world market ?
1. Work Team with 15 years experience in providing geographic surveying equipments
2. Excellent consultant service on International Logistics solution & Customs Affair
3. Professional technical support on instruments after-sale service
Q2：How can I get the products catalogue?
1. Customer can download products catalogue from our website at geoland.cnor www.geodexinstrument.com
2. Contact us by sending e-mail or leaving message from website.
Q3：Can I get products which is not available from your website?
If you don’t find the product information from our website, you can contact our sales team and send the specific requirements，we will follow it up and contact you immediately.
Q4：Do you support Customization Order for the surveying products?
Yes, for most of the products, we can provide OEM or ODM service. For details, please contact our sales team for further
communication.
Q5：How can I get a products certificate?
Some of our products have already obtained Testing Report or Certificates like RoHS, CE, FCC. For more request, please contact our sales team.
Part 2) Order & Shipment
Q6：How to place an order?
1. Start a Trade Assurance PO directly from our shop on Alibaba.com
2. Contact with Geodex Team to assist creating an order link
3. Send us your ordering list for issuing a Proforma Invoice
Q7: What transportation modes can I have the ordering items to be ship?
1. Door to door delivery service Air Express Courier like DHL, FedEx, UPS, TNT, as well as some local regional specialized courier
2. General Air flight Cargo Service from airport to airport, Consignee make the Customs Clearance by themselves
3. Ocean transportation by sea boat to the nearest port of the destination, customers make the Customs Clearance by themselves
4. International Multi-modal transport, by boat & truck, by flight & truck...
5. Customers can appoint their own forwarder agent who has warehouse in China, we can deliver the goods to shipping warehouse as your shipping instructions.
Q8: How to calculate the shipping cost?
The shipping freight rate is changing from time to time due to the oil price ups and downs, as well as the Epidemic control. Please contact our sales team for getting best shipping solution & freight rate.
Q9：How long will be the shipment days?
Most of the items are ready to ship. If it is not available from current stocks, shall be within 15 days.
For bigger order quantity, it depends on the production orders. Please enquire with our sales.
Q10：What kind payment methods do you accept?
1. By Trade Assurance Order from Alibaba.com, customer can make payment directly to the order link by using visacard, mastercard, T/T, PAYPAL, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER
2. Ask the Sales Manager to send a Proforma Invoice with our banking details, accepting T/T, L/C, Western Union, Money Gram.
Q11: How can I make the Customs Clearance and pay tax for the purchasing goods?
1. Generally, if shipping by Air Express like DHL, FedEx, UPS, TNT, the courier company will provide Customs Clearance Service and door-to-door delivery service, however, customer still need to pay the import customs tax according to the local legal regulations.
2. Ship by General Air Flight Service or Ocean Boat, consignee needs to do the Customs Clearance and pay tax by themselves or can appoint an agent.
3. For some countries, we have some specialized shipping line which offer freight package can cover Customs Clearance Service and Import Tax.
4. Please contact our Sales for further information.
Q12: How can I track my shipping package?
1. For the Trade Assurance PO on alibaba.com, you can track the order shipping information from your order link. As soon as the goods is shipping out, we will upload the Shipping Way Bill to the order link.
2. For non Trade Assurance Order, we will provide Airway Bill, Bill of Lading for following up as soon as the goods is shipping out, customers can track the shipment transportation records from the shipping compay’s website.
Part 3) Technical Support
Q13: How can I get technical support to operate the instruments?
A. The instruments comes with Operation Manual (User Manual) either in hard copy or digital copy. Please check inside the package you received, or contact us by e-mail.
B. If there is specific problem during using the device, you can get technical support by contacting us. We will provide Video, Documents of How to operate, and even on-line presentation.
Q14: How can you ensure the product quality and instrument performance?
A. Firstly, we build a solid product strategy and standard at the factory production and examination.
B. Secondly, we carry out a double-check system to make sure every instrument is well calibrated before shipment.
Q15: How long will be the warranty of the goods?
A. For non-human factors fault, we provide 12-month warranty for instrument main unit, and 6 months for consumable items like batteries.
B. And also provide long-term technical support and repair service.
Похожие товары
Корейский топовый косметический бренд, антифатический, лечение акне, лосьон для тела, Дерма, уход за кожей тела, кератин, раствор морщин
5,90 $ - 6,20 $
Мотоциклетные алюминиевые резиновые ручки 22 мм CNC для скутера LT LX GT GTS GTV 300 250 125 200 Sprint
2,70 $ - 4,00 $
Витрина с электрическим подогревом/подогреватель горячей еды/шкаф для горячих продуктов kfc/дисплей для отопления пищи
Гуанчжоу 1000 мл Galaxy DX5 Экологичные сольвентные чернила/эко-сольвентные чернила для Epson Dx5/Dx4/DX7 печатающей головки
IEAHEN-CRB крепление двигателя головной производитель OE:21910-2G400 для Оптима/MAGENTIS/LOTZE (мг)

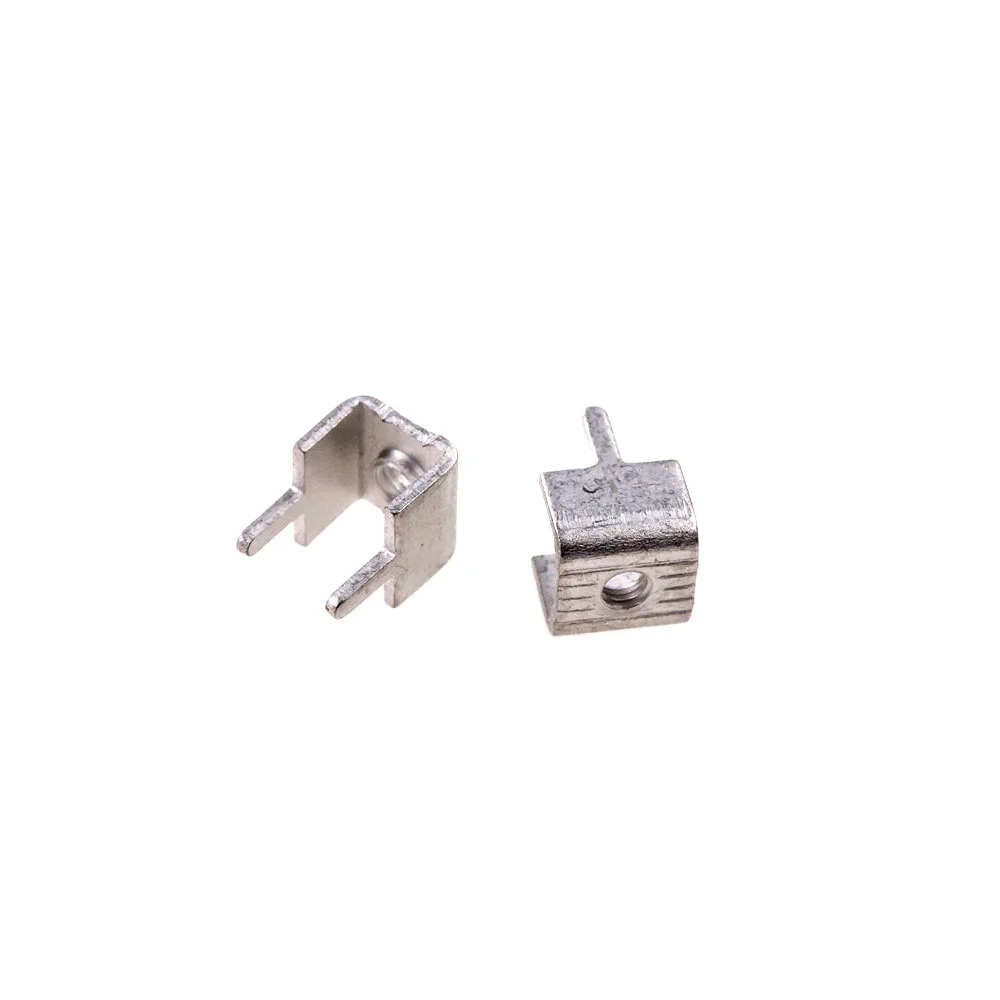

Метрические PCB Винтовые клеммы Солер доска M3 2 шпильки через отверстие шаг 7,0 мм вертикальный высокий ток 20A латуни покрытием PCB-14M3
0,07 $ - 0,10 $
Оптовая продажа Лидер продаж нержавеющая сталь с шнурком для болельщиков тренировка спортивный свисток
0,25 $ - 0,35 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Высокое качество Sunpal 450W-600W 48V фотоэлектрические солнечные панели 500W 500Wp 600W заводская цена с белой задней простыней
0,28-0,32 $
2025 руиба новый продукт зажим для пуповины оптовая продажа медицинский стерильный одноразовый пластиковый
Оптовая продажа индивидуальные синие 3-слойные одноразовые маски для лица хирургические медицинские защитные взрослых
40-41,80 $
Съемная пластиковая ручка штукатурка строительный инструмент для отделки бетона с помощью меток
SHIDU U30 двойной беспроводной Перезаряжаемый Профессиональный UHF микрофон караоке с
39,90-57,40 $
1688 закупка Taobao дропшиппинг агент по покупке онлайн-покупки Китай в Испания Румыния Литва от двери до ddp servic
1 $
OEM стираемая зеленая пластиковая клипса с держателем для ручки магнитная футбольная тренировочная
2-2,80 $
