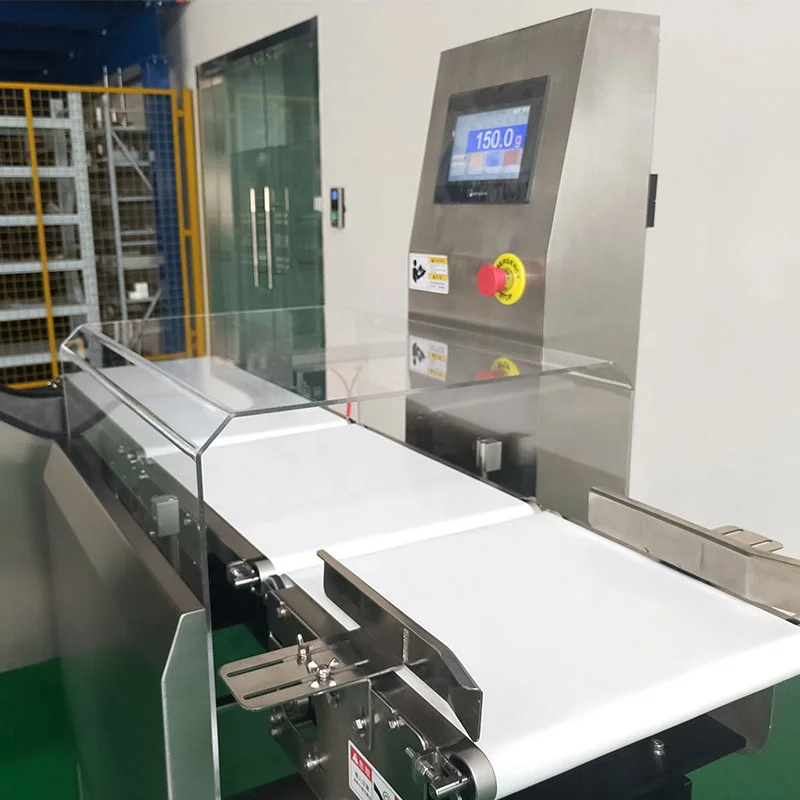

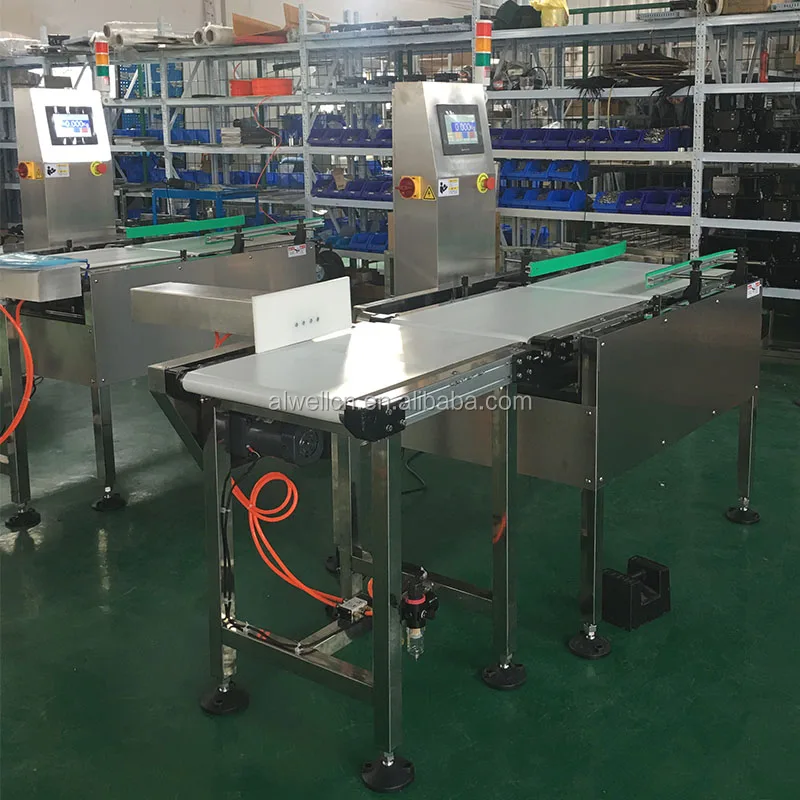

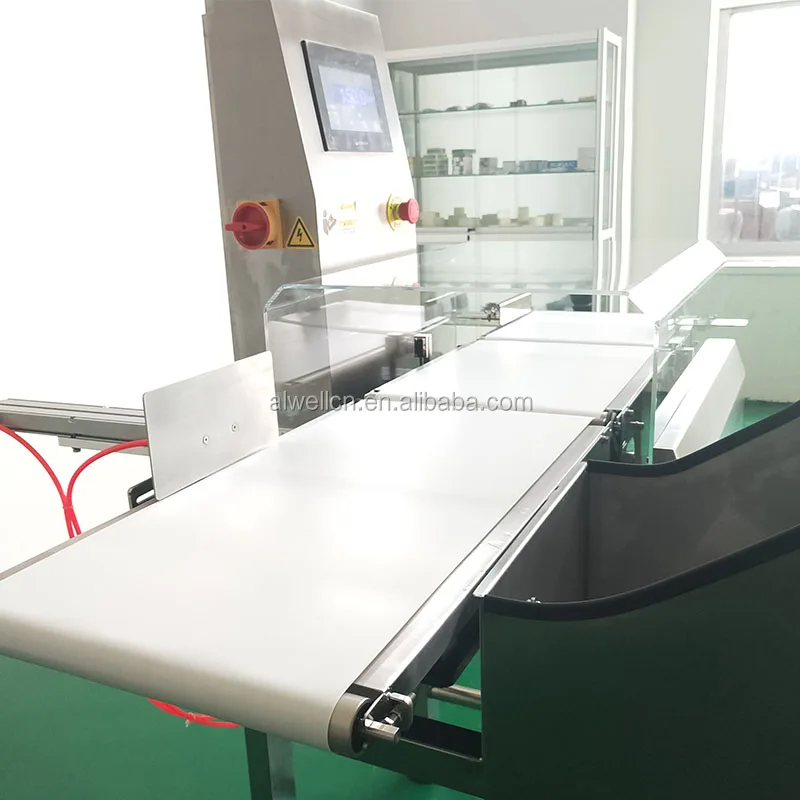

Автоматическая упаковочная коробка контрольно весовая шкала с отводным устройством конвейерная лента весовые весы

Сохранить в закладки 1600571407484:


Цена:2 670,00 $ - 3 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description










Model
YSWH-150N
YSWH-150H
YSWP-150
YSWP-220
YSWP-300
YSWP-450
YSWP-500
Max.capacity
100g
100g
500g
1500g
3kg
30kg
50kg
Weighing range
5g-100g
5g-100g
5g-500g
5g-1500g
5g-3kg
50g-30kg
50g-50kg
Min.accuracy
±0.2g
±0.2g
±0.2g
±0.5g
±0.5g
±5g
±20g
Min.scale interval
0.1g
0.1g
0.1g
0.1g
0.1g
1g
5g
Max.speed
300piece/min
220piece/min
150piece/min
120piece/min
100piece/min
35piece/min
25piece/min
Belt Length
200mm
200mm
300mm
400mm
450mm
700mm
1000mm
Belt width
150mm
150mm
150mm
220mm
300mm
450mm
500mm
Test Product
dimension
Length
≤100mm
≤100mm
≤200mm
≤300mm
≤300mm
≤550mm
≤800mm
Width
≤150mm
≤150mm
≤150mm
≤220mm
≤300mm
≤450mm
≤500mm
Height
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
Operation interface
10 inches color LCD screen
Operating mode
Touch operation
Transport direction
From left to right(can be custom)
The belt height
750mm±50mm(can be custom)
Item memory
200 Products
Zero calibration
Auto Zero Tracking
Alarm mode
Automatically rejected/Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(can be custom)
External interface
USB,RS232/485/422,to store data,Voltage signal or Switch signal,TCP/IP(optional)
Accessory(optional)
Printer, printing machine, separator,etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Structure
0.6—1Mpa
Measurement
SUS304
Degree of protection
IP54/IP65(IP66 need to be custom)
Environment
0℃-40℃
Remark
1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed.
2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized.


Advantages and Details


lntelligent control panel
The touch screen control panel makes theworking parameter can be set easily it is noneed to train operator ,helps to improve.


        Habasit import scale belt
Accuracy is more stable duringhigh-speed operation


The weighing platform
Weigh by conveyor belt



          Rejector
There are kinds of ways to choosefor rejector,such as air blow,pusher,shifter and so on.


            Recycling box
Recycle nonconforming products



USE
Application:The YSWP series checkweigher is designed for fully automated packaging lines,when find the overweight and ultra-light
products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard product removed from the
product line, the belt will run automatically. Auto ejector is optional. online mass check weigher price is suitalble.

Features: 1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Enhanced 304 stainless steel frame, GMP and HACCP standards.
3. Simple mechanical structure, can quickly remove cleaning maintenance.
4. Can store 200 kinds of product parameters, the convenient user use.
5. Automatic zero tracking system, guarantee the stability of detection.
6. Built-in temperature and noise compensation system, ensure the data is reliable.
7. The dynamic weight compensation technology, ensure the data to be more effective
8. Parameters set password protection, only management operation.
9. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.


Mainly used in quality detection and classification of products onautomatic assembly line, also can be used in checking the packaginglack of examples or not. Also can replace manual weighing, so that it improves productionefficiency and ensures the consistency and reliability on weighing.Widely used in food, medicine, cosmetic, industrial manufacturing,printing, logistics and other industries.


Product Application






Company Information








SHANGHAI ALWELL MACHINERY EQUIPMENT CO.,LTD.(SHANGHAI ALWELL)is located at songjiang high-tech industrial park in Shangjiang,dedicated to product R&D, manufacturing, sales and service of Check Weigher\\Automatic Weight Sorter\\Metal Detector and Other Automation Equipment.We always focused on automation, relying on high quality, high performance, high flexible products, to meet the needs of the Chinese and foreign customers.
SHANGHAI ALWELL has the abundant technical force, our products performance is in the lead of the industry.Our products all adopt the network plan, fully adapt to the factory automation and information technology trends. Our products are setting the high intelligence, the latest technology in one, using the high reliability of the electrical and mechanical materials.
Now our products are widely used in food, medicine, manufacture,printing,logistics and other industries, They are used in production's quality inspection, classification, as well as in the product packaging weigher test.They had helped customers to greatly reduce the labor costs, to improve the production efficiency, and greatly to improve the percent of pass, help customers to improve the industry competitiveness. We have won the general customers's recognition and praise. Main products: Check weigher,Multistage sorting machines, Metal detector, and others automation equipment.
SHANGHAI ALWELL has precision CNC processing ,using modern production technology, strict control of each link,and carry on scientific ISO production management, to provide products with high precision and high quality delivery.
SHANGHAI ALWELL as a leader in the field of dynamic test weight, always adhering to the "integrity, innovation,
cooperation,win-win" concept, adhere to the customer as the center, take the quality as the fundamental, continuously to provide the high quality products and considerate service for customers.
Shanghai ALWELL is willing to work with customers all the time.








Cooperation Brand




Our customers all over the world, in all countries have a good reputation.
Our aim is to make customers' office efficiency more intelligent, faster, more convenient.
We care about the experience of every customer, all the needs of customers is our goal.


We are keen to involve our customers in all the processes of the project and make them clear about the project
We strongly welcome every customer to visit our factory in person, there are special customer service one to one street customers,so that customers personally check the quality of the factory.
We are good at dealing with the shortcomings of customers, to provide customers with the best solutions.


Our Team


We have the most professional team partners, customer service at any time to respond to your questions online, for you to plan the best solution
Our factory has the most comprehensive R & D team and security technical personnel, and has mature experience in machine configuration and safety research and development technology.
We have our own factory, can strictly control the delivery efficiency and product quality, in the area of commodity transport, we also have their own logistics transport team, can be more efficient, more secure logistics transport speed.


Product packaging






FAQ


1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer and we are located in Shanghai,China.

2.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.

3.How long is your warranty?
12 months free warranty, life-long maintenance.

4.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.

5.What are your company requests of payment terms?
TT,L/C,International Credit Card.

6. What is the validity time of the quotation?
15 days since quotation date

7. What is the delivery time?
Within 15 days after receipt of your deposit.

8. Are you a manufacturer?
Yes, we are a manufacturer, and we can provide the competitive price and good quality.
