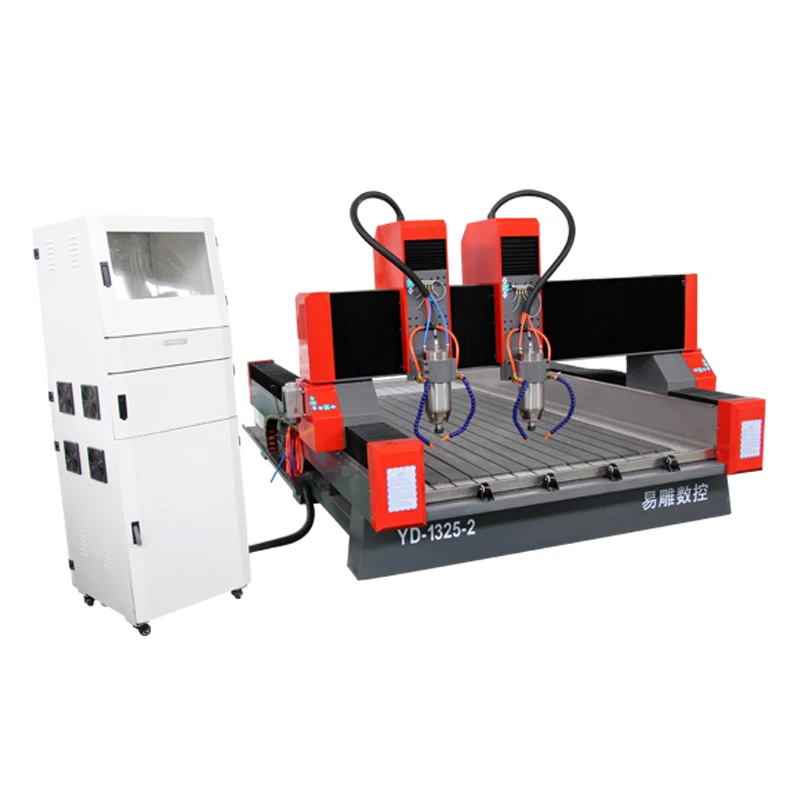

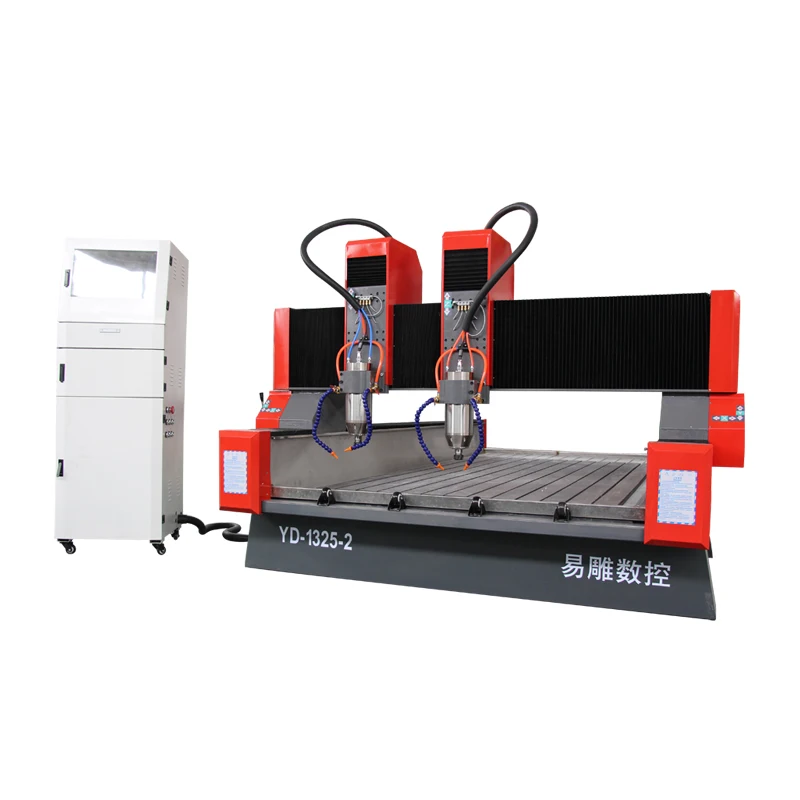

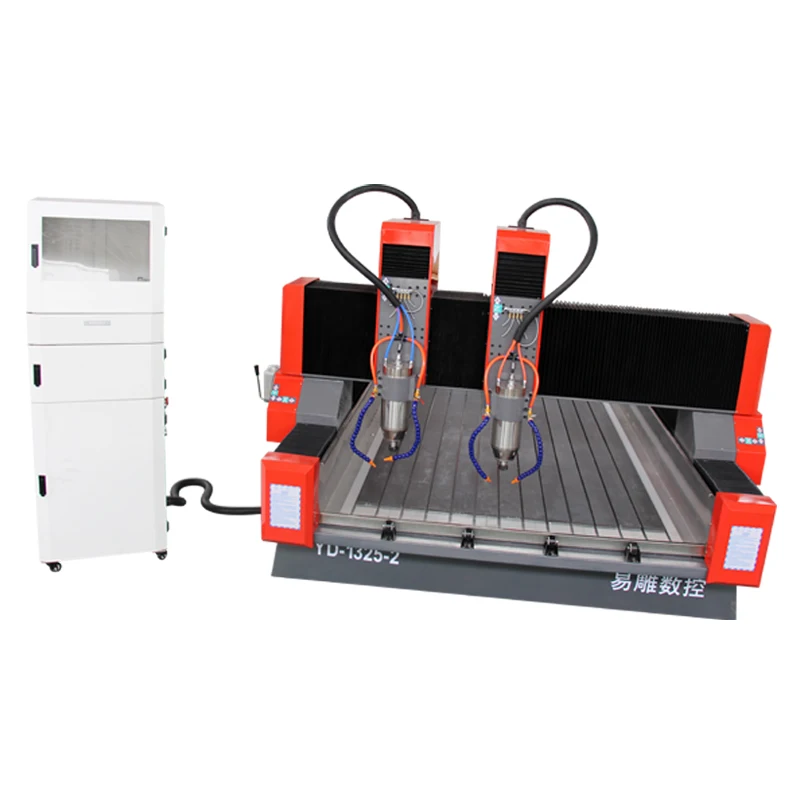

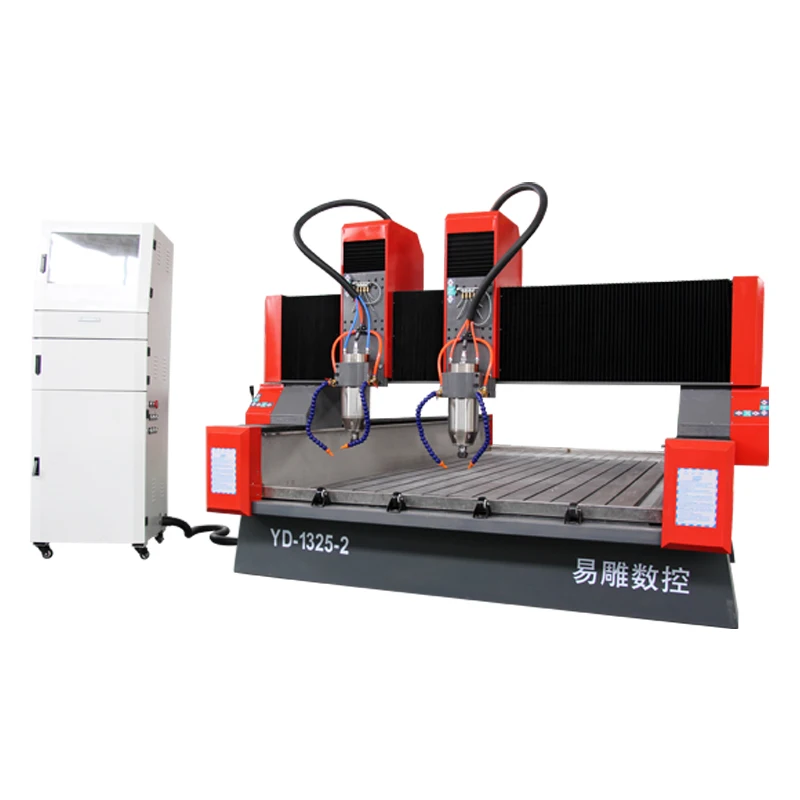

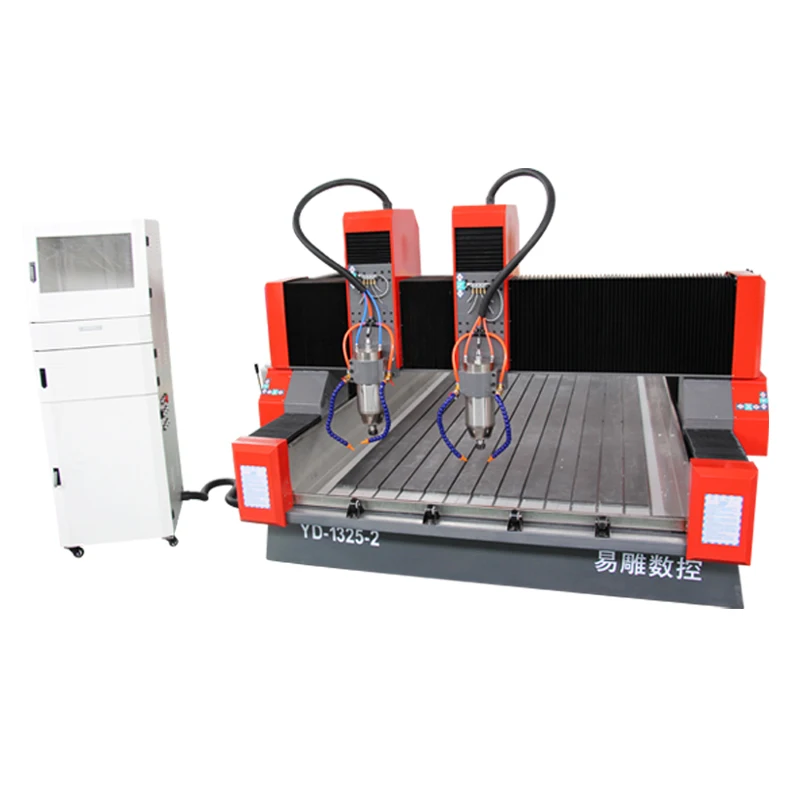

1325 г. станок для резки мрамора/гравировальный камня фрезерный с ЧПУ/фрезерный ЧПУ двумя шпинделями

Сохранить в закладки 1600571474252:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Stone cnc router (1)


Performance Features:


1.Three axises adopt import Taiwan Hiwin (or PMI) square linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .


2.X,Y,Z three-axis all have the waterproof, dustproof system


3. Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.


4. Constant power spindle and motor, hightly cutting capability ,high efficiency.


5. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam, Castmate ,Wentai ,Coredraw.


6. Double direction cutters cooling system can prolong the lifetime of using.


7. High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.





Detailed Images


Stone cnc router (3)





Technology












































































































































NO.ItemParameter
1X,Y,Z Working Area1300mmx2500mmx400mm
2Processing Accuracy±0.05mm
3Repositioning Accuracy±0.02mm
4Table Surface T-slot Combined
5FrameWelded Structure
6X, Y StructureRack and Pinion Drive, Hiwin Linear Rail
7Z StructureBall Screw ,Hiwin Linear Rail
8Max. Power Consumption4.0Kw (Without spindle)
9Max. Rapid Travel Rate42000mm/min
10Max. Working Speed30000mm/min
11Spindle Power5.5 KW water Cooling Spindle
12Spindle Speed0-24000RPM
13Drive MotorsYAKO driver / Stepper or Sevor Motor
14Working VoltageAC380V /50 60Hz, 3PH
15Command LanguageG Code
16Operating SystemNcstudio System(Mach3,DSP option)
17Computer InterfaceUSB
18Flash Memory512M(U Disk)
19ColletER32
20X,Y Resolution<0.03mm
21Software CompatibilityArtcam, Type3 Software (Option: JD software)
22Running Environment  Temperature0 - 45 Centigrade
23Relative Humidity30% - 75%
24Packing Size3600*2250*1750mm
25N.W.1600KG
26G.W.1800KG




Sample show


 Stone material: natural marble, granite, artificial stone, tombstones, stone, jade carving and processing.
Decoration categories: ceramics, crystal, glass, plastic, chemical synthetic organic glass board, PVC board, wood, plastic, metal, plastic materials, such as line carve, 2d, 3d bottom tip carving, 3d relief, cutting, edge, drilling.Stone cnc router (4)








Packaging & Shipping


Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.


Stone cnc router (5)
