Контроллер PTZ джойстик NDI для прямой трансляции конференц камеры
- Категория: Conference System >>>
- Поставщик: World Win Technology (shenzhen) Co. Ltd.World Ltd.
Сохранить в закладки 1600572025724:
Описание и отзывы
Характеристики
Tip:
1.Contact us for more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description
PTZ Joystick Controller NDI Live Streaming Camera Joystick Keyboard Controller For PTZ Conference Camera
WIN-MK7N
WIN-MK7N Joystick Keyboard Controller Selling Points:
1. This NDI IP PTZ Camera controller is support VISCA, ONVIF, PELCO-P, PELCO-D, and NDI protocols.
2. POE Power Supply: Support Power over Ethernet
3. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
4. Multi Control: Support network and stim-ulation control methods. Depedent IP address available in the network mode
5. 4D Joystick: 4D Rocker, comfortable texture. Twist the joystick to directly control the camera in all directions. The lens can be zoomed in and out.
6. Camera Quick Switch Button: This controller provides four instant access to control camera and 255pcs cameras can be quickly switched through a simple tap
7. All camera parameters can be set through the button operation.
2. POE Power Supply: Support Power over Ethernet
3. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
4. Multi Control: Support network and stim-ulation control methods. Depedent IP address available in the network mode
5. 4D Joystick: 4D Rocker, comfortable texture. Twist the joystick to directly control the camera in all directions. The lens can be zoomed in and out.
6. Camera Quick Switch Button: This controller provides four instant access to control camera and 255pcs cameras can be quickly switched through a simple tap
7. All camera parameters can be set through the button operation.
8. Metal shell, silicone key design.
9. LCD display, keypad sound prompt, real-time display decoder and matrix working status.
10. Page Configuration Parameters: IE Browser can add configuration of front-end equipment
9. LCD display, keypad sound prompt, real-time display decoder and matrix working status.
10. Page Configuration Parameters: IE Browser can add configuration of front-end equipment

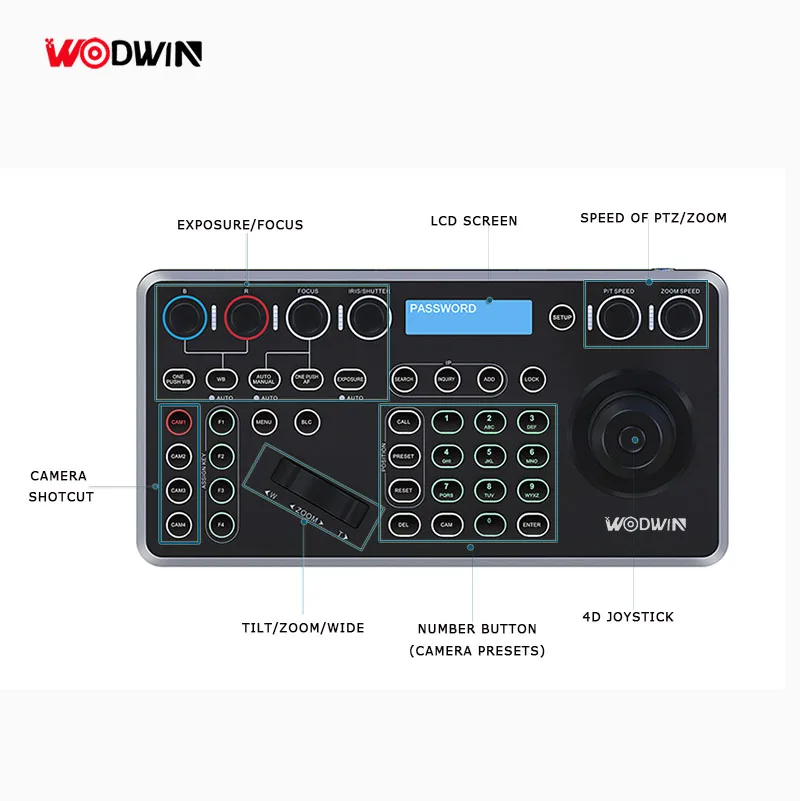

Details Images

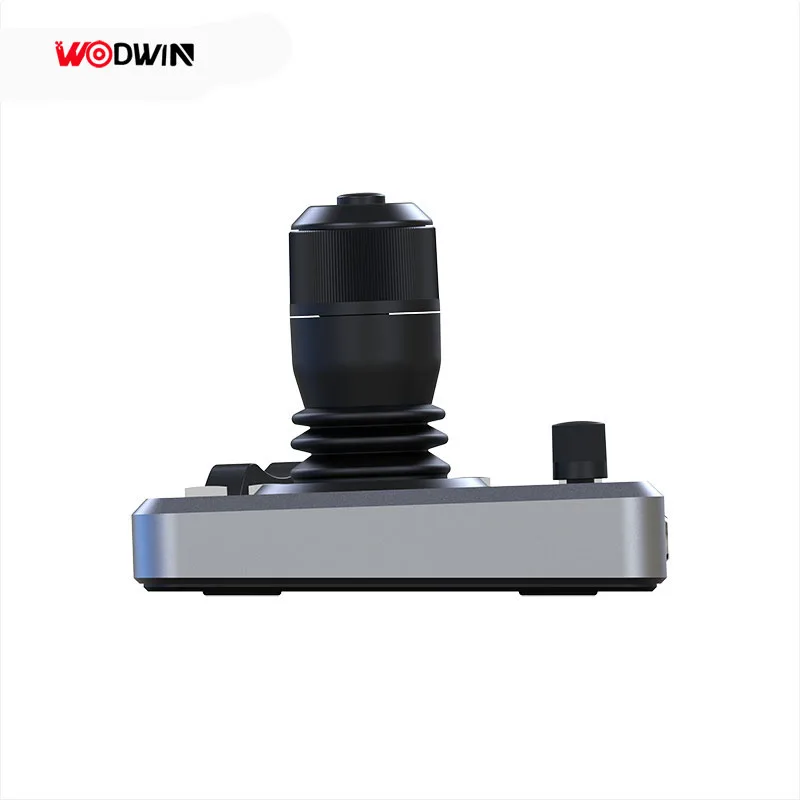

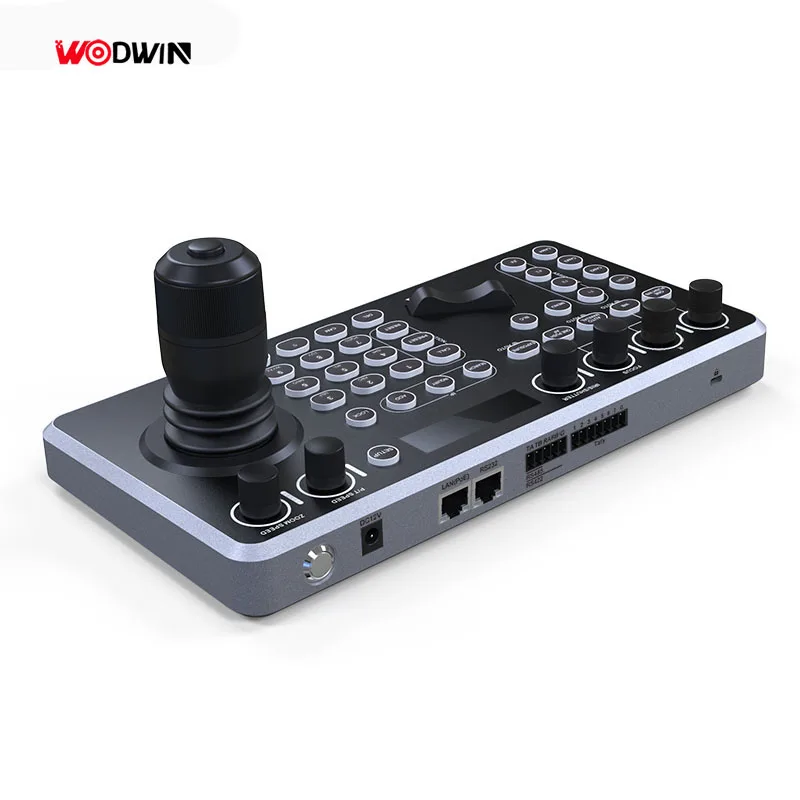

WIN-MK7SN is NDI PTZ Camera Controller Support IP and serial connection. With POE, Tally light, Lcd screen. It is very mini size but with super high quality.
IP PTZ Joystick Controller support POE
Two way to power on this Joystick Control Keyboard, one is power adapter, another way is one LAN cable power on ethernet

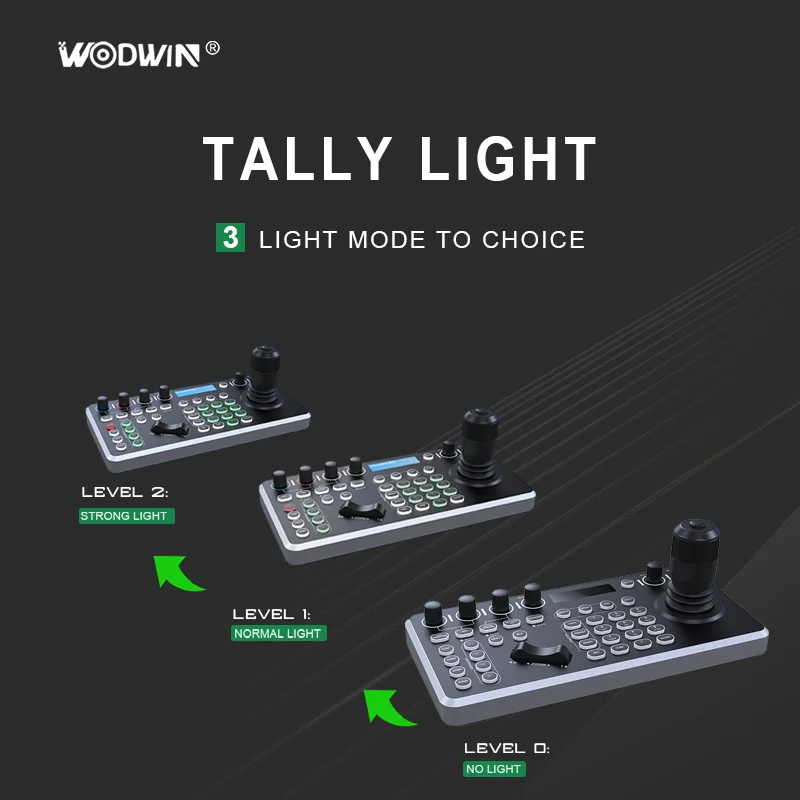

3 level Tally light
You have 3 choice of the tally light, you can choose from the menu, three light standard can indicate for option. Every button have tally light
Support Camera Shotcut
The IP PTZ Camera Controller support directly shotcut for cameras,And self asssign the function of the button.More detail button as below.
Control up 255pcs cameras
All ptz camera parameters can be set through the button operation.
WIN-MK7SN the Live Streaming Ptz Controller Keyboard Joystick is widely use for Live broadcast, TV Events record, sports, church, concerts, conference camera control.
Product Paramenters
Product Name | Joystick Keyboard Controller | ||
Item No. | WIN-MK7N | WIN-J91AS | |
Port | Network: RJ45. Serial Port: RS422, RS232 | 3.50 Megapixels | |
Protocol | Network : NDI, ONVIF, VISCA Serial Port: VISCA, PELCO-D, PELCO-P | 20X optical zoom | |
Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200 | 58.7°(W)~3.2°(T) | |
Interface | LAN,RS422,RS232, | ||
Joystick | 4D（up, down, left, right, zoom, lock） | ||
Display | LCD Blue Screen | ||
prompt tone | ON/OFF | ||
Power Supply | DC12V±10% | ||
Power Consumption | 6W MAX | ||
Working Temperature | -10℃～50℃ | ||
Storage Temperature | -20℃～70℃ | ||
Environment humidity | ≦90%RH (nodew) | ||
Dimensions(mm) | 270mm（L）X135mm（W）X103mm(H) | ||
Product packaging
Recommend Products
WIN-M57S
SDI+HD-MI+IP+USB3.0
12X/20X /30X Zoom
WIN-MK2
IP PTZ CAMERA CONTROLLER
IP RS232,RS422
WIN-MK5
JOYSTICK CONTROLLER
IP POE RS232 RS422
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
Похожие товары

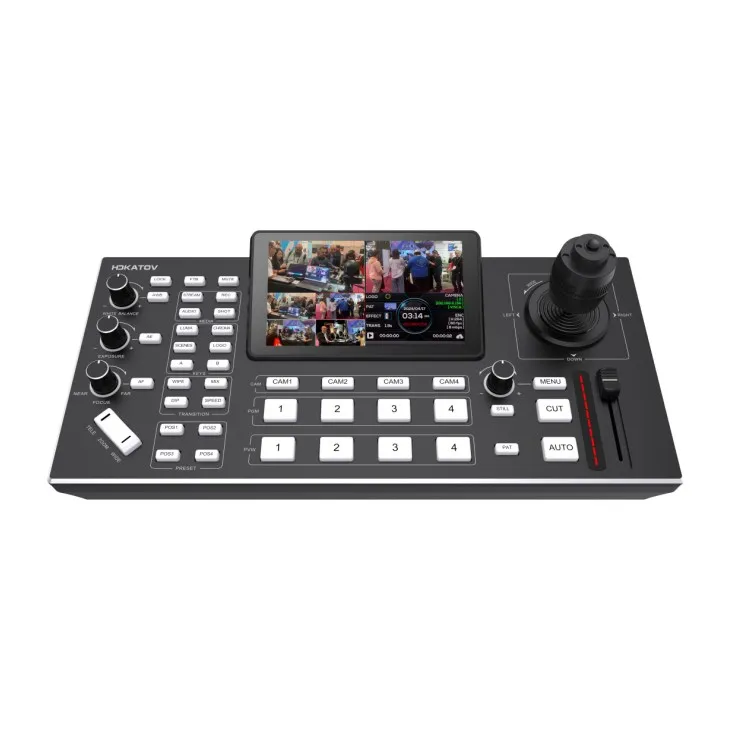

4-канальный видеомикшер
999,00-1 100,00 $
ЖК-дисплей с дистанционным управлением и маркировкой CE/моторизованный Электрический монитор
Храм/телемедицины/лекции/потоковой передачи игр оптика 20X NDI камера Серый full hd 1080p60fps SDI-H DMI PTZ видеоконференции
550,00-650,00 $
Все в одном Конференц-колонки микрофон для настольной компьютерной системы
49,00-69,00 $

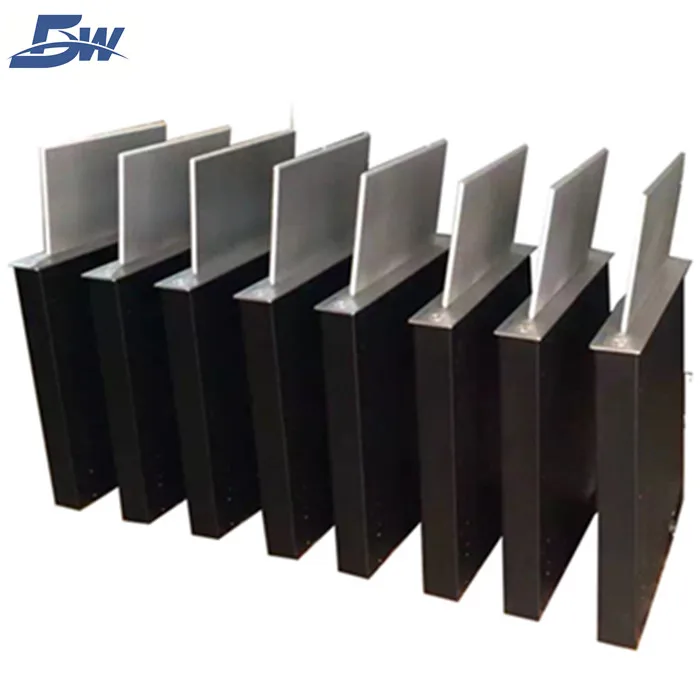

Офисное оборудование электрическая система подъема/pop up ЖК-монитор подъемный механизм для конференц-системы интерьер

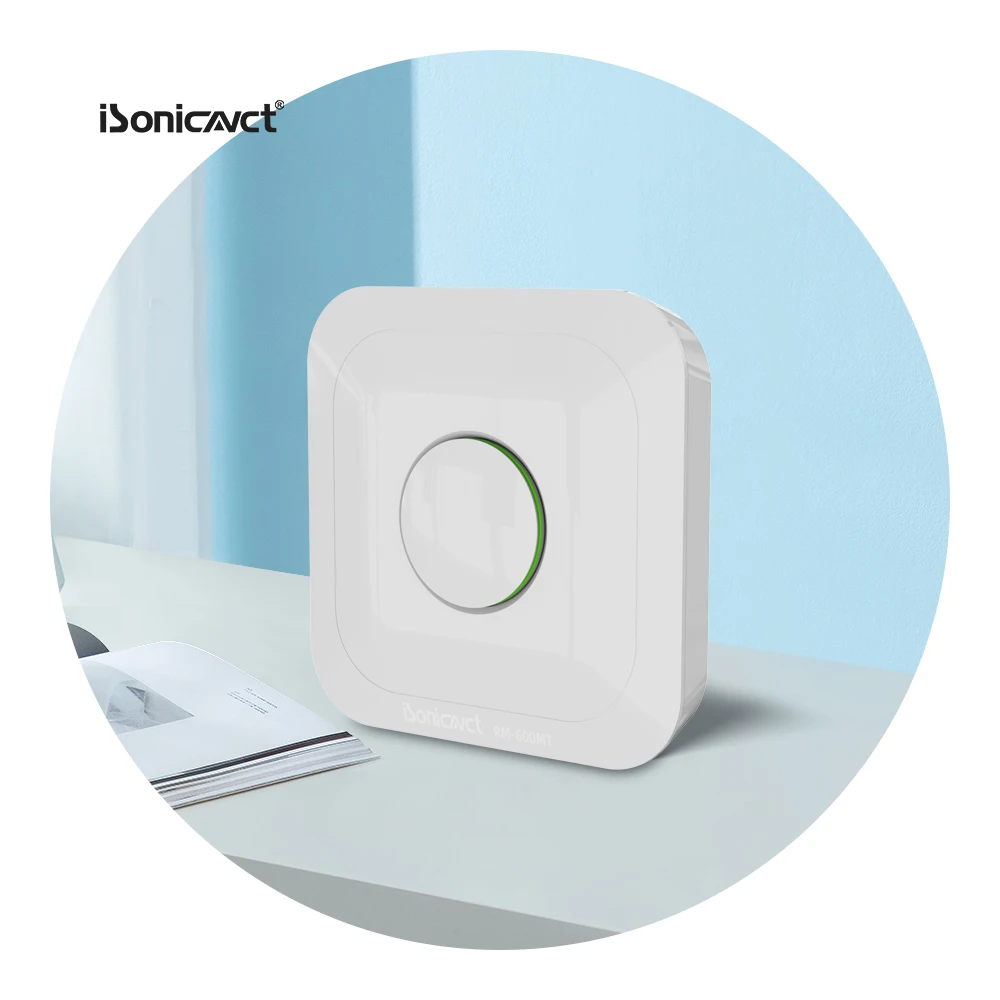

ISonicavct RM-600MT Конференц-зал CCTV автоматическая камера безопасности Интеллектуальная беспроводная Цифровая Конференц-система хост
