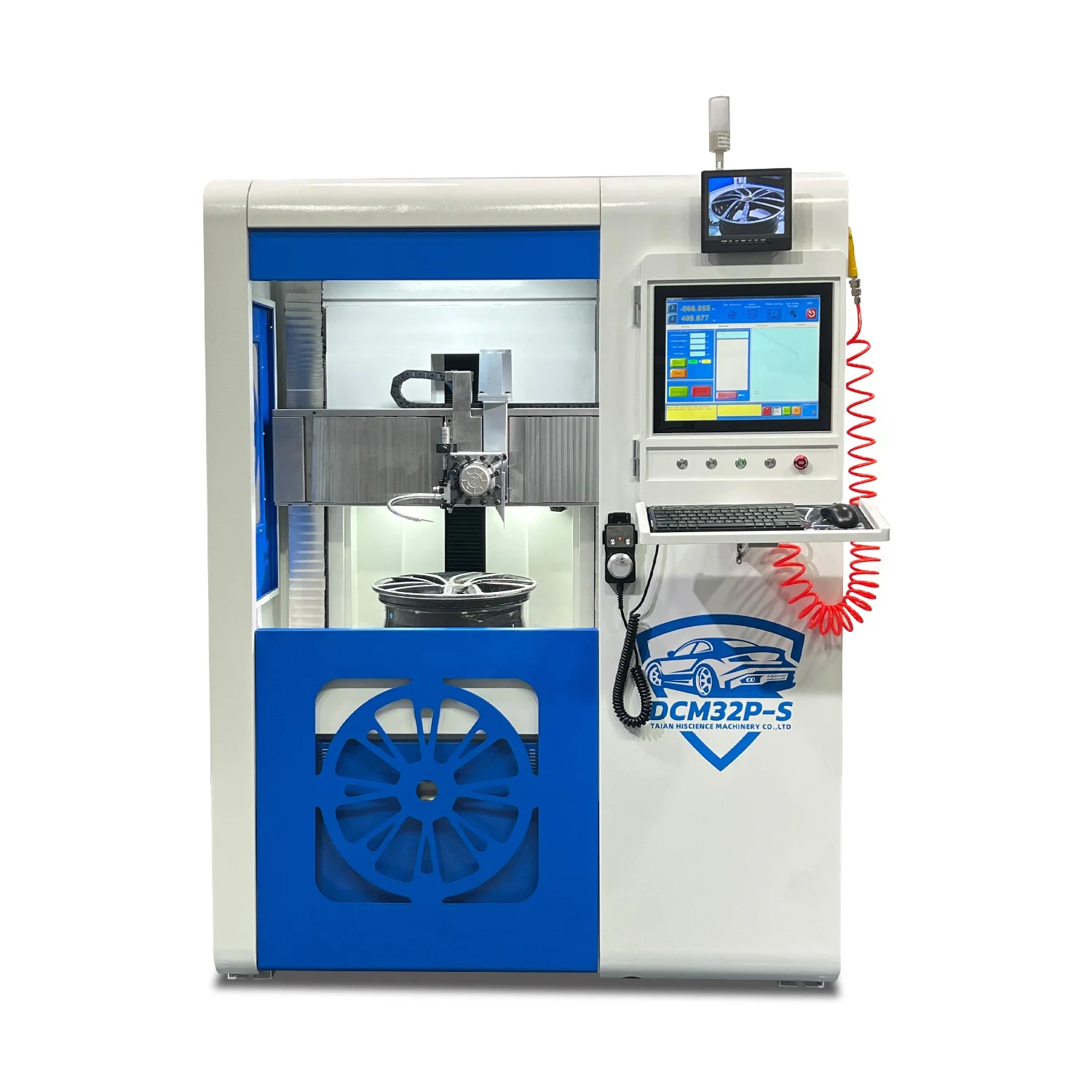

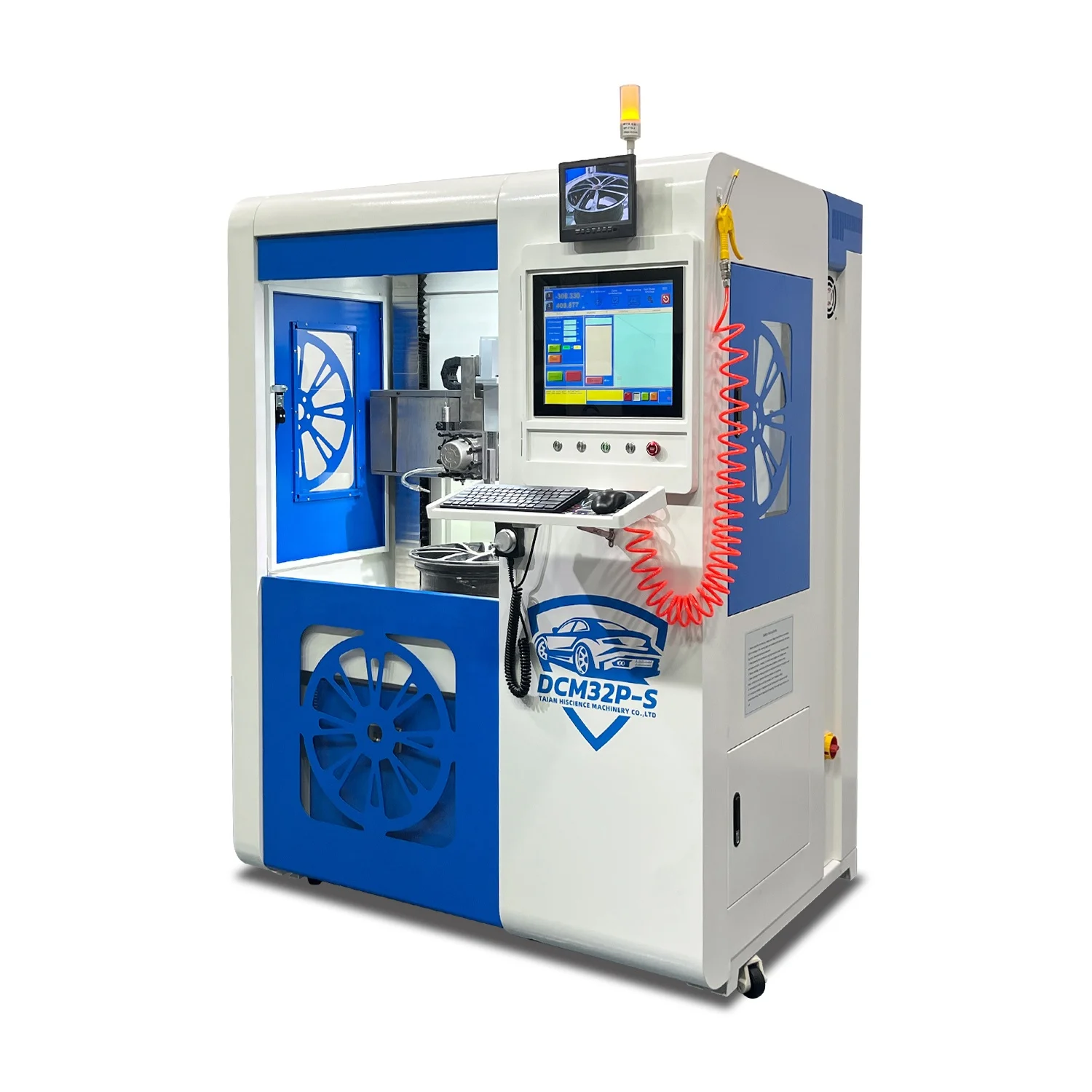

Hience сплав колеса токарный станок вертикальный фрезерный с ЧПУ для ремонта колес токарного станка драгоценный камень резит обод Ремонтное оборудование продажи DCM32P S

Сохранить в закладки 1600572053032:


Цена:1 377 079,05 ₽ - 1 499 126,06 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 32P-S_0132P-S_0232P-S_0332P_06








32P-S_0532P-S_0632P-S_0732P-S_0832P-S_09




























































































Item



DCM32P-S



Maximum clamping wheel size



760mm (30 inch)



Maximum diameter with tire on



800mm



Maximum repairable wheel thickness



480mm



X-axis effective travel



550mm



X-axis drive motor torque



6NM



Z-axis effective travel



750mm



Z-axis drive motor torque



10NM With brake function



Maximum distance between the tool post and the chuck



600mm



Main motor power



4KW

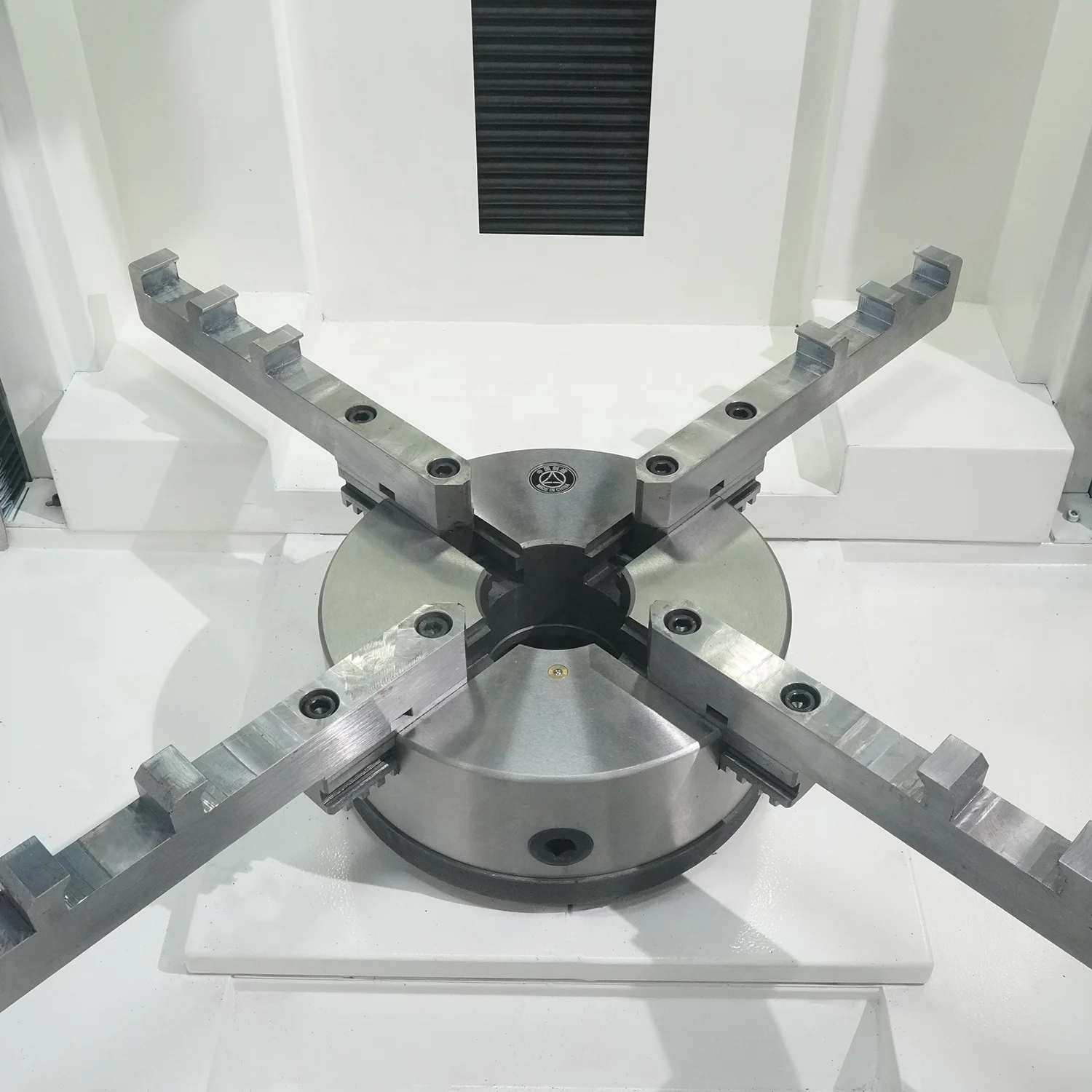

Chuck Diameter/Number of Jaws



250mm / 4 jaws



Tool changer station



4



Tool change method



Automatic



X/Z feed accuracy



0.001mm



Wheel detection method



Ruby probe detection system



(optional laser detection system)



Detection accuracy



Ruby probe detection 0.001mm



Device Voltage/Frequency



380V 3ph/ 50HZ



Voltage customization for different countries



Support



Weight



1250KG



Machine size



1450*1120*1960mm
