Машина для изготовления пластиковых поддонов gmt блочные
- Категория: Plastic Products >>>
- Поставщик: Linyi Dongyue Building Materials Machinery Co. Ltd.
Сохранить в закладки 1600574430596:
Описание и отзывы
Характеристики
Product Overview
Compare with PVC or bamboo pallet

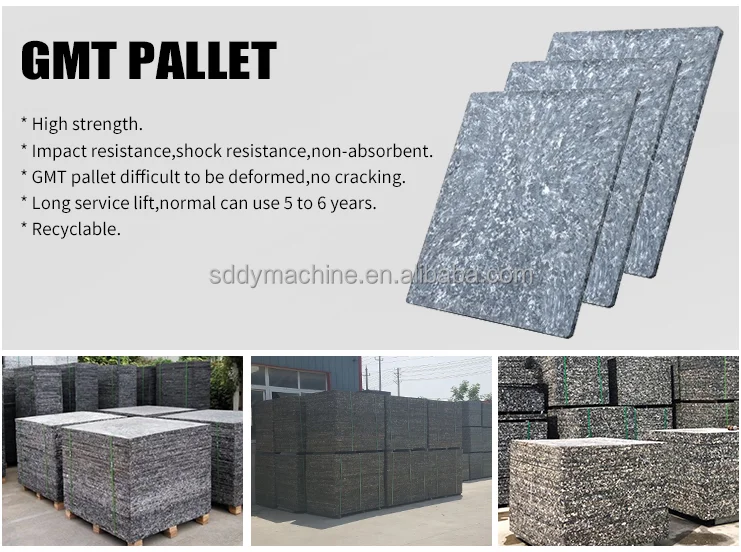

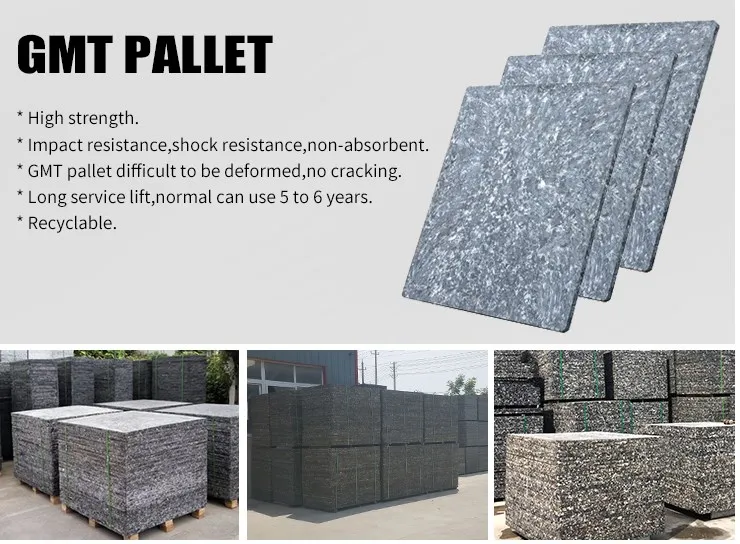

GMT pallet
Density 1200kg/m3
Lowest price
Longest life more than 10 years
Temperature tolerance 90℃ Surface Hardness 76D Shore Bending strength >51.0 MPa Maximum load 2.0 kn Rigidity （Modulus of
elasticity） 3.7GP Shockproof Withstands impact of 30 kJ/m2 Water absorption < 0.02%
Density 1200kg/m3
Lowest price
Longest life more than 10 years
Temperature tolerance 90℃ Surface Hardness 76D Shore Bending strength >51.0 MPa Maximum load 2.0 kn Rigidity （Modulus of
elasticity） 3.7GP Shockproof Withstands impact of 30 kJ/m2 Water absorption < 0.02%
PVC pallet
The PVC pallet is brittle and easy to break, the density is 1800kg/m³, the weight is too heavy, and the service life is not long.
Mostly used for small machines. Two weak for powerful block machine pallet size ＞900*700mm
Mostly used for small machines. Two weak for powerful block machine pallet size ＞900*700mm
Bamboo pallet
Density 700-950kg/m3 depends on quality.
Highest price
Life 5-6 years
The price of glue has risen in recent years, and high-quality glues are expensive. Most bamboo pallets use ordinary glue. When
exposed to the sun or excessive rain for a long time, the bamboo pallets are prone to peeling and peeling.
Density 700-950kg/m3 depends on quality.
Highest price
Life 5-6 years
The price of glue has risen in recent years, and high-quality glues are expensive. Most bamboo pallets use ordinary glue. When
exposed to the sun or excessive rain for a long time, the bamboo pallets are prone to peeling and peeling.
Advantages of GMT pallets
Item | Characteristics | Technical Indicator | Outstanding Performance | Comparing with other Materials Pallet |
1 | Rigidity | Elasticity Modulas 3.7 GP | No Deformation | More Rigid than same thickness solid wood pallet |
2 | High Load Bearing | Max load 2.0 kn,Bending Strength 51.0 MPa | Stand big pressure, high load, and brings no rupture | Higher Load Bearing than same thickness PVC and solid wood Pallet |
3 | Anti-abrasion | Rockwell Hardness 70 | Long Life Span | Better Performance than plywood and bamboo wood Pallet |
4 | Anti-impact | Withstand Impact of 20KJ/m2 | Vibration Resistant, Anti-fall, and no Cracking | Better Performance than plywood and solid wood Pallet |
5 | Weather Resistant | Operating Temperature between -20°C--90°C | Insolation Resistant, Anti-aging, and Suit for Steam Curing | Better Performance than PVC, steel and bamboo wood Pallet |
6 | Erosion Resistant | Resistance of most Acid, Alkali, and Salt | Protect inner steel and bamboo against rust and mildew | Better Performance than bamboo wood and steel Pallet |
7 | No Water Immersion | Water Immersion Rate<0.1% | Protect inner bamboo(wood) board | Better Performance than bamboo wood Pallet |
8 | Light Weight | Density1.2 | Effort Saving and Friction Reducing | Lighter than PVC and Steel Pallet |
9 | Life Span | Life Span over 6 years | Low Cost | Better Performance than PVC and bamboo wood Pallet |
10 | High Performance-Price-Ratio | High Performance and Low Cost | Extremely Low Cost during long time using | Better than all other material pallet |
GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century.
Plastic pallet making machine gmt block pallets
1.Light weight
Taking one pallet size 850*680 for example, with same thickness, our GMT pallet is lighter; for same weight, our GMT pallet is thinner. GMT pallet is lightest with high strength.
2.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions.

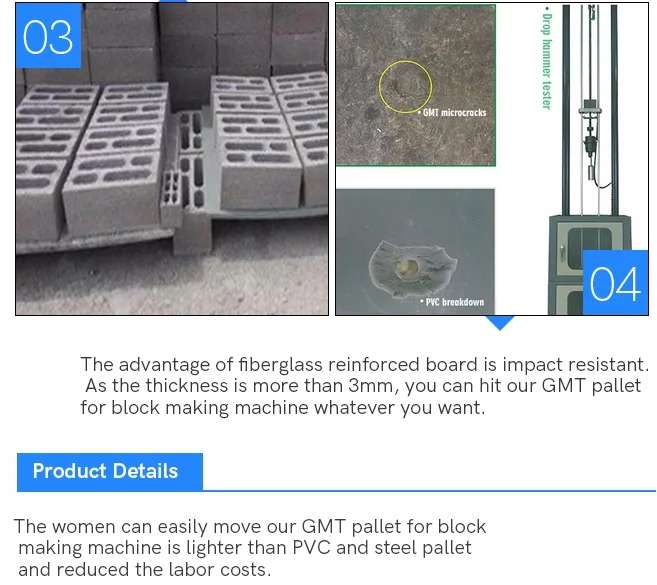

Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
3.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa. The following diagram: GMT plate bending effect compared with the PVC plate under the same stress conditions
4.Not Easily Deformed
5.Waterproof
Water absorption rate <1%
6.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed, surface wear is about 0.5mm.
7.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won't deform or crack.
GMT pallet is able to withstand high temperature of 60-90℃, won't easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree
8.Long Service Life
Theoretically, it can be used more than 8 years.
1.Light weight
Taking one pallet size 850*680 for example, with same thickness, our GMT pallet is lighter; for same weight, our GMT pallet is thinner. GMT pallet is lightest with high strength.
2.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions.
Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
3.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa. The following diagram: GMT plate bending effect compared with the PVC plate under the same stress conditions
4.Not Easily Deformed
5.Waterproof
Water absorption rate <1%
6.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed, surface wear is about 0.5mm.
7.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won't deform or crack.
GMT pallet is able to withstand high temperature of 60-90℃, won't easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree
8.Long Service Life
Theoretically, it can be used more than 8 years.

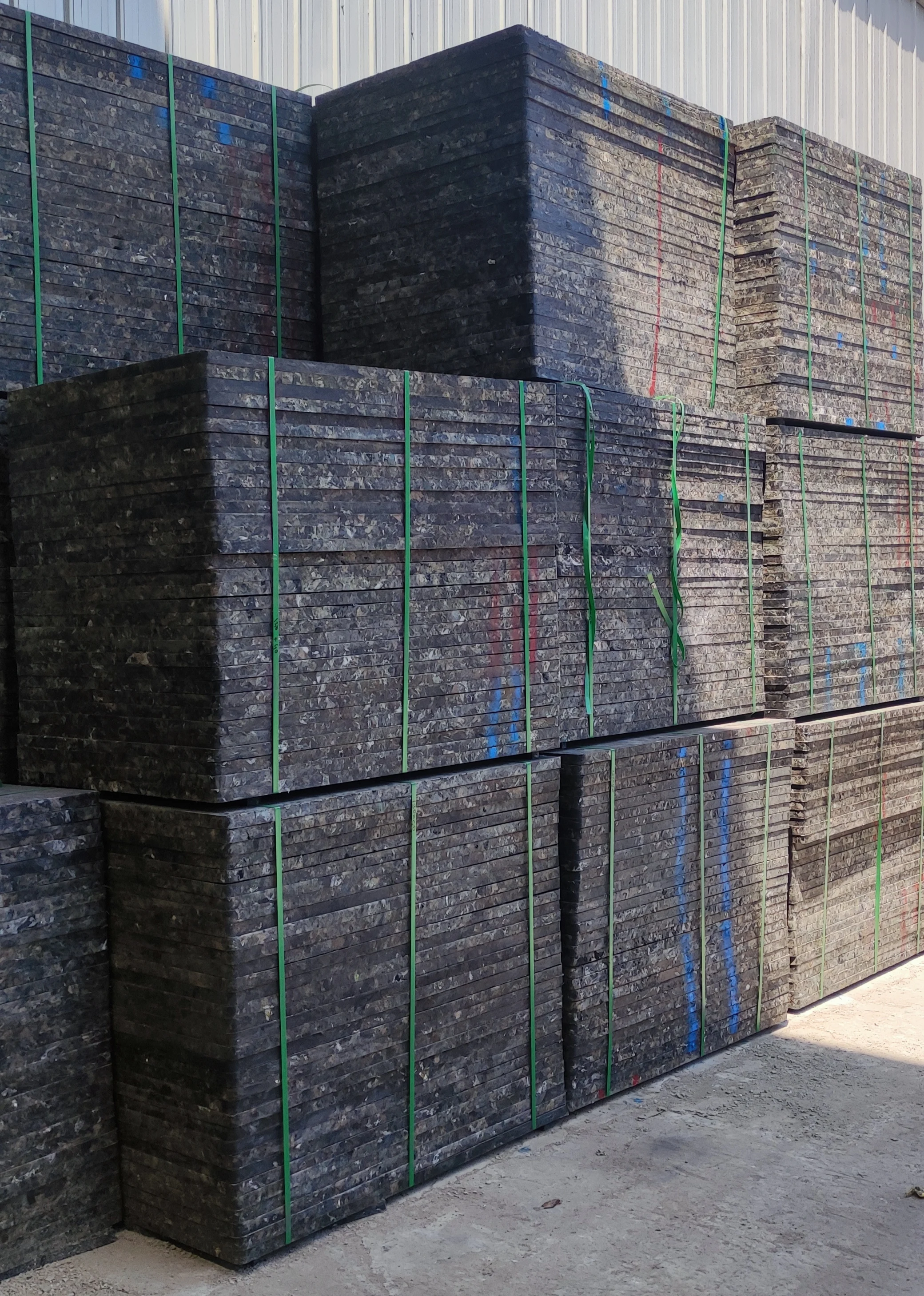

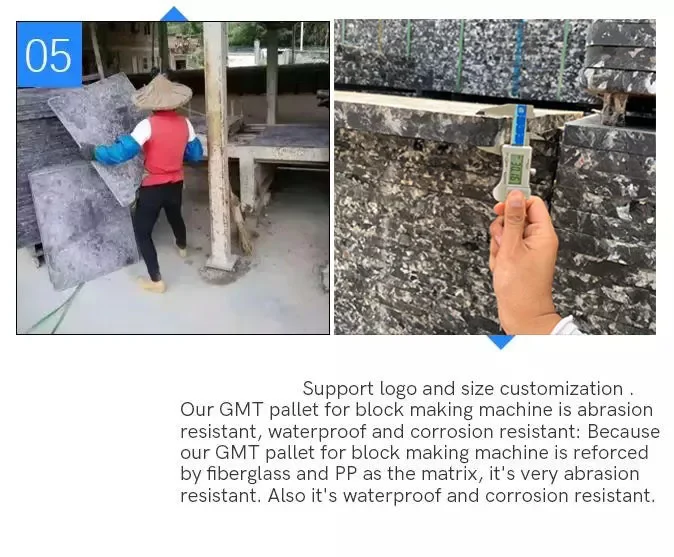

Details Images

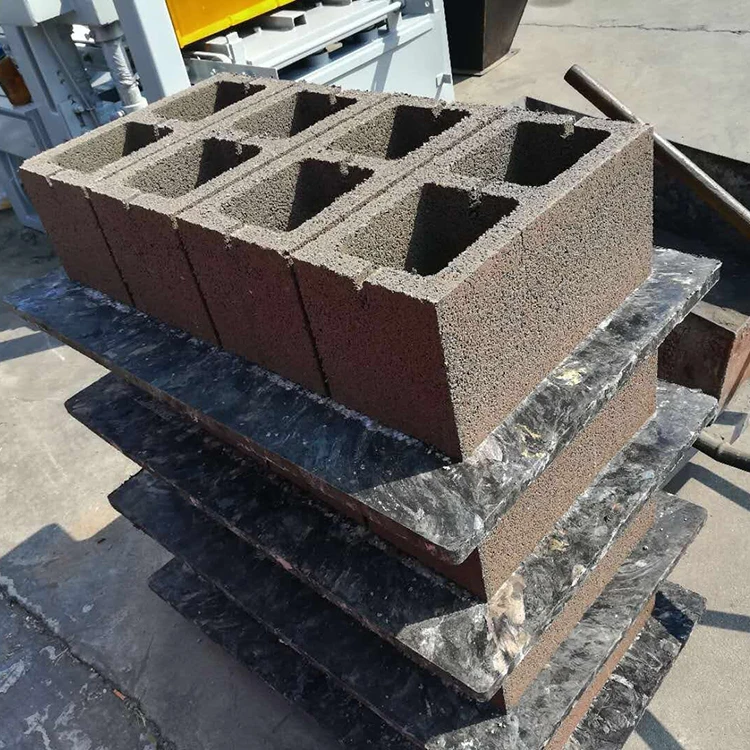

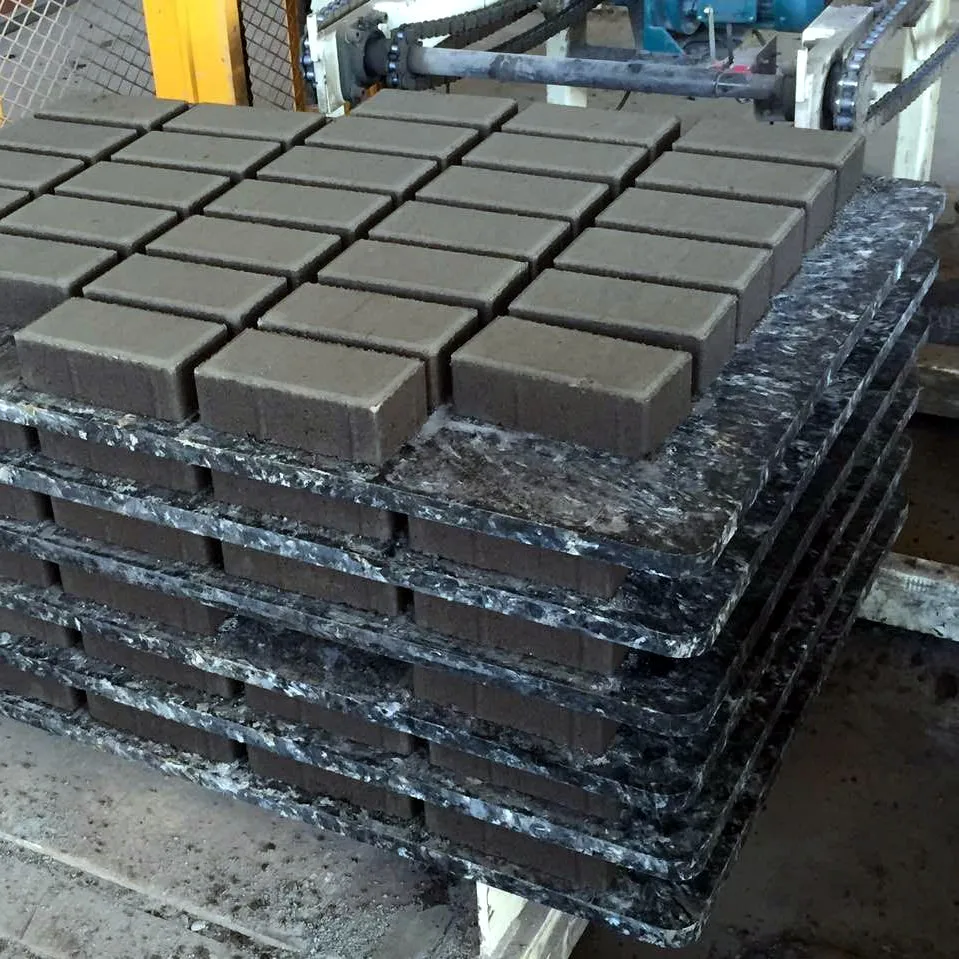

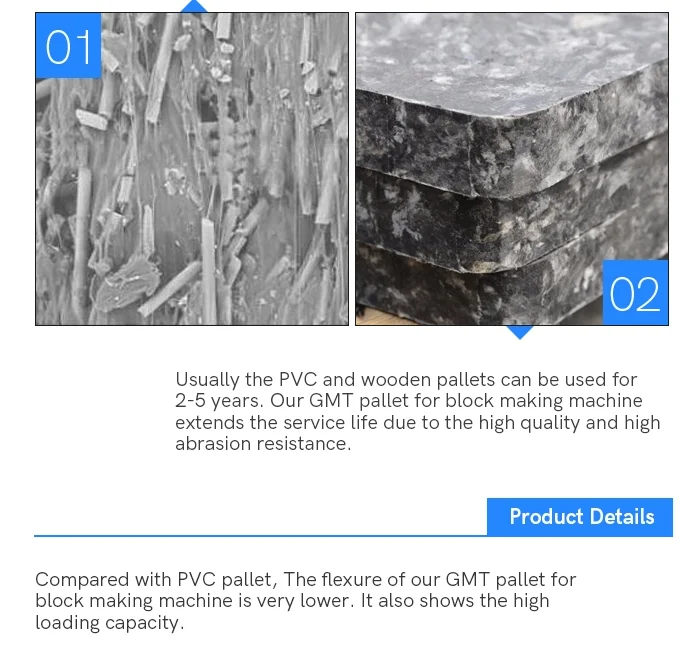

The GMT Brick Pallet made from the new type of GMT material, is produced by our company The scientific design and advanced molding technology has made our GMT Brick Pallet performing outstanding characteristics. It effectively solves the problems caused by some other material pallets, like the rust and heavy problems of steel, warping and brittle problems of plastic block pallet,and crack and abrasive wear problems of woods and bamboo brick pallet and tray.
GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century.
GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century.
SIMILAR PRODUCTS

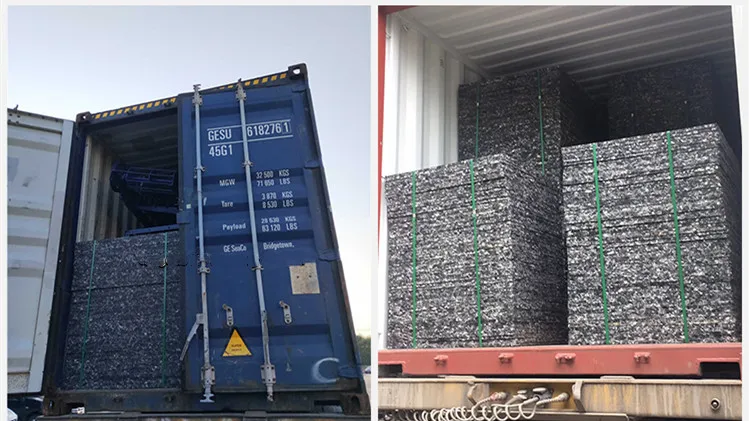

Packing&Delivery
