Product Description

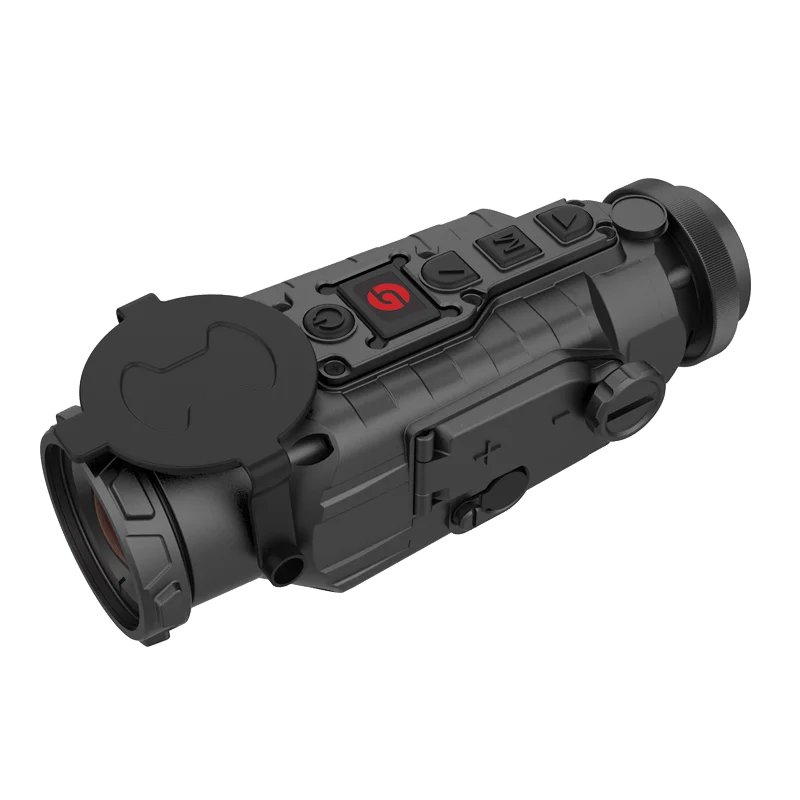

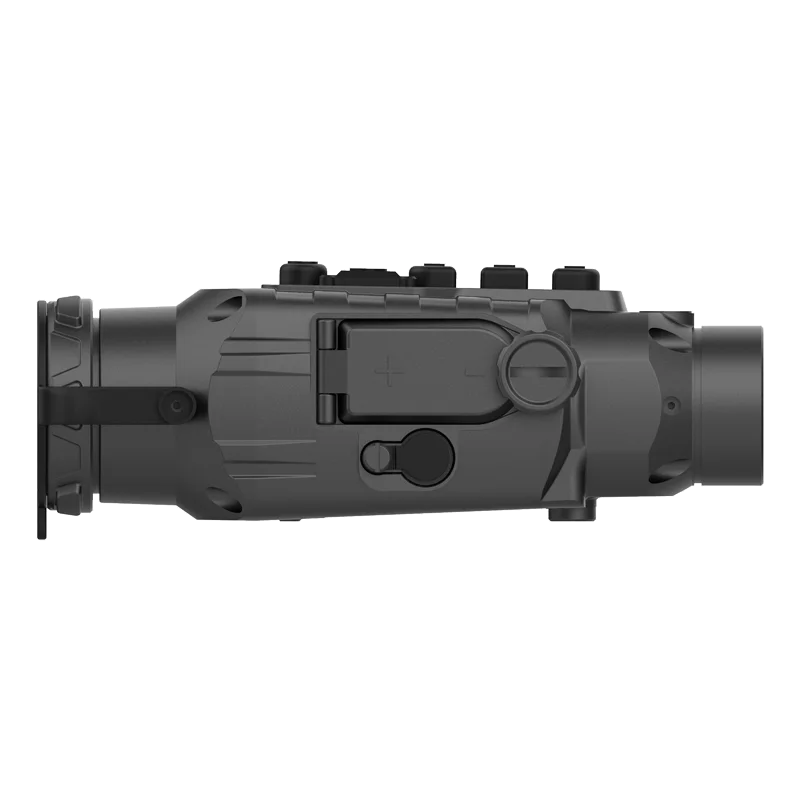

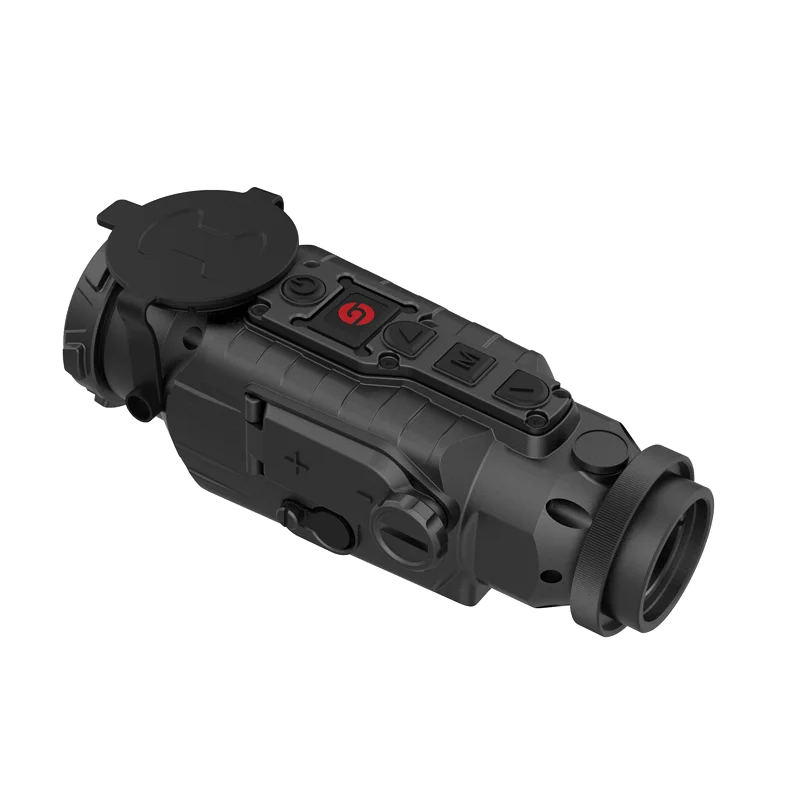

Guide Clip-on Thermal Imaging Attachment
TA450
GUIDE TA Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager. It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular as well. This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing,
providing excellent image in various environments.
providing excellent image in various environments.
400*300IR resolution
50mm F1.2Focal Length
7.5°×5.6°FOV
≤50mkNETD
50mm F1.2Focal Length
7.5°×5.6°FOV
≤50mkNETD
Mini, rugged and durable
It's lightweight (less than 450g) , ultra compact (178*58*62mm) with IP67 protection. It performances well even at -30℃.

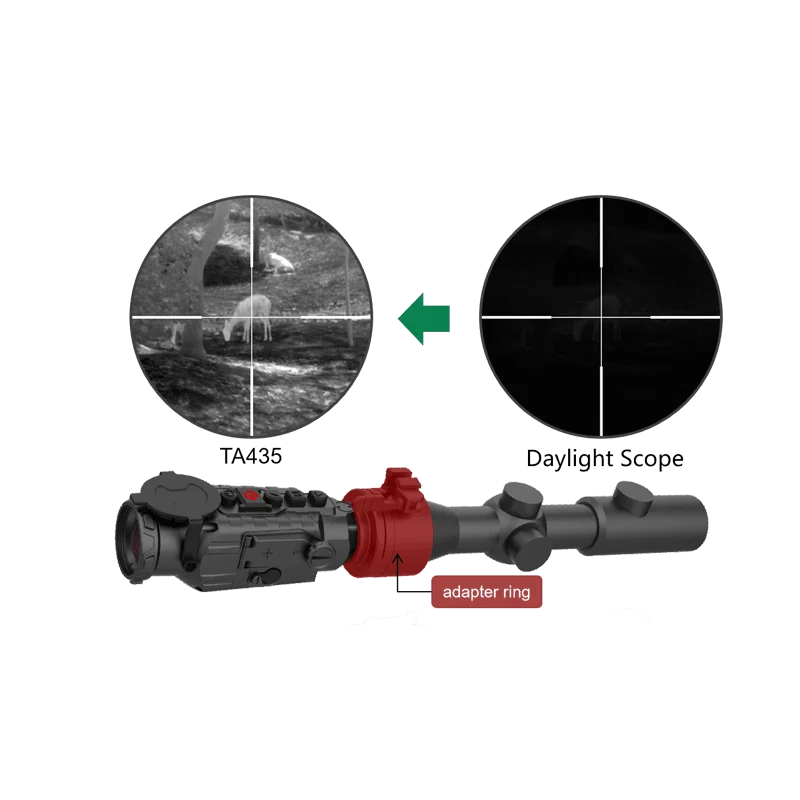

One-step installation，No re-zeroing
It can be quickly mounted to the front of your daylight scope, to add thermal imaging capability. No re-zeroing or any position adjustment is required. And it is compatible with multiple adapter rings(40mm~70mm).
Unique optical design to ensure accuracy
It features unique stray light analysis and processing technology, reserved window edge and strict assembly standards to ensure aiming accuracy and strong stability.
Full-color OLED display
The full-color OLED display enhances image quality, improving viewing comfort.
One device for dual use
Turn it into a thermal imaging monocular with an eyepiece. Or add it to a daylight scope, laser range finder and anemometer.
Five scene modes to suit various environments
Quickly switch among five scene modes (default / city / forest / snow / desert) with one button, the image will be adjusted according to the application environment to highlight the target.
Multiple palettes to highlight the target
Four pseudo-color palettes( white hot, black hot, red hot, green hot) are provided to timely identify its location in the scene. This helps to achieve all-weather observations.
One-click compensation to make image clearer
Several compensation ways are available to eliminate pepper noise, image jitters.
Wireless remote control
Optional Bluetooth remote controller for wireless control. Its button is a copy of the imager’s, improving operation comfort.
Model | TA425 | TA435 | TA450 | |||
Detector | ||||||
Detector type | Vox Uncooled | |||||
Resolution | 400*300 pixels | |||||
Pixel Size | 17um | |||||
NETD | ≤50mK | |||||
Frame Rate | 50Hz | |||||
Optics | ||||||
Objetive lens | 25mm/F1.1 | 35mm/F1.2 | 50mm/F1.2 | |||
Field of View | 14.6° x 11.0° | 10.66° x 8.0° | 7.5° x 5.6° | |||
Focusing | Manual | |||||
Display | ||||||
Type | 3.9 inch OLED | |||||
Resolution | 1024×768 px | |||||
Eye piece | Pupil distance of eyepiece 10mm, Pupil caliber 20mm | |||||
Digital zoom | 1x | |||||
Image processing | ||||||
Frame rate | 50Hz(PAL) | |||||
Digital zoom | 2x/4x | |||||
Auto tracking | Hotspot tracking | |||||
Calibration | Automatic calibration/ Manual calibration (shutter) /Manual scene compensation | |||||
Scenes Modes | Enhanced, Highlight, Natural | |||||
Color Palettes | Black hot, white hot, red hot, green hot | |||||
Contrast/Brightness | Adjustble | |||||
Electrical Parameters | ||||||
Battery | CR123A×2/ICR16340×2 | |||||
Power Supply | can be powered by 5V2A external power supply | |||||
Max. Battery Life | Continuous Operating over 3 hours@25°C | |||||
Interface | ||||||
7-Pin LEMO Interface | Support video output and external power supply | |||||
Environment parameter | ||||||
Operating Temperature | -30°C-50°C | |||||
StorageTemperature | -45°C-70°C | |||||
Impact | 500G/1ms | |||||
Humidity | Working and storage10% ～ 95%, Non condensing | |||||
Water proof | IP67 | |||||
Certificate | RoHS/CE/FCC | |||||
Physic Parameters | ||||||
Weight | <400g | <400g | <450g | |||
Dimension | 150×52×57mm | 150×52×57mm | 178x58x62mm | |||
Detection Range | ||||||
Human: 1.8m×0.5m | 1000m | 1000m | 1400m | |||
Vehicle: 2.3m×2.3m | 2400m | 2400m | 3000m | |||
Identification Range | ||||||
Human: 1.8m×0.5m | 500m | 500m | 700m | |||
Vehicle: 2.3m×2.3m | 1000m | 1000m | 1400m | |||
Related Products
Packing&Shipping
We deliver the item safely by Express, Air cargo and all routes available. Please contact us for more details.
Company Introduction
Armer Tech has been engaged in thermal and night vision industry for a decade, is a professional supplier of hunting and outdoor sports products, all of which are the high-end quality standard products be exported to worldwide. The cooperation between us will be mutual benefit and reciprocity, every client will deserve a valuable guarantee from us. The low quality always with high warranty, it`s a trouble maker for both of seller & buyer/user, so we will solve this issue from the original quality control: best material be used, professional inspected team control the quality of each part and each product during producing, test product again and again. We insist on full inspection of products before shipment. we appreciate every partner who will interesting to cooperate with us, your support is our faithful treasures.
Our Services & Strength
Armer Tech has been engaged in thermal and night vision industry for a decade,is a professional supplier of hunting and outdoor sports products. We insist on full inspection of products to guarantee product quality.We provide 24 hours a day service reception.
FAQ
Can this product be delivered to my address?
This product is a sensitive product, please consult customer service.
Похожие товары
Дальняя инфракрасная камера ночного видения
117,00 $ - 159,00 $
NVD-B02T3-6-36X50 ночного
320,00 $ - 330,00 $
Оптический инфракрасный лазер NV380 с зумом дальность эффективного освещения 380 м цифровой бинокль ночного видения
128,90 $ - 169,00 $
gen1 ночного видения сферы

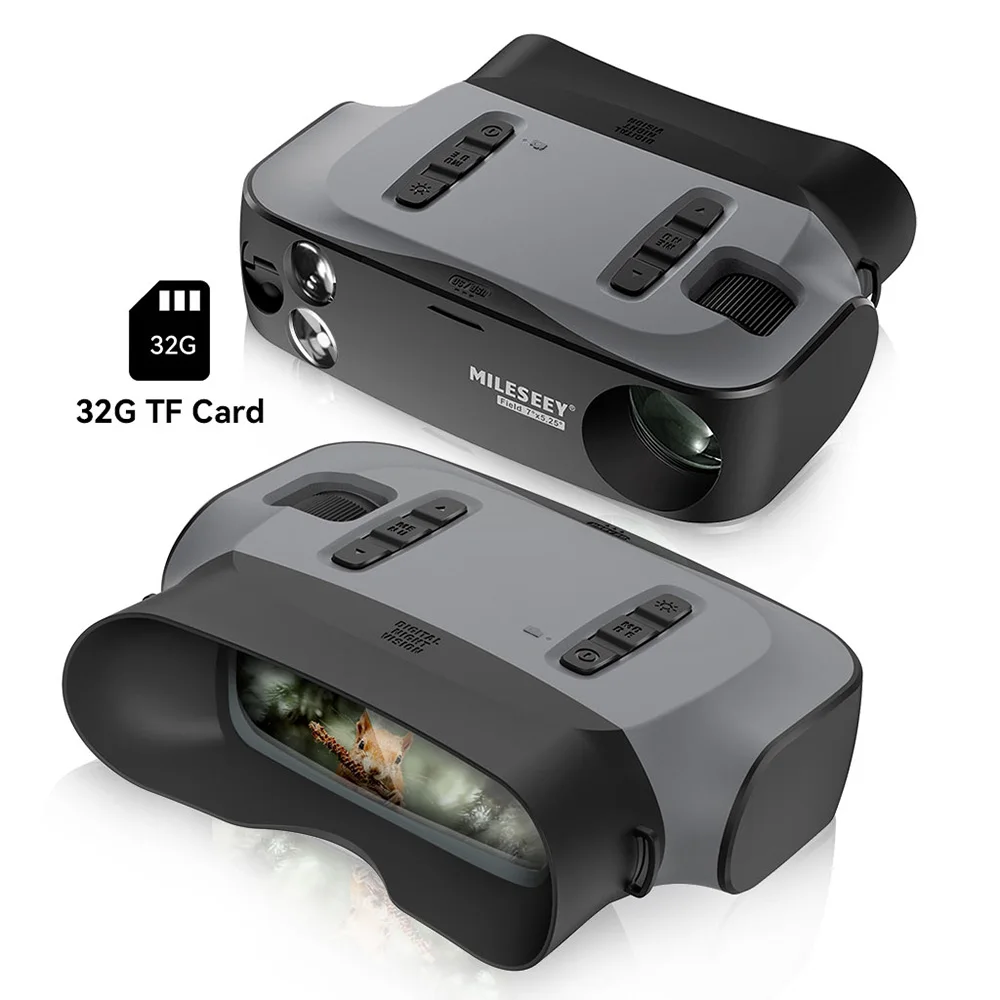

Инфракрасная камера для фотосъемки Mileseey NV20 с функцией ночного
