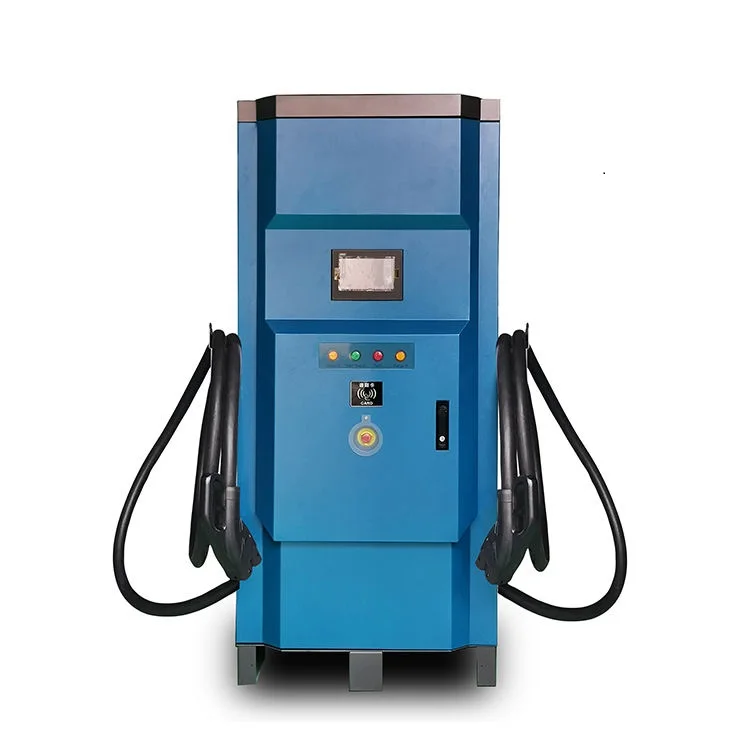

Зарядное устройство для электромобилей мощностью 60 кВт, 80 кВт, 3 пистолета, мультивыходное быстрое зарядное устройство для электромобилей с постоянным током, быстрое зарядное устройство для электромобилей Ccs Chademo
9 024,00 $ - 9 400,00 $

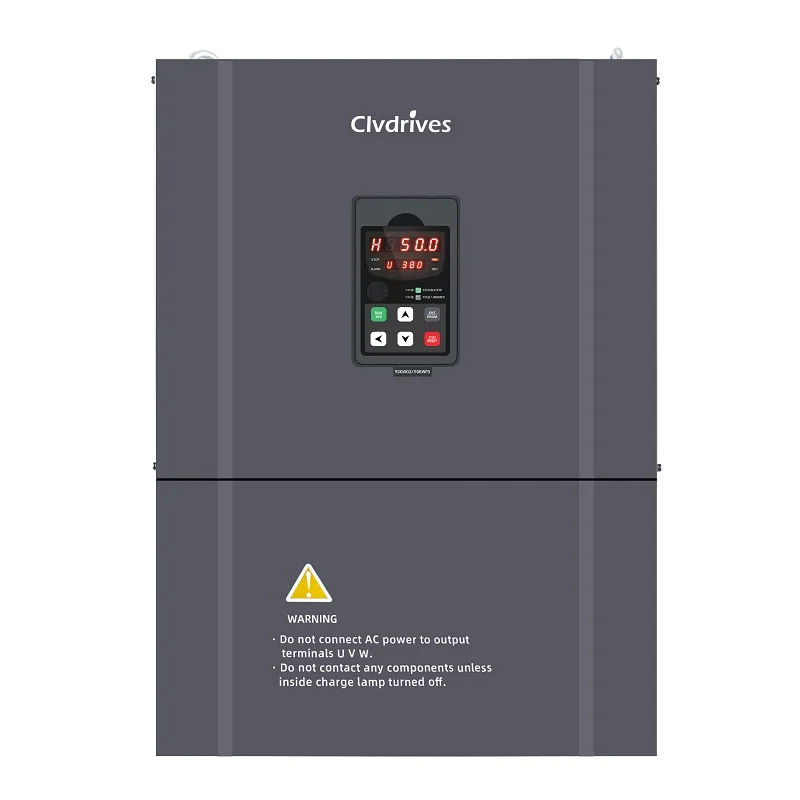

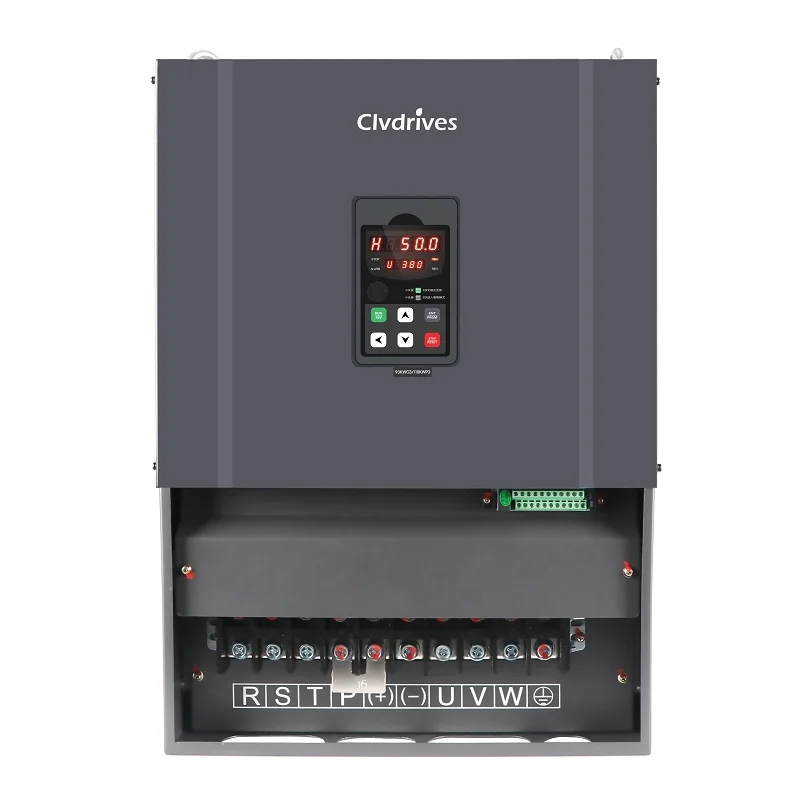

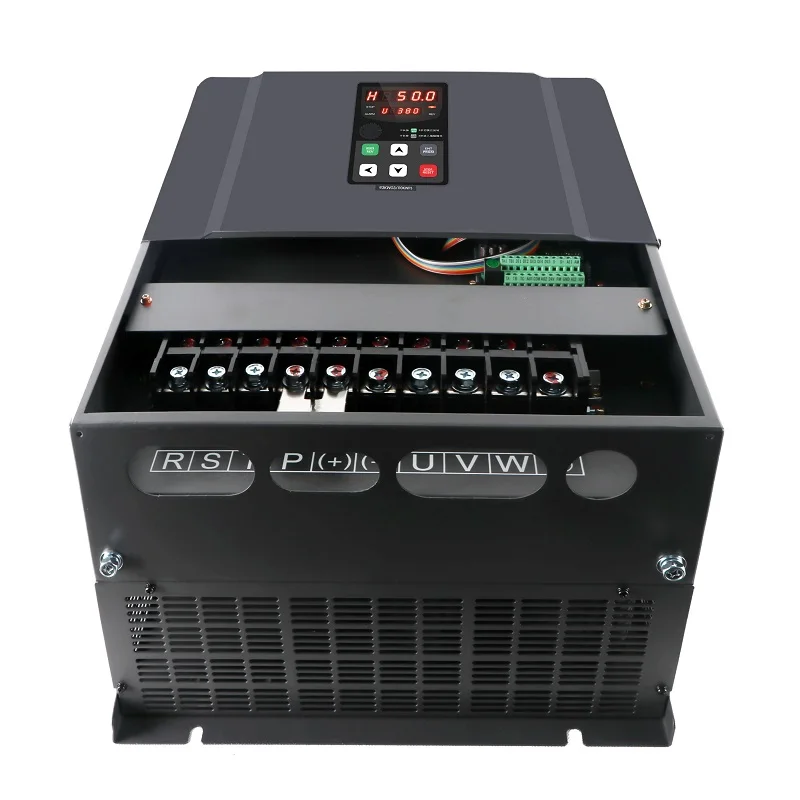

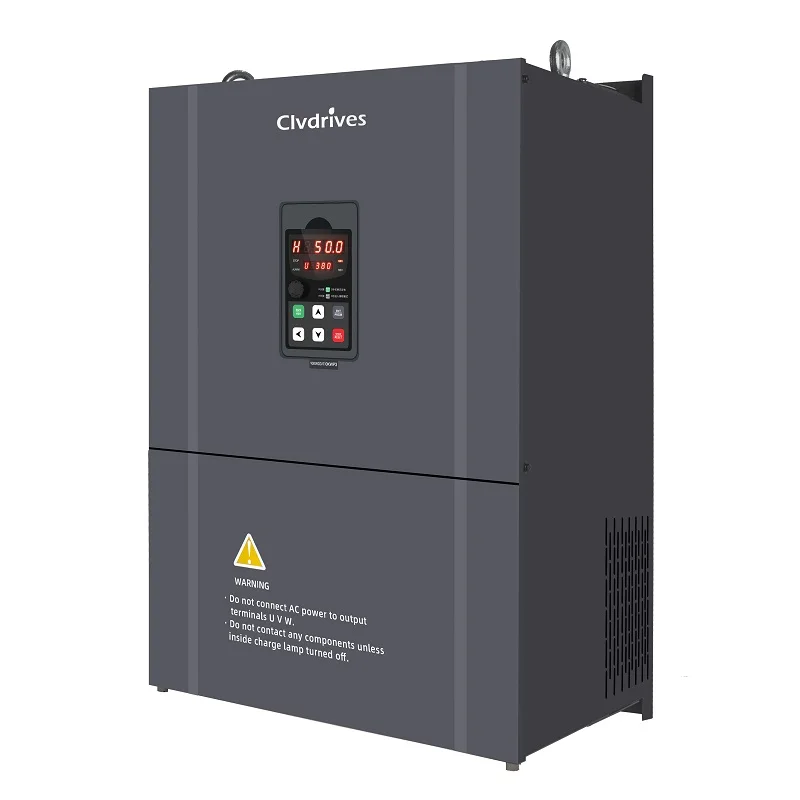

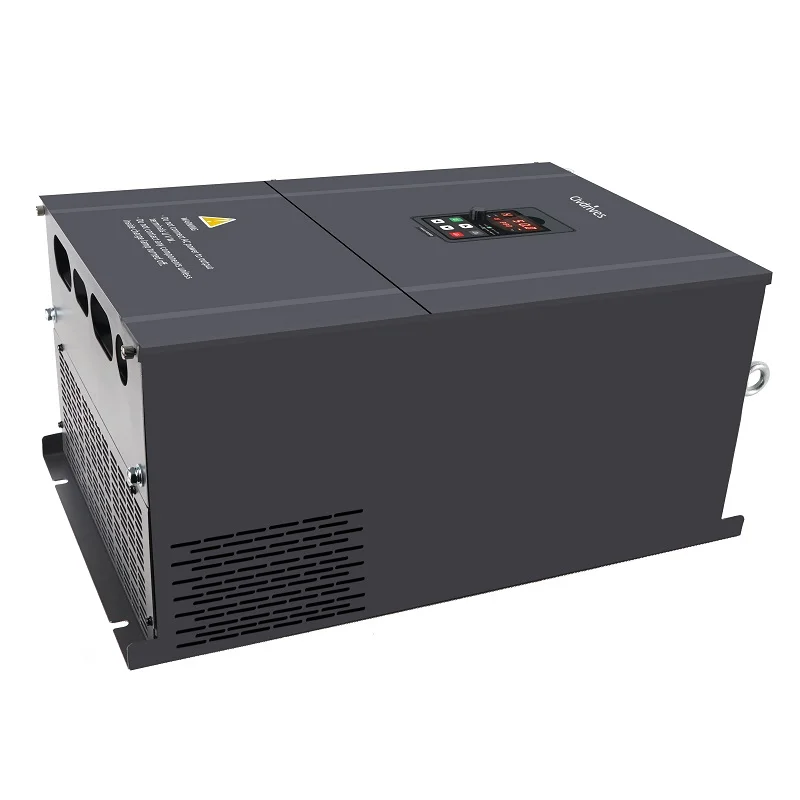

Преобразователь частоты 45 кВт 60 л.с. 3 фазы 220 В переменного тока приводы VFD 50 Гц высокая производительность заводская
- Категория: >>>
- Поставщик: CLV Drives Co. Ltd.
Сохранить в закладки 1600574710505:
Описание и отзывы
Характеристики
Products Series
Single-phase power supply: 220V, 50/60Hz | ||||||||
Model No | Output Power | Net Weight (Kg) | Rated Output Current(A) | Product Dimensions L*W*H(mm) | ||||
V1000-V0007G1 | 0.75 KW 1HP | 0.8 | 4 | 170*86*131.5 | ||||
V1000-V0015G1 | 1.5KW 2HP | 0.8 | 7 | 170*86*131.5 | ||||
V1000-V0022G1 | 2.2KW 3HP | 2 | 10 | 180*96*151 | ||||
Three-phase power supply: 220V, 50/60Hz | ||||||||
Model No | Adaptation Motor | Net Weight (Kg) | Rated Output Current(A) | Product Dimensions L*W*H(mm) | ||||
V1000-V0040G2 | 4kW 5HP | 3 | 16 | 221.6*113*166.5 | ||||
V1000-V0055G2 | 5.5kW 7.5HP | 3.5 | 25 | 265*160*171.5 | ||||
V1000-V0075G2 | 7.5kW 10HP | 3.5 | 32 | 265*160*171.5 | ||||
V1000-V0110G2 | 11kW 15HP | 6.5 | 45 | 302.5*192*171.5 | ||||
V1000-V0150G2 | 15kW 20HP | 11 | 60 | 348.5*227*171.5 | ||||
V1000-V0185G2 | 18.5kW 25HP | 11 | 75 | 490*327.5*238 | ||||
V1000-V0220G2 | 22kW 30HP | 22 | 90 | 490*327.5*238 | ||||
V1000-V0300G2 | 30kW 40HP | 22 | 110 | 490*327.5*238 | ||||
V1000-V0370G2 | 37kW 50HP | 29 | 150 | 528*303*292 | ||||
V1000-V0450G2 | 45kW 60HP | 29 | 170 | 528*303*292 | ||||
V1000-V0550G2 | 55kW 70HP | 47 | 210 | 690*370*350 | ||||
V1000-V0750G2 | 75kW 100HP | 71 | 300 | 720*410*360 | ||||
V1000-V0930G2 | 93kW 125HP | 71 | 340 | 720*410*360 | ||||
V1000-V1100G2 | 110kW 150HP | 71 | 415 | 720*410*360 | ||||
V1000-V1320G2 | 132kW 175HP | 120 | 520 | 963*600*380 | ||||
Three-phase power supply: 380V, 50/60Hz | ||||||||
Product ID | Adaptation Motor | Net Weight (Kg) | Rated Output Current(A） | Product Dimensions L*W*H(mm) | ||||
V1000-V0007G3 | 0.75 KW 1HP | 1.5 | 2.5 | 170*86*131.5 | ||||
V1000-V0015G3 | 1.5KW 2HP | 1.5 | 3.7 | 170*86*131.5 | ||||
V1000-V0022G3 | 2.2KW 3HP | 1.5 | 5.1 | 170*86*131.5 | ||||
V1000-V0040G3 | 4KW 5HP | 2.5 | 8.5 | 180*96*151 | ||||
V1000-V0055G3 | 5.5KW 7.5HP | 3 | 13 | 221.6*113*166.5 | ||||
V1000-V0075G3 | 7.5KW 10HP | 3 | 16 | 221.6*113*166.5 | ||||
V1000-V0110G3 | 11KW 15HP | 3.5 | 25 | 265*160*171.5 | ||||
V1000-V0150G3 | 15KW 20HP | 3.5 | 32 | 265*160*171.5 | ||||
V1000-V0185G3 | 18.5KW 25HP | 6.5 | 38 | 302.5*192*171.5 | ||||
V1000-V0220G3 | 22KW 30HP | 6.5 | 45 | 302.5*192*171.5 | ||||
V1000-V0300G3 | 30KW 40HP | 11 | 60 | 348.5*227*171.5 | ||||
V1000-V0370G3 | 37KW 50HP | 11 | 75 | 348.5*227*171.5 | ||||
V1000-V0450G3 | 45KW 60HP | 22 | 90 | 490*327.5*238 | ||||
V1000-V0550G3 | 55KW 70HP | 22 | 110 | 490*327.5*238 | ||||
V1000-V0750G3 | 75KW 100HP | 29 | 150 | 528*303*292 | ||||
V1000-V0930G3 | 93KW 125HP | 29 | 170 | 528*303*292 | ||||
V1000-V1100G3 | 110KW 150HP | 47 | 210 | 690*370*350 | ||||
V1000-V1320G3 | 132KW 175HP | 47 | 250 | 690*370*350 | ||||
V1000-V1600G3 | 160KW 210HP | 71 | 300 | 720*410*360 | ||||
V1000-V1850G3 | 185KW 245HP | 71 | 340 | 720*410*360 | ||||
V1000-V2000G3 | 200KW 260HP | 71 | 380 | 720*410*360 | ||||
V1000-V2200G3 | 220KW 300HP | 71 | 415 | 720*410*360 | ||||
V1000-V2500G3 | 250KW 350HP | 120 | 470 | 963*600*380 | ||||
V1000-V2800G3 | 280KW 370HP | 120 | 520 | 963*600*380 | ||||
V1000-V3150G3 | 315KW 400HP | 120 | 600 | 963*600*380 | ||||
V1000-V3500G3 | 355KW 420HP | 226 | 650 | 1362*818*404.5 | ||||
V1000-V4000G3 | 400KW 530HP | 226 | 725 | 1362*818*404.5 | ||||
V1000-V4500G3 | 450KW 595HP | 226 | 820 | 1362*818*404.5 | ||||
V1000-V5000G3 | 500KW 660HP | 226 | 980 | 1362*818*404.5 | ||||
Products Description
Technical Specifications
Control System | High performance of current vector control technology to realize 3 phase asynchronous motor control |
Maximum Frequency | Vector Control: 0~500Hz V/F Control: 0~500Hz |
Control Mode | Open Loop Vector Control(SVC) V/F Control |
Startup Torque | G Type: 0.5Hz/150%(SVC); 0Hz/180%(SVC); P Type: 0.5Hz/100% |
Speed Tracking | Prevent overload, overcurrent, and overvoltage caused by motor stall |
Overload Capability | G Type:150% rated current 60 seconds; 180% rated current 3 seconds; P Type:120% rated current 60 seconds; 150% rated current 3 seconds |
DC Brake | DC Brake Frequency: 0.00Hz to maximum frequency Brake time: 0.0s to 36.0s Brake current value: 0.0% to 100.0% |
Jog Control | Jog Frequency Range: 0.00Hz~50.00Hz Jog Acceleration/deceleration Time 0.0s~6500.0s |
Quick Current Limit | Minimize the over-current fault, protect normal operation of the Inverter. |
Mains loss Ride Through | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make Inverter keep running in a short period of time. |
Command Source | Operation panel reference, control terminal reference, and serial COM port reference. It can be switched in various ways. |
Input Terminal | Standard: 5 Digital input terminals 2 Analog input terminals 1 Support 0-10V voltage input or 0~20mA current input. |
Output Terminal | Standard: 2 Digital output terminals 1 Relay output terminal, which can be expanded into 2 channels 1 Analog output terminals, support 0~10V output voltage. |
Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection. |
Simple PLC and Multi-speed Running | Maximum of 16 segments speed running |
Communication Protocol | Modbus |
Ambient Temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
Humidity | Less than 95%RH, without condensing |
Vibration | Less than 5.9m/s (0.6g) |
Company Profile
CLV Drives Co., Ltd. is a high-tech enterprise which is dedicated in the R&D, manufacturing and sales of electrical drive and Inverter products. Based on the variable frequency control technology with independent intellectual property rights, CLV is positioned to serve the middle and high-end equipment manufacturers, to rapidly provide users with customized solutions so as to achieve the common growth of enterprise value and customer value.
At present, the company has mastered motor drive, vector control and permanent magnet synchronous motor control technology and other core platform technologies. CLV Drives has been a leader in variable frequency drive(VFD) and industrial automation control technology, and is committing to promote industrial civilization with leading technology, as well as providing users with more intelligent and more reliable Inverter products and energy saving applications.
The main products are: V1000 general purpose inverter, PV500 solar pump inverter, 800 series inverter cabinet and so on, which are with leading edge design and technology, incredible performance, global network of specialist sales and service partners, global engineered support, world class manufacturing, low cost of installation.
Packaging and Warehouse
We have cartons and wooden boxes, which are packed in cartons below 75KW and wooden boxes above 93KW. Thickened shockproof foam is filled inside to prevent damage to equipment in transit.
Why Choose Us
FAQ
Q1. Are you trading company or manufacturer ?
A: We are factory.
Q2. How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q3. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q4. What is your terms of payment ?
A: We accept T/T, L/C, Western Union, Money Gram.
Q5. What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q6. Is there any discount ?
A: The discount will depend on the quantity you purchase.
Q7. What is your supply capacity?
A: The week output of the factory exceeds 500 PCS.
Q8. Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
A: We are factory.
Q2. How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q3. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q4. What is your terms of payment ?
A: We accept T/T, L/C, Western Union, Money Gram.
Q5. What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q6. Is there any discount ?
A: The discount will depend on the quantity you purchase.
Q7. What is your supply capacity?
A: The week output of the factory exceeds 500 PCS.
Q8. Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
Q9. Could CLV Drives provide technical support?
A: We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
A: We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
Похожие товары

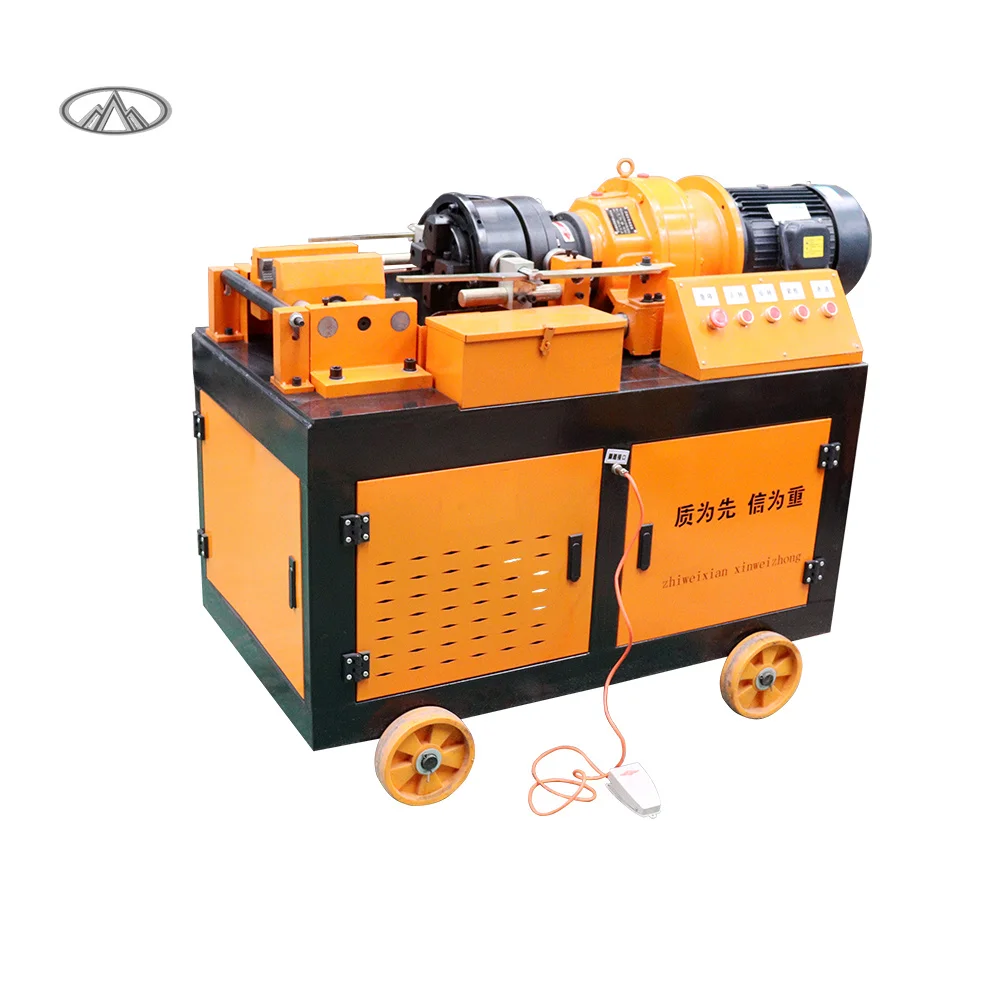

Горячая продажа арматуры автоматический резьбонакатные машина стальной стержень резьбонарезной станок 7.5Kw 380V длина 80 мм для Высокое
989,00 $

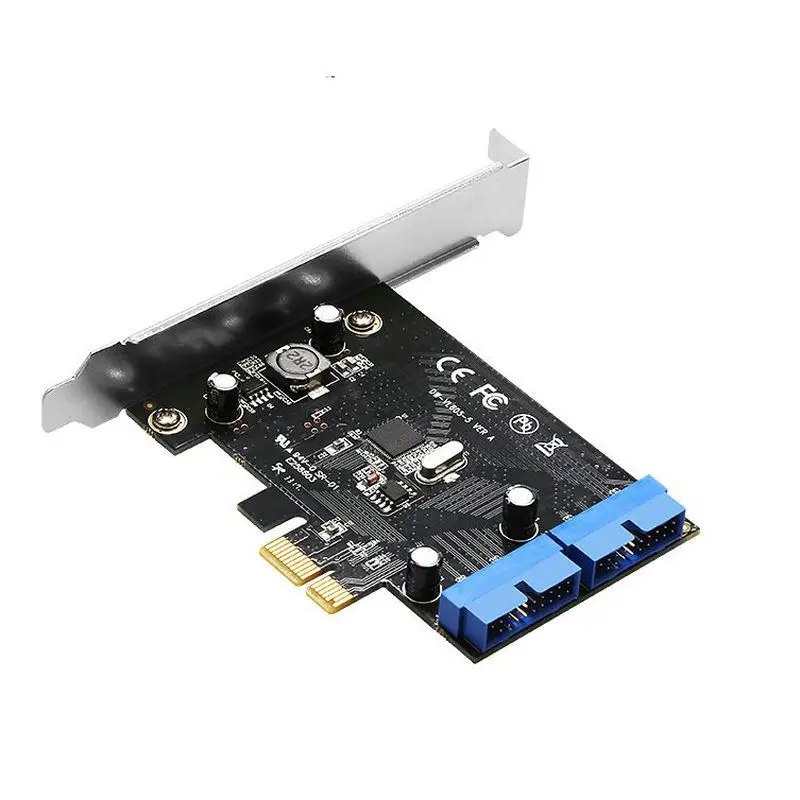

PCI Express на двойной 20-контактный USB 3,0 контроллер карты PCI-E X1 на 2 порта USB 3,0 заголовок с низкопрофильным кронштейном

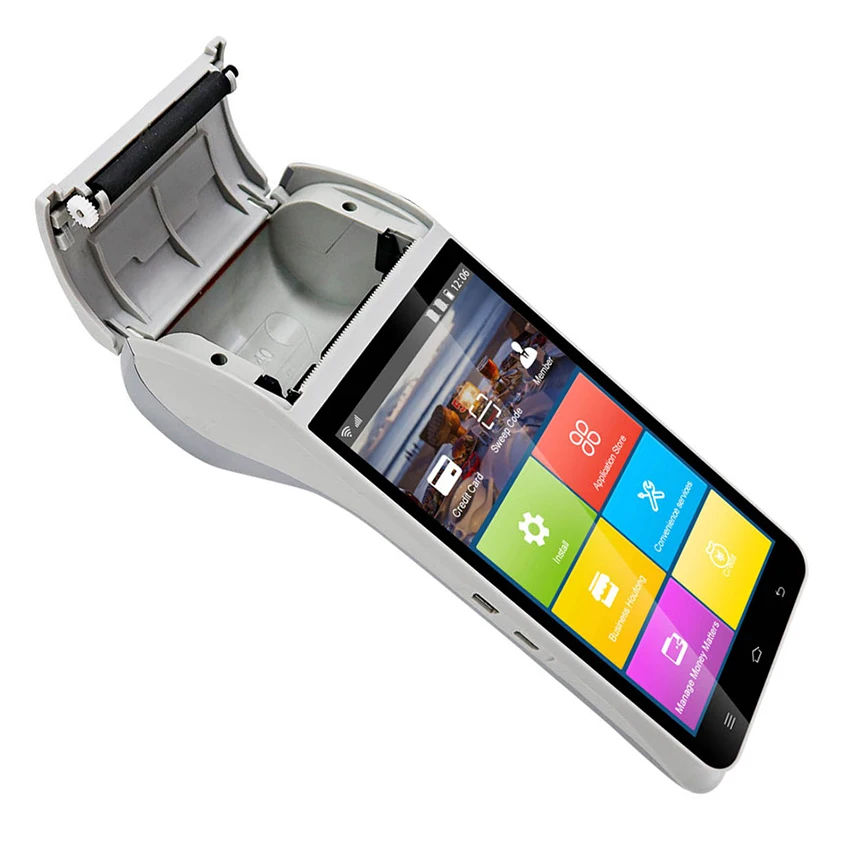

Ручные кассовые аппараты для ресторанов ZCS 91, сенсорный беспроводной pos-терминал с ЖК-экраном
Нерасширенные поставщики perlite la 100l perlite prix perlit bubuk по низкой цене
253,00 $

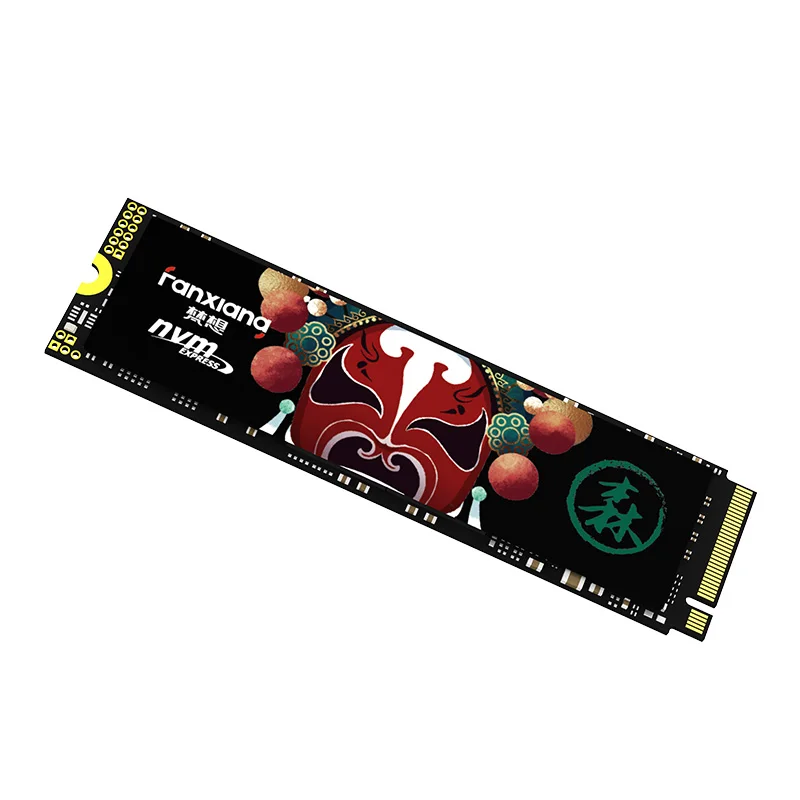

Регулятор тепла 256 ГБ 500 1 ТБ 2 M2 M.2 2280 PCIe 3 0 Gen3 Внутренний твердотельный накопитель (SSD диски для

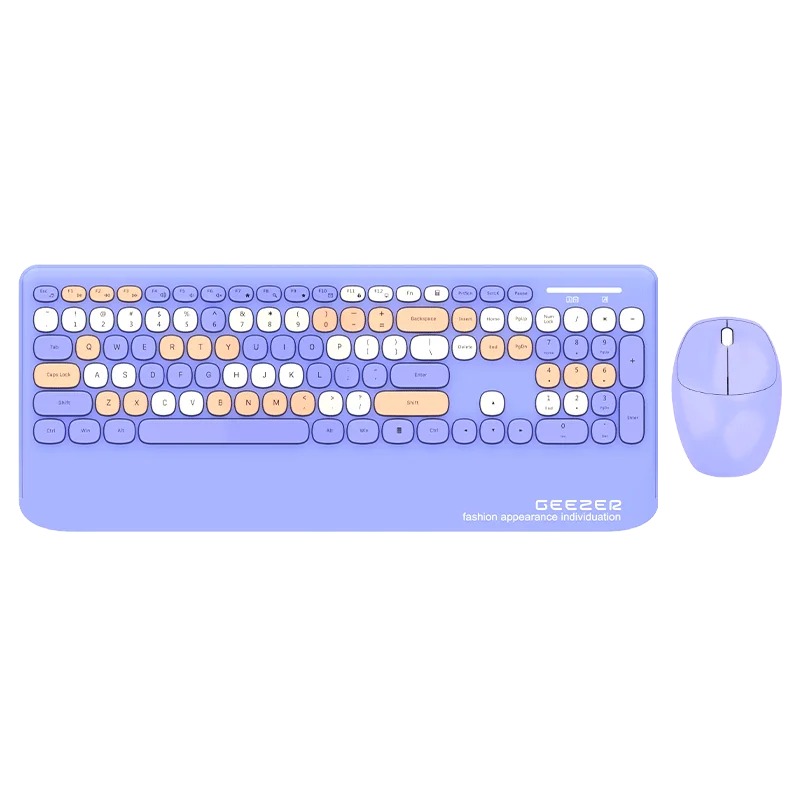

GEEZER многоцветный модный 2,4 ГГц беспроводная клавиатура и мышь комбо с красочной подкладкой для рук
