Газовая труба N Тип молниеотвод 400 Вт коаксиальный Защита от перенапряжения
- Категория: >>>
- Поставщик: Shenzhen Kailifeng Industry Co. Limited.
Сохранить в закладки 1600574725835:
Описание и отзывы
Характеристики
Product Description

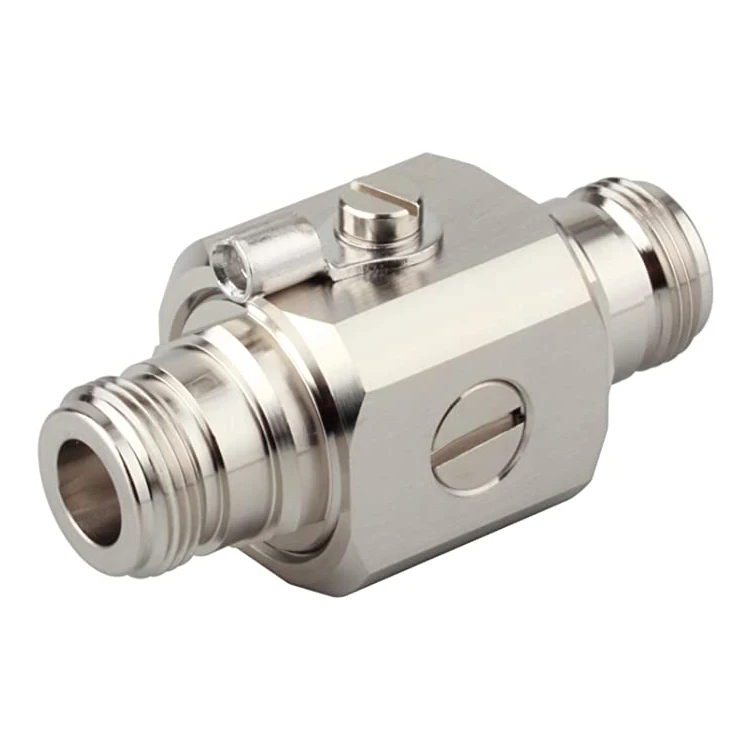

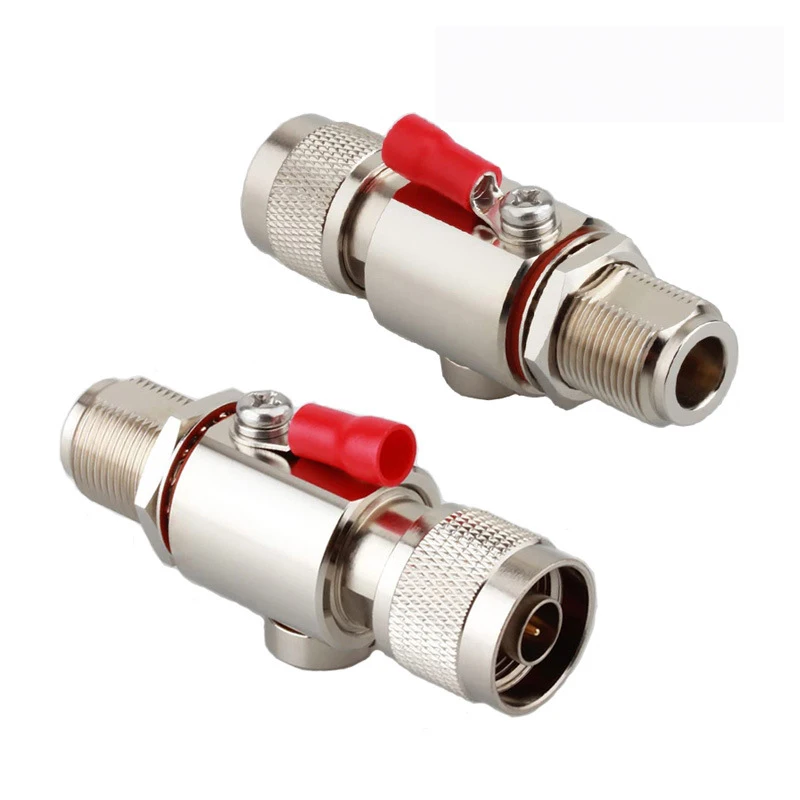

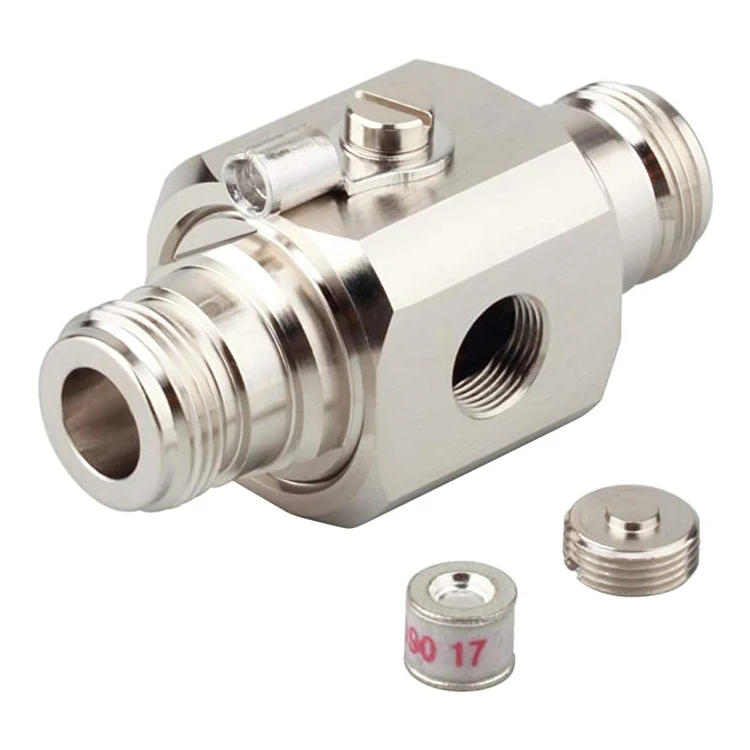

Gas tube N type lightning arrester 400w coaxial lightning surge protection protector
Product Features:
This product apply to the lightning surge protection of antenna system:such as satellite antenna, microwave, cable TV lines, etc.
◆ Large rated discharge current and fast response time.
◆ Over-current, over voltage and clamp triple protection design.
◆ Adopt standard connectors, with advantage of small size, light weight,easy installation and simple maintenance.
◆ Matching impedance, interface form and frequency can be chosen arbitrary.
◆ It is used for the lightning protection of the sending and receiving system, such as wireless access system, mobile communications, cable TV and transformer station electronic equipment.
This product apply to the lightning surge protection of antenna system:such as satellite antenna, microwave, cable TV lines, etc.
◆ Large rated discharge current and fast response time.
◆ Over-current, over voltage and clamp triple protection design.
◆ Adopt standard connectors, with advantage of small size, light weight,easy installation and simple maintenance.
◆ Matching impedance, interface form and frequency can be chosen arbitrary.
◆ It is used for the lightning protection of the sending and receiving system, such as wireless access system, mobile communications, cable TV and transformer station electronic equipment.
Specification
TYPE | KLF-X-N | KLF1000-40KA/2 | KLF1000-40KA/3 | ||
Operating Voltage (Un): | 90V | 100V | 275V | ||
Nominal Discharge Current (8/20μ s) (In): | 5KA | 20KA | 20KA | ||
Max. Discharge Current (8/20μ s) (Imax.): | 10KA | 40KA | 40KA | ||
Voltage Protection Level( Up): | ≤600KV | ≤3.5KV | ≤3.8KV | ||
Frequency range: | 0-3G,0-6G | ||||
Insertion Loss: | < 0.2dB | ||||
Standing-wave ratio: | ≤1.2 | ||||
Maximum output power: | 300W | ||||
Matching impedance: | 50Ω | ||||
Working Environment: | Temperature -40°C +80°C;Relative humidity<95%; | ||||
indicate deterioration: | green(normal),red(malfunction) | ||||
Dimension(mm): | 70×27×25 | 90×54×66 | |||
Weight(kg) : | 0.13 | 0.42 | |||
Female to Male;Female to Female

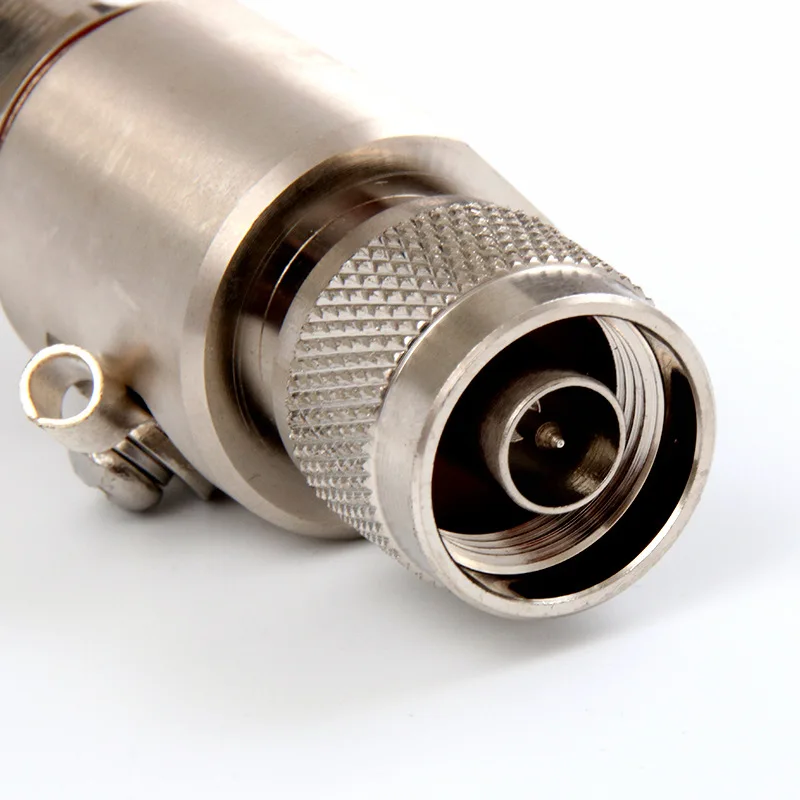

Male connector

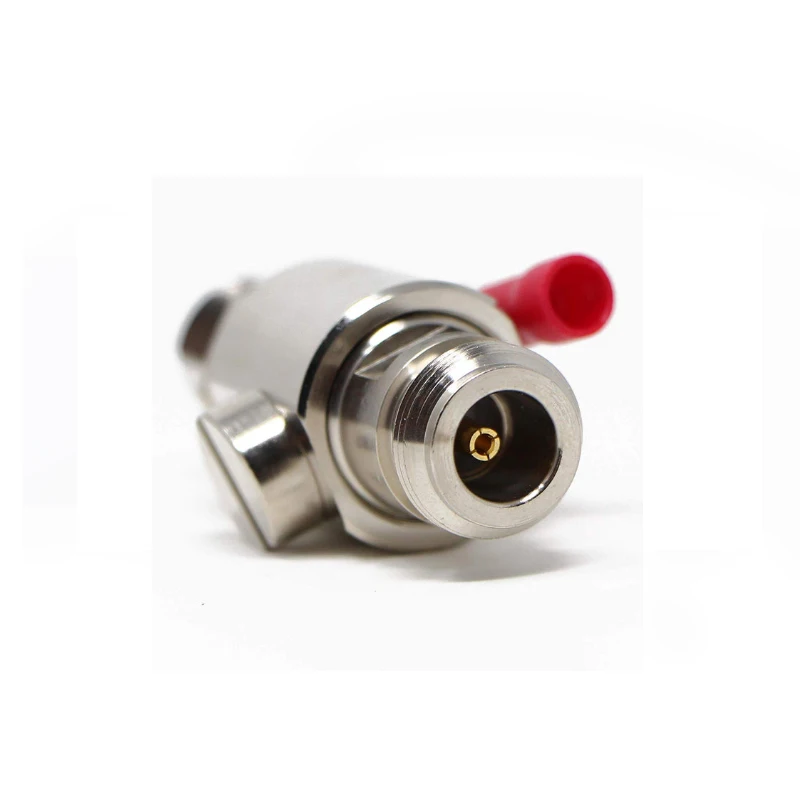

Female connector
Payment & Shipment
Best Selling
Company Introduction
Shenzhen KAILIFENG Industry CO.LTD, established in 2004, is a famous Chinese professional manufacturer engaged in the researchdevelopment, product, sale and service of control signal surgeprotector, power surge protector, lightning rod, earth rod and so on.
Customer Photos
FAQ
1.What kind of damage caused by lightning?
Lightning strikes the ground over 25 million times each year. It exceeds one hundred million volts and brings catastrophic damage to whatever it hits. Thousands of houses burn down, and millions of machines break down every year due to lightning strikes, which cased loss more than billions of dollars, even life lost.
If we get use of surge protector, we could keep lightning away, life and dollars save.
2.Does surge protection devices attract lightning?
Lightning protection does not attract or repel lightning. Like water in a pipe, it provides it a safe path to ground and away from your home, family and expensive electronics.
3. Can I get a sample before the order because I really don't know your surge protection devices quality?
Of course!
We also think sample order is the best way to build the trust.
4. I am not familiar with surge protection devices, so I need your technical service and best quote which could help me to finish
NO PROBLEM!
Our R&D team is experienced, we have helped many customers to finish their projects.
So just tell us your requirements, then everything we will solve perfectly for you.
5. How about delivery time of surge protection devices?
For sample order 1-2days, and for batch order of standard SPD we promise delivery in 7- 15days.
6. How's the warranty time of surge protection devices?
We provide 5years warranty for our surge protection devices.
What’s more, in the first year, any failed products caused by quality problem will be replaced by us freely, also cost on us.
And in the warrany time, we provide maintenance-free service.
Lightning strikes the ground over 25 million times each year. It exceeds one hundred million volts and brings catastrophic damage to whatever it hits. Thousands of houses burn down, and millions of machines break down every year due to lightning strikes, which cased loss more than billions of dollars, even life lost.
If we get use of surge protector, we could keep lightning away, life and dollars save.
2.Does surge protection devices attract lightning?
Lightning protection does not attract or repel lightning. Like water in a pipe, it provides it a safe path to ground and away from your home, family and expensive electronics.
3. Can I get a sample before the order because I really don't know your surge protection devices quality?
Of course!
We also think sample order is the best way to build the trust.
4. I am not familiar with surge protection devices, so I need your technical service and best quote which could help me to finish
NO PROBLEM!
Our R&D team is experienced, we have helped many customers to finish their projects.
So just tell us your requirements, then everything we will solve perfectly for you.
5. How about delivery time of surge protection devices?
For sample order 1-2days, and for batch order of standard SPD we promise delivery in 7- 15days.
6. How's the warranty time of surge protection devices?
We provide 5years warranty for our surge protection devices.
What’s more, in the first year, any failed products caused by quality problem will be replaced by us freely, also cost on us.
And in the warrany time, we provide maintenance-free service.
Contact Us
Похожие товары

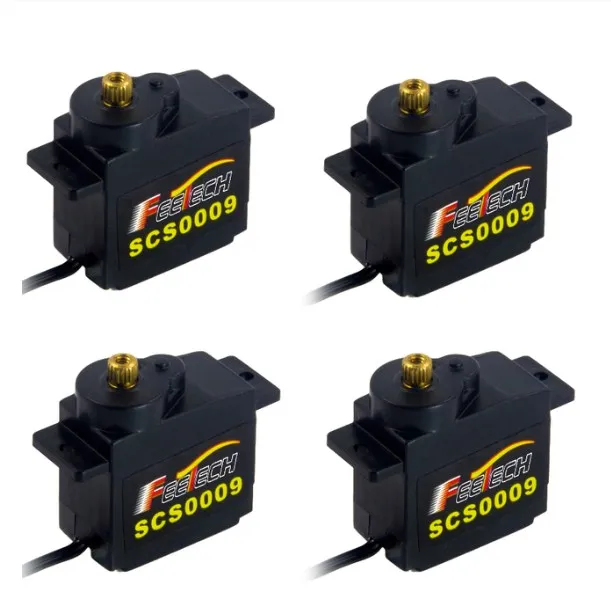

Feetech SCS009 микро мини-размер SCS сервопривод высокоскоростной Аналоговый сервопривод для радиоуправляемого вертолета робота
7,00 $ - 8,35 $

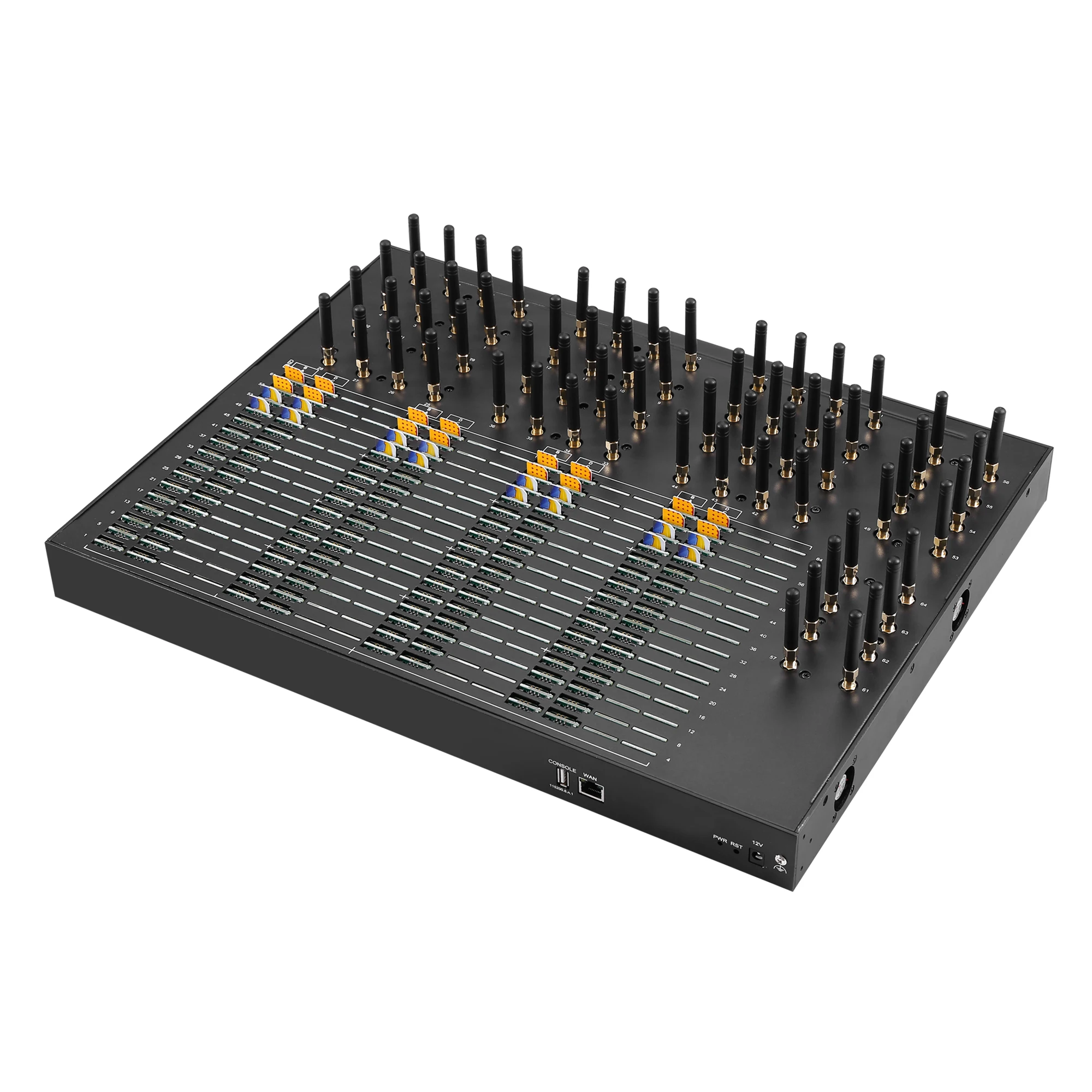

Gsm-модем SK 64-256 Gsm Sms-шлюз объемный SMS-автомат SIM-Box SIM-Банк SMS-модем IMEI изменение 256 SIM-SIM
