Attention：
1. All prices and parameters shown above are standardized. If you want to know the exact information, please click "Contact Supplier" to send us an email.
2. Due to time difference, we suggest that you can choose to send us an inquiry instead of onlinechat
3. When sending us an inquiry or message, please tell us your email or WhatsApp/WeChat, etc. so that our sales manager can quickly communicate with us You get in touch.
3. When sending us an inquiry or message, please tell us your email or WhatsApp/WeChat, etc. so that our sales manager can quickly communicate with us You get in touch.
Ully automatic soft tube filling and sealing https://www.youtube.com/watch?v=x5JULu0I7t0
Manual perfume filling machine https://www.youtube.com/watch?v=HfPqBt-Lmac&t=91s
Promake Machinery scrub cream filling machine https://www.youtube.com/watch?v=9AFsfd2a-J0
Four head vacuum filling machine https://www.youtube.com/watch?v=ZTXlweKr_yQ&t=11s
Fully automatic eight heads oil filling line https://www.youtube.com/watch?v=EPjowYcopVw
Promake Machinery scrub cream filling machine https://www.youtube.com/watch?v=9AFsfd2a-J0
Four head vacuum filling machine https://www.youtube.com/watch?v=ZTXlweKr_yQ&t=11s
Fully automatic eight heads oil filling line https://www.youtube.com/watch?v=EPjowYcopVw
Products Show

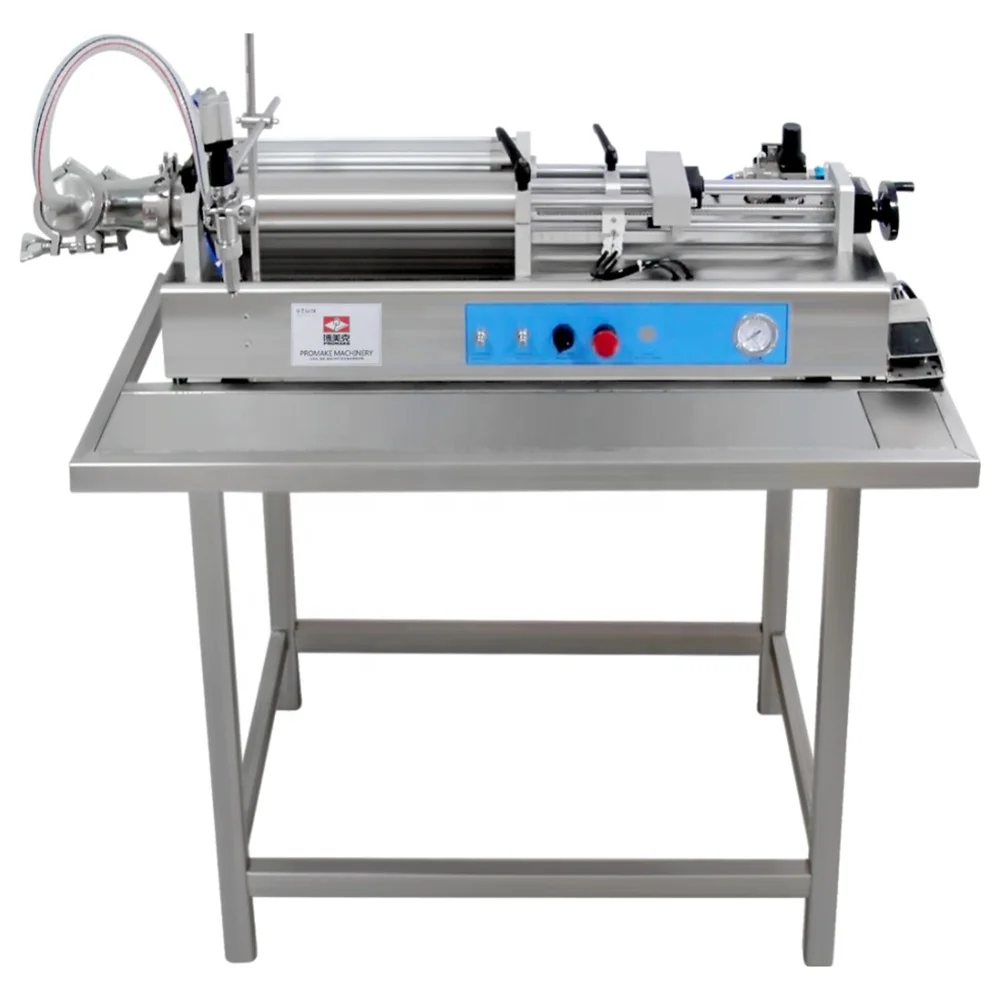

Semi-automatic pneumatic horizontal filling machine
Product Description
This machine adopts imported mechanical parts, and the piston and cylinder are made of stainless steel and polytetrafluoroethylene.
High-quality imported components and outstanding mechanical design ensure its absolute leading position among similar domestic machines.
Brand-new horizontal design, automatic feeding, save the trouble of frequent feeding of vertical hopper, and the machine is light and convenient.
working principle
1. Through the back and forth movement of the cylinder, the piston in the cylinder is reciprocated to generate negative pressure in the front cavity of the cylinder
2. When the cylinder moves forward, the piston pulls backward, and the barrel produces negative pressure. The material in the barrel is pressed into the feeding pipe, and enters the feeding pipe through the inlet and outlet check valves.
3. The cylinder moves backwards, the piston moves forwards, and the material is pressurized, enters the discharge pipe through the discharge check valve, and finally fills the empty bottle to be filled to complete a filling.
4. Each filling action of the piston filling machine is single and simple, so it has high filling accuracy and stability for every ordinary container.
High-quality imported components and outstanding mechanical design ensure its absolute leading position among similar domestic machines.
Brand-new horizontal design, automatic feeding, save the trouble of frequent feeding of vertical hopper, and the machine is light and convenient.
working principle
1. Through the back and forth movement of the cylinder, the piston in the cylinder is reciprocated to generate negative pressure in the front cavity of the cylinder
2. When the cylinder moves forward, the piston pulls backward, and the barrel produces negative pressure. The material in the barrel is pressed into the feeding pipe, and enters the feeding pipe through the inlet and outlet check valves.
3. The cylinder moves backwards, the piston moves forwards, and the material is pressurized, enters the discharge pipe through the discharge check valve, and finally fills the empty bottle to be filled to complete a filling.
4. Each filling action of the piston filling machine is single and simple, so it has high filling accuracy and stability for every ordinary container.
Applicable product range

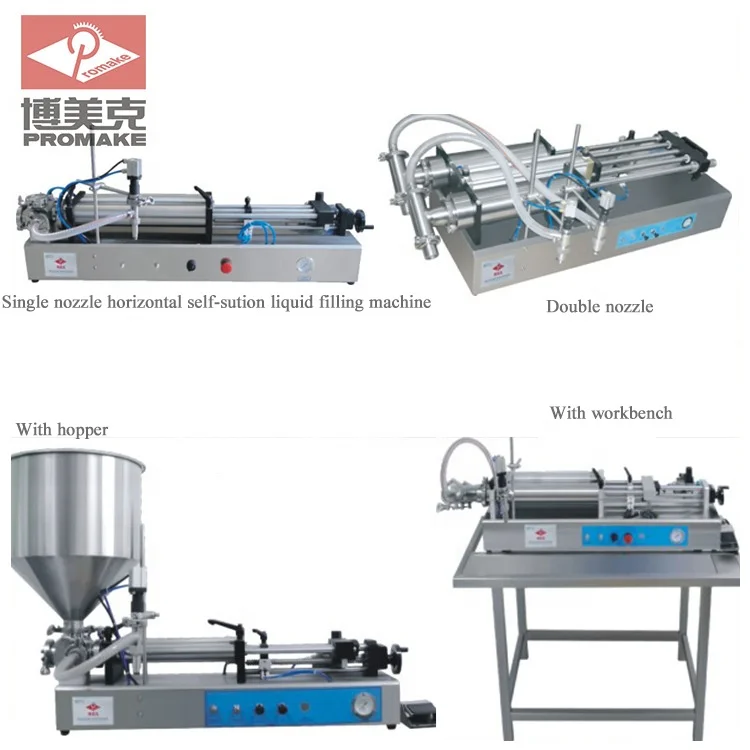

Equipment detail display
There are many types of filling nozzles, which can fill liquid pastes
The connecting part of the cylinder and the pipeline is connected by a band. The connection is easy to disassemble and does not
require any special tools, so it is easy to clean the leak-proof filling system
require any special tools, so it is easy to clean the leak-proof filling system
Some models have automatic heating and stirring functions, which can be customized according to customer needs
Pneumatic valve
Parameter configuration
型号（model） | 灌装范围 （Filling volume） | 灌装精度 （Filling precision） | 用气量 （Air consumption） | 生产能力 （Productivity） |
GTV-5 | 5-60ml | ~ | ~ | ~ |
GTV-10 | 10-120ml | ±0.3% | 23L/min | 20-50bot/min |
GTV-25 | 25-250ml | ±0.3% | 30L/min | 20-50bot/min |
GTV-50 | 50-500ml | ±0.3% | 44L/min | 20-50bot/min |
GTV-100 | 100-1000ml | ±0.3% | 87L/min | 20-50bot/min |
GTV-250 | 250-2500ml | ±0.3% | 160L/min | 20-40bot/min |
GTV-500 | 500-5000ml | ±0.3% | 300L/min | 20-35bot/min |
Note: The data in this table is inconsistent due to technical improvement and customization; this table is for reference only, and everything is subject to the actual product. You can consult us for more information
Other products in the same production line
Customization experts around you
Our OEM&ODM capabilities
Equipments Promake can manufacture:
1) Vacuum emulsifiers
2) Washing liquid mixers
3) Water treatment equipment (RO system)
4) Filling machines
5) Labeling machines
6) Makeup cosmetic machines
7) Perfume making machines
8) Anti-corrosion equipment and inkjet printer
9) Liquid filling and screw-cap sealing machines
10) storage Tanks
11) Laboratory equipment
12) Filter equipment
Our Team
Human-oriented core organization, unite team strength.
Service Area
Semi-AutoMechanical equipment of paste production line, lotion production line, perfume production line, lipstick production line, toothpaste production line, fog foam production line, powder cake production line, soap production line.
