Сертифицированный CE Новый SFSP молотковая мельница измельчитель зерна сои кукурузы для обработки кормов домашней птицы

Сохранить в закладки 1600575745378:


Цена:603 066,20 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Looking For Agent To Get Big Win-Win And Share Markets Together, U Can Get:
1. China 20years top professional manufacturer technology and VIP service support.
2. Top quality, with longer quality warranty.
3. Very competitive price, near cost price, can earn more money and hold the market.
4. Fast delivery time, will deal with your orders first time.
5. Customers resources support, we share our customers with u, and one area only one agent.
6. China travelling and visiting. We provide government offical invitation letter to help u to get Chinese Visa, and we bear the travelling fee in China.
7. Other more benefit or right, we discuss.

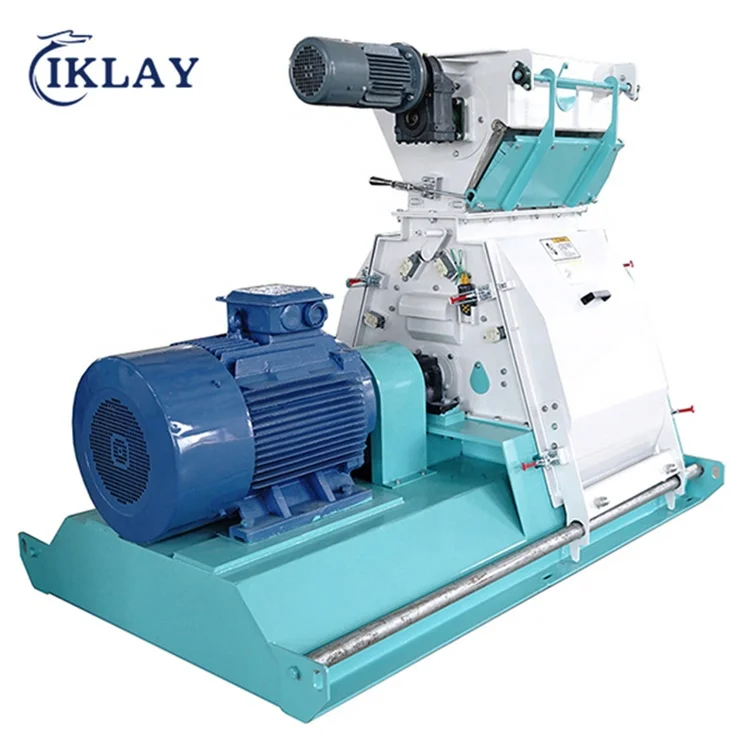

CE SFSP Wide-type hammer mill corn /wheat /soybean /maize grinding machine feed grinder


1.Advantage:


1.1.The grinding chamber is designed with regrinding,which can increase its output by more than 15% and the sizes are more even.


1.2.Equipped with wear resistant hammer that is alternate permutation,the finished products ane high in accuracy and uniform in size.


1.3.Vacuum welded hammers and surface hardened hammer pin extend the service life and futher decrease the consumption of accessories.


1.4.By changing the hammer position on the rotor,two crush of gaps are formed between hammers and screen,which are fit to normal crushing and fine crushing.When in normal crushing,it can crush evenly and improve the production capacity. When the gap between hammer and screen is smaller,it fit to fiber crushing and fine crushing.


1.5.The rotor os rotatable clockwis and counterclockwise and materials can be fed bidirectionally,which decreases the wear of hammers and thus lowers the consumption of accessories.The rotor has experienced dynamic balance test,ensuring less vibration and long service life.


1.6.There are quick access doors set on both sides of the mill to facilitate maintenance and change of screen,and doors can be locked quickly.


2.Technical Parameters:






























































































Item



66*40



66*60



66*80



66*100



66*120



Rotor diameter (mm)



660



660



660



660



660



Spindle rotate speed (rpm)



2960



2970



2970



2980



2980



Hammer line speed (m/s)



102



102



102



102



102



Grinding room width (mm)



400



600



800



1000



1200



Hammer quantity (fine grinding)



40



56



84/116



120



136



Power( kw)



37



45



55



75



90



110



132



160



200



220



Capacity(t/h)



1-3



2-5



3-6



5-7



6-8



8-10



10-12



12-15



15-20



20-25



Normal air volume


( m3/min)



Fine grinding



55



60



72



78



95



102



145



155



190



205

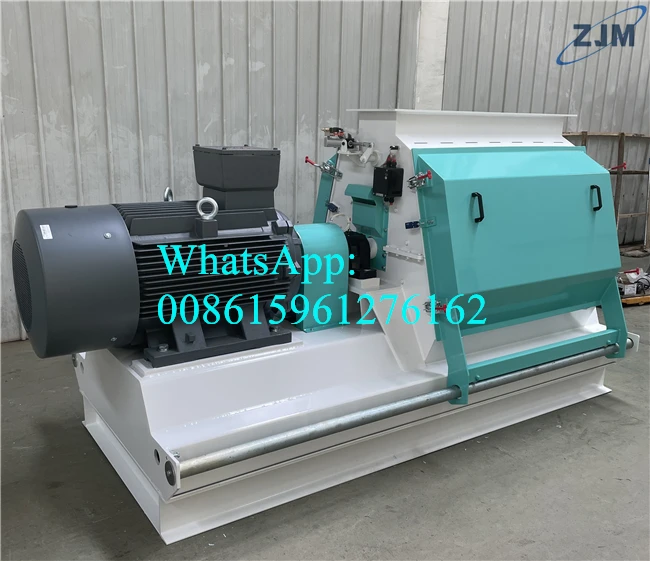

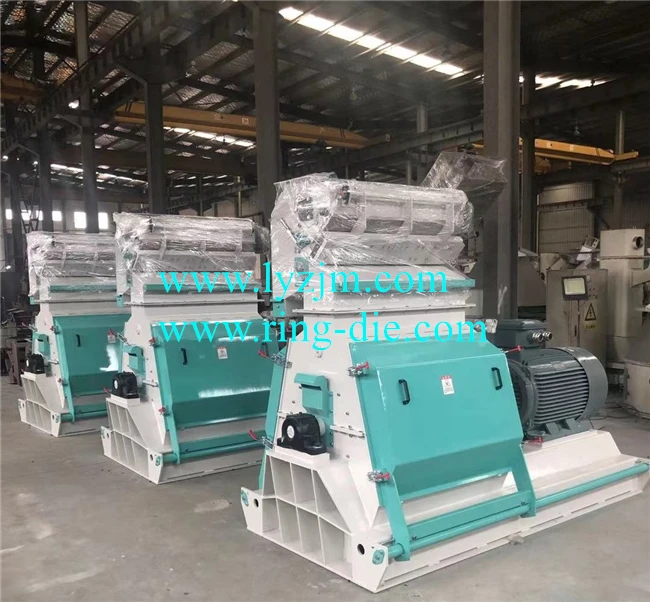

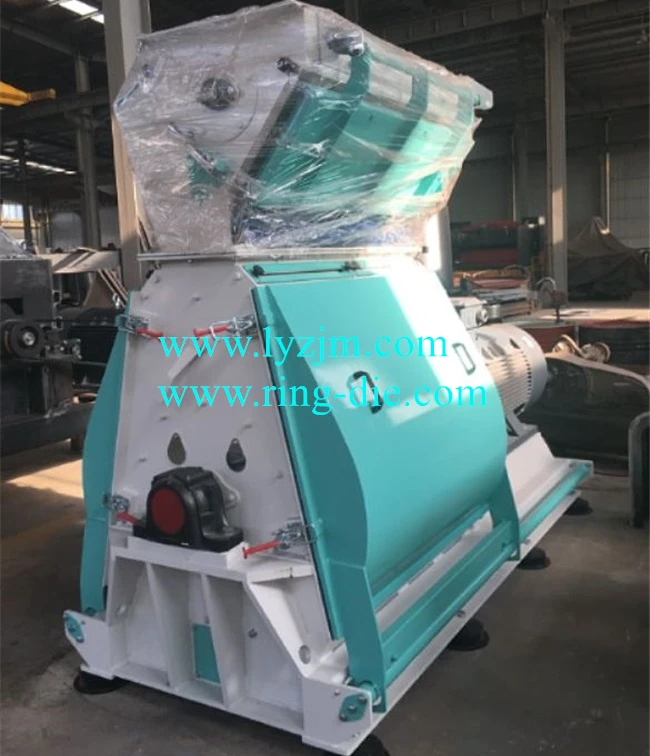

Photos:


Real Photos:


wheat grinderstraw hammer millSFSP hammer mill (11)


SFSP hammer mill (4)hammer mill (2)grinding machine (3)feed grinder (4)250KW--SGM (1).jpg


SFSP hammer mill250KW--SGM (2).jpg


Stainless steel hammer mill:


crusher machinefish feed hammer millcorn hammer mill


Details:


straw crusherSFSP hammer mill (10)250KW grinder (3).jpgSFSP hammer mill (5)SFSP hammer mill (6)SFSP hammer mill (8)hammer mill screen


Making:


grinder (2).jpggrinder (3).jpggrinder (4).jpg


Used in feed pellet line:


wheat grinder--90KW


grinder.jpgLJ-feed hammer mill (5)

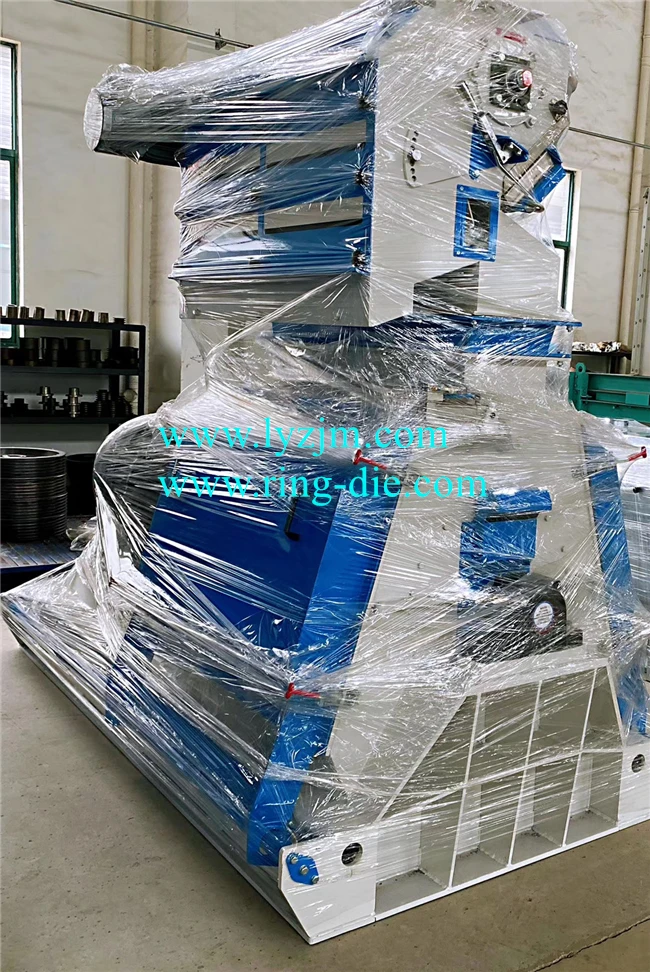

Delivery:


SFSP hammer mill (13)grinder (2)


Customer visiting:


Visiting


About us:


Our company Liyang Zeji Machinery Co., Ltd. is a professional manufacturer focus on: hammer mill, mixer, feed/wood pellet machine, cooler, crumbler, screener, extruder, dryer, packing machine, liquid adding machine, conveyors and spare parts: wood chipper fly-knives, hammer mill blades/screen, ring die, roller and other pellet machines’ spare parts.


For machines, we have own laser cutter, CNC machining center, welding machines. For ring die, we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.


We insist on high quality and competitive price, looking for long term business and win-win.


Certificate:




Why choose us:
1. Manufacturer with over 20 years experience.
2. All use top brand parts.
3. Overseas engineers’ installing+testing+training.
4. 3 years quality warranty+lifetime engineers online after sale service.
5. Machines' using life can be over 30 years.
