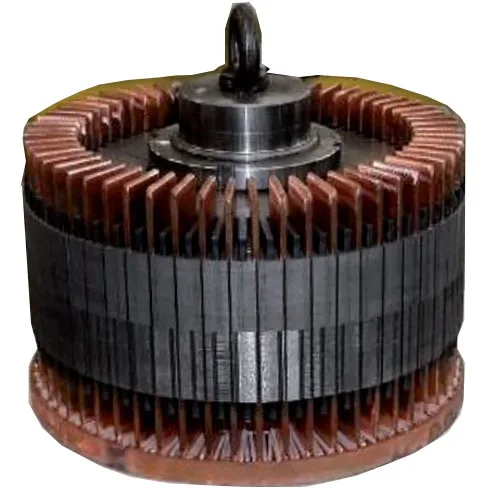

Припой ротора мотора для индукционной системы пайки беличьей клетки
- Категория: >>>
- Поставщик: Nantong Zhenhuan Trade Co. Ltd.
Сохранить в закладки 1600577664053:
Описание и отзывы
Характеристики
MACHINE DESCRIPTION
This motor rotor end face brazing machine is used for brazing and heating of motor rotor guide bars. The equipment has strong professionalism, high degree of automation, simple operation, high welding quality of workpieces, no stress on the guide bars after welding, and no broken bars.
MAIN FEATURES
Main features
1. Rated output power: 200kw, equipped with output transformer isolation;
2. Rated input voltage: three-phase 380VAC, 50Hz
3. Resonant frequency: 6-10KHz automatic tracking;
★4. Equipment efficiency ≥96%, power factor ≥0.96
★5. Adopt reactance analysis control method, stable adjustable range of output current and power: the output current can be adjusted continuously and stably from 1% to 100%, and the output power can be adjusted continuously and stably from 0.2% to 100%.
6. The equipment has the protection functions of resonance overcurrent, short circuit, DC overvoltage, resonance overvoltage, over temperature, phase loss, unit balance, and reactance over-limit protection;
7. Choose the 20p industrial chiller as the cold source
★8. Inductor: Adopt unilateral bottom plane heating inductor and the heating part is embedded with a high-frequency low-loss silicon steel sheet magnet to improve the heating efficiency.
11. The temperature sensor must be an infrared temperature sensor with laser alignment
12. Heating time: the overall heating and welding time is about 10 minutes,
2. Rated input voltage: three-phase 380VAC, 50Hz
3. Resonant frequency: 6-10KHz automatic tracking;
★4. Equipment efficiency ≥96%, power factor ≥0.96
★5. Adopt reactance analysis control method, stable adjustable range of output current and power: the output current can be adjusted continuously and stably from 1% to 100%, and the output power can be adjusted continuously and stably from 0.2% to 100%.
6. The equipment has the protection functions of resonance overcurrent, short circuit, DC overvoltage, resonance overvoltage, over temperature, phase loss, unit balance, and reactance over-limit protection;
7. Choose the 20p industrial chiller as the cold source
★8. Inductor: Adopt unilateral bottom plane heating inductor and the heating part is embedded with a high-frequency low-loss silicon steel sheet magnet to improve the heating efficiency.
11. The temperature sensor must be an infrared temperature sensor with laser alignment
12. Heating time: the overall heating and welding time is about 10 minutes,
MACHINE ADVANTAGE

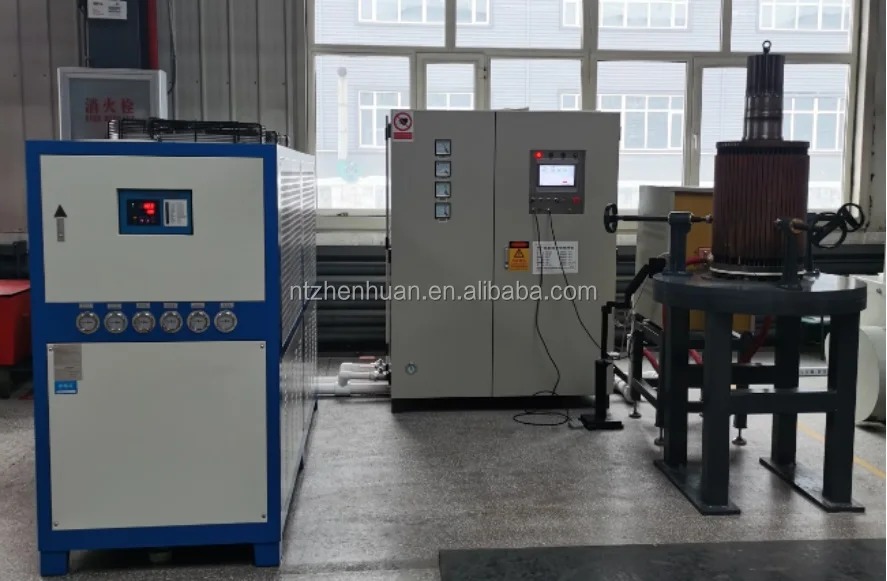

4.1 The whole set of equipment consists of IGBT intermediate frequency power supply (using water cooling), capacitor cabinet, transformer, heating inductor, motor rotor bar brazing bed, temperature control system (including temperature control PLC, man-machine interface operation screen) chiller. Its structure is as follows:
4.2 Introduction of heating sensor:

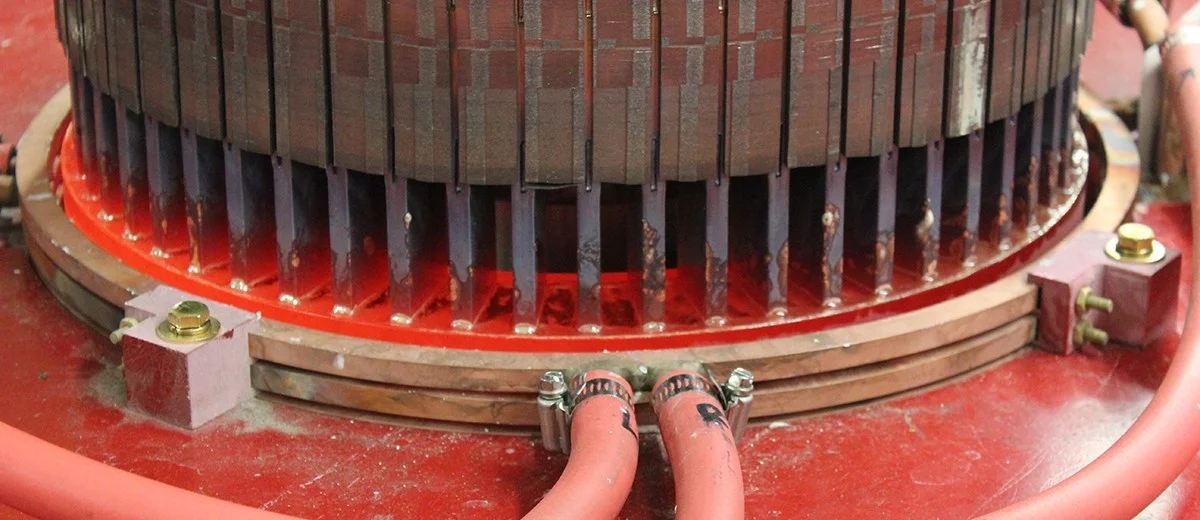

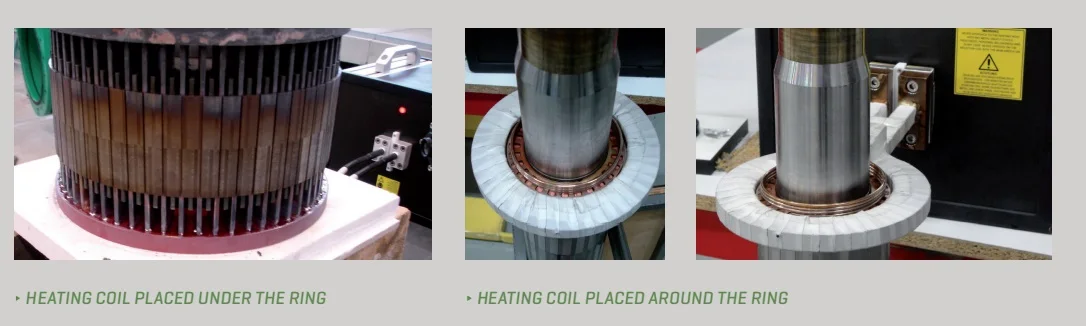

According to the structural characteristics of the motor end ring, a unilateral bottom plane heating inductor is used, the cooling method of the inductor is water cooling, and the heating part is embedded with a high-frequency low-loss silicon steel sheet magnetic conductor to improve the heating efficiency.
4.3 Motor rotor bar brazing heating machine body
The motor rotor guide bar brazing bed has sufficient rigidity and durability, small thermal deformation, anti-fabrication and anti-corrosion, the lower frame is welded by section steel, and the platform surface is covered with high-temperature epoxy glass fiber insulation board and heat-resistant mica board, anti-magnetic, anti-magnetic hot.
4.4. Temperature automatic control system
The automatic temperature control system is composed of an infrared temperature sensor with laser alignment, a temperature regulator, and an operating table, which is dedicated to short-wave copper metal measurement by a famous German brand (confidential).
5. Chiller
5.1 Closed circulation industrial chiller: rated cooling power ≥ 64KW (to meet the rated power 50% duty cycle operation), water tank capacity: ≥ 200 liters. It has the protection functions of phase error, overload, water temperature and water level, and is linked with the power supply to provide water pressure detection and protection.
5.2 The compressor adopts Panasonic compressor (Panasonic, Japan), which is a world-renowned brand of hermetic scroll compressor, which is 20-30% more energy efficient than reciprocating compressors, and has stable and reliable operation, high efficiency, low failure, low vibration, low noise, and maintenance. convenience and so on.
5.3 304 stainless steel water tank can effectively avoid corrosion and water leakage
5.4 High-performance stainless steel pump can ensure long-term uninterrupted work
5.5 The in-line condensing system is designed to achieve good heat exchange efficiency
5.6 The piping system adopts 304 stainless steel seamless pipe/non-ferrous metal material
5.7 Filters are installed in the media circulation loop and cooling water supply pipeline
According to the usage power of 600KW, select a 50-horse chiller to cool the entire equipment
4.2 Introduction of heating sensor:
According to the structural characteristics of the motor end ring, a unilateral bottom plane heating inductor is used, the cooling method of the inductor is water cooling, and the heating part is embedded with a high-frequency low-loss silicon steel sheet magnetic conductor to improve the heating efficiency.
4.3 Motor rotor bar brazing heating machine body
The motor rotor guide bar brazing bed has sufficient rigidity and durability, small thermal deformation, anti-fabrication and anti-corrosion, the lower frame is welded by section steel, and the platform surface is covered with high-temperature epoxy glass fiber insulation board and heat-resistant mica board, anti-magnetic, anti-magnetic hot.
4.4. Temperature automatic control system
The automatic temperature control system is composed of an infrared temperature sensor with laser alignment, a temperature regulator, and an operating table, which is dedicated to short-wave copper metal measurement by a famous German brand (confidential).
5. Chiller
5.1 Closed circulation industrial chiller: rated cooling power ≥ 64KW (to meet the rated power 50% duty cycle operation), water tank capacity: ≥ 200 liters. It has the protection functions of phase error, overload, water temperature and water level, and is linked with the power supply to provide water pressure detection and protection.
5.2 The compressor adopts Panasonic compressor (Panasonic, Japan), which is a world-renowned brand of hermetic scroll compressor, which is 20-30% more energy efficient than reciprocating compressors, and has stable and reliable operation, high efficiency, low failure, low vibration, low noise, and maintenance. convenience and so on.
5.3 304 stainless steel water tank can effectively avoid corrosion and water leakage
5.4 High-performance stainless steel pump can ensure long-term uninterrupted work
5.5 The in-line condensing system is designed to achieve good heat exchange efficiency
5.6 The piping system adopts 304 stainless steel seamless pipe/non-ferrous metal material
5.7 Filters are installed in the media circulation loop and cooling water supply pipeline
According to the usage power of 600KW, select a 50-horse chiller to cool the entire equipment
MACHINE SPECIFICATION
Name | Data |
Machine code | ZH-250 |
Current | 500A |
Power | 250kW |
Voltage | 380V |
IF-FRE | 12KHz-25KHz |
Welding temperature | 300-900℃ |
Weight | 2000kg |
MACHINE CONFIGURATION
RELATED MACHINES
COMPANY PROFILE
Похожие товары
Размеры морской фанеры/фанерный поддон/импортеры
300,00 $
Интеллектуальные автоматические самовсасывающие отечественные вихревые водяные насосы серии WZB 0
38,00 $ - 40,00 $

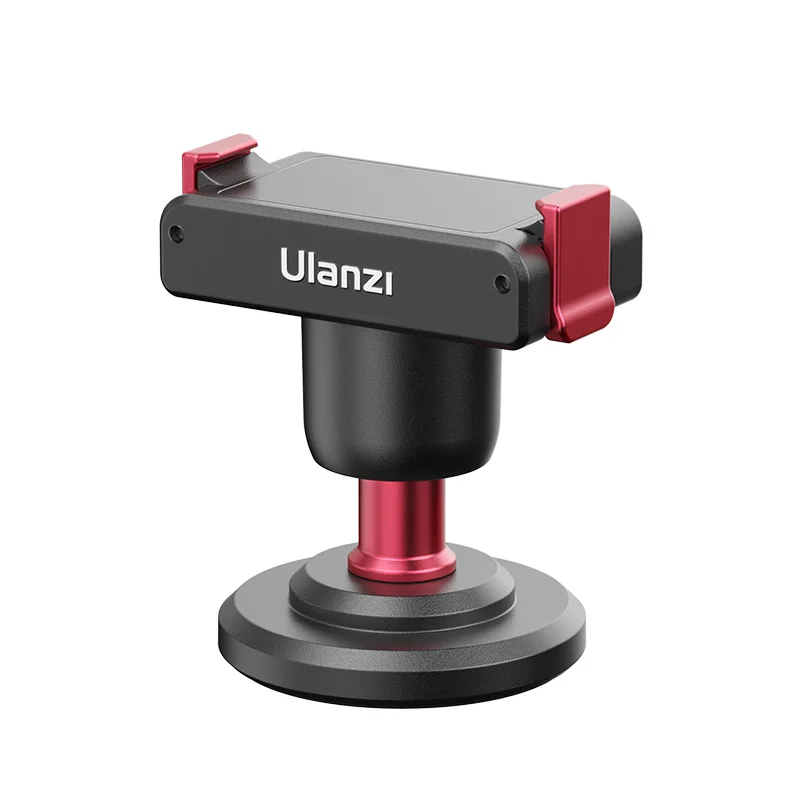

Ulanzi U-170 Магнитный шаровая Головка для штатива с креплением для экшн-камеры «Три в одном» DJI экшн-2, Аксессуары для фотоаппаратов
9,64 $ - 10,85 $
DSHB1Q02 + T10 Bom компоненты 1-проводной battpack памяти
OEM Высокого Качества Гидравлический масляный фильтр элемент поставщик 01.E 3001,10 P.10.S. P. 01.E 3001,130G.10.E. P. 01.E 3001,130G.10.S. P.
Самый дешевый кабель для подключения жесткого диска P13826 P11533-001 800 ГБ 1 ТБ SSD 240 120 U.2 PCIE mvme DS GEN8 твердотельные жесткие

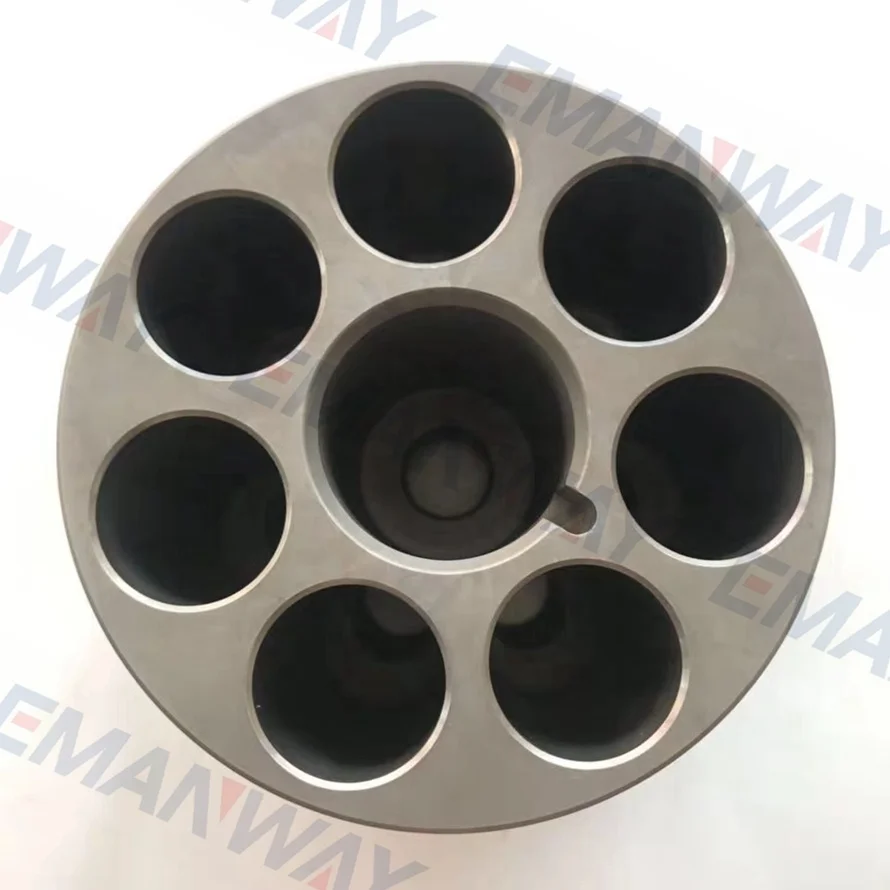

PAVC 33/38/65/100 Parker гидравлический насос запасные части с самой лучшей ценой и высоким качеством
