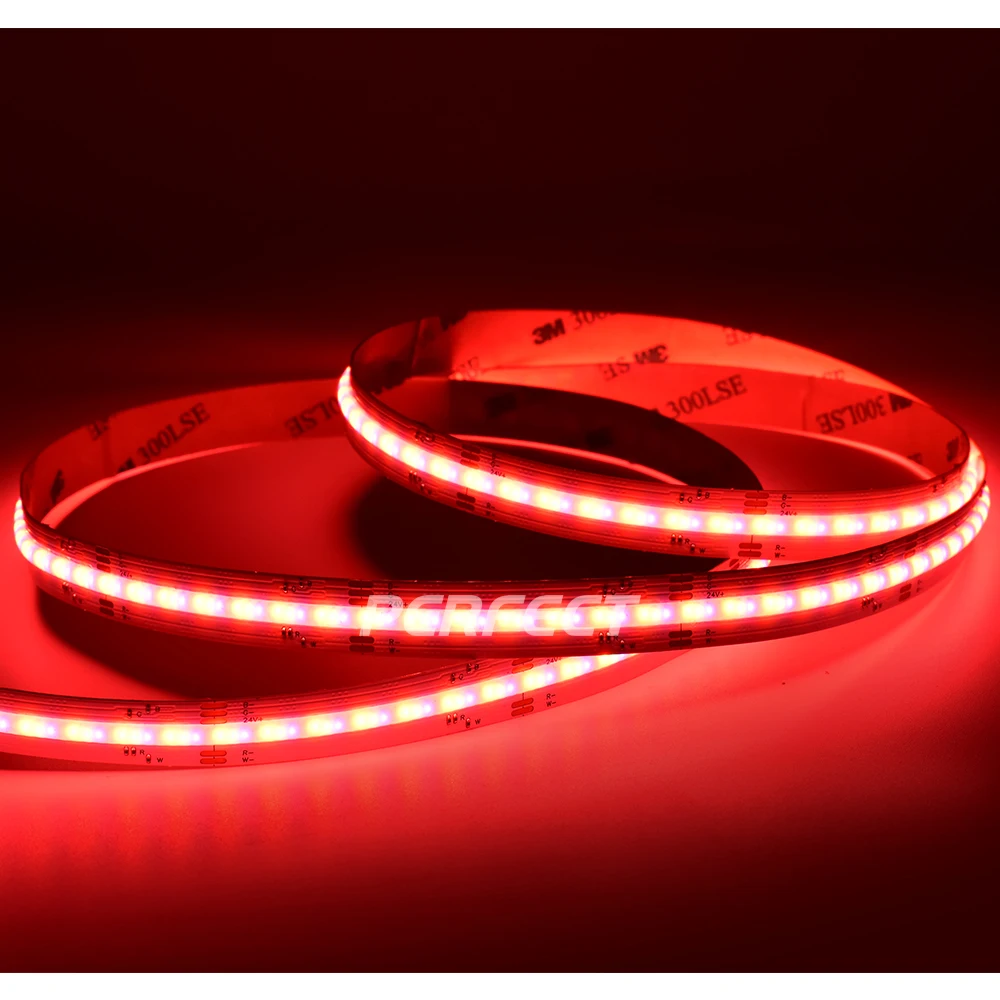

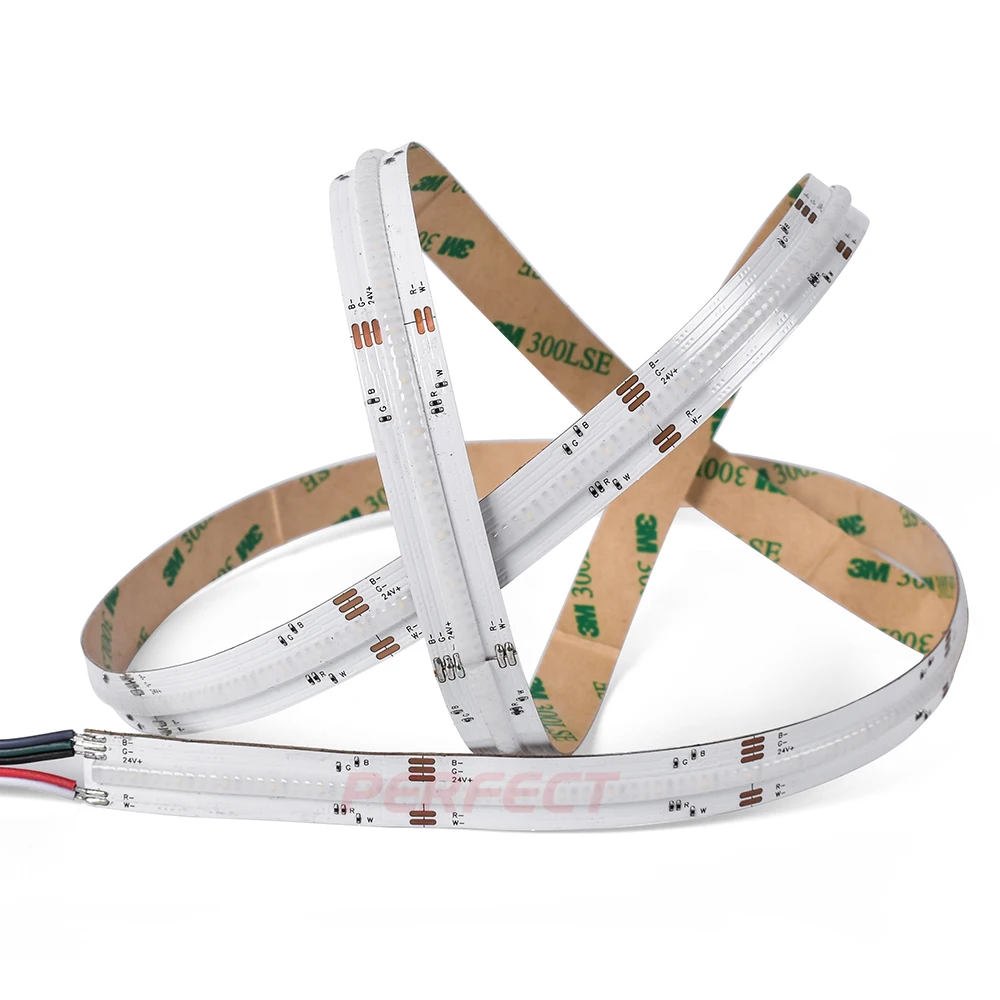

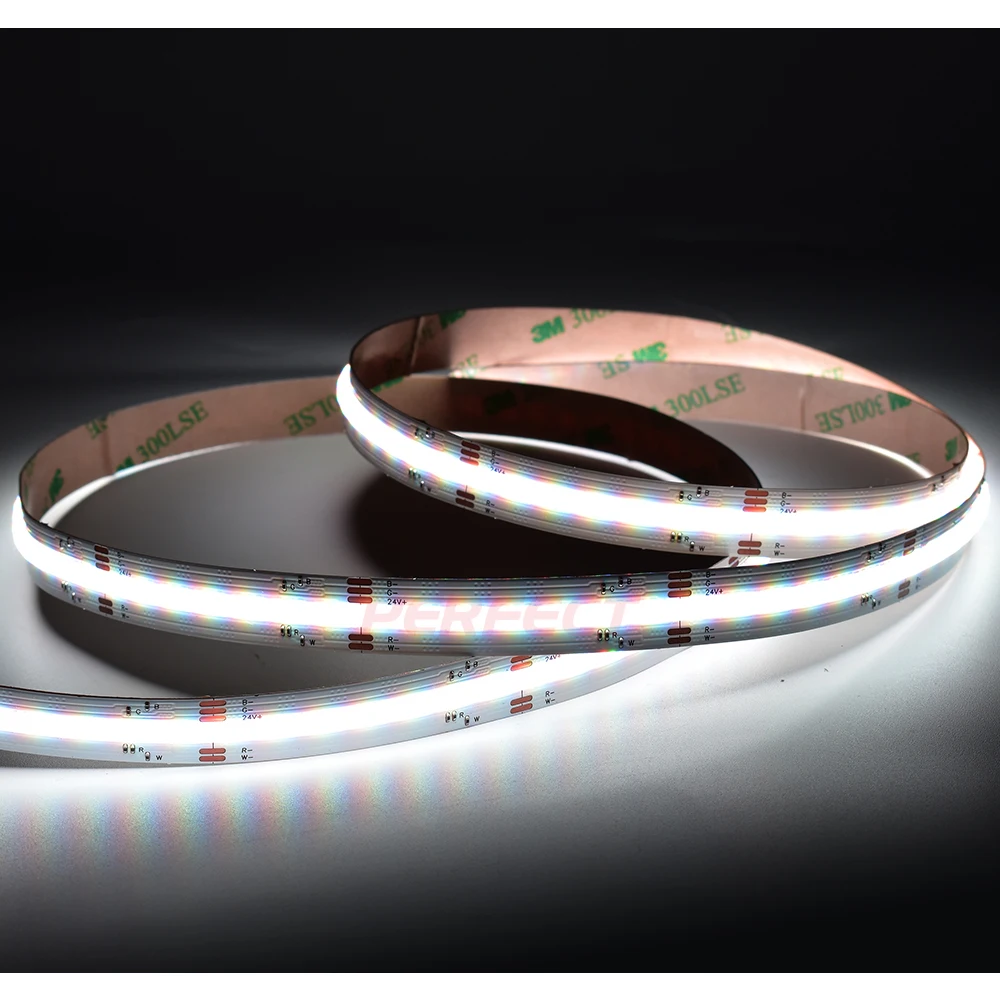

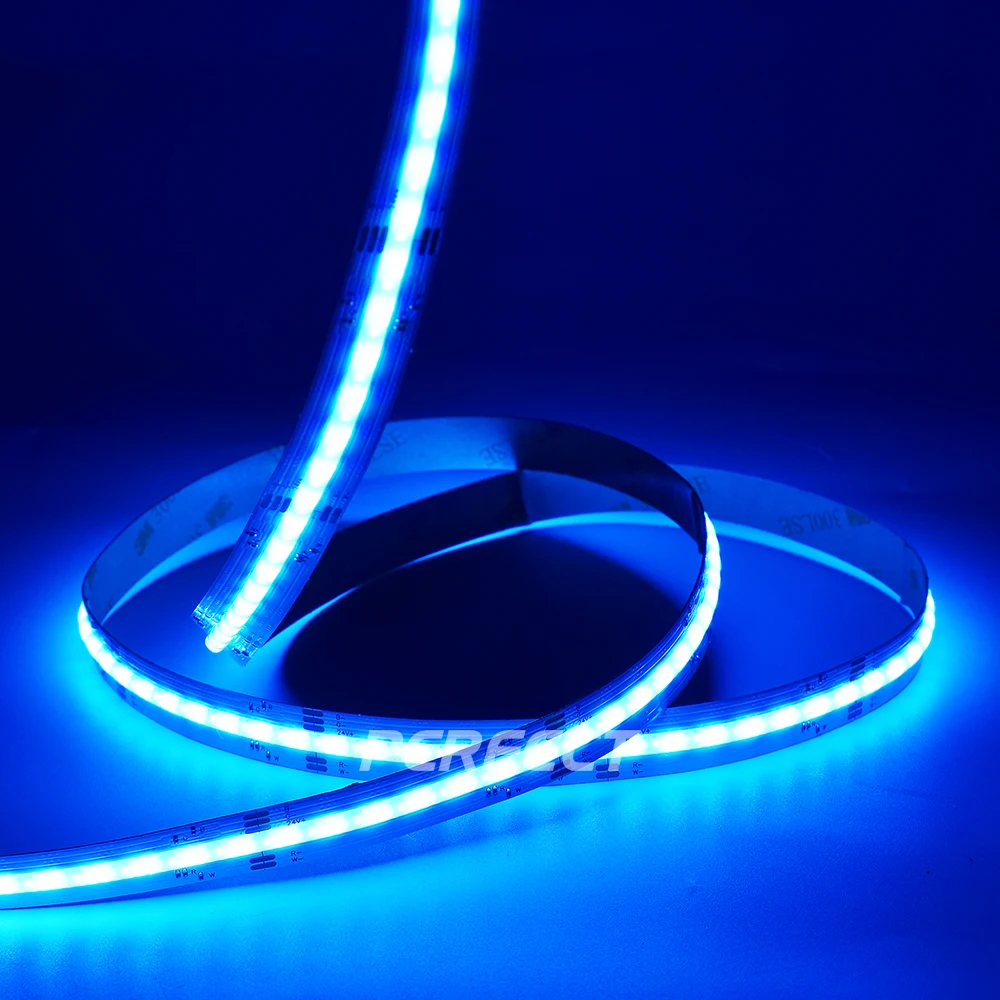

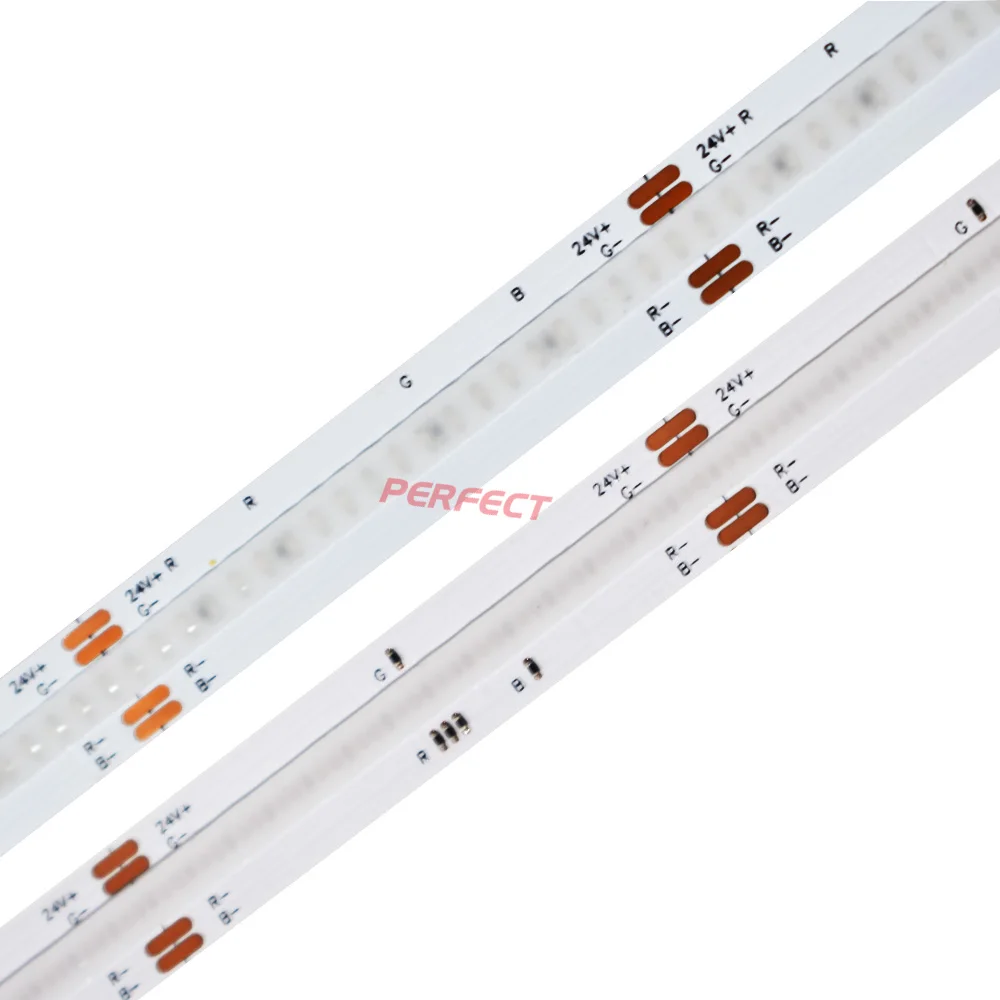

Высокоэффективная гибкая светодиодная лента COB 24 В 5 м 5600 светодиодов RGB RGBW Светодиодная
- Категория: >>>
- Поставщик: Perfect Led Limited
Сохранить в закладки 1600580240568:
Описание и отзывы
Характеристики

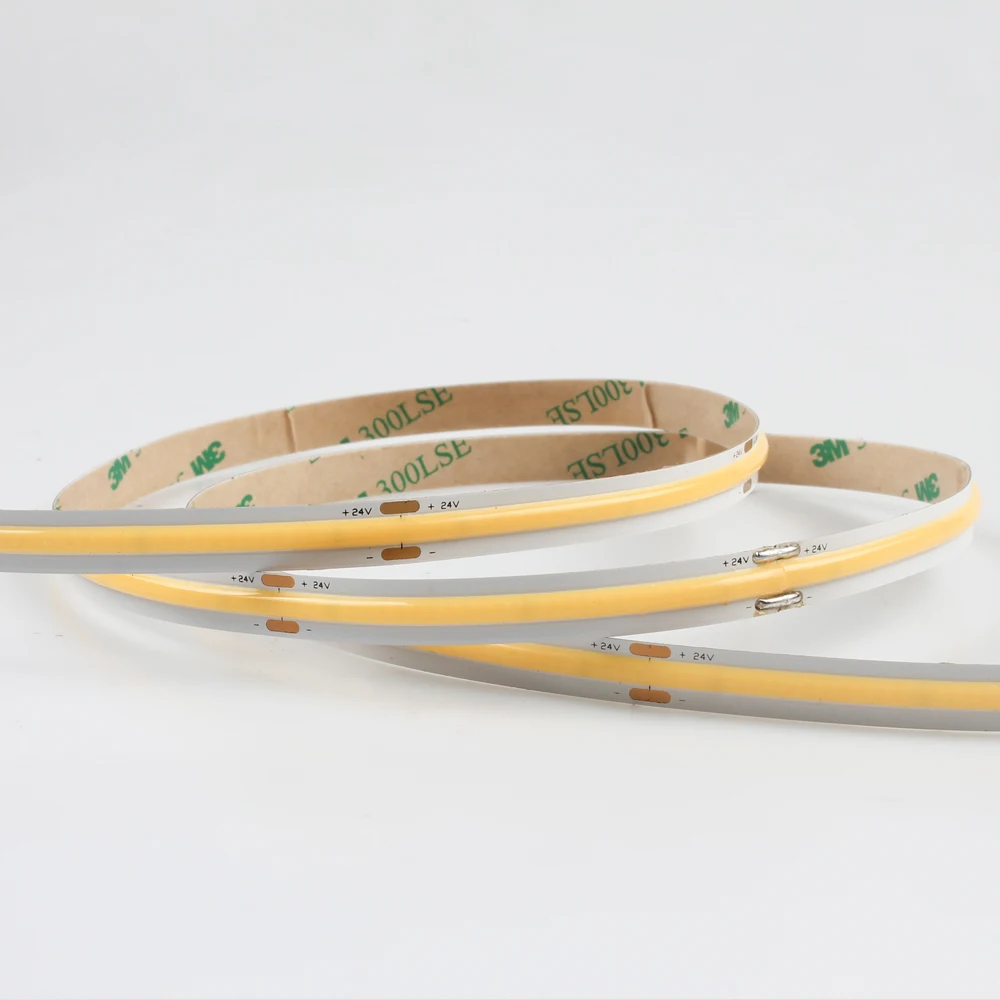

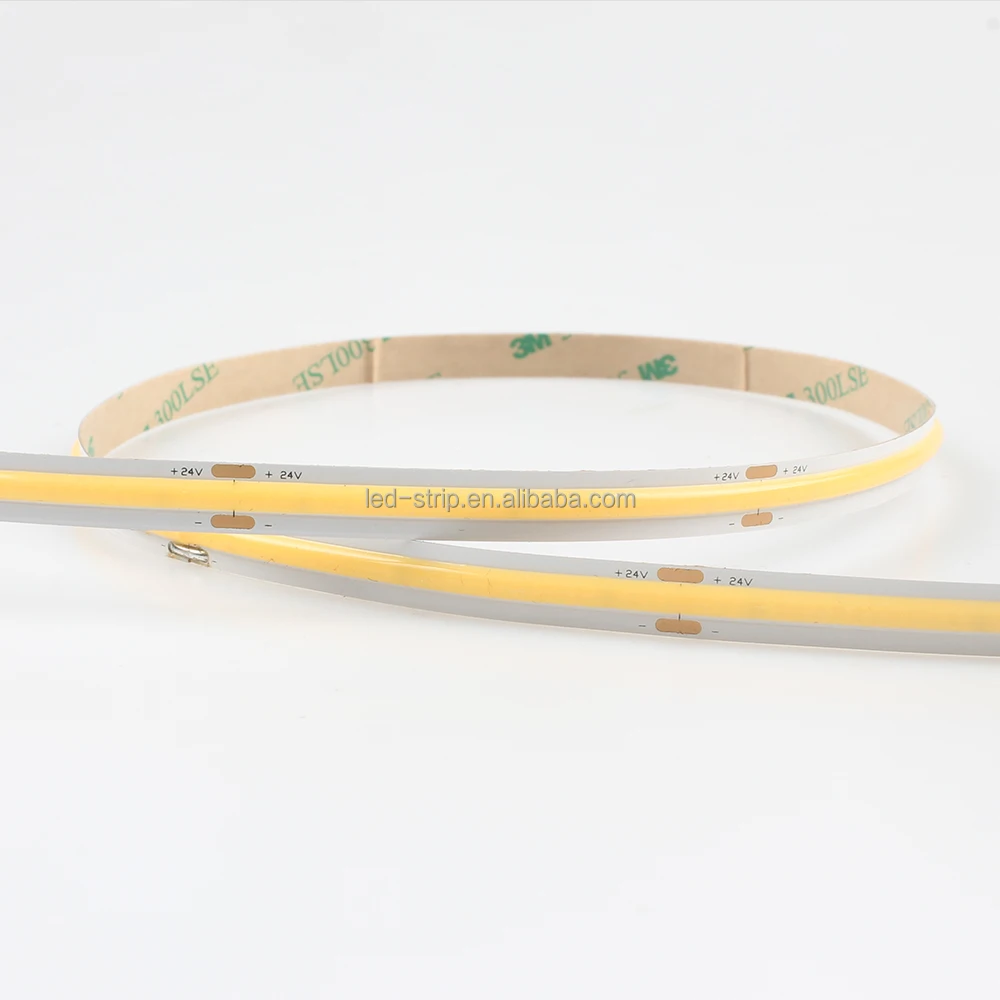

High effective COB Led Strip Light Flexible 24V 5M 5600Leds COB RGB RGBW Led COB Light Strip
Non waterproof Flexible LED Strip LED Strip light
Product Details
Flexible COB LED Strip Light is a new design type of led strip products. As the led strip is by SMD LED+ FPC, so there must with some light dot or spot. Now this COB strip is take the flip chip technical to bonding the chip directly on the FFR board and then cover it by phosphor & silicone gel directly, so the color is even and without any light dot or light spot, 180 degree big view angle.
IP | IP20,IP50,IP65,IP66,IP67,IP68 | Luminous flux | / | ||
LED Quantity | 2800led/5M/Reel (560led/m) | Power(w) | 16W/M | ||
Product size | 5000×12mm*0.2MM | Input voltage | DC 24V | ||
Warranty | 2 Years | LED type | SMDCOB | ||
Working hour | 30000hr | CRI(Ra) | 80 | ||
Working temperture | -20℃~+45℃ | Input current | / | ||
CCT(K) | RGB+2700K/3000K/4000K/6000K | Cut length | 50MM | ||
COB Advantages

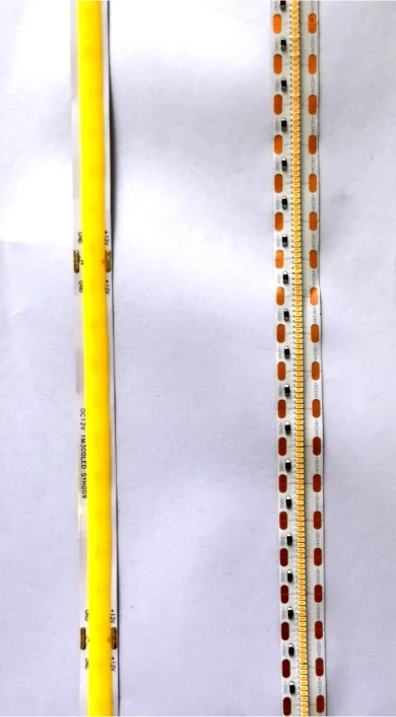

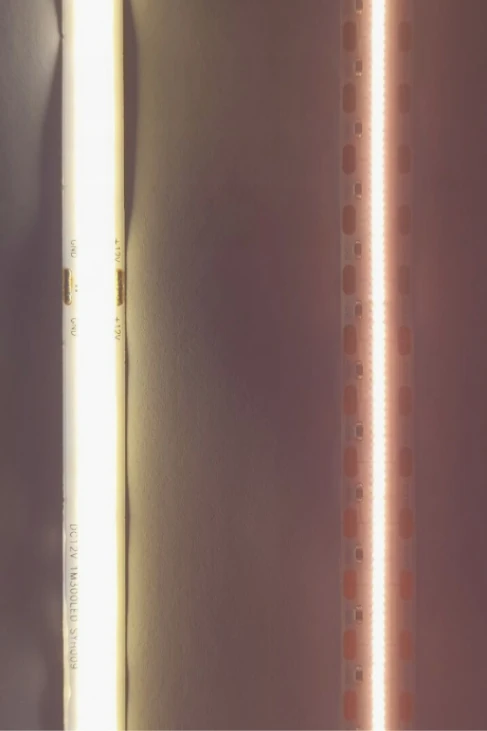

COB LED STRIP | VS | SMD 2110 LED STRIP | ||||
1.PCB
10mm PCB with more flexible installation and wider application
2.LED
Flip-chip process, the chip is directly packaged on the PCB board, which makes the heat dissipation more excellent and the service life is longer.
3. Production
No need to control the placement of the mounting led, so that the production efficiency is greatly improved, and not causing production defects such as LED offset and solder paste lost
4.Pad
Tin plating prevents oxidation and prolongs service life
5.Chromatic Aberration
Use Narrow spectral band chip&fluorescent glue design, no color difference, no dot, with excellent consistency
6.Beam angle
Luminous diameter can reach 6mm wide,beam angle 180degree
7.Cost
The chip light-emitting effect of 300 led or above per meter is much better than the patch lamp light-emitting effect of 700led per meter, and the cost is more advantageous.
10mm PCB with more flexible installation and wider application
2.LED
Flip-chip process, the chip is directly packaged on the PCB board, which makes the heat dissipation more excellent and the service life is longer.
3. Production
No need to control the placement of the mounting led, so that the production efficiency is greatly improved, and not causing production defects such as LED offset and solder paste lost
4.Pad
Tin plating prevents oxidation and prolongs service life
5.Chromatic Aberration
Use Narrow spectral band chip&fluorescent glue design, no color difference, no dot, with excellent consistency
6.Beam angle
Luminous diameter can reach 6mm wide,beam angle 180degree
7.Cost
The chip light-emitting effect of 300 led or above per meter is much better than the patch lamp light-emitting effect of 700led per meter, and the cost is more advantageous.
Cautions:
(1) Bending diameter no less than 100mm.
(2) Prohibition of twist.
(3)Prohibit pressing surface with sharp object.
Company Profile
PERFECT LED LIMITED established in 2013 , is a high-tech LED Strip manufacturer with strong capability in R&D,
production,marketing and customer service , we specialize in producing LED Strip for 9 years , including waterproof
LED Strip,non-waterproof LED Strip , aluminium profile and so on. By our advanced tech , high quality , super brightness ,
low light-declining& long lifetime LEDs , we have got very good response from many customers and become a famous
brand in LED field. Our products are distributed to countries worldwide , majority in Europe , U.S.A. ,Australia , and Asia ,
which gain a good reputation in global market. All of PERFECT LED products are in line with international product standards ,which has got UL , CE, ROHS certification.
production,marketing and customer service , we specialize in producing LED Strip for 9 years , including waterproof
LED Strip,non-waterproof LED Strip , aluminium profile and so on. By our advanced tech , high quality , super brightness ,
low light-declining& long lifetime LEDs , we have got very good response from many customers and become a famous
brand in LED field. Our products are distributed to countries worldwide , majority in Europe , U.S.A. ,Australia , and Asia ,
which gain a good reputation in global market. All of PERFECT LED products are in line with international product standards ,which has got UL , CE, ROHS certification.
Our Exhibition
Customer Feedback
Certifications
Payment & Shipment
Packing Detail: OEM package, Standrd package.
Inside: Electrostatic Bag, 50bags / carton
Outside: Carton Package
Size: 44*34*28 cm
Delivery Detail: 3-5 working days
Inside: Electrostatic Bag, 50bags / carton
Outside: Carton Package
Size: 44*34*28 cm
Delivery Detail: 3-5 working days
1.Payment term: T/T 100% payment in advance, or for over 10,000USD, T/T 30% deposit after order confirmed, the balance after goods ready before shipping. or L/C or Western Union for small amount .
2.Lead time: normally in 5~10 days after deposit received.
3.Sample policy: Samples are always available for each model. Samples can be ready in 3~7 days once payment received. Shipping port: Shenzhen , China
4.Discounts : We offer discount for big quantity(500 meters 1% off, 1000 meters 2% off, 5000 meters 3% off).
5.We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~5 days to arrive, or by air cargo which takes about one week to arrive, or by sea which takes about one month to arrive, depending on your actual requirements.
5M/Reel/Bag,40Bags/Carton,Carton Size:44*34*28CM for LED Strip
2.Lead time: normally in 5~10 days after deposit received.
3.Sample policy: Samples are always available for each model. Samples can be ready in 3~7 days once payment received. Shipping port: Shenzhen , China
4.Discounts : We offer discount for big quantity(500 meters 1% off, 1000 meters 2% off, 5000 meters 3% off).
5.We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~5 days to arrive, or by air cargo which takes about one week to arrive, or by sea which takes about one month to arrive, depending on your actual requirements.
5M/Reel/Bag,40Bags/Carton,Carton Size:44*34*28CM for LED Strip
Похожие товары

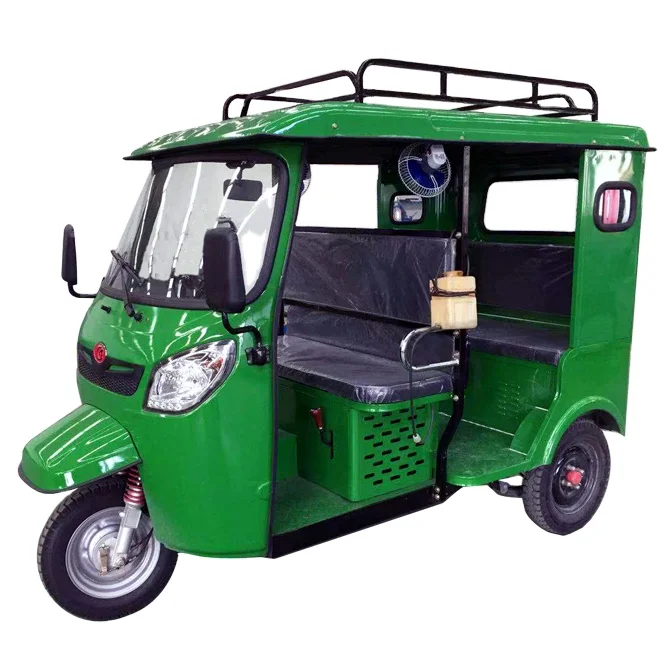

Трехколесный двигатель для мотоцикла 150 cc Tuk 3
1 400,00 $ - 1 500,00 $

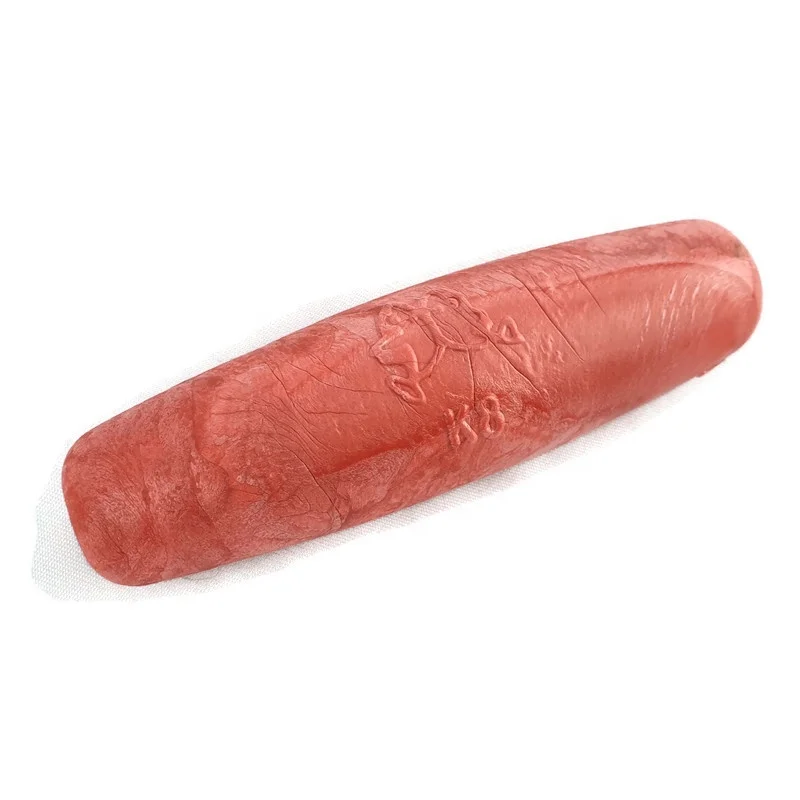

Оптовая продажа (Pelampong K8 овальной формы) K8 поплавок красного цвета для всех видов рыболовных сеток, рыболовный поплавок пластиковый продукт
Оптовая продажа, мебель для ночного клуба в японском стиле, мебель для гостиниц с белой тканевой подушкой, мягкие обеденные стулья для ресторана с деревянной рамкой
56,00 $ - 62,00 $

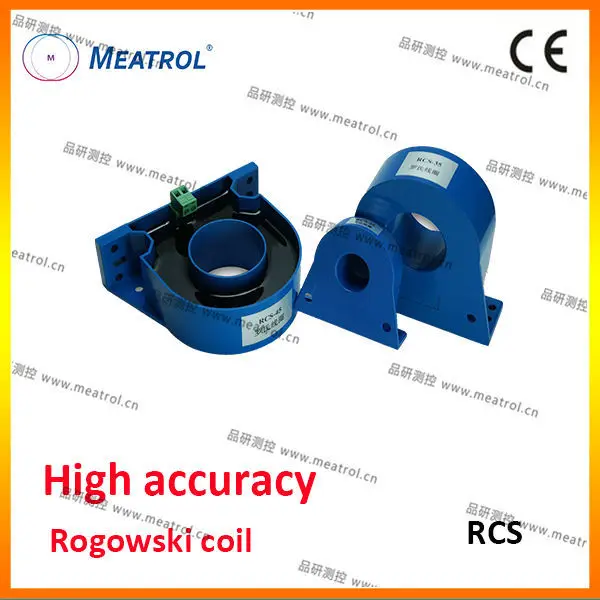

китай пояс роговского серии эпр в трансформаторах высокая точность

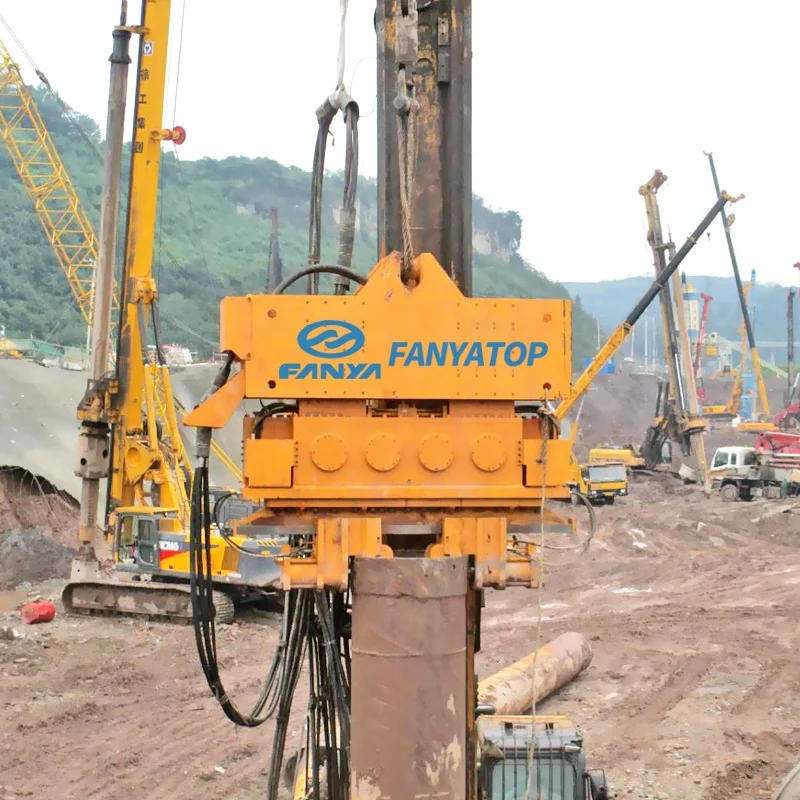

Гидравлический Вибрационный молоток для вождения
APP NING BO CHENG MING брендовая Высококачественная натуральная художественная бумага C1S C2S, матовая пищевая бумага для стаканов без покрытия, в наличии
900,00 $ - 1 050,00 $

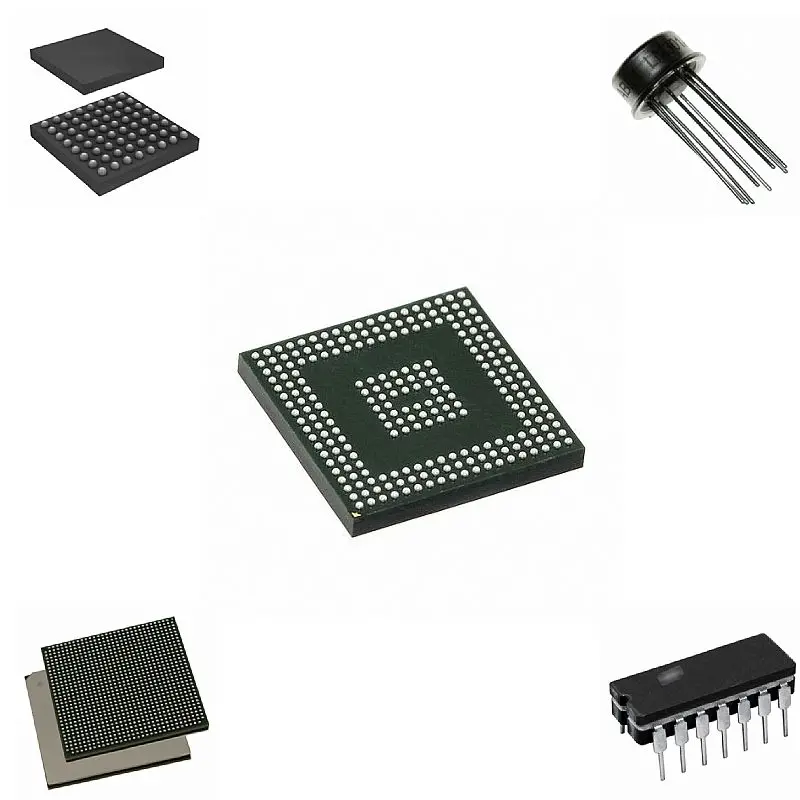

LYT67F-V1V2-45-3A4B-20-R18-XX 2-PLCC ic chip FETs MOSFETs Arrays Linear Switching
