Полностью автоматический Высокоточный тестер твердости металла лабораторный дюрометр Vicker
- Категория: >>>
- Поставщик: Suzhou Fema Precision Instrument Co. Ltd.
Сохранить в закладки 1600580252116:
Описание и отзывы
Характеристики
Our Advantages
Our innovative cut-off machines, mounting presses, grinders, polishers/electrolytic etchers, as well as hardness testers
andanalysis systems provide maximum reliability and fexibility.Thanks to the most advanced engineering technologies andmanufacture of components in our own factory, weare able to fulfll individual customer requirements by adapting our instruments to their needs.
Our R&D department for hard and software works inclose cooperation with our customers to ensure continuous optimization of our products. Customers in more than 30 countries appreciate our comprehensive sales and service network as well as direct communication with our experts.
To provide you with solutions of consistentlyhigh-quality we rely on the expertise and creativityofour qualifed and dedicated long-standingemployees.
Modern production engineering and high vertical integration:
Optimum control of every single component of our machines guarantees
reliable MEGA product quality “made in China”.
Application consultation and end-user seminars with individual focus:
Our application experts ascertain parameters and equipment
confgurations best suited for your sample preparation process.
In-house hardware and software development:
MEGA hosts the complete R&D process in-house to be able to offer
customer-specifc solutions. Tailor-made solutions to meet individual
requirements are our strength.
Product Description

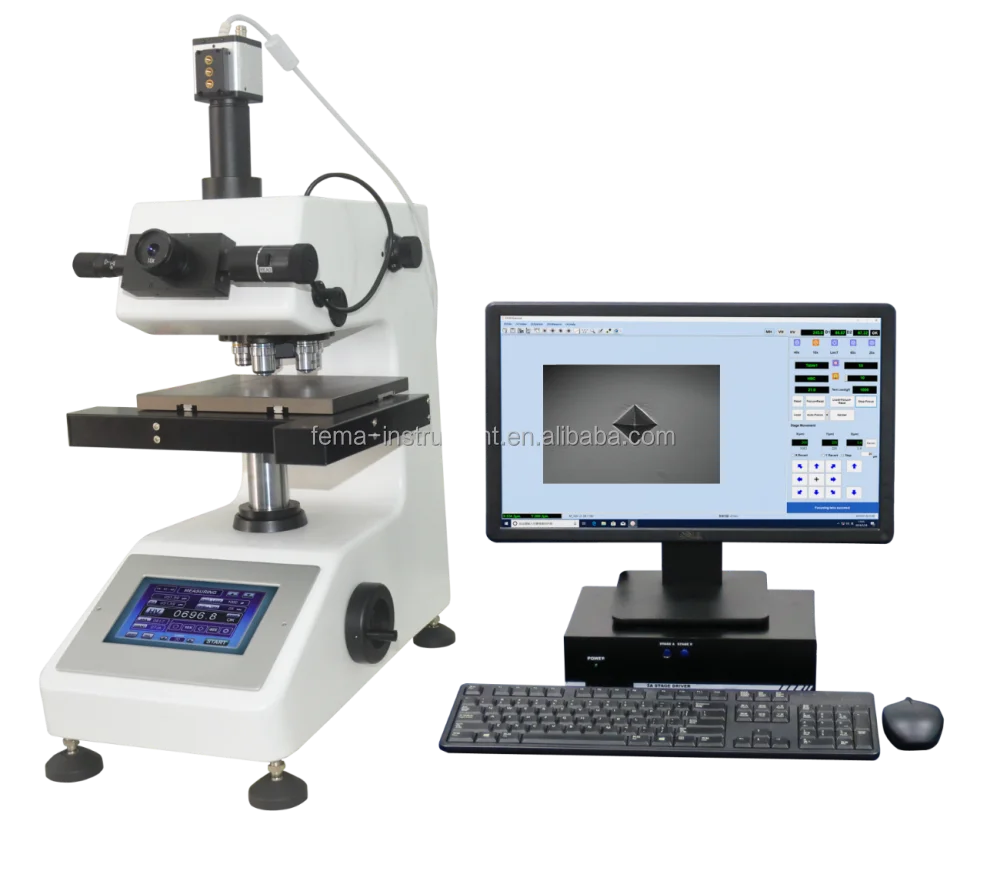

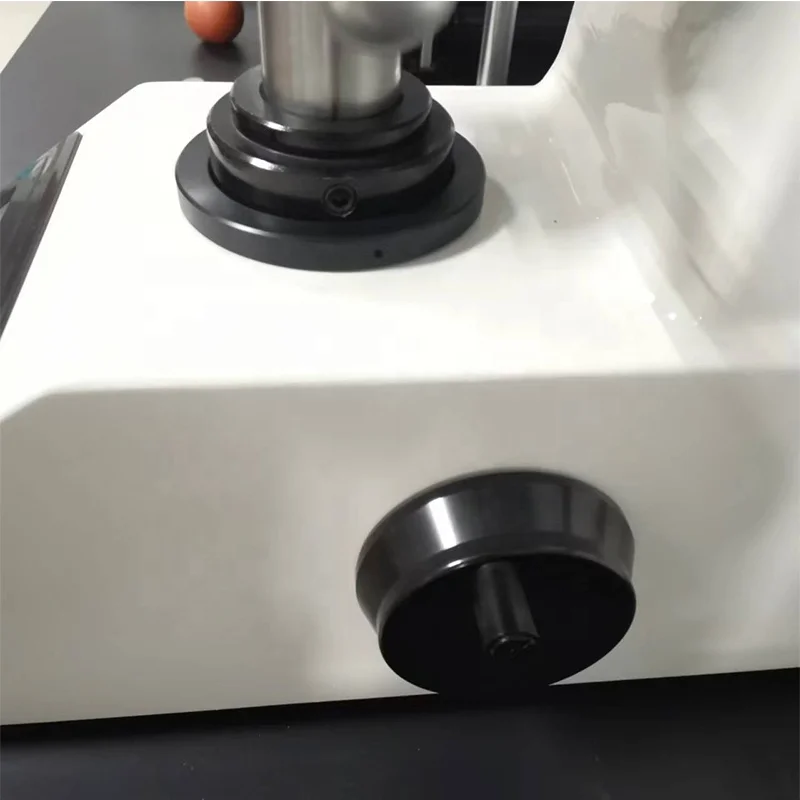

Fully Automatic High Accuracy Metal Hardness Tester Laboratory Durometer Vicker Hardness Tester
Feature:

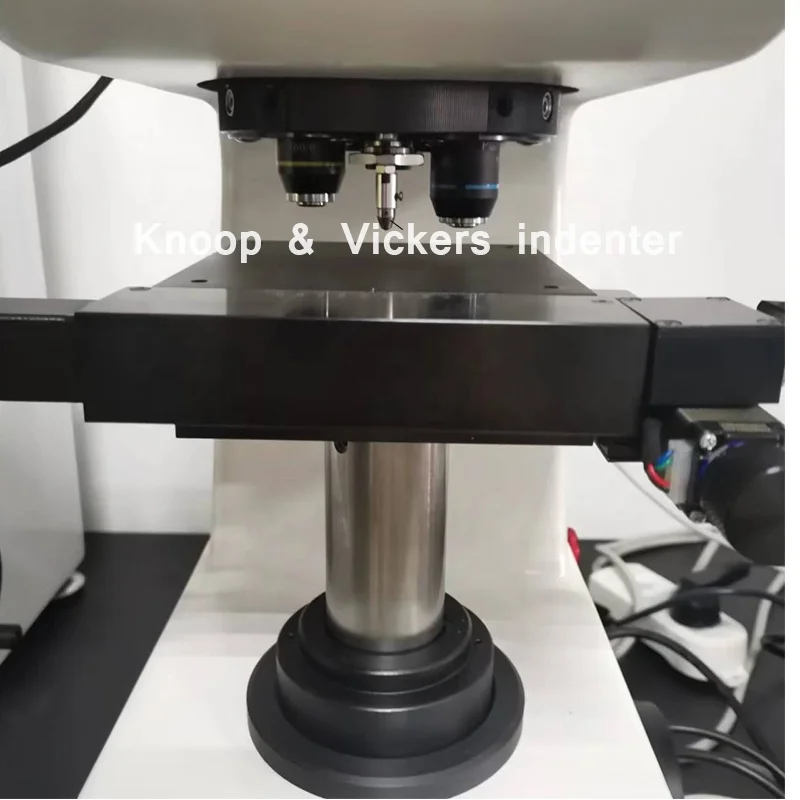

Automatic platform, automatic focus, automatic measurement, double Vickers / Knoop indenter;Color touchscreen control panel；
Loading force: The precise self-weight ensures the reliability and accuracy of the loading force system;Optical system: LED cold light-source and microscope optical mechanism, which greatly improves image brightness and optical resolution, make the indentation image clear;
Automatic turret: Measuring objective, observing objective&indenter automatic switching ；

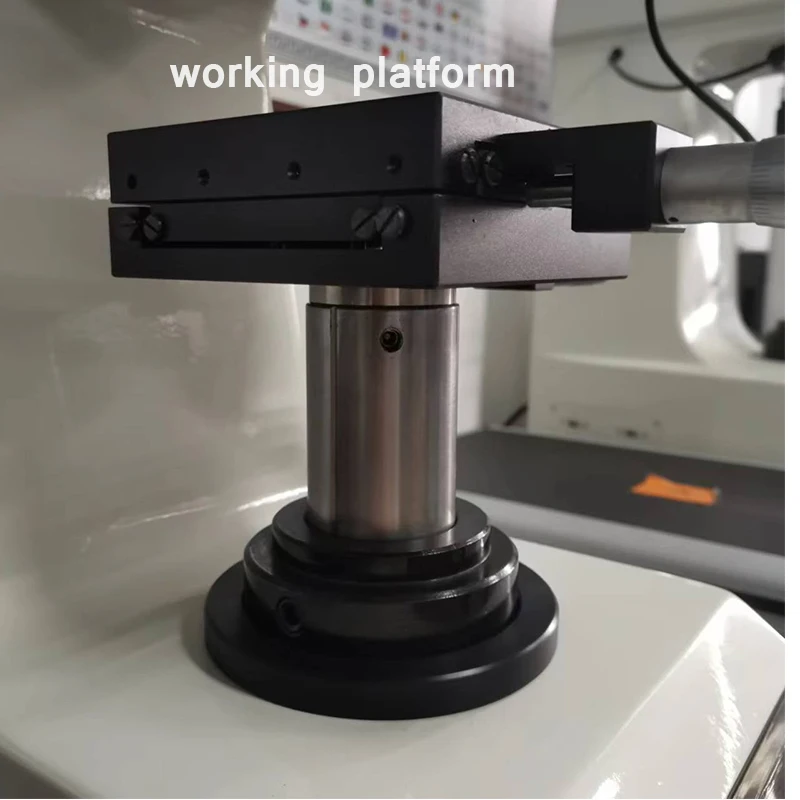

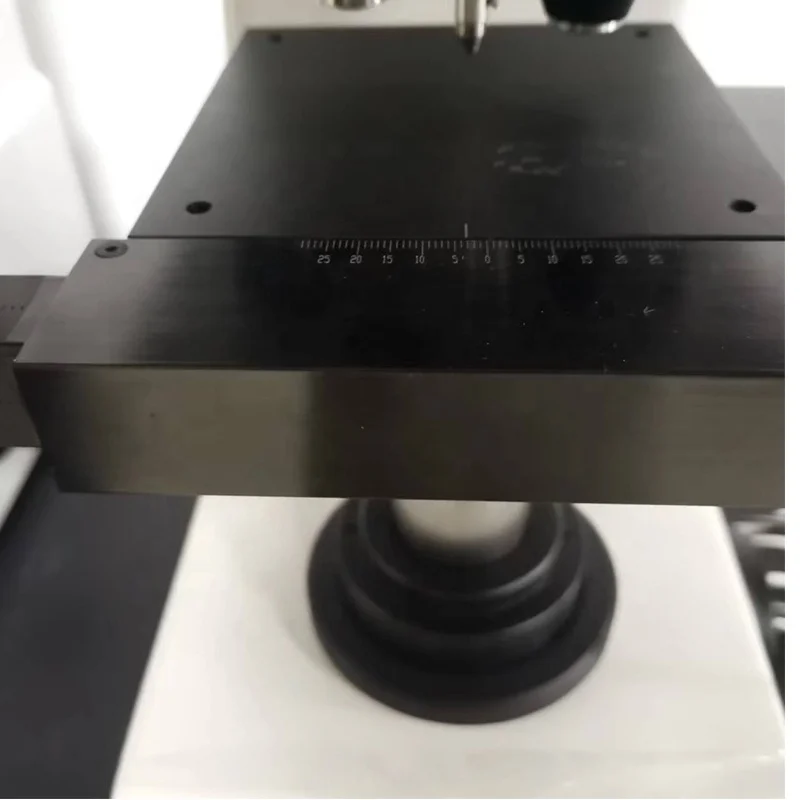

Automatic platform: The system automatically controls the X-Y platform, (110 × 110 mm, moving distance X / Y: 0-30mm) and can be manually adjusted;
Autofocus: Combined with high-resolution optical system,HD industrial camera, Z-axis lift motor and autofocus algorithm to achieve fast autofocus on the focal plane of the sample;
Automatic measurement: The measurement system has a flexible software module framework, using multi-threading technology, autofocus technology and advanced image recognition technology; realizes switching from objective /indenter, indentation pressing,indentation hardness value calculation, to generate report.
Loading force: The precise self-weight ensures the reliability and accuracy of the loading force system;Optical system: LED cold light-source and microscope optical mechanism, which greatly improves image brightness and optical resolution, make the indentation image clear;
Automatic turret: Measuring objective, observing objective&indenter automatic switching ；
Automatic platform: The system automatically controls the X-Y platform, (110 × 110 mm, moving distance X / Y: 0-30mm) and can be manually adjusted;
Autofocus: Combined with high-resolution optical system,HD industrial camera, Z-axis lift motor and autofocus algorithm to achieve fast autofocus on the focal plane of the sample;
Automatic measurement: The measurement system has a flexible software module framework, using multi-threading technology, autofocus technology and advanced image recognition technology; realizes switching from objective /indenter, indentation pressing,indentation hardness value calculation, to generate report.
Product Name | Automatic Vicker 1000 Pro |
Test Force | 10, 25, 50, 100, 200, 300, 500, 1000gf |
Hardness Scale | HV,HK |
Turret Way | automatic |
Loading Control | Automatic (Loading, Dwell, Unloading) |

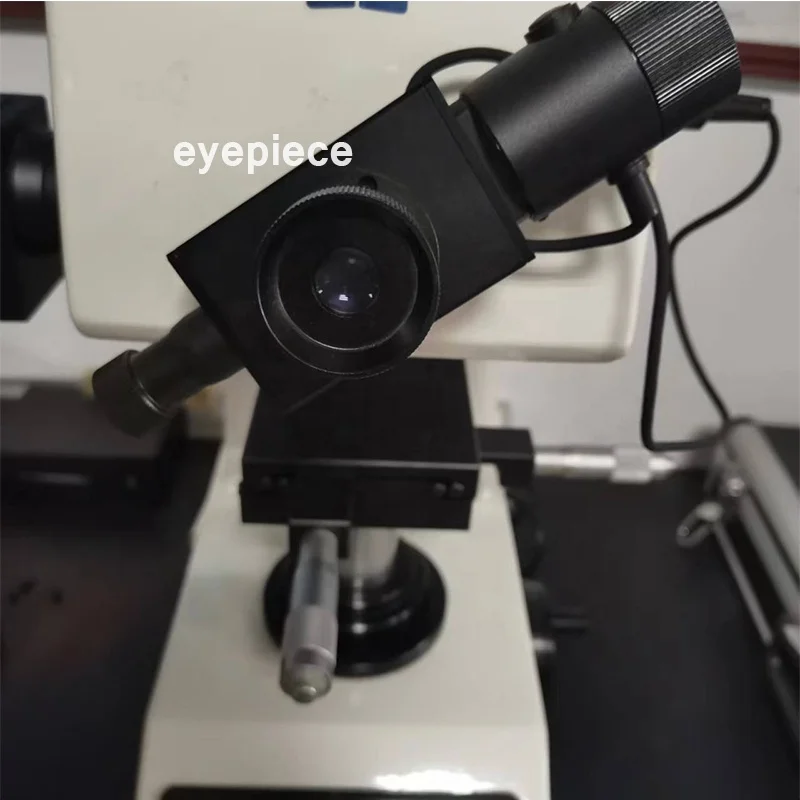

Magnification of Microscope | Observation:10x; Measurement:40x |
Total Magnification | Observation:100x;Measurement:400x |
Dwell Time | Adjustable 5~99s |
Testing Range | 1HV~2967HV |
Convert Scale | HV/HK |
Illumination | LED cold light-source |
Objective Table | Size:110x110mm;Travel:30x30mm |
Max. Height of Specimen | 90mm |
Instrument Throat | 110mm |
Power supply | AC 220V/50-60HZ |
Dimension | 430X190X520mm |
Gross/Net Weight | 50kg |
Execution Standard | JJG 260-91 JIS B-7734 ISO146 ASTM E-384 |
Maximum depth of sample | 110mm |
Optical function | Market lighting adjustable 32 levels |
Minimum moving distance | 1/100mm |
Specification
item | value |
Warranty | 1 year |
Type | Hardness Tester |
Place of Origin | China |
Province | Jiangsu |
Brand Name | MEGA |
Model Number | AutoVicker 1000AFPro |
Product Name | AutoVicker 1000AFPro |
Hardness Scale | 1HV---2967HV |
Weight | 40kg |
Application | Hardness Terster |
Name | MEGA |
Display | LED cold light source |
Power supply | AC 220V 50-60HZ |
MOQ | 1 SET |
Usage | Hardness Measurement |
Standard | ISO146 |

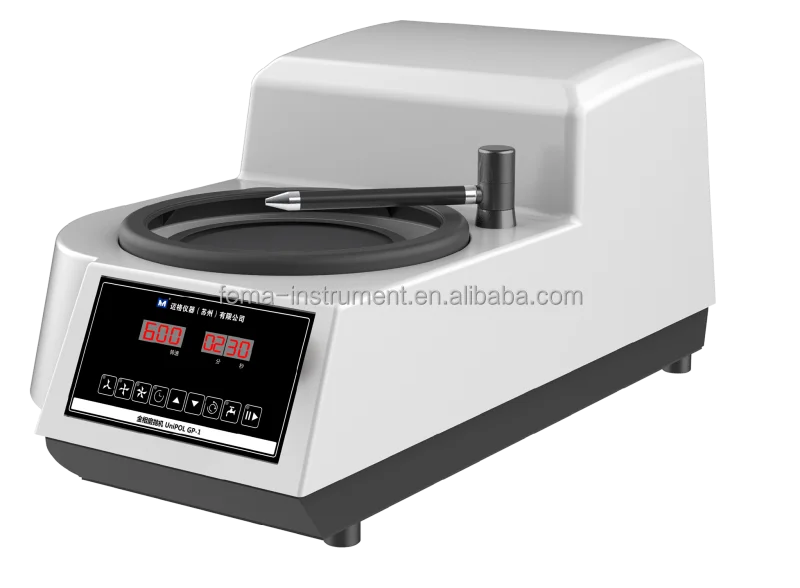

Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Fema Instrument specializes in researching & developing, manufacturing mid-market & leading-edge metallographic experiments, hardness tester and optical instruments. Widely used in quality control, R&D, laboratories and across numerous industries, including Machinery, Electronics, Automotive, Bearing industry, Molding, Metal, Rubber, Connectors, Household Appliances, Printed Circuit Boards, Aerospace, Medical equipment, Universities.
With two plants and 8 offices in the country and partners worldwide, We creates the infrastructure to serve the diverse needs of our customers at home and abroad, we listen to our customers, focus on their needs and react fast to their requests.
Suzhou Fema Precision Instrument Co., Ltd. is a company specializing in exporting products of MAGE Instruments (Suzhou) Co., Ltd. All products in this store are printed with the logo of MAG Instruments (Suzhou) Co., Ltd. (without additional requirements), and the following are all printed with Mega Instruments (Suzhou) Co., Ltd. appeared.
The two companies have the same root and the same origin. Please forgive the trouble caused by the above. If you want to know more, click to ask.
