Высокоскоростной пневматический роторный шарнир для водяной охлаждающей жидкости в центре шпинделя станка ЧПУ

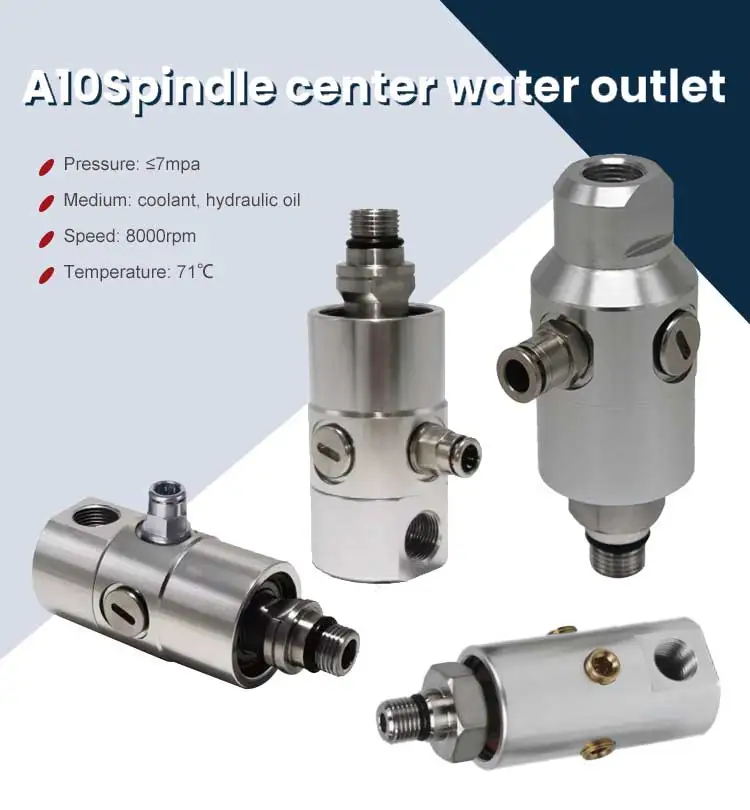

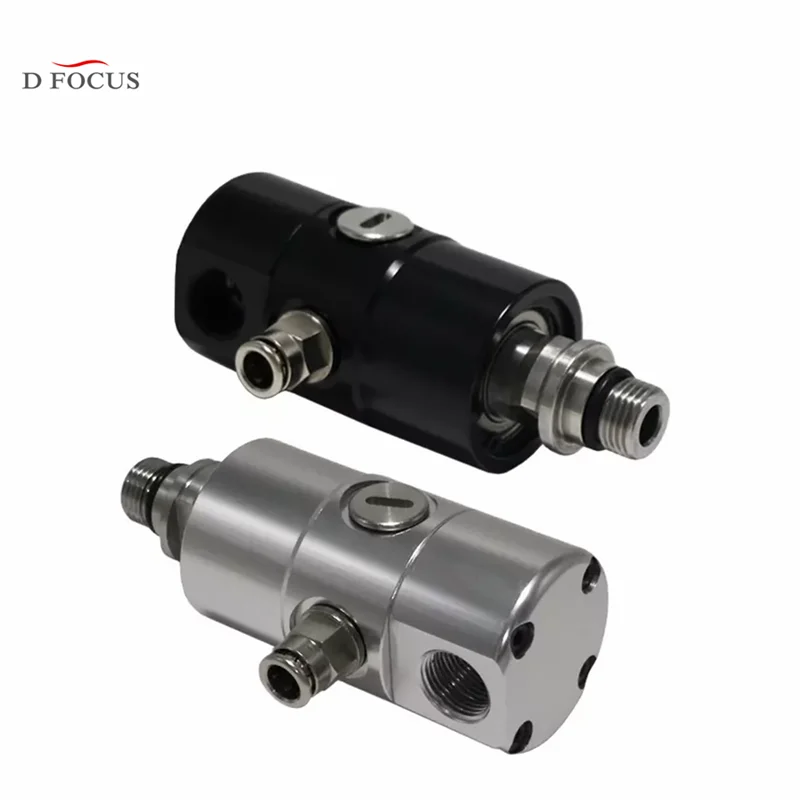

 A10 series rotary joint is a high-precision rotary joint mainly used for water outlet from the center of the end of the spindle of CNC machine tools. This type of product adopts a balanced sealing structure, the sealing pair is made of wear-resistant silicon carbide material, and the imported high-precision bearings are equipped with a more stable and vibration-free operation, and a special structure of the sealing ring is used to effectively prolong the service life and so on.

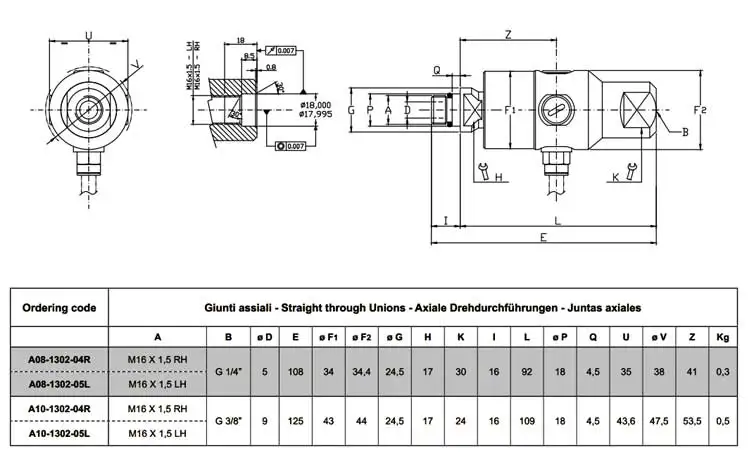

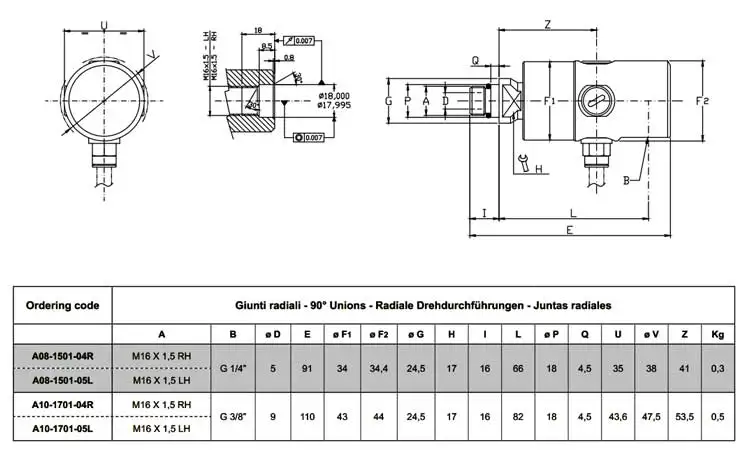

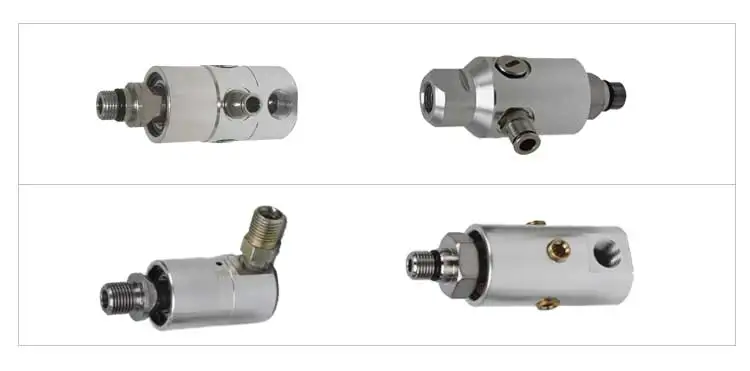

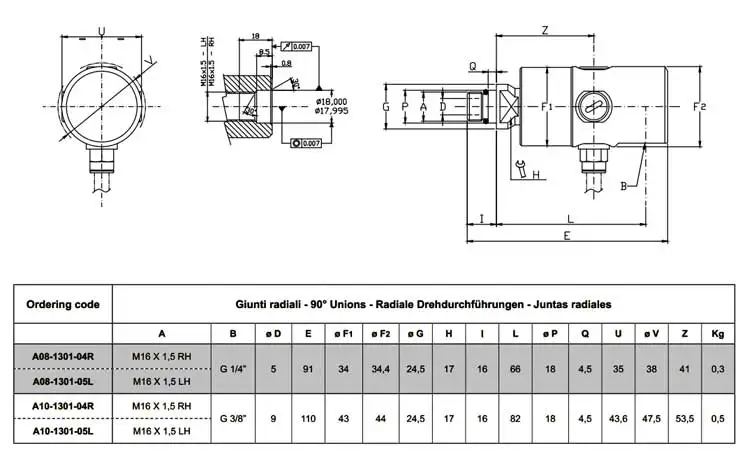

Product Description:

-Full flow design, no debris and burr blockage

-Bearing support and screw rotor for easy installation

-Deep groove radial ball bearings for smooth operation

-Labyrinth seal and leak protection ball bearing

- Balanced mechanical seal, made of silicon carbide material, even in harsh working conditions

extended service life

- Anti-corrosion anodized aluminum shell parts

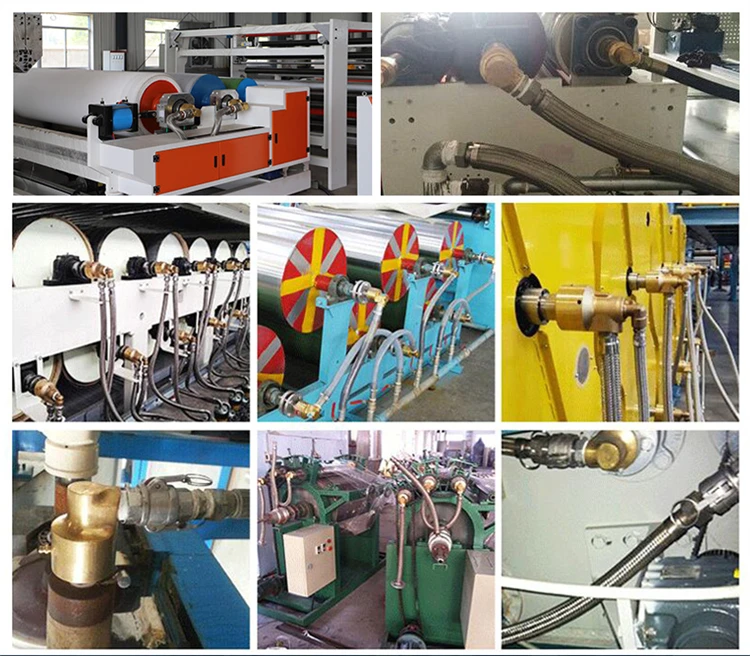

Applicable to high-speed machine tool spindles, machining centers, gun drilling deep hole machining machines, centrifuges and other equipment

1. Continuous innovation

We have accumulated rich experience in the production of rotary joints, advanced equipment, advanced technology, professional staff. We are always innovating.

2. Design Concept

Reasonable design, advanced structure, high quality and long service life.

3. Reliable quality

We are Alibaba evaluation supplier and our products have passed ISO9001 and other certifications.

4. Short delivery time

Hot-selling styles, a lot of stock.
We have professional and advanced machines. We have 4 production lines, which can produce quickly.

5. Reasonable price

We are controlling the cost of each part while ensuring the quality of the product, so we can offer the best price to our customers.

6. Delivery quality inspection

Internal inspection, all our products are inspected by dedicated colleagues before packing

7. Prompt to reply

We will respond to your inquiry when we see your message. Please be patient as we need frequent sports cars

l How to choose a rotary union?

Many parameters related to the rotating system will help you choose a rotary union.

The first criteria it’s important to consider is  the media the union will be used for. It can be used for gas, air, vacuum, water, oil, steam, cooling liquid etc. Fitting materials should be selected according to the possible presence of abrasive or corrosive agents.

The number of passages necessary for the union, the rotational speed, the pressure in your installation and the operating temperature will allow you to calculate the size of your rotary union.

Lastly, if you need to transmit an electrical signal or current in your installation, you will need to use a rotary union equipped with a slip ring.

l How to calculate the dimensions of your rotary union?

There are many sizes of rotary unions available. Outlined below you will find the essential characteristics for calculating the size of your product.

The nominal diameter (DN) of your installation: this is the inside diameter of a connecting pipe.

The operating pressure of your installation: the rotary union is used in both vacuum and pressure systems. You will need to know the usual pressure of the media, generally between 0 and 1,380 bar (0 to 20,000 psi), and the maximum operating pressure. If the system operates at variable pressure, choose the maximum pressure as the operating pressure.

The operating temperature of your media as well as the ambiant temperature: you will need to determine the minimum and maximum temperature. They generally vary between -100°C et 200°C.

The necessary rotational speed and direction: the speed is generally from 0 to 3,600 rpm.

l What other characteristics are important to consider when choosing a rotary union?

The material of the union is important. You can choose one in steel, aluminum, brass, cast iron or bronze depending on the nature of the fluid to be conveyed. Then you will need to choose the type of connection: male or female, screw-in, flange, welded on or directly connected.

If you have any other questions, please feel free to contact me. I will try my best to help you! Welcome to contact us! only ask no cost your money.
