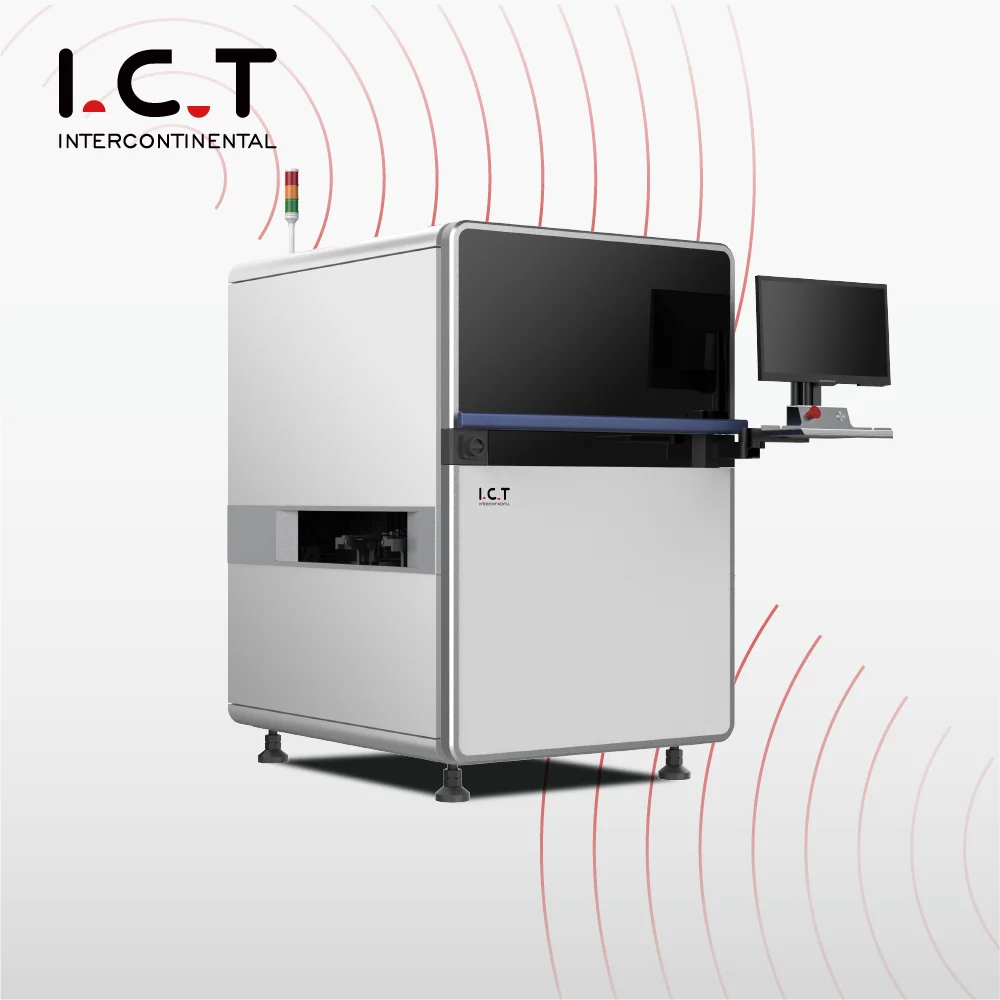

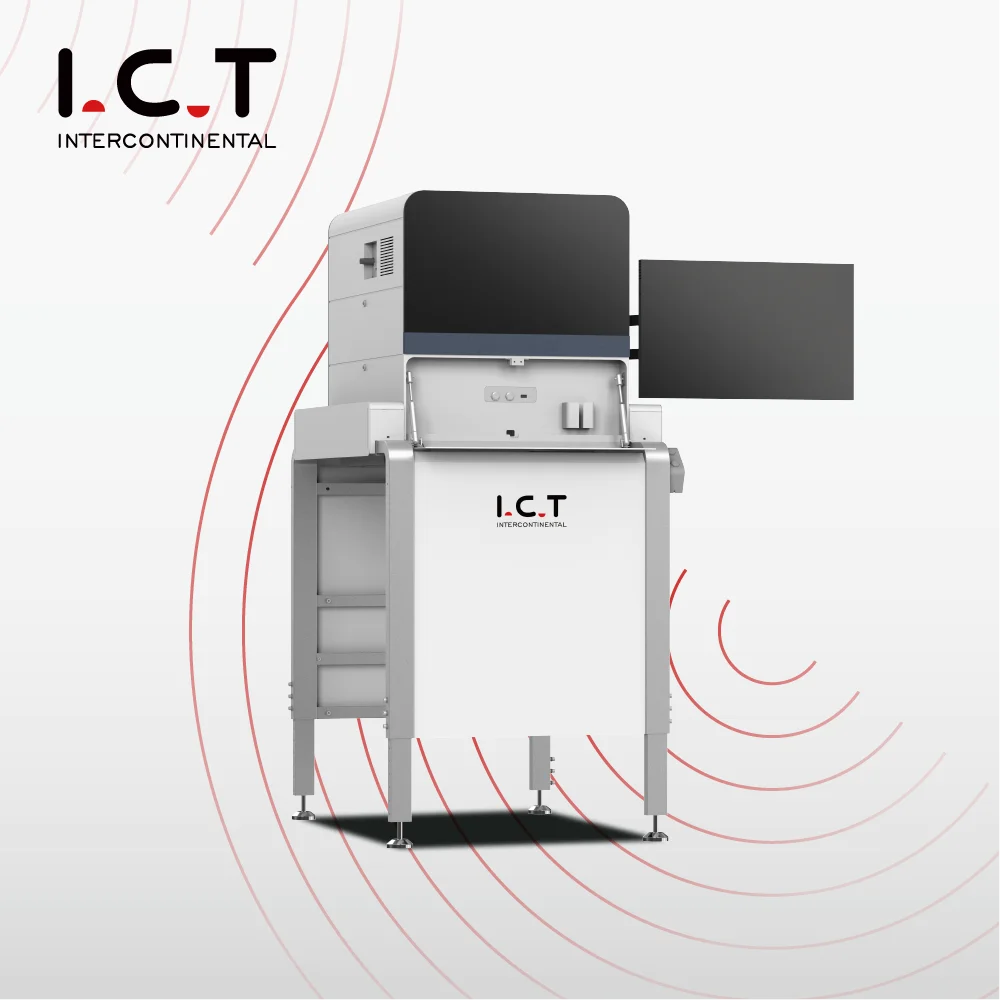

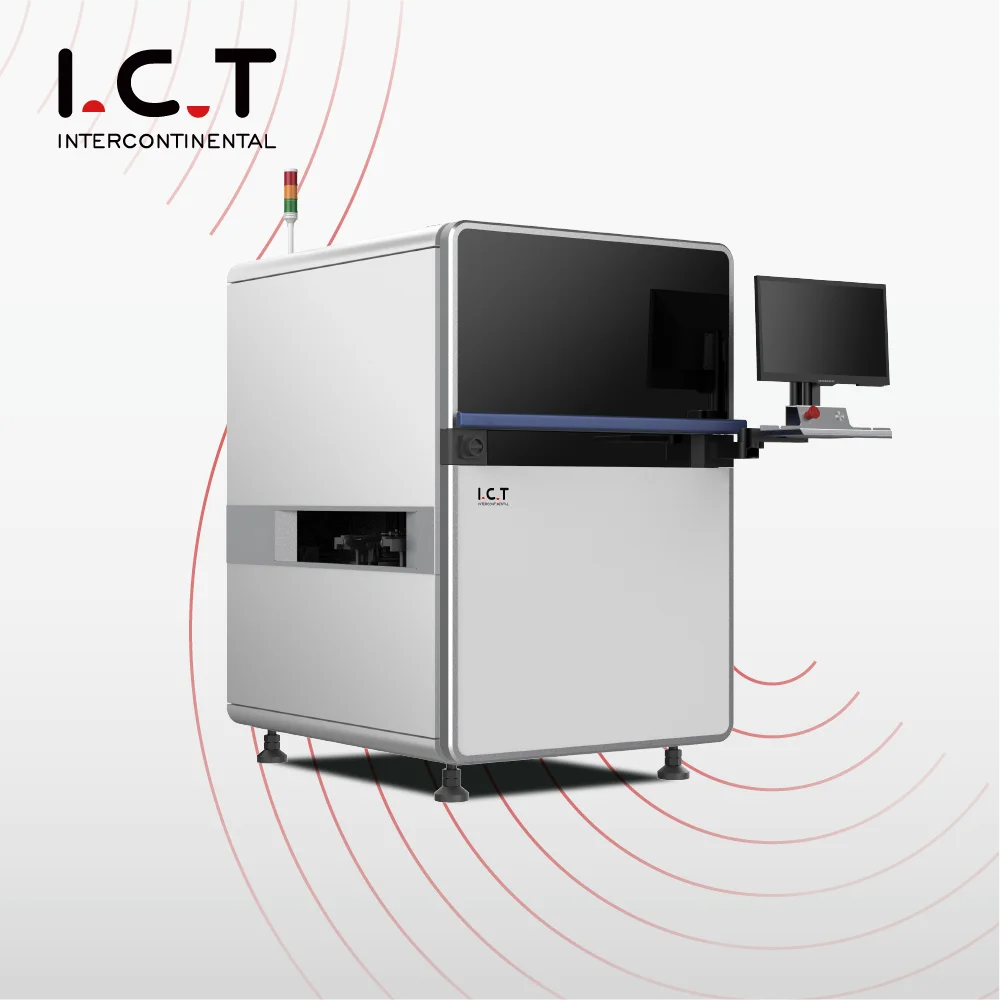

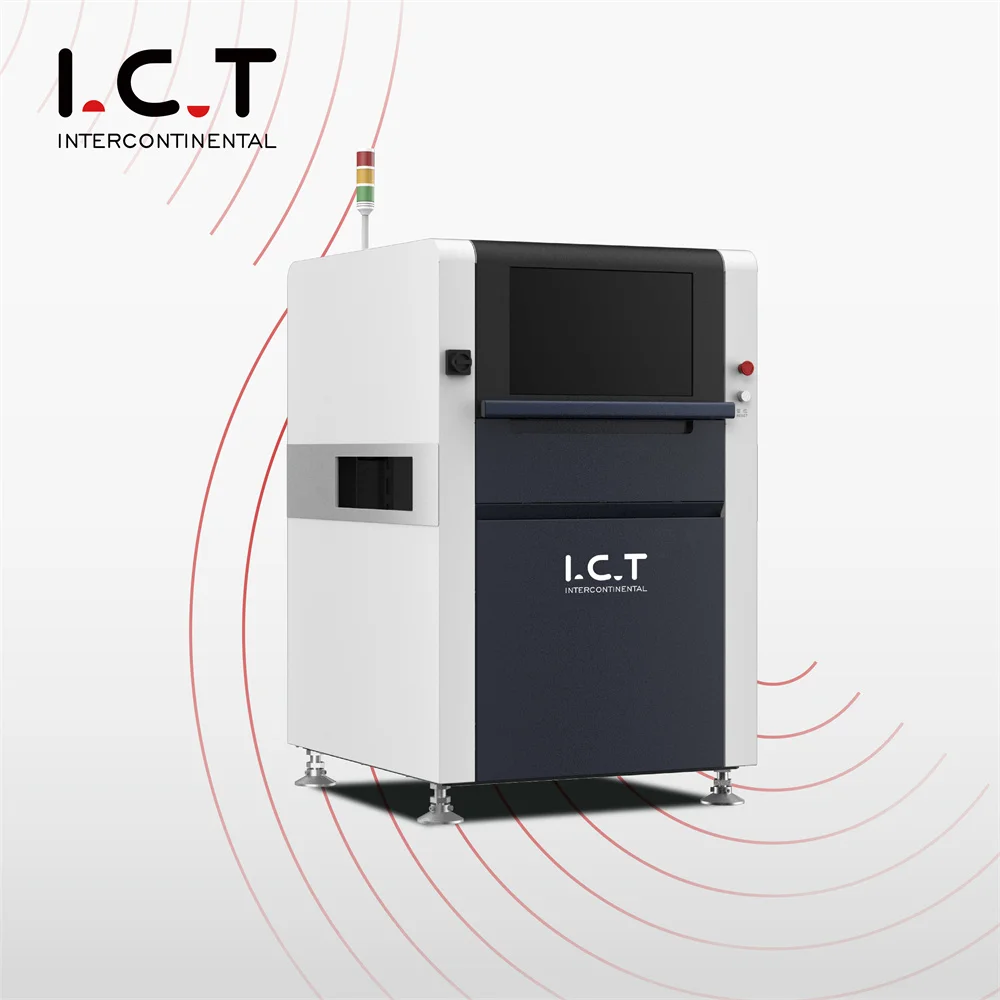

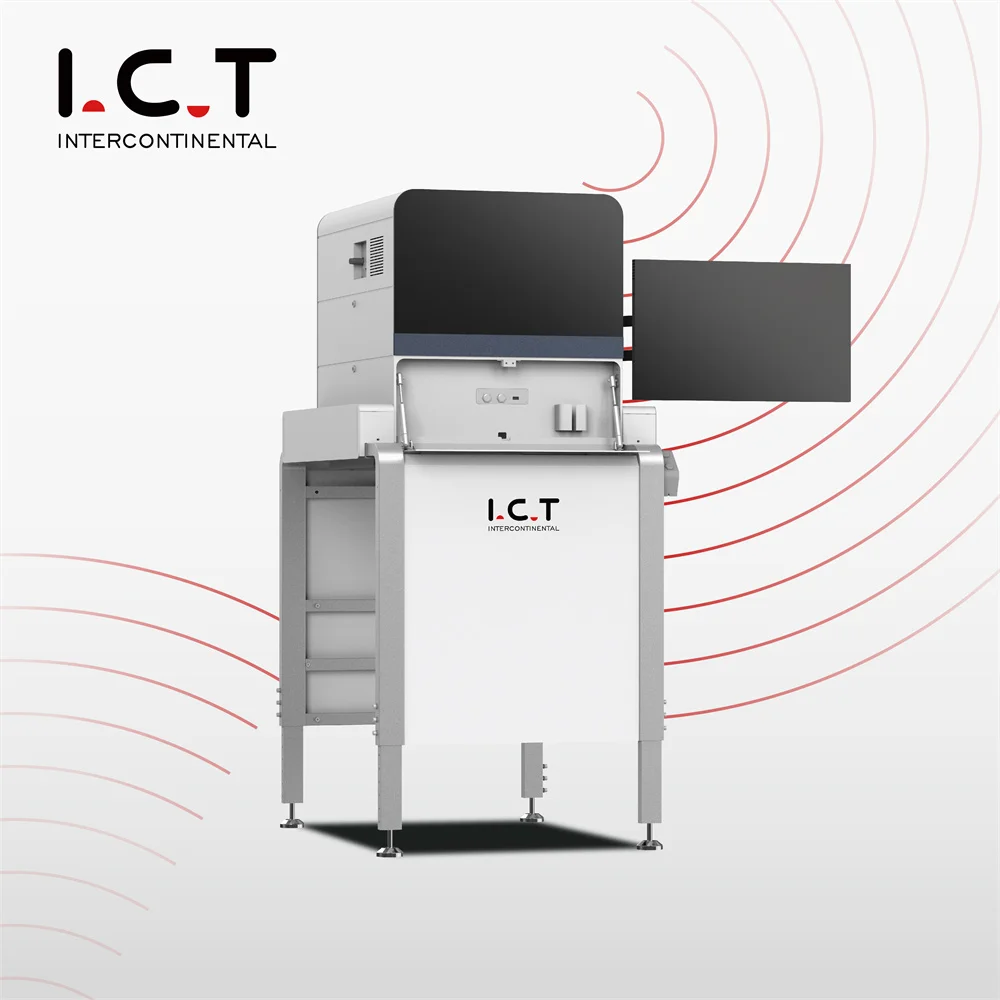

I.C.T SMT Online AOI AI-5146
I.C.T SMT AOI captures board image in real time by high precision color industrial camera. Adopt Convolution Neural Network (CNN)algorithm to process images. Judge components defects and soldering defects intelligently.
Features:
1. For SMT pre-reflow, post-reflow inline inspection.
2. High inspection rate and low false alarm rate.
3. Granite platform, greatly improve machine precision and stability.
4. Programmable RGB+W LED lighting source. Bilateral telecentric lens, low distortion and high depth of field .
5. Simplified programming flow, very simple interface. Support batch modifying parameters with one-key.
6. Centralized control. Interconnection between multiple equipment.
7. Multiple configurations meet different inspection demands.
8. Inspection ability: insufficient, short, soldering hole, solder covering pin, contamination, misalignment, missing part,skewed,billboard, mounting on side, overturn, wrong part, damaged, float, polarity, pseudo soldering, empty solder, excessive glue etc.
9. Good stability(GR&R<10% @6 Sigma, CPK>1.33) Test deviation accuracy less than ±0.25mm.
10. PCB warpage compensation: total Mark compensation calibration, component position frame compensation.
11. Data is traceable. Support SPC alarm, LOG automatic collecting and storage function, NG warning/alarm function, Remote programming & debugging
1. For SMT pre-reflow, post-reflow inline inspection.
2. High inspection rate and low false alarm rate.
3. Granite platform, greatly improve machine precision and stability.
4. Programmable RGB+W LED lighting source. Bilateral telecentric lens, low distortion and high depth of field .
5. Simplified programming flow, very simple interface. Support batch modifying parameters with one-key.
6. Centralized control. Interconnection between multiple equipment.
7. Multiple configurations meet different inspection demands.
8. Inspection ability: insufficient, short, soldering hole, solder covering pin, contamination, misalignment, missing part,skewed,billboard, mounting on side, overturn, wrong part, damaged, float, polarity, pseudo soldering, empty solder, excessive glue etc.
9. Good stability(GR&R<10% @6 Sigma, CPK>1.33) Test deviation accuracy less than ±0.25mm.
10. PCB warpage compensation: total Mark compensation calibration, component position frame compensation.
11. Data is traceable. Support SPC alarm, LOG automatic collecting and storage function, NG warning/alarm function, Remote programming & debugging
If You Need More Details About The I.C.T SMT Online, Please Click Here.
Model | I.C.T AI-5146 | I.C.T AI-5146D | |
Resolution@FOV | 10um@40*30mm | 10um@40*30mm | |
Camera | 12M pixel intelligent digital industrial camera | ||
Lens | Telecentric lens | ||
Light | RGB+W4 color integral | ||
PCB Size | 50*50mm~510*460mm (Large board mode: Left to right: max 730*460mm Right to left: max 640*460mm) | 50*50mm~510*610mm(Single rail operation) 50*50mm~510*330mm(Dual rail operation) | |
PCB Thickness | 0.3~6.0mm | ||
Power | AC220 50/60Hz,5A | ||
Weight | 750Kg | 790Kg | |
Dimension | L1015*W1086*H1539mm (excluding the light) | L1015*W1370*H1539mm (excluding the light) | |
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
Our Company
About I.C.T：
I.C.T is a leading provider of factory planning solution. we have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in LED, TV, mobile phone, DVB, EMS and other industries all over the world. We are trustworthy.
Exhibition
Customers' Feedback
Related Products
FAQ
Q: What we can do for you? A: One-stop SMT Solution Supplier; Reliable SMT Partner |
Q: Are you a trade company or manufacturer? A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available. |
Q: What is your delivery date? A: About 35 days after receipt of payment. |
Q: What is your payment terms? A: 30% deposit in advance and 70% balance before shipment. |
Q: What your main customers? A: Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon, Jabil etc. |
Q: Why choose you? A: Leading SMT Supplier in China; Professional Supplier on Alibaba; Trade assurance to USD 560,000+; Professional after-sales service team. |
