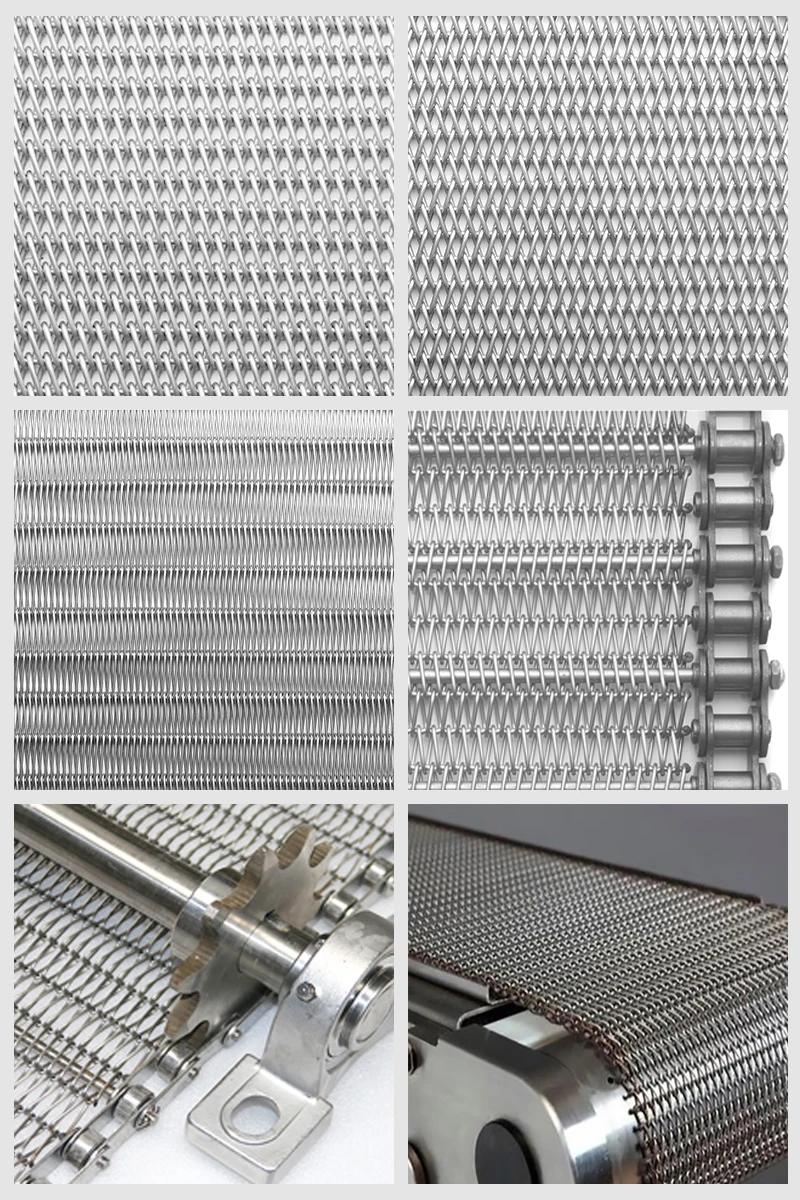

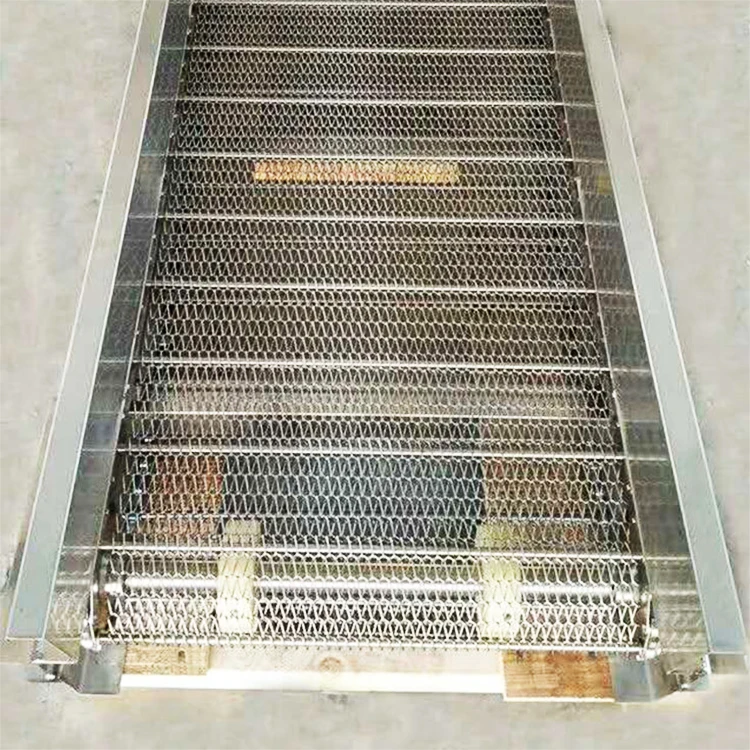

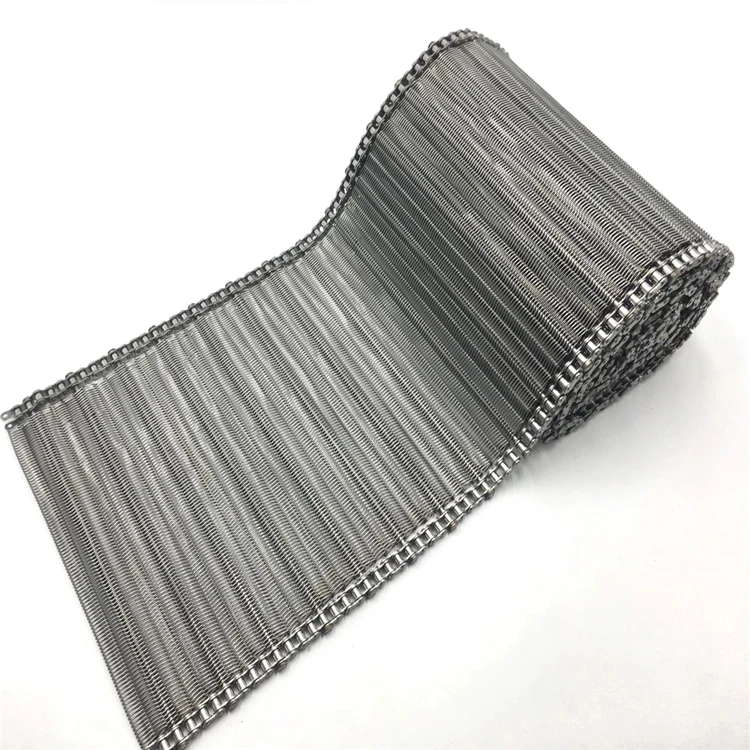

304 Stainless Steel Chain Link Balance Wire Mesh Conveyor Belt
Product Description
1. 304 Stainless Steel Chain Link Balance Wire Mesh Conveyor Belt Overview

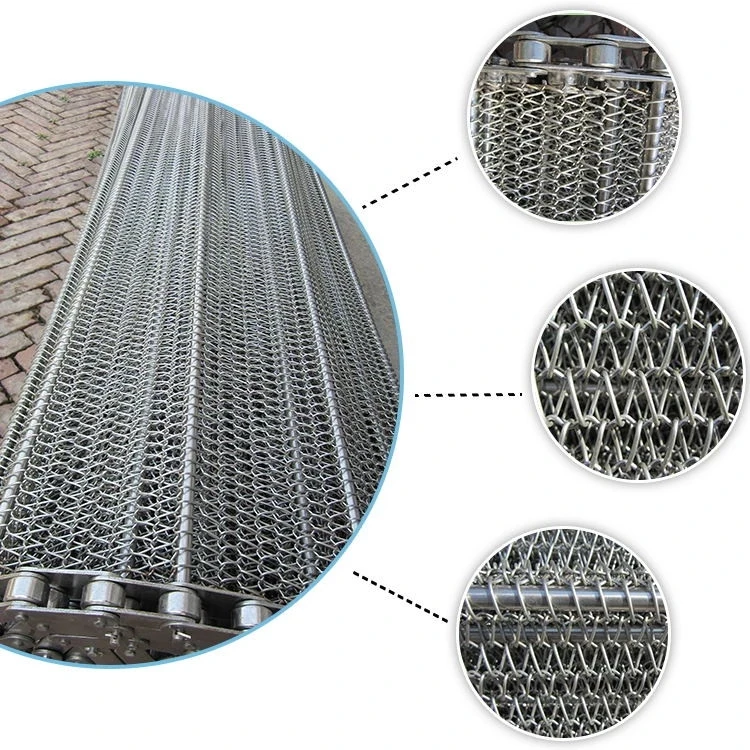

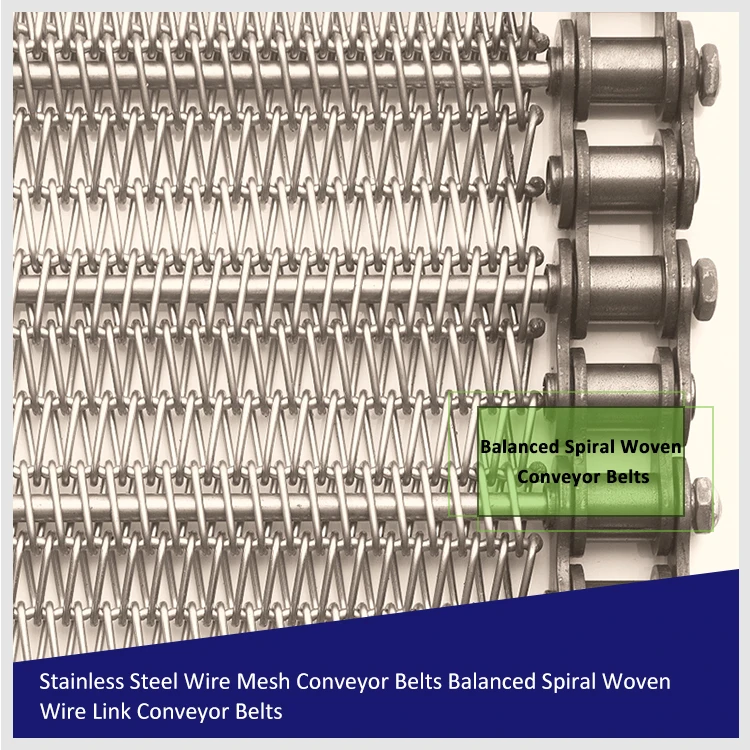

Balanced weave belt, also called as wide spiral belts or wire link belts in different countries, consists of a series of alternating single or double left-hand and right-hand spirals connected by crimped or straight cross wire. Round or flattened spiral wire are used. With its unlimited choice of mesh selection, balanced spiral belting has a wide range of mesh size suiting for almost any application.

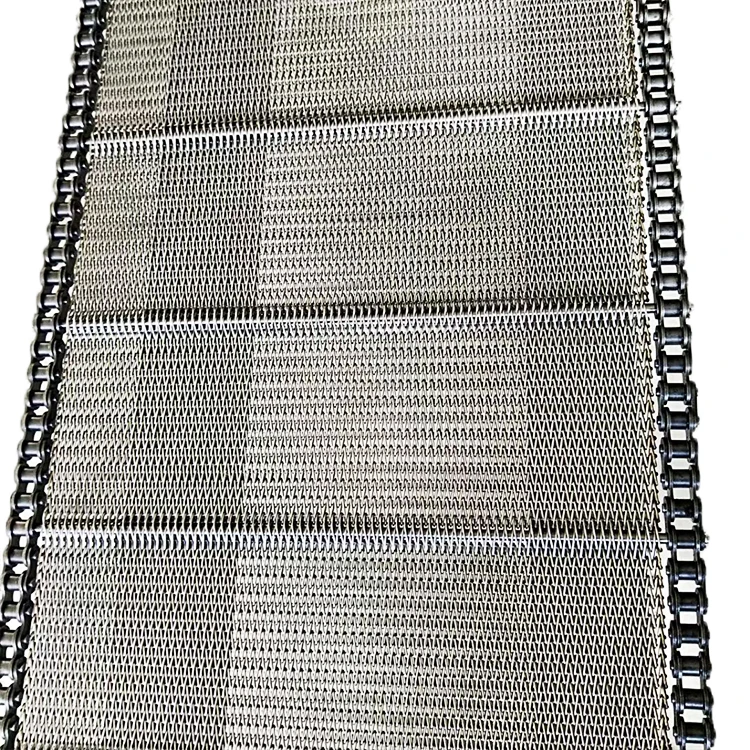

This chain wire mesh belt adopts chain transmission, which is suitable for large and heavy-duty conveying. It has stable movement, high strength, and relatively small force on the mesh surface, which can protect the conveying mesh surface. It is more expensive but has a long service life. .
1.Mesh belt width: 150 ~ 5500mm
2. Mesh belt speed: 0.15 ~ 0.50m/min
3. Service temperature: - 40 ℃ ~ 1300 ℃ ;
4. Edge form: bending, upsetting, welding, etc. Performance characteristics:
It has good corrosion resistance, wear resistance, high temperature resistance and other properties.
Reasonable design, compact structure, many specifications, convenient installation, reliable operation and other advantages.
2. 304 Stainless Steel Chain Link Balance Wire Mesh Conveyor Belt Specification
1) Belt Types
2) Edge Availability
3) Wire Type
4) Material Availability
High carbon steel, stainless steel, copper steel, brass steel and other types are available.
Material | Maximum Operating Temperature °C |
Carbon Steel | 550 |
Galvanised Mild Steel | 400 |
Chrome Molybdenum | 700 |
304 Stainless Steel | 750 |
321 Stainless Steel | 750 |
316 Stainless Steel | 800 |
316L Stainless Steel | 800 |
314 Stainless Steel | 1120 |
37/18 Nickel Chrome | 1120 |
80/20 Nickel Chrome | 1150 |
Inconel 600 | 1150 |
Inconel 601 | 1150 |
5) Specifications
Balanced Weave Conveyor Belts specifications | ||||
Item No. | Spiral wire pitch | Cross rod pitch | Spiral wire diameter | Cross wire diameter |
mm | mm | mm | mm | |
BWCB-001 | 4 | 4 | 0.9 to 1.2 | 1.2 to 1.6 |
BWCB-002 | 5 | 6.4 | 0.9 to 1.2 | 1.2 to 1.6 |
BWCB-003 | 5 | 5 | 0.9 to 1.6 | 1.2 to 1.6 |
BWCB-004 | 6 | 6 | 0.9 to 1.6 | 1.2 to 1.6 |
BWCB-005 | 6 | 8 | 0.9 to 1.2 | 1.2 to 1.6 |
BWCB-006 | 6 | 10 | 0.9 to 1.6 | 1.2 to 1.6 |
BWCB-007 | 8 | 12 | 1.2 to 2.0 | 1.2 to 2.5 |
BWCB-008 | 8 | 13 | 1.2 to 2.0 | 1.2 to 2.5 |
BWCB-009 | 8 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
BWCB-010 | 11 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
BWCB-011 | 11 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-012 | 11 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-013 | 11 | 27 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-014 | 15 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-015 | 15 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-016 | 22 | 23 | 1.6 to 3.0 | 1.6 to 3.0 |
BWCB-017 | 22 | 33 | 1.6 to 3.0 | 2.0 to 4.0 |
Note: 1. If flat wire, please give us cross section. 2. Custom specification is available if you can't find the suitable size. | ||||
3. 304 Stainless Steel Chain Link Balance Wire Mesh Conveyor Belt Features
Stainless steel conveyor belt own the resistance to acid,alkali and low high temperature. It owns good conveying function,break resistance as well as antioxidation.With professional design and compact form,the stainless steel wire conveyor belt is very easy to install and steadily run without deflection.
1. The left - wound and right - wound spirals are alternately arranged and jointed with the pre-crimped rods.
2. Widest range of application
3. Stable construction for straight belt running.
4. 304 Stainless Steel Chain Link Balance Wire Mesh Conveyor Belt Applications
Widely used in annealing furnace mesh belt, baking furnace mesh belt in the glass products industry. Food processing industry, dehydrated vegetables, quick-frozen food single freezer pre-treatment mesh belt, chain mesh. Powder metallurgy, metal heat treatment, quenching, sintering, brazing, roasting, bright, blackening, bearings, carburizing high temperature furnace mesh belt, baffle mesh belt, coating drying line conveyor mesh belt, foam nickel reduction production line mesh belt , Washing machine, hoist, dryer, dryer, curing furnace mesh belt.

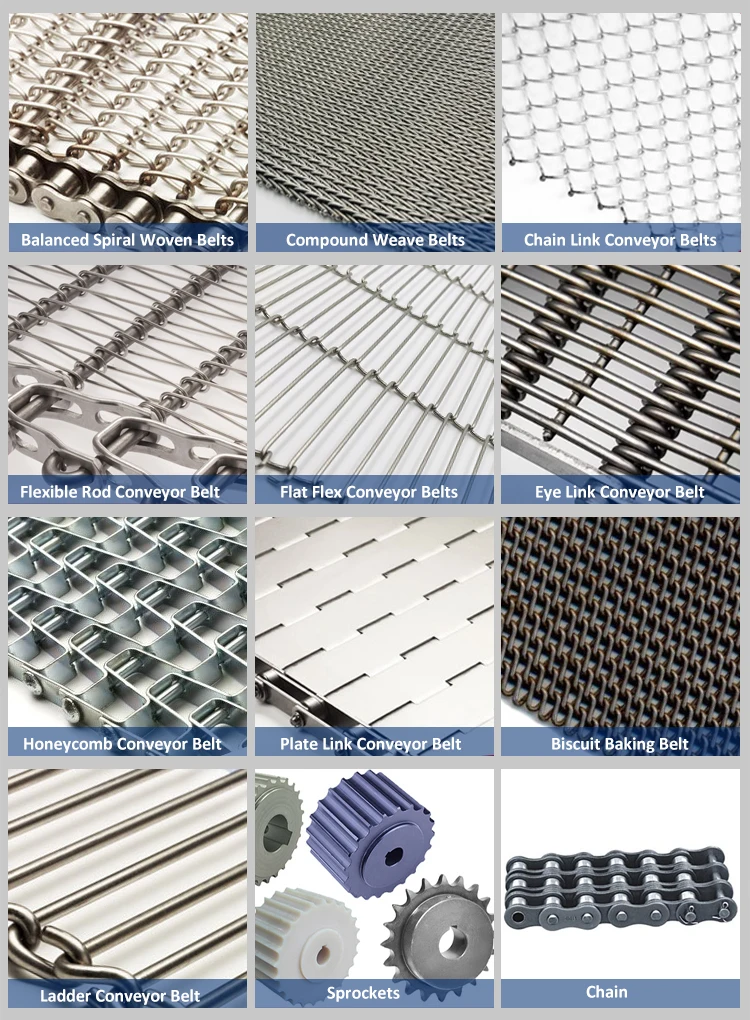

Related Products
