Маленькая гидросеяльная машина гидросеяние для семян травы и мульча безопасно управляемая
330 625,20 ₽ - 573 083,68 ₽
Дизельный двигатель 12000l 3000L 5000L 6000L 8000L 10000L 13000L 15000L гидропосевная машина для газона
- Категория: >>>
- Поставщик: Zhengzhou Wode Heavy Industry Co. Ltd.
Сохранить в закладки 1600580658093:
Описание и отзывы
Характеристики

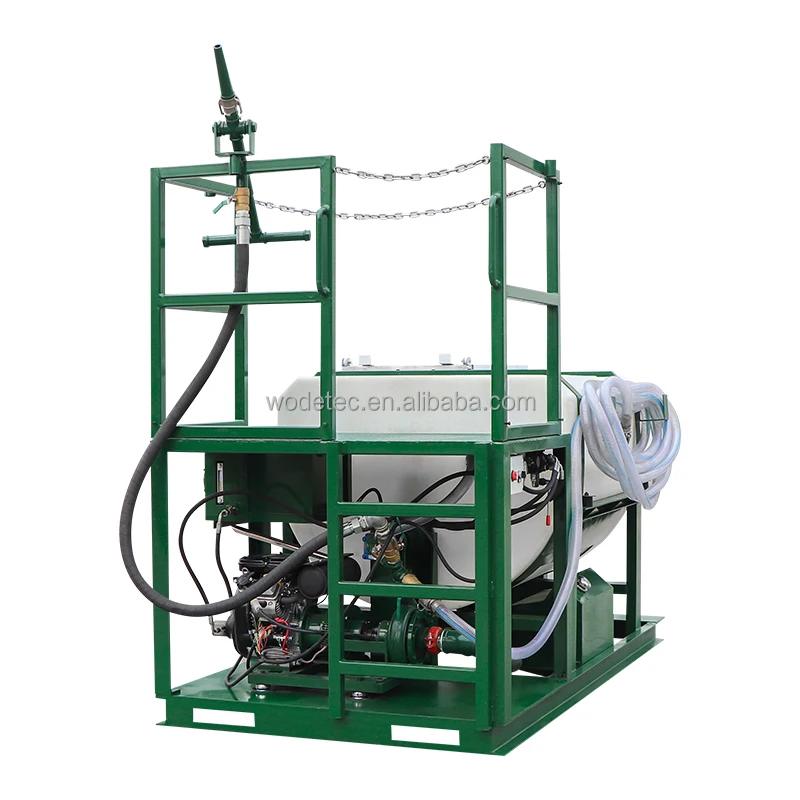

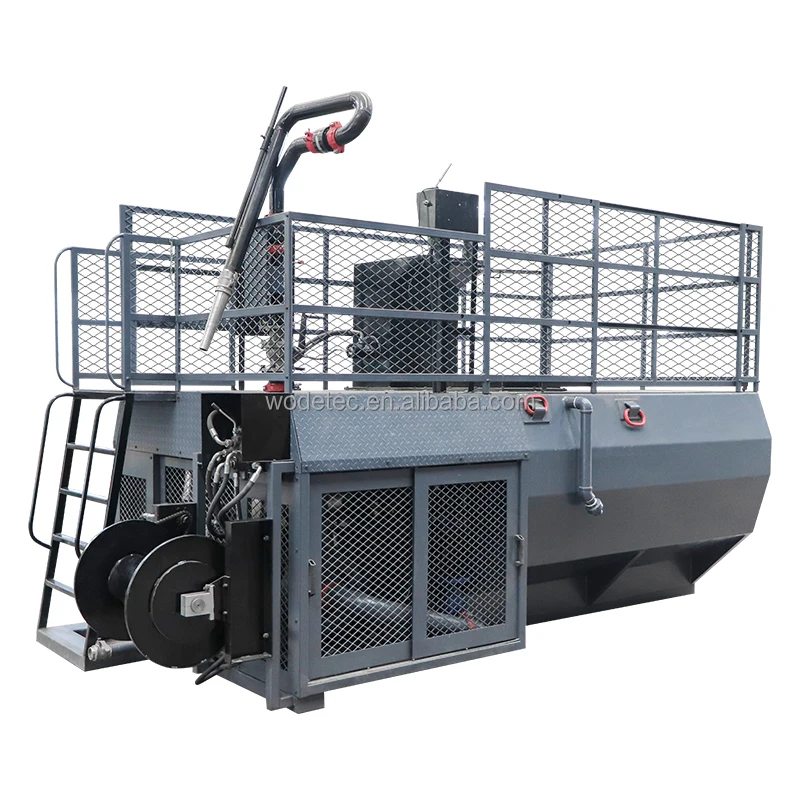

WHS series hydroseeding machine
Product Overview
WHS series hydroseeding machine is driven by a diesel engine, electric control, and easy operation. Its tank capacity have 1200L, 2000L, 3000L, 5000L, 6000L, 8000L, 10000L, 13000L, and 15000L for options. The equipment with an exclusive pump to handle the thickest slurry.
Application

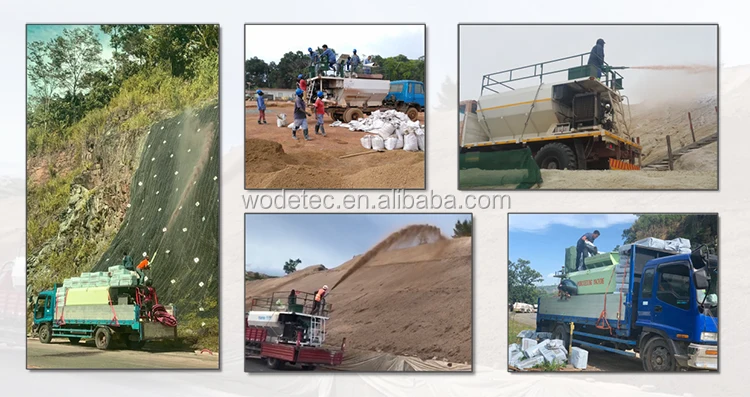

WHS hydroseeding machine is ideal equipment for ground and soil management. It is widely used for seeding, golf courses, turf, landscaping, erosion control, dust control, landfill cover, land restoration, roadside construction, pipelines, mine and oilfield reclamation, fire suppression, forest fire recovery, remote watering, fertilizing.
Product Specification
Model | WHS15190 | WHS13190 | WHS10120 | ||
Power | 190KW, Cummins engine, water-cooled | 190KW, Cummins engine, water-cooled | 120KW, Cummins engine, water-cooled | ||
Tank Size | Liquid capacity: 15000L Working capacity: 13500L | Liquid capacity: 13000L Working capacity: 11700L | Liquid capacity: 10000L Working capacity: 8950L | ||
Pump | Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance | Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 33mm solid clearance | Centrifugal pump:5''x2.5'' (12.7X6.4cm),90m³/h@11bar, 25mm solid clearance | ||
Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation | Twin mechanical agitators with helical paddle orientation and liquid recirculation | Twin mechanical agitators with helical paddle orientation and liquid recirculation | ||
Rotating speed of mixer shaft | 0-130rpm | 0-130rpm | 0-110rpm | ||
Maximum horizontal conveying distance | 85m | 85m | 70m | ||
Spraying guns type | fixed standing gun and pipe gun | fixed standing gun and pipe gun | fixed standing gun and pipe gun | ||
Height of fence | 1100mm | 1100mm | 1100mm | ||
Dimensions | 7200x2500x2915mm | 7200x2500x2915mm | 6750x2200x2510mm | ||
Weight | 8500kg | 8000kg | 5500kg | ||
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | ||
Model | WHS08100 | WHS06100 | |
Power | 100KW, Cummins engine, water-cooled | ||
Tank Size | Liquid capacity: 8000L | Liquid capacity: 6000L | |
Working capacity: 7300L | Working capacity: 5500L | ||
Pump | Centrifugal pump:5’’x3’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance | ||
Agitation | mechanical agitator with helical paddle orientation and liquid recirculation | ||
Rotating speed of mixer shaft | 0-110rpm | ||
Maximum horizontal conveying distance | 70m | ||
Spraying guns type | fixed standing gun and pipe gun | ||
Height of fence | 1100mm | ||
Dimensions | 5800x2150x2750mm | ||
Weight | 5000kg | 4500kg | |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit | ||
Model | WHS08100A | WHS06100A | |
Power | 103KW@220rpm Yuchai diesel engine, water-cooled | ||
Tank Size | Liquid capacity: 8000L | Liquid capacity: 6000L | |
Working capacity: 7300L | Working capacity: 5500L | ||
Pump | Centrifugal pump:5’’x2.5’’ (12.7X6.4cm), 100m³/h@11bar, 25mm solid clearance | ||
Pump drive | In-line coupled to air-controlled over-center clutch, pump drive is independent of agitator operation | ||
Agitation | mechanical agitator with helical paddle orientation and liquid recirculation | ||
Agitator drive | Reversible, variable speed hydraulic motor drive (0-130rpm) | ||
Maximum horizontal conveying distance | 70m | ||
Hose reel | Hydraulic driven with reversible, variable speed | ||
Dimensions | 5875x2150x2750mm | ||
Weight | 4850kg | 4550kg | |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit | ||
Model | WHS0883 | WHS0683 | |
Power | 83KW, China Huafeng diesel engine, water-cooled | ||
Tank Size | Liquid capacity: 8000L | Liquid capacity: 6000L | |
Working capacity: 7300L | Working capacity: 5500L | ||
Pump | Centrifugal pump:5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance | ||
Agitation | mechanical agitator with helical paddle orientation and liquid recirculation | ||
Rotating speed of mixer shaft | 0-110rpm | ||
Maximum horizontal conveying distance | 65m | ||
Spraying guns type | fixed standing gun and pipe gun | ||
Height of fence | 1100mm | ||
Dimensions | 5800x2150x2750mm | ||
Weight | 5000kg | 4500kg | |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | ||
Model | WHS0551 |
Power | 51KW, Cummins engine, water-cooled |
Tank Size | Liquid capacity: 4500L Working capacity: 3830L |
Pump | Centrifugal pump:4''x2'' (10.2X5cm), 73m³/h@7bar, 25mm solid clearance |
Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation |
Rotating speed of mixer shaft | 0-110rpm |
Maximum horizontal conveying distance | 60m |
Spraying guns type | fixed standing gun and pipe gun |
Height of fence | 1100mm |
Dimensions | 4800x2200x2550mm |
Weight | 3350kg |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer |
Model | WHS0353 |
Power | 53KW, Chinese Yuchai diesel engine, water-cooled |
Tank Size | Liquid capacity: 3000L |
Working capacity: 2550L | |
Pump | Centrifugal pump:4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance |
Agitation | mechanical agitator with helical paddle orientation and liquid recirculation |
Rotating speed of mixer shaft | 0-110rpm |
Maximum horizontal conveying distance | 60m |
Spraying guns type | fixed standing gun and pipe gun |
Height of fence | 1100mm |
Dimensions | 3350x2030x2600mm(4800x2100x2900mm with trailer) |
Weight | 2950kgs(3500kgs with trailer) |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer |
Model | WHS0217 | WHS0117 | |
Power | 17kw, Briggs & Stratton gasoline engine, air cooled | 17kw Briggs & Stratton gasoline engine, air cooled | |
Tank Size | Liquid capacity: 2000L Working capacity: 1700L | Liquid capacity: 1200L Working capacity: 1000L | |
Pump | Centrifugal pump:3''x1.5'' (7.5X3.75cm),15m³/h@5bar, 19mm solid clearance | Centrifugal pump:3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance | |
Agitation | Mechanical agitator with helical paddle orientation and liquid recirculation | Mechanical agitator with helical paddle orientation and liquid recirculation | |
Rotating speed of mixer shaft | 0-110rpm | 0-110rpm | |
Maximum horizontal conveying distance | 35m | 26m | |
Spraying guns type | fixed standing gun and pipe gun | Hose gun | |
Height of fence | 1100mm | 1100mm | |
Dimensions | 3500x1750x2420 (1900)mm | 2600x1340x1515mm | |
Weight | 1600kg | 1320kg | |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | |
We also can customize hydroseeding machine according to your requirements, please contact us.
Features
1. Powerful diesel engine: Cummins or Yuchai etc. famous brand diesel engine. Powerful, low fuel consumption, low maintenance cost. Powerful engine, ensure an evenly mixing and also improves the spraying efficiency.
2. Powerful mixing shaft: Strong mixer shaft, also suitable for thick material.
3. High production: Wear-resisting centrifugal pump, most efficient during working.
4. High density material: Soil substrate, green grass seed, water retention agent, binder, fertilizer and water. The solids could up to 80%.
5. Long distance of transportation: suitable for long and high spraying distance. Solids up to 80%, level distance could up to 100m by hose.
6. Quality assurance: Standardization production and assembly line operations, all quality are guaranteed.
7. Extreme Efficiency: Simple control panel, operator convenience
8. High quality structural steel: More durable, a longer working life.
2. Powerful mixing shaft: Strong mixer shaft, also suitable for thick material.
3. High production: Wear-resisting centrifugal pump, most efficient during working.
4. High density material: Soil substrate, green grass seed, water retention agent, binder, fertilizer and water. The solids could up to 80%.
5. Long distance of transportation: suitable for long and high spraying distance. Solids up to 80%, level distance could up to 100m by hose.
6. Quality assurance: Standardization production and assembly line operations, all quality are guaranteed.
7. Extreme Efficiency: Simple control panel, operator convenience
8. High quality structural steel: More durable, a longer working life.
Related Product

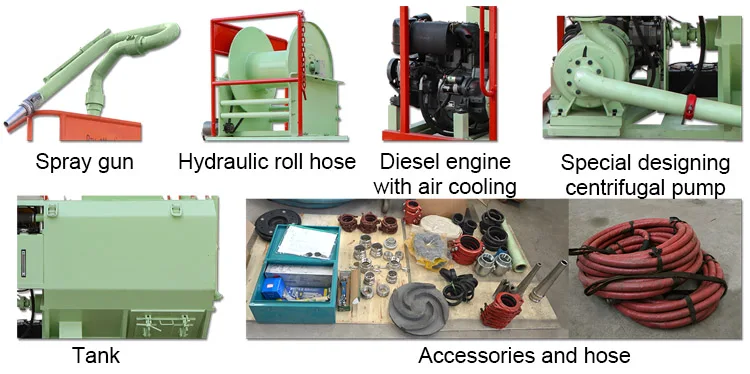

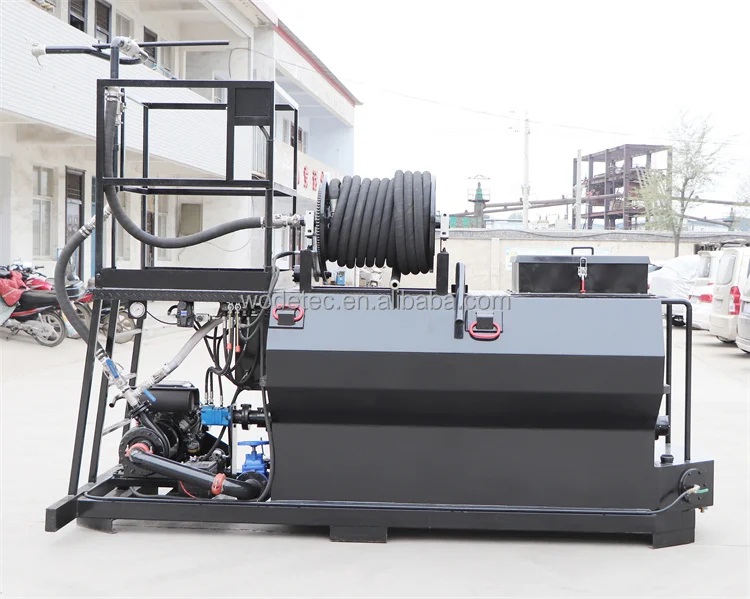

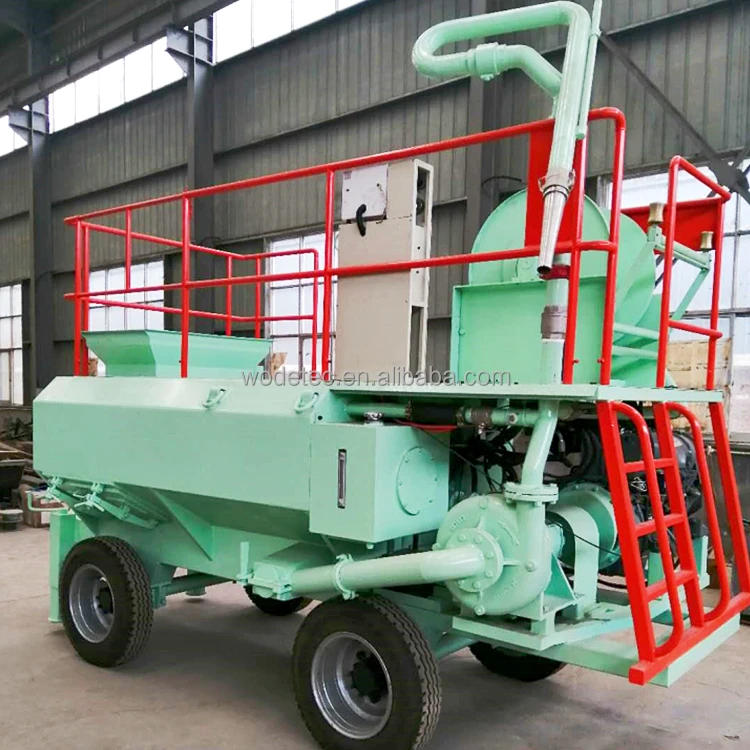

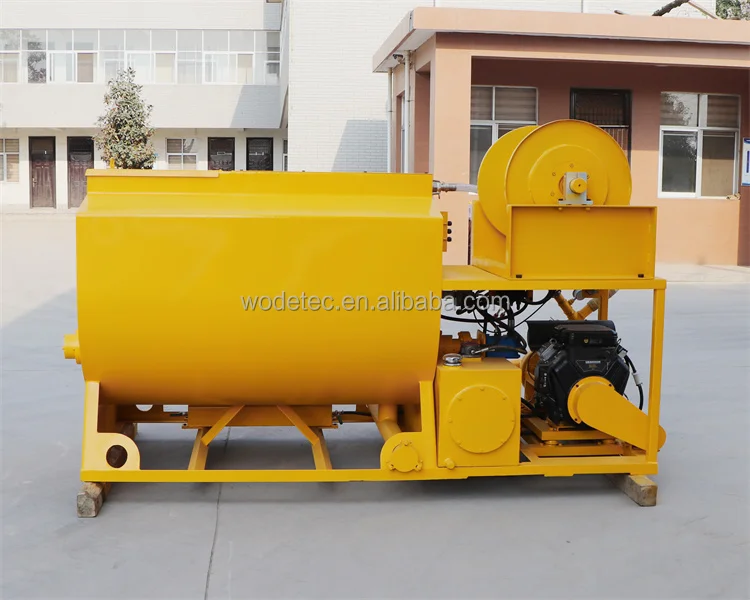

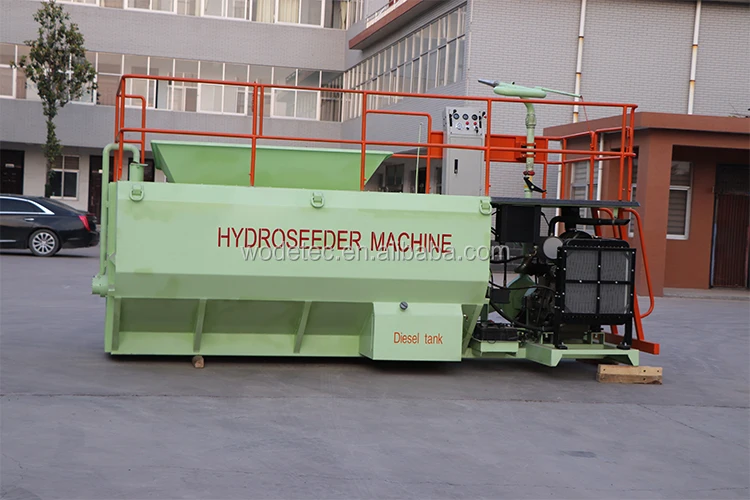

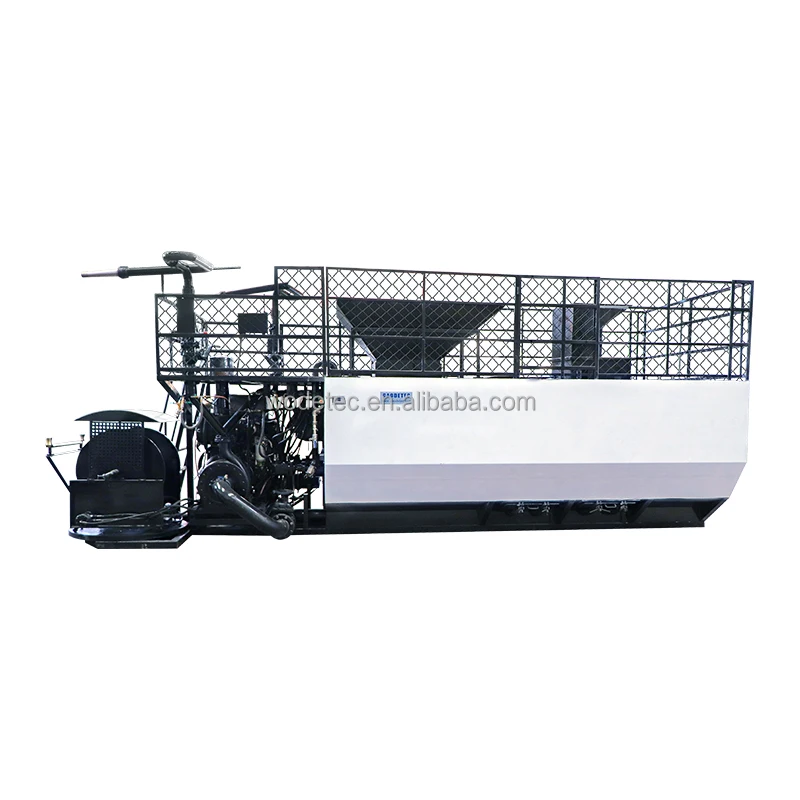

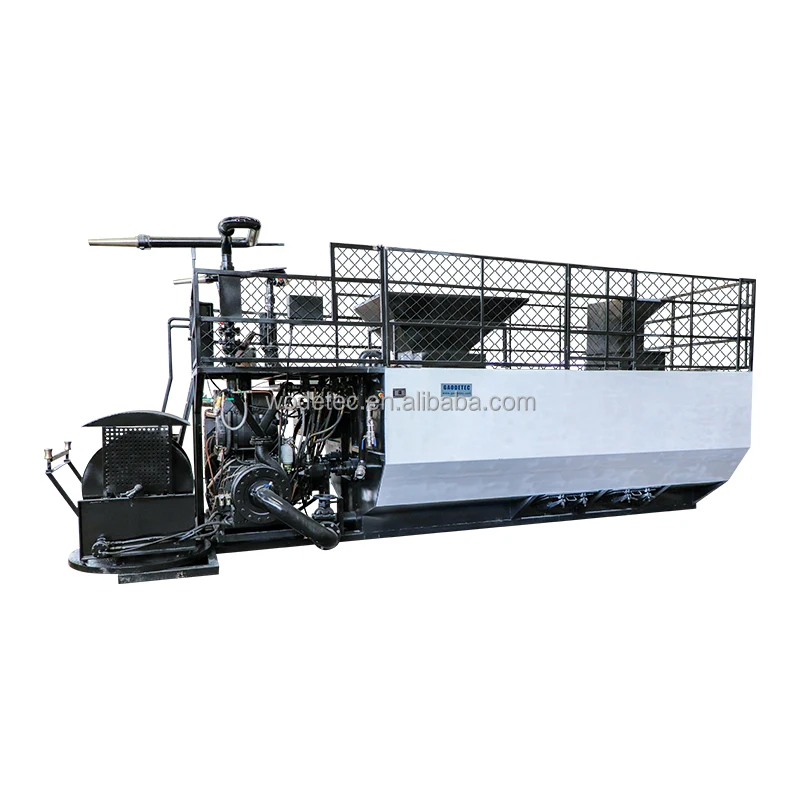

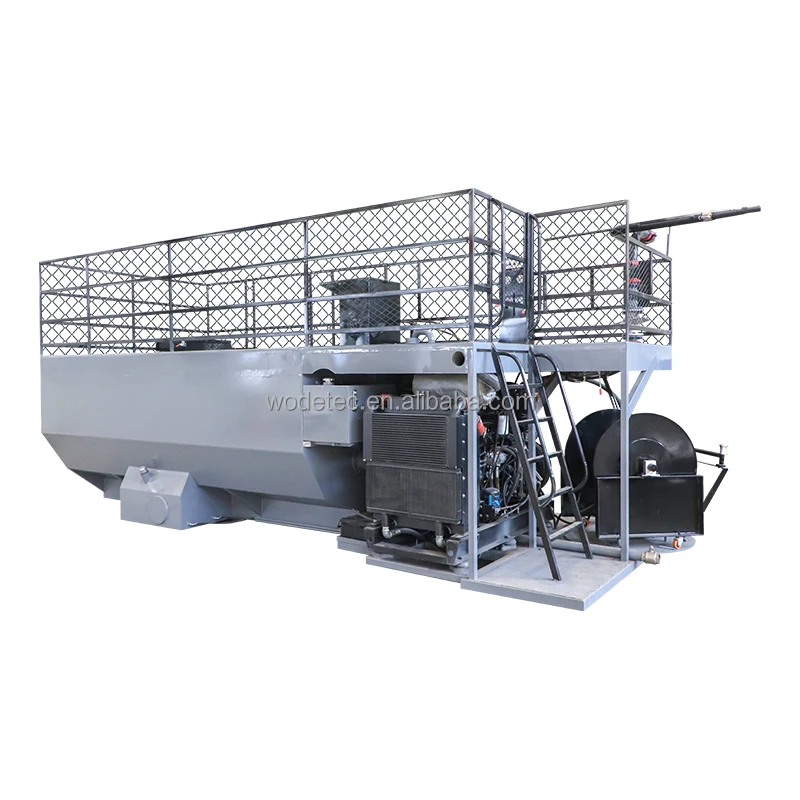

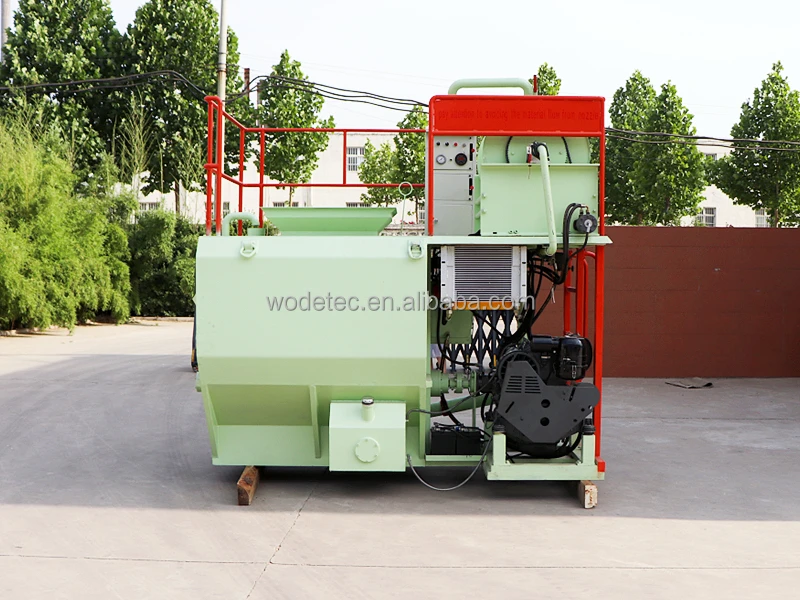

Detail Image

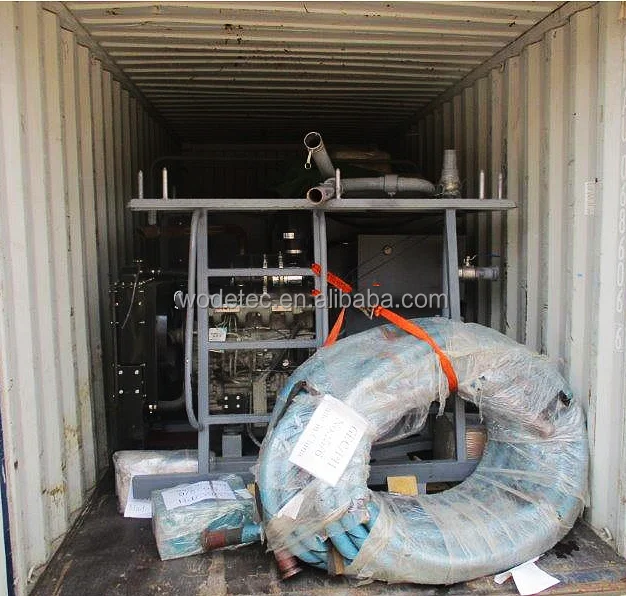

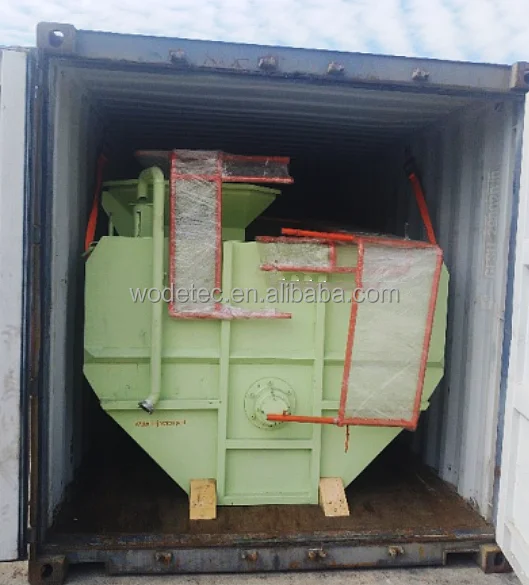

Packaging&Shipping
Contact Us
In order to confirm which type hydroseeder machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do? for slope greening or playground greening or other?
2. What's the mixing tank capacity you need, 1200L, 2000L, 3000L, 5000l, 6000L, 8000L, 10000l, 13000L, 15000L or bigger or smaller?
3. About the engine, do you need Chinese brand engine or Cummins engine?
4. May I know your email and Telephone number? So we could talk about the goods more freely!
1. What's the project you will use the machine do? for slope greening or playground greening or other?
2. What's the mixing tank capacity you need, 1200L, 2000L, 3000L, 5000l, 6000L, 8000L, 10000l, 13000L, 15000L or bigger or smaller?
3. About the engine, do you need Chinese brand engine or Cummins engine?
4. May I know your email and Telephone number? So we could talk about the goods more freely!
