Отрезная пила с двумя головками Для высокоточной резки алюминиевых профилей для дверей и окон
1 080 070,74 ₽ - 1 157 218,65 ₽
Новый дизайн фрезерный станок с ЧПУ для резки алюминиевого профиля оконной двери
- Категория: >>>
- Поставщик: Jinan Comeid CNC Equipment Co. Ltd.
Сохранить в закладки 1600580716587:
Описание и отзывы
Характеристики

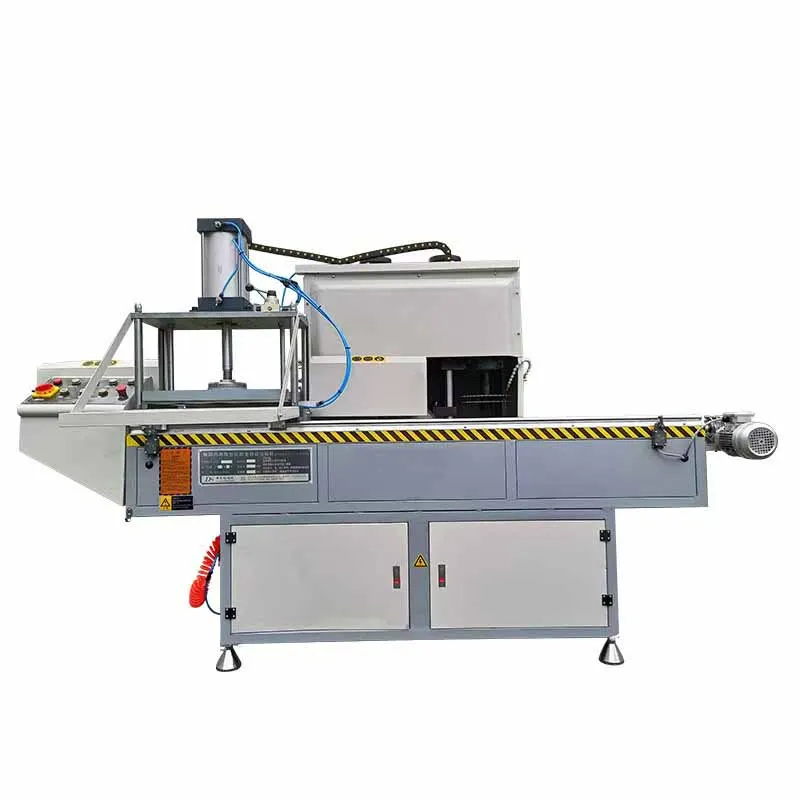

New Design Aluminum Profile Window Door CNC End Milling Cutter Machine
Product Paramenters
Power supply | 380V, 50HZ |
Power of head | 3KW ZHONGYUTE |
Rotate Speed of head | 2800 r/min |
Rated oil pump pressure | 16Mpa |
Oil pump | 2.5MCY |
Air pressure | 0.5-0.8Mpa |
Saw size | φ300*φ30 Diamond material |
Table Size | 510mm |
Transmission | Ball screw / gears rail |
Machine Weight | 850KG |
Control System | HONGHAI 10 inch screen |
1. It is used for the processing of aluminum alloy middle tappet profiles. Multiple profiles can be milled at one time, with highprocessing efficiency.
2. The cutter can be adjusted up and down, front and back, and can process different structures such as step surface, rectangulargroove and tenon.
3. The tool diameter is large. The number of tools can be increased or decreased as needed.
4. The gas-liquid conversion controls the feeding, the feeding speed is linearly adjustable, and the operation is stable.
High precision linear bearing guide rail pair can maintain machining accuracy for a long time.
2. The cutter can be adjusted up and down, front and back, and can process different structures such as step surface, rectangulargroove and tenon.
3. The tool diameter is large. The number of tools can be increased or decreased as needed.
4. The gas-liquid conversion controls the feeding, the feeding speed is linearly adjustable, and the operation is stable.
High precision linear bearing guide rail pair can maintain machining accuracy for a long time.
Figure photos
Touch screen control system
High power saw blade spindle
Automatic hydraulic clamping
Servo motor drive
Application
Company Information
Since 2009 our company began production and sales of CNC equipment. It accumulated customers and dealers from all around theworld.Their feedback help improving product value-added.Publicity, sales, production, inventory, quality control, R & D departments perForm their duties orderly. Product design with good operation, important parts carefully selected, low failure rate.Production of 50 per month production capacity, each machine manufactured before the rigorous testing and 8 hours uninterrupted operation.It provides excellent service. According to customer needs to choose the most suitable products. 24-hour telephone, mail, WeChat in a timely manner. Software and mechanical engineers accumulated years of experience, they offer quick and effective after-sale problem-solving.
FAQ
1.How about the documents after shipment?
After shipment, we will send original documents to you by DHL which including Packing List,
Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
3.Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you with FOB and CIF tem as you required.
4.How is the packing?
Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
5.Payment terms:
--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
Skype ID: rose.huango7 Leave me message please. I will reply you as soon as possible.
After shipment, we will send original documents to you by DHL which including Packing List,
Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
3.Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you with FOB and CIF tem as you required.
4.How is the packing?
Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
5.Payment terms:
--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
Skype ID: rose.huango7 Leave me message please. I will reply you as soon as possible.
Похожие товары
Китай лидер продаж алюминиевые режущие пилы с двойной головкой
1 080 070,74 ₽ - 1 157 218,65 ₽
HJN3A-500 * 4200CNC с двойной головкой 45 и 90 градусов режущая пила
1 080 070,74 ₽ - 1 157 218,65 ₽
Станок с ЧПУ для фрезерования и сверления

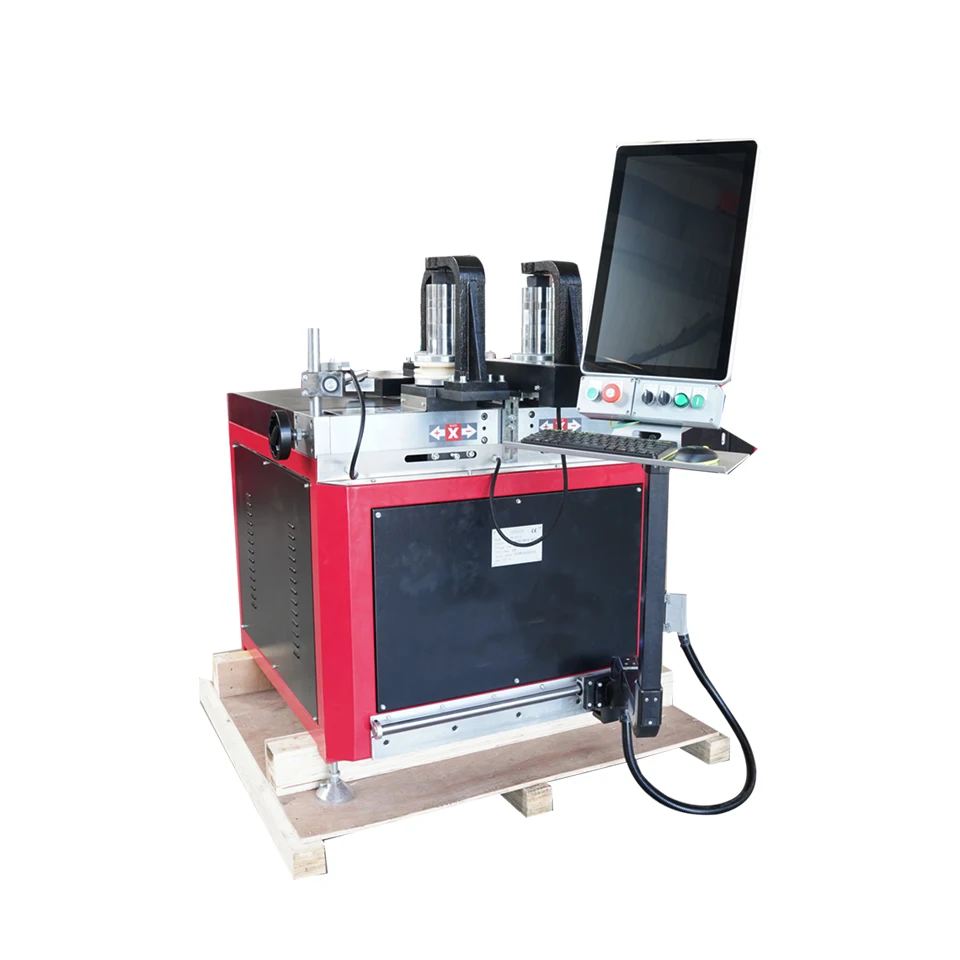

Простая операция автоматический ЧПУ металлический алюминиевый профиль 3 оси гибочный станок
