System requirement instruction | ALICO SOLAR-15000W off-grid photovoltaic system | |||||||
Design Basis | the system DC voltage is set to 48VDC 96v | |||||||
System configuration and offer | ||||||||
Item | Part | Specification | Quantity | Remarks | ||||
1 | Solar Panel | Half mono 460w | 30PCS | connection method:3pcs in one string and 9 strings in parallel | ||||
2 | PV combiner box | 3 inputs, 1 output | 3 SETS | |||||
3 | Bracket | C-shaped steel | 1 SET | |||||
4 | Inverter with mppt controller | 15000W | 1set | 1, Built-in 60A MPPT controller | ||||
2, pure sine wave, high frequency output | ||||||||
3, support grid/Diesel input | ||||||||
5 | LiFePo4 battery | 48V-100AH | 6 PCS | |||||
6 | DC breaker(battery to inverter) | MCCB 100A 2P | 3 PCS | |||||
7 | Connector (pv cable to solar panel) | MC4 | 9 pairs | |||||
8 | PV cables(solar panel to inverter) | 4mm2 | 600M | 300M red+300M black | ||||
9 | BVR cables(pv combiner box to inverter) | 10mm2 | 120M | 60M red +60M black | ||||
10 | BVR cables(confluence box to inverter) | 35mm2 | 16M | 8M red + 8M black | ||||
Instructions | 1. The battery can support 9000W load work 3hours. | |||||||
2. The maximum power load should not exceed 12000W (including inductive load impact: such as refrigerators, air conditioners, washing machines, etc. with motor load). | ||||||||
3. The battery can be fully charged in 3hours under STC sunshine condition. |

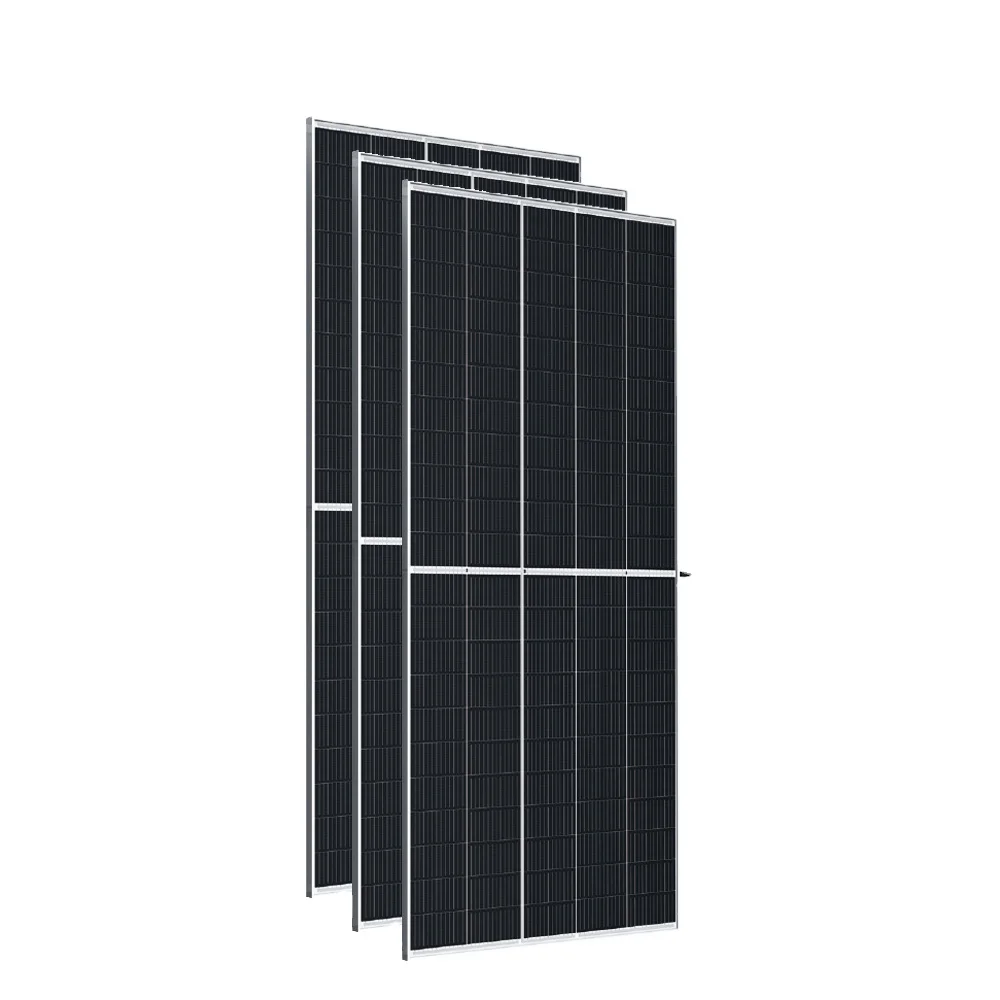

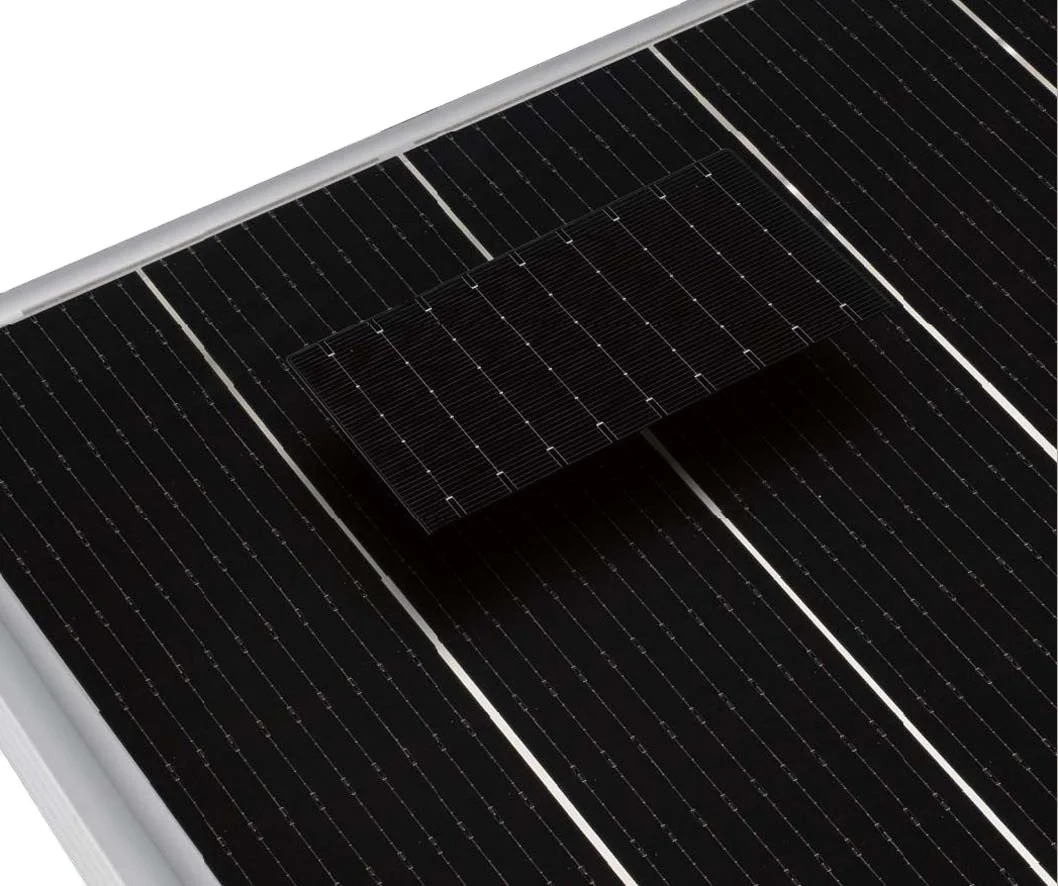

> 25 years Warranty
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
> Built-in MPPT controller,Max. using PV efficiency
> Three stage charging, extending battery life *LCD+LED display
> PV first or AC first which could be set by user
> Pure sine wave, full protection
> with strong anti-load impact ability
> Built-in AC charger

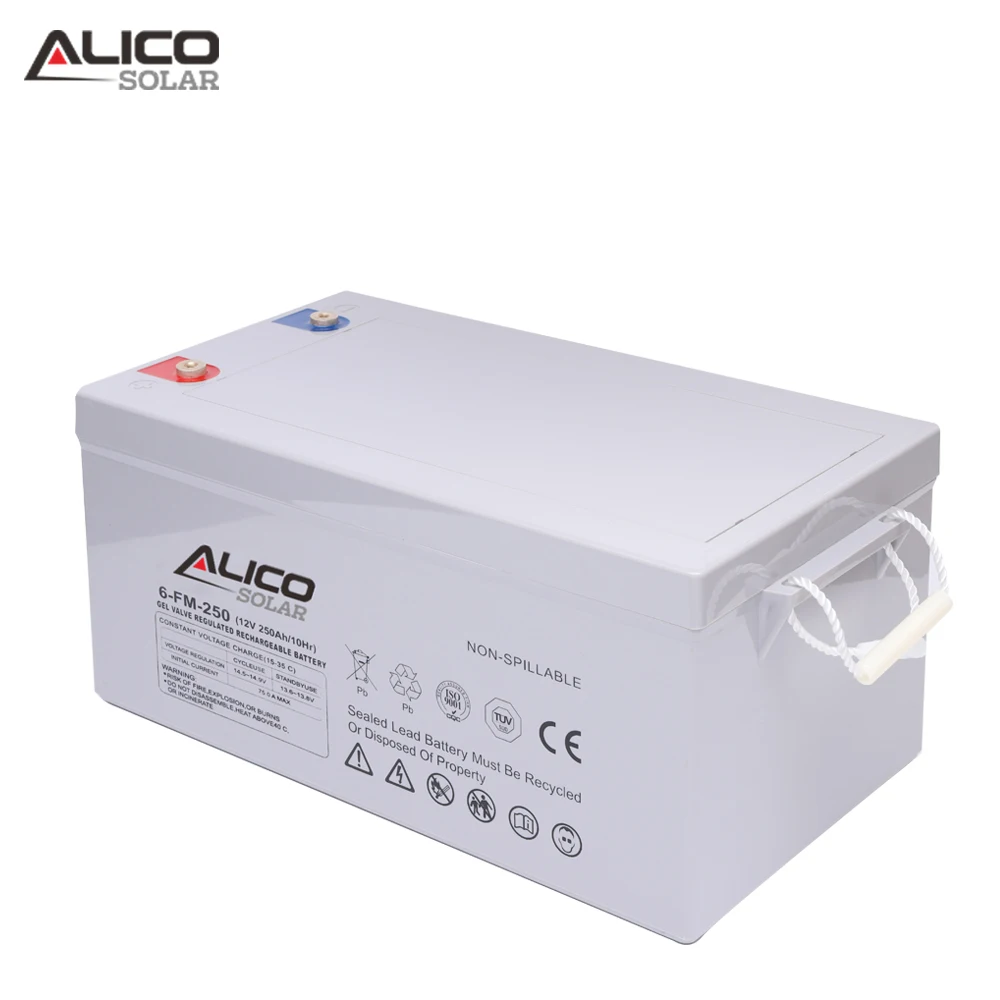

> Agm Battery
> Gel Battery
> LiFePO4 Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together

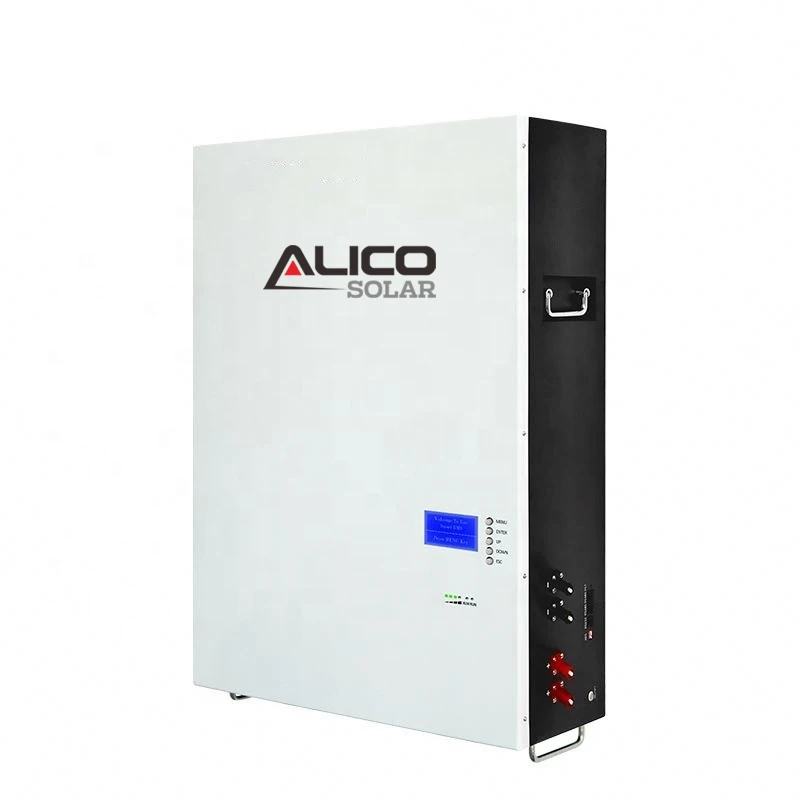

> Has excellent performance and longer life-span
> Higher energy density,smaller volume for household
> All-time Monitor,safety for home
> Easy Installation

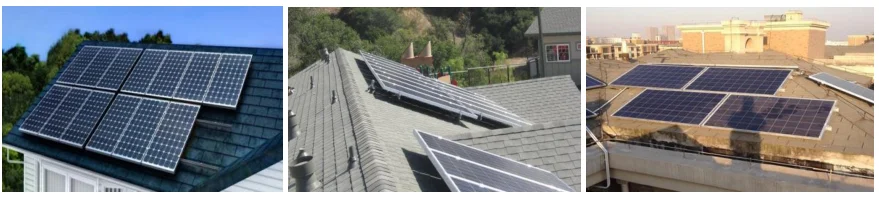

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC/DC Combine box
