Rotterdam stock Trina Longi Jinko JA DMEGC Solar по отличной цене 400 Вт 405 410 415 450 460 535 солнечные панели 550
- Категория: Solar Energy Products >>>
- Поставщик: Dinghui New Energy (Dezhou) Co. Ltd.Dinghui Ltd.
Сохранить в закладки 1600585771635:
Описание и отзывы
Характеристики
Product Description
Monocrystalline half cut
high efficiency solar panel
Increase generating power by 10%
Battery conversion efficiency 21.19%
182*182mm 10MBB
Low operating temperature and strong resistance to hot spot
182mm multi main grid (MBB) battery and semi slicing technology
low current operation
high power output
Increase generating power by 10%
Battery conversion efficiency 21.19%
182*182mm 10MBB
Low operating temperature and strong resistance to hot spot
182mm multi main grid (MBB) battery and semi slicing technology
low current operation
high power output
specification
Electrical performance parameters under STC | ||||||||||||
Model | DHM60D30-435/MR | DHM60D30-440/MR | DHM60D30-445/MR | DHM60D30-450/MR | DHM60D30-455/MR | DHM60D30-460/MR | ||||||
Maximum power （W） | 435W | 440W | 445W | 450W | 455W | 460W | ||||||
Voltage at maximum power point （VMP/V） | 35.25V | 35.54V | 35.84V | 36.13V | 36.41V | 36.71V | ||||||
Current at maximum power point (IMP/A) | 12.34A | 12.38A | 12.42A | 12.46A | 12.50A | 12.53A | ||||||
Open circuit voltage (VOC/V) | 40.85V | 41.01V | 41.15V | 41.31V | 41.49V | 41.63V | ||||||
Short circuit current (ISC/A) | 13.28A | 13.35A | 13.42A | 13.48A | 13.54A | 13.61A | ||||||
Component efficiency [%] | 20.04% | 20.27% | 20.50% | 20.73% | 20.96% | 21.19% | ||||||
Power tolerance(W) | 0～+5 | |||||||||||
Standard test environment | Irradiance 1000W/m², ambient temperature 25℃, spectrum AM1.5 | |||||||||||
Note: Due to continuous innovation,research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types . | ||||||||||||
Electrical performance parameters under NOCT | ||||||||||||
Model | DHM60D30-435/MR | DHM60D30-440/MR | DHM60D30-445/MR | DHM60D30-450/MR | DHM60D30-455/MR | DHM60D30-460/MR | ||||||
Maximum power （W) | 465W | 471W | 476W | 482W | 487W | 492W | ||||||
Voltage at maximum power point (VMP/V) | 35.63V | 35.92V | 36.22V | 36.51V | 36.79V | 37.09V | ||||||
Current at maximum power point (IMP/A) | 13.06A | 13.11A | 13.15A | 13.19A | 13.23A | 13.27A | ||||||
Open circuit voltage (VOC/V) | 41.37V | 41.53V | 41.67V | 41.83V | 42.01V | 42.15V | ||||||
Short-circuit current (ISC/A) | 13.93A | 14.00A | 14.07A | 14.13A | 14.19A | 14.26A | ||||||
Back reflectivity | 10% | |||||||||||
Company Profile

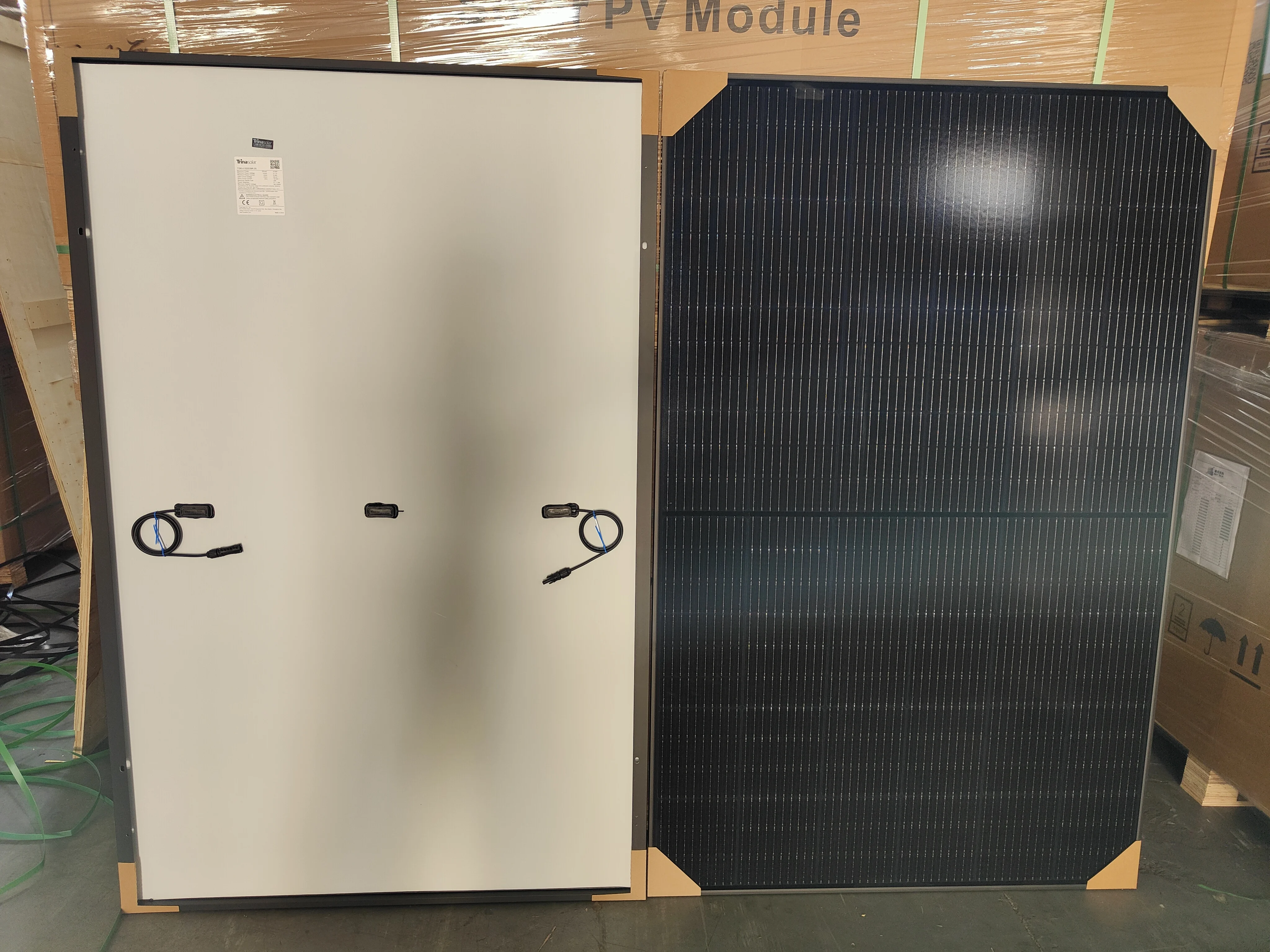

Packing and transportation

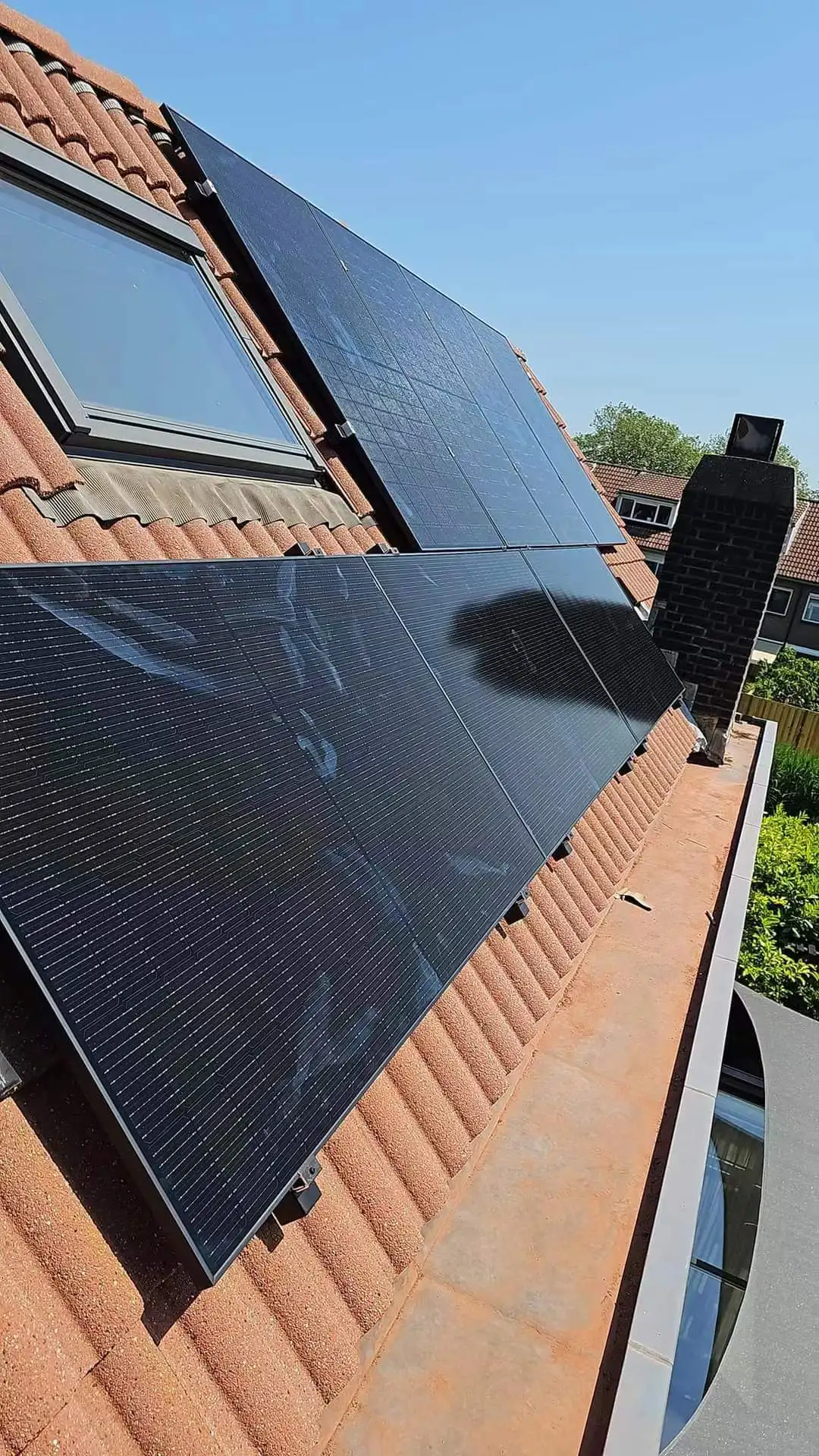

Project case
Reliable quality
Recommend Products
FAQ
1. Q: Why do I choose your company?
* Can provide Longi Jinko JA Trina Canadian Dinghui brand solar panel
* 7+ years of experience in installing solar panels, with professional engineers designing solutions
* Trade with customers in more than 50 countries over the world
* QC members will control the quality from the raw material till the final products
* 24-hours service available
* 7-day delivery upon receipt of payment
* Over 80% repurchase rate and 100% positive reviews
* Perfect after-sales service team
* Support any method of inspection such as installation supervision, video, etc
* Will always follow the "professional" and "sincere"
* Guaranteed quality and complete certification
* Competitive prices bring higher profits to customers
* Multiple repeat purchases by customers
* A professional Solar Panels Manufacturer in China.
* Multiple warehouses and good cooperative factories in China
* Good reputation, guaranteed product quality, and many repeat customers
* Professional inspection process before shipment
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
* Can provide Longi Jinko JA Trina Canadian Dinghui brand solar panel
* 7+ years of experience in installing solar panels, with professional engineers designing solutions
* Trade with customers in more than 50 countries over the world
* QC members will control the quality from the raw material till the final products
* 24-hours service available
* 7-day delivery upon receipt of payment
* Over 80% repurchase rate and 100% positive reviews
* Perfect after-sales service team
* Support any method of inspection such as installation supervision, video, etc
* Will always follow the "professional" and "sincere"
* Guaranteed quality and complete certification
* Competitive prices bring higher profits to customers
* Multiple repeat purchases by customers
* A professional Solar Panels Manufacturer in China.
* Multiple warehouses and good cooperative factories in China
* Good reputation, guaranteed product quality, and many repeat customers
* Professional inspection process before shipment
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
