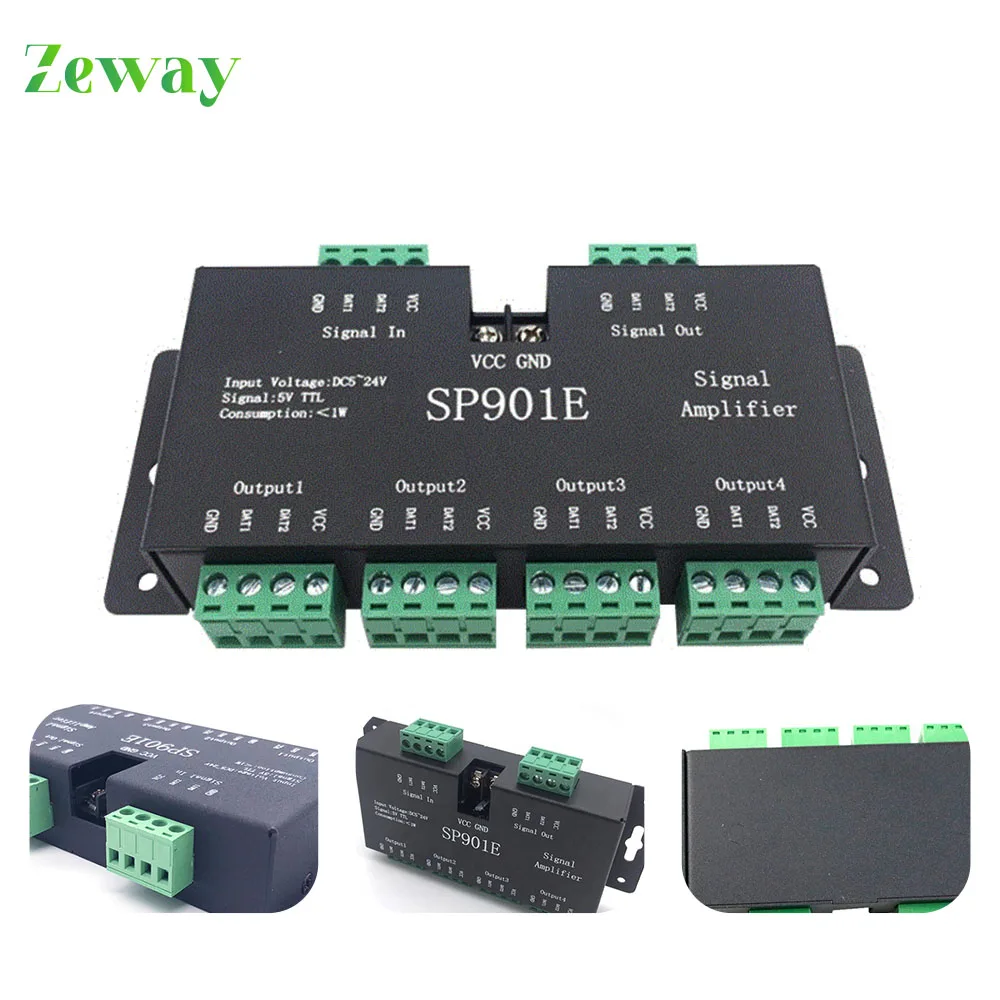

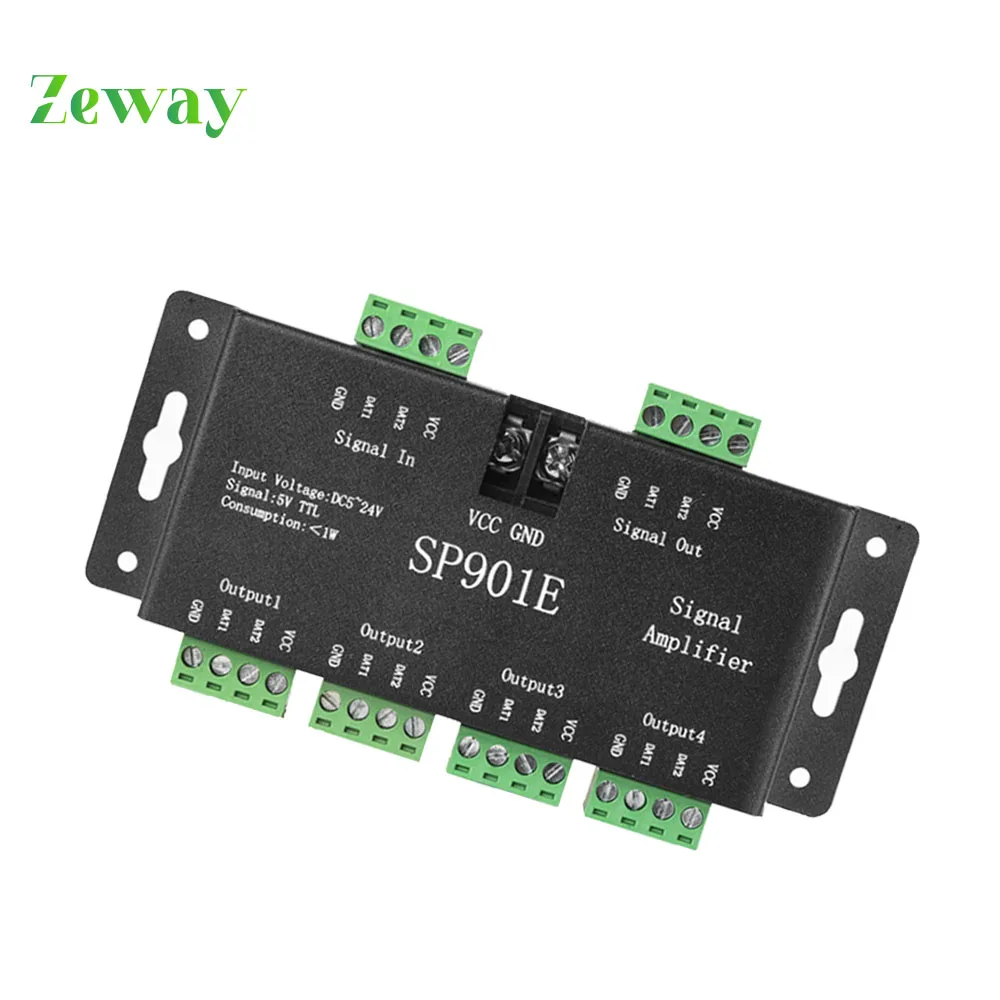

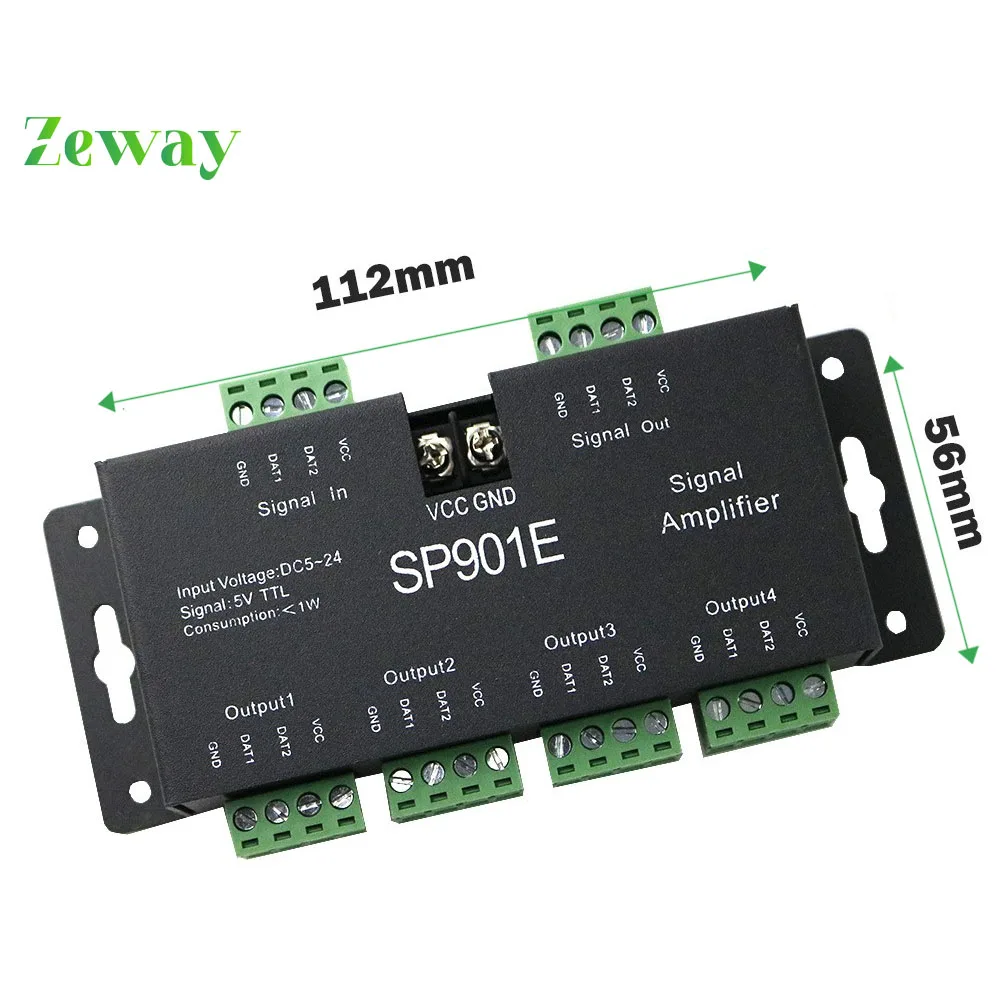

Усилитель светодиодного сигнала SP901E ретранслятор светодиодной ленты пикселей RGB RGBW 5 24 в SPI адресуемый WS2812 APA102

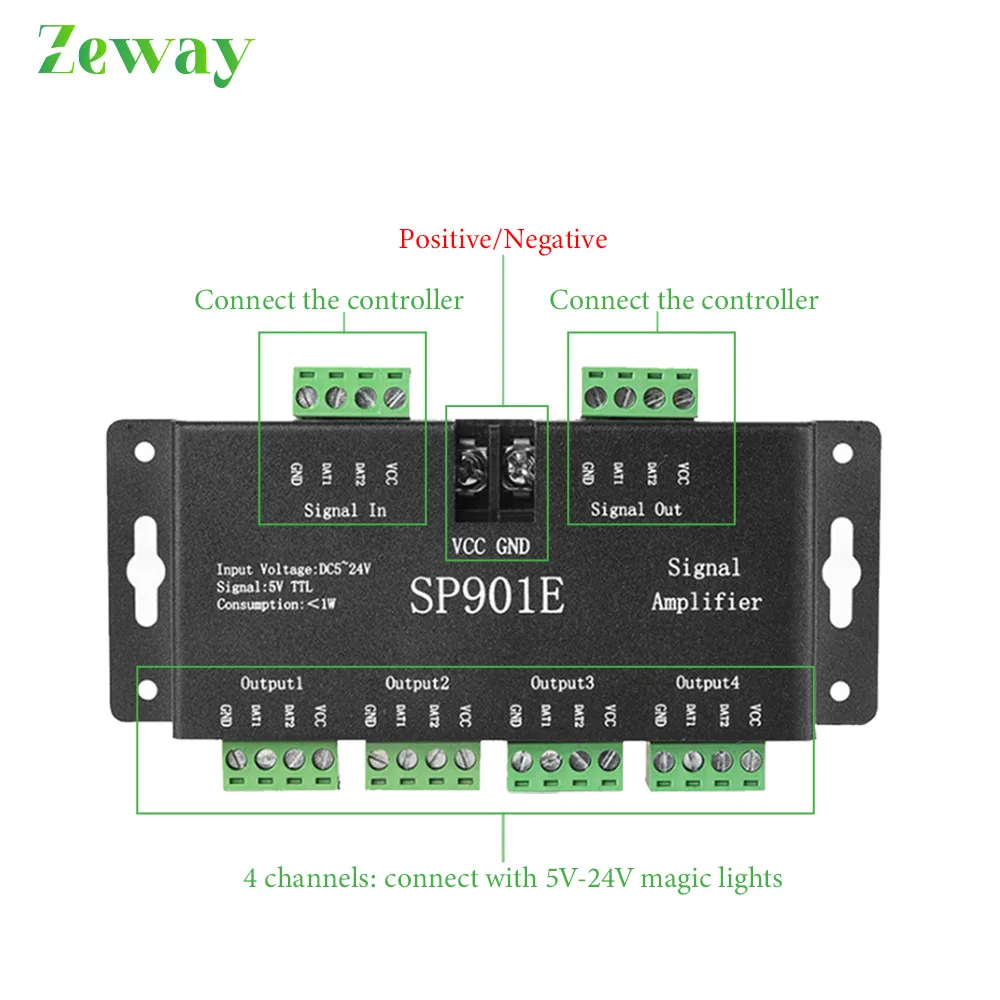

* This SPI signal amplifier is compatible with all kinds of 5V-TTL signal dual signals. It receives one signal and simultaneously output 4 or 8 channels of signals. Each channel can control the same quantity of LED pixels as main controller.

* It can output 8 channels for addressable LED strip with single data wire, such as WS2812B, WS2811, SK6812RGB,SK6812-RGBW,SM16703, etc. It can output 4 channels for addressable LED strip with data & clock wires WS2801, APA102, SK9822 or dual data wires, such as WS2813, WS2815

* You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 ,DC12V
WS2815, DC12V 1903, DC12V 6803 at the same time via this singal amplifier since they have the same singal.

* DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power
supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current
consumed is high, you need to add the power supply of the corresponding voltage.

* Multiple signal amplifiers can be cascaded together synchronously. Particularly suitable for small and medium dream color lighting projects. It can work with K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry pi, Arduino X2 music controller.

Precautions:

The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your LED lights. If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply
The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the
corresponding voltage additionally.

Package:
1x SP901E Signal Amplifier
