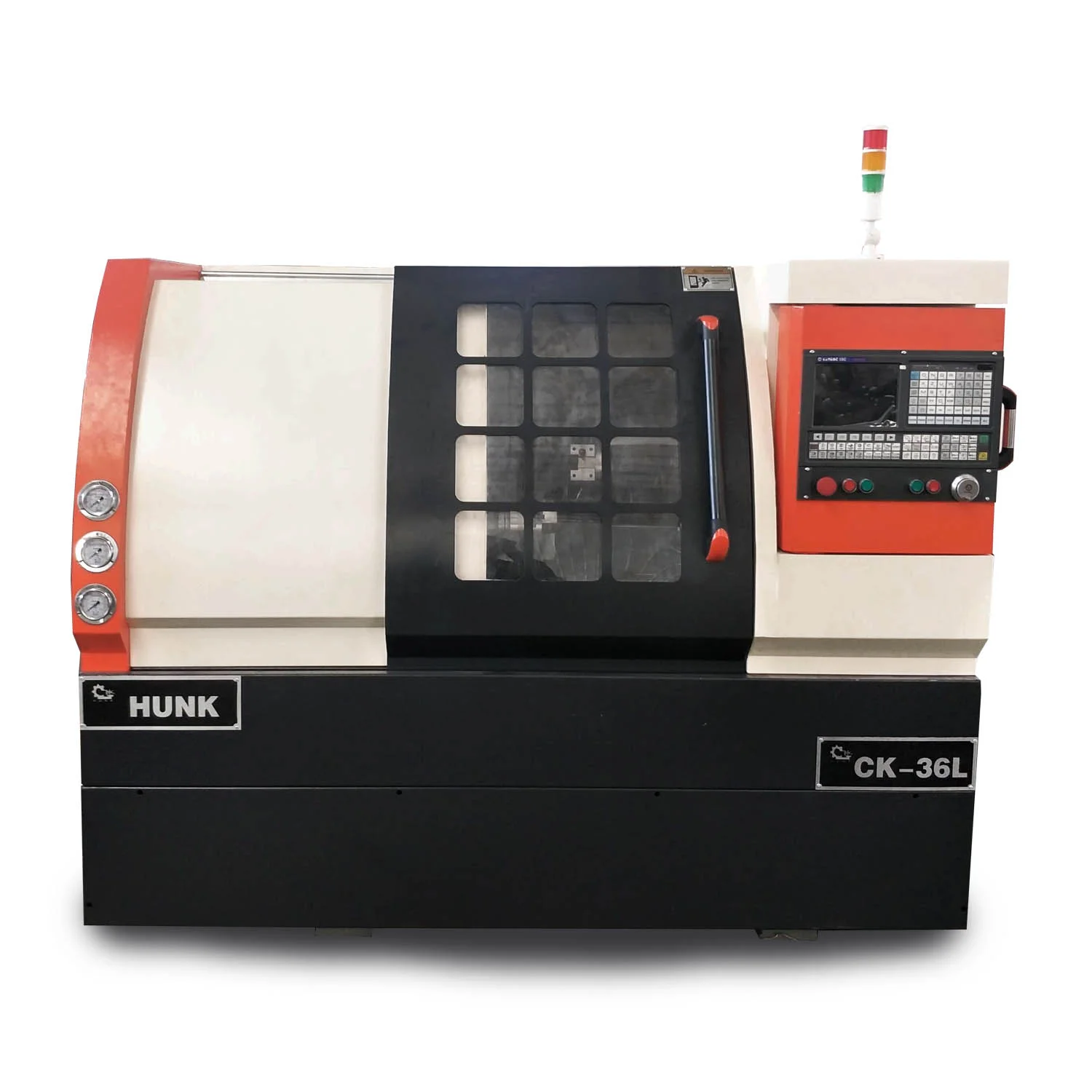

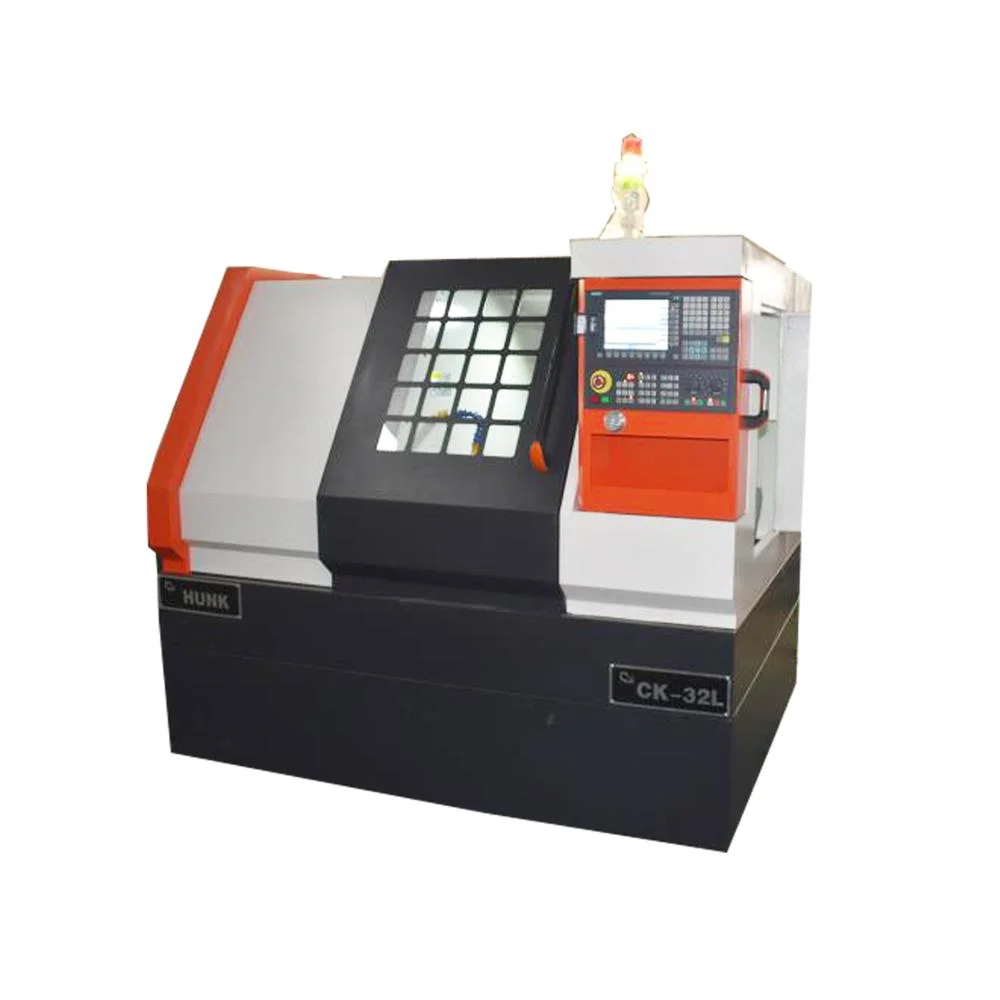

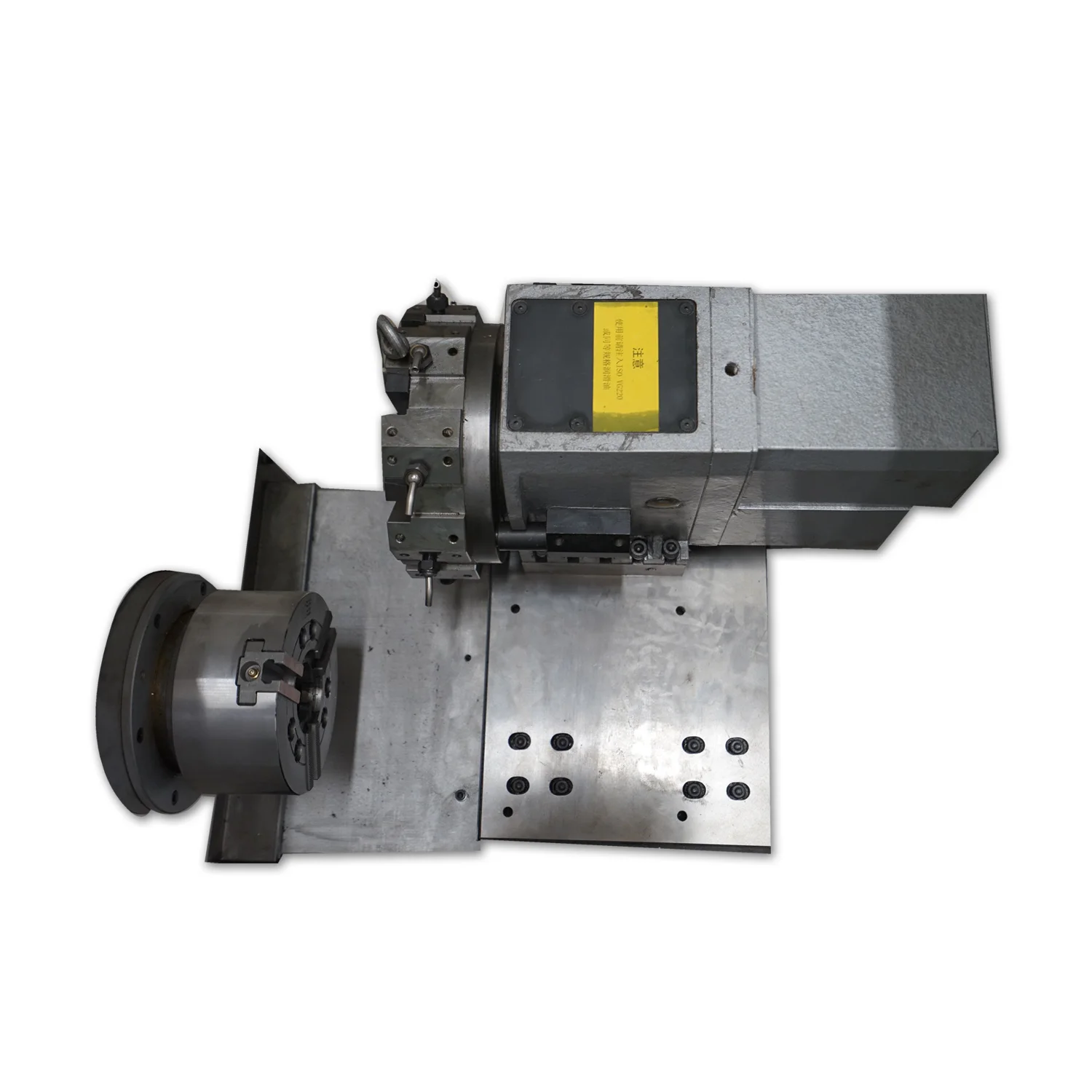

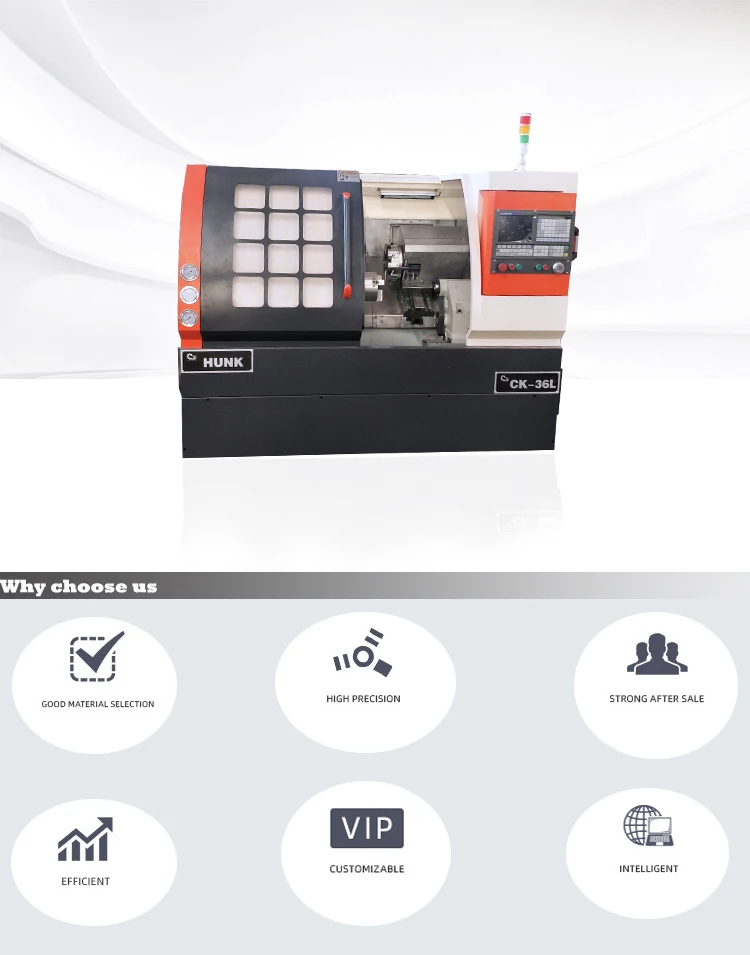

Высокоскоростной рабочий мини токарный станок цена спецификации CK36 ck40 горизонтальный режущий с ЧПУ автоматическим подачей
- Категория: >>>
- Поставщик: Jinan Shangneng CNC Equipment Co. Ltd.
Сохранить в закладки 1600589056889:
Описание и отзывы
Характеристики
Product Description
Specification

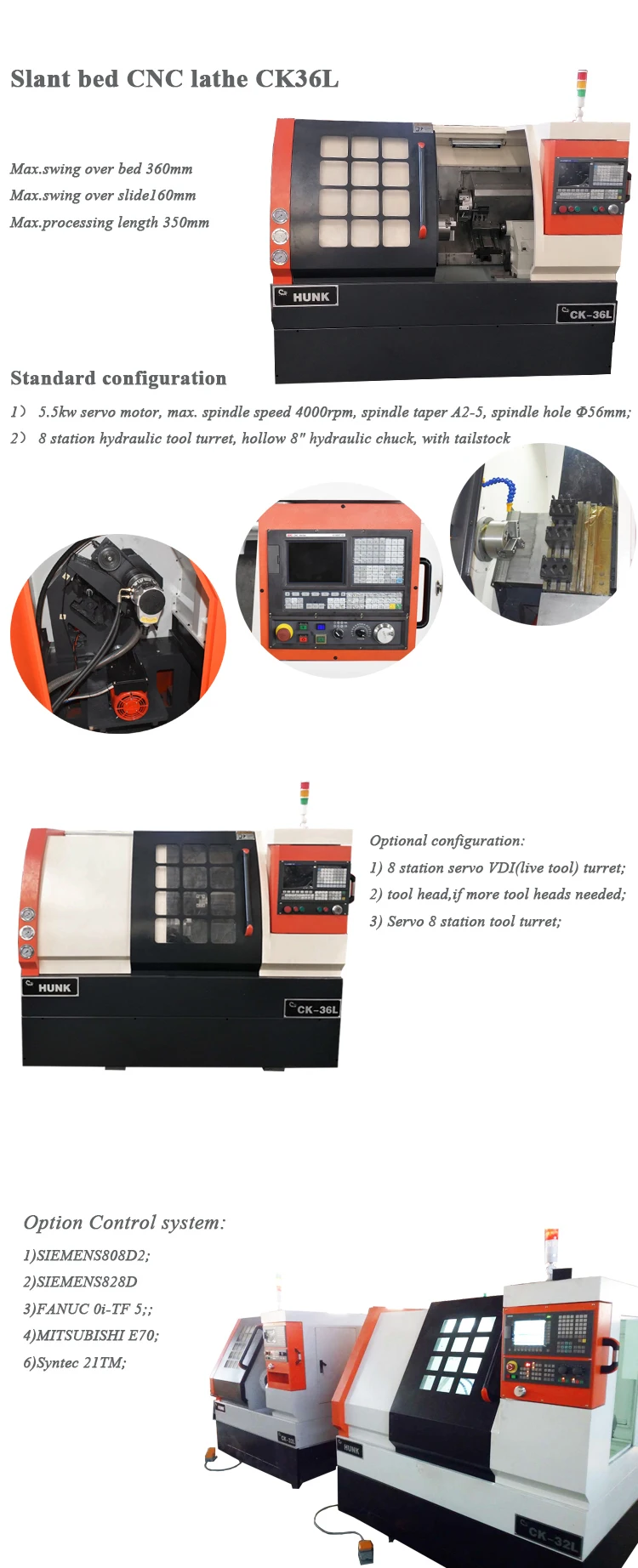

Specification | CK32 | CK36 | CK40 | CK50 |
Max swing over bed | 320mm | 360mm | 400mm | 500mm |
Max swing over slide | 160mm | 160mm | 220mm | 320mm |
Max processing length | 350mm | 350mm | 450mm | 550mm |
Max cutting diameter | 200mm | 254mm | 360mm | 420mm |
Max bar diameter | 40mm | 55mm | 55mm | 80mm |
Spindle speed | 3500 | 4000 | 3500 | 2500 |
Spindle nose ISO form | A2-5 | A2-5 | A2-5 | A2-8 |
Through hole diameter | 41mm | 56mm | 56mm | 56mm |
Chuck diameter | 160mm | 200mm | 200mm | 250mm |
Motor power(servo) | 3.7kw | 3.7/5.5kw | 3.7/5.5kw | 5.5/7.5/11kw |
Body structure | 30°(integrated) | 30°(integrated) | 45°(integrated) | 45°(integrated) |
X axis travel | 200mm | 200mm | 210mm | 260mm |
Z axis travel | 350mm | 350mm | 450mm | 550mm |
X/Z axis rapid speed | 24/24 m/min | 24/24 m/min | 24/24 m/min | 24/24 m/min |
Type | 63-8T | 80-8T | 100-8T | |
Tool size | 20*20mm | 20*20mm | 20*20mm | 25*25mm |
Tailstock sleeve diameter | 52mm | 52mm | 75mm | |
Tailstock sleeve travel | 60mm | 60mm | 100mm | |
Tailstock sleeve taper | MT4 | MT4 | MT4 | |
Processing precision | IT6 | IT6 | IT6 | IT6 |
Reposition precision | X:0.006, Z:0.008 | X:0.006, Z:0.008 | X:0.006, Z:0.008 | X:0.006, Z:0.01 |
Roughness | Ra.≤0.8 | Ra.≤0.8 | Ra.≤0.8 | Ra.≤1.25 |
Weight | 2200kg | 2700kg | 3500kg | 3700kg |
Dimension | 1.6*1.4*1.6m | 1.8*1.6*1.6m | 2.8*1.6*1.6m | 3.1*1.8*1.8m |
Products Description

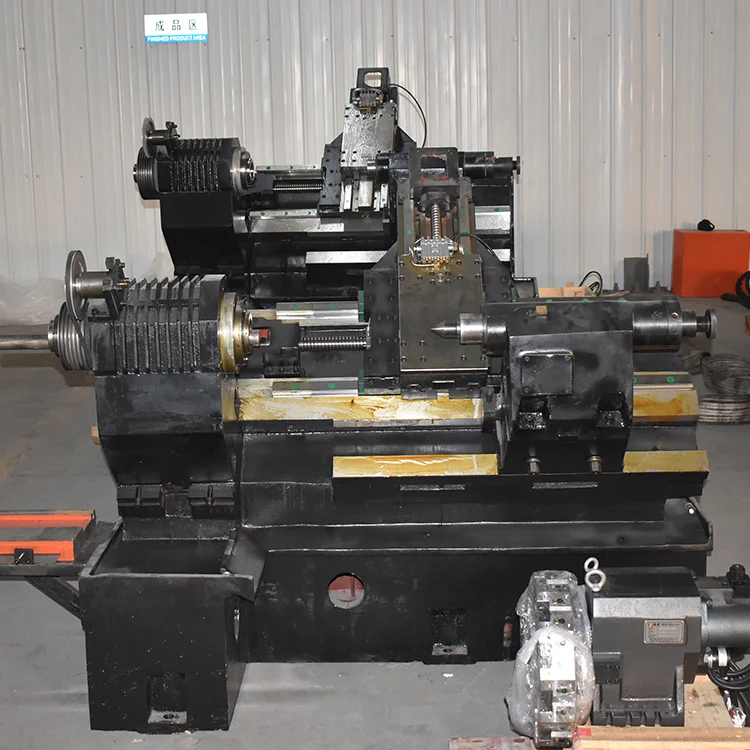

Integrated body structure, to make sure the machine stable working and high precision.

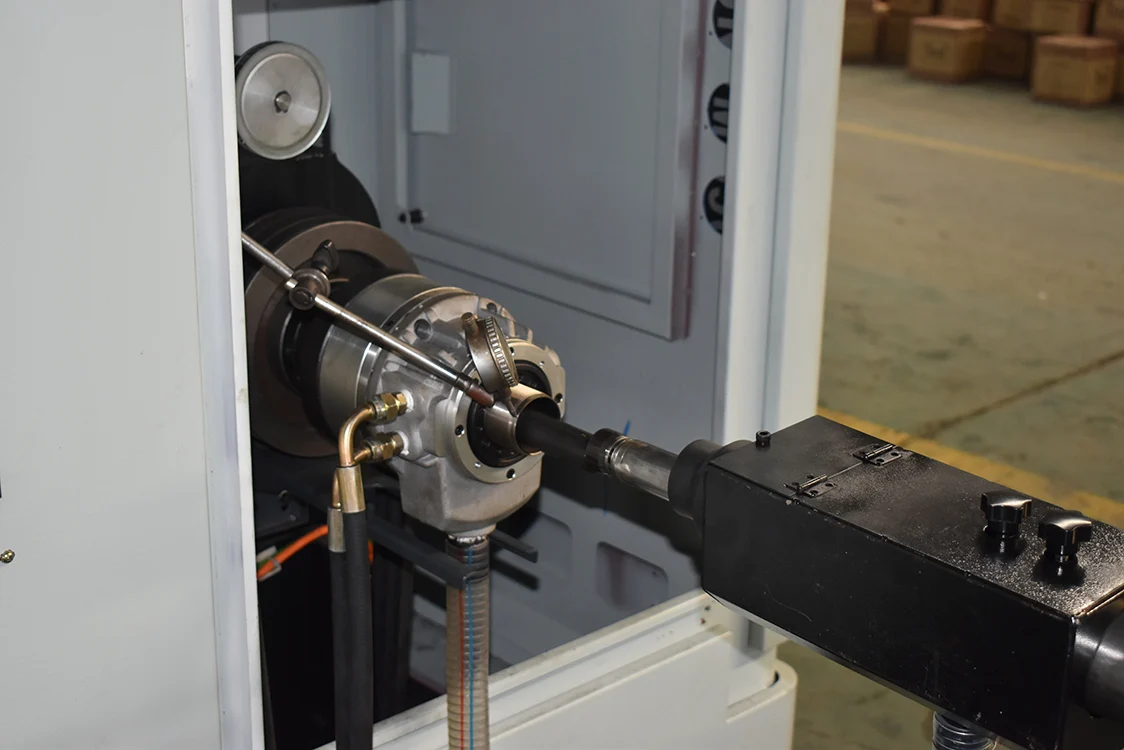

Hydraulic chuck and three jaw chuck, fast working and easily operate.
Hydraulic tail stcok
Full enclosed cover , automatic lubrication

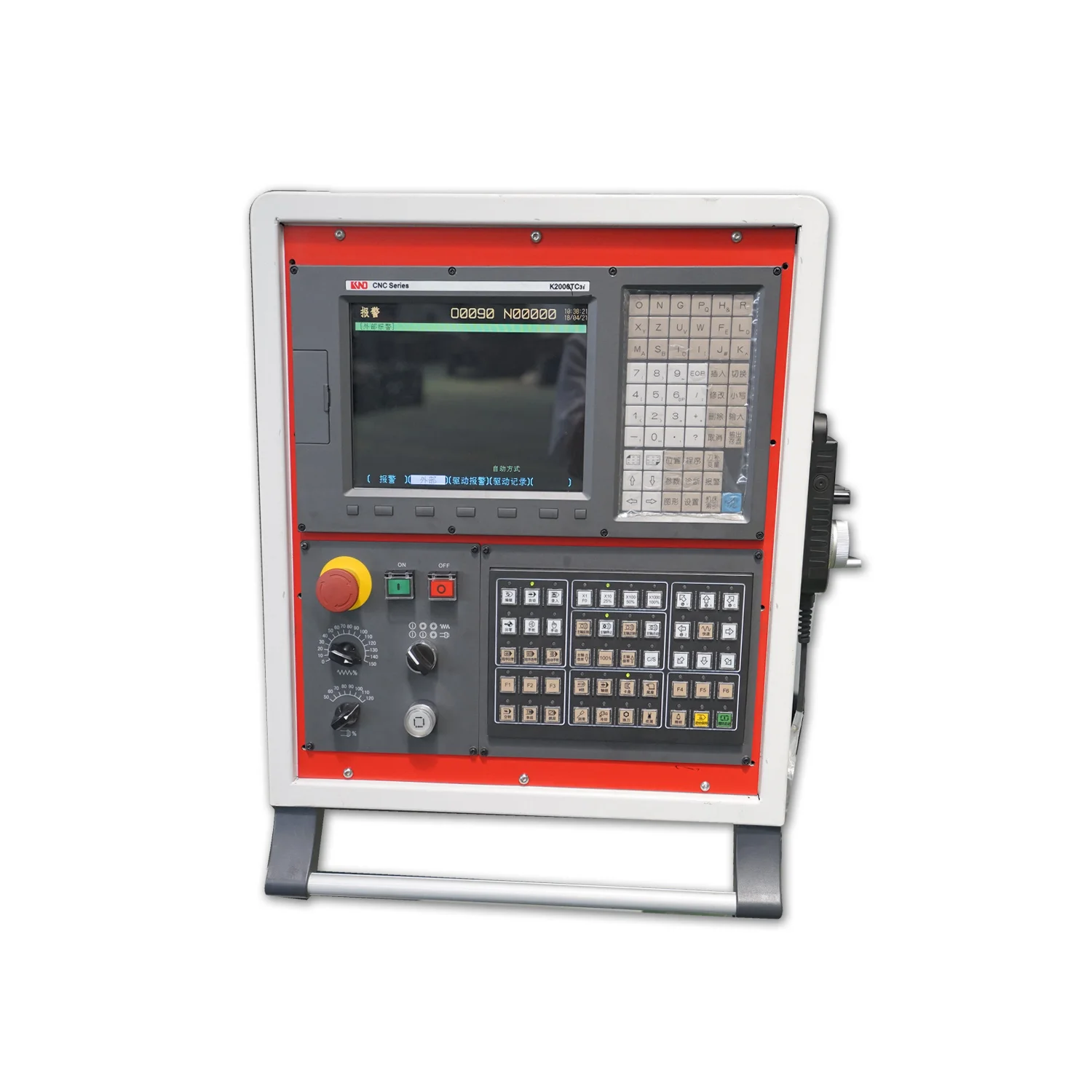

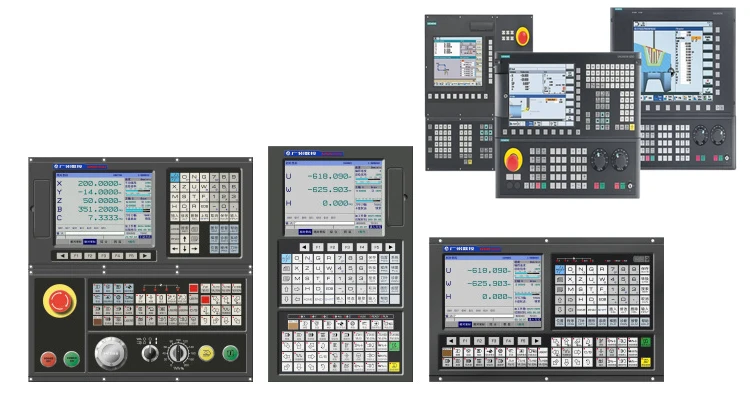

Optional system include GSK, SIEMENS, FANUC, MITSUBISHI, SYNTEC,KND
Schneider electric parts, servo motor and driver.
Optional Configuration

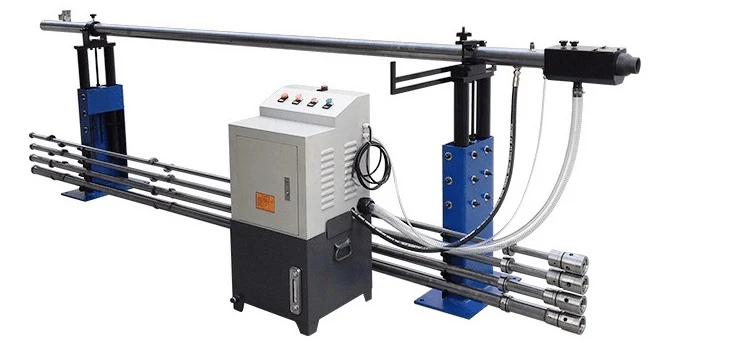

1. Automatic bar feeding

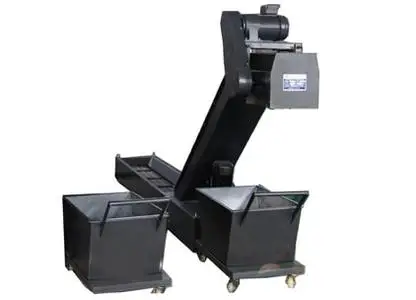

2. Automatic chip conveyor
3. SIEMENS/FANUC/MITSUBISHI/SYNTEC/GSK/KND for choosing
Company Profile

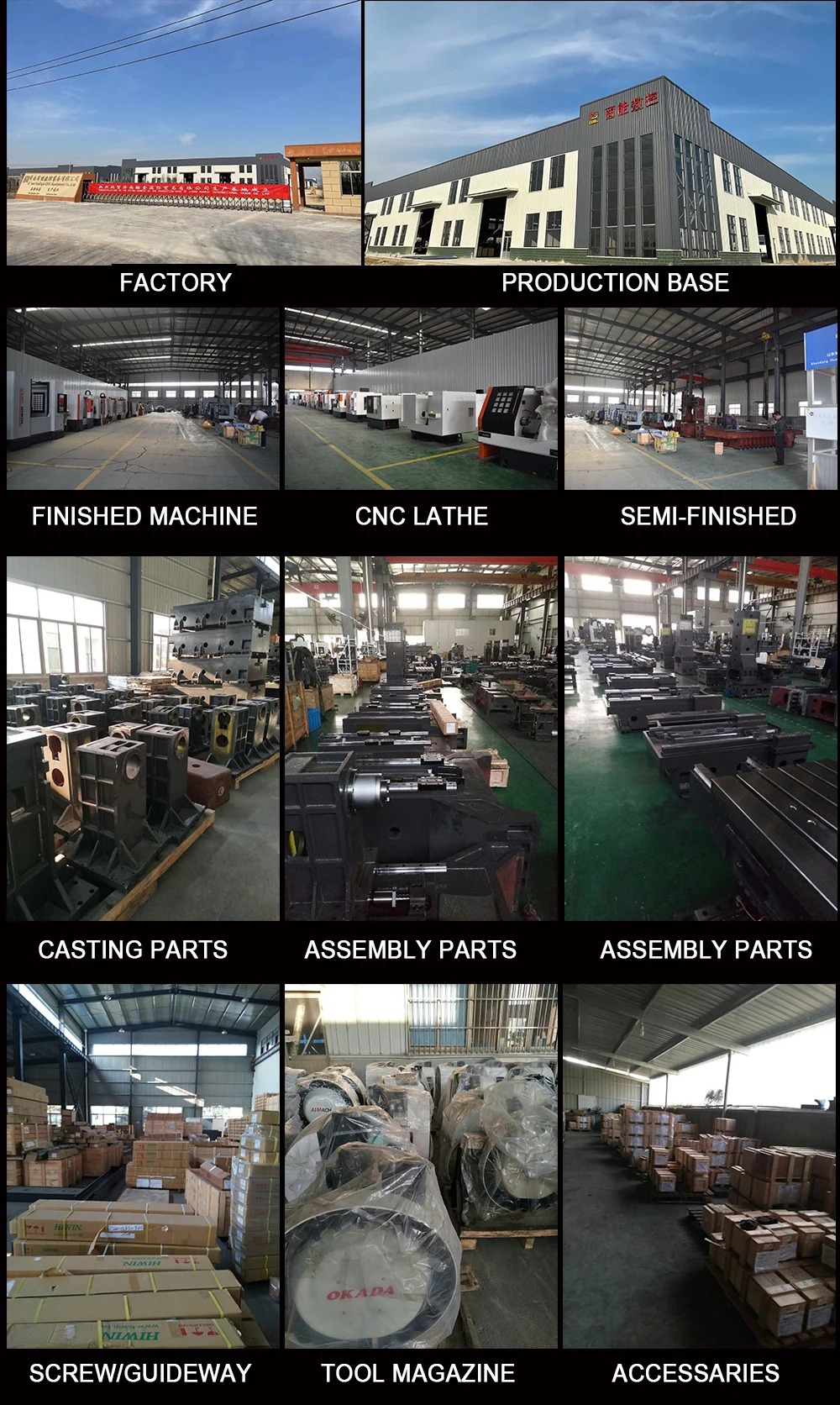

Jinan Sunligh CNC Equipment Co.,Ltd located in the beautiful capital Jinan City, Integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Now our products have a large market share and have a high popularity in domestic. Sales and service net work have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
CE certification and ISO quality certification
PACKAGES AND SERVICE
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
