JCT E SD3070 LED пожарные машины для наружной рекламы пропаганды и транспортного средства
- Категория: >>>
- Поставщик: Taizhou Jingchuan Electronics Technology Co. Ltd.Taizhou Ltd.
Сохранить в закладки 1600589341706:
Описание и отзывы
Характеристики
Product Overview

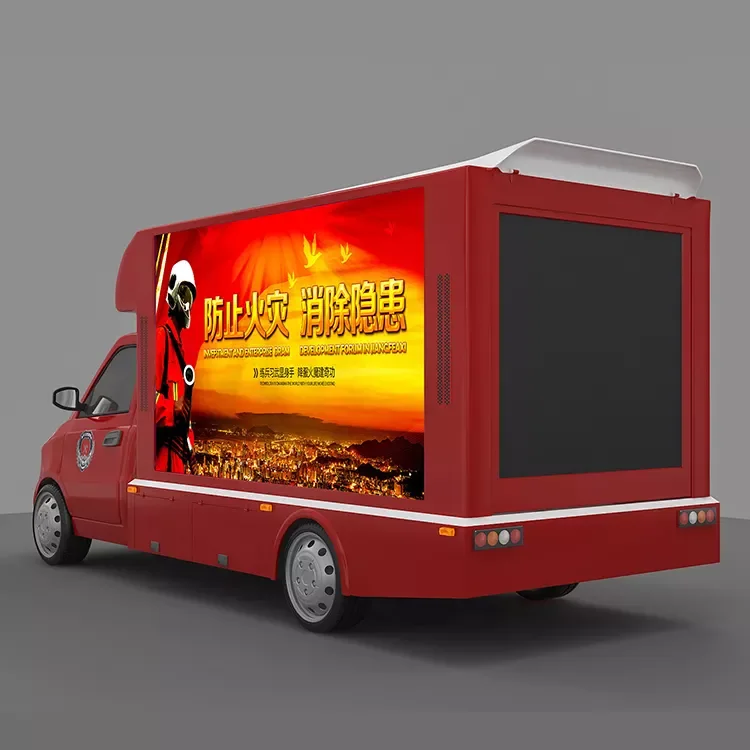

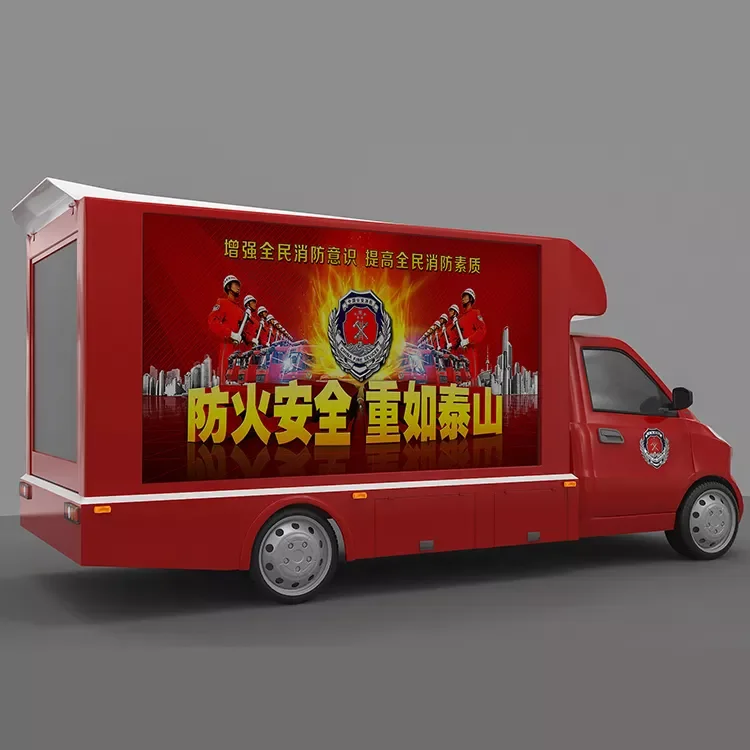

JCT ESD3070 LED FIRE trucks are perfect for grand opening events bring people’s attention to your brand right away
All the companies need to do marketing,our JCT-EW4800 led truck can help you to do outdoor advertising or promotion events.
FEATURES AT A GLANCE
Foton 3070 Wheelbase truck chassis.
1、P5 left side outdoor full color screen, kinglight light
Dimension: 2560mm*1600mm,
Video control system
Dimension: 2560mm*1600mm,
Video control system
2.Hydraulic lifting system
(optional):Single side lift
(optional):Single side lift
3.Stage(optional):Single fold stage thread support pin
4.Video see police led truck video for reference, or see real picture.
5.Fire propaganda vehicle more information please contact us to get.
led truck

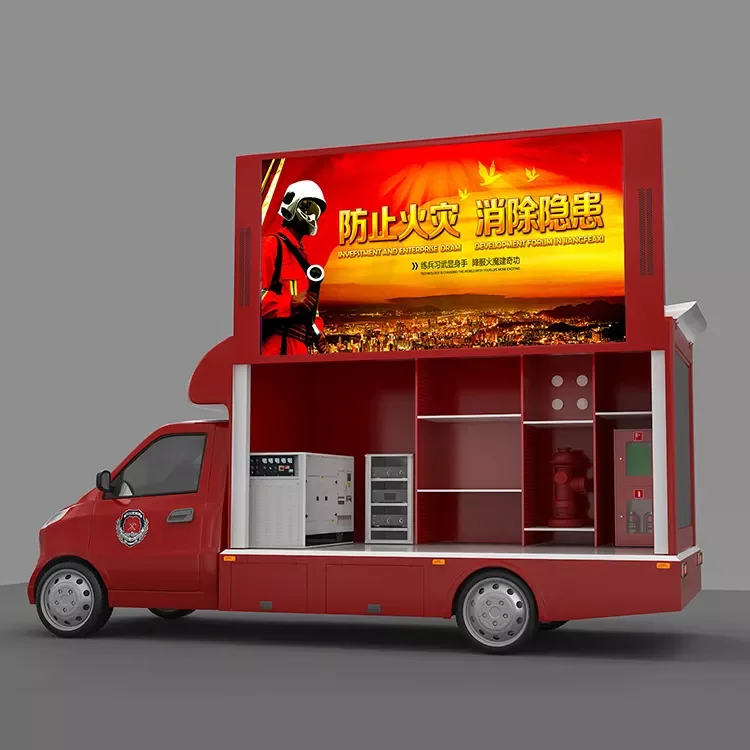

3 sides display+single side hydraulic lifting
truck inside
PRODUCT SPECIFICATIONS
Chassis | ||||||
Brand | Foton Forland | External | 5180x1710x2640mm | |||
Emission standards | EU standard VI | Wheelbase | 3070mm | |||
Screen Lifting and Supporting System | ||||||
Hydraulic Lifting System: lifting range 1500mm, bearing 2000KGS，single side lift system | ||||||
Wind-against Level: Against level 8 wind after screen lift up 1.5 meters | ||||||
Support Legs: Stretch distance 300mm | ||||||
Silence generator group | ||||||
Voltage | Single phase 220V | Power | 5kw | |||
LED Screen Full color (left side and right side) | ||||||
Left side and Right side: | 2560mm(W)*1600mm(H) | Module Size | 320mm(W) x 160mm(H) | |||
Pixel density | 40000 pixels/m2 | Dot pitch | 5mm | |||
Module resolution | 64pixel(W)*32pixel(H) | Horizontal viewing angle | 120(+60/-60) degree | |||
Vertical viewing angle | 120(+60/-60) degree | Color temperature | 3500-9500 degree K (adjustable) | |||
Brightness | ≥6500 Nit | Contrast ratio | 1000:1 | |||
Max. power consumption | 750w/㎡ | Aver. power consumption | 250w/㎡ | |||
Drive mode | 4s constant current | Frame changing rate | ≥60/s | |||
Refresh rate | ≥480Hz/s | Grey level | 10 bit | |||
LED composition | 1R,1G,1B | Protection level | IP65 | |||
Blind spot rate | < 0.0001 | Lifespan | ≥100,000 hours | |||
MTTF | ≥10000 hours | Working temperature | -25~+80 | |||
Working humidity | 10%-99% | Malfunction dot rate | ≤3/10000 | |||
Roller system | ||||||
Right side roller | HN-XGZ-7560 | size | 2500*1600mm | |||
P10 LED outdoor single red screen (back) | ||||||
Dimension | 960x1440mm | Dot pitch | 10 mm | |||
External power supply | ||||||
Input Voltage | Single phase 220V | Output Voltage | 220V | |||
Inrush current | 15A | Aver. power consumption | 0.5kwh/㎡ | |||
Multimedia control system | ||||||
Video processor | NOVA | Model | V760 | |||
Power amplifier | CDK 250W 1pc | Speaker | CDK 100W 2pcs | |||
Hydraulic lifting | ||||||
Travel height | 1500 mm | |||||
Hydraulic stage | ||||||
Stage size: | 4000 mm*1200 mm | stairs | 2pcs | |||
guardrail | 1set | |||||
Successful Project
Project picture
Project picture
Project picture
SIMILAR PRODUCTS
Our Company
About JCT:
Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.
R&D SUPPORT:
Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.
\t\t\t\t\t\t\t\t\tHot Products \t\t\t\t\t\t\t
FAQ
1. Q: Why should we choose you?
A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!
2. Q: How about your after-sale service:
A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.
3. Q: What's your payment method?
A: T/T 50% deposit paid in advance, 50% of the balance before delivery;
4.Q: Where are you?
A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.
5. Q: Can you provide the ISO9001 certificate or some others related?
A: Yes. We have rich experience for exporting to different countries such as Europe , South America, African, Russia and others This helps you importing successfully.
Contact me without any hesitate when you are in trouble of our products
Похожие товары

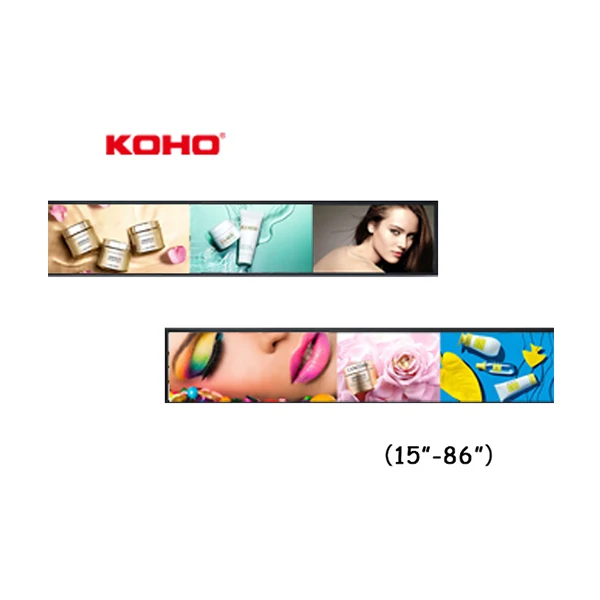

7-86 дюймов Новый ЖК-монитор Специальная конструкция Digital Signage
600,00-800,00 $
Планшет Rk3588 8 ГБ + 128 г 17 3 дюймов

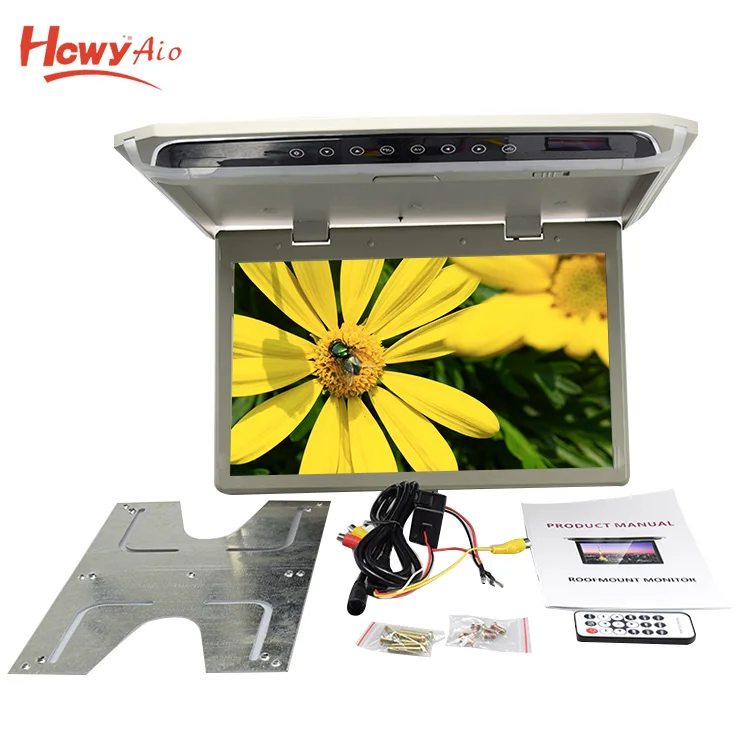

CE RoHs Fcc 1080P 15 6 дюймовый TFT LCD шина ЖК-дисплей рекламный дисплей с портом USB SD-карты 'крепление на крышу автомобильный монитор
102,00-122,00 $
Шлепатель из нержавеющей стали акриловый слоттер
2 500,00-3 000,00 $
Прозрачный ЖК-дисплей Крытый прозрачный сенсорный экран 3d рекламный дисплей коробка
61 025,66-67 947,28 ₽

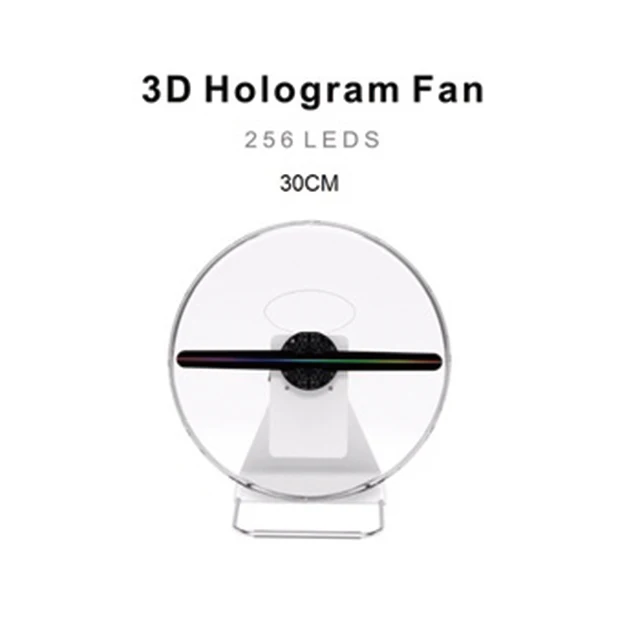

Голографический светодиодный вентилятор 65 см
