Product Description

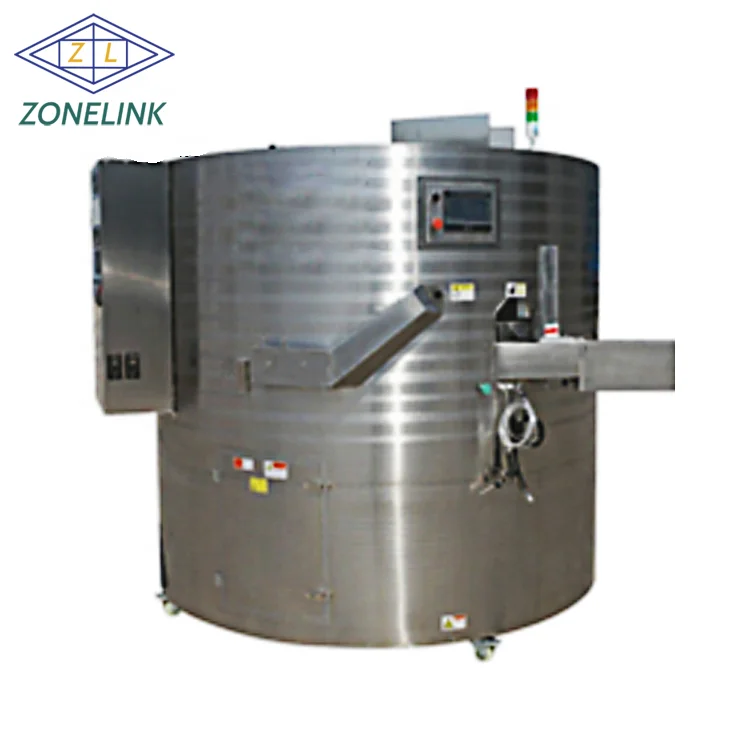

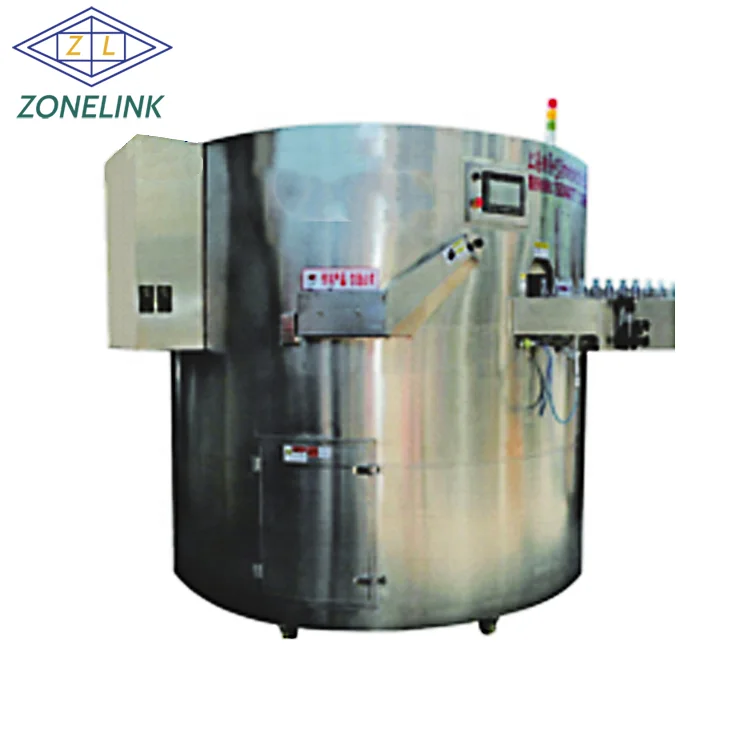

Auto high speed PET bottle unscrambler machine
Model | YGL 2000 |
Production speed (B / h) | 6000 |
Power (kw) | 3.0 |
Voltage (V) | 220 |
Applicable bottle diameter (mm) | 28-125 |
Applicable bottle height (mm) | 150-340 |
Host size (mm) | 2000*1800 |
Weight (kg) | about 1900 |
Air source | 0.5pa |
Architectural feature
lifting mechanism
The lifting mechanism is composed of bottle storage bucket, lifting belt, frame, etc. the motor of the lifting mechanism is controlled by the bottle feeding detector in the cylinder of the bottle handling machine.
bottle discharging mechanism
The bottle discharging mechanism is composed of three parts: main machine, fan and bottle discharging. The main machine sends the bottle to the track, and the bottle upender straightens the bottle and sends it to the air supply track.
lifting mechanism
The lifting mechanism is composed of bottle storage bucket, lifting belt, frame, etc. the motor of the lifting mechanism is controlled by the bottle feeding detector in the cylinder of the bottle handling machine.
bottle discharging mechanism
The bottle discharging mechanism is composed of three parts: main machine, fan and bottle discharging. The main machine sends the bottle to the track, and the bottle upender straightens the bottle and sends it to the air supply track.
Working principle of equipment
The disordered PET bottles are arranged and transported to the production line in order. According to the user's needs, different
bottle types can be changed easily and quickly. The body material is made of high-quality stainless steel, and other parts are
made of non-toxic and durable materials. The main components of electrical and pneumatic systems are famous brand products. PLC
programming control is used in the whole work, and the operation can be seen and touched by hand, with low failure rate and high reliability.
bottle types can be changed easily and quickly. The body material is made of high-quality stainless steel, and other parts are
made of non-toxic and durable materials. The main components of electrical and pneumatic systems are famous brand products. PLC
programming control is used in the whole work, and the operation can be seen and touched by hand, with low failure rate and high reliability.
Working process of the equipment
Bottle storage, bottle hopper, bottle handling slide, bottle outlet air duct.
PET bottles for beverages are loaded into the bottle storage hopper of the elevator by the bottle storage bin or manual assistance, lifted to the cylinder of the bottle discharging machine by the belt, driven by the bottle guide piece, then seeded by the bottle upender, and entered into the air supply track through the slide way.
PET bottles for beverages are loaded into the bottle storage hopper of the elevator by the bottle storage bin or manual assistance, lifted to the cylinder of the bottle discharging machine by the belt, driven by the bottle guide piece, then seeded by the bottle upender, and entered into the air supply track through the slide way.
Machine Layout
Product Paramenters
Accessories name | brand |
Photoelectric switch | Panasonic |
PLC | Siemens |
Frequency converter | Panasonic / Siemens |
Switching Mode Power Supply | OMRON |
Intermediate relay | OMRON |
Change-over switch | Schneider |
Emergency stop button | Schneider |
Start button | Schneider |
Miniature circuit breaker | Schneider |
Contactor | Schneider |
Solid state relay | Megel |
Packing&Shipping

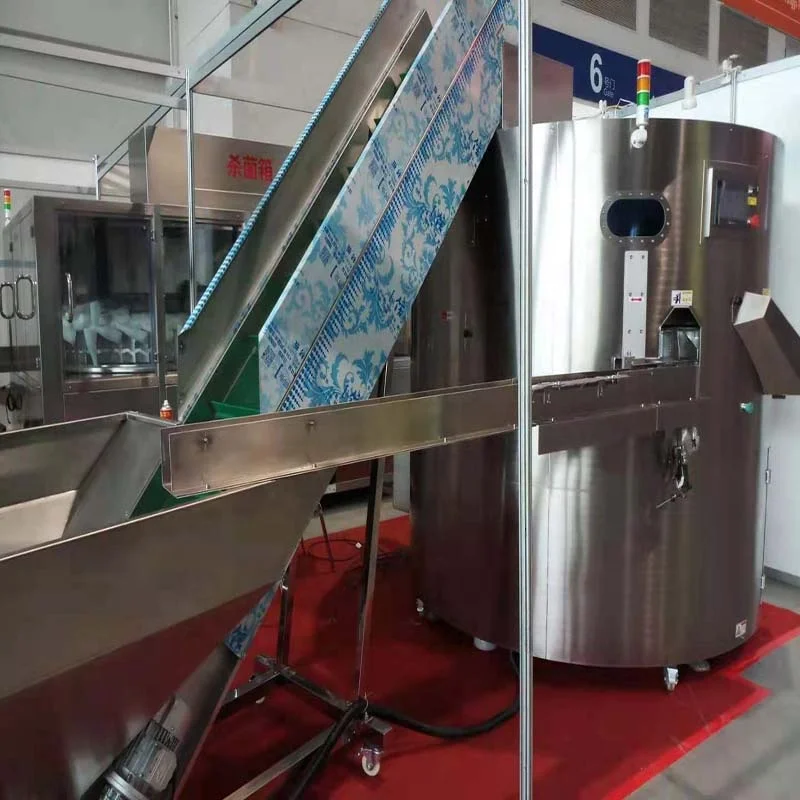

Exhibition
The company was established in October 1999.It is a professional manufacturer of packing equipment,labeling machine concern with R&D,production,and sale.The company is located in Liaoyang city,Liaoning province where engaged in packing production,labeling machine industry earliest in China,covers an area of forty thousand square meters,is the national packing machine,labeling machine industry pioneer enterprises.
Company Introduction
Our company is a professional manufacturer and supplier of packing machinery and equipment in China. We belong to zonelink International Group.
We have a well-experienced team to manufacture packing machinery and equipment and a professional design institute.With rich experience in packing machinery and equipment field and numbers of professional engineers, we have designed and developed many types of packing machinery and equipment in many varieties. Our main products are bottle unscrambler,labeling machine,bottle blowing machine,filling machine,glass-lined reactors,fermentors,centrifuges,granulators,mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines,cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam,Japan,Denmark,Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In ZHONGLIAN you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
We have a well-experienced team to manufacture packing machinery and equipment and a professional design institute.With rich experience in packing machinery and equipment field and numbers of professional engineers, we have designed and developed many types of packing machinery and equipment in many varieties. Our main products are bottle unscrambler,labeling machine,bottle blowing machine,filling machine,glass-lined reactors,fermentors,centrifuges,granulators,mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines,cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam,Japan,Denmark,Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In ZHONGLIAN you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
Other Products
Label Machine Soft tube filling sealing machine
Single Label Machine, Double Label Machine Hand cream,toothpaste aluminium &plastic tube filing
Single Label Machine, Double Label Machine Hand cream,toothpaste aluminium &plastic tube filing
Ampoule bottle filling sealing machine Stick labeling machine
Oral liquid,fish oil filling machine Round bottle,square bottle stick label machine
Contact us
The company has a professional after-sales service technical team,with high quality products,excellent service,dedication to all walks of life is our commitment to the user.In strict accordance with the relevant standards and standards of the state to make,test and accept,provide free installation quidance,assist debugging and responsible for training and operation.The staff of the company will fulfill the quality commitment to the customers with higher enthusiasm and better service.
