Однофазный выключенный инвертор 6 кВт с контроллером MPPT для автономной солнечной системы
42 987,73-48 644,01 ₽
3500 Вт 5500 солнечные фотоэлектрические сети Гибридный солнечный инвертор с pwm 100a со слежением за максимальной точкой мощности блок управления установкой на солнечной батарее для бега без батареи системы энергии
- Категория: >>>
- Поставщик: Shenzhen Scmk New Energy Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600590982405:
Описание и отзывы
Характеристики
3500w 5500w Off Grid Hybrid Solar Inverter With 100a Mppt Solar Controller Running Without Battery Solar Energy Systems
Product Details
3500w 5500w Off Grid Hybrid Solar Inverter With 100a Mppt Solar Controller Running Without Battery Solar Energy Systems
1. Pure Sine wave solar inverter
2..Output power factor 1
3. High PV output voltage range 120-450V
4. Battery equalization function to optimize battery performance and extend life-cycle
5. Built-in anti-dust kit for harsh environment
6. Supporting working without battery.
Technical Specification
Model | SC-VM II PLUS 3.5KW-24V | VM II Plus 5.5KW-48V | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
Input | ||||
Voltage | 230VAC | |||
Voltage Range | 170-280VAC for Personal Computer 90-280VAC for Home Appliances | |||
Frequency Range | 60/50Hz (Auto sensing) | |||
AC Voltage Regulation (Bat Mode) | 230VAC ± 5% | |||
Surge Power | 6000VA | 10000VA | ||
Efficiency (peak) | 90%-93% | |||
Transfer Time | 10ms for Personal Computer; 20ms for Home Appliances | |||
Waveform | Pure sine wave | |||
Battery | ||||
Battery voltage | 24VDC | 48VDC | ||
Floating Charging Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Solar Charger & AC Charger | ||||
Solar Charger Type | MPPT | |||
Max PV Array Open Circuit Voltage | 500VDC | 500VDC | ||
Max PV Array Open Circuit Power | 5000W | 5000W | ||
MPPT Range @Operating Voltage | 120-450VDC | 120-450VDC | ||
Maximum Solar Charge Current | 100A | 100A | ||
Maximum AC Charge Current | 100A | 100A | ||
Maximum Charge Current | 100A | 100A | ||
Physical | ||||
Dimension (L*W*H) mm | 100*300*400mm | |||
Net Weight (kgs) | 10 kg | 10.5 kg | ||
Communication Interface | USB / RS232 | |||
Environment | ||||
Humidity | 5%-95% Relative Humidity (Non-condensing) | |||
Operation Temperature | -10℃ to 50℃ | |||
Storage Temperature | -15℃ to 60℃ | |||

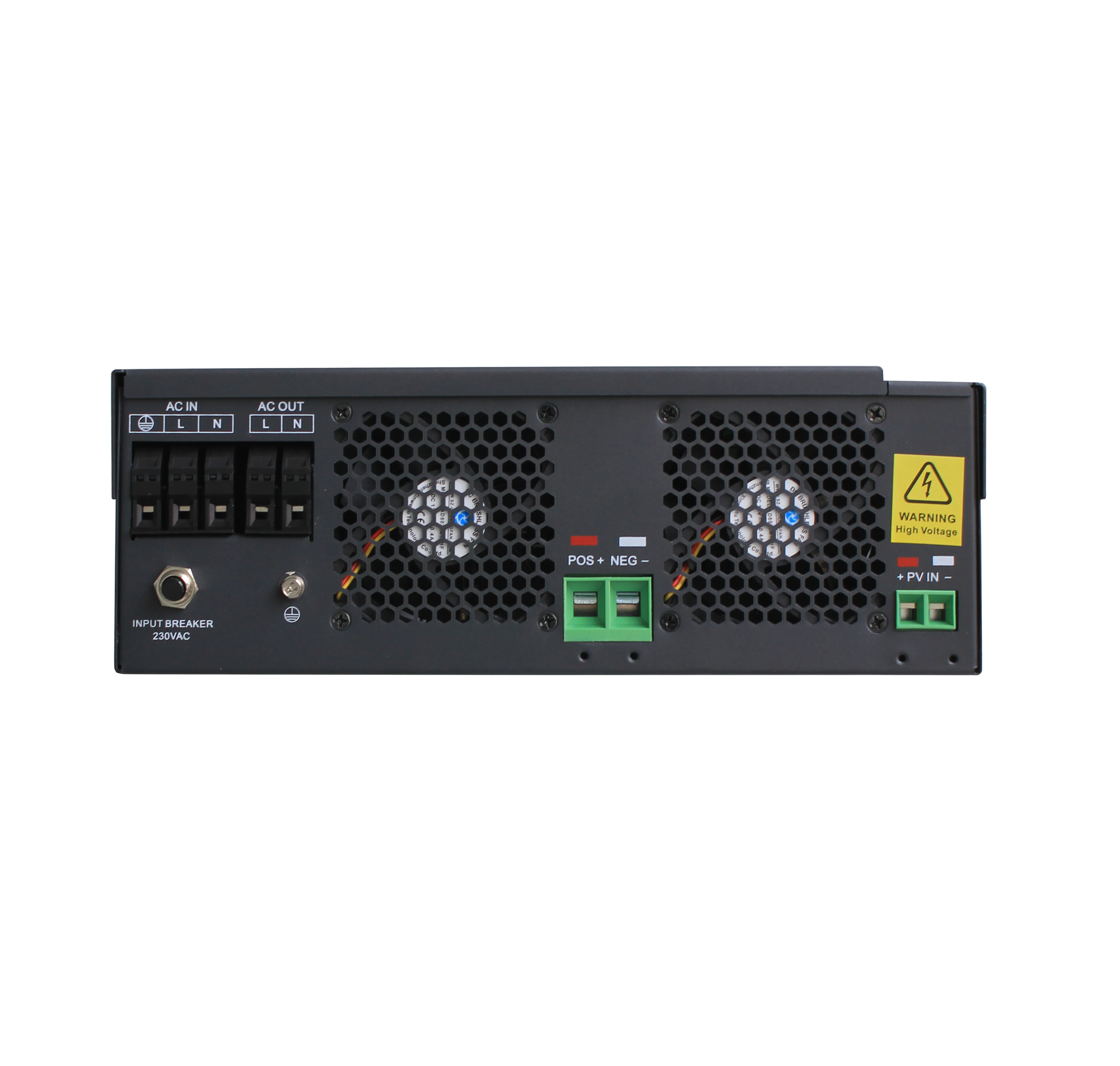

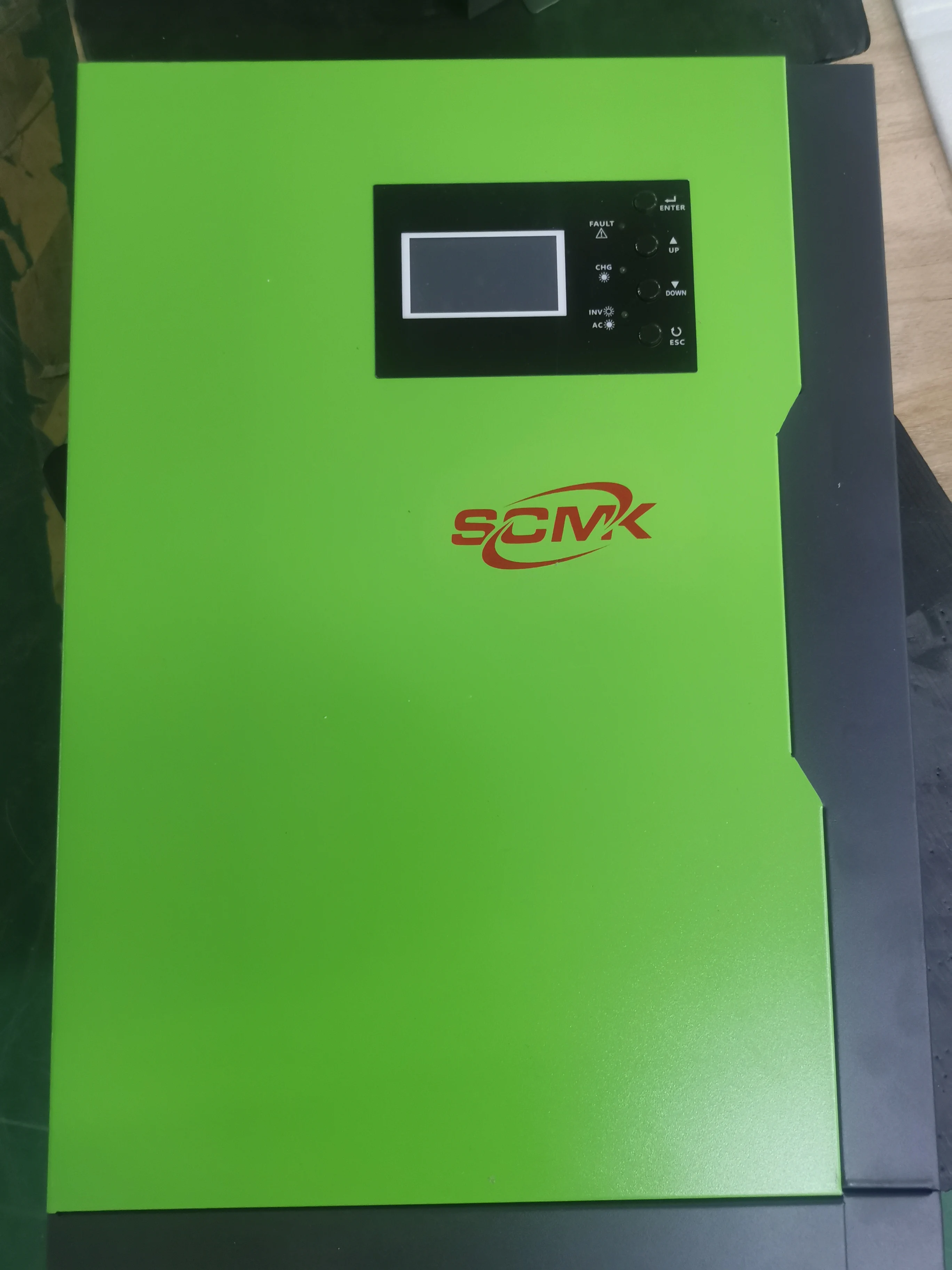

Details Images
Installation Instructions
Product packaging
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1pc in a high quality Carton box, enough time for Aging test to ensure good quality.
Company Profile
Shenzhen Zhengxin Electronics Co., Ltd.provide a one stop solution to the ups series product including design,R&D,manufacturing
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
FAQ
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
Our Service
Pre-Sales Service
* Salesmen with 2 months of product training.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
After-Sales Service
* Warranty:1 years
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
Похожие товары
Заводской инвертор 48 В 5 кВт
Заводской OEM 3500 Вт выключенный солнечный инвертор с контроллером 100A MPPT и антипылевые комплекты для автономной солнечной системы
21 041,37-23 982,63 ₽

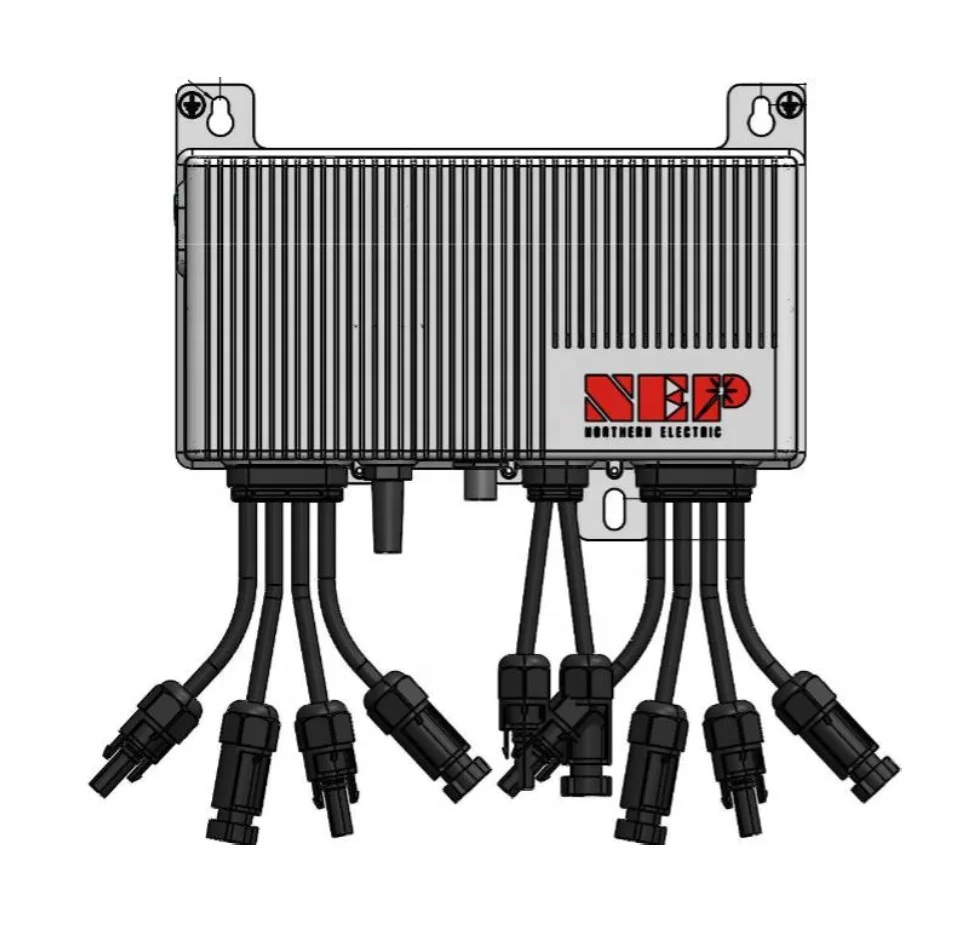

Неп-BDS-1000 подключенный к интеллектуальной сети солнечный микро инвертор Wi-Fi связь MPPT чистый синусоидальный
14 695,02 ₽

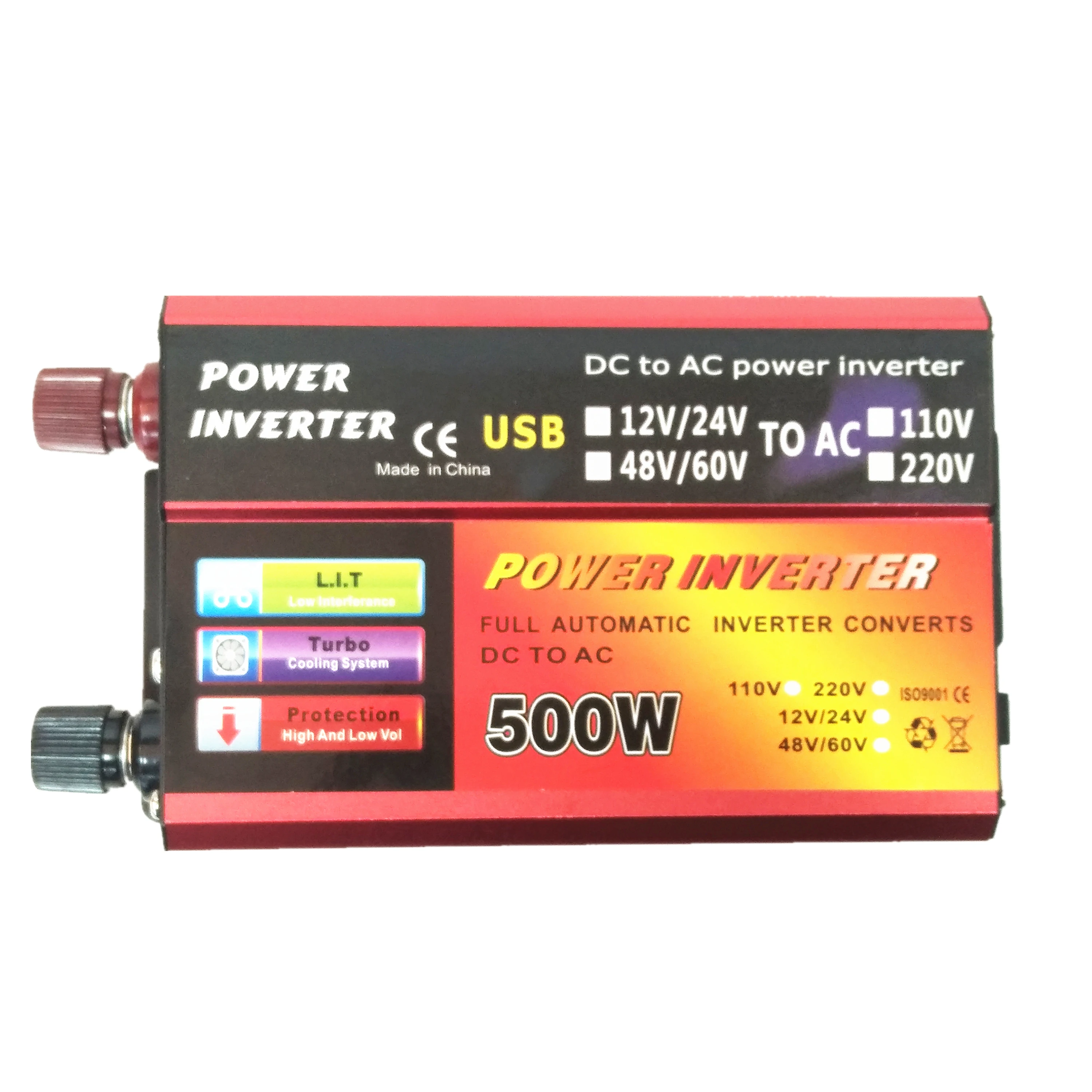

Хорошее качество DC 12V 24V AC 110V 220V 500W модифицированные инверторы синусоидальной волны с разъемом USB
1 076,96-1 124,47 ₽
3.5KW 5.5KW со слежением за максимальной точкой мощности солнечный инвертор постоянного тока при напряжении от 24 до 220V 12V Off Сетка Tie с чистым синусом Гибридный
72 966,02-74 097,27 ₽

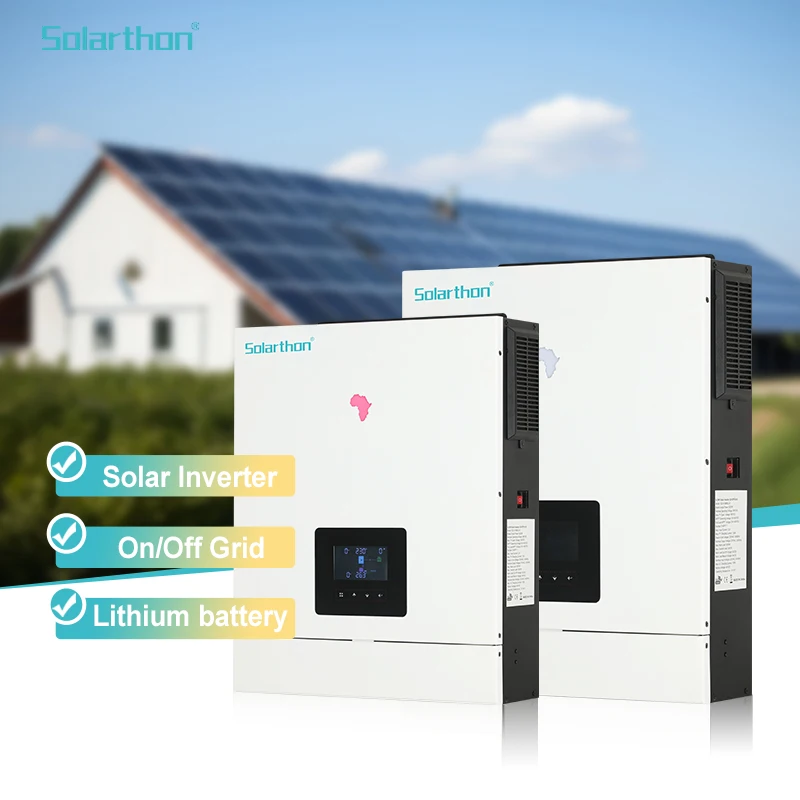

Solarthon OEM 4 2 кВт солнечный инвертор постоянного тока в переменный 60 В 450 4200 Вт вне сети

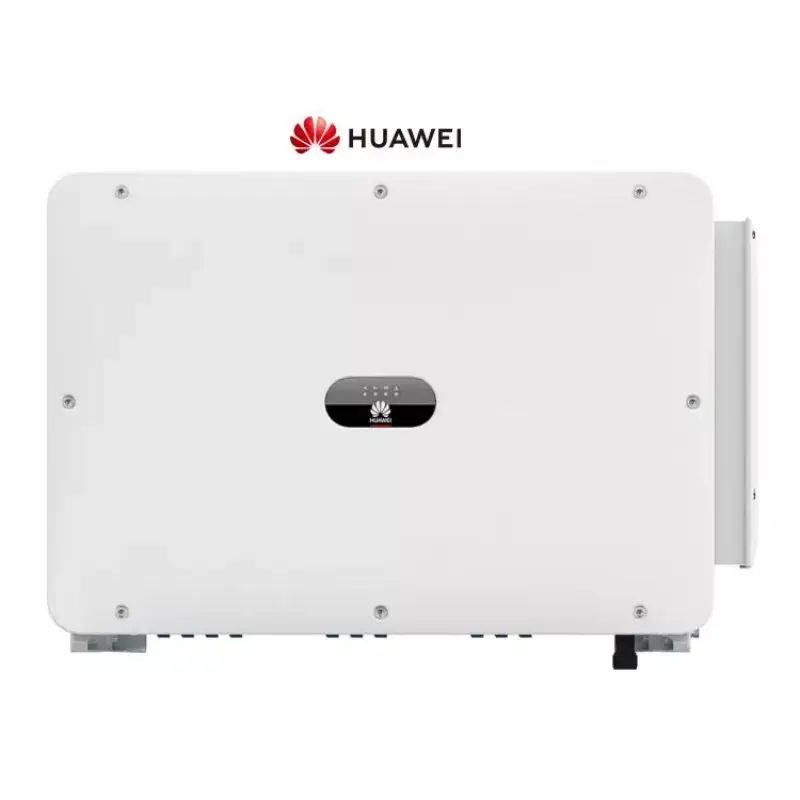

Солнечный Инвертор постоянного тока/переменного тока Hua Wei SUN2000-110KTL-M2 110 кВт на сетке солнечный инвертор для коммерческого использования и система солнечной энергии
