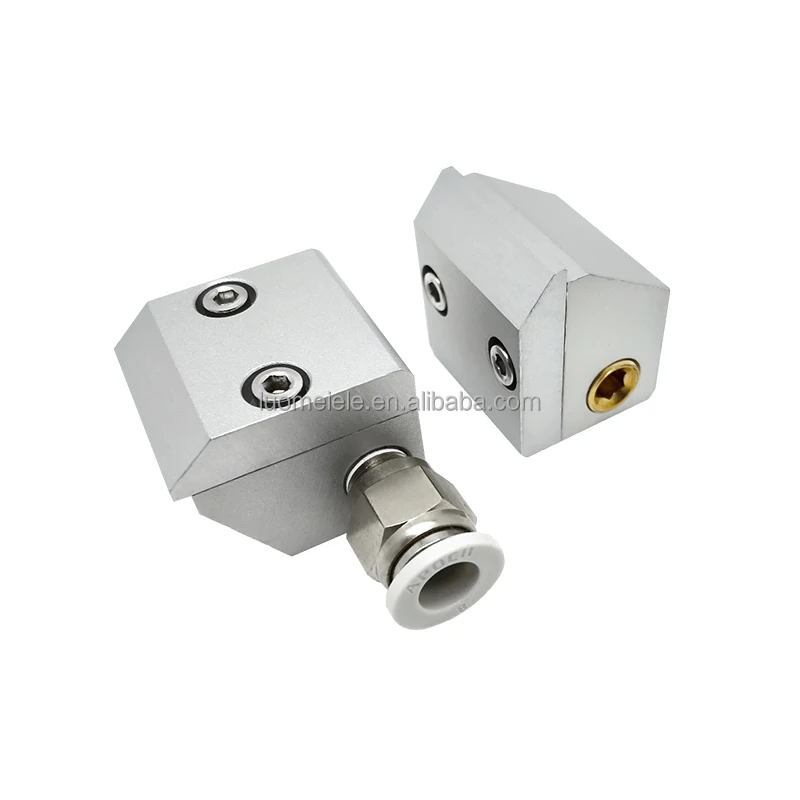

Windjet с низким расходом Супер воздушного шабера для сжатого воздуха
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Foshan Luomei Electric Technik Co. Ltd.
Сохранить в закладки 1600592460466:
Описание и отзывы
Характеристики
Product Description
Application.
Suitable for cleaning, drying, dust removal, water removal, cooling, cooling, etc.
Material.
1) Aluminum alloy: suitable for normal temperature environment, cost-effective, can also be treated with anti-oxidation electroplating to improve corrosion resistance.
2) Stainless steel: suitable for high temperature environment above 200 degrees Celsius or highly corrosive working environment
2) Stainless steel: suitable for high temperature environment above 200 degrees Celsius or highly corrosive working environment
Principle
As shown in the figure on the left, after the compressed air (1) enters the air knife, it is blown out at a high speed by an airflow sheet (2) with a thickness of only 0.05 mm. Through the principle of the Coanda effect and the special geometry of the air knife, the air curtain of this sheet can drain the maximum flow. 30 to 40 times the environment (3), and a thin layer of high-strength, atmospheric impact air curtain is formed, and the strength of the air curtain is very uniform

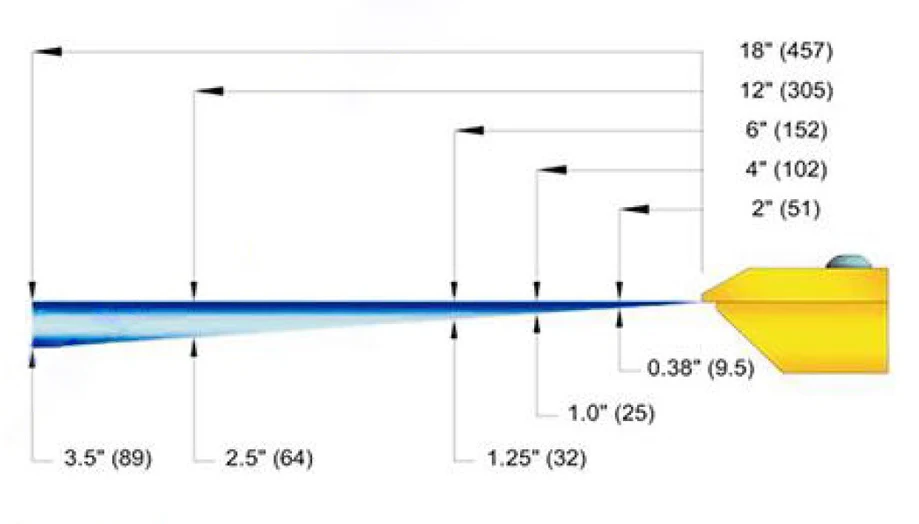

Air diffusion.
At the air outlet of the air knife, since no ambient air is introduced, the strength of the air curtain is the largest, but the air volume is the smallest. As the distance increases, the air curtain strength gradually weakens and the air volume gradually increases. The distance between the air outlet and the product surface should be kept between 10~50mm.

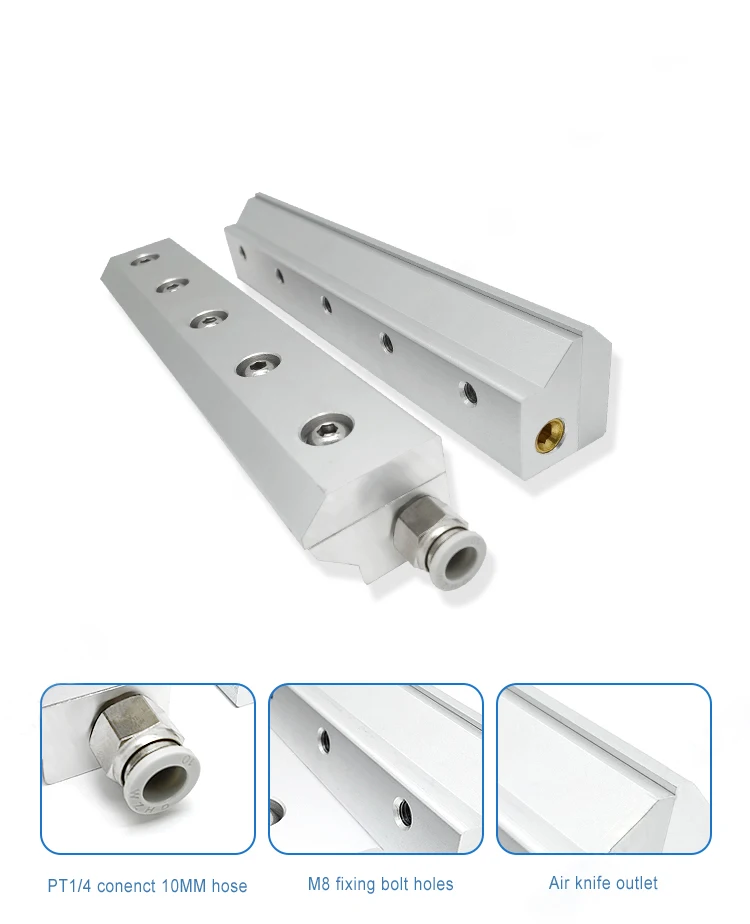

Specification

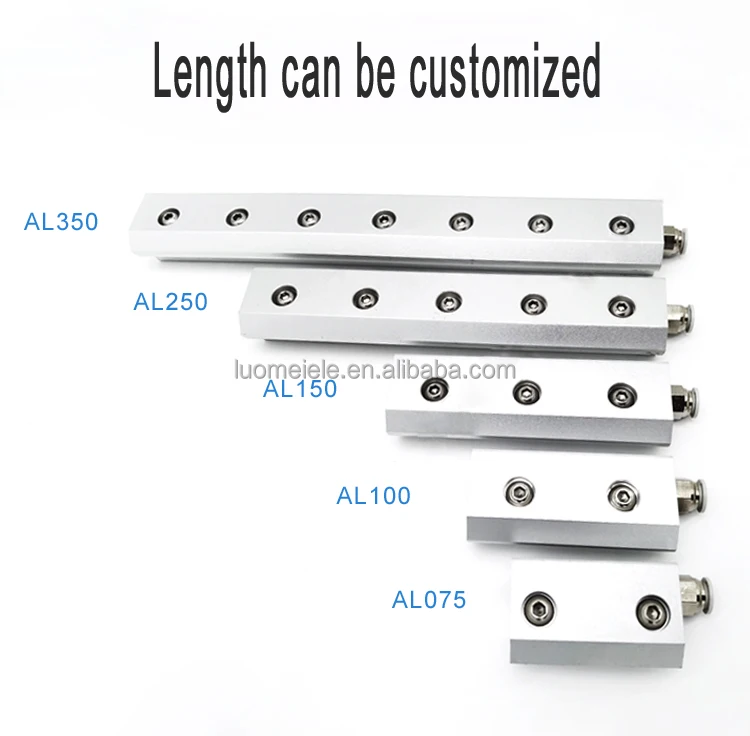

Super Air Knife | ||||||||||
aluminum alloy | stainless steel | Length | Airflow | Air intake thread | Noise | |||||
LM030AL | LM030SS | 30mm | 85L/min | PT-1/8 (1) | 30db | |||||
LM050AL | LM050SS | 50mm | 180L/min | PT-1/8 (1) | 42db | |||||
LM075AL | LM075SS | 75mm | 260L/min | PT-1/4 (2) | 46db | |||||
LM100AL | LM100SS | 100mm | 350L/min | PT-1/4 (2) | 50db | |||||
LM150AL | LM150SS | 150mm | 521L/min | PT-1/4 (2) | 54db | |||||
LM200AL | LM200SS | 200mm | 700L/min | PT-1/4 (2) | 56db | |||||
LM250AL | LM250SS | 250mm | 885L/min | PT-1/4 (2) | 58db | |||||
LM300AL | LM300SS | 300mm | 1050L/min | PT-1/4 (2) | 60db | |||||
LM350AL | LM350SS | 350mm | 1220L/min | PT-1/4 (2) | 61db | |||||
LM400AL | LM400SS | 400mm | 1410L/min | PT-1/4 (2) | 63db | |||||
LM450AL | LM450SS | 450mm | 1605L/min | PT-1/4 (2) | 63db | |||||
LM500AL | LM500SS | 500mm | 1770L/min | PT-1/4 (2) | 63db | |||||
LM550AL | LM550SS | 550mm | 1965L/min | PT-1/4 (2) | 65db | |||||
LM600AL | LM600SS | 600mm | 2135L/min | PT-1/4 (3) | 65db | |||||
LM650AL | LM650SS | 650mm | 2310L/min | PT-1/4 (3) | 66db | |||||
LM700AL | LM700SS | 700mm | 2480L/min | PT-1/4 (3) | 68db | |||||
LM750AL | LM750SS | 750mm | 2665L/min | PT-1/4 (3) | 70db | |||||
LM800AL | LM800SS | 800mm | 2860L/min | PT-1/4 (3) | 70db | |||||
LM850AL | LM850SS | 850mm | 3050L/min | PT-1/4 (4) | 70db | |||||
LM900AL | LM900SS | 900mm | 3235L/min | PT-1/4 (4) | 70db | |||||
LM950AL | LM950SS | 950mm | 3430L/min | PT-1/4 (4) | 70db | |||||
LM1000AL | LM1000SS | 1000mm | 3635L/min | PT-1/4 (4) | 75db | |||||
LM1200AL | LM1200SS | 1200mm | 4320L/min | PT-1/4 (5) | 75db | |||||
Note:

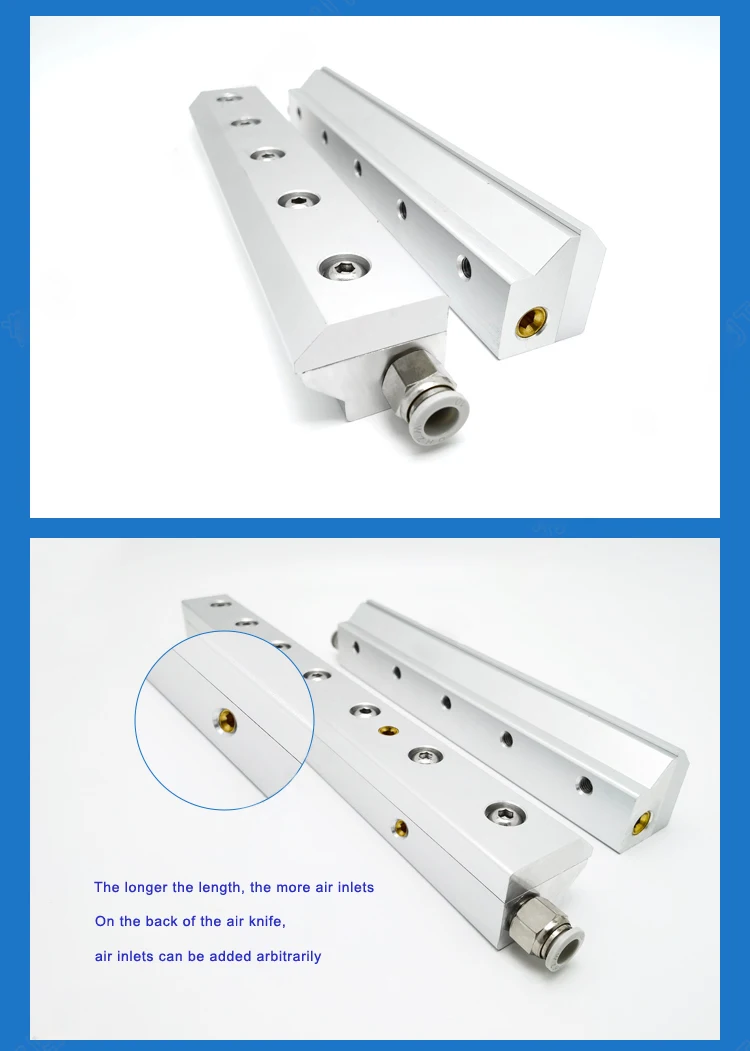

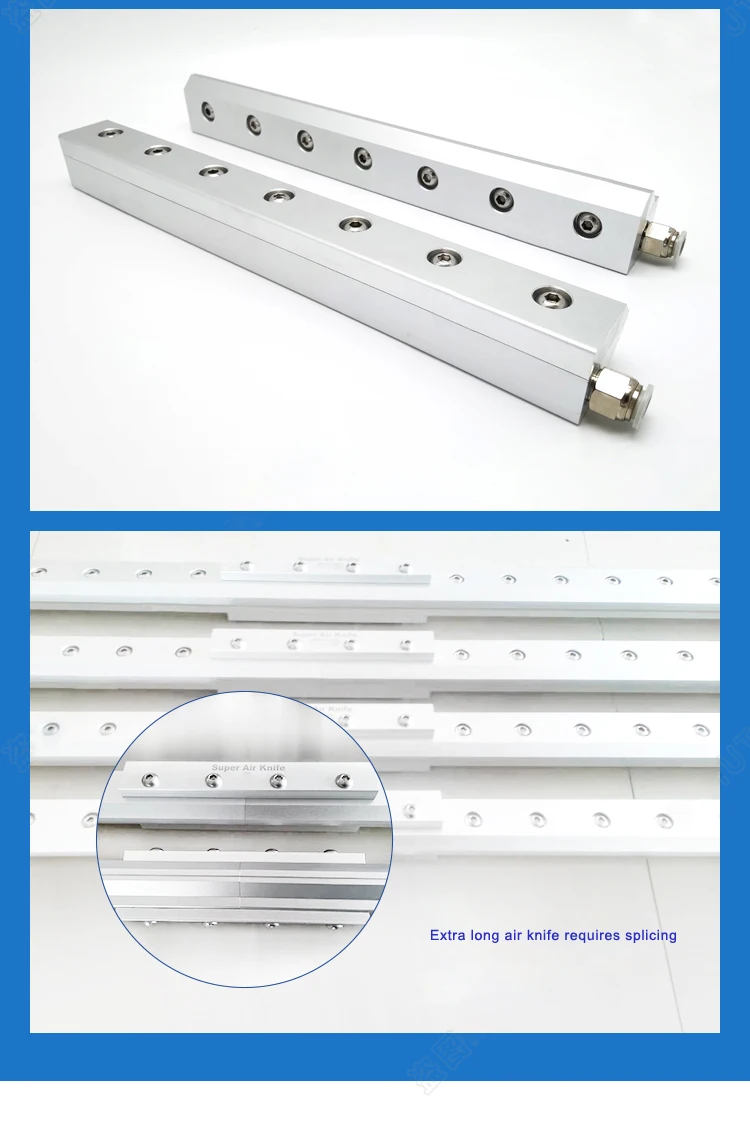

1) Super air knives above 450mm should have air intake at both ends as much as possible. The longer the length is, the air inlets should be increased accordingly, otherwise the effect of the air knife will be affected.
2) The super air knife deliquoring and purging distance should be between 20mm and 60mm, otherwise the effect will be reduced.
2) The super air knife deliquoring and purging distance should be between 20mm and 60mm, otherwise the effect will be reduced.
3) Compressed air should be 0.55~0.69Mpa.
4) An air filter should be used to ensure the air is dry.
5) The distance between all filters and the objects to be blown should be controlled within 5meter.
6) When connecting the hose, no foreign objects can enter the hose.
7) The air consumption stated in the above table refers to the super air knife with a port clearance of 0.05mm.
Company Profile
Foshan Luomei Electric Technik Co.,Ltd. is chinese blower¢rifugal fan manufacturer, located in foshan city,guangdong province, south of china, we design and produce blowers since 2002, have rich experience in production and sales, our main selling markets are Europe, North America, Oceania, Southeast Asia and the Middle East.
Main products: air blower,ring blower,side channel blower, vacuum blower,regenerative blower,vortex gas pump,turbine blower, turbo fan, industrial ventilation fan,centrifugal blower, centrifugal fan,radial compressor,radial fan,air knife, industrial air heater, blower accessories(air filter,pressure relief,valve,silencer/muffler)
We are sincere welcome customer come and visit our factory and start cooperation.
We are sincere welcome customer come and visit our factory and start cooperation.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(25.00%),Western Europe(15.00%),North America(10.00%),Mid East(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Africa(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ring blower,vortex air pump,side channel blower,centrifugal fan,regenerative blower, industrial air heater, air knife, air pump,air filter, silencer, pressure relief valve etc.
4. why should you buy from us not from other suppliers?
High speed produce,high quality product and best services
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(25.00%),Western Europe(15.00%),North America(10.00%),Mid East(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Africa(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ring blower,vortex air pump,side channel blower,centrifugal fan,regenerative blower, industrial air heater, air knife, air pump,air filter, silencer, pressure relief valve etc.
4. why should you buy from us not from other suppliers?
High speed produce,high quality product and best services
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Contact
Похожие товары
Насадка для воздушного ножа
122,81 ₽ - 855,26 ₽

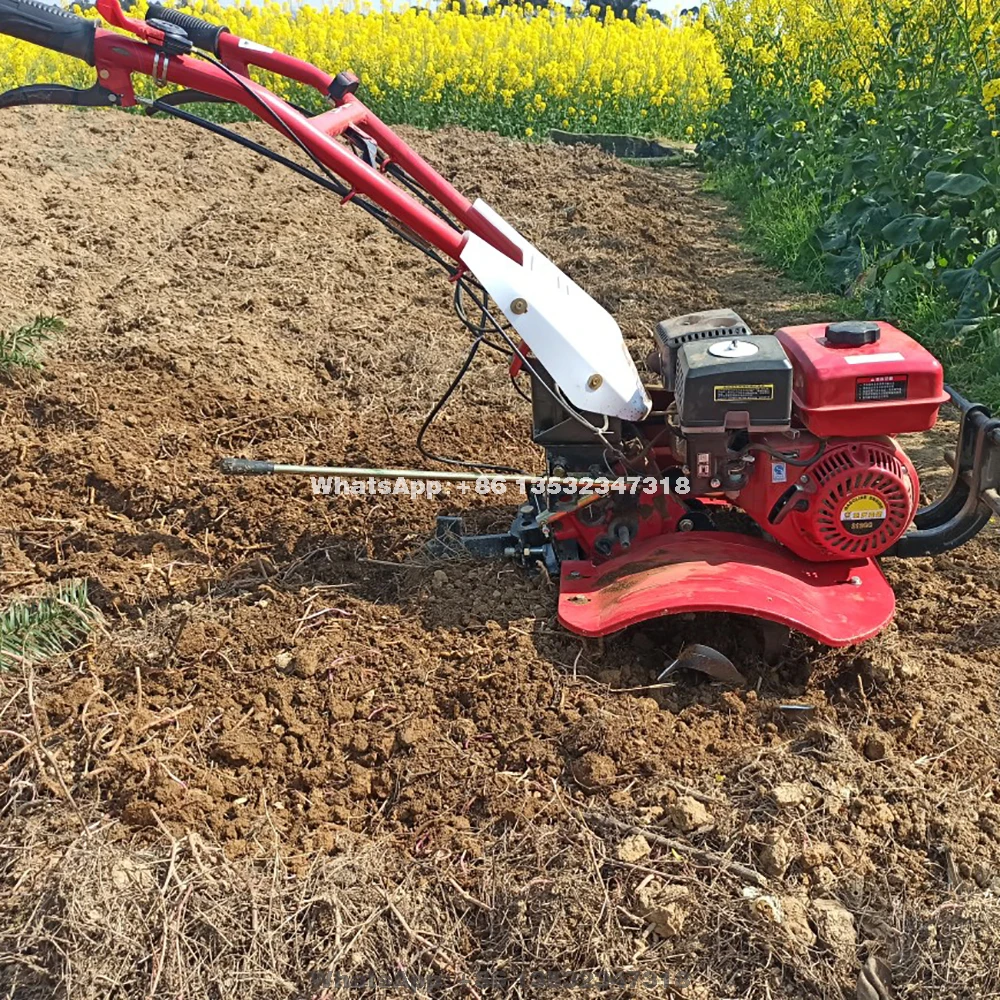

FY Мини Ручной пуш-ап движущийся роторный культиватор сельскохозяйственная машина с бензиновой мощностью трактор выносным управлением моторная почвофреза
41 666,40 ₽ - 46 052,33 ₽
Заводская цена полиуретановое покрытие крестообразные трубы очищают поролоновые свиньи со спиральной щеткой
7 565,74 ₽ - 8 222,54 ₽
Спрей-сопло с медной струей SS спринклер полной медная насадка
174,35 ₽
BoTuo FW55 Series 267lpm 155bar треплексный плунжерный водяной насос высокого давления из нержавеющей стали для очистки мойки

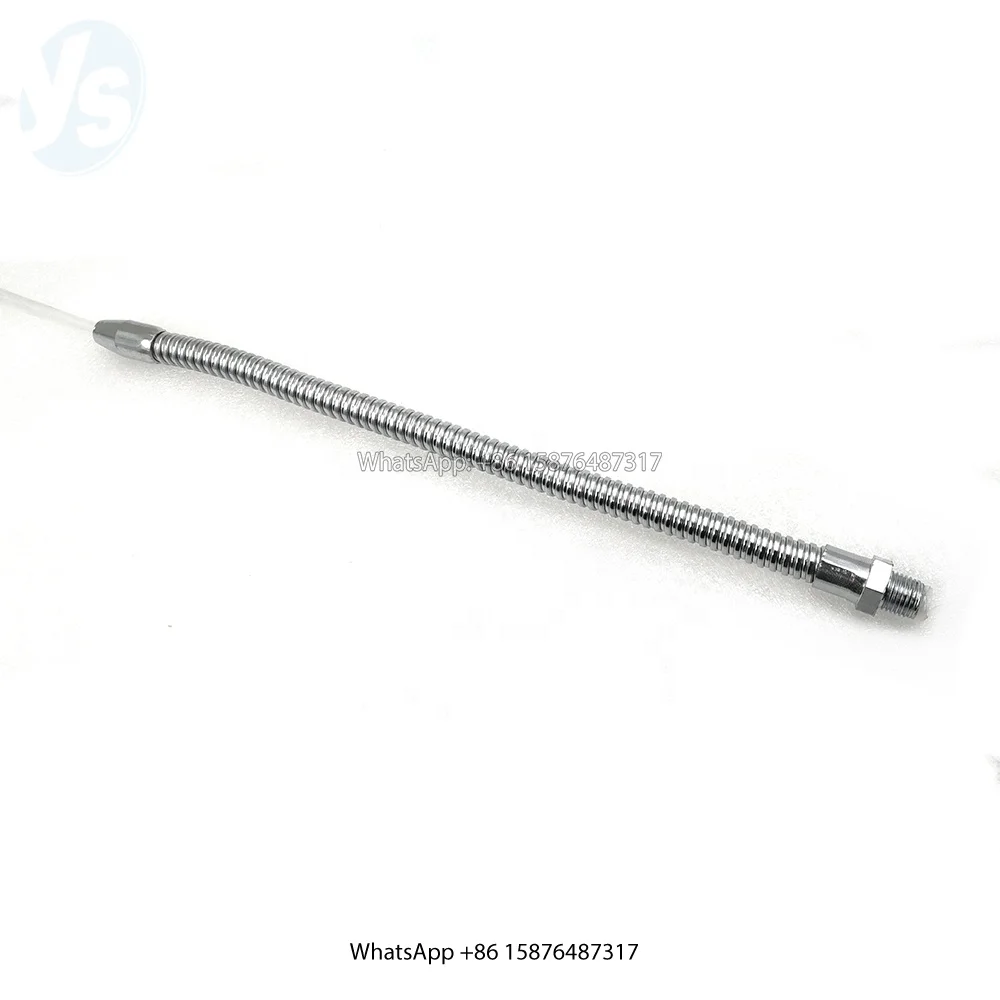

Шланг охлаждающей жидкости YS качественный Металлический гибкий охлаждающий шланг Гибкая металлическая труба
