Шанхай барит барита 3r 2115 / 2615 3016 4r 5r4119 мельница Раймонда известняк шлифовальное оборудование цена

Шанхай барит барита 3r 2115 / 2615 3016 4r 5r4119 мельница Раймонда известняк шлифовальное оборудование цена

Категория: >>>
Поставщик: Shanghai Yingyong Machinery Co. Ltd.Shanghai Ltd.

Цена:10 000,00-25 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

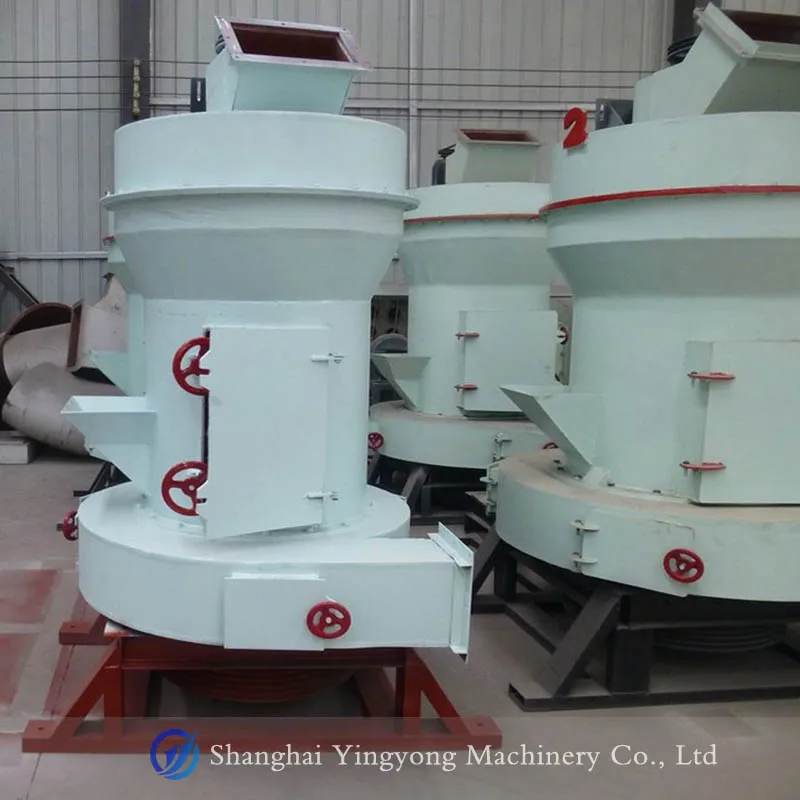

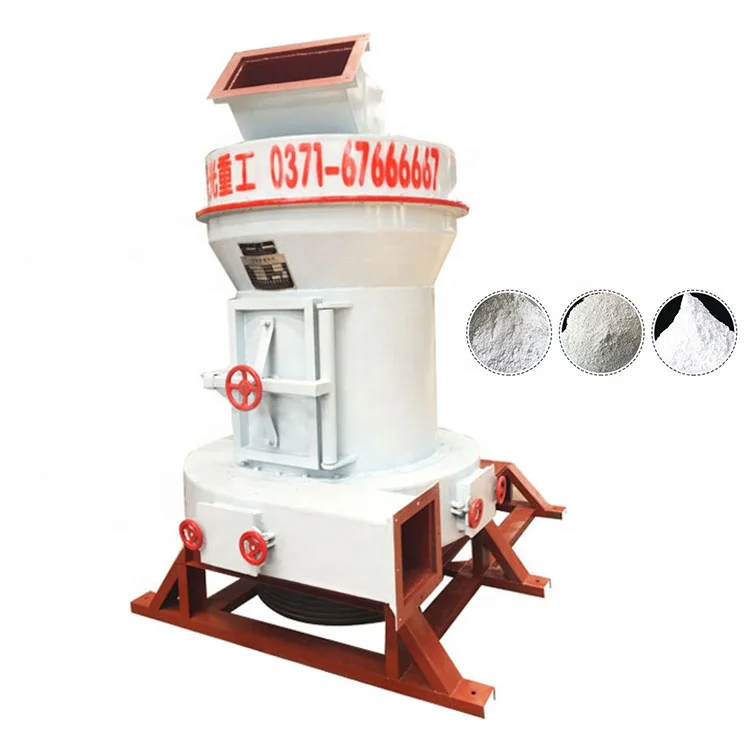

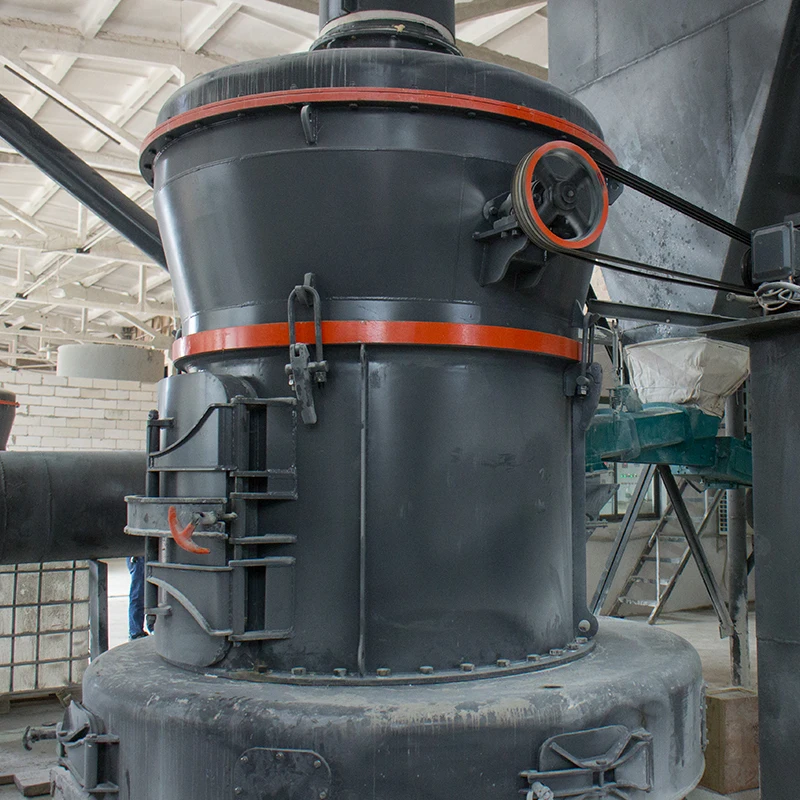

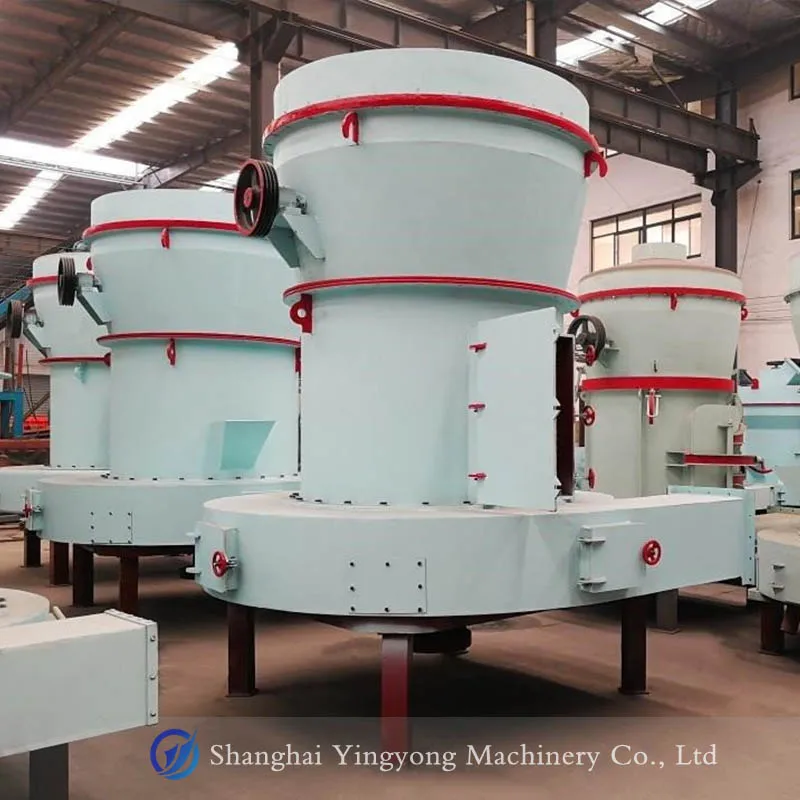

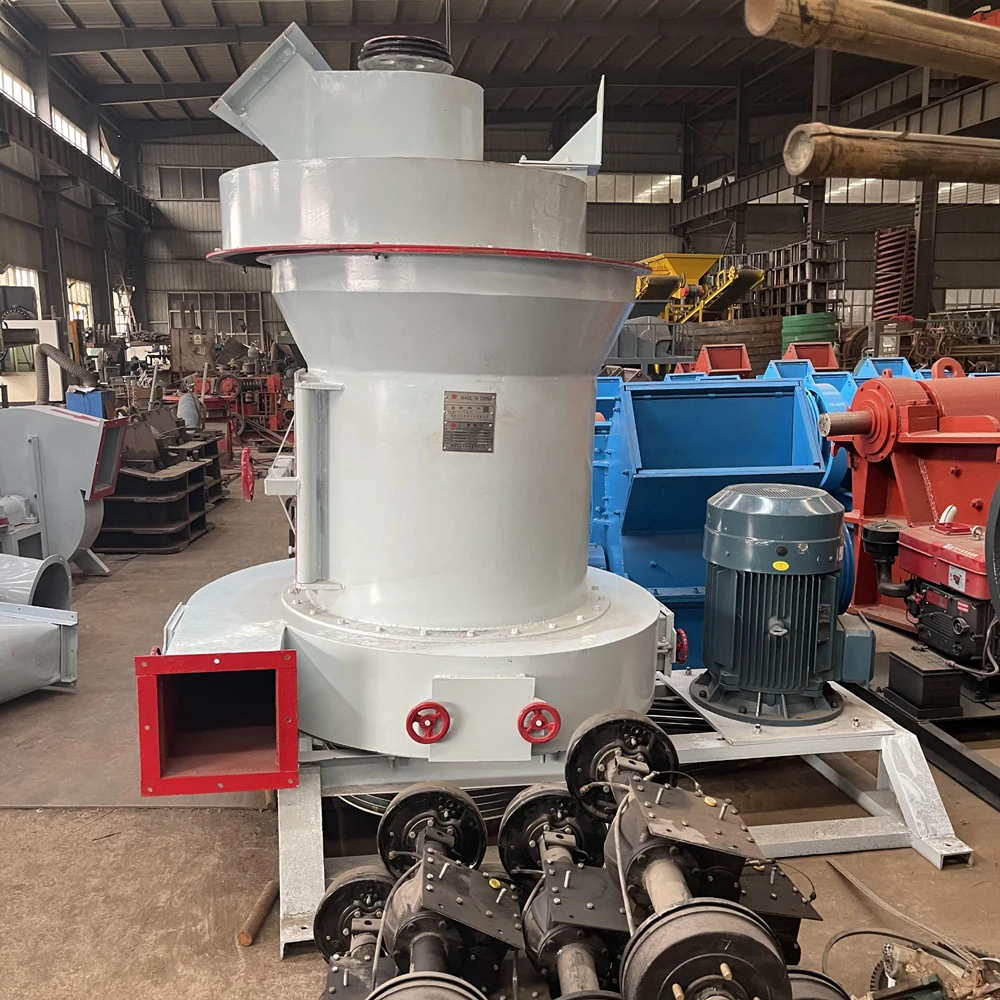

Raymond Mill

Raymond Grinder is suitable for producing minerals powder, which is widely used in the fields of metallurgy, building materials,chemical, and mining industry.

Raymond Mill is suitable for grinding of all kinds of materials , such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

Working Principle

If you want to consult customized more models, please contact customer service, we will give you the most professional answer the most affordable price and the best quality.

For the material :

Raymond mill is mainly used for grinding and crushing conventional materials. Such as barite, calcite, potassium feldspar, talc,marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, manganese ore, iron ore, copper ore, chrome ore, refractory materials, insulation materials, coal tar, coal, carbon

black, clay, bone powder, titanium dioxide, iron oxide, such as quartz mohs hardness is not more than seven Class, humidity below 6% non-flammable and explosive mineral, chemical, construction and other industries of more than 300 kinds of materials fine powder processing, finished product granularity in the range of 80-325 mesh arbitrary adjustment, part of the material fineness up to 600 mesh.

Working Principle :

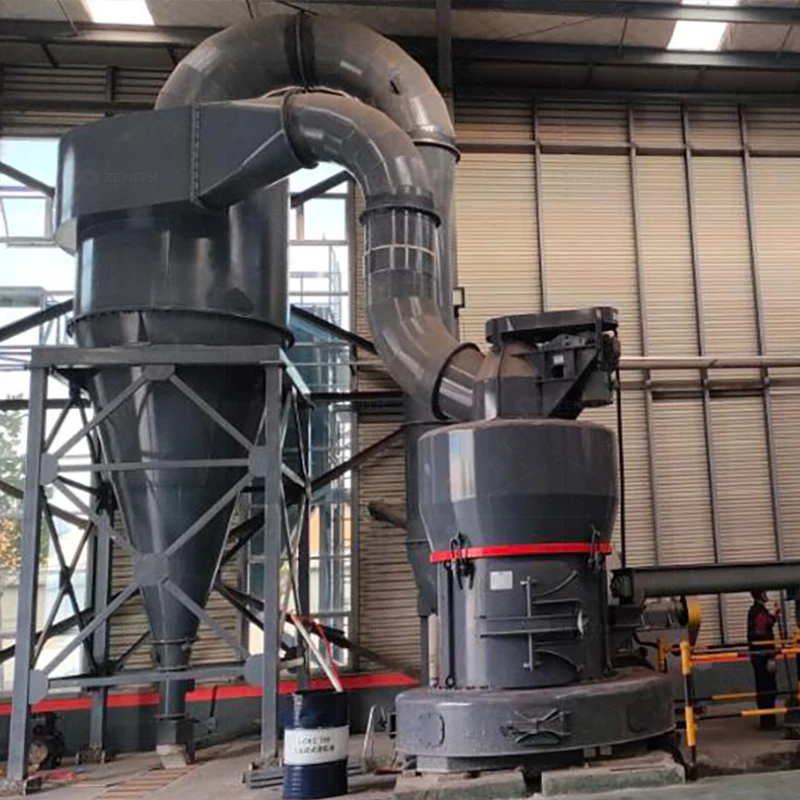

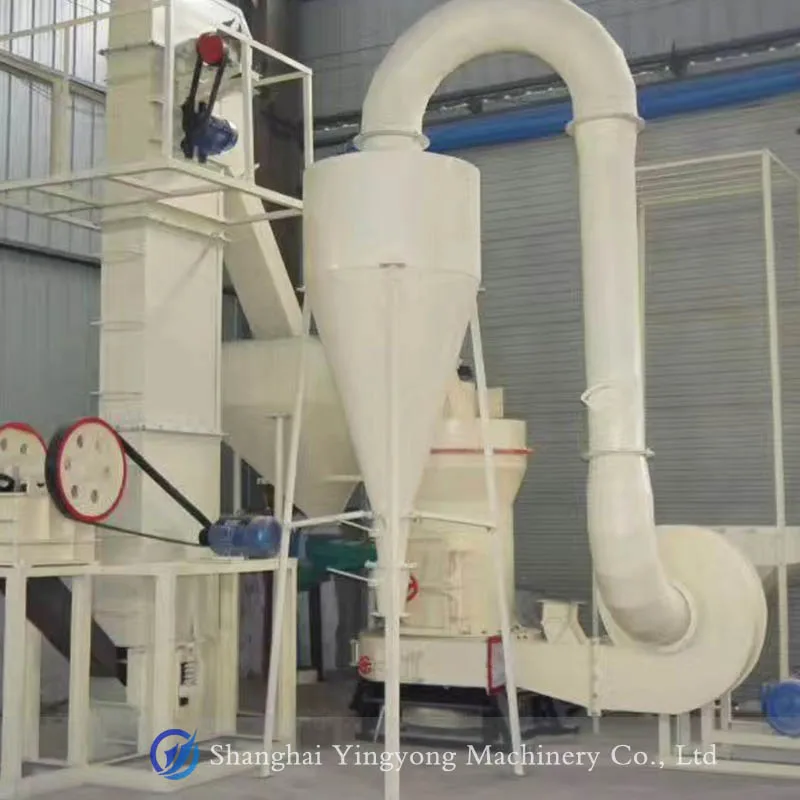

1. The whole structure of Raymond Mill machine is mainly including the host, analysis machine, plumbing fixtures and the blower, according to user needs, it can be equipped with crusher, elevator, electromagnetic vibrating feeder, electric control cabinet etc.
2. After materials crushed to the desired particle size, enter into the storage hopper by the elevator, and then through vibrating feeder enter into grinding chamber of Raymond mill uniform continuously.
3. Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller roller rolling to achieve crushing purpose.
4. After grinding material, the powder along with the circulating air which made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into finished product cyclone powder collector, then discharge powder tube, that is finished product.
5. In the grinding chamber of Raymond mill, because there are certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill wok under negative pressure. The increased air flow enter into the dust
through the duct, at last enter into the atmosphere after purification.

Technical parameters

Model	Roller Number (pcs)	Roller Size (mm)	Inner Diameter & Height (mm)	Max.Feed Size(mm)	Final Size (mm)	Capacity (t/h)
3R1510	3	150*100	570*100	15	0.2-0.044	0.3-1.2
3R2115	3	210*150	630*150	15				0.4-1.6
3R2615	3	260*150	780*150	20			0.8-2.5
3R2715	3	270*150	830*150					1.2-4
3R3015	3	300*150	875*150					1.2-4
4R3016	4	300*160	890*160					1.2-4
4R3216	4	320*160	970*160	25			1.8-4.5
5R4121	5	410*210	1280*210	30			3-9.5

Model	Max.Feed Size(mm)	Capacity(th)	Major diameter of roller(mm)	Main unit motor Power(kw)
MTW110	<30	3-10	360×190	55
MTW138	<35	6-20	460×240	90
MTW175	<40	10-35	520×280	160
MTW215	<50	20-50	640×320	280

Model	roller diameter/mm	Max feed size/mm	Power/KW	Capacity/Tph
YGM75	260	<20	18.5	1-3
YGM85	270			22	1.2-4
YGM95	310			37	2.1-6.5
YGM130	310			75	2.5-9.5
YGM160	310			132	8.5-22

Please tell me your demand information, so we can send you accurate quotation:

♥ What's the raw materials you want to process(such as limestone, granite, basalt)?

♥ What is capacity you want tons per hour? such as 3-10TPH, 150TPH, 200TPH.300TPH

♥ Your email address or phone number

The table only shows part of the model parameters. Please consult customer service for specific customization requirements

Product Case

feeding size:15mm-35mmcapacity: 3-20t/h
application: mining, building material, chemical engineering and metallurgy (more application please click the "free contact")
materials: quartz, feldspar, calcite, talc, barite, fluorite, rare earths, marble, ceramic, aluminum bauxite, manganese ore, iron ore, copper ore, phosphate rock,

The raymond vertical grinding mill is used to grind barite, calcite, potash feldspar, talcum ,marble, limestone, cream and slag below scale 7 of Moths hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy for power generation and processing. The final product size of raymond vertical grinding mill is adjustable on required in the range of 100-325 meshes.

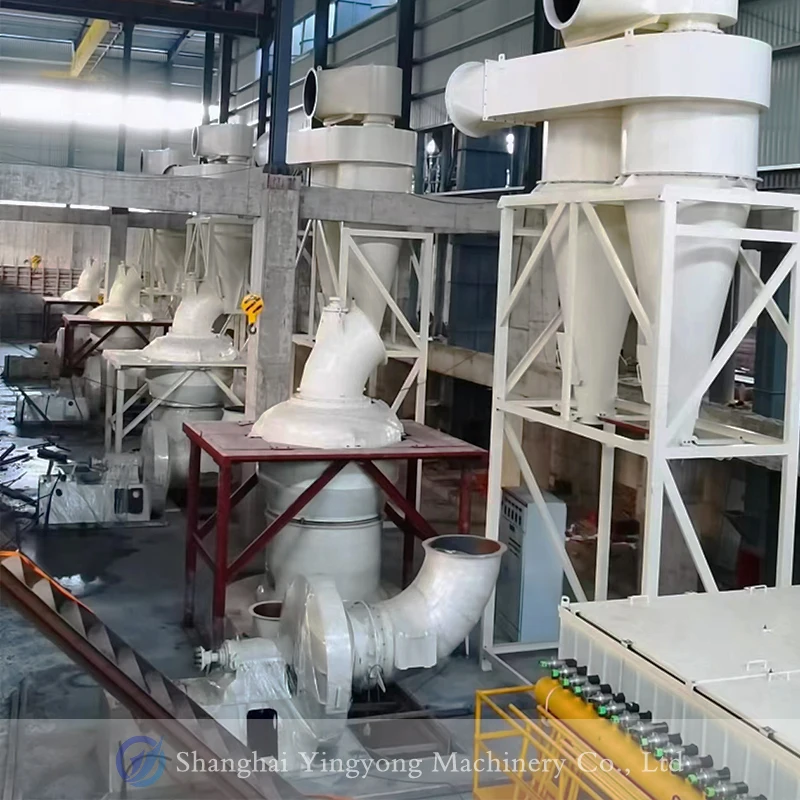

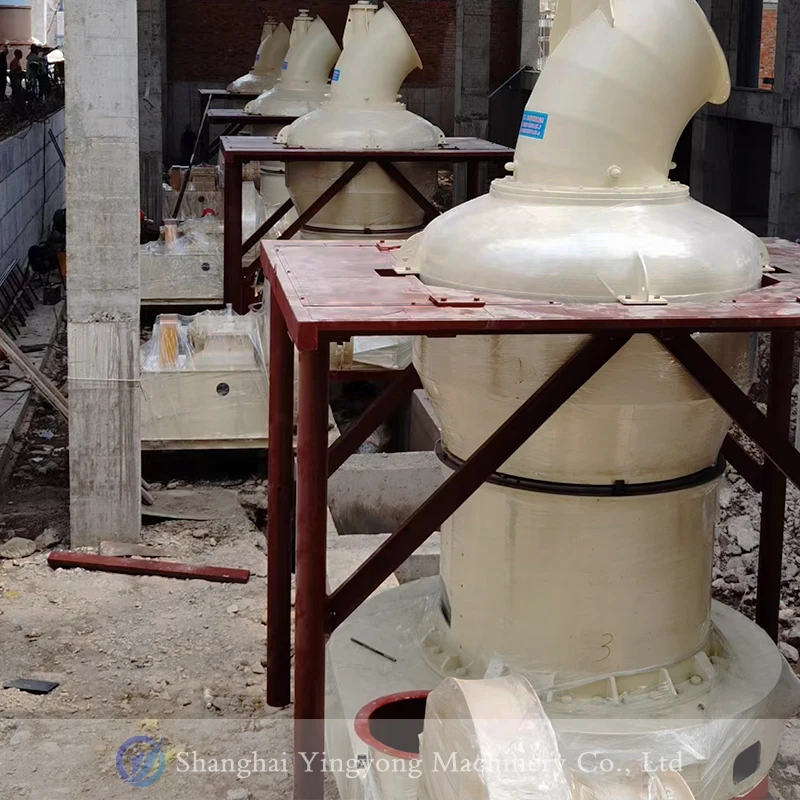

The customer in china shandong province and fujian province bought a complete set of manganese ore production equipment, including YGM high-pressure grinder from my company .Relevant Information[running time ]:12 hours
[feeding material]: Manganese ore
[capacity]:200t/day

Other accessories product display

Our products include:
Crushing machinery: Jaw Crusher, Impact Crusher, Cone crusher, Vertical Shaft Impact Crusher, Mobile crusher, crusher line , etc.

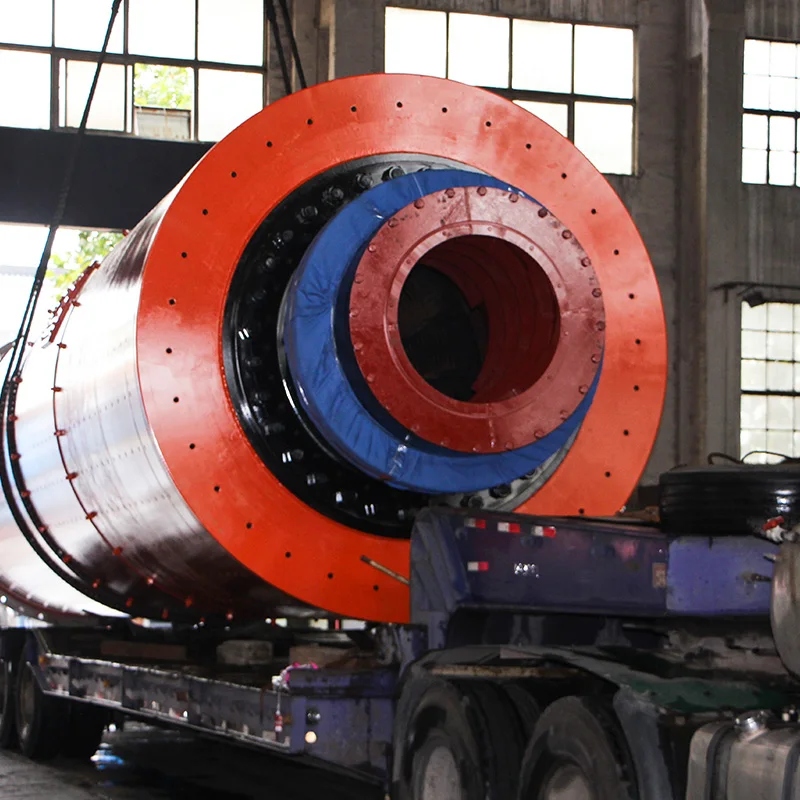

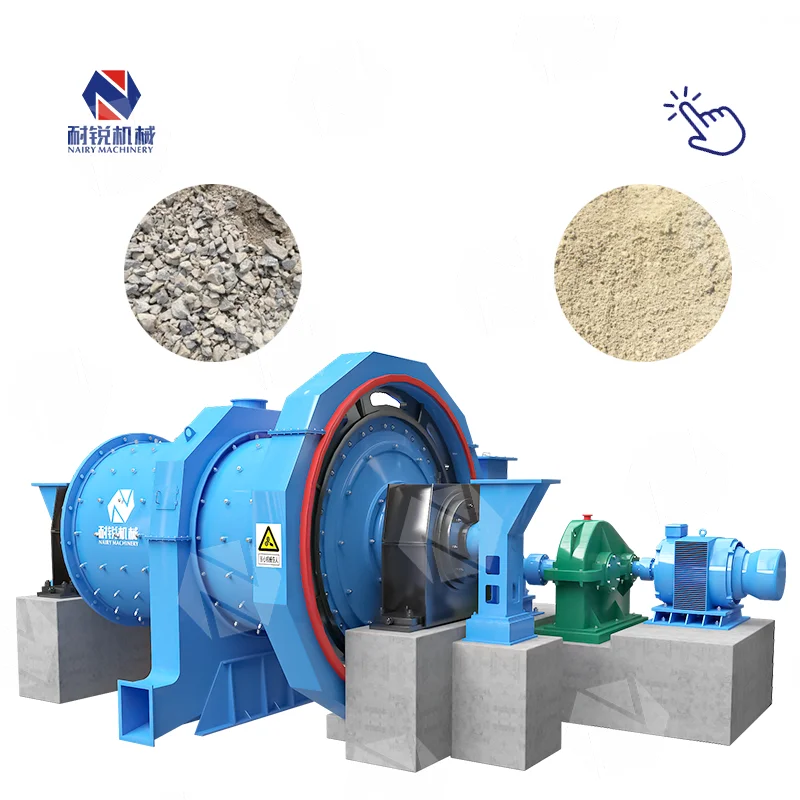

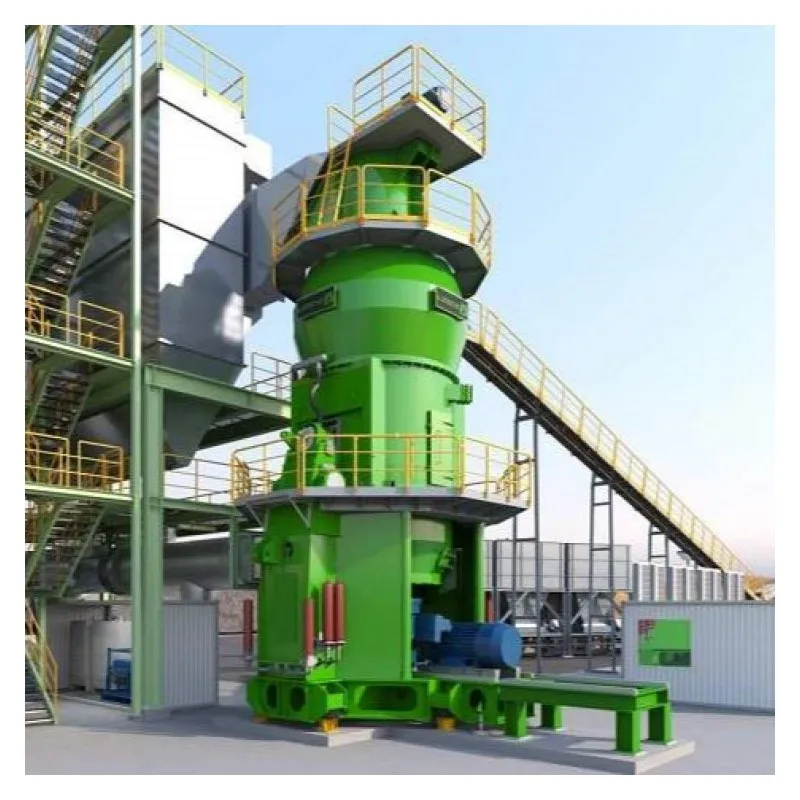

Grinding machinery: Raymond mill, Vertical Roller Mill, Hammer mill, Ball mill, rotary kiln , etc.
Auxiliary products: vibrating screen, vibrating feeder, Belt Conveyor, Sand Washing Machine , etc.

Packaging and Delivering

Spare part with wooden box and overall nude packing etc, as per requirements .Specially need to negotiate with clients.

we have many real customer cases，please contact customer service，We will give you the most favorable price and the best quality！！！

Our Business

Shanghai Yingyong Machinery Co., Ltd. is committed to building integrated service platforms for technical consulting, equipment procurement, installation and commissioning for customers in cement, building materials, thermal power, mining, metallurgy and steel industries. Yingyong combines international advanced technology with China's perfect industrial manufacturing system, in aim to provide users with high-quality solutions for complete sets of production line, reduce enterprise investment costs and shorten project construction cycle. With the principle of maximizing customer benefits, maximizing capital security, and optimizing equipment quality, we provide high-quality, cost-effective customized services to clients around the world.

FAQ

1.How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
2. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
3. How is the quality of your products?(mining equipment/machine)?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
4.How about price?
For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

5.Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
