Встроенный литий ионный аккумулятор BMS европейского стандарта для хранения энергии lifepo4 4s 12 В 200 ач 240 Ач
- Категория: >>>
- Поставщик: Shenzhen Kaimeiweike Electronics Co. Ltd.
Сохранить в закладки 1600594581563:
Описание и отзывы
Характеристики
NOTE:The European warehouse can ship to any of the EU countries. Any questions can be communicated with our sales staff in advance and we will try our best to get back to you as soon as possible.
KMW12V240 is designed to be the highest quality, safest, applicability and compatibility Lithium Iron Phosphate (LiFePO4) battery packs.
* High Performance Grade A Cells inside.
* Cells remain 80% SOC Capacity after 3000 Cycles(80% DOD@0.2C Rate @25°C); Typical Lifespan of Cells: 4000~7000 Cycles; (SOC:State of Charge; DOD: Deep of Discharge; 0.2C Rate: charge/discharge @48A)
* Typical 10 Year Lifespan & 3 Year Warranty.

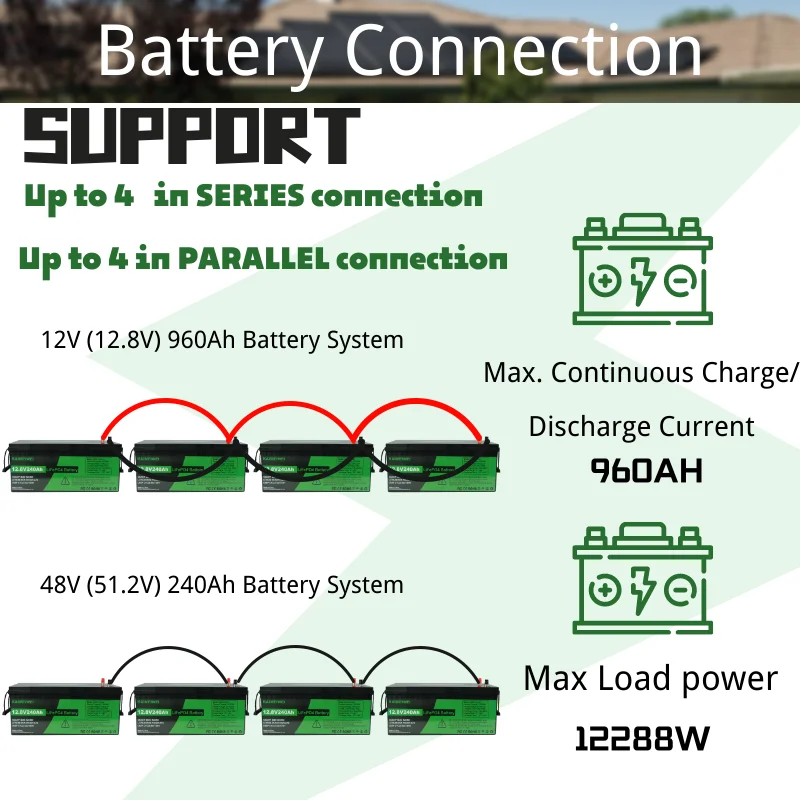

* 12 Volt (12.8V Nominal) 240Ah, 3.07kWh and support 4 units connecting in series to be 48V (51.2V Nominal) and 12.288kWh.
* Intelligent Battery Management System (BMS) Built-In to provide automated and maintenance free battery pack operation.
* 2 Temperature Sensors to protect battery from extremely high temperatures of Battery Cells and MOS.
* High Performance Grade A Cells inside.
* Cells remain 80% SOC Capacity after 3000 Cycles(80% DOD@0.2C Rate @25°C); Typical Lifespan of Cells: 4000~7000 Cycles; (SOC:State of Charge; DOD: Deep of Discharge; 0.2C Rate: charge/discharge @48A)
* Typical 10 Year Lifespan & 3 Year Warranty.
* 12 Volt (12.8V Nominal) 240Ah, 3.07kWh and support 4 units connecting in series to be 48V (51.2V Nominal) and 12.288kWh.
* Intelligent Battery Management System (BMS) Built-In to provide automated and maintenance free battery pack operation.
* 2 Temperature Sensors to protect battery from extremely high temperatures of Battery Cells and MOS.
Applications
The KMW12V240 battery pack has the highest applicability and compatibility. It supports 4 units connecting in series to be a pack group of 48V (51.2V Nominal) 3.07kWh*4=12.288kWh capacity. It is ideal for replacement of lead-acid battery in many applications like RVs, Golf Carts, Small ESS(Energy Storage Systems) and Backup.
The KMW12V240 battery pack has the highest applicability and compatibility. It supports 4 units connecting in series to be a pack group of 48V (51.2V Nominal) 3.07kWh*4=12.288kWh capacity. It is ideal for replacement of lead-acid battery in many applications like RVs, Golf Carts, Small ESS(Energy Storage Systems) and Backup.
Product Description
Specification
Nominal voltage | 12.8v |
Nominal capacity | 240ah |
Energy storage | 3072wh |
Battery type | grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 4S2P |
Charge Voltage | 14.6V±0.2V |
Discharge Cut-off Voltage | 10V |
Max charging current (A) | 120A(0.5C) |
BMS function | Overcharge, overdischarge, overcurrent, short circuit, etc. |
Continuous discharge current | 200A |
Peak current | 400A (<3s) |
Charging temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
Discharge temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity |
Life cycle | It is 2000 times at 85% dose, 5000 times at 65% dose, and 8000 times at 40% dose. |
Net weight | 18kg |
Battery display | Display voltage/remaining power |
Battery size | 520*238*230mm |
Case material | ABS IP65 |

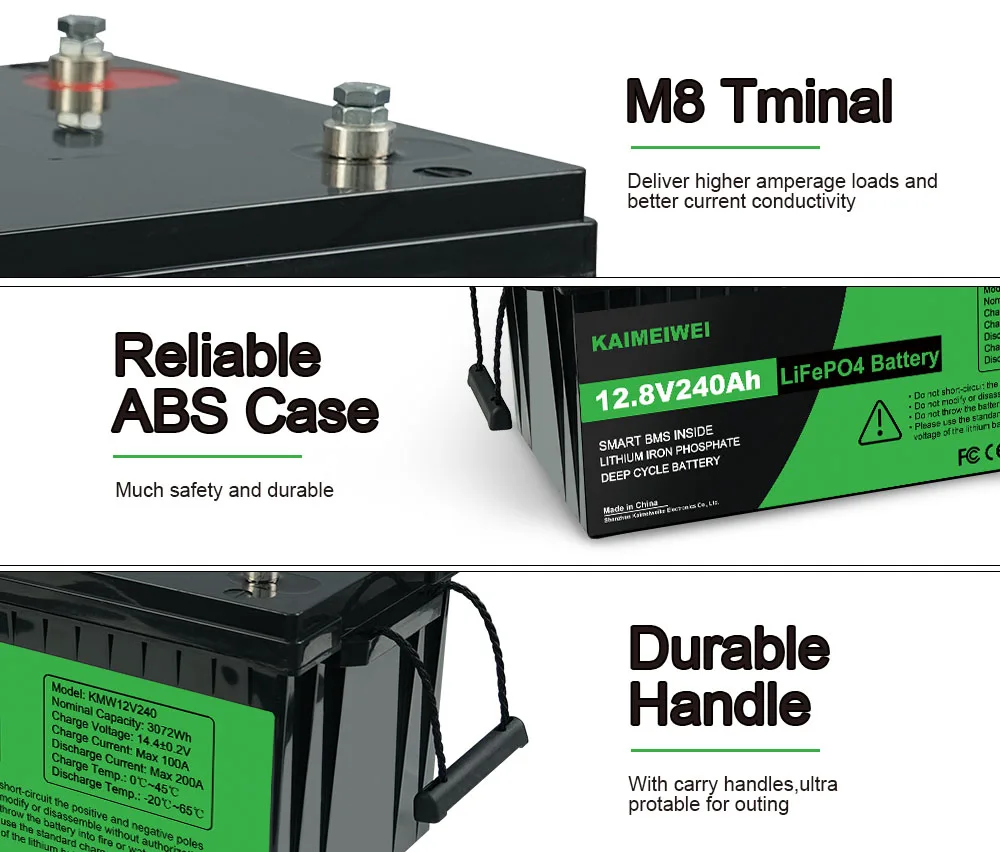

Terminal Type | M8 terminals |
Warranty | 5 years |
Life cycle | Deep cycle life 4000 times, life span is more than 10 years |
Packing & Delivery
Click here to contact customer service
1. Standard export main carton packing list.
1. Standard export main carton packing list.
2. The charger can be optional, please contact us if you need it.
3.Optional metal shell or plastic shell, please contact us.
4.For transportation, we can provide DDP services, including double clearing including door-to-door tax collection. Air or sea/rail transportation. For large or multiple purchases, the transportation cost will be relatively cheap. Please contact us.before placing an order. We will provide you with different solutions.
Customer feedback
Company Profile
Company Profile
Shenzhen KAIMEIWEIKE Electronics Co., Ltd., established in 2013, is a medium-sized comprehensive enterprise integrating product development, production and sales.The company is located in Guangming New District, Shenzhen. It has a professional R&D team, ascientific management team and more than 100 employees who have undergone rigorous skills training. Our company mainly provides lithium battery packs, ternary lithium batteries, lithium iron phosphate batteries, chargers, etc. for domestic and foreign customers. We always adhere to the corporate tenet of "survive by quality and develop by reputation". We rely on reliable quality,Satisfactory service and preferential prices are well received by agents and customers. The products are certified, MSDS, UN38.3,CE, etc., based on the business philosophy of "quality, service, innovation", and relying on the unremitting efforts of all KAIMEIWEI people to make KAIMEIWEI products change with each passing day. We are willing to cooperate sincerely with friends all over the world to seek common development and create brilliance together.
FAQ
Q. Is the shipping cost on the website accurate?
A: Please contact us before placing an order, the default shipping cost on thewebsite is basically calculated according to the usual air freight price, different countries, different order weights, different
shipping costs. Please contact us in time, we will provide you with the best shipping method and accurate shipping cost.
shipping costs. Please contact us in time, we will provide you with the best shipping method and accurate shipping cost.
Q. I am wise in price, I am a battery pack wholesaler, if I sell your battery pack in my city with low profit, can I get cheaper
price? I can see your competitors selling cheaper than you.
price? I can see your competitors selling cheaper than you.
A: We strongly recommend you to compare with our competitors. In fact,some suppliers offer low cost battery packs, but with cheap materials. Please note the cycle life and warranty, we have shockproof
design and communication design. Please contact us directly and we will tell you more. Most importantly, can we provide you with a professional solution for your local market? Low profit? Don't worry, our team of engineers will help you.
design and communication design. Please contact us directly and we will tell you more. Most importantly, can we provide you with a professional solution for your local market? Low profit? Don't worry, our team of engineers will help you.
Q. Why the shipping time is so long and the waybill number is not updated for nearly a month?
A: As you know, batteries (especially high power batteries) are special commodities with very strict transportation conditions. We transit our products through regular DG logistics channel, it is slower than normal logistics because it needs to wait for DG ship/train schedule. Due to the special nature of the product and logistics, the tracking number we provide will not be updated until the shipment passes through the customs of your country/region. Don't worry, your shipment is still in normal transit. The tracking information will be updated when the shipment passes through your country's customs and you will receive it within 3-7 days.
Q. How can I be sure that the product you send me is of good quality?
A:Our batteries are all Class A. No matter how many you order, we will check and test each battery before shipping to ensure quality.
Q. I saw your company's post that the warranty is 5 years, so it's 5 years no matter what the battery pack is used for?
A: No sir,perhaps you know that the cycle life of a battery depends not only on the quality itself, but is also affected by the
discharge/charge rate at the actual temperature. Therefore, it would be totally irresponsible for the supplier to tell you the
cycle life without talking about the actual usage. With room temperature 25℃, 1C discharge and 0.5C charge, the battery pack can have a cycle life of over 4000 times with 5 years warranty for energy storage use only.
discharge/charge rate at the actual temperature. Therefore, it would be totally irresponsible for the supplier to tell you the
cycle life without talking about the actual usage. With room temperature 25℃, 1C discharge and 0.5C charge, the battery pack can have a cycle life of over 4000 times with 5 years warranty for energy storage use only.
