Превосходные профессиональные резиновые ремни ГРМ автоматическая трансмиссия зубов синхронный конвейер T/AT/HTD/XL/L/H/XH/XXH/STD/ppr/ATN
- Категория: >>>
- Поставщик: Sichuan Mighty Machinery Co. Ltd.
Сохранить в закладки 1600595121888:
Описание и отзывы
Характеристики
Product Description

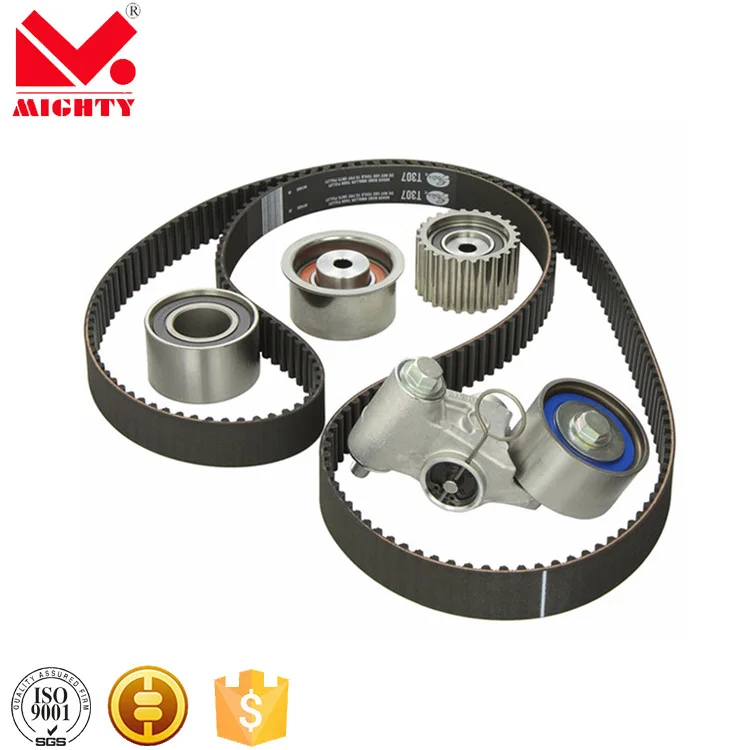

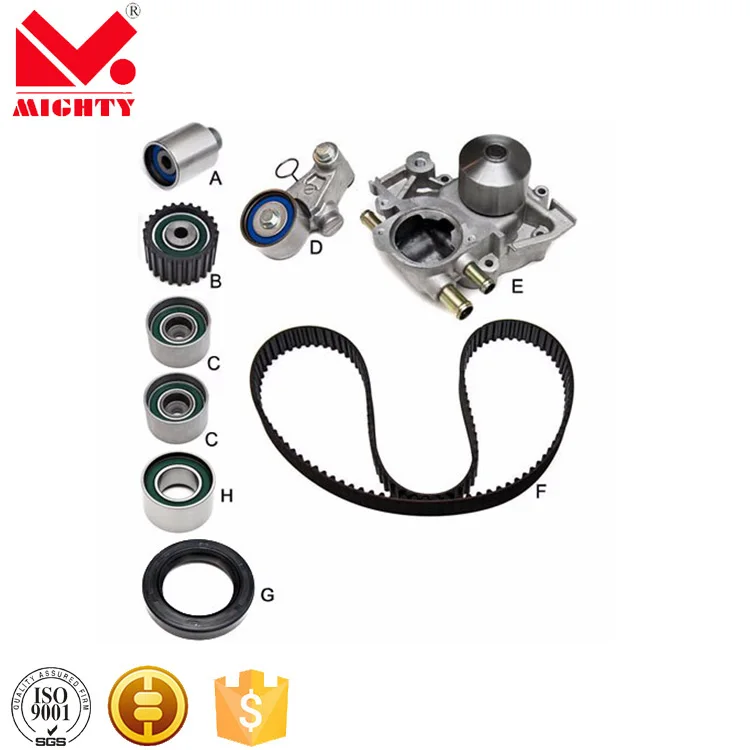

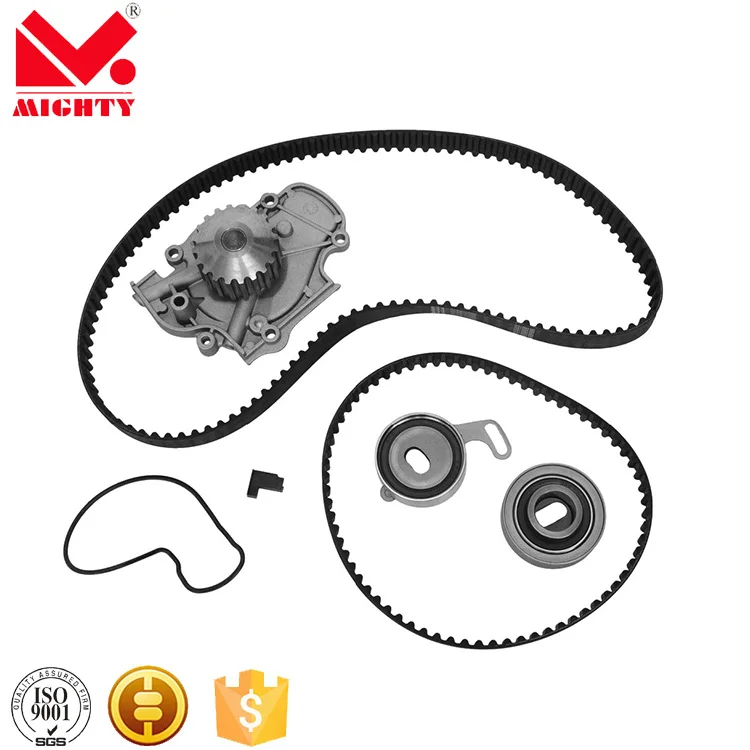

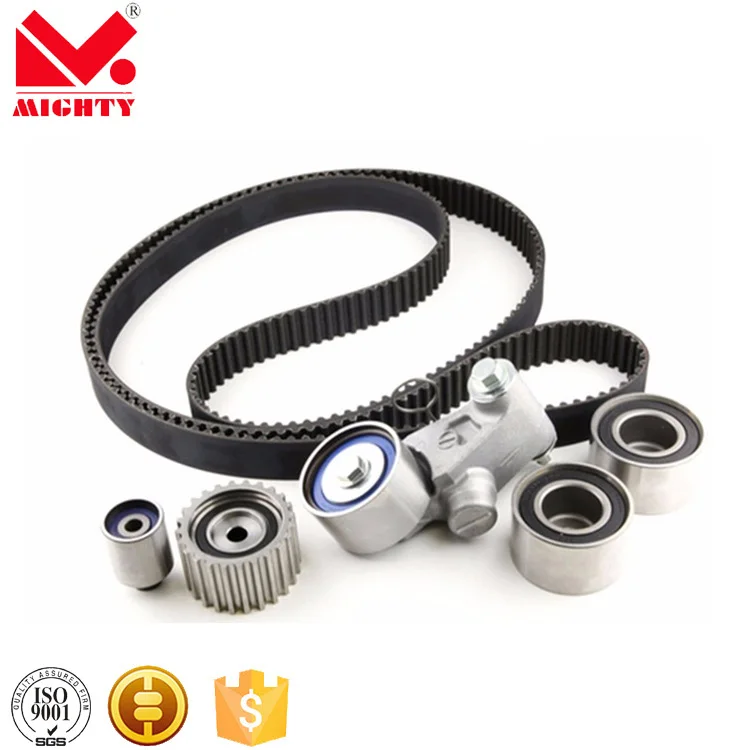

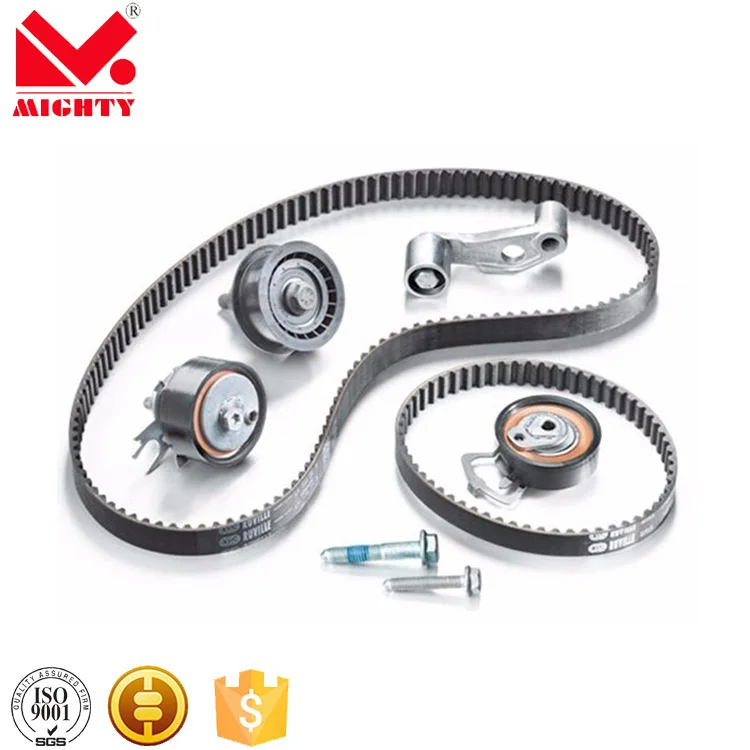

Rubber endless/open ended timing belts
Timing belts are made of rubber based on timing belts manufactured with high quality materials and unique fabrication technology, especially suitable for linear motion systems, typically applies in: Automatic doors, CNC machine tools, 3D Printers, etc. High load capacity, low noise and no maintenance make this belt a perfect performance in linear motion systems.
Timing belts are made of rubber based on timing belts manufactured with high quality materials and unique fabrication technology, especially suitable for linear motion systems, typically applies in: Automatic doors, CNC machine tools, 3D Printers, etc. High load capacity, low noise and no maintenance make this belt a perfect performance in linear motion systems.
Product name | Mighty Timing Belt |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works, Energy & Mining, etc. |
Cords options | Steel, Stainless Steel(HFE, HPL), Kevlar |
Color options | White, Black, Customized color |
Belt options | Open belt(M style), Joined Belt(V style), Endless Belt(Flex style) |
Standard Length | 100m(OEM size is negotiable) |
Type | 40MXL-1170MXL, 44XL-720XL, 86L-1148L, 145H-1630H, T2.5, T5, T10, 3M, 5M, 8M, 14M |
Teeth Profile | L, XL, MXL, H, XH, XXH |
HTD and STD | 3M, 5M, 8M, 14M, S2M, S3M, S4.5M, S5M, S8M, T2.5, T5, T10, AT5, AT10, AT20... |
Material | Nylon.CR+Glass Fiber+Chloroprene Rubber |
Certificate | ISO/TS16949,ISO 9001 |
Feature | Durability, Low noise, High transmission power |
Temperature Range | -10℃~+80℃(110℃ in short time) |
Chemical Property | Resistant to hydrolysis, ozone, ultraviolet, aging, grease, gasoline, acid and most solvents |
Technical Parameters List | ||||||||||
Type | Pitch Pb (mm) | Tooth height ht (mm) | Belt thickness hs(mm) | Max. Width (mm) | ||||||
T2.5 | 2.5 | 0.7 | 1.3 | 25 | ||||||
T5 | 5 | 1.2 | 2.2 | 100 | ||||||
T10 | 10 | 2.5 | 4.5 | 450 | ||||||
Extra Options: T10 K13, T10 K6 | ||||||||||
T20 | 20 | 5 | 8 | 150 | ||||||
AT5 | 5 | 1.2 | 2.7 | 100 | ||||||
AT10 | 10 | 2.5 | 4.5 | 150 | ||||||
Extra Options: AT10 K13, AT10 K6 | ||||||||||
AT20 | 20 | 5 | 8 | 150 | ||||||
XL | 5.08 | 1.27 | 2.3 | 100 | ||||||
L | 9.525 | 1.9 | 3.6 | 150 | ||||||
H | 12.7 | 2.29 | 4.3 | 450 | ||||||
XH | 22.225 | 6.35 | 11.2 | 150 | ||||||
XXH | 31.75 | 9.53 | 15.7 | 150 | ||||||
HTD3M | 3 | 1.13 | 2.2 | 100 | ||||||
HTD5M | 5 | 2.1 | 3.6 | 100 | ||||||
HTD8M | 8 | 3.4 | 5.6 | 150 | ||||||
HTD14M | 14 | 6.1 | 10 | 150 | ||||||
STD/STS | S3M | 3 | 1.14 | 2.2 | 100 | |||||
S5M | 5 | 1.91 | 3.4 | 100 | ||||||
S8M | 8 | 3.05 | 5.3 | 150 | ||||||
S14M | 14 | 5.3 | 10.2 | 150 | ||||||
RPP/ RTD/ HPPD | 5M | 5 | 2 | 3.8 | 100 | |||||
8M | 8 | 3.2 | 5.4 | 150 | ||||||
14M | 14 | 6 | 10 | 150 | ||||||
EAGLE | E5M | 5 | 1.91 | 3.6 | 25 | |||||
E8M | 8 | 3.05 | 5.6 | 50 | ||||||
E14M | 14 | 5.3 | 9.0 | 105 | ||||||
Recommend Products
Packing & Delivery
Pack your satisfaction with the quality according to customer requirements.
1.Standard and safe export packing.
2.Efficient logistics delivery upon customer requirement, we can supply express shipment, air shipment, truck shipment, sea shipment, etc.
1.Standard and safe export packing.
2.Efficient logistics delivery upon customer requirement, we can supply express shipment, air shipment, truck shipment, sea shipment, etc.
Company Profile
Sichuan Mighty Machinery Co.Ltd., specializes in manufacturing precision power transmission components and auto-control basic elements which are widely used in mechanical power transmission, CNC machine tools, automatic control, aviation, wind power generation, etc. Through many years of efforts, we have built up a complete supply chain including our foundry, inspection center and machining facilities and become an important partner for oversea clients in the industrial field.
Factory & Exhibition
FAQ
Q: How long can I get reply after send inquiry?
A: All inquiries will be replied within 12 hours, also you may call us at any time.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: It generally take 2-10 days if the goods are in stock or take 8-15 days if the goods are not in stock, it is according to the quantity.
Q: What information do we need for the order to go smoothly?
A: Please confirm the parameter such as teeth profile, teeth quantity, belt width, bore diameter, quantity and type (please refer below drawings) to get our the most complete drawings and the best quotation. If you don't have the drawing or catalog, you can send us your sample, so we can make the drawing and sample accordingly.
A: All inquiries will be replied within 12 hours, also you may call us at any time.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: It generally take 2-10 days if the goods are in stock or take 8-15 days if the goods are not in stock, it is according to the quantity.
Q: What information do we need for the order to go smoothly?
A: Please confirm the parameter such as teeth profile, teeth quantity, belt width, bore diameter, quantity and type (please refer below drawings) to get our the most complete drawings and the best quotation. If you don't have the drawing or catalog, you can send us your sample, so we can make the drawing and sample accordingly.
Contact Us
Похожие товары
Свинцово-кислотный автомобильный аккумулятор 4 в csb
1,55 $ - 1,70 $
Белый настоящий мраморный камень, статуя богини любви и красоты, садовое украшение, резная статуя Венеры мило
Индивидуальный надувной водный батут Bongo с горкой для забавных пляжных игр
209,12 $ - 247,53 $
Большая хорька 2 3 4 слоя Домашняя Кошка Кролик Хомяк морская свинка кошка дом клетка
Независимый дозатор холодной и горячей воды электрический большой емкости мгновенный дозатор воды
38,00 $ - 62,50 $
Слуховой аппарат CS64 4pin для аудиосервиса Hansatan Rexton Siemens и слуховых аппаратов GNResound 4pin, Кабель для программирования CS64
1 029,34 ₽ - 1 544,01 ₽

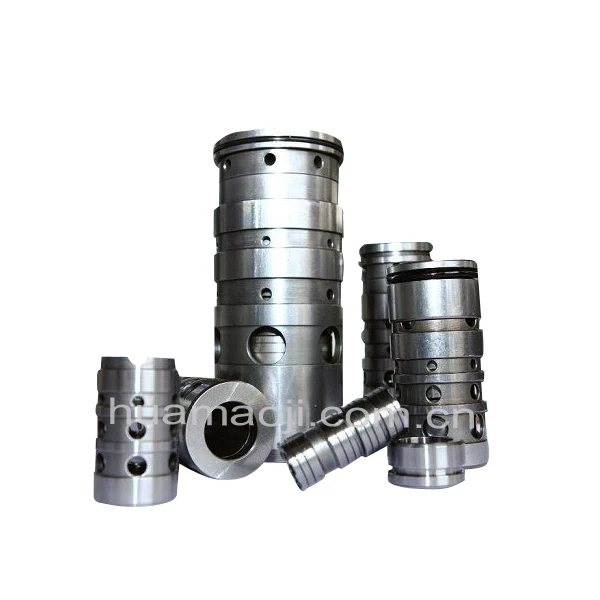

Высокое качество GB8AT Гидравлический Молоток/гидравлический рок ломающий клапан управления
