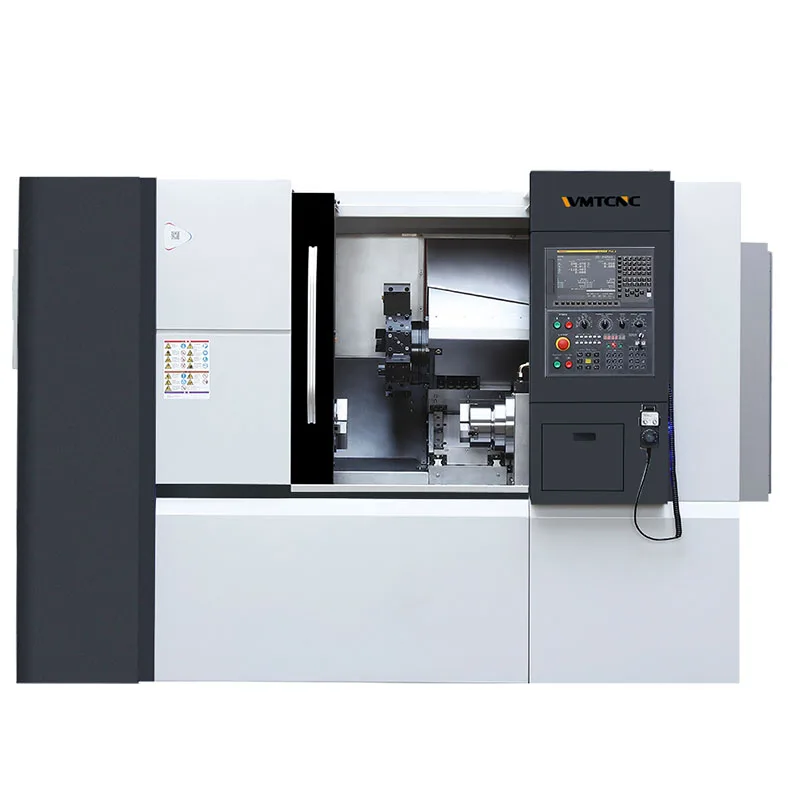

TX500SY 3 осевой кровать с уклоном cnc токарный станок ЧПУ высоким
- Категория: >>>
- Поставщик: WMT CNC Industrial Co. Ltd.
Сохранить в закладки 1600595473663:
Описание и отзывы
Характеристики
Product Description
Main Features:
1. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.

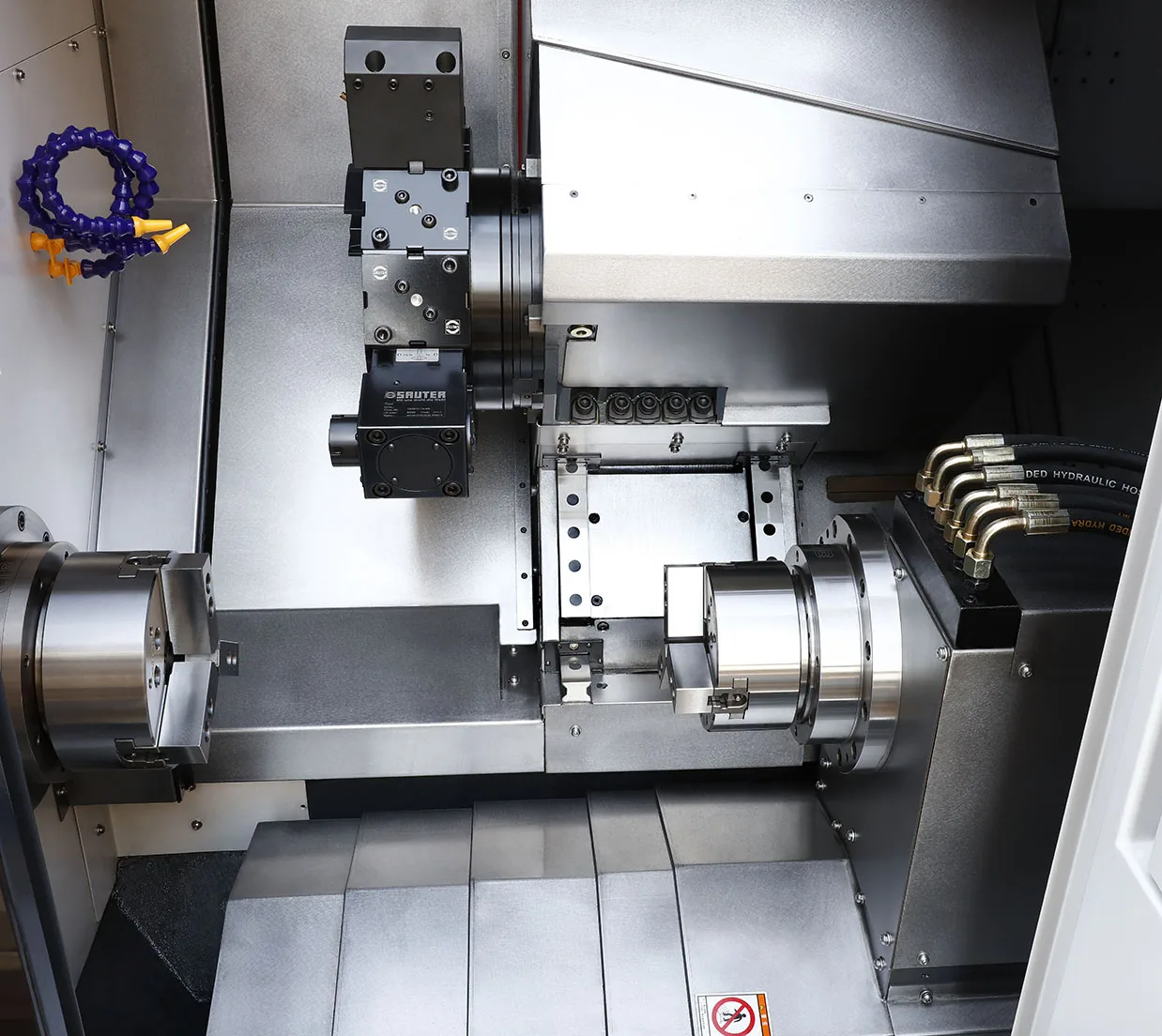

2. Two Spindle Turning Center;
3. Power driven turret mounted on Y Axis at the angle 45°;
4. Heavy duty linear guide ways on X, Y, Z and E axes;
4. Heavy duty linear guide ways on X, Y, Z and E axes;
5. Smilultaneous part docking can be realized between main spindle and sub spindle;
6. Automatic docking combined with Y axis, C axis and power driven turret makes integrity solution.
Specification | Unit | TX500SY | ||
Capacity | Max. turning diameter | inch | Ø320 | |
Max. length of workpiece | mm | 430 | ||
Max. swing dia. over slide | mm | Ø400 | ||
Max. swing dia. over bed | mm | Ø510 | ||
Spindle | Hydraulic chuck/Collet chuck | Inch | 8 | |
Spindle bore | mm | Ø66 | ||
Max. dia. of through-hole | mm | Ø52 | ||
Spindle nose | type | A2-6 | ||
Spindle speed | rpm | 4000 | ||
Main motor power | kW | 22/30 | ||
Sub-Spindle | Hydraulic chuck | Inch | 6 | |
Spindle bore | mm | Ø55 | ||
Max. dia. of through-hole | mm | Ø46 | ||
Spindle nose | type | A2-5 | ||
Spindle speed | rpm | 5000 | ||
Main motor power | kW | 11/15 | ||
Axis | X axis travel | mm | 180 | |
Z1 axis travel | mm | 400 | ||
Z2 axis travel | mm | 430 | ||
Y axis travel | mm | 100(+-50) | ||
Feed Rate | X/Z1/Z2/Y axis rpid traverse | m/min | 24/30/30/10 | |
X/Z1/Z2/Y axis ballscrew | mm | 32XP08/32XP10/32XP10/32XP06 | ||
Cutting feed rate | m/min | 10 | ||
Turret | Type of turret | BMT55 | ||
No. of tool | 12 | |||
OD tool shank size | mm | 25X25 | ||
Boring tool shank size | mm | Ø32 | ||
Live tooling motor | kW | 2.23.7 | ||
Max. speed of live tooling | rpm | 5000 | ||
TailStock | Type of tailstock | Servo programmable | ||
Taper of tailstock quill | MT5 | |||
Travel of tailstock | mm | 80-430 | ||
Others | Weight (about) | kg | 5900 | |
Overall dimension (LxWxH) | mm | 2900X1850X2250 | ||
Details Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
Похожие товары

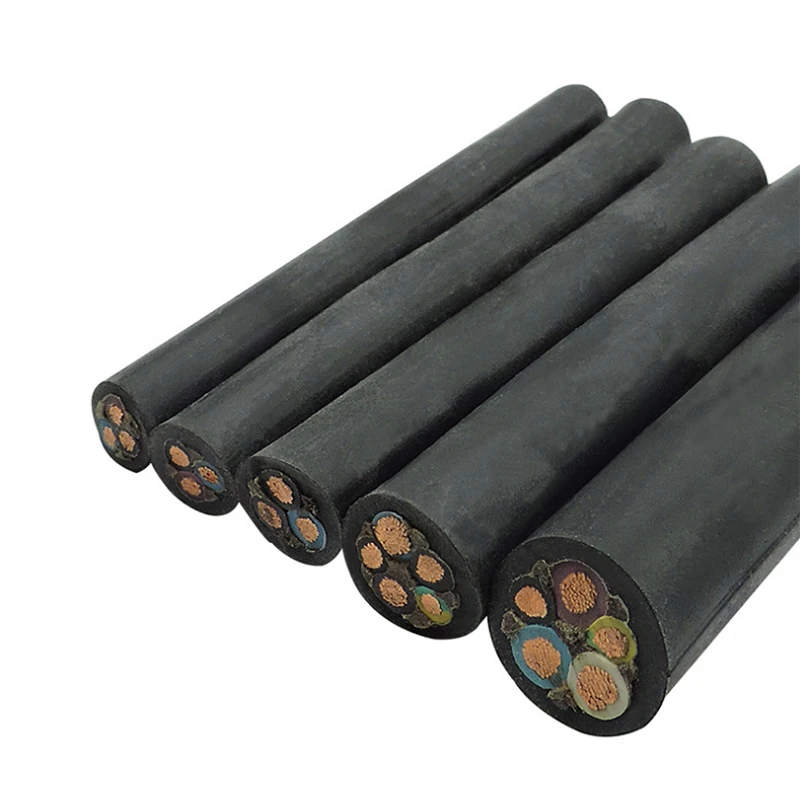

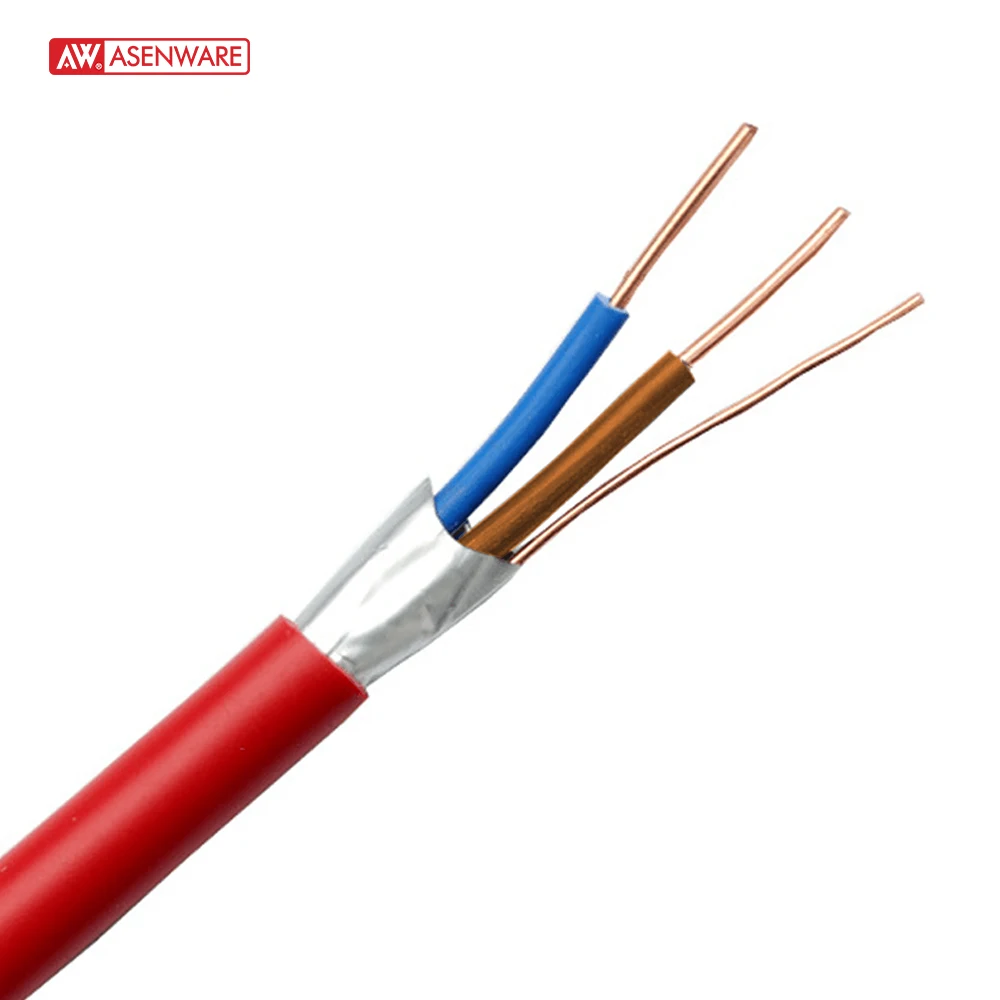

Огнестойкий кабель из бескислородной меди высокой степени очистки стандартный кабель пожарной сигнализации

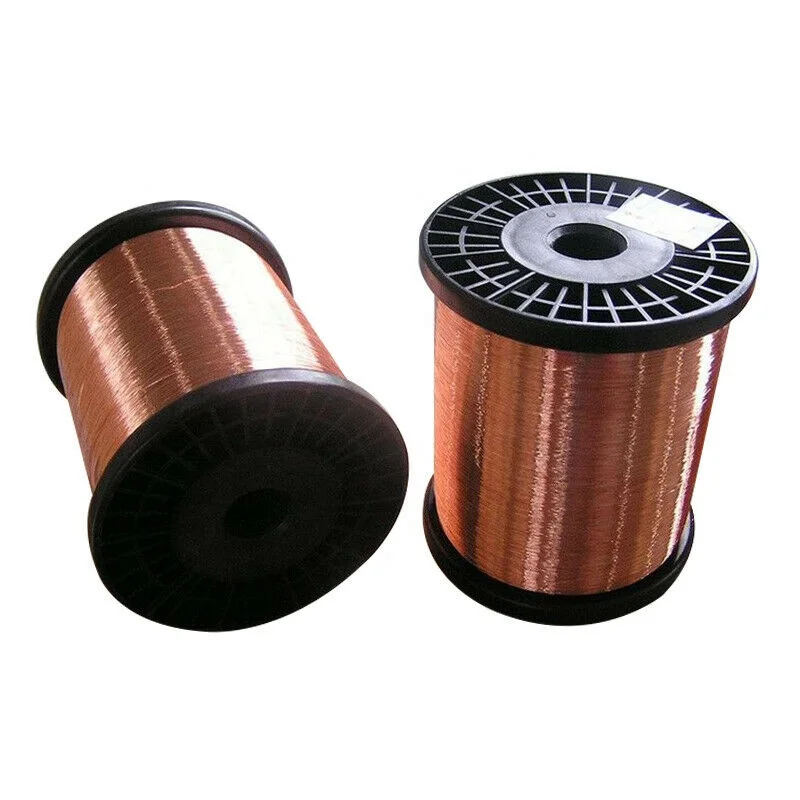

Заводская Лучшая цена, латунная проволока высокой чистоты, неизолированная медная проволока в наличии

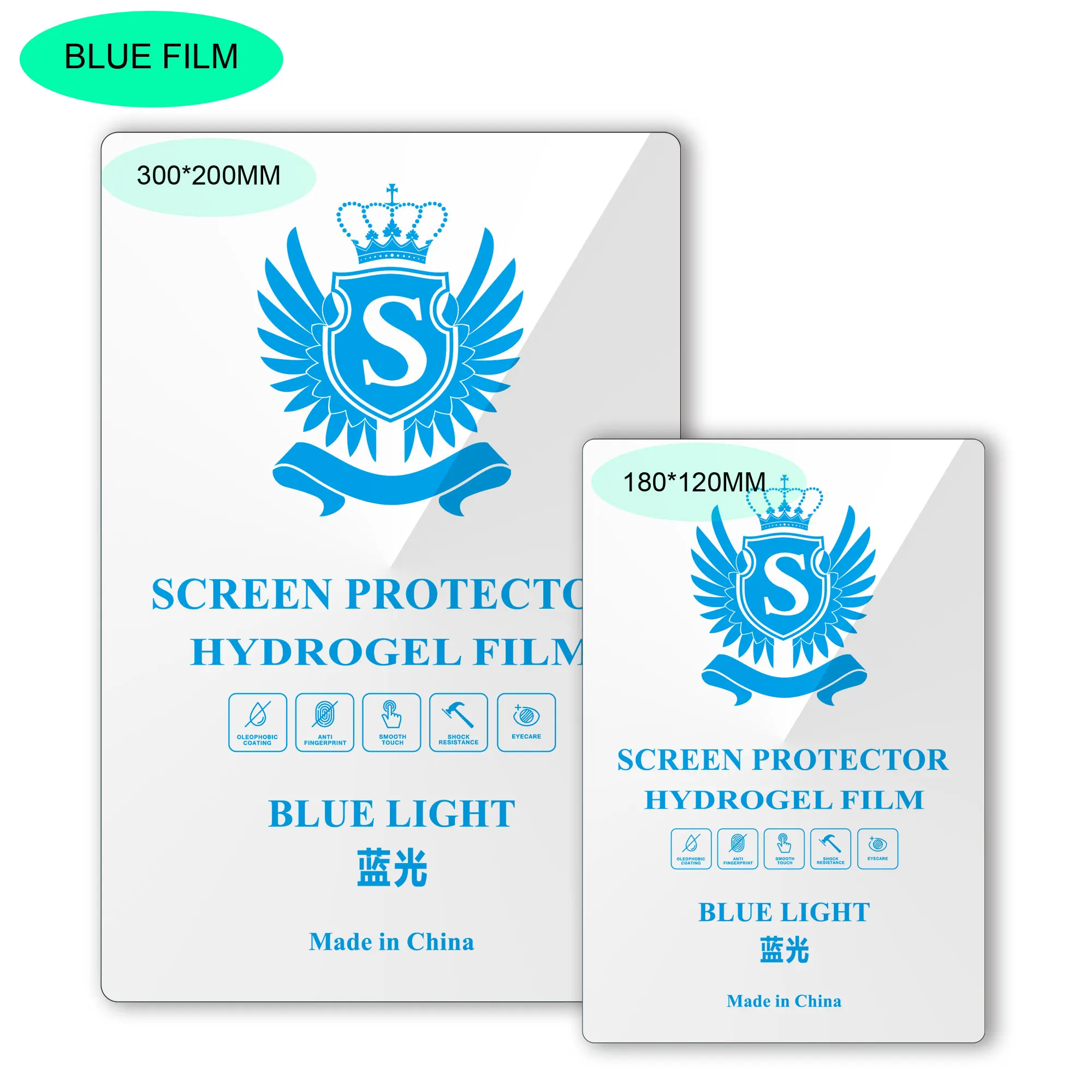

Защитная пленка для экрана TPU Гидрогелевая пленка для режущей машины плоттер лист Гидрогелевая пленка для режущей машины

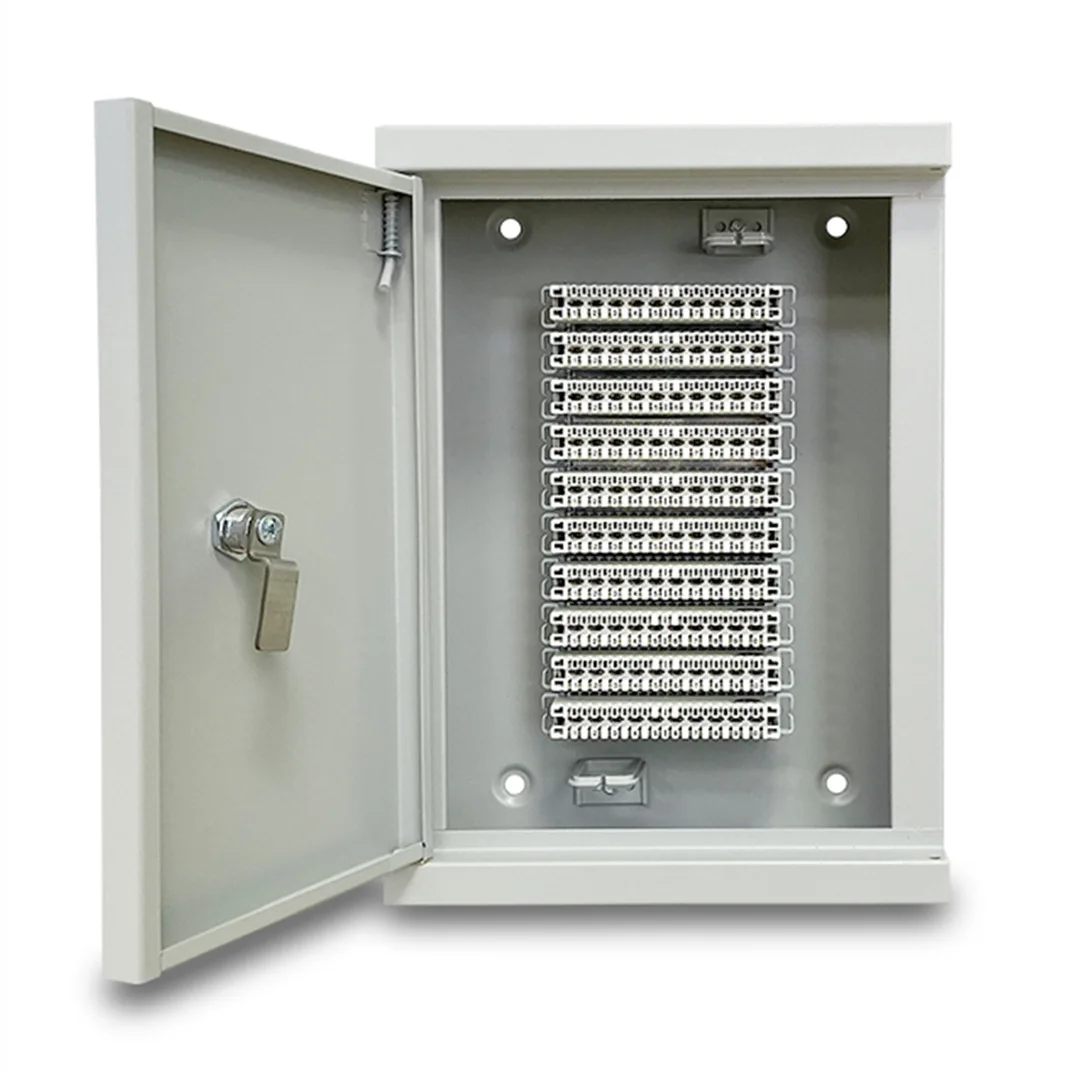

10 пар 40 пар 50 пар LSA Krone внутренняя распределительная коробка
8,55 $

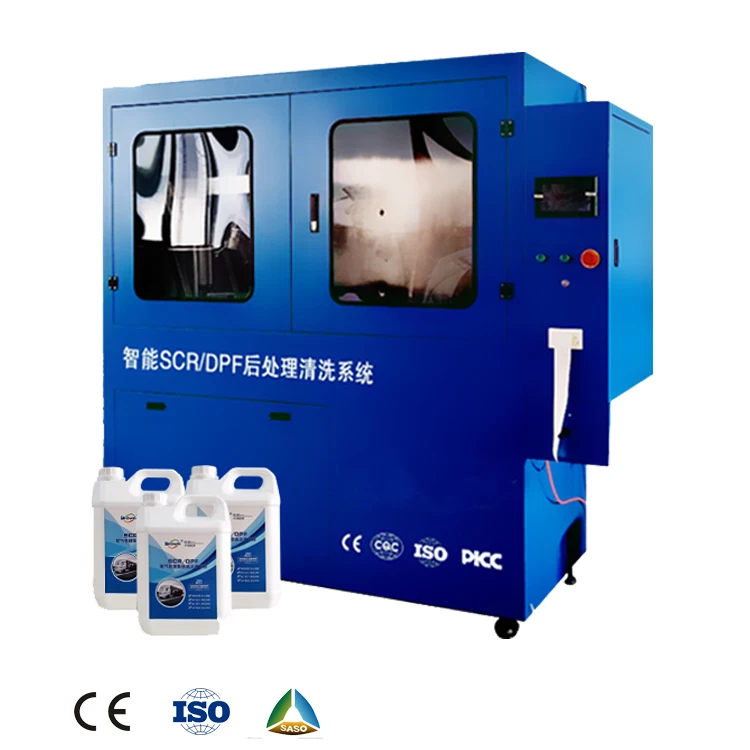

Очиститель mannol dpf, сертифицированный CE
20 000,00 $

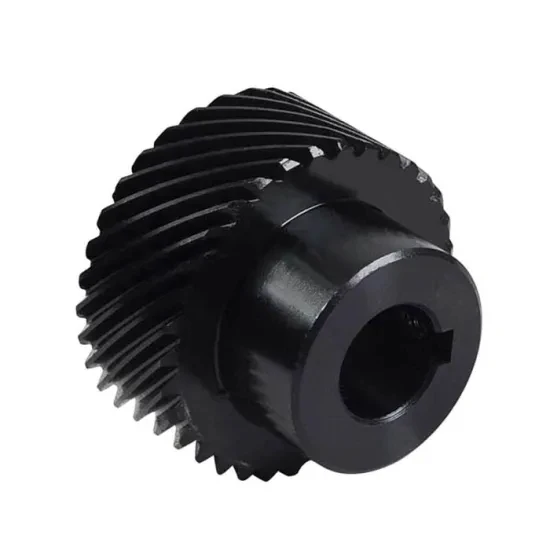

Индивидуальная обработка ЧПУ S45C 20CrMoTi 40 Cr черная сталь 45 градусов Винтовая шестерня
12,00 $

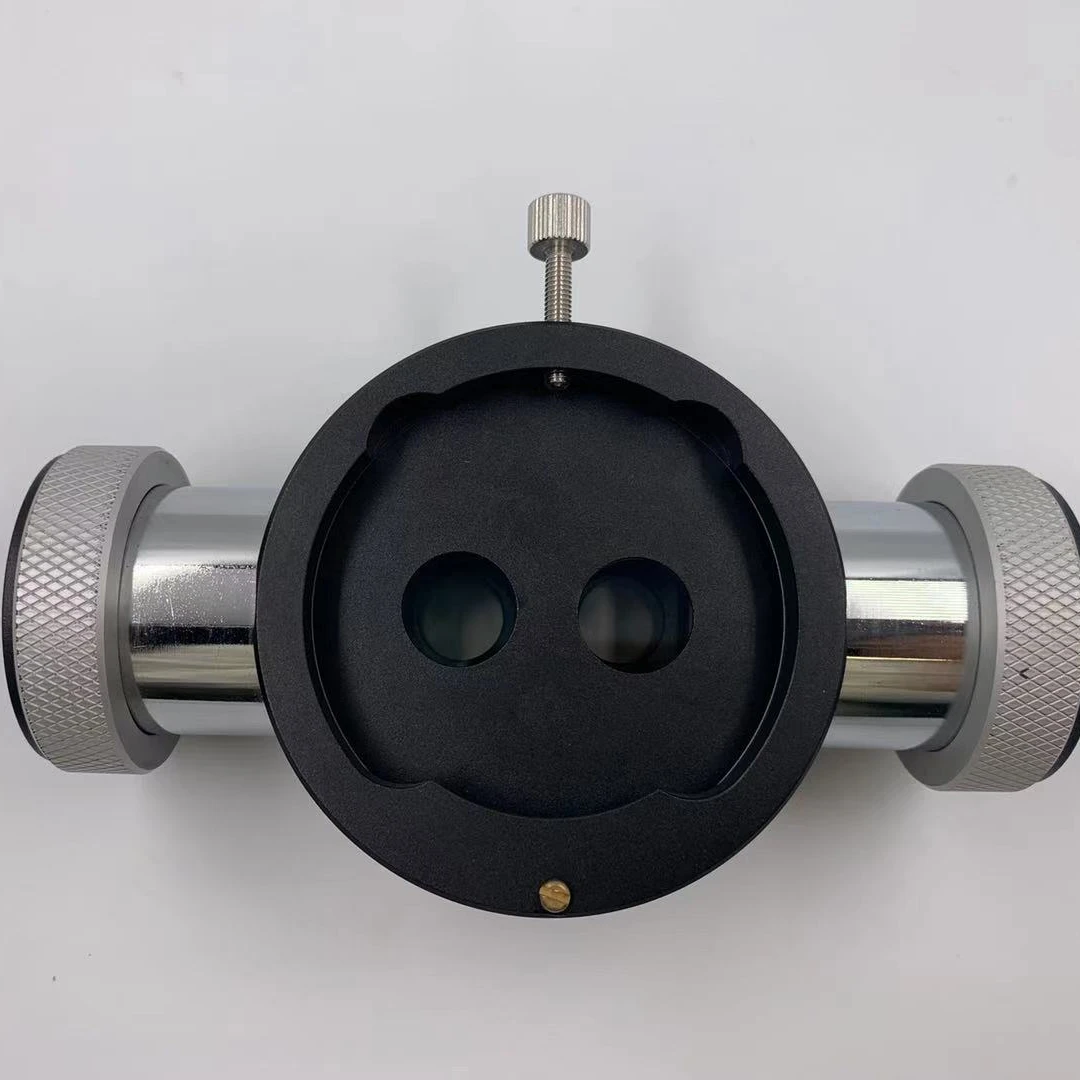

Распределитель луча для щелевой лампы/лазера Ellex
