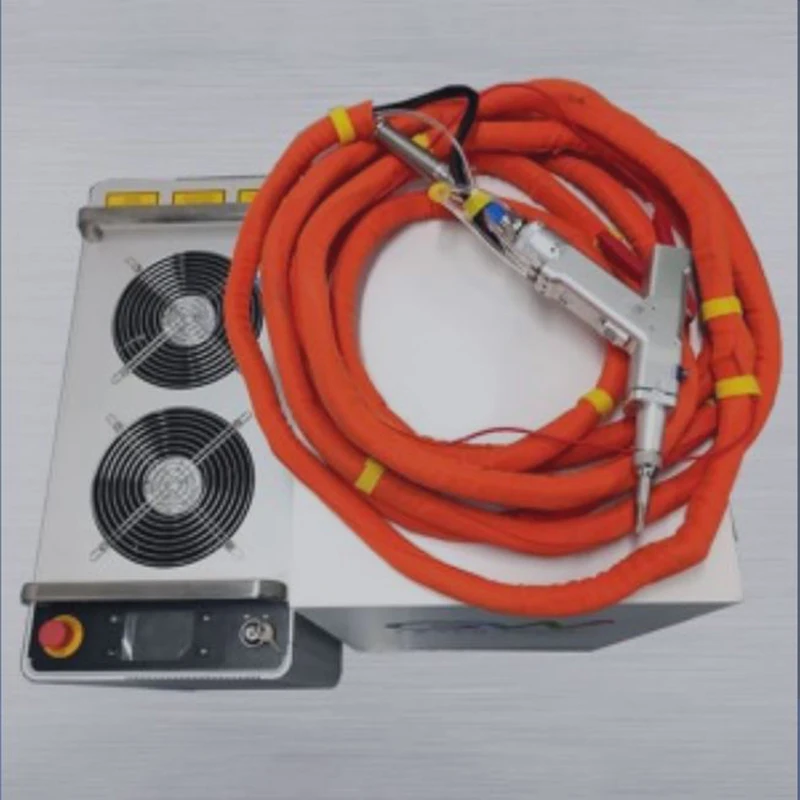

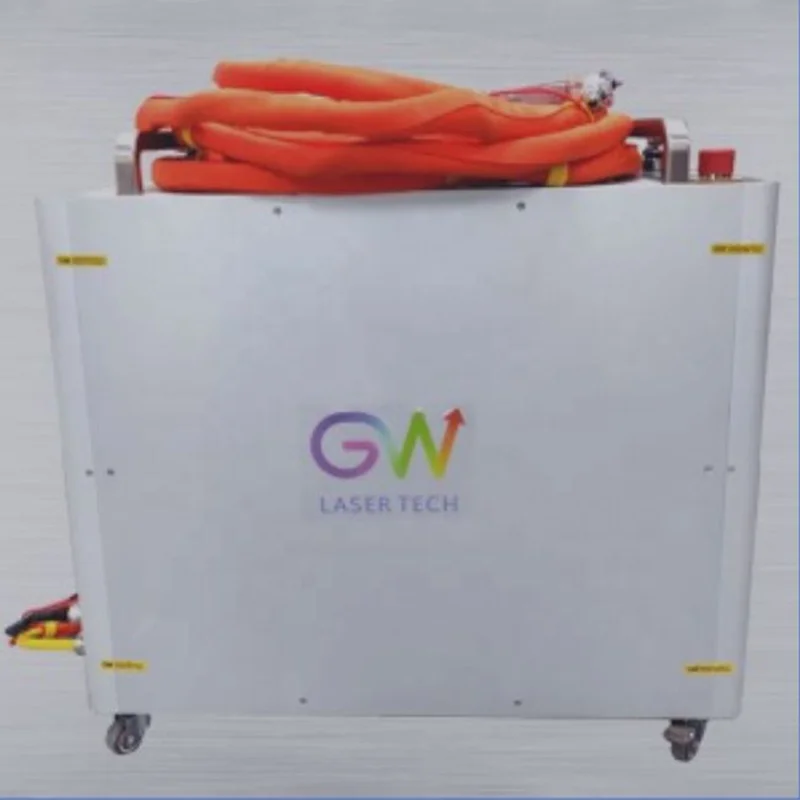

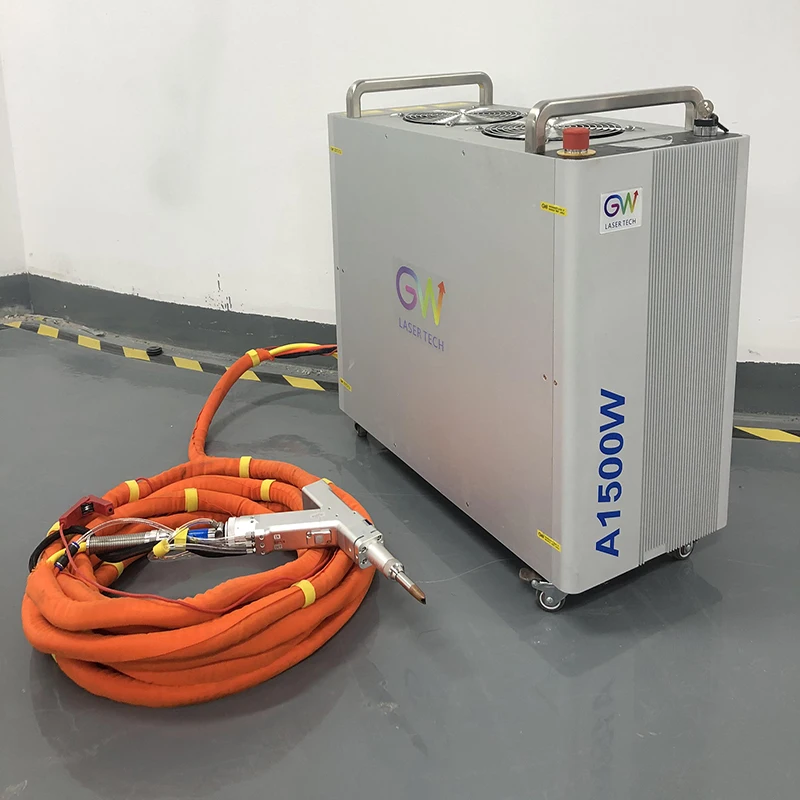

Заводская цена GW 1500 Вт Портативный Ручной Волоконно лазерный сварочный аппарат с воздушным охлаждением для всех металлов
- Категория: >>>
- Поставщик: Wuhan Xionghao Electronics Technology Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1600595972650:
Описание и отзывы
Характеристики
Product Description
1.The output power is 1500W, and the welding penetration reaches 4mm;
2.Based on 976nm pumping technology, high electro-optical conversion efficiency ≥42%;
3.Single pendulum welding head, adjustable welding width;
4.The weight of the whole machine is less than 60kg, with compact design and small volume;
2.Based on 976nm pumping technology, high electro-optical conversion efficiency ≥42%;
3.Single pendulum welding head, adjustable welding width;
4.The weight of the whole machine is less than 60kg, with compact design and small volume;
6.Triple protection design, built-in air pressure detection device.
To know more details, consult me
For more details
Material type | Thickness One-sided welding | Thickness Double-sided welding | ||||
Stainless steel | ≤4mm | ≤10mm | ||||
Carbon steel | ≤4mm | ≤10mm | ||||
Aluminum | ≤4mm | ≤10mm | ||||
Copper | ≤1mm | ≤2mm | ||||
Specification
Output power | 1500W |
Peak pulse | 2500W |
Output light wavelength | 1070±10nm |
Output cable length | 50um/5m/10m |
Swing width | ≤5mm |
Indicating light wavelength | 650nm |
Output fiber interface type | QBH/QD |
Input voltage | 220VAC/50Hz/60Hz, |
Protective gas | Argon, Nitrogen, Ar+CO2 mix |
Storage ambient temperature | -20-60℃ |
Working ambient temperature range | 0~50 degrees |
Working environment humidity range | ≤95% |
Size | 650x300x570 [mm] (L*W*H) |
Weight | 62kg |
Process application | Portable Laser Welding,Handheld Laser Welding,Smart Laser Welding,Precision Laser Welding |

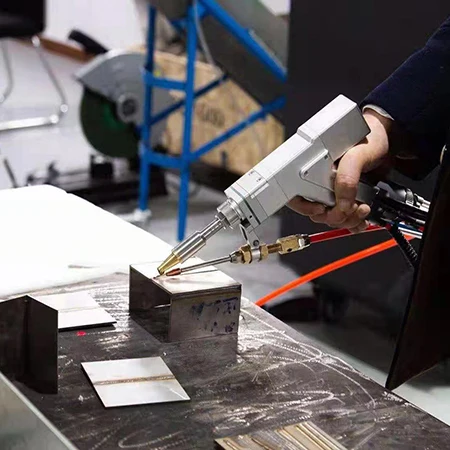

Applications
Welding stainless steel, carbon steel and aluminum alloys doors and windows, crafts and sheet metal.
Higher efficiency, saving time and cost, less damage to the operator's eyes, compared to traditional welding.
Higher efficiency, saving time and cost, less damage to the operator's eyes, compared to traditional welding.
Contact Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
