Лидер продаж безмасляный компрессор прокрутки 8 бар для печатной машины Heidelberg

Описание и отзывы

Характеристики

We manufacture and offer oil free scroll airend,  1.5kw, 2.2kw, 3.7kw and 5.5kw single unit scroll air head, welcome to contact with us for more details. we give all of our scroll airend 2 years warranty,  for replace and repair of atlas copco, anest iwata, and compair scroll oil free air compressors.

3.7kw oil free scroll airend

• Air filow: 350L/min-410L/min


• Work pressure: 4bar-10bar


• Power: 3.7kw/5.0hp


• Apply for electronic, medical, lab and oxygen concentrator

......................................................................................................

2.2kw scroll oil free air end

• Air filow: 250L/min


• Work pressure: 4bar-10bar


• Power: 2.2kw/3.0hp

..................................................................................................................................

1.5kw scroll oil free air end

• Air filow: 180L/min


• Work pressure: 4bar-10bar


• Power: 2.2kw/3.0hp

1.5kw  2.2kw 3.7kw scroll oil free air compressor for oxygen generator

Application:

•


  Heidelberg printing machine #Dental #Aerospace #Instrumentation #Environmental




  #Automotive  #Industrial air #University  #Power generation #Fuel cell #Waste heat recovering




  #Oil & gas  #Atlas copco scroll air compressor  #Anest iwata scroll air compressor




  #Powerex scroll air compressor #Oxygen generator set #Heat pump




Scroll oil free air compressors

• 3.7kw scroll airend, 5.5kw scroll airend


• 8bar 10bar


• LCD controller screen display

3.7kw oil free scroll air compressor paramters:

• M-3.7/08-A1


• Air capacity:0.4m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:3.7kw


• Noise:55±2dB


• Speed:3200rpm


• Weight:200kg


• Dimension:810*690*880mm


• Outlet connect:3/4”




• #medicalaircompressor / #oilfreeaircompressor / #scrollaircompressor / #oilfreescrollaircompressor / #smallaircompressor

3.7kw oil free scroll air compressor with tank

• MT-3.7/08-A1


• Air capacity:0.4m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:3.7kw


• Noise:55±2dB


• Speed:3200rpm


• Weight:250kg


• Dimension:1530*690*1450mm


• Outlet connect:3/4”

3.7kw oil free scroll air compressor with tank and dryer:

• MT-3.7/08-A1


• Airend Qty:1


• Air capacity:0.4m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:3.7kw


• Noise level: 55±2dB


• Speed:3200rpm


• Weight:250kg


• Dimension:1530*690*1450mm


• Outlet connect:3/4”

7.5kw oil free scroll air compressor parameters:

• M-7.5/08-A2


• Airend Qty: 2


• Air capacity:0.8m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:7.5kw


• Noise level: 60±2dB


• Speed:3200rpm


• Weight:400kg


• Dimension: 1130*960*1140mm


• Outlet connect:3/4”

5.5kw oil free scroll air compressor paramters

• M-5.5/08-S1


• Airend Qty:1


• Air capacity:0.6m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:5.5kw


• Noise level: 55±2dB


• Speed:3200rpm


• Weight:220kg


• Dimension: 810*690*880mm


• Outlet connect:3/4”

 11kw oil free scroll air compressor parameters

• M-11/08-S2


• Airend Qty: 5.5kw*2


• Air capacity: 1.2m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:11kw


• Noise level: 60±2dB


• Speed:3200rpm


• Weight:440kg


• Dimension:1130*960*1140mm


• Outlet connect:3/4”

22kw scroll oil free air compressor parameters:

• M-22/08-S4


• Airend Qty: 5.5kw*4


• Air capacity: 2.4m³/min


• Outlet pressure:0.8Mpa


• Voltage:380v/50hz


• Power:22kw


• Noise level: 65±2dB


• Speed:3200rpm


• Weight:820kg


• Dimension:1600*1250*1240mm


• Outlet connect: 1”

Explosion view photo of oil free scroll airend:

• The suited working environm ent for oil-free scroll com pressor


• Medical and dental environment.


• Required high quality air, no oil, no impurity.


• Low noise, after-treatment equipment is unnecessary.

• Oil-Free Drain


• High-precision processing technology is required to produce the components that make up a Scroll Compressor.


• We have developed new Scroll Air-Ends thanks to the experience and know-how we have accumulated over the past 15 years.


• As the orbiting scroll goes from No.1 to No.4 position, the size of the symmetrical crescent-shaped compression chambers is gradually reduced, compressing the air contained within . This is then discharged through the central exhaust port.

General paramters of our scroll oil free air compressor

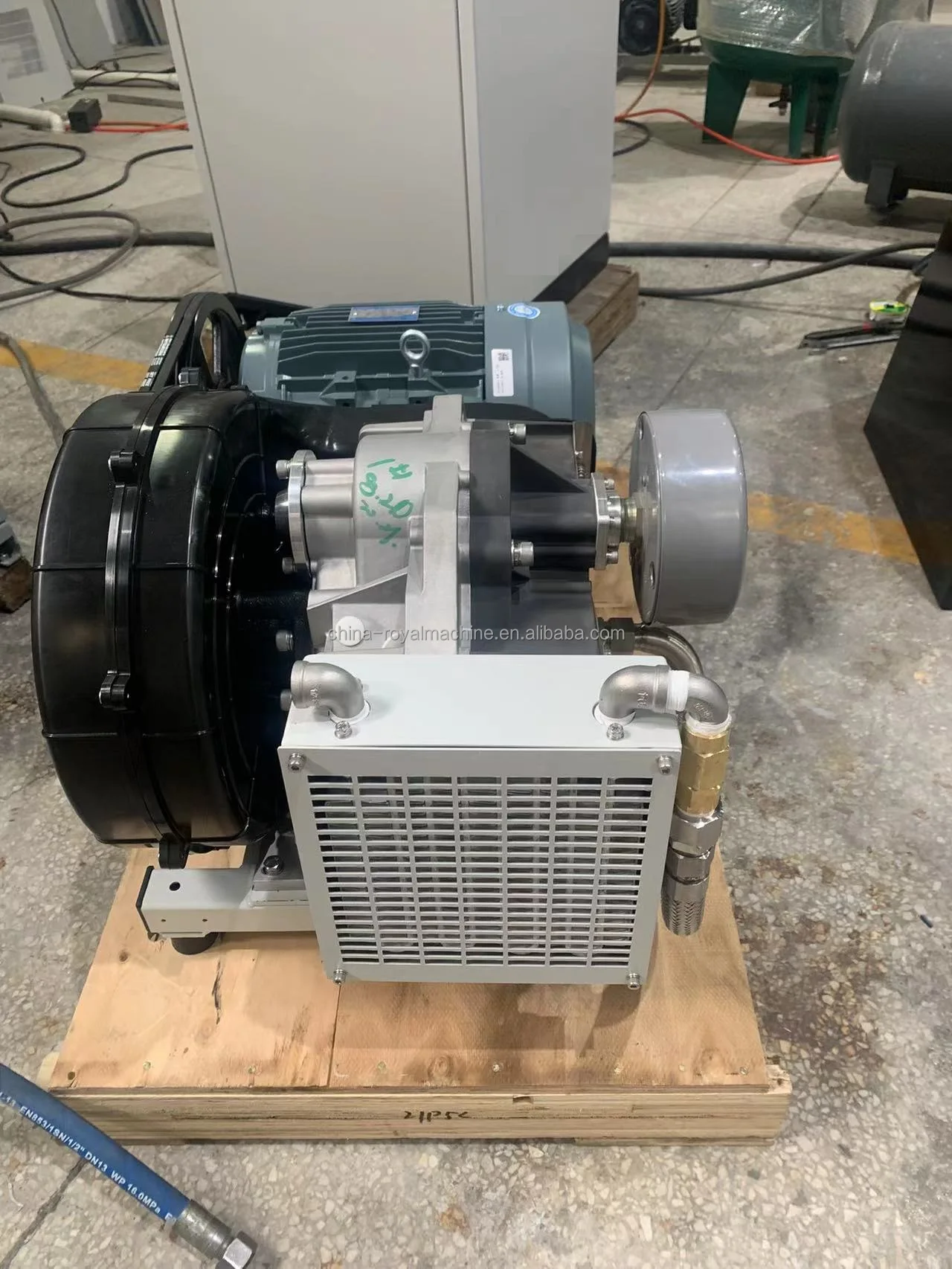

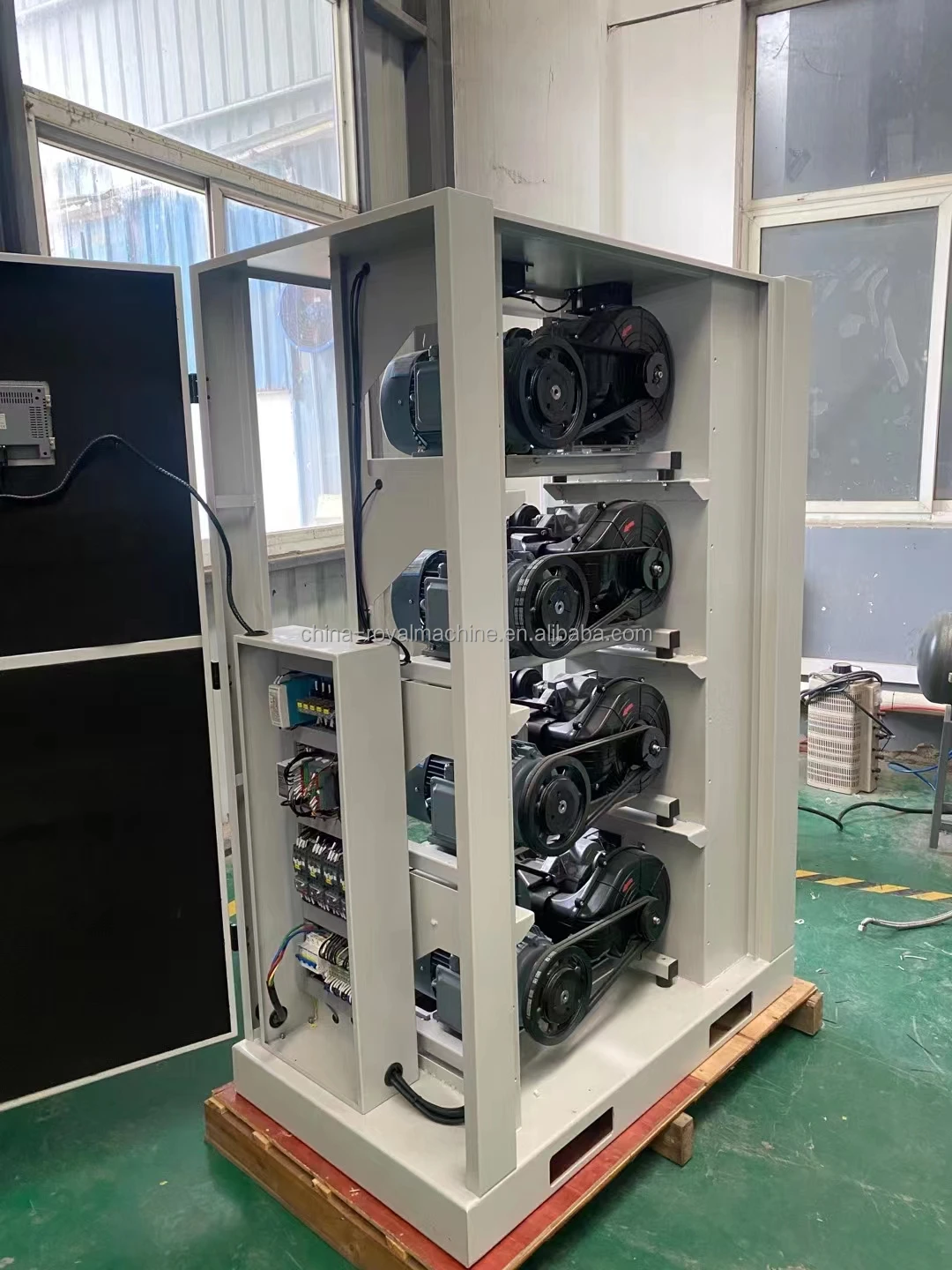

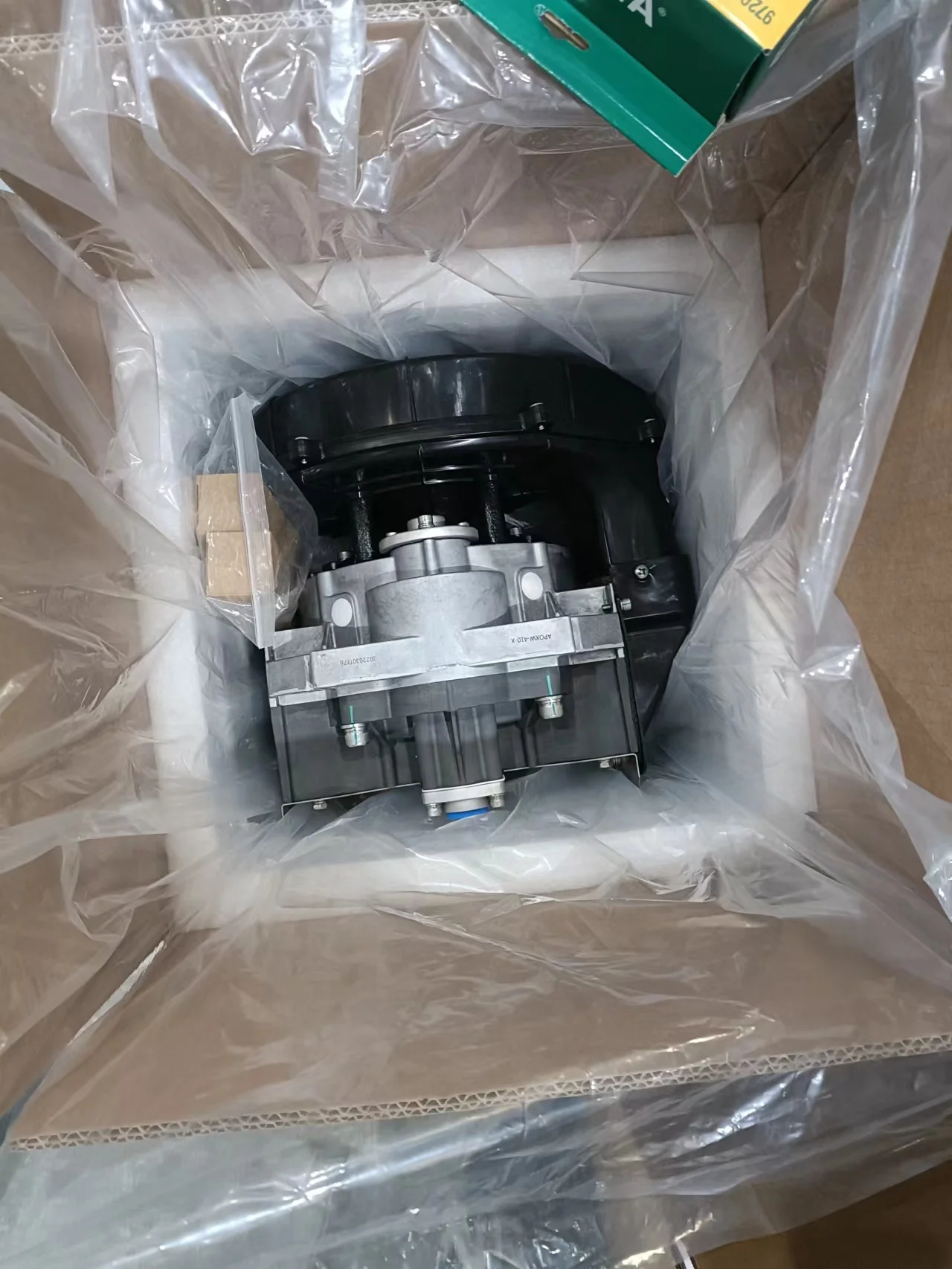

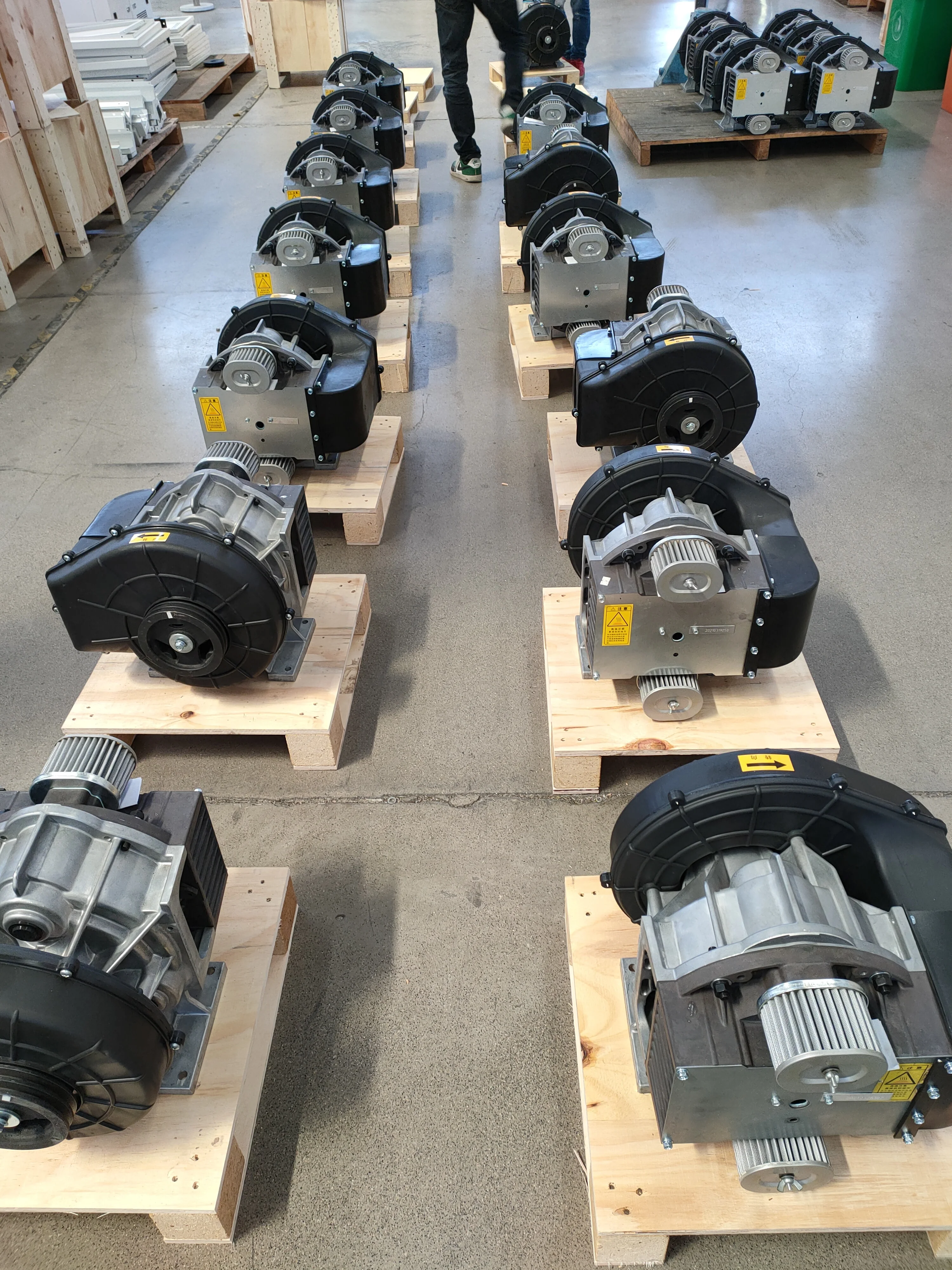

Photos:

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual,  oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list,  installation drawings, technical support and maintenance training.

Our CE certificate:

Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.

• Consumer grade air compressors can be described as a pancake or single-stage model. They’re used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.

• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.

• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Here we offer i screw air compressors:

Power range: 5kw-400kw

Air flow: 1m3/min-75m3/min

#screwaircompressor

#scrollaircompressor

#pistonaircompressor

#oilfreeaircompressor

#oilinjectonaircompressor

#permanentmagnetvsdscrewaircompressor

#fixedspeedscrewaircompressor

#differentapplicationindustrialscrewaircompressors

Welcome to container with us for more details
