Модем LTE 4G с 8 портами быстрая отправка SMS сообщений Gsm модем для передачи
- Категория: Modems >>>
- Поставщик: Shenzhen TYH Technology Co. Ltd.
Сохранить в закладки 1600598530391:
Описание и отзывы
Характеристики
Fast Sending-Speed LTE 4G SMS Modem 8 Ports 4G Bulk Sms Modem Sms Broadcast Gateway Gsm Modem
4G LTE SMS MODEM pool also known as "SMS Modem Cat" in China, USB 2.0 can be used directly into the computer USB port, for laptops, desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be inserted SIM cards, simultaneously to send text messages.
Highlights

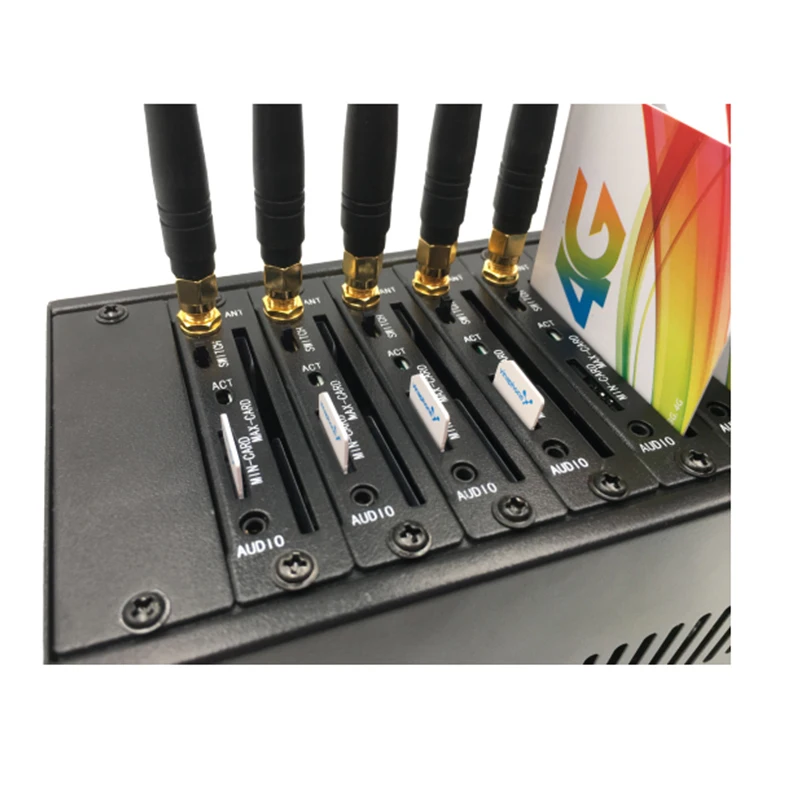

• 8 x SIM card (big/small) slots
• Receive/ Send Bulk SMS
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional
• Free Bulk SMS Software (SMS Caster)
• 8 x SIM card (big/small) slots
• Receive/ Send Bulk SMS
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional
• Free Bulk SMS Software (SMS Caster)
Model | 4G LTE SMS MODEM 8 Ports |
Module | QUECTEL EC25 EG91 |
Simslot | 8 |
Weight | 3KG |
Software | SMSCaster (free) |
QUECTEL | 2G 3G 4G |
SMS Sending Speed | 2G: 1000sms/hour/port 3G: 2500sms/hour/port 4G: 3200sms/hour/port |
Support | USSD API IMEI Change |
Product Name | 4G 8 Port SMS Modem | ||||||
Function | Send SMS/MMS Receive SMS IMEI Change Voice call AT Command | ||||||
SMS Software | SMS Caster (Free) SMS Deliver | ||||||
SMS Caster Features | Batch send, multi tasking, port split send, Intermittent send, Timed Send, Send Failed will try again(Limit the number of try) | ||||||
Port Choice | 8 port, 16 port, 32 port, 64 port | ||||||
Hourly SMS Sending Speed | Bulk Send 1000(2G)/3000(4G) SMS Per Port Per Hour | ||||||
Optional Other Model | 2G: M26, M35 3G: UG96, UC20 4G: EC25, EG91 | ||||||
Power Input | 110~240VAC/ 50~60HZ | ||||||
Interface | USB 2.0 & USB 3.0 | ||||||
Operation System | Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X | ||||||
Applications
● Large shopping malls, supermarkets ● Professional market, large wholesalers
● Large hotels, large-scale entertainment
● Largeagencies
● Transport, logistics industry
● Large enterprises, and institutions
● Large hospitals, large bookstore
● Newspaper,television and radio stations
● Oil Company ( other chain business model)
● Government agencies or large township
● Receive Code SMS
● Large hotels, large-scale entertainment
● Largeagencies
● Transport, logistics industry
● Large enterprises, and institutions
● Large hospitals, large bookstore
● Newspaper,television and radio stations
● Oil Company ( other chain business model)
● Government agencies or large township
● Receive Code SMS
Key Feature
● 8 channels work at the same time ●Insert 8 simcards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
Basic Feature
● SMS, Long SMS, Flash SMS , MMS (Picture SMS/Voice SMS),Need Software Support
● SMS, Long SMS, Flash SMS , MMS (Picture SMS/Voice SMS),Need Software Support
● GSM 07.07,07.05 and other AT Extended instruction
● Support for software development based on AT instructions
●AT Instruction GSM 07.07,07.05 and other AT Extended instruction
●Support for software development based on AT instructions
●Asynchronous, transparent or non-transparent, to a maximum 14400bits/s
●Baud Rate: 300-115200bits/s ●Automatic baud rate:2400-19200 bits/s
●Fax support three ●Switched voice and fax
●V. 42, V. 42bis ●GPRS compatible
●Wap compatible ●SMA Antenna Interface
●SIM Card Outlet ●Power connector
●RS-232, the Mini-dB-9 connector
● Support for software development based on AT instructions
●AT Instruction GSM 07.07,07.05 and other AT Extended instruction
●Support for software development based on AT instructions
●Asynchronous, transparent or non-transparent, to a maximum 14400bits/s
●Baud Rate: 300-115200bits/s ●Automatic baud rate:2400-19200 bits/s
●Fax support three ●Switched voice and fax
●V. 42, V. 42bis ●GPRS compatible
●Wap compatible ●SMA Antenna Interface
●SIM Card Outlet ●Power connector
●RS-232, the Mini-dB-9 connector
What is SMS in marketing?
SMS is a way for businesses to keep in touch with their customers. It costs very little and can be used as a great tool to get new business leads.
Is SMS marketing effective?
With a clear SMS marketing strategy, you can enjoy a higher customer retention rate, and grow your audience at an incredible speed.
How to use
Getting started with SMS marketing is simple. You only need a few things Like SMS Modem , Sim card , Internect , PC , which will help you easy to start it come up.
1. Connect via USB ,Install SMSCaster like common software and close it after installing successfully 2.Connect the GSM MODEM to
computer correctly, and then there will be a prompt
from computer to install driver. Instill simcard
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMSCaster program, all ports will be found.
computer correctly, and then there will be a prompt
from computer to install driver. Instill simcard
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMSCaster program, all ports will be found.
Batch send, multitasking, port split send, Intermittent send, Timed Send, Send Failed will try again(Limit the number of try) | |
Support contact import, batch import of information, merge the same contacts, Contact grouping | |
Failed SMS view/export, unfinished task export/save, Outbox and inbox export | |
Code: GSM 7-bit,UCS2 16-bit | |
Auto reply (requires keyword setting) | |
Unattended send |
1. Device Connection
A Install all antennas one after the other (rotate clockwise). After the installation is complete, insert the sim card. The sim card needs to be inserted with the chip facing down to the right. Install the power cord and insert the source part of the power cord into the corresponding inlet in the device. The other side is plugged into the power supply.
B Turn on the device switch (ON) and wait for 1-2 seconds for the device to start, after which the device will light up. as the picture shows.
C Connect the usb cable, plug the port marked 1 into the computer, and the port marked 2 into the device.
D After all devices are connected, open the software that comes with the device and click the URL.
According to the following text instructions
When you use the modem send too much SMS, some device will be blocked due to the operator policies .The modem will work well again after imei numbers changed.
Imei Change
●open Putty
●click " Serial"
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134" if you put in imei is wrong ,it will reset or
keep old IMEI
●put in "at+cgsn"//check new IMEI
●click " Serial"
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134" if you put in imei is wrong ,it will reset or
keep old IMEI
●put in "at+cgsn"//check new IMEI
Change IMEI
▲Change IMEI/Send USSD/Call/Put in PIN/PUK code(AT command)Download putty(we will send file to you),
and open it, put in COM number, open it.
Call
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;" for example: atd 0976006161;
●put in"ATH" hung off call
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;" for example: atd 0976006161;
●put in"ATH" hung off call
Put in PIN/PUK code
●open Putty
●click "Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●PUT in"at+cpin?" //check PIN status If display "ready"=> it is ok, don’t need put in PIN code If display "SIM PIN" =>need put in
PIN code PUT IN "at+cpin=PIN code", for example: at+cpin=1234 If display "SIM PUK" =>need put in PUK code PUT IN "at+cpin=" PUK
code","NEW PIN code" " , for example: at+cpin=”12345678”,”1234”
●click "Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●PUT in"at+cpin?" //check PIN status If display "ready"=> it is ok, don’t need put in PIN code If display "SIM PIN" =>need put in
PIN code PUT IN "at+cpin=PIN code", for example: at+cpin=1234 If display "SIM PUK" =>need put in PUK code PUT IN "at+cpin=" PUK
code","NEW PIN code" " , for example: at+cpin=”12345678”,”1234”
Send USSD
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command"" for example: at+cusd=1,"*097#"
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command"" for example: at+cusd=1,"*097#"
STK USSD Mobile Recharge
You can use sim cards to top up/mobile recharge
and check balances business through software or at command.
and check balances business through software or at command.

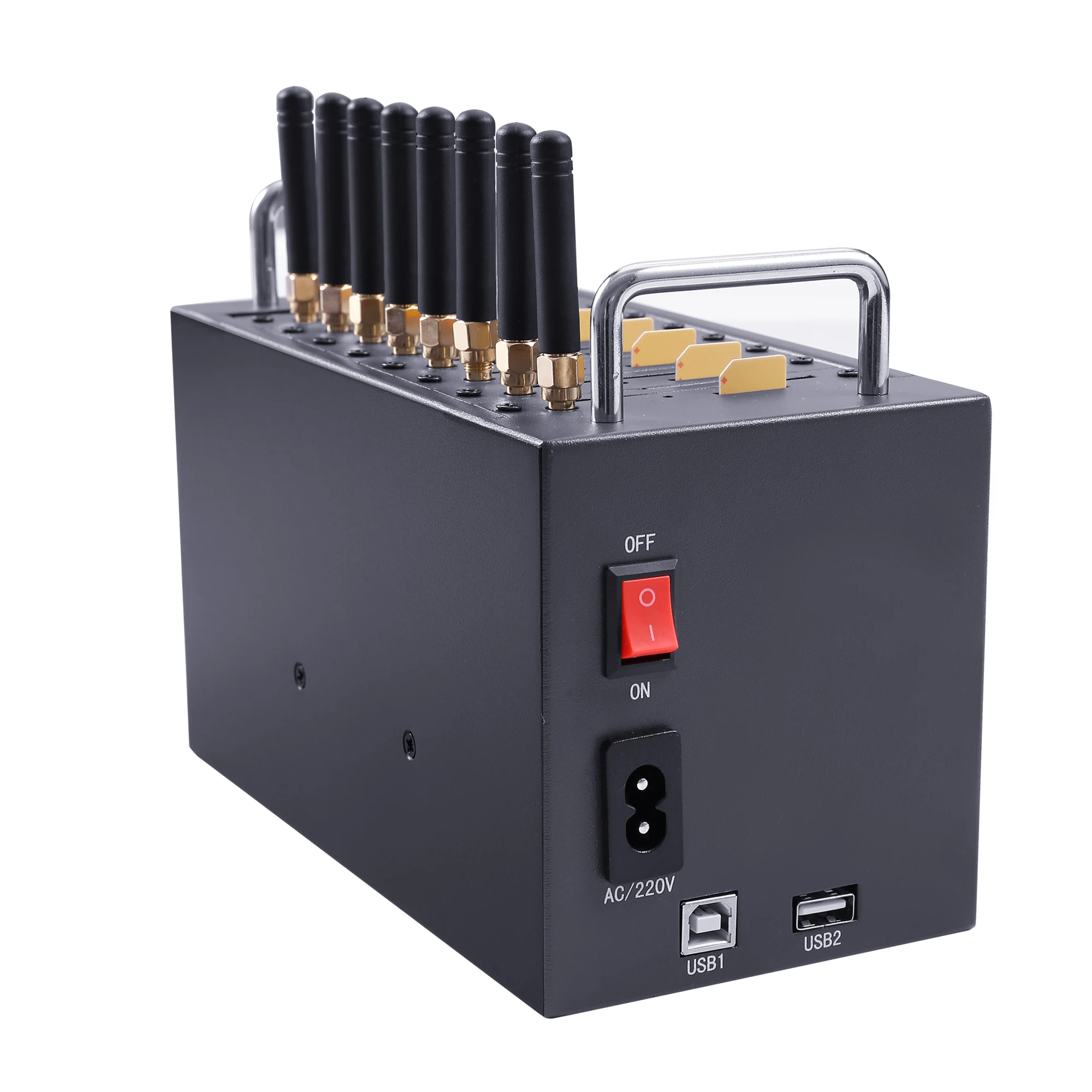

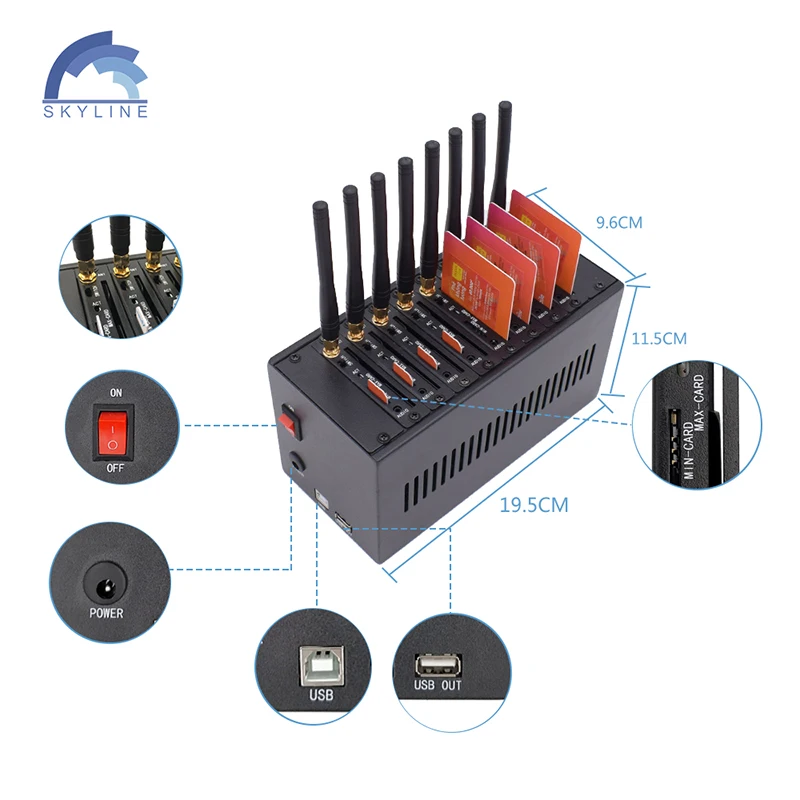

Brief introduction
1: Power switch
2: Power interface
3: USB1 IN interface (M26/UG96/UC20/EC25)
4: Console(USB2)
GSM MODEM pool also known as "SMS cat pool" in China, Usually the connection is to use USB1, USB 2 can be used directly into the
computer usb port, for laptops,
desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be
inserted SIM cards, simultaneously to send text messages.
2: Power interface
3: USB1 IN interface (M26/UG96/UC20/EC25)
4: Console(USB2)
GSM MODEM pool also known as "SMS cat pool" in China, Usually the connection is to use USB1, USB 2 can be used directly into the
computer usb port, for laptops,
desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be
inserted SIM cards, simultaneously to send text messages.
Packing & Delivery Packing List:
(1) SMS Modem Pool x 1
(2) USB Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 8
(1) SMS Modem Pool x 1
(2) USB Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 8
Shipment | DHL, FedEx, UPS, EMS, TNT, Aramex, Special Line... We can recommend the suitable one as our experience |
Payment | Credit Card, E-checking, Visa, USDT, T/T, WebmoneyWe can try to arrange your local country account for payment conveninetly |
Delivery Time | 0-3 days after payment received |
Arrival Time | One week about |
Our Services & Strength
1. Strong Relationship
2. Featured Products
3. Supporting Quality Policy
2. Featured Products
3. Supporting Quality Policy
4. Provide 24/7 hours free tech support
5. Awesome Reputation6. Company Insights Client good feedback
FAQ
Q1. How to use it?
1)Install driver and free sms software named SMSCaster in computer2)Connect modem and computer by USB
3)Insert sims and antennas in Modem
4)Manage sms modem through software in computerbulk sm
Q2. What are the additional expense for the whole system operation except the modem?
Network, Sims, Computer bulk sms
Q3. Any relative products?
2G sms modem M26 module 1/8/16/32/64 ports
3G sms modem UG module(cant change imei) and UC20E/A module 8/16/32/64 ports
4G sms modem EC25 module 8/16/32/64 ports
1)Install driver and free sms software named SMSCaster in computer2)Connect modem and computer by USB
3)Insert sims and antennas in Modem
4)Manage sms modem through software in computerbulk sm
Q2. What are the additional expense for the whole system operation except the modem?
Network, Sims, Computer bulk sms
Q3. Any relative products?
2G sms modem M26 module 1/8/16/32/64 ports
3G sms modem UG module(cant change imei) and UC20E/A module 8/16/32/64 ports
4G sms modem EC25 module 8/16/32/64 ports
Q4:During warranty time,if have problem,how to do?
We'll test by teamview or send back, we'll exchange new in free.
Q5: How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q5: How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
About company
SKYLINE INTERNATIONAL COMMUNICATION Co., Ltd. is a manufacturer of VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
Related Products
Contact Us
Any inquiries, contact me freely
For more details plz contact:
For more details plz contact:
Phone. 08618379462920
Whatapp. 008618379462920
Skype: live:florahe1003
Wechat. 18379462920
Whatapp. 008618379462920
Skype: live:florahe1003
Wechat. 18379462920
Hot sale sms sending and receiving device 8 port gsm modem pool bulk sms machine gsm modem 8 port
Hot sale sms sending and receiving device 8 port gsm modem pool bulk sms machine gsm modem 8 port
Похожие товары
SM100-C (III) Если вам нужна версия с Android APP Hart модем USB к HART кошка поддерживает мобильное приложение
89,00 $ - 96,00 $
Huawei Wi-Fi модем SDongleA-05 смарт-ключ-WLAN-FE солнечные умные модули USB WiFi адаптер для Солнечный
79,00 $ - 99,00 $
M7-S Дешевые Спорт на открытом воздухе обувь для деловых поездок 4 аппарат не привязан к оператору сотовой связи universel разблокировать Карманный роутер wifi Интернет радио портативный
28,00 $ - 35,00 $
EP06-A EP06 мини Pcie B2/B4/B5/B7/12/B13/B25/B26/B29/B30/B66 4G FDD-LTE/TDD-LTD CAT6 модуль 100% новый и
45,00 $ - 47,00 $
Беспроводной модуль RS232 GSM/GPRS MC35I с
26,00 $ - 36,00 $
HUAWEI E3372 E3372h-607 150 Мбит/с 4G LTE модем dongle USB карта передачи данных мобильный
Мобильный широкополосный USB-модем Three ZTE
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
