Подключение контроллера консоли DMX512 H807DMX 1024 pixel DMX SPI декодер
- Категория: >>>
- Поставщик: Shenzhen Magic Led Lighting Co. Ltd.
Сохранить в закладки 1600598829581:
Описание и отзывы
Характеристики
Product Description

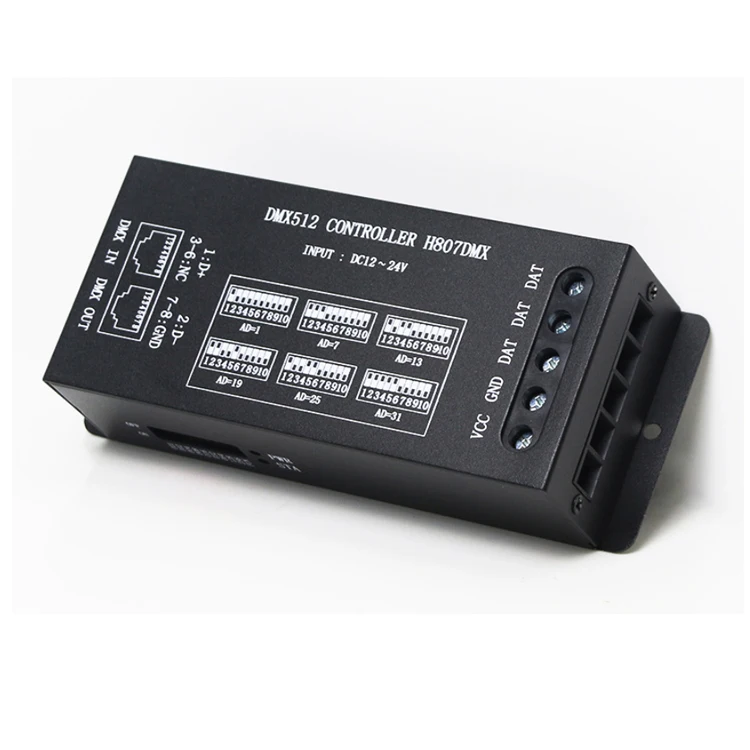

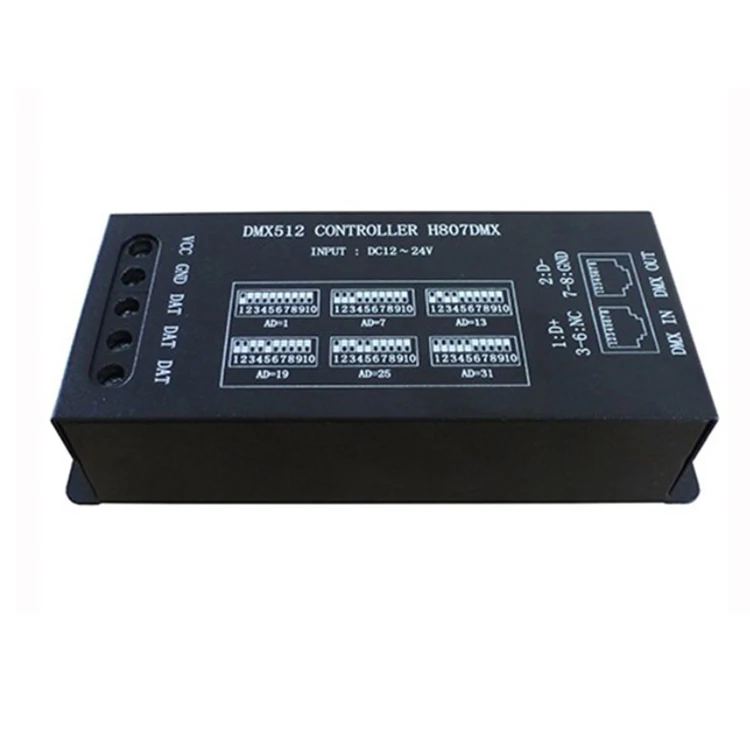

DMX Decoder DMX512 Console Max 1024 Pixels LED Controller For WS2812 WS2813 UCS1903 SK6812 Pixel LED Strip H807DMX
Specifications
2. Each port controls maximum 1024 pixels. Three ports output the same data.
3. H807DMX occupies 13 DMX channels
4. Use dip switch to set starting DMX address for each device.
1st channel: brightness 2nd channel: foreground red 3rd channel: foreground green 4th channel: foreground blue 5th channel: some built-in effects channel value: 0~15: static effect 16~31: comet tail run forward 32~47: comet tail run backward 48~63: gradual change(foreground color changes to background color then changes to foreground color) 64~79: single line segment move 80~95: double line segments move (foreground color and background color) 96~111: double line segments run in opposite direction (foreground color and background color) 112~127: shuttle 128~143: fill in 144~159: spring 160~175: stars flash 176~255: static effects 6th channel: change speed channel value: 0~127: effects run in positive direction, from maximum speed to 1 128: effects stop running 129~255: effects run in negative direction, from 1 to maximum speed 7th channel: divide all pixels into several groups, each group repeats same effect, minimum length is 2 pixels channel value: 0~1: 2 pixels 2: 3 pixels 3~255: 4~256 pixels 8th channel: resize the length of background or black spot 9th channel: background red 10th channel: background green 11th channel: background blue 12th channel: set flash or not channel value: 0: not flash 1~255: flash speed turns from slow to fast 13th channel: set how many pixels
1st channel: brightness 2nd channel: foreground red 3rd channel: foreground green 4th channel: foreground blue 5th channel: some built-in effects channel value: 0~15: static effect 16~31: comet tail run forward 32~47: comet tail run backward 48~63: gradual change(foreground color changes to background color then changes to foreground color) 64~79: single line segment move 80~95: double line segments move (foreground color and background color) 96~111: double line segments run in opposite direction (foreground color and background color) 112~127: shuttle 128~143: fill in 144~159: spring 160~175: stars flash 176~255: static effects 6th channel: change speed channel value: 0~127: effects run in positive direction, from maximum speed to 1 128: effects stop running 129~255: effects run in negative direction, from 1 to maximum speed 7th channel: divide all pixels into several groups, each group repeats same effect, minimum length is 2 pixels channel value: 0~1: 2 pixels 2: 3 pixels 3~255: 4~256 pixels 8th channel: resize the length of background or black spot 9th channel: background red 10th channel: background green 11th channel: background blue 12th channel: set flash or not channel value: 0: not flash 1~255: flash speed turns from slow to fast 13th channel: set how many pixels
H807DMX supports channel value: 0: 1024 pixels 1: 1020 pixels 2~255: 1016 to 4 pixels

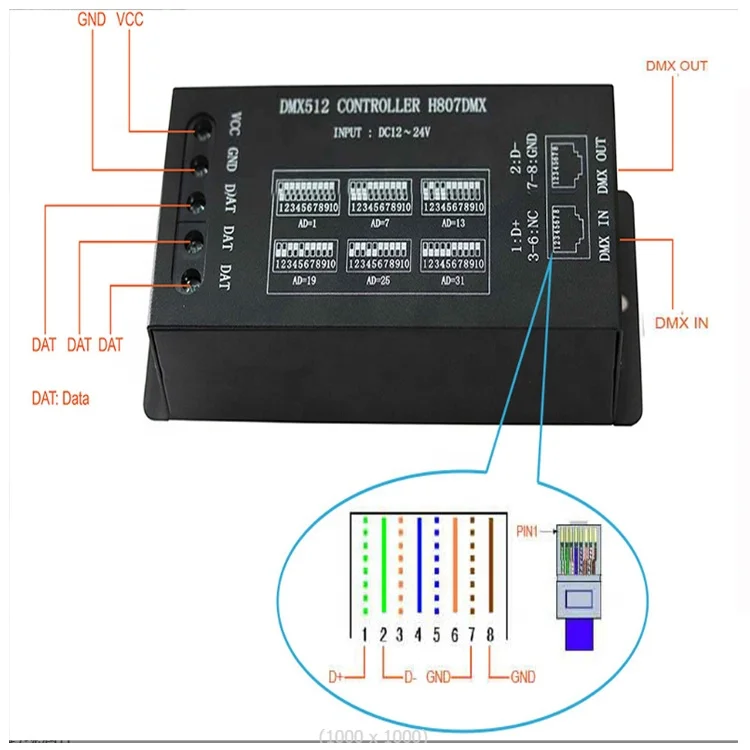

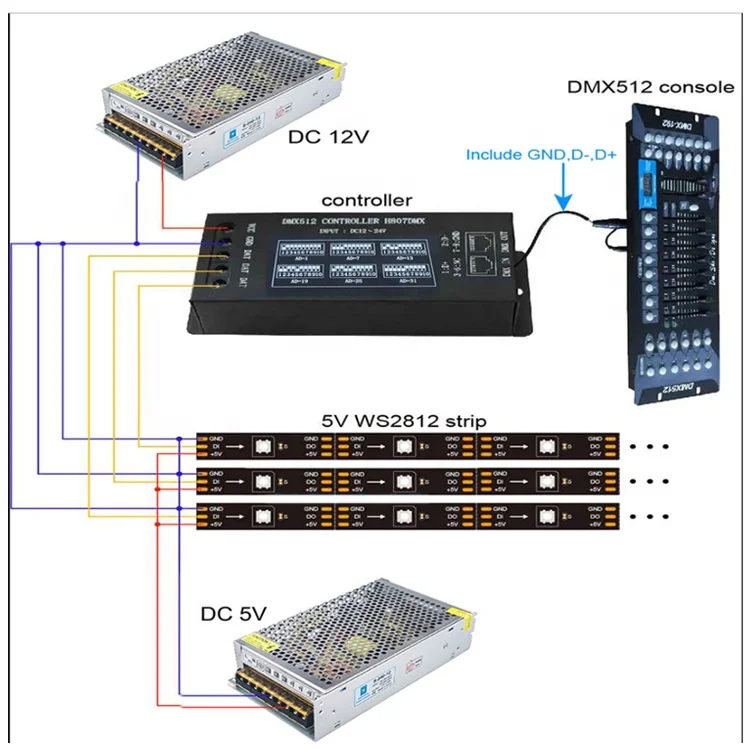

H807DMX is designed to connect DMX512 console. H807DMX supports the following chips: TM1812, P943, P943S, P9411, P9412, P9883, TM1804, TM1809, UCS1903, UCS1909, UCS1912, WS2811, WS2812, WS2813, SK6812, SM16703, SM16709, SM16712, INK1003, etc.
H807DMX supports maximum 1024 pixels, three ports output same data.
Power H807DMX on, red light and green light are on.
Without DMX512 data: led lights run comet tail effect.
With DMX512 data: red light is flashing.
Power H807DMX on, red light and green light are on.
Without DMX512 data: led lights run comet tail effect.
With DMX512 data: red light is flashing.

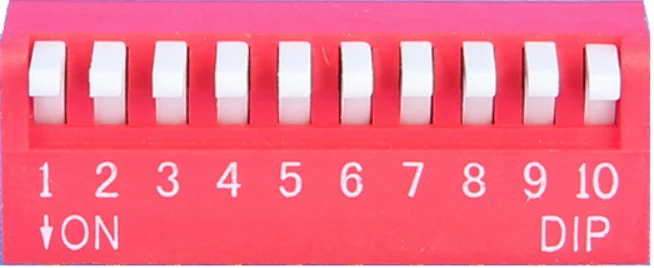

Dip Switch Setting
The 10th switch is useless.
From the first switch to ninth switch:
From the first switch to ninth switch:
Position | Represent |
Up | 0 |
Down | 1 |
It’s like binary.
For instance, 001000000 is 1x2²=4.
011100000 is 1x2¹+1x2²+1x2³=14, which is the starting channel address.
H807DMX occupies 13 channels.

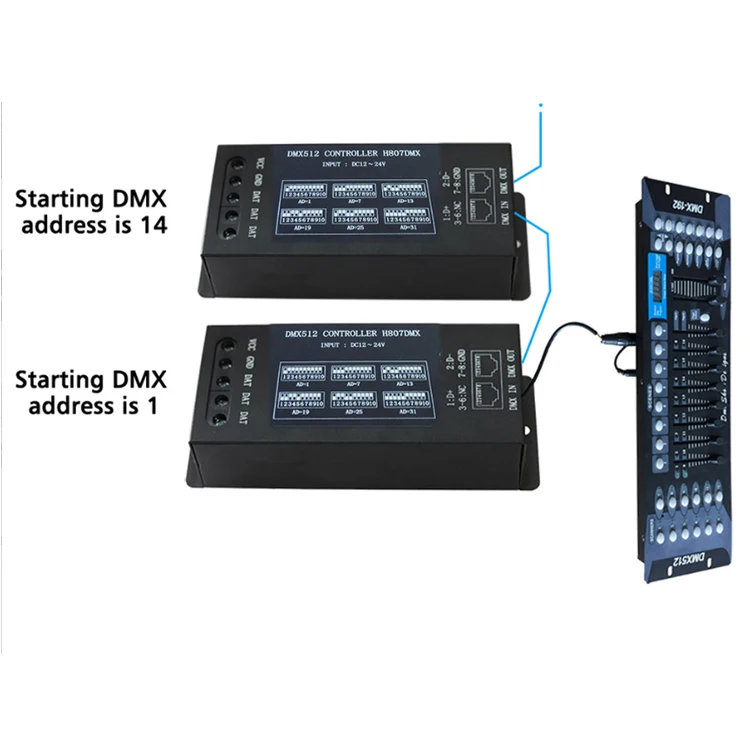

So, if starting channel address is 4, H807DMX occupies channel 4,5,6,7,8,9,10,11,12,13,14,15,16 on DMX console.
If starting channel address is 14, H807DMX occupies channel
For instance, 001000000 is 1x2²=4.
011100000 is 1x2¹+1x2²+1x2³=14, which is the starting channel address.
H807DMX occupies 13 channels.
So, if starting channel address is 4, H807DMX occupies channel 4,5,6,7,8,9,10,11,12,13,14,15,16 on DMX console.
If starting channel address is 14, H807DMX occupies channel
14,15,16,17,18,19,20,21,22,23,24,25,26 on DMX console.
The following is the description of these 13 channels
1st channel: change brightness of lights
2nd channel: foreground red
3rd channel: foreground green
4th channel: foreground blue
5th channel: some effects
0~15: static effect
16~31: comet tail run forward
32~47: comet tail run backward
48~63: gradual change(foreground color gradual change to background color then gradual change to foreground color)
64~79: single line segment moves
80~95: double line segments move (foreground color and background color)
96~111: double line segments run in opposite direction (foreground color and background color)
112~127: shuttle
128~143: fill in
144~159: spring
160~175: stars flash
176~255: static effects
6th channel: change speed
0~127: effects run in positive direction, from maximum value to 1
128: effects stop running
129~255: effects run in negative direction, from 1 to maximum value
7th channel: divide all pixels into several groups, each group repeats same effect, minimum length is 2 pixels
0~1: 2 pixels
2: 3 pixels
3~255: 4~256 pixels
8th channel: resize the length of background or black spot
9th channel: background red
10th channel: background green
11th channel: background blue
12th channel: to control flash or not
0: not flash
1~255: flash speed turns from slow to fast
13th channel: to control how many pixels H807DMX supports
0: 1024 pixels
1: 1020 pixels
2~255: 1016 to 4 pixels
Note:
1. background color is useless when strip runs static and stars flasheffects.
2. Resize is useless when strip runs gradual change, fill in, spring, stars flash effects.
The following is the description of these 13 channels
1st channel: change brightness of lights
2nd channel: foreground red
3rd channel: foreground green
4th channel: foreground blue
5th channel: some effects
0~15: static effect
16~31: comet tail run forward
32~47: comet tail run backward
48~63: gradual change(foreground color gradual change to background color then gradual change to foreground color)
64~79: single line segment moves
80~95: double line segments move (foreground color and background color)
96~111: double line segments run in opposite direction (foreground color and background color)
112~127: shuttle
128~143: fill in
144~159: spring
160~175: stars flash
176~255: static effects
6th channel: change speed
0~127: effects run in positive direction, from maximum value to 1
128: effects stop running
129~255: effects run in negative direction, from 1 to maximum value
7th channel: divide all pixels into several groups, each group repeats same effect, minimum length is 2 pixels
0~1: 2 pixels
2: 3 pixels
3~255: 4~256 pixels
8th channel: resize the length of background or black spot
9th channel: background red
10th channel: background green
11th channel: background blue
12th channel: to control flash or not
0: not flash
1~255: flash speed turns from slow to fast
13th channel: to control how many pixels H807DMX supports
0: 1024 pixels
1: 1020 pixels
2~255: 1016 to 4 pixels
Note:
1. background color is useless when strip runs static and stars flasheffects.
2. Resize is useless when strip runs gradual change, fill in, spring, stars flash effects.
Details Images
Packaging & Shipping
Package
2. Customized packing
Delivery
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Destination | Express/Courier DHL/TNT/UPS/FedEx | Ship by Air | Ship by EMS | Ship by Sea |
North Amercia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
South Amercia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
European Countries | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
Africa Countries | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
The Middle East | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
Australia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
Why Choose Us
Our Services
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information.
Why Choose Us
2.5years experience in LED lighting industry.
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution.Zero improper after sales service if any quality issue happened.
FAQ
Question 1: Can I have samples to test ?
A:Yes, we are pleased to supply samples to test and check our quality.
Questioin 2. Where is your factory?
Answe:Our factory located in Shenzhen City, Guangdong Province, China.
Question:3. About Payment Terms:
Answer :Alibaba Online-payment, T/T, Western Union, Paypal.
Question 4. How to proceed an order ?
Firstly, let us know your requirements .
Secondly, We quote according to your requirements .
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production and send you tracking news after shipment.
Question 5. What is the main market?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 60-75%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
A:Yes, we are pleased to supply samples to test and check our quality.
Questioin 2. Where is your factory?
Answe:Our factory located in Shenzhen City, Guangdong Province, China.
Question:3. About Payment Terms:
Answer :Alibaba Online-payment, T/T, Western Union, Paypal.
Question 4. How to proceed an order ?
Firstly, let us know your requirements .
Secondly, We quote according to your requirements .
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production and send you tracking news after shipment.
Question 5. What is the main market?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 60-75%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
Похожие товары
Китайское производство, полиэфирная тафта с покрытием PA 190T, полиэфирная тафта для дешевой подкладки
0,36 $ - 0,42 $
Строительный материал, железная квадратная труба, горячеоцинкованная квадратная труба с полым сечением Ms
560,00 $ - 620,00 $
Совершенно Новый TPS3823-33DBVR, микросхема PARI, магазин электроники, ваш универсальный магазин компонентов высокого качества
2,65 $ - 2,80 $
Тихий маленький бесщеточный вентилятор постоянного тока 5 в 12 В 24 в высокой скорости 40 мм 4 см 40x40x20
1,99 $ - 2,20 $

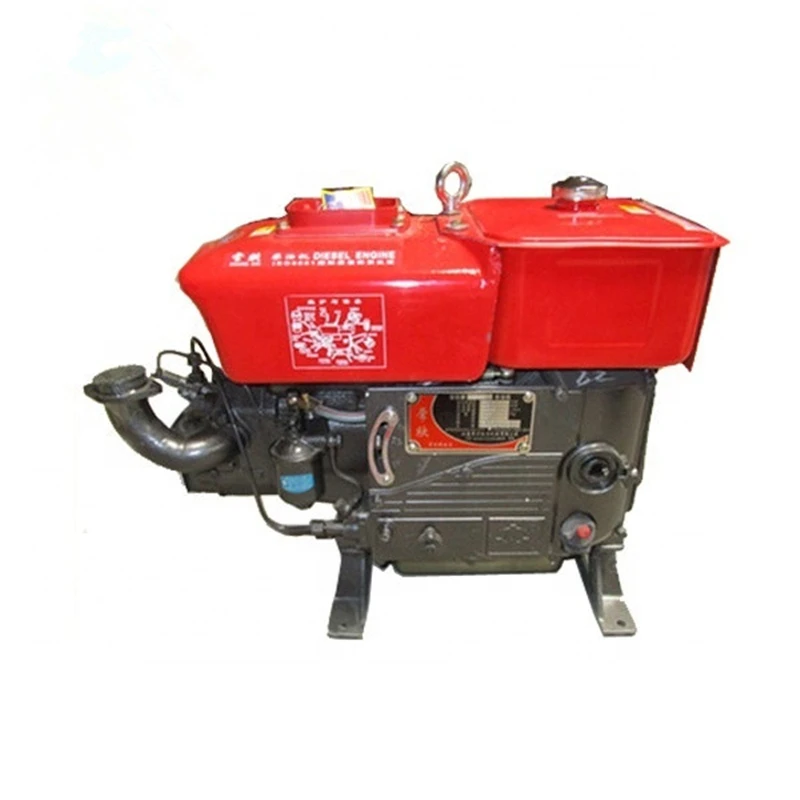

Высококачественный четырехтактный небольшой одноцилиндровый дизельный двигатель 12 л.с. Zr195 S195 Zs195 для сельскохозяйственной техники

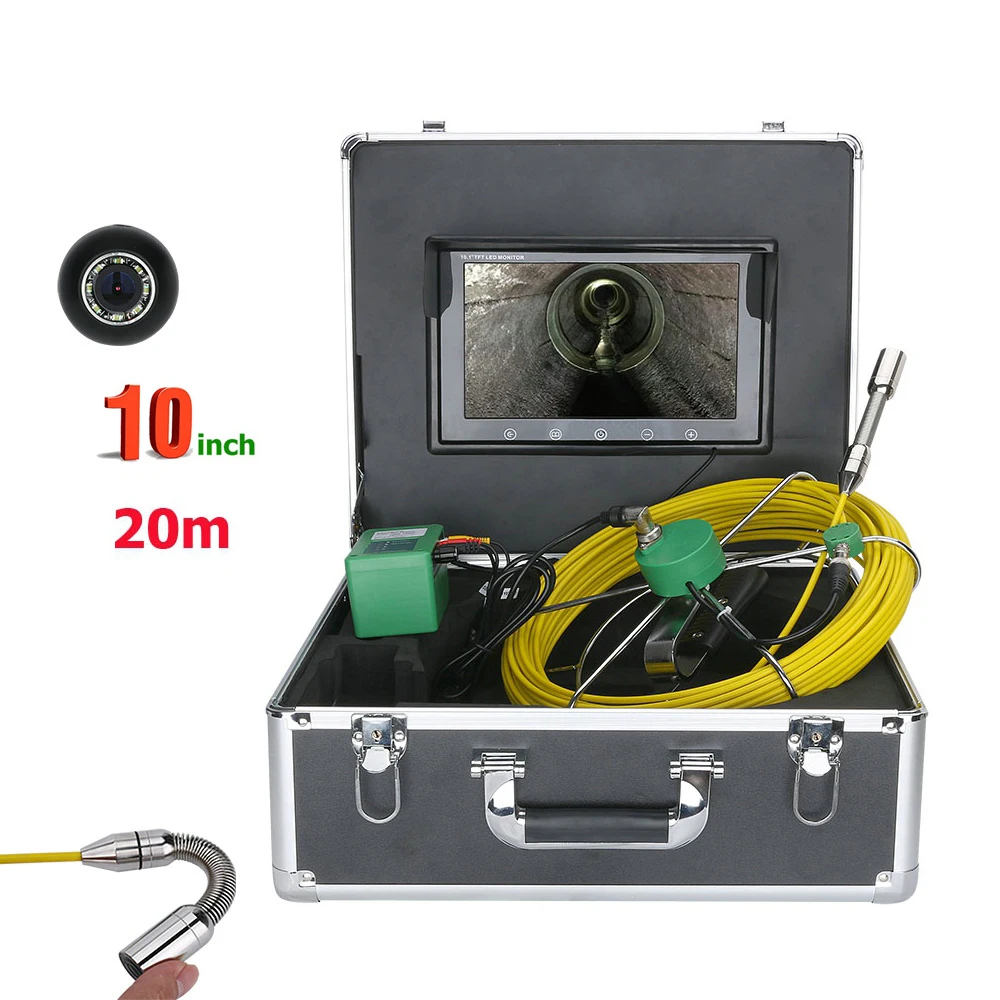

10 дюймовый экран цветной дисплей TFT 17 мм cctv промышленный 20 м эндоскоп бассейн сливной инспекции канализационных труб видео камера
