Стеклянная печатная плата CNC прецизионная режущая кодировка 100 Вт MOPA M8 инфракрасная наносекундная хрупкая материалы сверление Волоконно Лазерная резка машина
- Категория: >>>
- Поставщик: Shenzhen KBF Laser Technology Co. Ltd.
Сохранить в закладки 1600599275744:
Описание и отзывы
Характеристики
100W MOPA M8 Infrared nanosecond laser Cutting Machine Precision Cutting Drilling System
Applicable Material:
Phone Screen Phone Car Camera Glass Sapphire LED Strip
Phone Screen Phone Car Camera Glass Sapphire LED Strip
Applicable Field:
1, reinforced and non-reinforced glass cutting, such as: mobile phone glass cover, car glass cover, camera glass cover, etc.;
2, sapphire glass cutting, such as: mobile phone sapphire cover, camera sapphire glass cover, sapphire light strip (LED light strip), etc.;
3, LCD glass cutting, such as: special-shaped LCD screen inverted R/U/C Angle, LCD screen cutting, etc.;
4, other optical glass cutting, such as: filter cutting, mirror cutting, etc.
Product Description
Product Name: Precision Cutting Drilling System
Model: KBF* (The exact complete model no. depends on the options.)
Laser Type: Infrared nanoseconds laser (optional)
Contact Amy
Wechat/Whatsapp: +86 18201758056
Product Parameters:
| Laser type | MOPA |
| Model | 100-M8-M-R |
| M² typical Value | 1.4 |
| Average power | 100 |
| Maxmum pulse energy | 0.58mJ@12ns |
| Full power frequency range | 200-4000 |
| Central wavelength | 1064 |
| Frequency adjustable range | 1-4000 |
| Pulse width | 6-100 |
| Output instablity | <5 |
| Supply voltage | 48V |
| Current demand | <10 |
| Environment supply current | >10 |
| Power | <480 |
| Polarization state | Random polarization |
| Spectral width@3db: | <30 |
| Resistance to high reflection or not | Yes |
| Beam diameter | 3.0±0.5 |
| Adjustable power range | 0~100 |
| Operating temperature range | 0~40 |
| Storage temperature | `-10~60℃ |

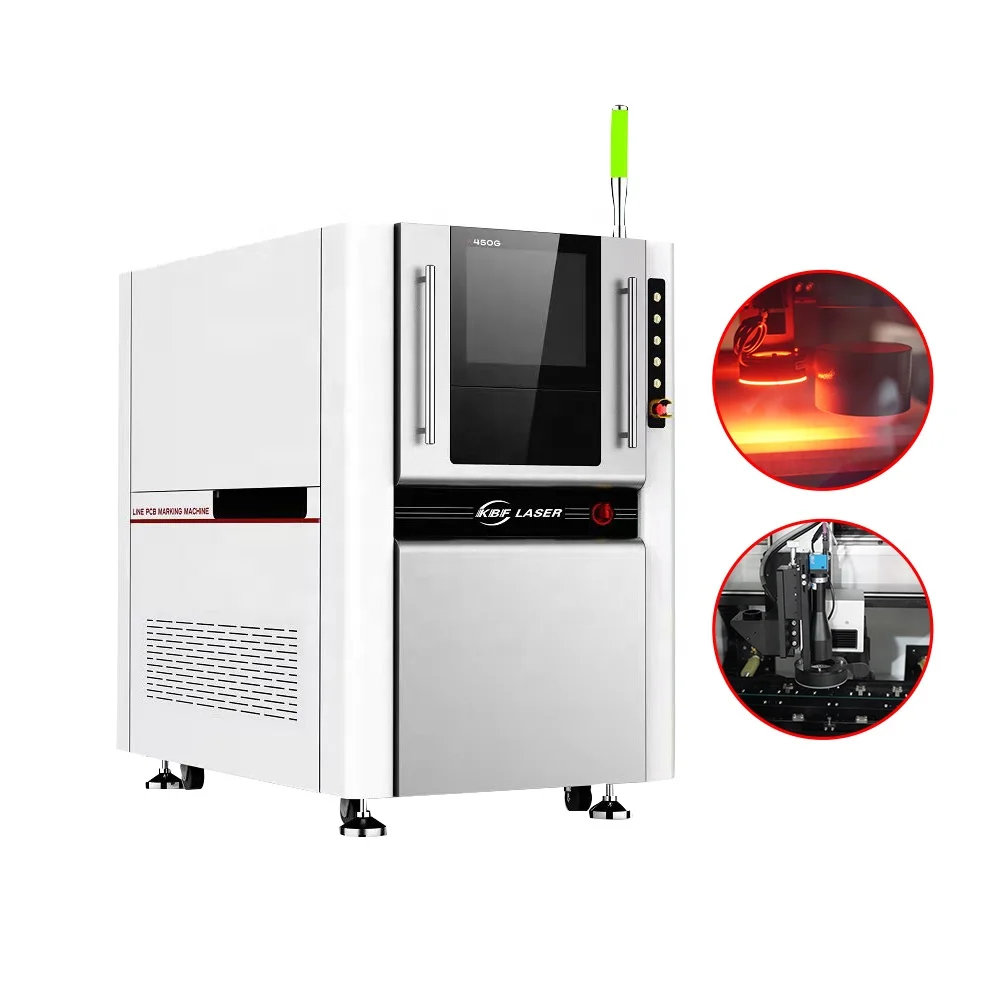

Main structure of the vutting and driling system:

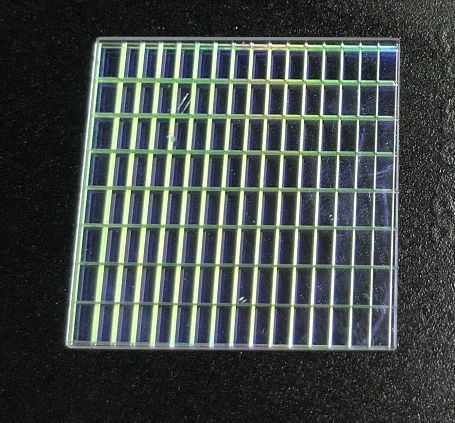

Pictures of the Working Effect Samples:

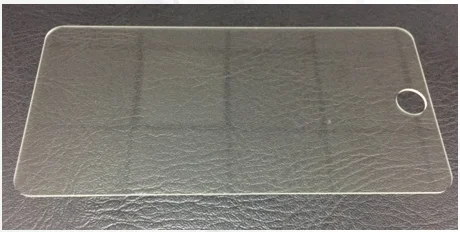

1.Corning 1.1mm glass cover plate cutting

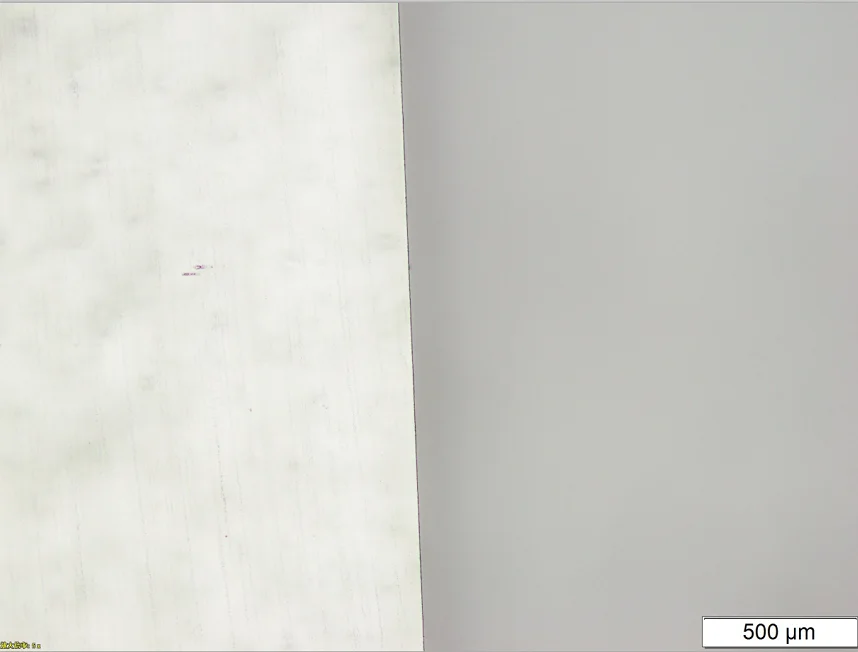

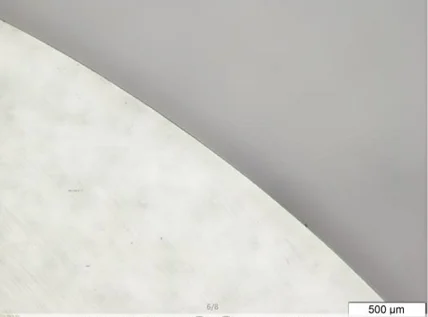

2. Line cut section, microscope 500X magnification 3.Circular cut, microscope 500X magnification
4.0.5mm camera cover glass 5.Cut the 1.1mm filter
1. Select high-power picosecond laser, core seed source, LD pump source and other core devices are provided by international first-line manufacturers, stable use;
2, special page glass cutting head, imported lenses from the United States, the spot is fine, the focus is long, the minimum focus spot 2um, the focal depth length can reach 3mm;
3, the use of natural marble motor platform, optical platform base, after two fine grinding processing, precision level of 00;
4, X/Y axis motor adopts Singapore high-end linear motor, Germany 0.1um digital grating ruler, Z axis adopts Taiwan screw and guide rail, high quality core moving parts, 24 hours operation without fault;
5, the use of high negative pressure vacuum pump adsorption products, ensure positioning stability;
6, device alignment CCD and telecentric vision lens, accurate identification of circle, cross and other types of Mark points;
7, electrical components using France Schneider, switching power supply using Taiwan Mingwei, quality assurance.
