Product Description

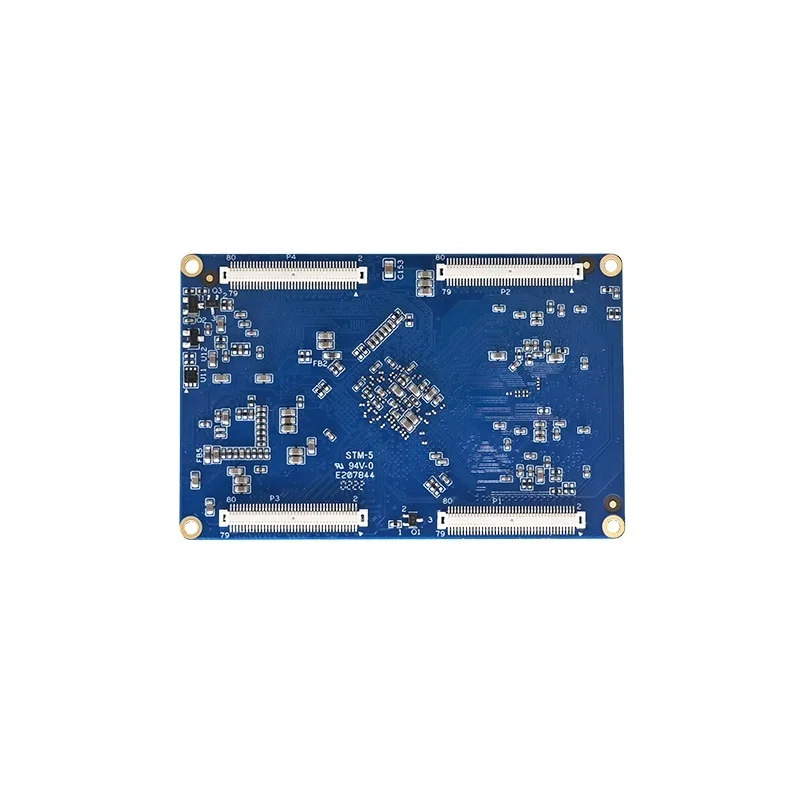

4GB RAM and 32GB ROM sommodule based on RK3568 for openwrt development
Advanced and robust

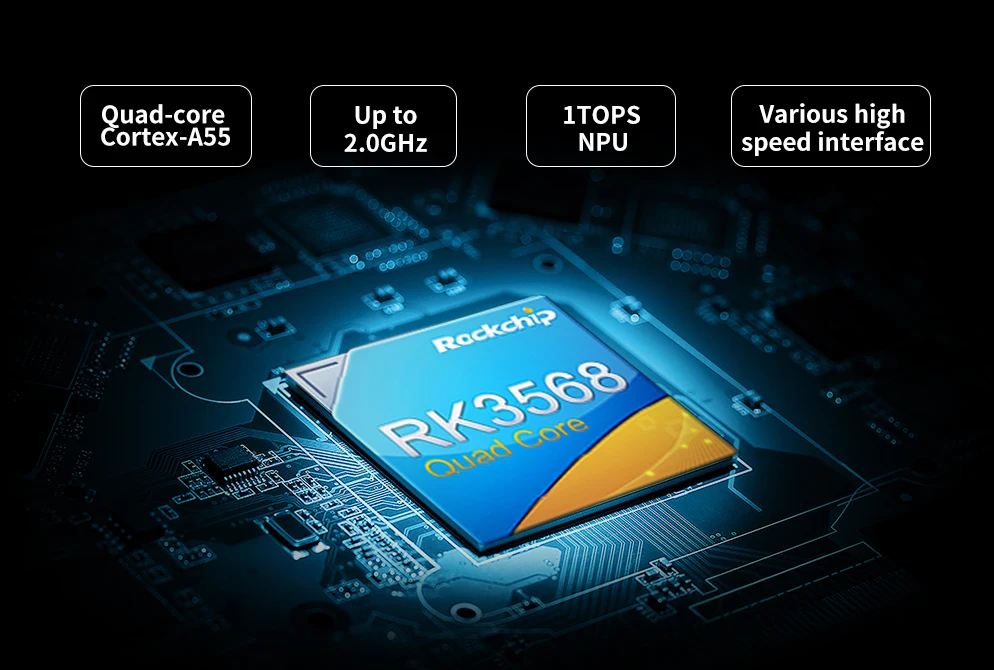

FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm processing technology, running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.

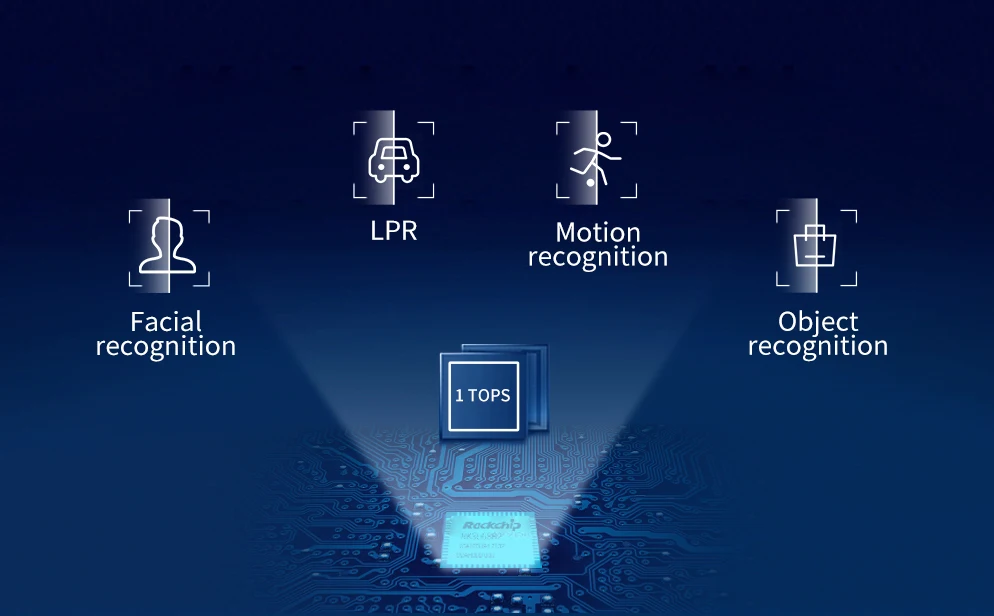

Built-in NPU
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffecan be easily converted.

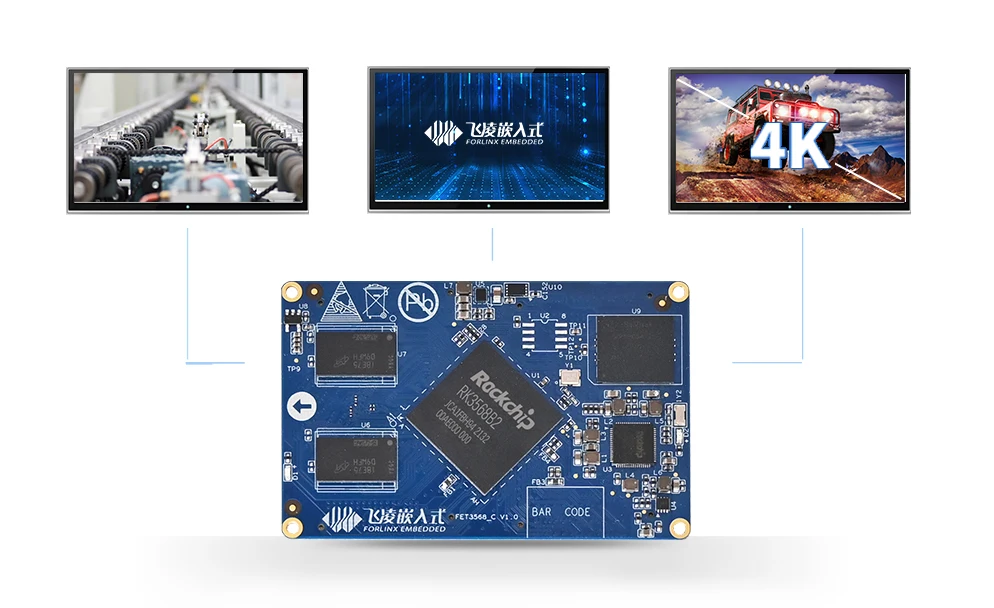

Various display interfaces, supports three displays with different frames
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K, which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful video codec performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding, and can support multiple video sources decoding simultaneously, support HDR10 with excellent performance in color and dynamic range; FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
High-scalability
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
OS Supporting
FET3568-C SoM supports Linux 4.19 and Android 11 operating systems that deeply optimized, which ensures high-stability for long-last running.
SoM FET3568-C Features | ||||||
CPU | Rockchip RK3568 quad-core Cortex-A55@2.0GHz |
GPU | • Mali-G52-2EE |
• OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0 | |
NPU | 1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation. |
VPU | Decode: |
• H.264, H.265, VP9: up to 4096x2304@60fps | |
• VP8: up to 1920x1088@60fps | |
• VC1, MPEG-4, MPEG-2, MPEG-1: up to 1920x1088@60fps | |
• H.263: up to 720x576@60fps | |
Encode: | |
H.264/AVC, H.265/HEVC: up to 1920x1080@60fps | |
RAM | 2GB |
Flash | 16GB eMMC |
Working Temp | 0℃ to +70℃ |
Dimensions | 45x 70mm |
Voltage Input | DC 5V |
OS | Linux4.19+Qt5.12, Android11* |
Display | 3 |
3 display controllers which can support simultaneous output of any 3 combination in RGB, LVDS, MIPI DSI, HDMI and eDP | |
• RGB: RGB888, resolution up to 1280x800; | |
• LVDS: single-lane output, up to 1280x800, multiplexed with MIPI-DSI0; | |
• MIPI-DSI: single-lane output, up to 1920x1080@60Hz; dual-lane output up to 2560*1440@60Hz; | |
• HDMI: up to 1080p@120Hz or 4096x2304@60Hz; | |
• eDP: eDP 1.3, up to 2560x1600@60Hz; | |
Audio | 1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM. |
Camera | 1x 4-lane MIPI-CSI |
1x DVP | |
SDIO | SDIO 3.0, throughout up to 104MB/S |
Ethernet | 2x GMAC by RGMII/ RMII |
USB2.0 | 2x USB2.0 Host(separately, but not multiplxed with USB3.0) |
USB2.0 | 1x USB2.0 Host, 1x USB2.0 OTG, could be configured to USB2.0 contained in USB3.0, when USB3.0 is not needed, it could be used as 2 separate USB2.0 |
USB3.0 | 2, 1x USB3.0 Host, 1x USB3.0 OTG |
SATA | SATA3.0, up to 6.0Gb/ s, supports eSATA |
PCIe2.1 | 1, up to 5.0Gbps, RC mode |
PCIe3.0 | 2x PCIe 3.0 |
1x 2-lane or 2x 1-lane, each lane up to 8.0Gbps | |
1-lane can only support Root Complex(RC) mode | |
2-lane can support both Root Complex(RC) mode and End Point(EP) mode | |
UART | 10, up to 4Mbps |
CAN | 3, supports CAN-FD and CAN2.0B |
SPI | 4, host mode and slave mode are configurable |
IIC | 5, supports 7-bit and 10-bit address mode, up to 1Mbit/s |
PWM | 16, 32-bit timer/ counter |
Technical Support
Packing & Delivery
Accessory of a development board including power adapter, debug cable
generally, the packing will be a development board a box (23*19*9cm)
About Us
Founded in 2007, Forlinx Embedded Tech. Co., Ltd. is a leading provider of trusted technology based embedded products and solutions. Forlinx offers comprehensive hardware design, system integration and product selling with global logistics support.
Aiming at providing customers with good-quality, high-performance products and service, Forlinx set up an R&D center in Beijing except in its headquarter city and got IDH authority of TI and Freescale in China mainland. With an excellent and experienced R&D team, stable supplying chain and powerful sales force, Forlinx has launched TI AM335x series, i.MX6 series based single board computers and system on modules, and also Samsung processors based development platforms to take users ready-to-use and easy-going development platforms, which help clients to shorten their product time-to-market.
In the future, we will spare no efforts to continue to take customers' demand as the guidance and in a spirit of innovation and enterprising to take customers more professional and efficient products and service.
Certifications
Exhibition
Похожие товары
Профессиональный светодиодный 900 45 Вт мягкий свет для видеосъемки на батарейках теплый холодный белый студийный свет со штативом
Sayoon ce по ограничению на использование опасных материалов в производстве производитель general electric серии нормально закрытый высокого напряжения автоматический замыкатель постоянного тока реле 300amp SEV300BH
39,59 $ - 41,67 $
Сорбитан сесквиолеат Span 83 CAS 8007-43-0 оптом в наличии
Лазерная резка деревянные слова символ Хамса чакра баннер каменная основа Мандала настенное украшение деревянная кристальная сетка

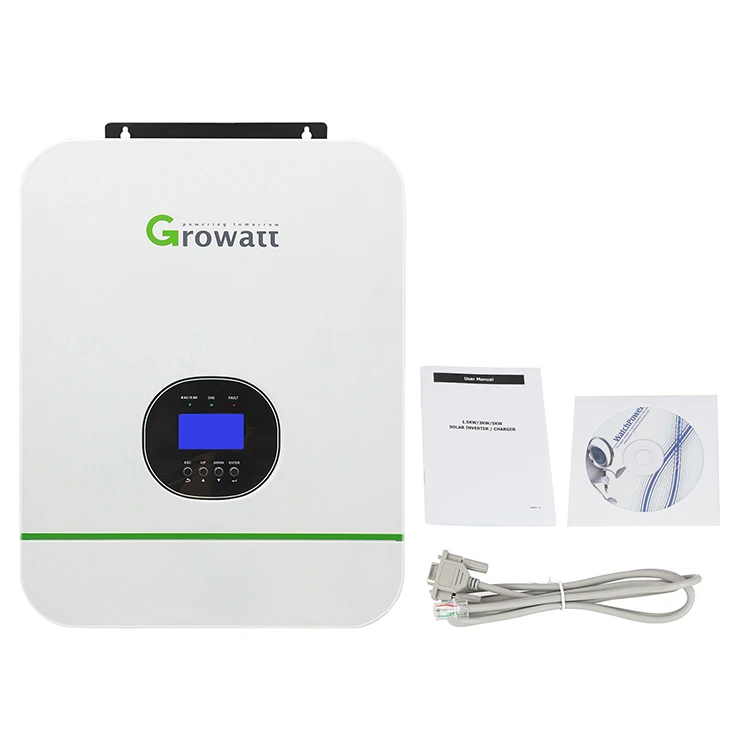

Инверторы солнечных батарей Growatt, 5000 Вт, 48 в пост. Тока, в перем. Тока, в перем. Тока, с функцией параллельного подключения, SPF 5000TL HVM-WPV 5 кВт
602,00 $ - 622,30 $

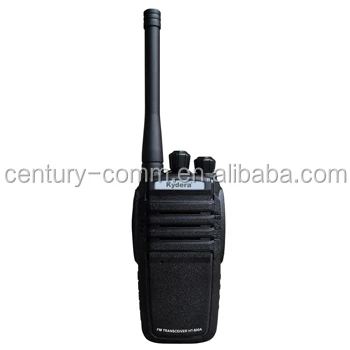

Kydera 8W дешевые аналоговые портативные рации HT-800 дальний Рабочий диапазон

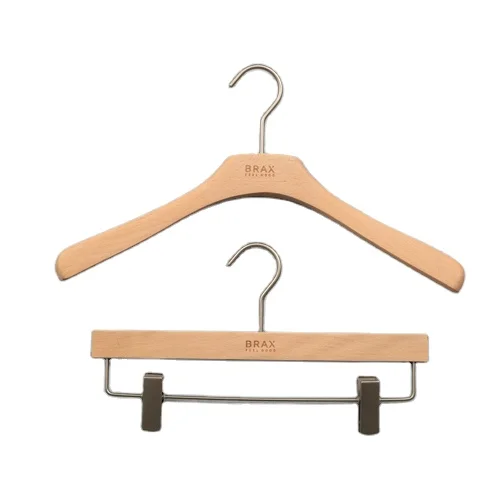

Экологически чистая деревянная вешалка из красного дерева стандартный размер вешалки для пальто
